MERCEDES-BENZ E350 4MATIC WAGON 2007 S211 Owner's Manual

460 Practical hintsFlat tire
Take the electric air pump out of the
cargo compartment (
page 431).
1Flap
2On/off switch
3Electrical plug
4Air hose with pressure gauge and vent
screw
5Union nut

Open flap 1 on electric air pump.

Pull out electrical plug 3 and air hose
with pressure gauge 4.

Remove the valve cap from the
collapsible tire valve.

Screw union nut5 onto the collaps-
ible tire valve.

Insert electrical plug 3 into vehicle
cigarette lighter socket (
page 286).

Turn the SmartKey in the starter switch
to position1.

PressI on electric air pump switch 2.
The electric air pump should now
switch on and inflate the collapsible
tire.

Inflate the tire to approximately 51 psi
(3.5 bar).
This takes about 5 minutes for the col-
lapsible tire. Air hose 4 and union
nut5 can become hot during infla-
tion. Exercise proper caution to avoid
burning yourself when using the equip-
ment.

Press0 on electric air pump switch 2.

Turn the SmartKey in the starter switch
to position0.

If the tire pressure is above 51 psi
(3.5 bar), release excess tire pressure
using the vent screw.
Warning!
G
Observe instructions on air pump label.!
Do not lower the vehicle before inflating the
collapsible tire. Otherwise the rim may be dam-
aged.
!
Do not operate the electric air pump longer
than 8 minutes without interruption. Otherwise it
may overheat.
You may operate the electric air pump again af-
ter it has cooled off.


461 Practical hints
Flat tire

Detach the electric air pump.

Store the electrical plug 3 and the air
hose 4 behind the flap 1 and place
the electric air pump back in the desig-
nated storage space underneath the
cargo compartment floor
(page 430).Lowering the vehicle

Lower vehicle by turning crank coun-
terclockwise until vehicle is resting ful-
ly on its own weight.

Remove the jack.
1-5 Wheel bolts

Tighten the five wheel bolts evenly, fol-
lowing the diagonal sequence illustrat-
ed (1 to 5), until all bolts are tight.
Observe a tightening torque of 96 lb-ft
(130 Nm).Before storing the jack, it should be fully
collapsed, with handle folded in (storage
position).

Store the jack and the other vehicle
tools in the designated storage space
underneath the cargo compartment
floor (
page 430).
Warning!
G
Follow recommend inflation pressures.
Do not overinflate tires. Overinflating tires
can result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes,
etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.
Warning!
G
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque of
96 lb-ft (130 Nm).i
Wrap the damaged wheel in the protective
film that comes with the spare wheel and put the
wheel in the cargo compartment.
Vehicles with TPMS or Advanced TPMS*:
Do not activate the tire inflation pressure moni-
tor until a full size wheel/tire with functioning
sensor has been placed back into service on the
vehicle.

462 Practical hintsBatteryThe battery is located in the cargo com-
partment on the right-hand side under a
cover.
Pull cover up and detach it.1Positive terminal
2Negative terminal
3Lateral plug
4Battery ventilation hose
Warning!
G
Jump starting must only be done using the
designated terminal connections in the en-
gine compartment (
page 467).
Warning!
G
Failure to follow these instructions can re-
sult in severe injury or death.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 330).
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.

463 Practical hints
Battery
!
The battery is a v
alve-r
egulated l
ead a
cid
(VRLA) battery, also referred to as “fleece” bat-
tery. Such batteries do not require topping-up of
the electrolyte level. VRLA batteries therefore do
not have cell caps and the battery cover is
non-removable. Do not attempt to open the bat-
tery as otherwise the battery will be damaged.
Even though VRLA batteries do not require top-
ping-up of the electrolyte level and cannot be
opened to check the electrolyte level, the bat-
tery condition must be checked periodically by
performing a battery conductance test. Refer to
Maintenance Booklet for battery condition test-
ing intervals.
As with any other battery, disconnect the battery
if you do not intend to operate your vehicle for an
extended period of time to prevent battery dis-
charge or connect an accessory battery charge
unit expressly approved by Mercedes-Benz for
your vehicle model to maintain the battery
charge. Contact an authorized Mercedes-Benz
Center for further information.
!
The factory-equipped VRLA battery is
leak-proofed. Only use a battery as replacement
that has the same security features and is of
identical size, voltage, and capacity as the facto-
ry-equipped battery.
The battery, the battery ventilation hose and the
lateral plug must always be securely installed
when the vehicle is in operation.
!
Never loosen or detach battery terminal
clamps while the engine is running or the Smart-
Key is in the starter switch. Otherwise the alter-
nator and other electronic components could be
severely damaged.
Have the battery checked regularly by an autho-
rized Mercedes-Benz Center.
Refer to Maintenance Booklet for maintenance
intervals or contact an authorized
Mercedes-Benz Center for further information.
Warning!
G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.

464 Practical hintsBatteryDisconnecting the battery
Depress the parking brake pedal.

Make sure the gear selector lever is set
to positionP.

Turn off all electrical consumers.

Remove SmartKey from starter switch.
Vehicles with KEYLESS-GO*:
Press the start/stop button until
the engine shuts off.

Open the driver’s door.

Open the cargo compartment.

Read and observe safety instructions
and precautions (
page 330) and
(
page 462).

Access the cargo compartment under-
neath the third row seat cushions and
footwell (
page 431).

Remove cover to access battery
(page 462).

Disconnect battery negative lead from
negative terminal2 (
page 462).

Remove cover1 (
page 462) from
the positive terminal.

Disconnect the battery positive lead.
Removing the battery
1Spacer
2Battery
3Battery bracket
Remove the screw-nuts securing the
battery.

Remove the battery bracket3.

Remove spacer1 from the battery’s
ventilation hose.
Warning!
G
With a disconnected battery

you will no longer be able to turn the
SmartKey in the starter switch and
pressing the KEYLESS-GO* start/stop
button on the gear selector lever will
have no effect


the gear selector lever will remain
locked in positionP
!
Always disconnect the battery in the order
described below. Otherwise the vehicle’s
electronics can be damaged.

465 Practical hints
Battery

Pull out the battery ventilation hose4
(page 462) from the battery (de-
pending on battery arrangement in
your vehicle model, the ventilation
hose is located either on the left or
right side of the battery).

Take out the battery.
Charging and reinstalling the battery

Charge battery in accordance with the
instructions of the battery charger
manufacturer.

Reinstall the charged battery. Follow
the previously described steps in re-
verse order.
Reconnecting the battery
Turn off all electrical consumers.

Connect the battery positive lead and
fasten its cover.

Connect the battery negative lead.
Warning!
G
Never charge a battery while still installed in
the vehicle unless the accessory battery
charge unit* approved by Mercedes-Benz is
being used. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.
An accessory battery charge unit* specially
adapted for Mercedes-Benz vehicles and
tested and approved by Mercedes-Benz is
available, permitting the charging of the bat-
tery in its installed position. Contact an au-
thorized Mercedes-Benz Center for
information and availability. Charge battery
in accordance with the separate instruc-
tions for the accessory battery charger*.!
The battery and the battery ventilation hose
must always be securely installed when the vehi-
cle is in operation.
!
Always connect the battery in the order de-
scribed below. Otherwise the vehicle’s electron-
ics can be damaged.
!
Never invert the terminal connections!
i
The following procedures must be carried
out following any interruption of battery power
(e.g. due to reconnection):


Set the clock (
page 174) (see COMAND
operator’s manual).


Synchronize the side windows
(page 241).


Synchronize the tilt/sliding sunroof
(page 245).

466 Practical hintsJump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
when the engine and catalytic
converter are cold.


Do not start the engine if the battery is
frozen. Let the battery thaw out first.


Only jump start from batteries with the
same voltage rating (12 V). Jump start-
ing with a higher voltage battery could
damage the vehicle’s electrical system,
which will not be covered by the
Mercedes-Benz Limited Warranty.


Only use jumper cables with sufficient
cross-section and insulated terminal
clamps.


Always make sure the jumper cables
are not on or near pulleys, fans or other
parts that move when the engine is
started or running.

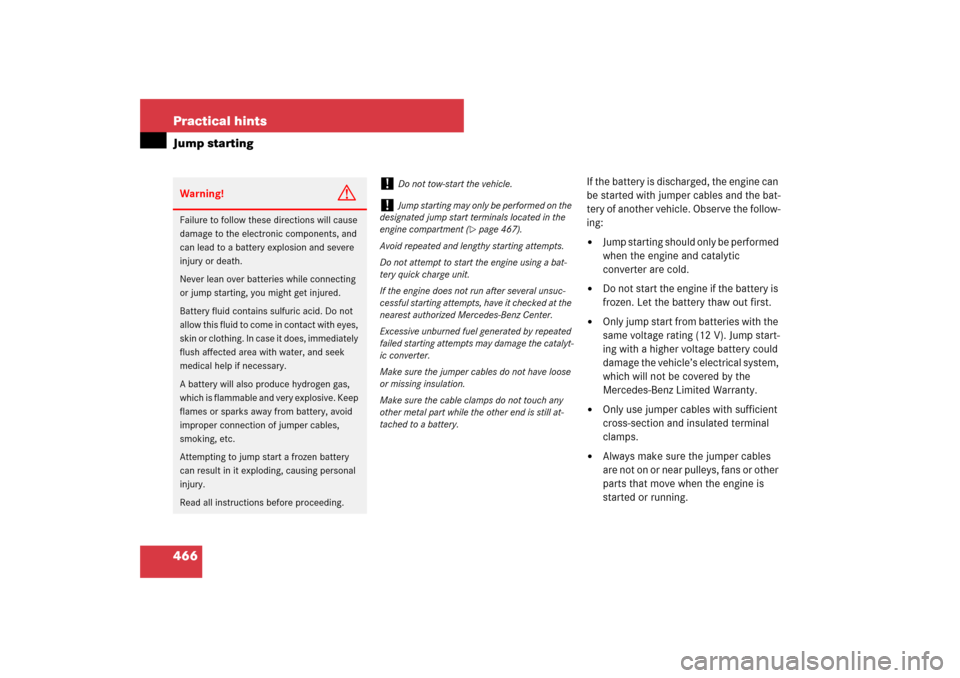

Warning!
G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!
Do not tow-start the vehicle.
!
Jump starting may only be performed on the
designated jump start terminals located in the
engine compartment (
page 467).
Avoid repeated and lengthy starting attempts.
Do not attempt to start the engine using a bat-
tery quick charge unit.
If the engine does not run after several unsuc-
cessful starting attempts, have it checked at the
nearest authorized Mercedes-Benz Center.
Excessive unburned fuel generated by repeated
failed starting attempts may damage the catalyt-
ic converter.
Make sure the jumper cables do not have loose
or missing insulation.
Make sure the cable clamps do not touch any
other metal part while the other end is still at-
tached to a battery.

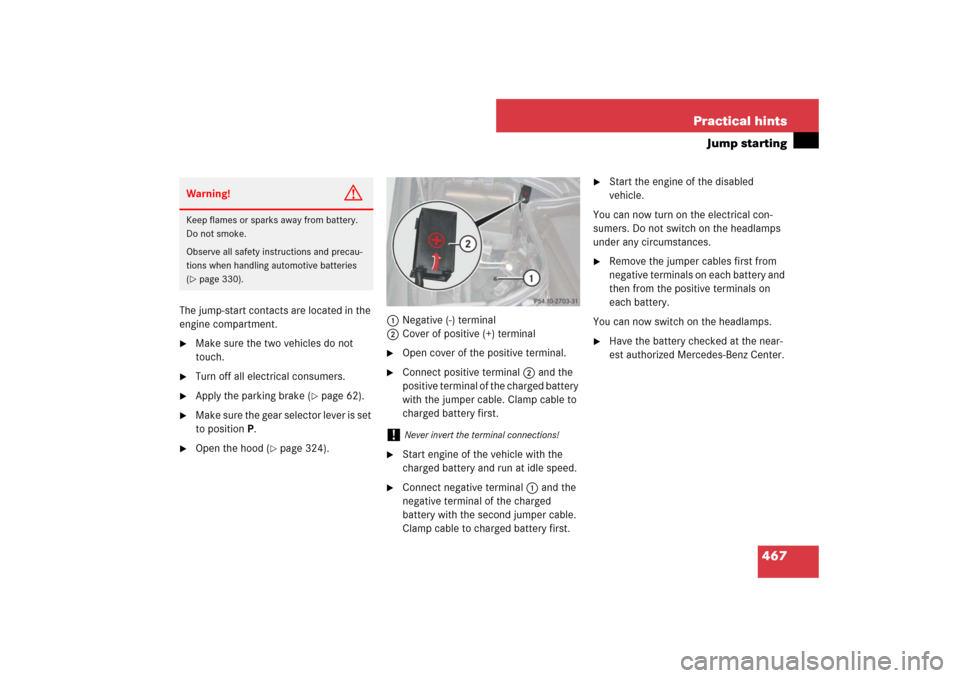

467 Practical hints
Jump starting
The jump-start contacts are located in the
engine compartment.
Make sure the two vehicles do not
touch.

Turn off all electrical consumers.

Apply the parking brake (
page 62).

Make sure the gear selector lever is set
to positionP.

Open the hood (
page 324).1Negative (-) terminal
2Cover of positive (+) terminal

Open cover of the positive terminal.

Connect positive terminal 2 and the
positive terminal of the charged battery
with the jumper cable. Clamp cable to
charged battery first.

Start engine of the vehicle with the
charged battery and run at idle speed.

Connect negative terminal1 and the
negative terminal of the charged
battery with the second jumper cable.
Clamp cable to charged battery first.

Start the engine of the disabled
vehicle.
You can now turn on the electrical con-
sumers. Do not switch on the headlamps
under any circumstances.

Remove the jumper cables first from
negative terminals on each battery and
then from the positive terminals on
each battery.
You can now switch on the headlamps.

Have the battery checked at the near-
est authorized Mercedes-Benz Center.
Warning!
G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(page 330).
!
Never invert the terminal connections!

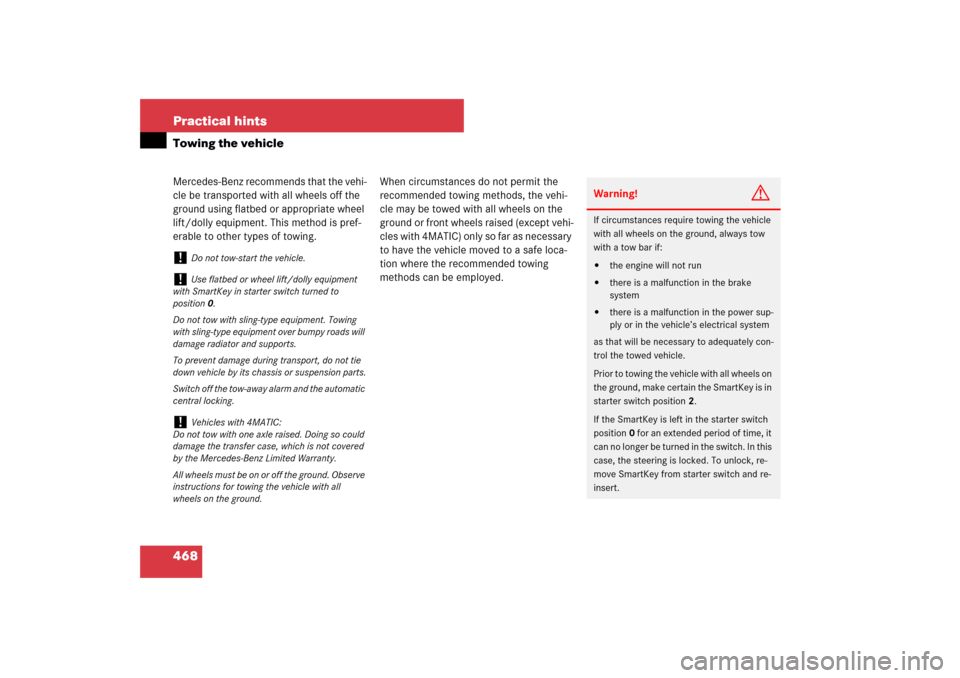

468 Practical hintsTowing the vehicleMercedes-Benz recommends that the vehi-
cle be transported with all wheels off the
ground using flatbed or appropriate wheel
lift/dolly equipment. This method is pref-
erable to other types of towing.When circumstances do not permit the
recommended towing methods, the vehi-
cle may be towed with all wheels on the
ground or front wheels raised (except vehi-
cles with 4MATIC) only so far as necessary
to have the vehicle moved to a safe loca-
tion where the recommended towing
methods can be employed.!
Do not tow-start the vehicle.
!
Use flatbed or wheel lift/dolly equipment
with SmartKey in starter switch turned to
position0.
Do not tow with sling-type equipment. Towing
with sling-type equipment over bumpy roads will
damage radiator and supports.
To prevent damage during transport, do not tie
down vehicle by its chassis or suspension parts.
Switch off the tow-away alarm and the automatic
central locking.
!
Vehicles with 4MATIC:
Do not tow with one axle raised. Doing so could
damage the transfer case, which is not covered
by the Mercedes-Benz Limited Warranty.
All wheels must be on or off the ground. Observe
instructions for towing the vehicle with all
wheels on the ground.
Warning!
G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run


there is a malfunction in the brake
system


there is a malfunction in the power sup-
ply or in the vehicle’s electrical system
as that will be necessary to adequately con-
trol the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make certain the SmartKey is in
starter switch position2.
If the SmartKey is left in the starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock, re-
move SmartKey from starter switch and re-
insert.

469 Practical hints
Towing the vehicle
Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.!
If the vehicle is towed with the front axle
raised (not permissible for vehicles with
4MATIC), the gear selector lever must be in
positionN and the engine must be shut off
(SmartKey in starter switch position0 or1).
Active braking action through the ESP
® may
otherwise seriously damage the brake system.
When towing the vehicle with all wheels on the
ground, the gear selector lever must be in
positionN and the SmartKey must be in starter
switch position2.
When towing the vehicle with all wheels on the
ground or the front axle raised, the vehicle may
be towed only for distances up to 30 miles
(50 km) and at a speed not to exceed 30 mph
(50 km/h).
!
Towing of the vehicle should only be done
using the properly installed towing eye bolt.
Never attach tow cable, tow rope or tow rod to
the vehicle chassis, frame or suspension parts.
i
When towing the vehicle with all wheels on
the ground, please note the following:
With the automatic central locking activated and
the SmartKey in starter switch position2, or
KEYLESS-GO
* start/stop button in position2,
the vehicle doors lock if the left front wheel as
well as the right rear wheel are turning at vehicle
speeds of approximately 9 mph (15 km/h) or
more.
To prevent the vehicle door locks from locking,
deactivate the automatic central locking
(
page 126).
i
To signal turns while being towed with the
hazard warning flasher in use, turn SmartKey in
starter switch to position2 and activate the
combination switch for the left or right turn sig-
nal in the usual manner – only the selected turn
signal will operate.
Upon canceling the turn signal, the hazard warn-
ing flasher will operate again.
i
The gear selector lever will remain locked in
positionP and the SmartKey will not turn in the
starter switch if the battery is disconnected or
discharged. For more information, see “Batter-
ies” (page 462) and “Jump starting”
(
page 466).
For information on manual unlocking of the gear
selector lever, see (
page 437).
