MERCEDES-BENZ E350 4MATIC WAGON 2007 S211 Owner's Manual

450 Practical hintsReplacing wiper blades
Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Make sure the vehicle’s on-board
electronics have status0
(page 39).

Fold the wiper arm away from the vehi-
cle until it engages.
1Wiper blade
2Tab
3Attachment
4Removing

Turn the wiper blade1 at a right angle
to wiper arm.

Press tab2 down and push wiper
blade1 downward in direction of
arrow4.

Remove wiper blade1.
Installing rear wiper blade
1Wiper blade
2Tab
3Attachment
4Installing

Slide the wiper blade1 into
attachment3 in direction of
arrow4.

Let tab2 latch into attachment3
until it locks in place.

Check if the wiper blade is securely fas-
tened.

Fold the wiper arm back towards the
vehicle to rest on the rear windshield.
Make sure you hold on to the wiper arm
when folding it back.
!
Do not pull on the wiper blade inserts. They
could tear.


451 Practical hints
Flat tire
Flat tire
Preparing the vehicle
Park the vehicle in a safe distance from
moving traffic on a hard, flat surface
when possible.

Turn on the hazard warning flasher
(page 148).

Turn the steering wheel so that the
front wheels are in a straight ahead po-
sition.

Set the parking brake (
page 62).

Move the gear selector lever toP.
Vehicles with SmartKey:

Turn off the engine (
page 63).

Remove the SmartKey from the starter
switch.Vehicles with SmartKey with
KEYLESS-GO*:

Turn off the engine by pressing the
KEYLESS-GO* start/stop button on the
gear selector lever once (
page 64).

Open the driver’s door (this puts the ig-
nition in position0, same as with the
SmartKey removed from the starter
switch). The driver’s door then can be
closed again.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Sealing tires with TIREFIT
E 63 AMG vehicles with foldable third row
seat are equipped with TIREFIT.
Small tire punctures, particularly those in
the tread, can be sealed with TIREFIT.
TIREFIT can be used in ambient tempera-
tures down to -4°F (-20°C).
i
Open door only when conditions are safe to
do so.
Warning!
G
Keep TIREFIT away from sparks, open flame
or heat source.
Do not smoke.

452 Practical hintsFlat tire
Foreign objects (e.g. screws or nails)
should not be removed from the tire.

Take TIREFIT, the sticker, and the elec-
tric air pump out of the cargo compart-
ment.

Attach the sticker where it will be easily
seen by the driver on the instrument
cluster.1TIREFIT container
2Flap
3Notch
4Electrical plug
5Air hose
6Flange

Open flap2 on the electric air pump.

Pull plug4 and air hose5 out of the
pump housing.

Screw the air pump’s air hose5 onto
flange6 of the TIREFIT container.
Warning!
G
TIREFIT is a limited repair device. TIREFIT
cannot be used for cuts or punctures larger
than approximately 0.16 in (4 mm) and tire
damage caused by driving with extremely
low tire inflation pressure, or on a flat tire, or
a damaged wheel.
Do not drive the vehicle under such circum-
stances.
Contact your nearest Mercedes-Benz
Center for assistance or call Roadside
Assistance.
Warning!
G
Take care not to allow the contents of
TIREFIT to come in contact with hair, eyes or
clothing. TIREFIT is harmful if inhaled, swal-
lowed or absorbed through the skin - causes
skin, eye and respiratory irritation.
Any contact with eyes or skin should be
flushed immediately with plenty of water.
If clothing comes in contact with TIREFIT,
change clothing as soon as possible.
In case of allergic reaction or rash, consult a
physician immediately.Warning!
G
Keep TIREFIT out of reach of children.
If swallowed, rinse mouth immediately with
plenty of water and drink plenty of water.
Do not induce vomiting!
Consult a physician immediately.
Keep away from open flame or heat source.
i
If sealant has leaked out, let it dry. You can
then peel it off.

453 Practical hints
Flat tire

Stick TIREFIT container1 upside
down into notch3 of the electric air
pump.
7Tire valve
8Electric air pump switch
9Air hose with pressure gauge and vent
screw
aFiller hose

Unscrew the valve cap from tire
valve7.

Screw filler hosea onto tire valve7.

Insert electrical plug4 into the vehi-
cle cigarette lighter socket
(page 286).

Turn the SmartKey in the starter switch
to position1 (
page 37).
or

Press the KEYLESS-GO* start/stop
button (
page 39) on the gear selec-
tor lever once. Do not depress brake
pedal.

PressI on electric air pump switch8.
The electric air pump should now
switch on and inflate the tire.After 5 minutes, the pressure gauge must
display at least 26 psi (1.8 bar). The air
hose can become hot during inflation.
Please exercise appropriate caution.

If this tire inflation pressure is not at-
tained, turn off the electric air pump,
detach the filler hose from the tire
valve, and drive vehicle back and forth
very slowly approximately 30 ft (10 m).
This serves to better distribute the
TIREFIT sealant material inside the tire.

Unscrew the air pump’s air hose5
from flange6 of the TIREFIT contain-
er.

Screw air hose5onto tire valve7.

Inflate the tire again.
Warning!
G
Observe safety instructions on air pump la-
bel.
!
Do not operate the electric air pump longer
than 8 minutes without interruption. Otherwise it
may overheat.
You may operate the air pump again after it has
cooled off.


454 Practical hintsFlat tire
After attaining a tire inflation pressure
of 26 psi (1.8 bar), press0 on electric
air pump switch8.
The electric air pump should now be
switched off.

Turn the SmartKey in the ignition to
position0 (
page 37).
or

Press the KEYLESS-GO* start/stop
button (
page 39) on the gear selec-
tor lever twice. Do not depress brake
pedal.

Detach the electric air pump.
The air hose may still be hot. Please ex-
ercise appropriate caution.

Place the electric air pump back in the
cargo compartment.

Close the cargo compartment.

Drive away immediately.
The TIREFIT sealant will distribute itself
evenly inside the tire.

After driving vehicle for an initial
10 minutes, check tire inflation pres-
sure using the pressure gauge on the
air pump.
Warning!
G
If a tire inflation pressure of 26 psi (1.8 bar)
is not attained, tire is too severely damaged
for TIREFIT to provide a reliable tire repair.
In this case, TIREFIT cannot properly seal
the tire.
Do not drive the vehicle.
Contact the nearest Mercedes-Benz Center
or call Roadside Assistance.
Warning!
G
Do not exceed vehicle speed of
50 mph (80 km/h). A TIREFIT repair is not
designed to operate at higher speeds.
The sticker must be attached on the instru-
ment cluster where it will be easily seen by
the driver.
Vehicle handling characteristics may
change. Adapt your driving accordingly.


455 Practical hints
Flat tire

If tire inflation pressure is at least
20 psi (1.3 bar), inflate tire to correct
pressure (see placard on the driver’s
door B-pillar), and drive to the nearest
qualified workshop, e.g. an authorized
Mercedes-Benz Center to have the
damaged tire replaced.
Recommended duration of use: A
maximum of 300 miles (500 km) at or
below 50 mph (80 km/h) with the
recommended tire inflation pressure.

Visit an authorized Mercedes-Benz
Center as soon as possible to obtain a
new TIREFIT kit.

Bring used TIREFIT materials to an au-
thorized Mercedes-Benz Center for
proper disposal.

Replace your TIREFIT container every
four years. Replacement containers are
available at your authorized
Mercedes-Benz Center.
Warning!
G
If tire inflation pressure has fallen below
20 psi (1.3 bar) do not continue to drive the
vehicle.
Park your vehicle safely away from the road-
way and contact the nearest authorized
Mercedes-Benz Center or Roadside
Assistance.
Warning!
G
Follow recommend tire inflation pressures.
Do not overinflate tires. Overinflating tires
can result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes,
etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.
Warning!
G
Do not exceed vehicle speed of 50 mph
(80 km/h). A TIREFIT repair is not designed
to operate at higher speeds.
The sticker must be attached on the instru-
ment cluster where it will be easily seen by
the driver.
Vehicle handling characteristics may
change. Adapt your driving accordingly.

456 Practical hintsFlat tireMounting the spare wheel Preparing the vehicle
Prepare the vehicle as described
(
page 451).
Vehicles with Minispare wheel
(except E 63 AMG):

Take the Minispare wheel, wheel
wrench and the jack out of the cargo
compartment (
page 433).
Vehicles with collapsible tire (E 63 AMG
without folding third row seat only):

Take the collapsible tire, wheel wrench,
jack and electric air pump out of the
cargo compartment (
page 433).Lifting the vehicle

Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
or other sizeable objects.
One wheel chock is included with the
vehicle tool kit (
page 430).
When changing wheel on a level surface:

Place the wheel chock in front of and
another sizeable object behind the
wheel that is diagonally opposite to the
wheel being changed.
Always try lifting the vehicle using the jack
on a level surface. However, should
circumstances require you to do so on a
hill, place the wheel chock and the other
sizeable object as follows:

Place the wheel chock and another
sizeable object on the downhill side
blocking both wheels of the axle not
being worked on.
Warning!
G
The dimensions of the spare wheel
(Minispare or collapsible tire) are different
from those of the road wheels. As a result,
the vehicle handling characteristics change
when driving with a spare wheel mounted.
Adapt your driving style accordingly.
The spare wheel is for temporary use only.
When driving with spare wheel mounted,
ensure proper tire pressure and do not ex-
ceed a vehicle speed of 50 mph (80 km/h).
Drive to the nearest Mercedes-Benz Center
as soon as possible to have the spare wheel
replaced with a regular road wheel.
Never operate the vehicle with more than
one spare wheel mounted.
Do not switch off the ESP
® when a
Minispare wheel or spare wheel with
collapsible tire is mounted.

457 Practical hints
Flat tire

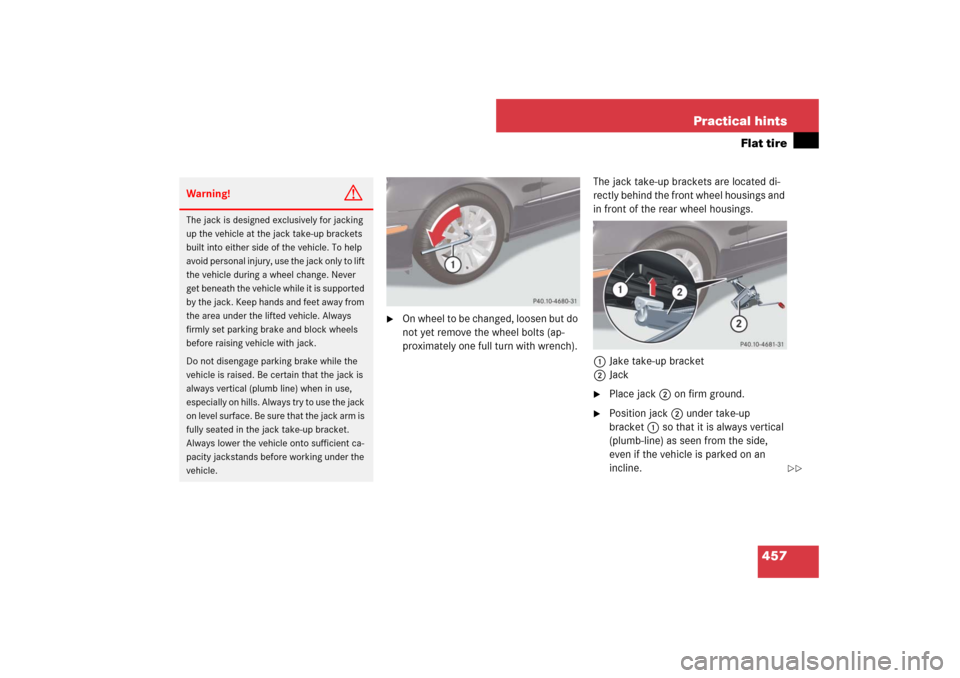

On wheel to be changed, loosen but do
not yet remove the wheel bolts (ap-
proximately one full turn with wrench). The jack take-up brackets are located di-
rectly behind the front wheel housings and
in front of the rear wheel housings.
1Jake take-up bracket
2Jack

Place jack2 on firm ground.

Position jack2 under take-up
bracket1 so that it is always vertical
(plumb-line) as seen from the side,
even if the vehicle is parked on an
incline.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into either side of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Be sure that the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.

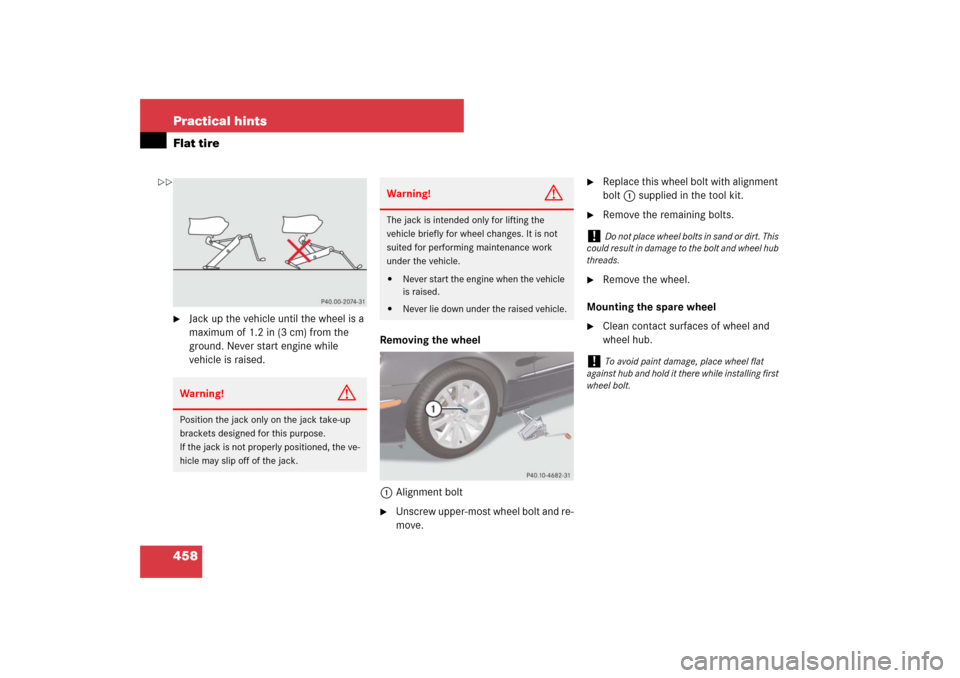

458 Practical hintsFlat tire
Jack up the vehicle until the wheel is a
maximum of 1.2 in (3 cm) from the
ground. Never start engine while
vehicle is raised.Removing the wheel
1Alignment bolt

Unscrew upper-most wheel bolt and re-
move.

Replace this wheel bolt with alignment
bolt1 supplied in the tool kit.

Remove the remaining bolts.

Remove the wheel.
Mounting the spare wheel

Clean contact surfaces of wheel and
wheel hub.
Warning!
G
Position the jack only on the jack take-up
brackets designed for this purpose.
If the jack is not properly positioned, the ve-
hicle may slip off of the jack.
Warning!
G
The jack is intended only for lifting the
vehicle briefly for wheel changes. It is not
suited for performing maintenance work
under the vehicle.

Never start the engine when the vehicle
is raised.


Never lie down under the raised vehicle.
!
Do not place wheel bolts in sand or dirt. This
could result in damage to the bolt and wheel hub
threads.
!
To avoid paint damage, place wheel flat
against hub and hold it there while installing first
wheel bolt.

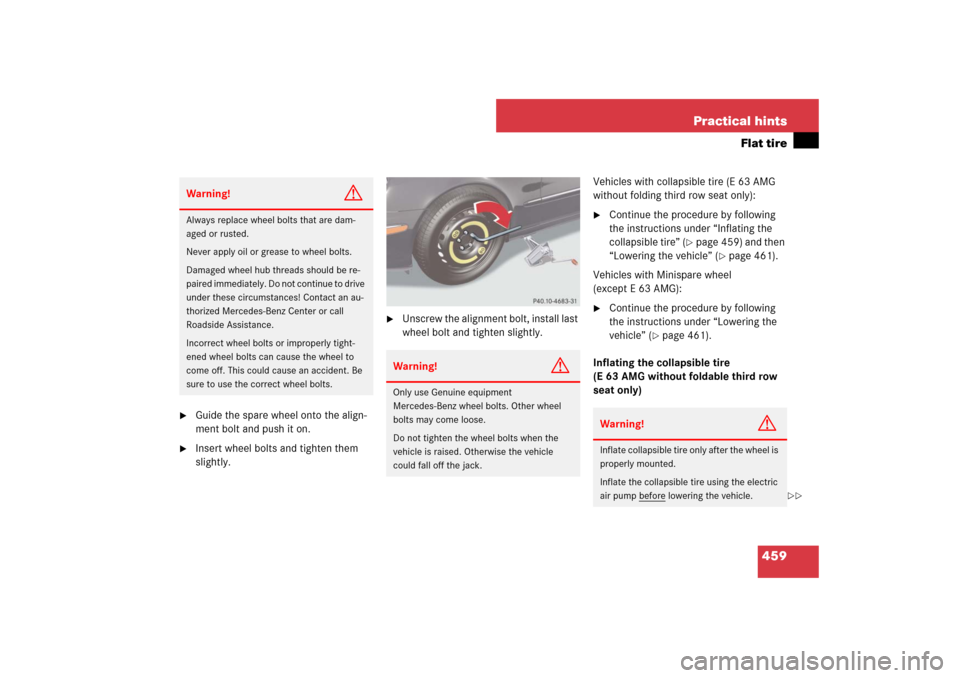

459 Practical hints
Flat tire

Guide the spare wheel onto the align-
ment bolt and push it on.

Insert wheel bolts and tighten them
slightly.

Unscrew the alignment bolt, install last
wheel bolt and tighten slightly.Vehicles with collapsible tire (E 63 AMG
without folding third row seat only):

Continue the procedure by following
the instructions under “Inflating the
collapsible tire” (
page 459) and then
“Lowering the vehicle” (
page 461).
Vehicles with Minispare wheel
(except E 63 AMG):

Continue the procedure by following
the instructions under “Lowering the
vehicle” (
page 461).
Inflating the collapsible tire
(E 63 AMG without foldable third row
seat only)
Warning!
G
Always replace wheel bolts that are dam-
aged or rusted.
Never apply oil or grease to wheel bolts.
Damaged wheel hub threads should be re-
paired immediately. Do not continue to drive
under these circumstances! Contact an au-
thorized Mercedes-Benz Center or call
Roadside Assistance.
Incorrect wheel bolts or improperly tight-
ened wheel bolts can cause the wheel to
come off. This could cause an accident. Be
sure to use the correct wheel bolts.
Warning!
G
Only use Genuine equipment
Mercedes-Benz wheel bolts. Other wheel
bolts may come loose.
Do not tighten the wheel bolts when the
vehicle is raised. Otherwise the vehicle
could fall off the jack.
Warning!
G
Inflate collapsible tire only after the wheel is
properly mounted.
Inflate the collapsible tire using the electric
air pump before
lowering the vehicle.
