MERCEDES-BENZ G-Class 2015 W463 Owner's Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2015, Model line: G-Class, Model: MERCEDES-BENZ G-Class 2015 W463Pages: 350, PDF Size: 6.44 MB

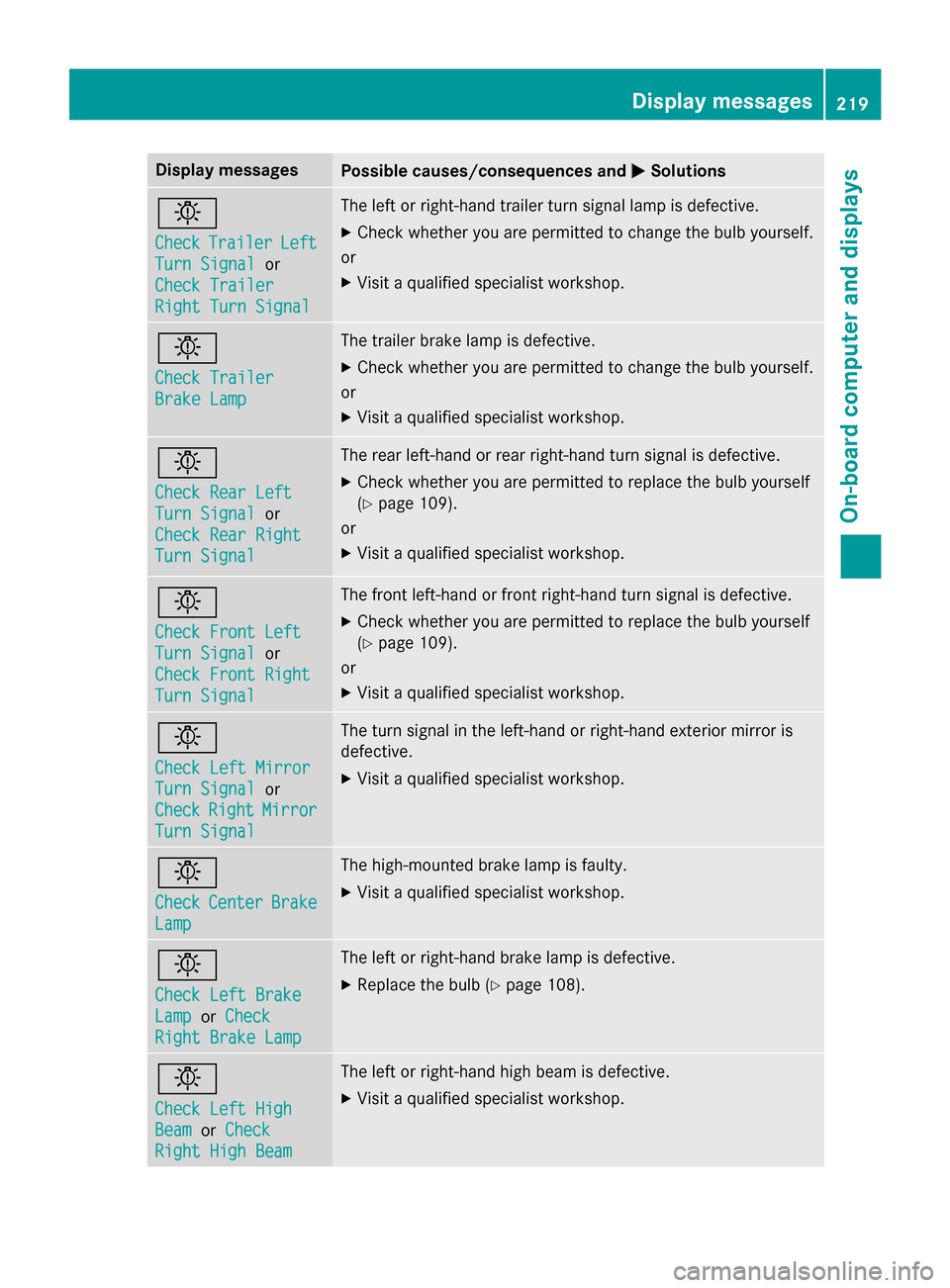

Page 221 of 350
Display messages
Possible causes/consequences and
M
MSolutions b
Check Check
Trailer
Trailer Left
Left
Turn Signal
Turn Signal or
Check Trailer
Check Trailer
Right Turn Signal Right Turn Signal The left or right-hand trailer turn signal lamp is defective.
X Check whether you are permitted to change the bulb yourself.
or X Visit a qualified specialist workshop. b
Check Trailer Check Trailer
Brake Lamp Brake Lamp The trailer brake lamp is defective.
X Check whether you are permitted to change the bulb yourself.
or X Visit a qualified specialist workshop. b
Check Rear Left Check Rear Left
Turn Signal Turn Signal
or
Check Rear Right
Check Rear Right
Turn Signal Turn Signal The rear left-hand or rear right-hand turn signal is defective.
X Check whether you are permitted to replace the bulb yourself
(Y page 109).
or
X Visit a qualified specialist workshop. b
Check Front Left Check Front Left
Turn Signal Turn Signal
or
Check Front Right
Check Front Right
Turn Signal Turn Signal The front left-hand or front right-hand turn signal is defective.
X Check whether you are permitted to replace the bulb yourself
(Y page 109).
or
X Visit a qualified specialist workshop. b
Check Left Mirror Check Left Mirror
Turn Signal Turn Signal
or
Check
Check Right
RightMirror
Mirror
Turn Signal
Turn Signal The turn signal in the left-hand or right-hand exterior mirror is
defective.
X Visit a qualified specialist workshop. b
Check Check
Center
Center Brake
Brake
Lamp
Lamp The high-mounted brake lamp is faulty.
X
Visit a qualified specialist workshop. b
Check Left Brake Check Left Brake
Lamp Lamp
orCheck
Check
Right Brake Lamp
Right Brake Lamp The left or right-hand brake lamp is defective.
X Replace the bulb (Y page 108). b
Check Left High Check Left High
Beam Beam
orCheck
Check
Right High Beam
Right High Beam The left or right-hand high beam is defective.
X Visit a qualified specialist workshop. Display
messages
219On-board computer and displays Z

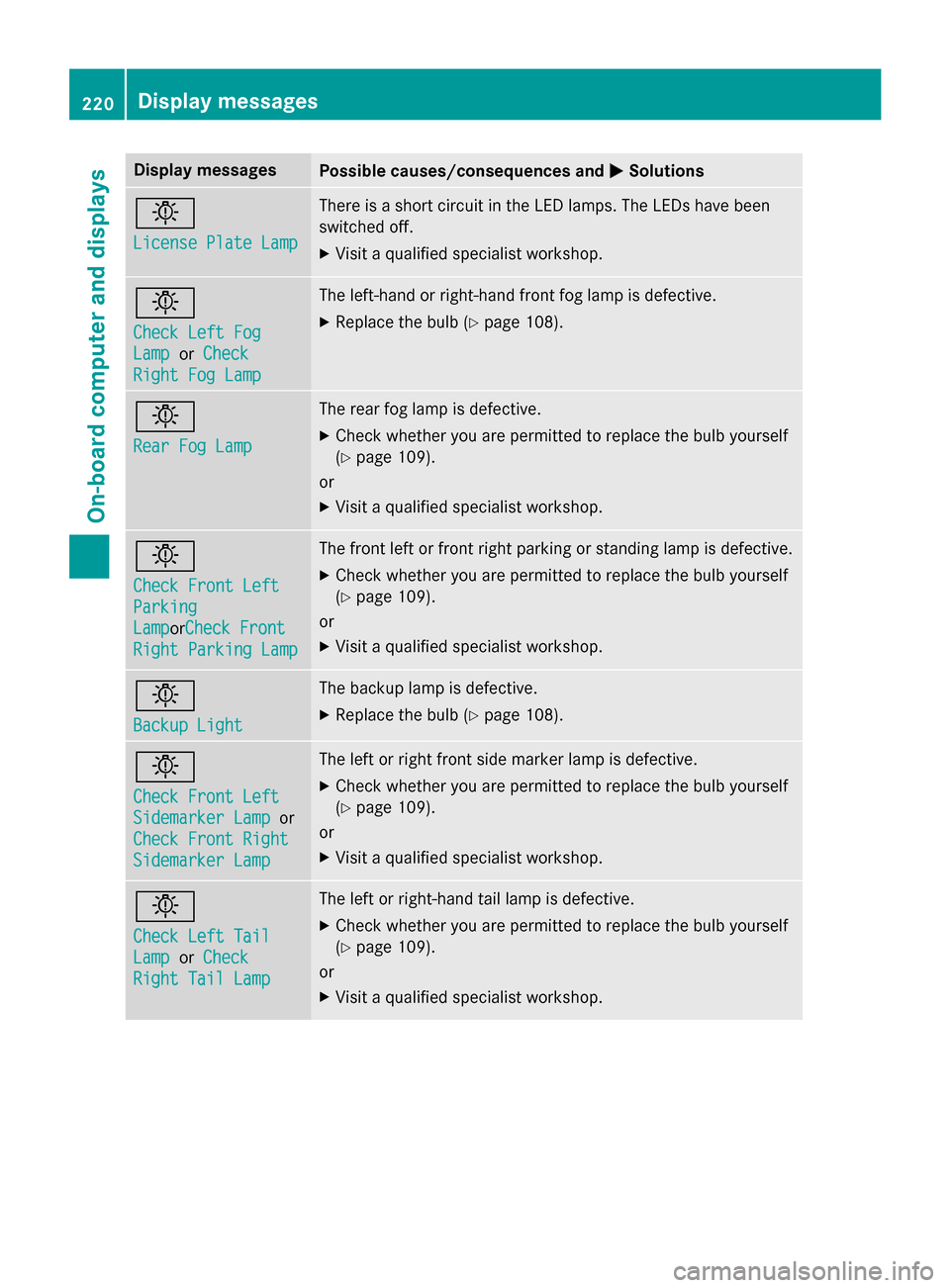

Page 222 of 350
Display messages
Possible causes/consequences and
M
MSolutions b
License Plate Lamp License Plate Lamp There is a short circuit in the LED lamps. The LEDs have been
switched off.
X Visit a qualified specialist workshop. b
Check Left Fog Check Left Fog
Lamp Lamp
orCheck
Check
Right Fog Lamp
Right Fog Lamp The left-hand or right-hand front fog lamp is defective.
X Replace the bulb (Y page 108).b
Rear Fog Lamp Rear Fog Lamp The rear fog lamp is defective.
X
Check whether you are permitted to replace the bulb yourself
(Y page 109).
or
X Visit a qualified specialist workshop. b
Check Front Left Check Front Left
Parking Parking
Lamp Lampor
Check Front
Check Front
Right Parking Lamp
Right Parking Lamp The front left or front right parking or standing lamp is defective.
X Check whether you are permitted to replace the bulb yourself
(Y page 109).
or
X Visit a qualified specialist workshop. b
Backup Light Backup Light The backup lamp is defective.
X Replace the bulb (Y page 108).b
Check Front Left Check Front Left
Sidemarker Lamp Sidemarker Lamp
or
Check Front Right
Check Front Right
Sidemarker Lamp Sidemarker Lamp The left or right front side marker lamp is defective.
X Check whether you are permitted to replace the bulb yourself
(Y page 109).
or
X Visit a qualified specialist workshop. b
Check Left Tail Check Left Tail
Lamp Lamp
orCheck
Check
Right Tail Lamp
Right Tail Lamp The left or right-hand tail lamp is defective.
X Check whether you are permitted to replace the bulb yourself
(Y page 109).
or
X Visit a qualified specialist workshop. 220
Display
messagesOn-board computer and displays

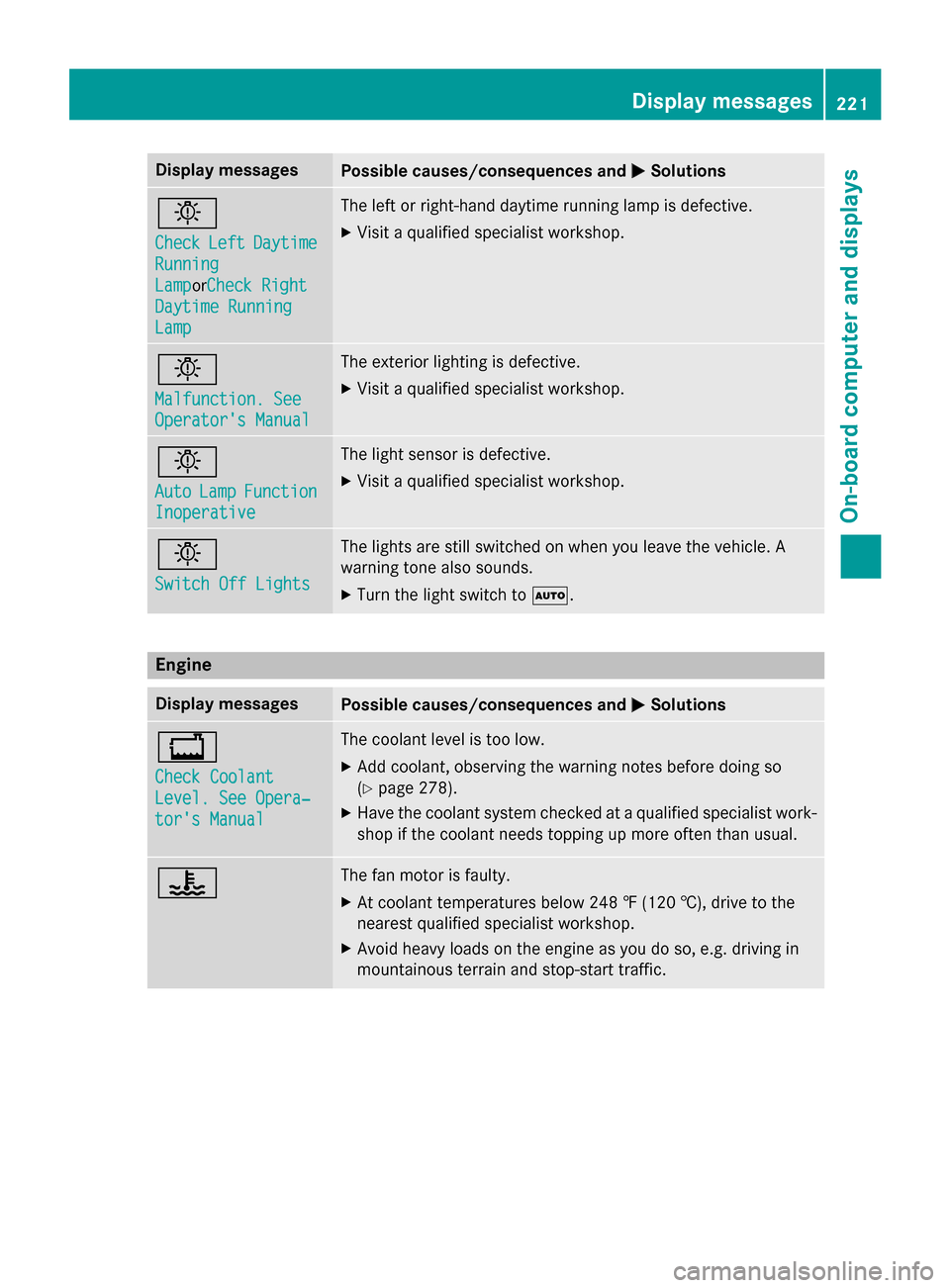

Page 223 of 350
Display messages
Possible causes/consequences and
M
MSolutions b
Check Check
Left
LeftDaytime
Daytime
Running
Running
Lamp Lampor Check Right
Check Right
Daytime Running
Daytime Running
Lamp Lamp The left or right-hand daytime running lamp is defective.
X Visit a qualified specialist workshop. b
Malfunction. See Malfunction. See
Operator's Manual Operator's Manual The exterior lighting is defective.
X Visit a qualified specialist workshop. b
Auto Auto
Lamp
LampFunction
Function
Inoperative
Inoperative The light sensor is defective.
X Visit a qualified specialist workshop. b
Switch Off Lights Switch Off Lights The lights are still switched on when you leave the vehicle. A
warning tone also sounds.
X Turn the light switch to Ã.Engine
Display messages
Possible causes/consequences and
M MSolutions +
Check Coolant Check Coolant
Level. See Opera‐ Level. See Opera‐
tor's Manual tor's Manual The coolant level is too low.
X Add coolant, observing the warning notes before doing so
(Y page 278).
X Have the coolant system checked at a qualified specialist work-
shop if the coolant needs topping up more often than usual. ? The fan motor is faulty.
X At coolant temperatures below 248 ‡ (120 †), drive to the
nearest qualified specialist workshop.
X Avoid heavy loads on the engine as you do so, e.g. driving in
mountainous terrain and stop-start traffic. Display
messages
221On-board computer and displays Z

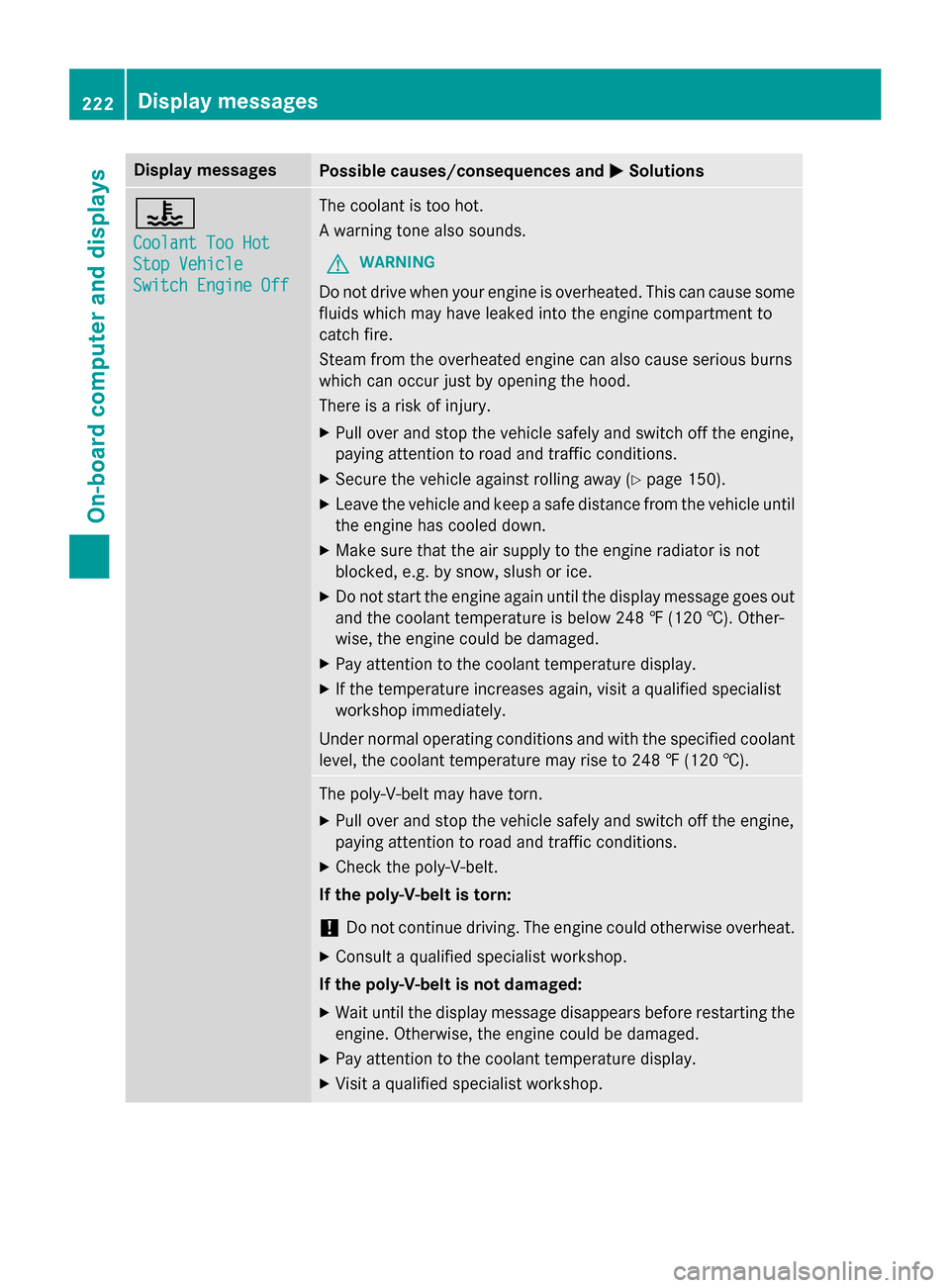

Page 224 of 350
Display messages
Possible causes/consequences and
M
MSolutions ?
Coolant Too Hot Coolant Too Hot
Stop Vehicle Stop Vehicle
Switch Engine Off Switch Engine Off The coolant is too hot.
A warning tone also sounds.
G WARNING
Do not drive when your engine is overheated. This can cause some
fluids which may have leaked into the engine compartment to
catch fire.
Steam from the overheated engine can also cause serious burns
which can occur just by opening the hood.
There is a risk of injury.
X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Secure the vehicle against rolling away (Y page 150).
X Leave the vehicle and keep a safe distance from the vehicle until
the engine has cooled down.
X Make sure that the air supply to the engine radiator is not
blocked, e.g. by snow, slush or ice.
X Do not start the engine again until the display message goes out
and the coolant temperature is below 248 ‡ (120 †). Other-
wise, the engine could be damaged.
X Pay attention to the coolant temperature display.
X If the temperature increases again, visit a qualified specialist
workshop immediately.
Under normal operating conditions and with the specified coolant
level, the coolant temperature may rise to 248 ‡ (120 †). The poly-V-belt may have torn.
X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Check the poly-V-belt.
If the poly-V-belt is torn:
! Do not continue driving. The engine could otherwise overheat.
X Consult a qualified specialist workshop.
If the poly-V-belt is not damaged:
X Wait until the display message disappears before restarting the
engine. Otherwise, the engine could be damaged.
X Pay attention to the coolant temperature display.
X Visit a qualified specialist workshop. 222
Display
messagesOn-board computer and displays

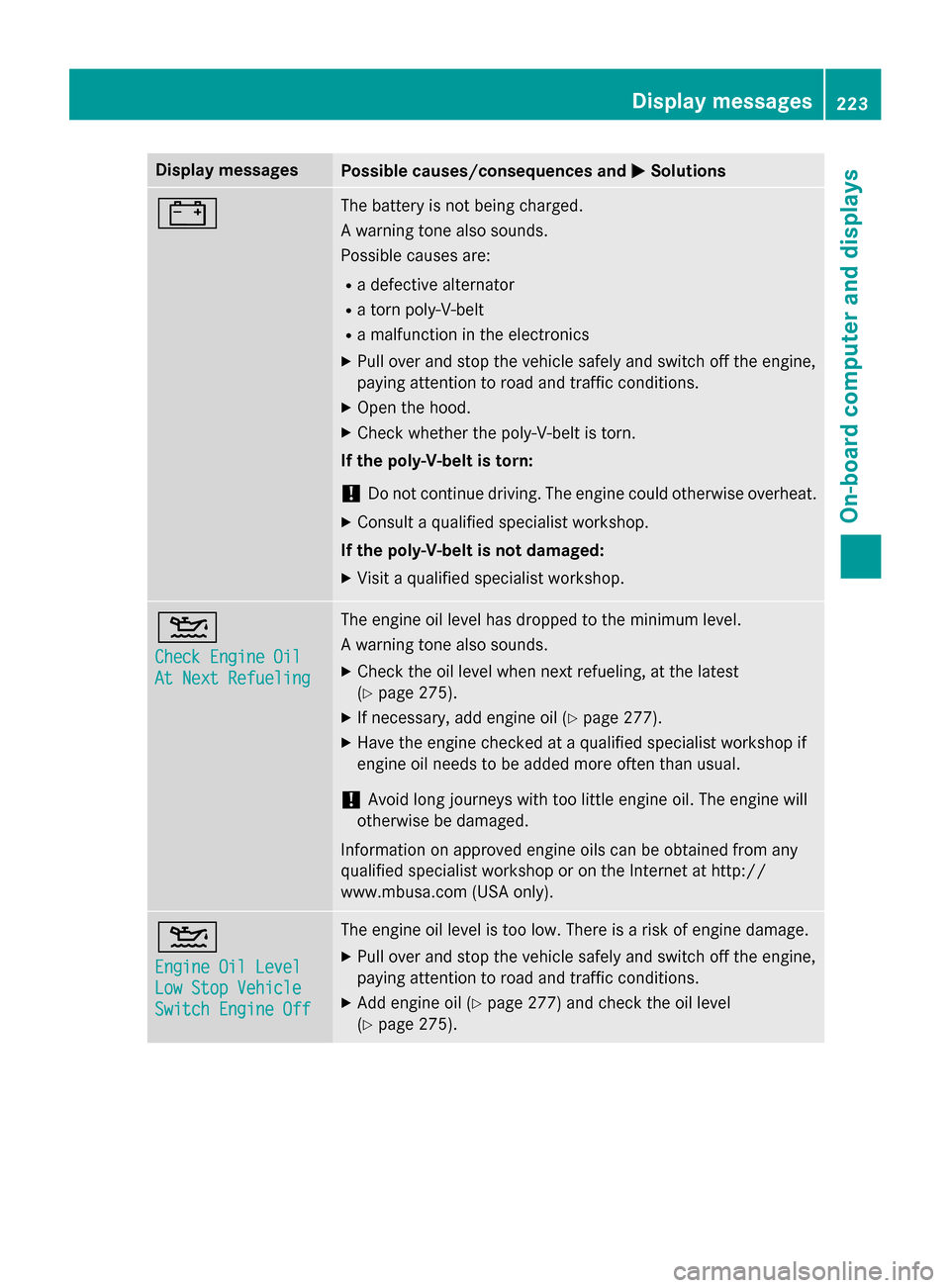

Page 225 of 350
Display messages
Possible causes/consequences and
M
MSolutions # The battery is not being charged.
A warning tone also sounds.
Possible causes are:
R a defective alternator
R a torn poly-V-belt
R a malfunction in the electronics
X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Open the hood.
X Check whether the poly-V-belt is torn.
If the poly-V-belt is torn:
! Do not continue driving. The engine could otherwise overheat.
X Consult a qualified specialist workshop.
If the poly-V-belt is not damaged:
X Visit a qualified specialist workshop. 4
Check Engine Oil Check Engine Oil
At Next Refueling At Next Refueling The engine oil level has dropped to the minimum level.
A warning tone also sounds.
X Check the oil level when next refueling, at the latest
(Y page 275).
X If necessary, add engine oil (Y page 277).
X Have the engine checked at a qualified specialist workshop if
engine oil needs to be added more often than usual.
! Avoid long journeys with too little engine oil. The engine will
otherwise be damaged.
Information on approved engine oils can be obtained from any
qualified specialist workshop or on the Internet at http://
www.mbusa.com (USA only). 4
Engine Oil Level Engine Oil Level
Low Stop Vehicle Low Stop Vehicle
Switch Engine Off Switch Engine Off The engine oil level is too low. There is a risk of engine damage.
X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Add engine oil (Y page 277) and check the oil level
(Y page 275). Display
messages
223On-board computer and displays Z
Page 226 of 350
Display messages
Possible causes/consequences and
M
MSolutions 4
Check Engine Oil Check Engine Oil
Level Level
(Add
(Add1
1quart)
quart) AMG vehicles: the engine oil level is too low.
X Check the oil level when next refueling, at the latest
(Y page 275).
X If necessary, add engine oil (Y page 277).
X Have the engine checked at a qualified specialist workshop if
engine oil needs to be added more often than usual.
! Avoid long journeys with too little engine oil. The engine will
otherwise be damaged.
Information on approved engine oils can be obtained from any
qualified specialist workshop or on the Internet at http://
www.mbusa.com (USA only). 4
Engine Oil Level Engine Oil Level
Cannot Be Measured Cannot Be Measured The measuring system is malfunctioning.
X Visit a qualified specialist workshop. 8
Fuel Level Low Fuel Level Low The fuel level has dropped into the reserve range.
X Refuel at the nearest gas station. C There is only a very small amount of fuel in the fuel tank.
X Refuel at the nearest gas station without fail. 8
Gas Cap Loose Gas Cap Loose The fuel system pressure is too low. The fuel filler cap is not closed
correctly or the fuel system is leaking.
X Check that the fuel filler cap is correctly closed.
If the fuel filler cap is not correctly closed: X Close the fuel filler cap.
If the fuel filler cap is correctly closed: X Visit a qualified specialist workshop. 224
Display
messagesOn-board computer and displays

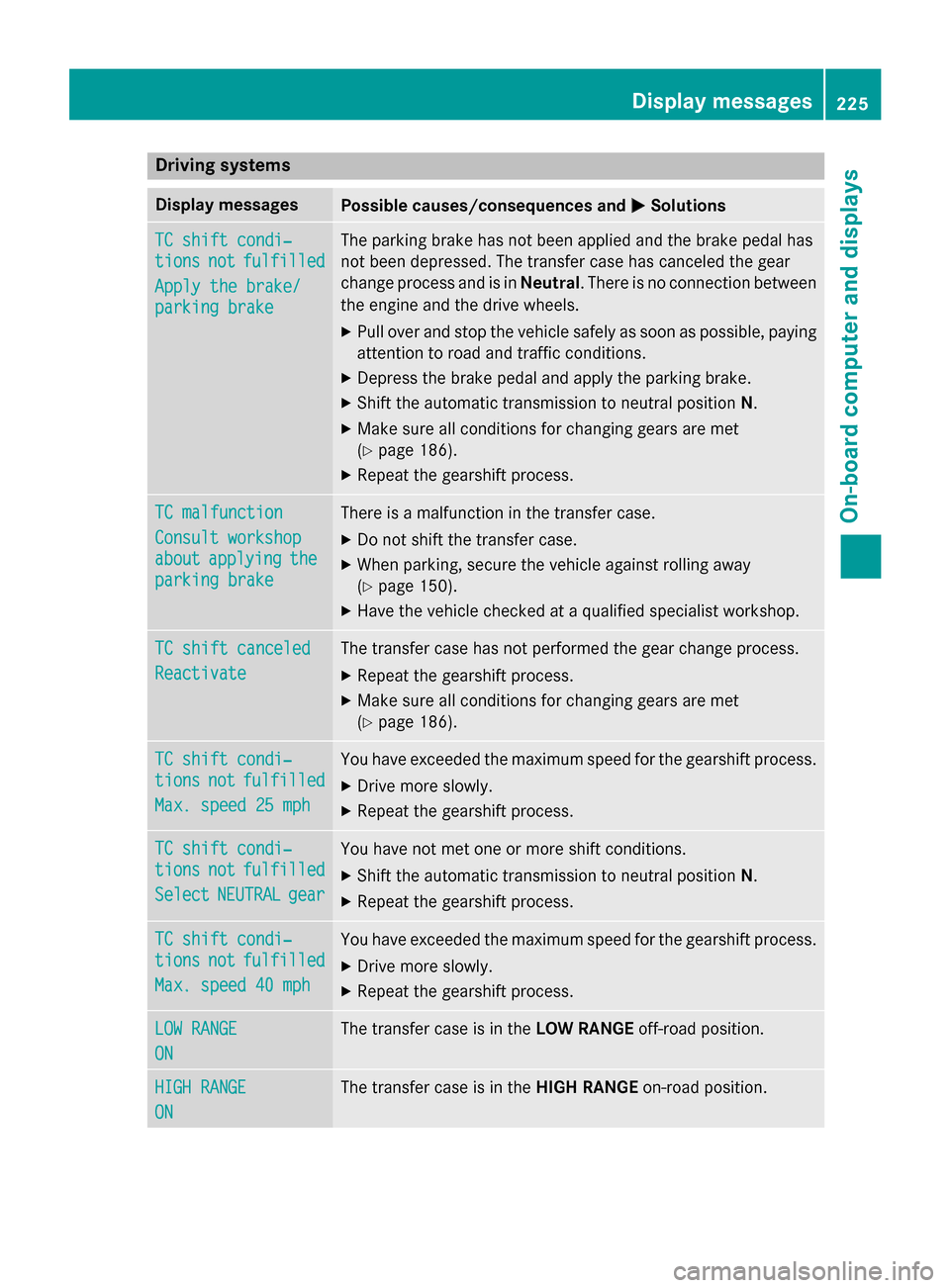

Page 227 of 350
Driving systems
Display messages
Possible causes/consequences and
M
MSolutions TC shift condi‐
TC shift condi‐
tions tions
not
notfulfilled
fulfilled
Apply the brake/
Apply the brake/
parking brake parking brake The parking brake has not been applied and the brake pedal has
not been depressed. The transfer case has canceled the gear
change process and is in Neutral. There is no connection between
the engine and the drive wheels.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Depress the brake pedal and apply the parking brake.
X Shift the automatic transmission to neutral position N.
X Make sure all conditions for changing gears are met
(Y page 186).
X Repeat the gearshift process. TC malfunction TC malfunction
Consult workshop Consult workshop
about about
applying
applying the
the
parking brake
parking brake There is a malfunction in the transfer case.
X Do not shift the transfer case.
X When parking, secure the vehicle against rolling away
(Y page 150).
X Have the vehicle checked at a qualified specialist workshop. TC shift canceled TC shift canceled
Reactivate Reactivate The transfer case has not performed the gear change process.
X Repeat the gearshift process.
X Make sure all conditions for changing gears are met
(Y page 186). TC shift condi‐ TC shift condi‐
tions tions
not
notfulfilled
fulfilled
Max. speed 25 mph
Max. speed 25 mph You have exceeded the maximum speed for the gearshift process.
X Drive more slowly.
X Repeat the gearshift process. TC shift condi‐
TC shift condi‐
tions tions
not
notfulfilled
fulfilled
Select
Select NEUTRAL
NEUTRAL gear
gear You have not met one or more shift conditions.
X Shift the automatic transmission to neutral position N.
X Repeat the gearshift process. TC shift condi‐
TC shift condi‐
tions tions
not
notfulfilled
fulfilled
Max. speed 40 mph
Max. speed 40 mph You have exceeded the maximum speed for the gearshift process.
X Drive more slowly.
X Repeat the gearshift process. LOW RANGE
LOW RANGE
ON ON The transfer case is in the
LOW RANGEoff-road position. HIGH RANGE
HIGH RANGE
ON ON The transfer case is in the
HIGH RANGEon-road position. Display
messages
225On-board computer and displays Z
Page 228 of 350

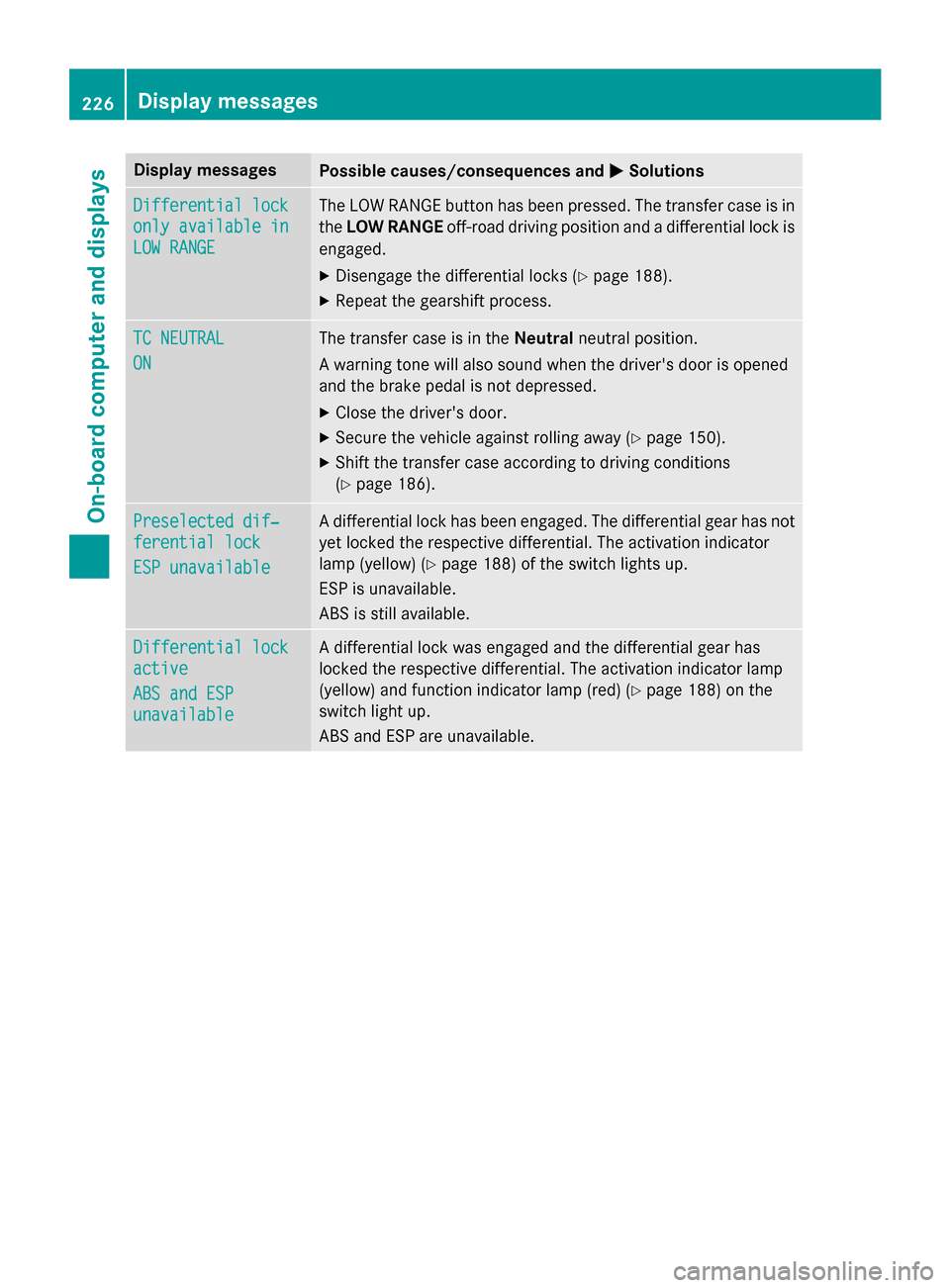

Display messages
Possible causes/consequences and
M
MSolutions Differential lock
Differential lock
only available in only available in
LOW RANGE LOW RANGE The LOW RANGE button has been pressed. The transfer case is in
the LOW RANGE off-road driving position and a differential lock is
engaged.
X Disengage the differential locks (Y page 188).
X Repeat the gearshift process. TC NEUTRAL
TC NEUTRAL
ON ON The transfer case is in the
Neutralneutral position.
A warning tone will also sound when the driver's door is opened
and the brake pedal is not depressed.
X Close the driver's door.
X Secure the vehicle against rolling away (Y page 150).
X Shift the transfer case according to driving conditions
(Y page 186). Preselected dif‐ Preselected dif‐
ferential lock ferential lock
ESP unavailable ESP unavailable A differential lock has been engaged. The differential gear has not
yet locked the respective differential. The activation indicator
lamp (yellow) (Y page 188) of the switch lights up.
ESP is unavailable.
ABS is still available. Differential lock Differential lock
active active
ABS and ESP ABS and ESP
unavailable unavailable A differential lock was engaged and the differential gear has
locked the respective differential. The activation indicator lamp
(yellow) and function indicator lamp (red) (Y page 188) on the
switch light up.
ABS and ESP are unavailable. 226
Display
messagesOn-board computer and displays
Page 229 of 350

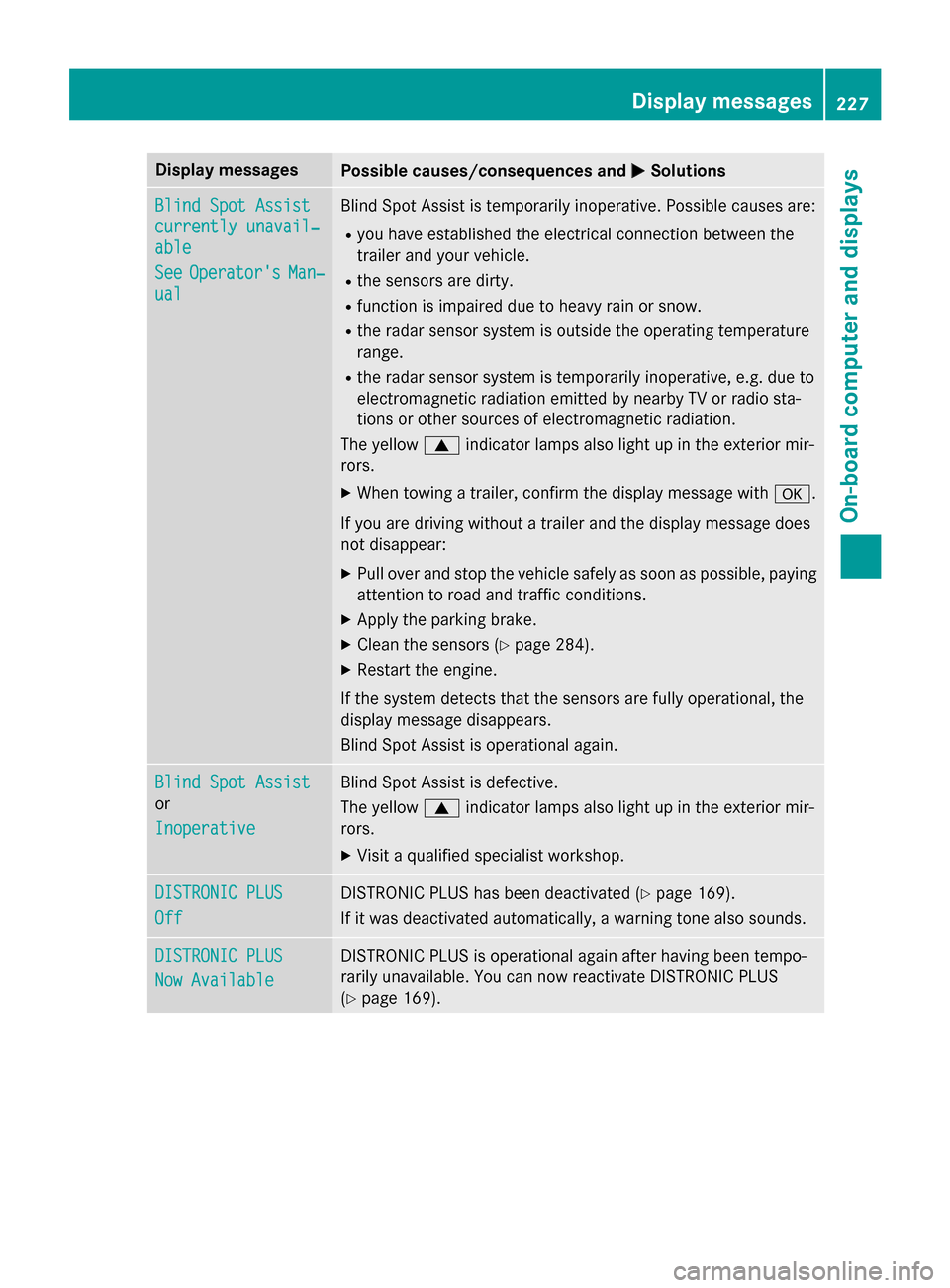

Display messages
Possible causes/consequences and
M
MSolutions Blind Spot Assist
Blind Spot Assist
currently unavail‐ currently unavail‐
able able
See See
Operator's
Operator's Man‐
Man‐
ual
ual Blind Spot Assist is temporarily inoperative. Possible causes are:
R you have established the electrical connection between the
trailer and your vehicle.
R the sensors are dirty.
R function is impaired due to heavy rain or snow.
R the radar sensor system is outside the operating temperature
range.
R the radar sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radio sta-
tions or other sources of electromagnetic radiation.
The yellow 9indicator lamps also light up in the exterior mir-
rors.
X When towing a trailer, confirm the display message with a.
If you are driving without a trailer and the display message does
not disappear: X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Apply the parking brake.
X Clean the sensors (Y page 284).
X Restart the engine.
If the system detects that the sensors are fully operational, the
display message disappears.
Blind Spot Assist is operational again. Blind Spot Assist Blind Spot Assist
or
Inoperative Inoperative Blind Spot Assist is defective.
The yellow
9indicator lamps also light up in the exterior mir-
rors.
X Visit a qualified specialist workshop. DISTRONIC PLUS DISTRONIC PLUS
Off Off DISTRONIC PLUS has been deactivated (Y
page 169).
If it was deactivated automatically, a warning tone also sounds. DISTRONIC PLUS
DISTRONIC PLUS
Now Available Now Available DISTRONIC PLUS is operational again after having been tempo-
rarily unavailable. You can now reactivate DISTRONIC PLUS
(Y
page 169). Display
messages
227On-board computer and displays Z
Page 230 of 350

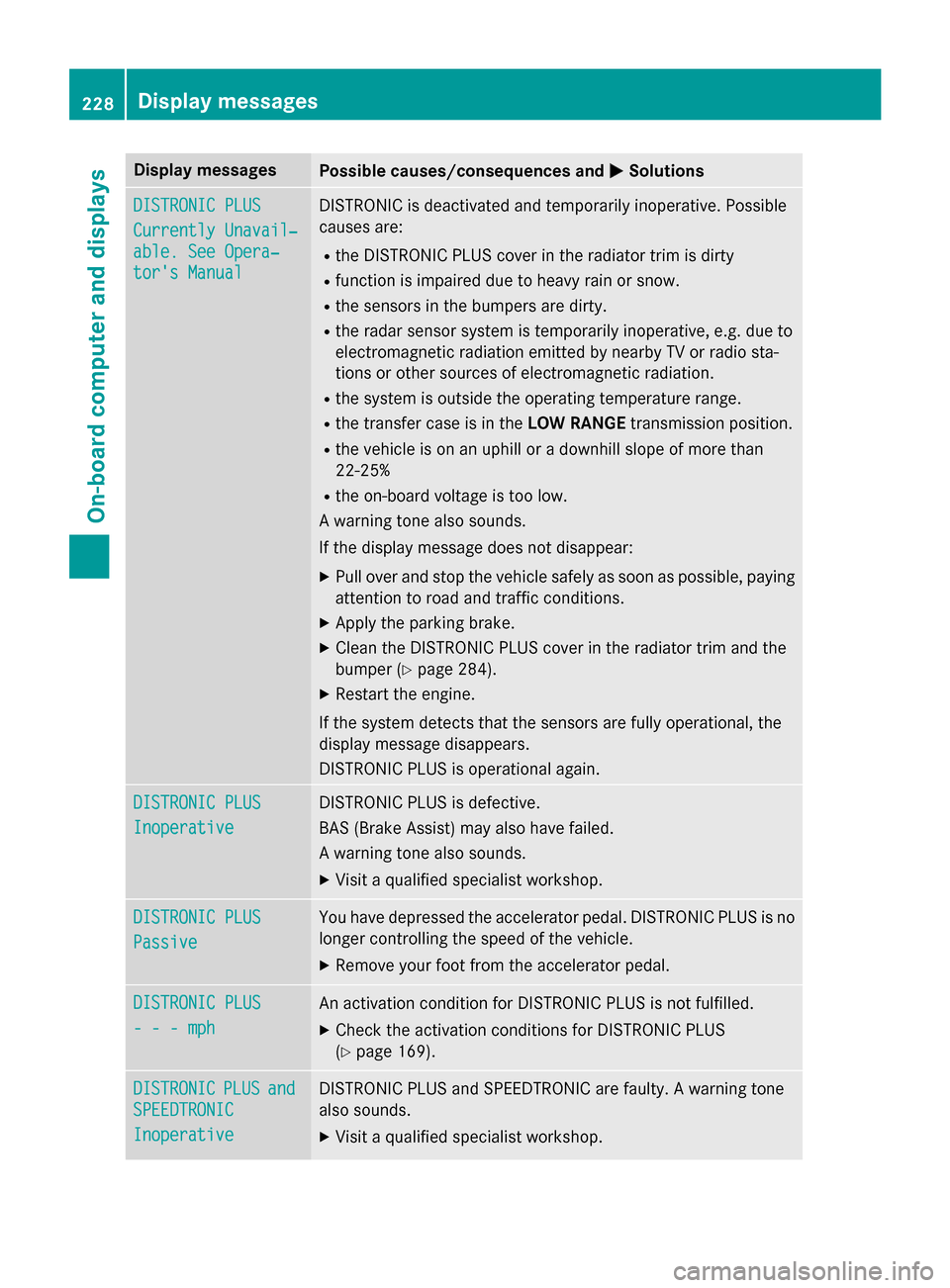

Display messages
Possible causes/consequences and
M
MSolutions DISTRONIC PLUS
DISTRONIC PLUS
Currently Unavail‐ Currently Unavail‐
able. See Opera‐ able. See Opera‐
tor's Manual tor's Manual DISTRONIC is deactivated and temporarily inoperative. Possible
causes are:
R the DISTRONIC PLUS cover in the radiator trim is dirty
R function is impaired due to heavy rain or snow.
R the sensors in the bumpers are dirty.
R the radar sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radio sta-
tions or other sources of electromagnetic radiation.
R the system is outside the operating temperature range.
R the transfer case is in the LOW RANGEtransmission position.
R the vehicle is on an uphill or a downhill slope of more than
22‑25%
R the on-board voltage is too low.
A warning tone also sounds.
If the display message does not disappear:
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Apply the parking brake.
X Clean the DISTRONIC PLUS cover in the radiator trim and the
bumper (Y page 284).
X Restart the engine.
If the system detects that the sensors are fully operational, the
display message disappears.
DISTRONIC PLUS is operational again. DISTRONIC PLUS DISTRONIC PLUS
Inoperative Inoperative DISTRONIC PLUS is defective.
BAS (Brake Assist) may also have failed.
A warning tone also sounds.
X Visit a qualified specialist workshop. DISTRONIC PLUS DISTRONIC PLUS
Passive Passive You have depressed the accelerator pedal. DISTRONIC PLUS is no
longer controlling the speed of the vehicle.
X Remove your foot from the accelerator pedal. DISTRONIC PLUS
DISTRONIC PLUS
- - - mph - - - mph An activation condition for DISTRONIC PLUS is not fulfilled.
X Check the activation conditions for DISTRONIC PLUS
(Y page 169). DISTRONIC
DISTRONIC
PLUS
PLUSand
and
SPEEDTRONIC
SPEEDTRONIC
Inoperative Inoperative DISTRONIC PLUS and SPEEDTRONIC are faulty. A warning tone
also sounds.
X Visit a qualified specialist workshop. 228
Display
messagesOn-board computer and displays
