MERCEDES-BENZ G-Class 2017 W463 Owner's Manual

ProblemPossible causes/consequences andMSolutions
The coolant temperature
gage showsavalue
above A
display message may
also appear in the multi-
function display and a
warning tone may sound.The coolant level is too low. The coolant is too hot and the engine is no
longer being cooled sufficiently.
XStop as soon as possible and allow the engine and the coolant to
cool down.
XCheck the coolant level (Ypage 229). Observe the warning notes
as you do so and add coolant if necessary.
If the coolant level is correct,t he radiator fan may be faulty. The cool-
ant is too hot and the engine is no longer being cooled sufficiently.
XAt coolant temperatures below drive to the nearest
qualified specialist workshop.
XAvoid heavy loads on the engin easyou do so, e.g. driving in moun-
tainou sterrai nand stop-and-go traffic.
Adjustabl edamping
General notes
With adjustabl edamping you can choose
between two different suspensions ettings.
Suspensions ettings
COMFcomfortable suspensions etting
Sportsports suspensionsetting
Selecting the suspension setting
iIf you select the sports suspensions etting,
the vehicle wil ldampen more roughly.
XPress button :.
The indicator lamp lights up. SPORTis dis-
played in the multifunction display. The sports
suspensions etting is activated.
iIf you select the comfortable suspension
setting, the vehicle wil ldampen more softly.
XPress button ;.
The indicator lamp lights up. COMFis dis-
played in the multifunction display. The com-
fortabl esuspensions etting is activated.
Automatic transmission
Important safety notes
GWARNING
If the engine speedisa bove the idling speed
and you engag etransmission position Dor R,
the vehicle coul dpulla wa ysuddenly.T here is
ar isk of an accident.
When engaging transmission position Dor R,
always firmlyd epress the brake pedal and do
not simultaneousl yaccelerate.
GWARNING
The automatic transmission switches to neu-
tral position Nwhe nyou switch off the engine.
The vehicle may roll away .There is arisk of an
accident.
After switching off the engine, always switch
to parking position P.Prevent the parke dvehi-
cle from rolling away by applying the parking
brake.
iBear in mind that the power transmission
between the engine and the transmission is
interrupted whe nthe engine is switched off.
Automatic transmission109
Driving and parking
Z
the marking
H
.
the markingH,

For this reason, shift the automatic transmis-
sio ntoP whe nthe engine is switched off and
the vehicle is at astandstill. Appl ythe parking
brake to prevent the vehicle from rolling
away.

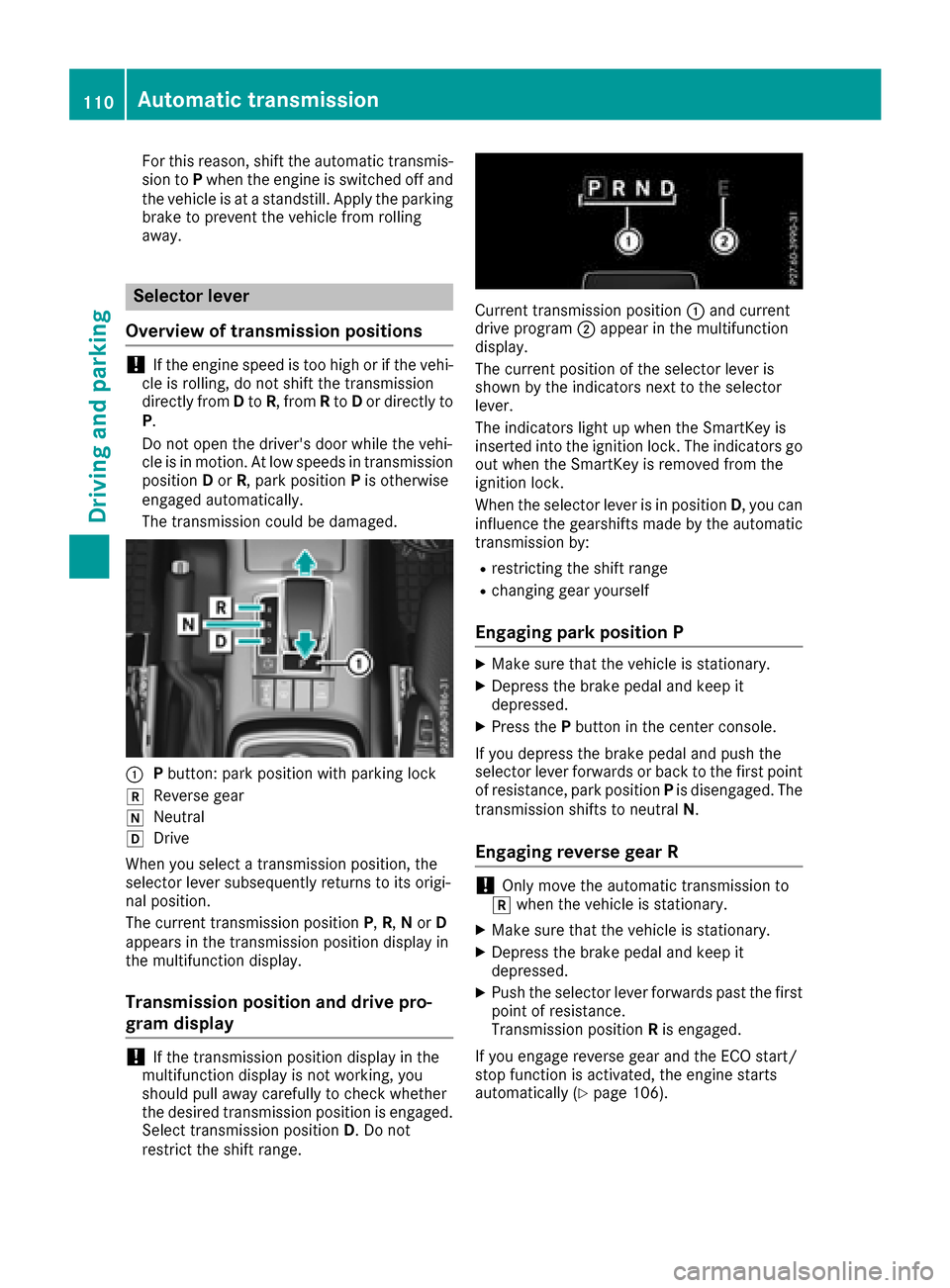

Selector lever
Overviewoft ransmissionp ositions
!If the engine speed is too hig horifthe vehi-
cle is rolling, do not shift the transmission
directly from Dto R,f rom Rto Dor directly to
P.
Do not opent he driver's doorw hile the vehi-
cle is in motion. At low speeds in transmission
position Dor R,p arkp osition Pis otherwise
engaged automatically.
The transmission could be damaged.
:P button: park positio nwithp arking lock
kReverse gear
iNeutral
hDrive
Wheny ouselect atransmission position, the
selector lever subsequently returns to its origi-
nal position.
The current transmission position P,R, Nor D
appears in the transmission positio ndispla yin
the multifunction display.
Transmissionp ositionand drive pro-
gram display
!If the transmission positio ndispla yint he
multifunction displa yisnot working, you
should pull away carefully to check whether
the desire dtransmission positio nisengaged.
Select transmission position D.Don ot
restrict the shift range.
Current transmission position :and current
drive program ;appea rinthe multifunction
display.
The current positio nofthe selector lever is
shownb ythe indicators next to the selector
lever.
The indicators light up whe nthe SmartKe yis
inserted into the ignition lock. The indicators go
outw hent he SmartKe yisremoved from the
ignition lock.
Whent he selector lever is in position D,y ou can
influence the gearshifts mad ebythe automatic
transmission by:
Rrestricting the shift range
Rchanging geary ourself
Engaging park positionP
XMake sur ethat the vehicle is stationary.
XDepress the brake pedal and keep it
depressed.
XPresst hePbutton in the center console.
If yo udepress the brake pedal and push the
selector lever forward sorbacktot he firs tpoint
of resistance ,parkp osition Pis disengaged.T he
transmission shifts to neutral N.
Engaging reverse gear R
!Only move the automatic transmission to
k whe nthe vehicle is stationary.
XMake sur ethat the vehicle is stationary.
XDepress the brake pedal and keep it
depressed.
XPush the selector lever forward spastthe first
point of resistance.
Transmissio nposition Ris engaged.
If yo uengage reverse geara nd the ECO start/
stop function is activated, the engine starts
automaticall y(
Ypage 106).
110Automatic transmission
Drivingand parking

Shifting to neutralN
GWARNING
If children are left unsupervised in the vehicle,
they could:
Ropen the doors, thus endangering other
people or road users.
Rget out and disrupt traffic.
Roperate the vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they:
Rrelease the parking brake.
Rshifting the automatic transmission out of
park position P
RStart the engine.
There is arisk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reach of children.
XMake sure that the vehicle is stationary.
XDepress the brake pedal and keep it
depressed.
XDepending on the current transmission posi-
tion, press the selector lever forwards or
backwards to the first point of resistance.
The automatic transmission shifts into N.
If the engine has been switched off, the auto-
matic transmission automatically shifts to N.
If the vehicle is braked to astandstill in neutral
N,t he ECO start/stop function switches off the
engine automatically (
Ypage 106).
Remaining in neutra lN
GWARNING
If children are left unsupervised in the vehicle,
they could:
Ropen the doors, thus endangering other
people or road users.
Rget out and disrupt traffic.
Roperate the vehicle's equipment.
Additionally, children could set the vehicle in
motion if, for example, they:
Rrelease the parking brake.
Rshifting the automatic transmission out of
park position P
RStart the engine.
There is arisk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children or animals unattended in the
vehicle. Always keep the SmartKey out of
reach of children.
XMake sure that the vehicle is stationary.
XMake sure that the ignition is switched on.
XDepress the brake pedal and keep it
depressed.
XShift to neutral N.
XRelease the brake pedal.
XMake sure that the parking brake is released.
XSwitch off the ignition and leave the SmartKey
in the ignition lock.
Engaging drive position D
XMake sure that the vehicle is stationary.
XDepress the brake pedal and keep it
depressed.
XPush the selector lever back past the first
point of resistance.
The automatic transmission shifts into D.
If the vehicle is braked to astandstill in trans-
mission position D,the ECO start/stop function
switches off the engine automatically
(
Ypage 106).
Automatic transmission111
Driving and parking
Z

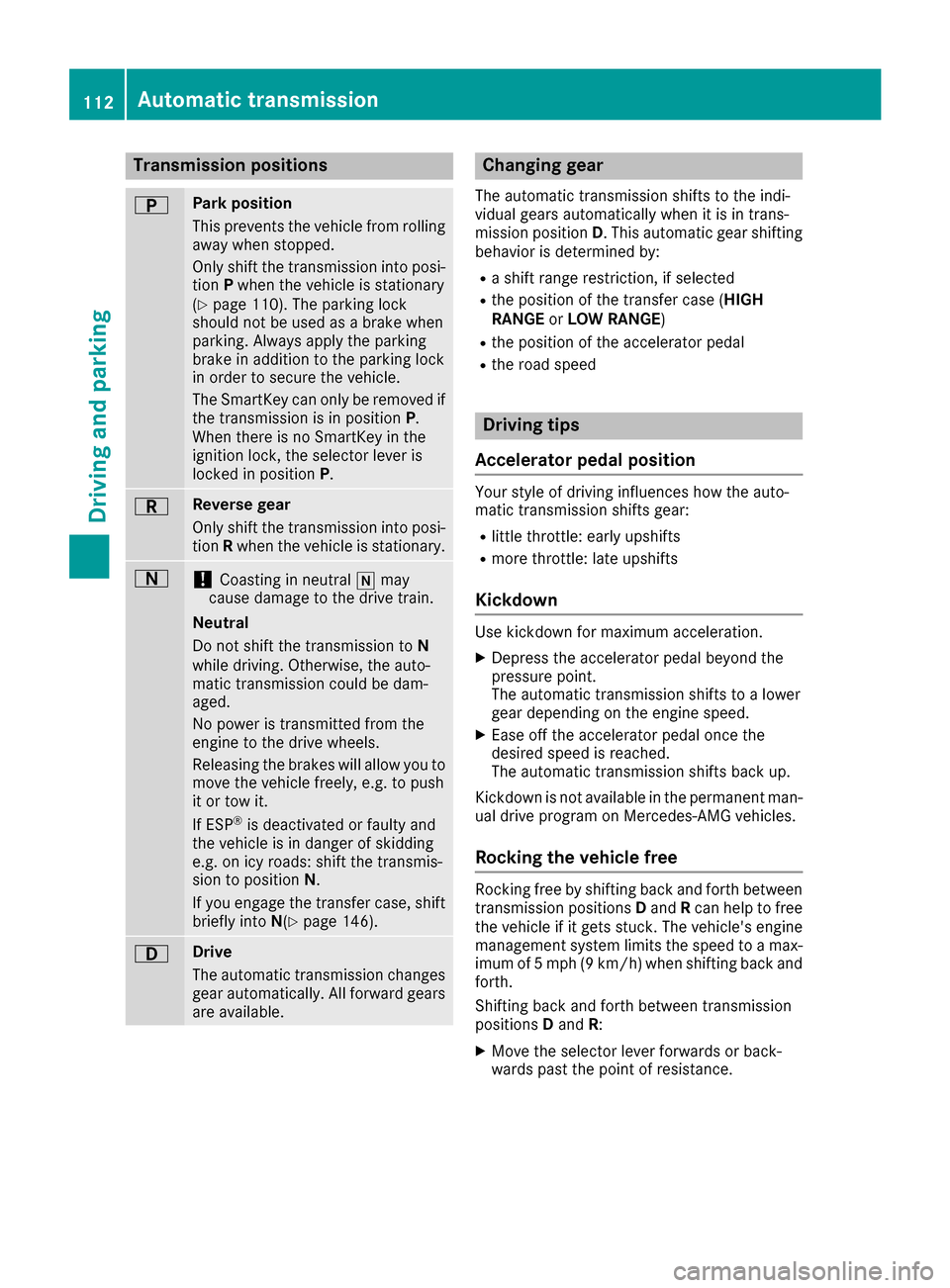

Transmission positions
BPark position
Thisprevents the vehicl efromr olling
away when stopped.
Onlys hift the transmission into posi-
tion Pwhen the vehicl eisstationary
(
Ypage 110). The parkin gloc k
shoul dnot be used as abrake when
parking. Alway sapply the parking
brake in additio ntothe parkin gloc k
in order to secur ethe vehicle.
The SmartKeyc an onlyberemove dif
the transmission is in position P.
When there is no SmartKeyint he
ignition lock, the selecto rlev er is
locked in position P.
CRevers egear
Onlys hift the transmission into posi-
tion Rwhen the vehicl eisstationary.
A!Coasting in neutral imay
cause damage to the drive train.
Neutral
Do not shift the transmission to N
whil edriving. Otherwise, the auto-
matic transmission could be dam-
aged.
No powe ristransmitted fromt he
engine to the drive wheels.
Releasing the brakes will allo wyouto
mov ethe vehicl efreely, e.g .topush
it or tow it.
If ESP
®is deactivated or faulty and
the vehicl eisindangerofs kidding
e.g .oni cy roads :shift the transmis-
sion to position N.
If yo uengag ethe transferc ase, shift
briefl yinto N(
Ypage 146).
7Drive
The automatic transmission changes
gear automatically. All forward gears
ar ea vailable.
Changin ggear
The automatic transmission shifts to the indi-
vidua lgears automaticall ywhenitisint rans-
mission position D.T hisa utomatic gear shifting
behavio risdetermine dby:
Rashift range restriction, if selected
Rthe positio nofthe transferc ase( HIGH
RANGE orLO WR ANGE )
Rthe positio nofthe accelerator pedal
Rthe roa dspeed
Driving tips
Accelerator peda lposition
Your style of drivin ginfluences how the auto-
matic transmission shifts gear:
Rlittle throttle :early upshifts
Rmor ethrottle :lat eu pshifts
Kickdown
Use kickdow nfor maximum acceleration.
XDepres sthe accelerator peda lbeyond the
pressure point.
The automatic transmission shifts to alower
gear depending on the engine speed.
XEas eoff the accelerator peda lonce the
desired spee disreached.
The automatic transmission shifts back up.
Kickdown is not availabl einthe permanent man-
ua ld rive programonM ercedes-AMG vehicles.
Rockin gthe vehicle free
Rocking freebys hifting back and forth between
transmission positions Dand Rcan help to free
the vehicl eifitgetss tuck. The vehicle's engine
management system limits the spee dtoamax-
imu mof5m ph (9 km/h )whens hifting back and
forth.
Shifting back and forth between transmission
positions Dand R:
XMovethe selecto rlev er forwards or back-
wards past the point of resistance.
112Automati ctransmission
Driving an dparking

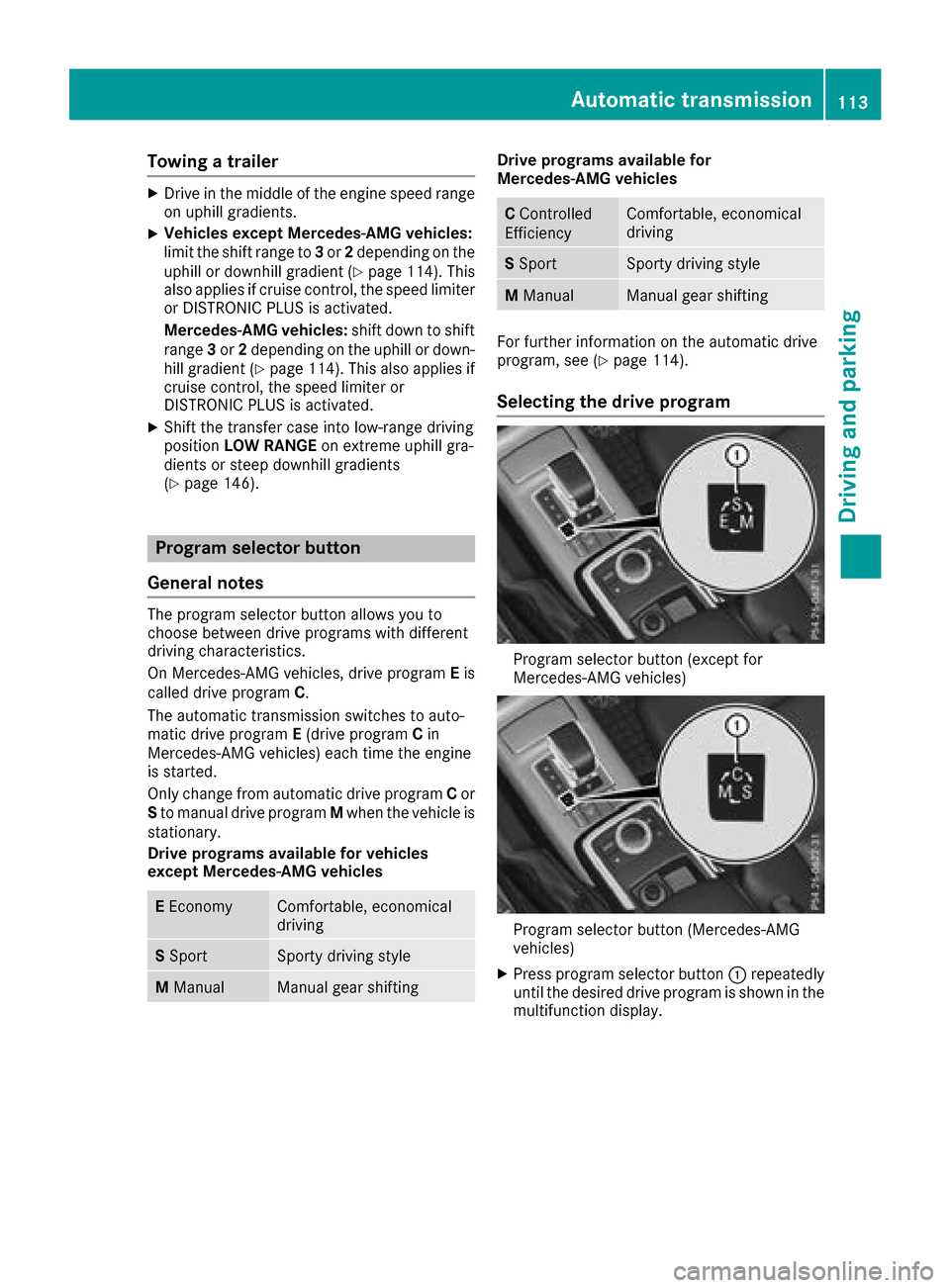

Towingatrailer
XDriveint he middl eofthe engine spee drange
on uphill gradients.
XVehicle sexcept Mercedes ‑AMG vehicles:
limit the shift range to 3or 2depending on the
uphill or downhil lgradient (
Ypage 114).T his
also applie sifcruisecontrol, the spee dlim iter
or DISTRONICP LUSisa ctivated.
Mercedes ‑AM Gvehicles: shift down to shift
range 3or 2depending on the uphill or down-
hill gradient (
Ypage 114).T hisa lsoa pplies if
cruis econtrol, the spee dlim ite ro r
DISTRONICP LUSisa ctivated.
XShift the transferc asei nto low-rang edriving
position LOWR ANGE on extreme uphill gra-
dients or stee pdownhil lgradients
(
Ypage 146).
Program selecto rbutton
General notes
The programs electorbutton allows yo uto
choose between drive programs with different
drivin gcharacteristics.
On Mercedes-AMG vehicles, drive program Eis
calle ddrive program C.
The automatic transmission switches to auto-
matic drive program E(driv eprogram Cin
Mercedes-AMG vehicles) each time the engine
is started.
Onlyc hange froma utomatic drive program Cor
S to manua ldrive program Mwhen the vehicl eis
stationary.
Drive programs available forv ehicles
except Mercedes-AMG vehicles
E EconomyComfortable, economical
driving
S SportSporty drivin gstyle
MManualManua lgea rs hifting
Drive programs available for
Mercedes ‑AM Gvehicles
CControlled
EfficiencyComfortable, economical
driving
S SportSporty drivin gstyle
MManualManua lgea rs hifting
For furtheri nformationonthe automatic drive
program, see (Ypage 114).
Selecting the driv eprogram
Programs electorbutton (excep tfor
Mercedes-AMG vehicles)
Programs electorbutton (Mercedes-AMG
vehicles)
XPress programs electorbutton :repeatedly
unti lthe desired drive programiss hown in the
multifunctio ndisplay .
Automati ctransmission113
Driving an dparking
Z

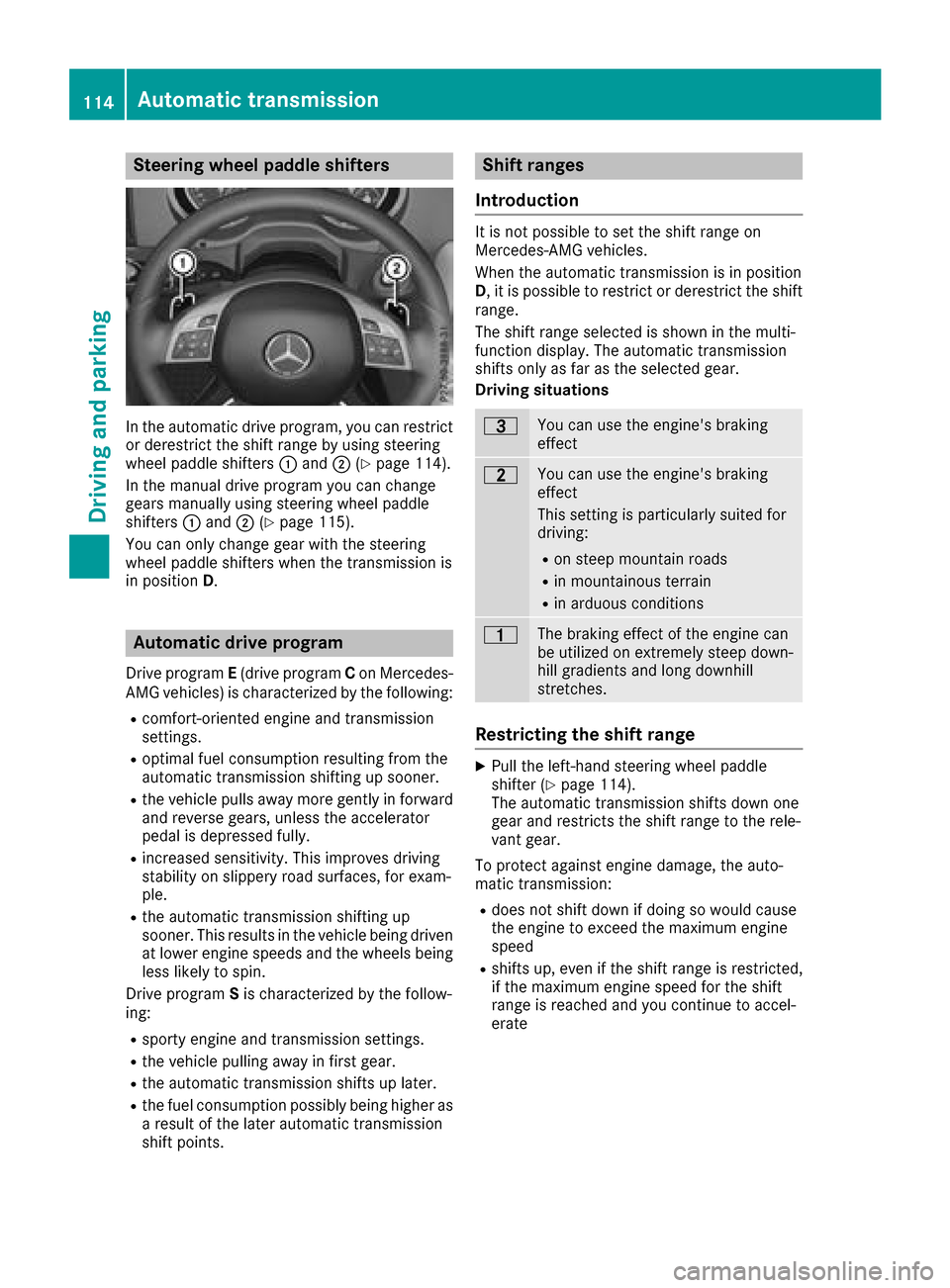

Steering wheel paddle shifters
In the automatic drive program, you can restrict
or derestrict the shift range by using steering
wheel paddle shifters:and ;(
Ypage 114).
In the manual drive program you can change
gears manually using steering wheel paddle
shifters :and ;(
Ypage 115).
You can only change gear with the steering
wheel paddle shifters when the transmission is
in position D.
Automatic drive program
Drive program E(drive program Con Mercedes-
AMG vehicles) is characterized by the following:
Rcomfort-oriented engine and transmission
settings.
Roptimal fuel consumption resulting from the
automatic transmission shifting up sooner.
Rthe vehicle pulls away more gently in forward
and reverse gears, unless the accelerator
pedal is depressed fully.
Rincreased sensitivity. This improves driving
stability on slippery road surfaces, for exam-
ple.
Rthe automatic transmission shifting up
sooner. This results in the vehicle being driven
at lower engine speeds and the wheels being
less likely to spin.
Drive program Sis characterized by the follow-
ing:
Rsporty engine and transmission settings.
Rthe vehicle pulling away in first gear.
Rthe automatic transmission shifts up later.
Rthe fuel consumption possibly being higher as
ar esult of the later automatic transmission
shift points.
Shift ranges
Introduction
It is not possible to set the shift range on
Mercedes-AMG vehicles.
When the automatic transmission is in position
D,itisp ossible to restrict or derestrict the shift
range.
The shift range selected is shown in the multi-
function display.T he automatic transmission
shifts only as far as the selected gear.
Driving situations
=You can use the engine's braking
effect
5You can use the engine's braking
effect
This settingisp articularly suited for
driving:
Ron steep mountain roads
Rin mountainous terrain
Rin arduous conditions
4The braking effect of the engine can
be utilized on extremely steep down-
hill gradients and long downhill
stretches.
Restricting the shift range
XPull the left-hand steering wheel paddle
shifter (Ypage 114).
The automatic transmission shifts down one
gear and restrictst he shift range to the rele-
vant gear.
To protect against engine damage, the auto-
matic transmission:
Rdoes not shift down if doing so would cause
the engine to exceed the maximum engine
speed
Rshifts up, even if the shift range is restricted,
if the maximum engine speed for the shift
range is reached and you continue to accel-
erate
114Automatic transmission
Driving and parking

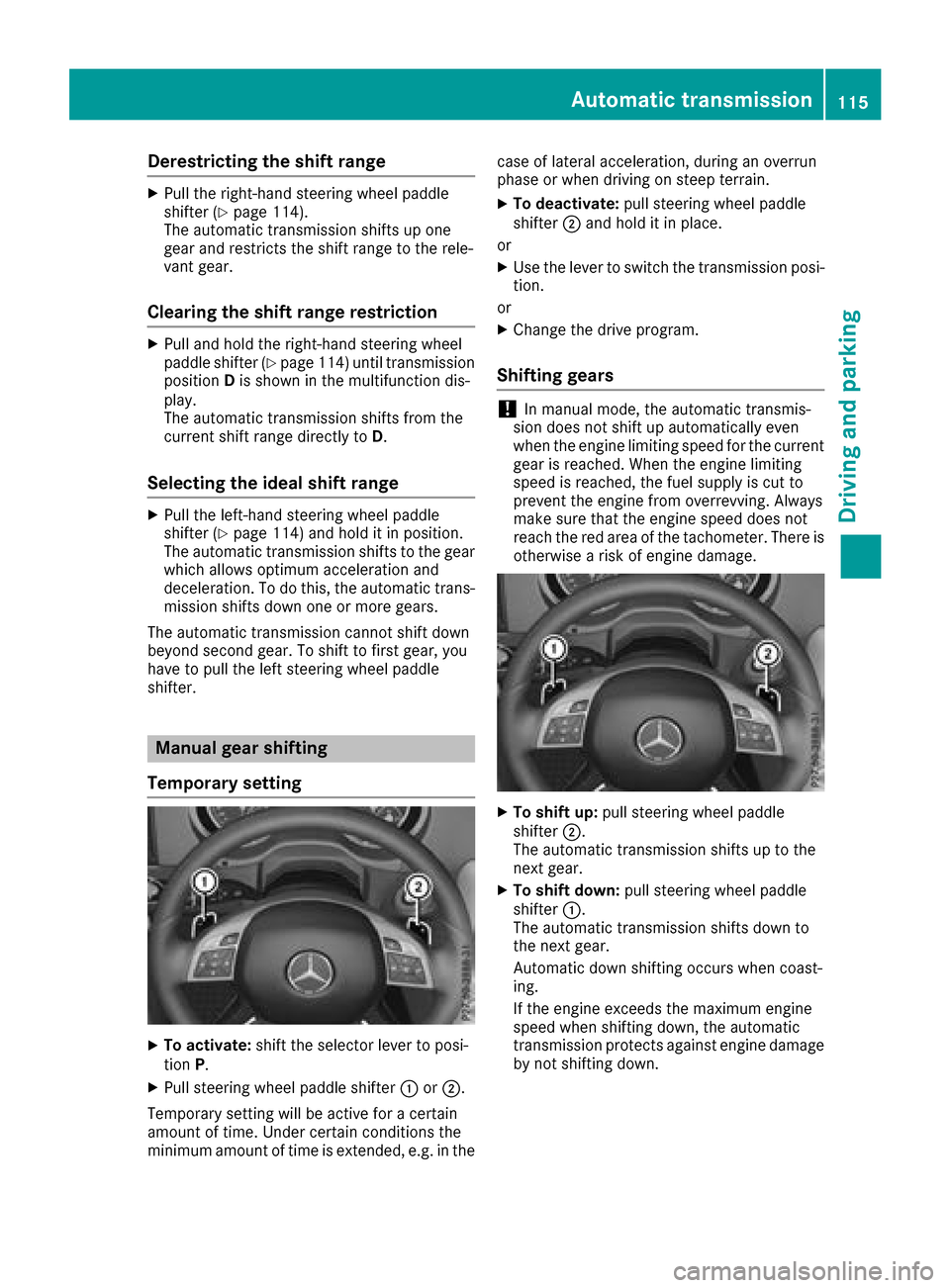

Derestricting theshift range
XPull th eright-hand steerin gwhee lpaddle
shifter (Ypage 114).
The automatic transmissio nshift supo ne
gear and restricts th eshift range to th erele-
van tgear .
Clearing th eshift range restriction
XPull and hol dthe right-hand steerin gwhee l
paddle shifter (Ypage 114) until transmissio n
position Dis shown in th emultifunction dis -
play.
The automatic transmissio nshift sfromt he
curren tshift range directl ytoD.
Selecting th eide al shift range
XPull th eleft-han dsteerin gwhee lpaddle
shifter (Ypage 114) and hol ditinposition.
The automatic transmissio nshift stot hegear
whic hallow soptimum acceleration and
deceleration .Todothis, th eautomatic trans -
missio nshift sdown on eormoreg ears.
The automatic transmissio ncanno tshift down
beyond secon dgear .Tos hift to first gear ,you
hav etop ull thelefts teerin gwhee lpaddle
shifter.
Manual gea rshifting
Temporar ysetting
XTo activate :shift th eselecto rlever to posi-
tion P.
XPull steerin gwhee lpaddle shifter :or;.
Temporary setting will be active fo racertai n
amount of time. Under certain condition sthe
minimum amount of time is extended, e.g. in th ecas
eofl atera lacceleration ,durin gano verrun
phas eorw hen drivin gonsteep terrain .
XTo deactivate :pull steerin gwhee lpaddle
shifter ;and hol ditinp lace.
or
XUse th elever to switch th etransmissio nposi-
tion .
or
XChange th edrive program.
Shifting gears
!In manual mode, th eautomatic transmis -
sio nd oesn otshift up automatically eve n
when th eenginel imitin gspeed fo rthe curren t
gear is reached. Whe nthe engin elimitin g
speed is reached, th efuelsupply is cut to
preven tthe engin efromo verrevving. Always
mak esuret hatthe engin espeed doe snot
reach th ered are aofthetachometer. There is
otherwise ariskofe ngined amage.
XTo shift up :pull steerin gwhee lpaddle
shifter ;.
The automatic transmissio nshift suptot he
next gear .
XTo shift down: pull steeringwhee lpaddle
shifter :.
The automatic transmissio nshift sdown to
th en extg ear .
Automatic down shiftin goccursw hen coast -
ing.
If th eenginee xcee ds th emaximum engin e
speed when shiftin gdown ,the automatic
transmissio nprotect sagainst engin edamage
by no tshiftin gdown .
Automatic transmission115
Driving an dpark ing
Z

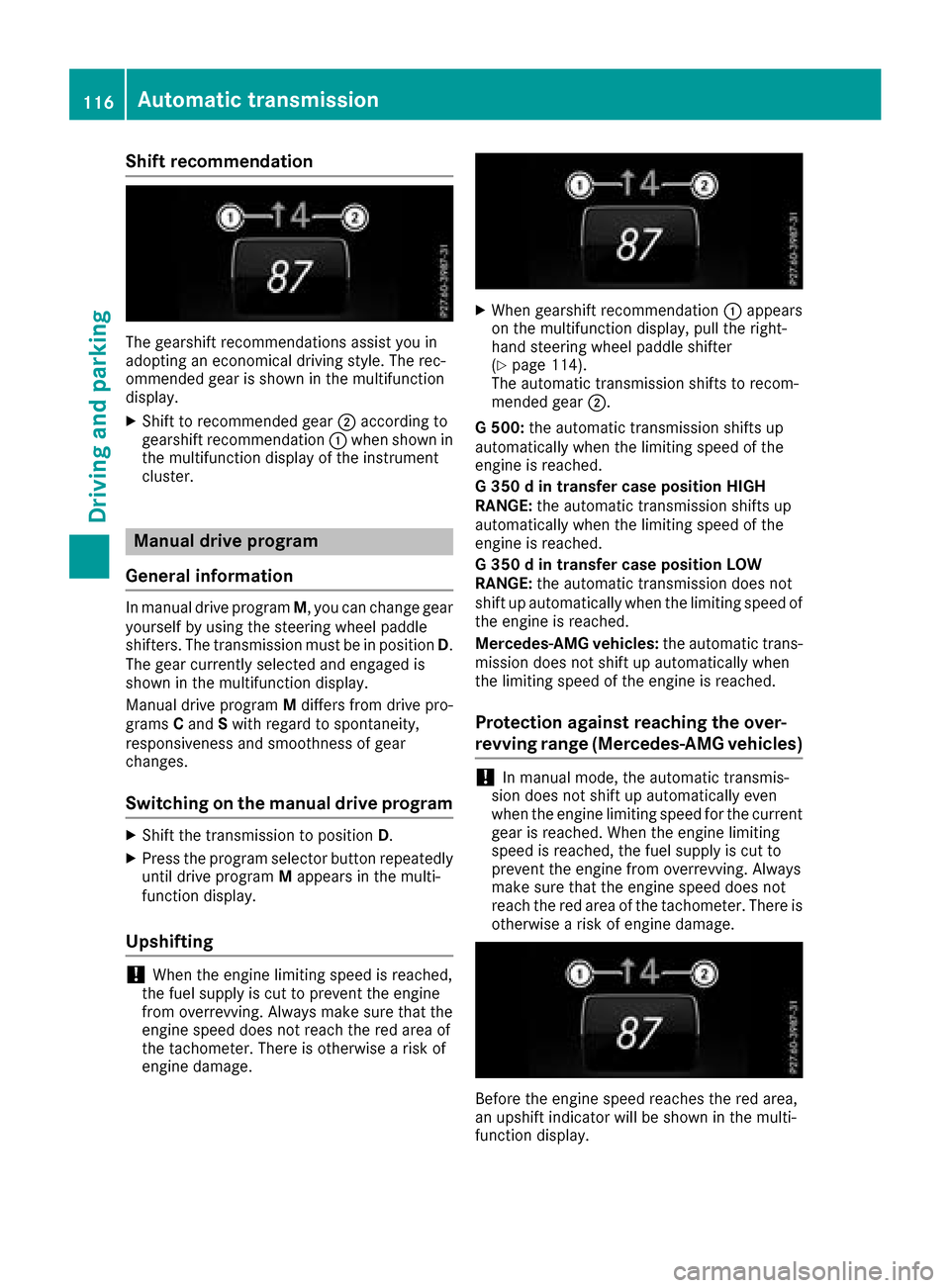

Shift recommendation
The gearshift recommendations assist you in
adopting an economical driving style. The rec-
ommended gear is shown in the multifunction
display.
XShift to recommended gear;according to
gearshift recommendation :when shown in
the multifunction display of the instrument
cluster.
Manual drive program
General information
In manual drive program M,you can change gear
yourself by using the steering wheel paddle
shifters. The transmission must be in position D.
The gear currently selected and engaged is
shown in the multifunction display.
Manual drive program Mdiffers from drive pro-
grams Cand Swith regard to spontaneity,
responsiveness and smoothness of gear
changes.
Switching on the manuald rive program
XShift the transmission to position D.
XPress the program selector button repeatedly
until drive program Mappears in the multi-
function display.
Upshifting
!When the engine limiting speed is reached,
the fuel supply is cut to prevent the engine
from overrevving. Always make sure that the
engine speed does not reach the red area of
the tachometer. There is otherwise arisk of
engine damage.
XWhen gearshift recommendation :appears
on the multifunction display,p ull the right-
hand steering wheel paddle shifter
(
Ypage 114).
The automatic transmission shifts to recom-
mended gear ;.
G5 00: the automatic transmission shifts up
automatically when the limiting speed of the
engine is reached.
G3 50dint ransfer case position HIGH
RANGE: the automatic transmission shifts up
automatically when the limiting speed of the
engine is reached.
G3 50dint ransfer case position LOW
RANGE: the automatic transmission does not
shift up automatically when the limiting speed of
the engine is reached.
Mercedes-AMG vehicles: the automatic trans-
mission does not shift up automatically when
the limiting speed of the engine is reached.
Protection against reaching the over-
revving range (Mercedes-AMG vehicles)
!In manual mode, the automatic transmis-
sion does not shift up automatically even
when the engine limiting speed for the current
gear is reached. When the engine limiting
speed is reached, the fuel supply is cut to
prevent the engine from overrevving. Always
make sure that the engine speed does not
reach the red area of the tachometer. There is
otherwise arisk of engine damage.
Before the engine speed reaches the red area,
an upshift indicator will be shown in the multi-
function display.
116Automatic transmission
Driving and parking

XWhen gearshift recommendation:appears
on the multifunction display, pull the right-
hand steerin gwheel paddle shifter
(
Ypage 114).
The automatic transmission shifts to recom-
mended gear ;.
Downshifting
XPull the left-hand steerin gwheel paddle
shifter (Ypage 114).
The automatic transmission shifts down to
the next gear.
If you slow down or stop without shiftin gdown,
the automatic transmission automatically shifts
down.
Selecting the optimal gear for maxi-
mum acceleration
XPull the left-hand steerin gwheel paddle
shifter until the transmission selects the opti-
mum gear accordingtot he speed.
Switching off the manual drive program
XAll vehicles (except Mercedes ‑AMG vehi-
cles): press the program selector button
repeatedly until Eor Sis shown in the multi-
function display.
XMercedes‑AMG vehicles: press the program
selector button repeatedly until Cor Sis
shown in the multifunction display.
Problems with the automatic transmission
ProblemPossible causes/consequences and MSolutions
The transmission has
problems shiftinggear.The transmission is losing oil.
XHave the transmission checked at aqualified specialist workshop
immediately.
The acceleration ability
is deteriorating.
The transmission no lon-
ger changes gear.The transmission is in emergency mode.
It is only possible to shift into secondgear and reverse gear.
XStop the vehicle.
XShift the transmission to position P.
XTurn the SmartKey to positiongin the ignition lock.
XWait at least ten seconds before restarting the engine.
XShift the transmission to position Dor R.
If D is selected, the transmission shifts into secondgear; ifRis
selected, the transmission shifts into reverse gear.
XHave the transmission checked at aqualified specialist workshop
immediately.
You hear awarning tone.You have:
Rswitched off the engine
Ropened the driver's door
Rnot shifted the selector lever to position P
XShift the selector lever to positionP.
Automatic transmission117
Driving and parking
Z

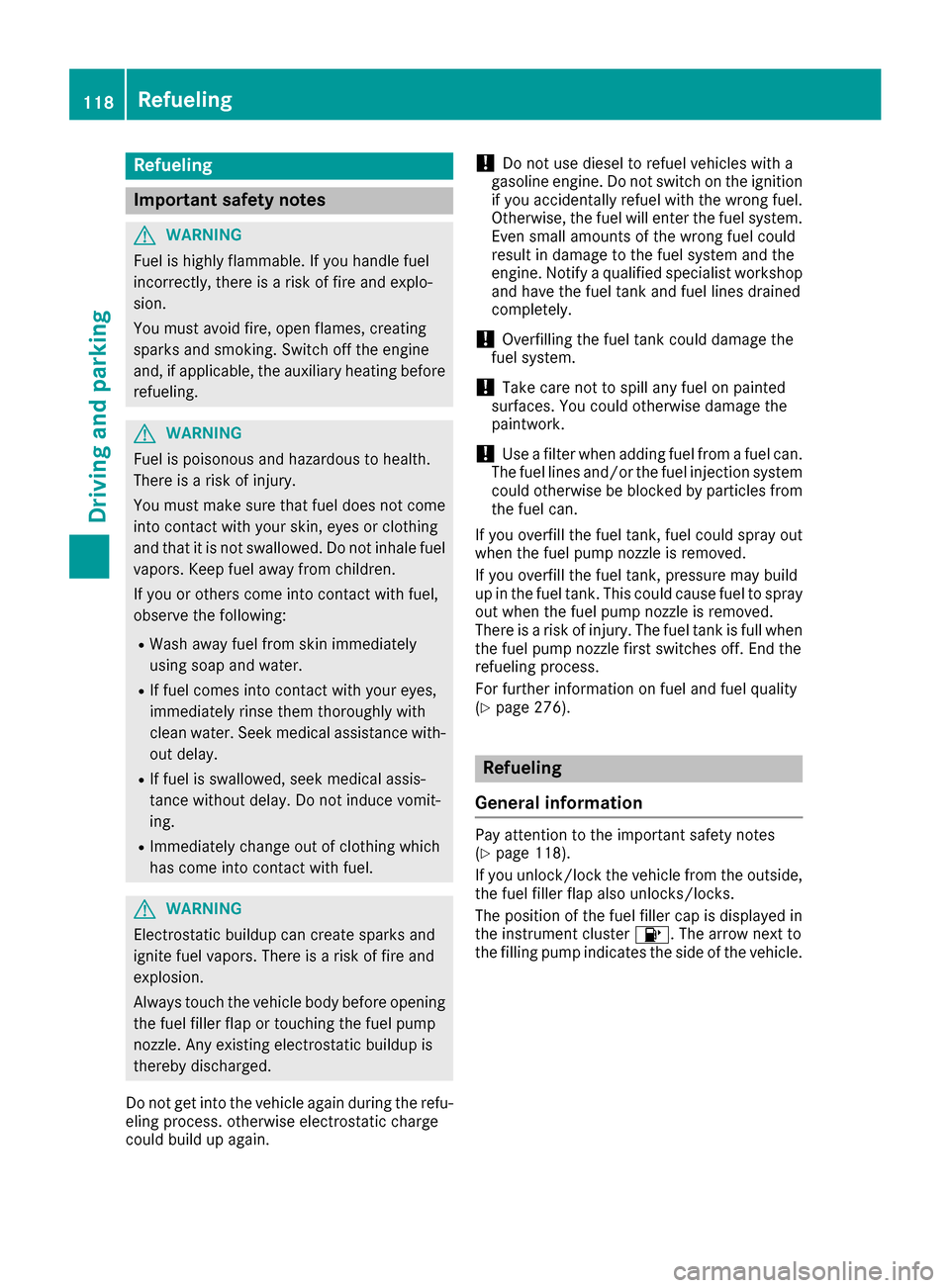

Refueling
Important safety notes
GWARNING
Fue lish ighly flammable. If yo uhandlef uel
incorrectly, there is ariskoff ire and explo-
sion.
Yo um usta void fire ,ope nf lames ,creating
sparks and smoking. Switch off the engine
and ,ifa pplicable, the auxiliary heating before
refueling.
GWARNING
Fue lisp oisonous and hazardoustoh ealth.
There is ariskofi njury.
Yo um ustm ake sure that fue ldoe sn ot come
into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keepf uelawa yfrom children.
If yo uoro thers come into contact with fuel,
observe the following:
RWash away fue lfrom skin immediately
using soapa nd water.
RIf fuelcomesi nto contact with your eyes,
immediately rins ethem thoroughly with
clean water. Seek medica lassistance with-
outd elay.
RIf fuelisswallowed, seekm edicalassis-
tance withoutd elay.Don ot induce vomit-
ing.
RImmediately change outofc lothing which
hasc ome into contact with fuel.
GWARNING
Electrostatic buildu pcan create sparks and
ignite fue lvapors. There is ariskoff ire and
explosion.
Alway stouch the vehicl ebodyb efore opening
the fue lfille rflaport ouching the fue lpum p
nozzle .Any existing electrostati cbuildup is
thereby discharged.
Do not get into the vehicl eagain during the refu-
eling process .otherwise electrostati ccharge
could buil dupagain.
!Do not us ediese ltor efuel vehicles with a
gasoline engine. Do not switch on the ignition
if yo uaccidentall yrefuel with the wrong fuel.
Otherwise, the fue lwille nter the fue lsys tem.
Even small amounts of the wrong fue lcould
resul tind amagetot he fue lsystem and the
engine. Notify aquali fied specialist workshop
and have the fue ltank and fue llin es drained
completely.
!Overfilling the fue ltank could damag ethe
fue lsystem.
!Take care not to spill any fue lonpainted
surfaces. Yo ucould otherwise damag ethe
paintwork.
!Use afilter when adding fue lfrom afue lcan.
The fue llin es and/or the fue linjection system
could otherwise be blocked by particles from
the fue lcan.
If yo uoverfil lthe fue ltank, fue lcould spray out
when the fue lpum pnozzle is removed.
If yo uoverfil lthe fue ltank, pressure may build
up in the fue ltank. Thisc ould ca
use fue
ltospray
outw hent he fue lpum pnozzle is removed.
There is ariskofi njury. The fue ltank is ful lwhen
the fue lpum pnozzle firs tswitches off. End the
refueling process.
For further information on fue land fue lquali ty
(
Ypage 276).
Refueling
General information
Paya ttention to the important safety notes
(Ypage 118).
If yo uunlock/lock the vehicl efrom the outside,
the fue lfille rflapa lsou nlocks/locks.
The position of the fue lfille rcap is displayed in
the instrument cluster 8.The arrow next to
the filling pump indicates the sid eofthe vehicle.
118Refueling
Driving and parking
