MERCEDES-BENZ G-CLASS SUV 2014 Owners Manual

Display messages Possible causes/consequences and
M
MSolutions $(USA
only)
J(Canada
only)

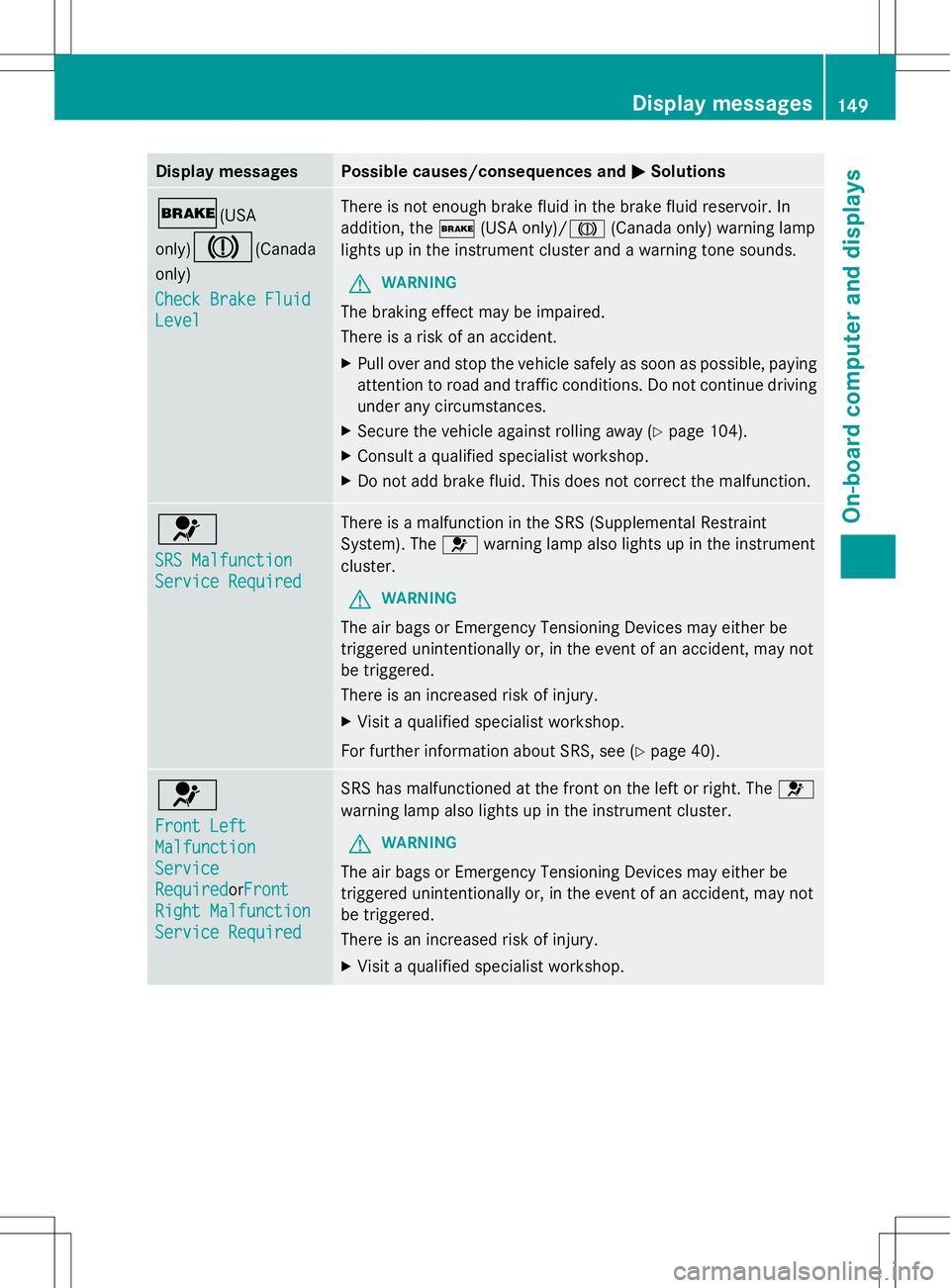

Check Brake Fluid Check Brake Fluid
Level Level There is not enough brake fluid in the brake fluid reservoir. In
addition, the
$(USA only)/ J(Canada only) warning lamp
lights up in the instrument cluster and a warning tone sounds.
G WARNING
The braking effect may be impaired.
There is a risk of an accident.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
X Secure the vehicle against rolling away ( Ypage 104).
X Consult a qualified specialist workshop.
X Do not add brake fluid. This does not correct the malfunction. 6
SRS Malfunction SRS Malfunction
Service Required Service Required There is a malfunction in the SRS (Supplemental Restraint
System). The
6warning lamp also lights up in the instrument
cluster.
G WARNING
The air bags or Emergency Tensioning Devices may either be
triggered unintentionally or, in the event of an accident, may not
be triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
For further information about SRS, see (Y page 40).6
Front Left Front Left
Malfunction Malfunction
Service Service
Required RequiredorFront
Front
Right Malfunction
Right Malfunction
Service Required Service Required SRS has malfunctioned at the front on the left or right. The
6
warning lamp also lights up in the instrument cluster.
G WARNING
The air bags or Emergency Tensioning Devices may either be
triggered unintentionally or, in the event of an accident, may not
be triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop. Display
messages
149On-board computer and displays Z

Display messages Possible causes/consequences and
M
MSolutions 6

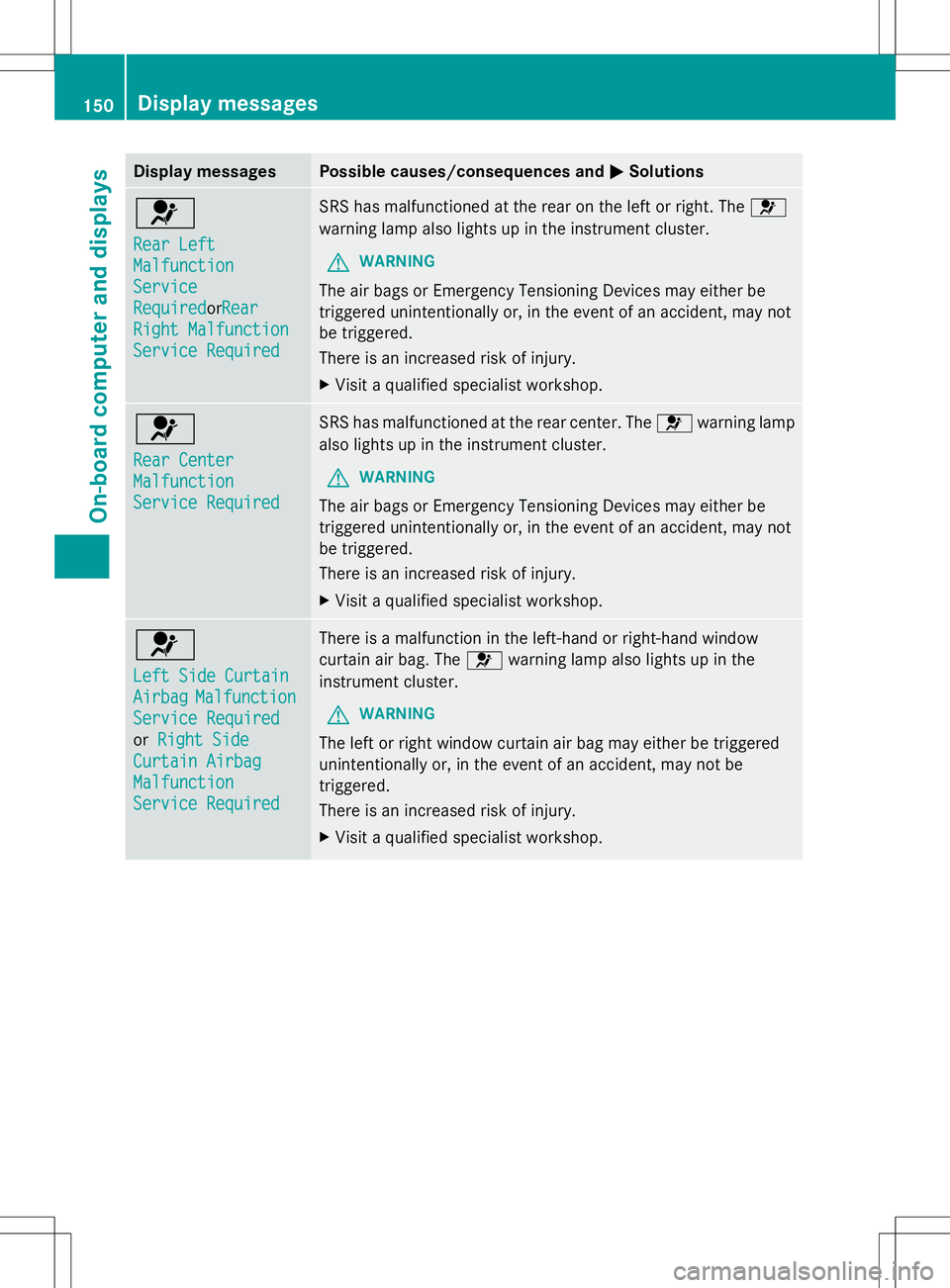

Rear Left Rear Left
Malfunction Malfunction
Service Service
Required RequiredorRear
Rear
Right Malfunction
Right Malfunction
Service Required Service Required SRS has malfunctioned at the rear on the left or right. The
6
warning lamp also lights up in the instrument cluster.
G WARNING
The air bags or Emergency Tensioning Devices may either be
triggered unintentionally or, in the event of an accident, may not
be triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop. 6
Rear Center Rear Center
Malfunction Malfunction
Service Required Service Required SRS has malfunctioned at the rear center. The
6warning lamp
also lights up in the instrument cluster.
G WARNING
The air bags or Emergency Tensioning Devices may either be
triggered unintentionally or, in the event of an accident, may not
be triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop. 6
Left Side Curtain Left Side Curtain
Airbag Airbag
Malfunction
Malfunction
Service Required
Service Required
or Right Side Right Side
Curtain Airbag
Curtain Airbag
Malfunction Malfunction
Service Required Service Required There is a malfunction in the left-hand or right-hand window
curtain air bag. The
6warning lamp also lights up in the
instrument cluster.
G WARNING
The left or right window curtain air bag may either be triggered
unintentionally or, in the event of an accident, may not be
triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop. 150
Display
messagesOn-board computer and displays

Display messages Possible causes/consequences and
M
MSolutions Front Passenger
Front Passenger
Airbag Disabled Airbag Disabled
See Operator's See Operator's
Manual Manual A special BabySmartâ„¢-compatible child restraint system is
mounted on the front-passenger seat.
The
45 indicator lamp also lights up.
The front-passenger air bag is therefore disabled.
Further information on BabySmartâ„¢(Y page 44).Front Passenger Front Passenger
Airbag Airbag
Enabled
Enabled See
See
Operator's Manual
Operator's Manual The
45 indicator lamp does not remain lit if a special
BabySmartâ„¢-compatible child restraint system has been installed
on the front-passenger seat.
The BabySmartâ„¢ system is malfunctioning.
G WARNING
The front-passenger front air bag can be triggered unintentionally
in the event of an accident.
There is a risk of an accident.
X Make sure there is nothing between the seat and the child
restraint system.
X Check that the child restraint system is installed correctly.
X If the 45 indicator lamp does not light up, have the
BabySmartâ„¢ system checked as soon as possible at a qualified
specialist workshop.
Do not transport a child on the front-passenger seat until the
air bag deactivation system has been repaired. Display
messages
151On-board computer and displays Z

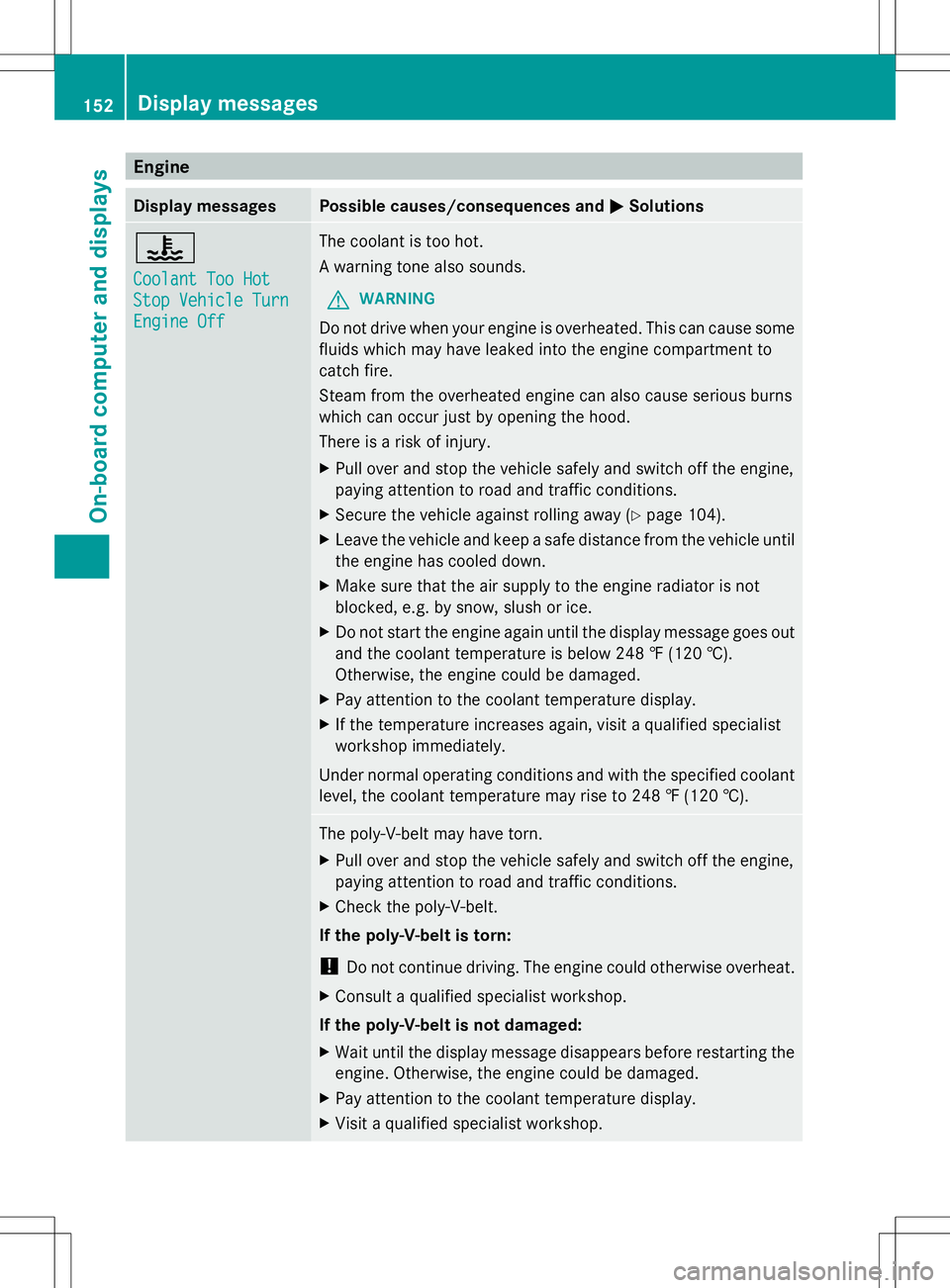

Engine
Display messages Possible causes/consequences and
M
MSolutions ?
Coolant Too Hot Coolant Too Hot
Stop Vehicle Turn Stop Vehicle Turn
Engine Off Engine Off The coolant is too hot.
A warning tone also sounds.
G WARNING
Do not drive when your engine is overheated. This can cause some
fluids which may have leaked into the engine compartment to
catch fire.
Steam from the overheated engine can also cause serious burns
which can occur just by opening the hood.
There is a risk of injury.
X Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Secure the vehicle against rolling away ( Ypage 104).
X Leave the vehicle and keep a safe distance from the vehicle until
the engine has cooled down.
X Make sure that the air supply to the engine radiator is not
blocked, e.g. by snow, slush or ice.
X Do not start the engine again until the display message goes out
and the coolant temperature is below 248 ‡ (120 †).
Otherwise, the engine could be damaged.
X Pay attention to the coolant temperature display.
X If the temperature increases again, visit a qualified specialist
workshop immediately.
Under normal operating conditions and with the specified coolant
level, the coolant temperature may rise to 248 ‡ (120 †). The poly-V-belt may have torn.
X
Pull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
X Check the poly-V-belt.
If the poly-V-belt is torn:
! Do not continue driving. The engine could otherwise overheat.
X Consult a qualified specialist workshop.
If the poly-V-belt is not damaged:
X Wait until the display message disappears before restarting the
engine. Otherwise, the engine could be damaged.
X Pay attention to the coolant temperature display.
X Visit a qualified specialist workshop. 152
Display messagesOn-board computer and displays

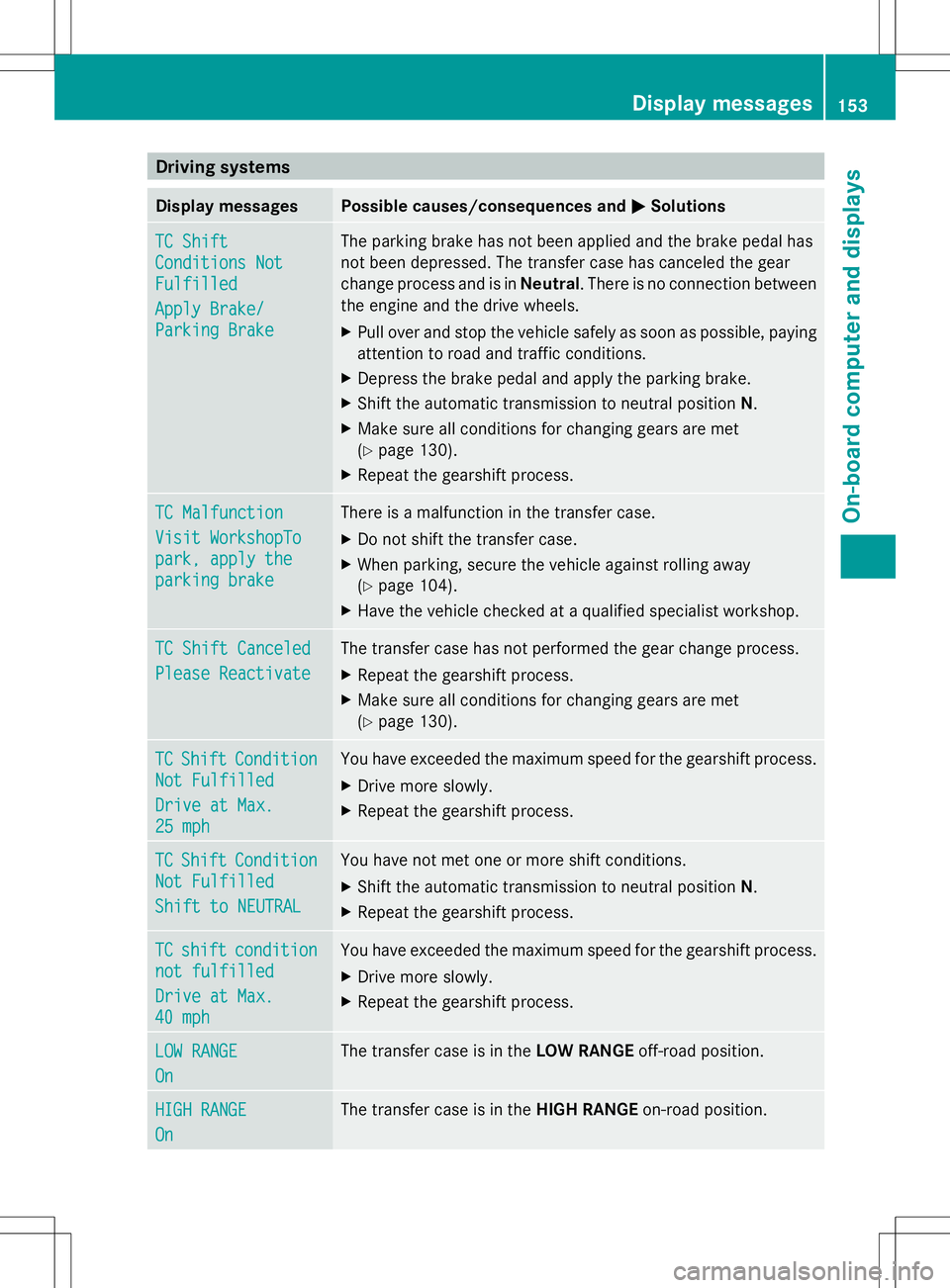

Driving systems
Display messages Possible causes/consequences and
M
MSolutions TC Shift
TC Shift
Conditions Not Conditions Not
Fulfilled Fulfilled
Apply Brake/ Apply Brake/
Parking Brake Parking Brake The parking brake has not been applied and the brake pedal has
not been depressed. The transfer case has canceled the gear
change process and is in
Neutral. There is no connection between
the engine and the drive wheels.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Depress the brake pedal and apply the parking brake.
X Shift the automatic transmission to neutral position N.
X Make sure all conditions for changing gears are met
(Y page 130).
X Repeat the gearshift process. TC Malfunction TC Malfunction
Visit WorkshopTo Visit WorkshopTo
park, apply the park, apply the
parking brake parking brake There is a malfunction in the transfer case.
X
Do not shift the transfer case.
X When parking, secure the vehicle against rolling away
(Y page 104).
X Have the vehicle checked at a qualified specialist workshop. TC Shift Canceled TC Shift Canceled
Please Reactivate Please Reactivate The transfer case has not performed the gear change process.
X
Repeat the gearshift process.
X Make sure all conditions for changing gears are met
(Y page 130). TC TC
Shift
Shift Condition
Condition
Not Fulfilled
Not Fulfilled
Drive at Max. Drive at Max.
25 mph 25 mph You have exceeded the maximum speed for the gearshift process.
X
Drive more slowly.
X Repeat the gearshift process. TC TC
Shift
Shift Condition
Condition
Not Fulfilled
Not Fulfilled
Shift to NEUTRAL Shift to NEUTRAL You have not met one or more shift conditions.
X
Shift the automatic transmission to neutral position N.
X Repeat the gearshift process. TC TC
shift
shift condition
condition
not fulfilled
not fulfilled
Drive at Max. Drive at Max.
40 mph 40 mph You have exceeded the maximum speed for the gearshift process.
X
Drive more slowly.
X Repeat the gearshift process. LOW RANGE LOW RANGE
On On The transfer case is in the
LOW RANGEoff-road position. HIGH RANGE
HIGH RANGE
On On The transfer case is in the
HIGH RANGEon-road position. Display
messages
153On-board computer and displays Z

Display messages Possible causes/consequences and
M

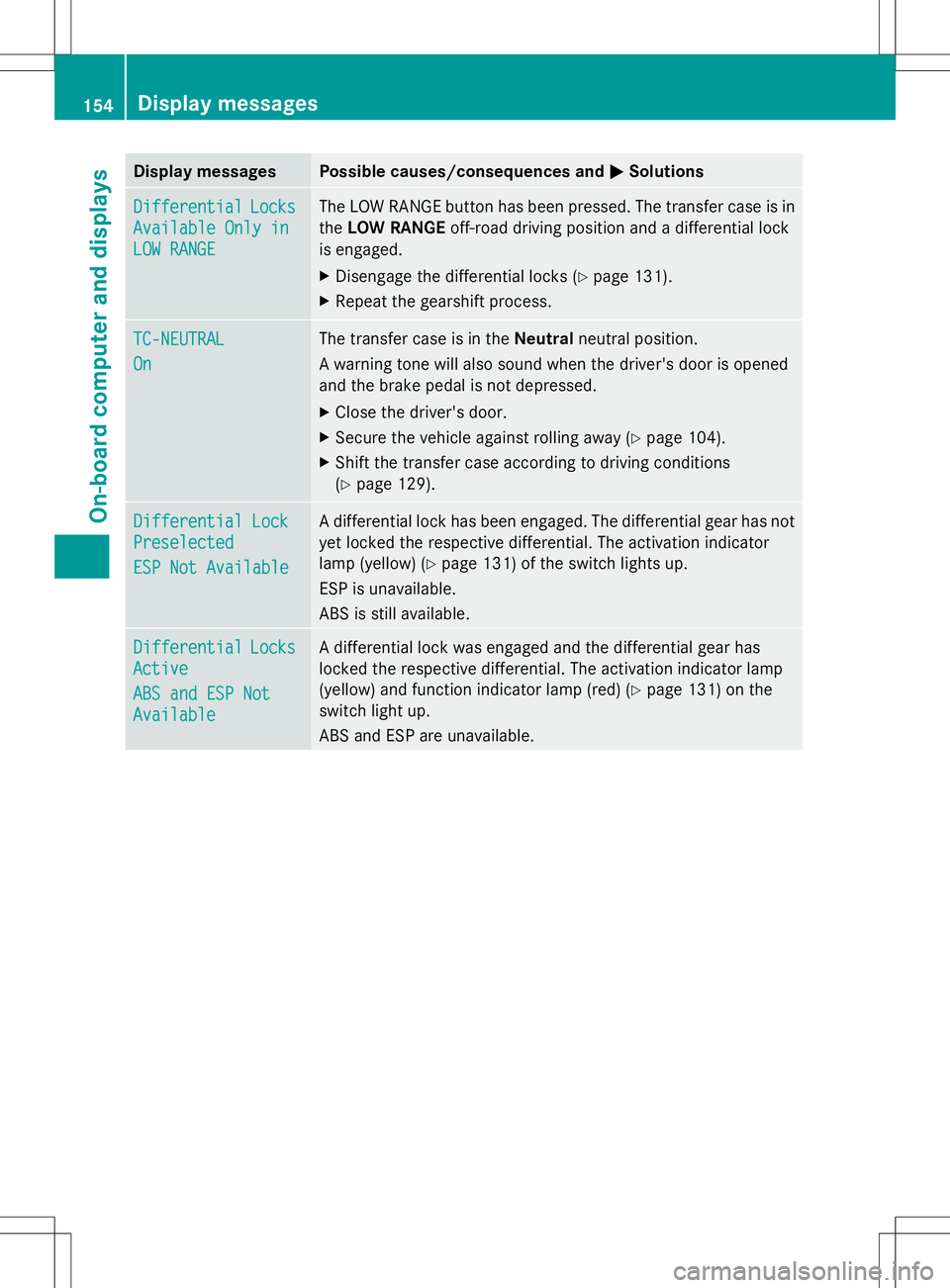

MSolutions Differential
Differential
Locks
Locks
Available Only in
Available Only in
LOW RANGE LOW RANGE The LOW RANGE button has been pressed. The transfer case is in
the
LOW RANGE off-road driving position and a differential lock
is engaged.
X Disengage the differential locks (Y page 131).
X Repeat the gearshift process. TC-NEUTRAL TC-NEUTRAL
On On The transfer case is in the
Neutralneutral position.
A warning tone will also sound when the driver's door is opened
and the brake pedal is not depressed.
X Close the driver's door.
X Secure the vehicle against rolling away ( Ypage 104).
X Shift the transfer case according to driving conditions
(Y page 129). Differential Lock Differential Lock
Preselected Preselected
ESP Not Available ESP Not Available A differential lock has been engaged. The differential gear has not
yet locked the respective differential. The activation indicator
lamp (yellow) (
Ypage 131) of the switch lights up.
ESP is unavailable.
ABS is still available. Differential Differential
Locks
Locks
Active
Active
ABS and ESP Not ABS and ESP Not
Available Available A differential lock was engaged and the differential gear has
locked the respective differential. The activation indicator lamp
(yellow) and function indicator lamp (red) (
Ypage 131) on the
switch light up.
ABS and ESP are unavailable. 154
Display
messagesOn-board computer and displays

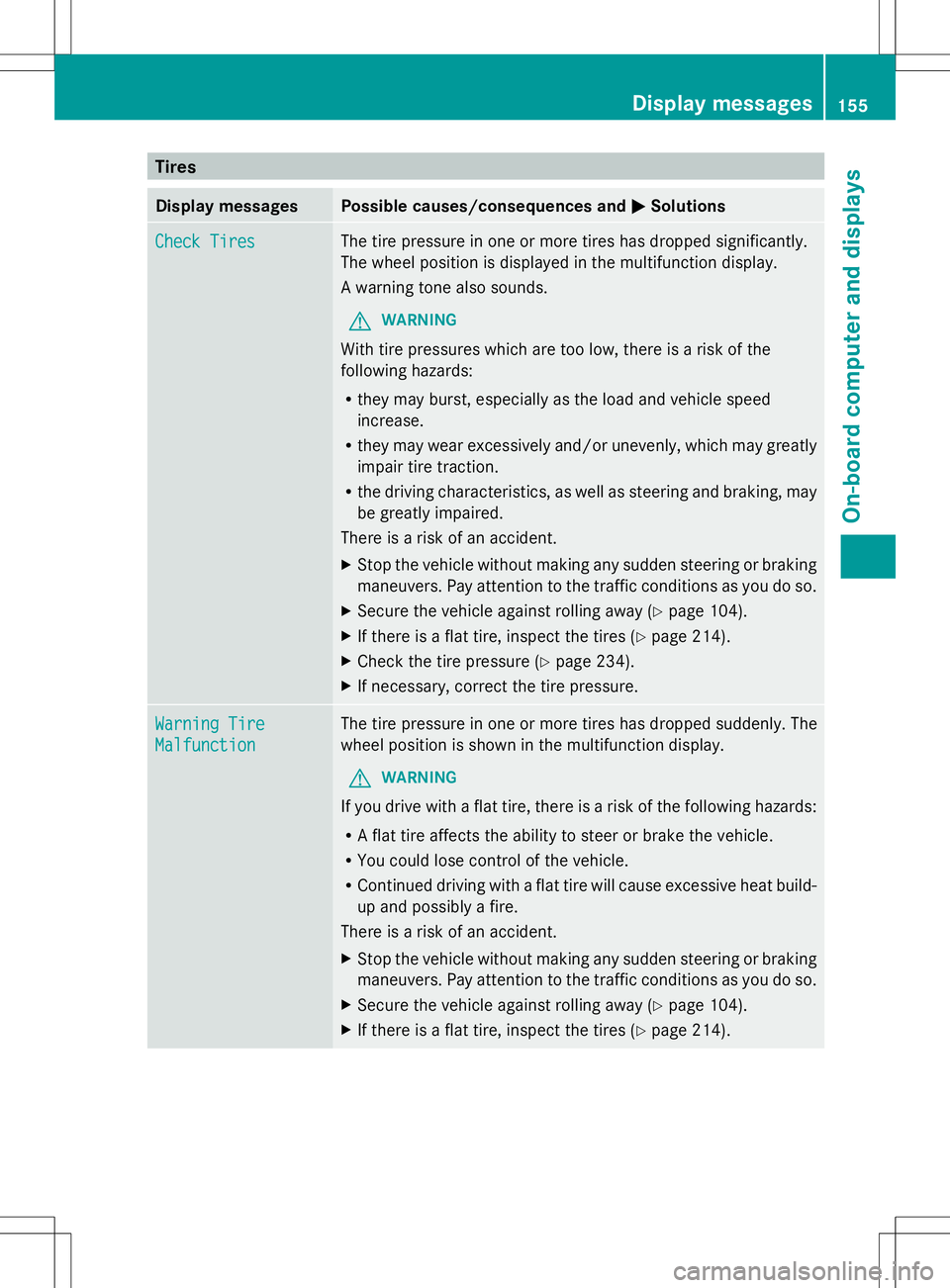

Tires
Display messages Possible causes/consequences and
M
MSolutions Check Tires
Check Tires The tire pressure in one or more tires has dropped significantly.
The wheel position is displayed in the multifunction display.
A warning tone also sounds.
G WARNING
With tire pressures which are too low, there is a risk of the
following hazards:
R they may burst, especially as the load and vehicle speed
increase.
R they may wear excessively and/or unevenly, which may greatly
impair tire traction.
R the driving characteristics, as well as steering and braking, may
be greatly impaired.
There is a risk of an accident.
X Stop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.
X Secure the vehicle against rolling away (Y page 104).
X If there is a flat tire, inspect the tires ( Ypage 214).
X Check the tire pressure (Y page 234).
X If necessary, correct the tire pressure. Warning Tire Warning Tire
Malfunction Malfunction The tire pressure in one or more tires has dropped suddenly. The
wheel position is shown in the multifunction display.
G WARNING
If you drive with a flat tire, there is a risk of the following hazards:
R A flat tire affects the ability to steer or brake the vehicle.
R You could lose control of the vehicle.
R Continued driving with a flat tire will cause excessive heat build-
up and possibly a fire.
There is a risk of an accident.
X Stop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.
X Secure the vehicle against rolling away (Y page 104).
X If there is a flat tire, inspect the tires ( Ypage 214). Display
messages
155On-board computer and displays Z

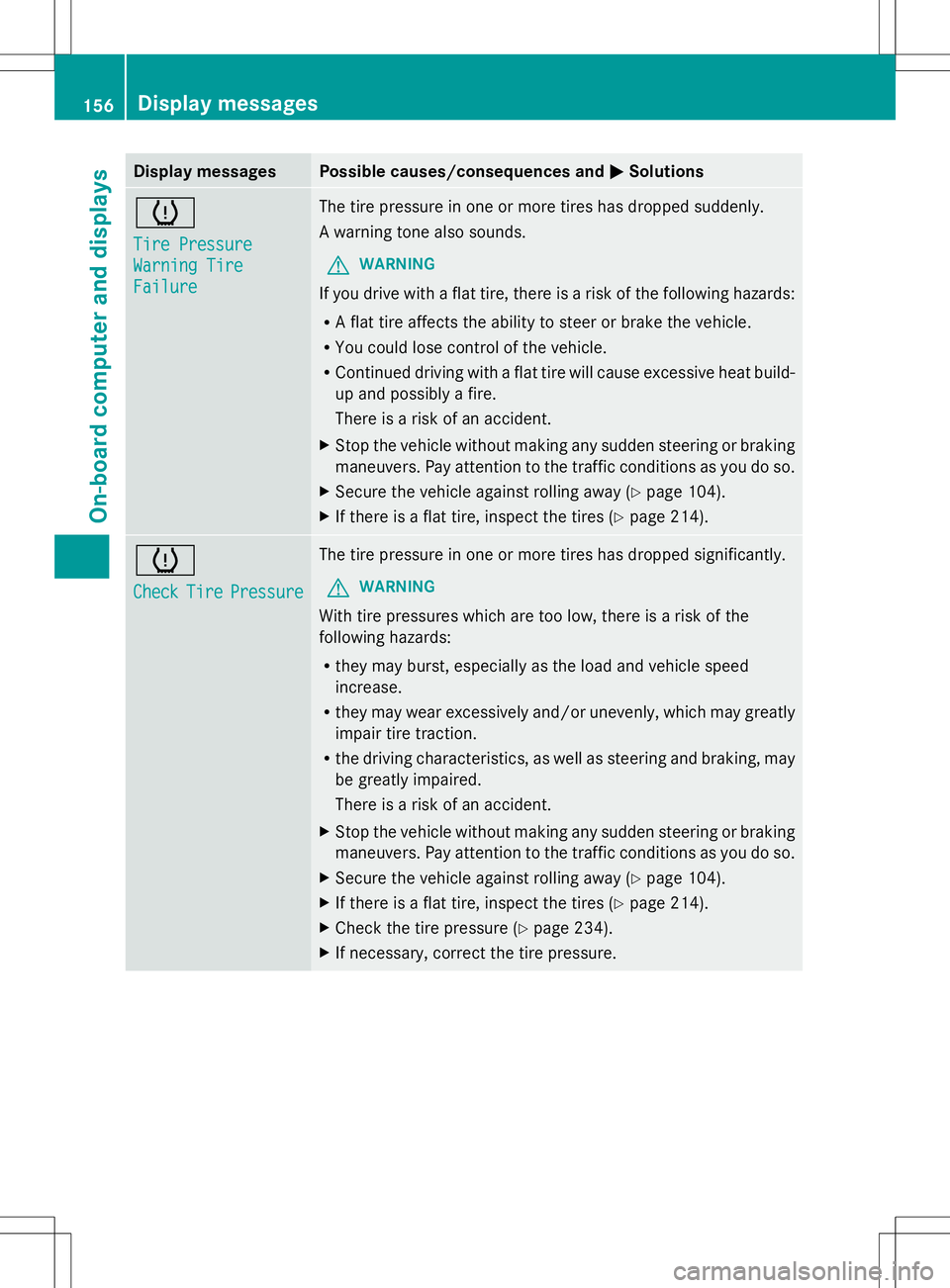

Display messages Possible causes/consequences and
M
MSolutions h
Tire Pressure Tire Pressure
Warning Tire Warning Tire
Failure Failure The tire pressure in one or more tires has dropped suddenly.
A warning tone also sounds.
G WARNING
If you drive with a flat tire, there is a risk of the following hazards:
R A flat tire affects the ability to steer or brake the vehicle.
R You could lose control of the vehicle.
R Continued driving with a flat tire will cause excessive heat build-
up and possibly a fire.
There is a risk of an accident.
X Stop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.
X Secure the vehicle against rolling away ( Ypage 104).
X If there is a flat tire, inspect the tires (Y page 214).h
Check Check
Tire
TirePressure
Pressure The tire pressure in one or more tires has dropped significantly.
G WARNING
With tire pressures which are too low, there is a risk of the
following hazards:
R they may burst, especially as the load and vehicle speed
increase.
R they may wear excessively and/or unevenly, which may greatly
impair tire traction.
R the driving characteristics, as well as steering and braking, may
be greatly impaired.
There is a risk of an accident.
X Stop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.
X Secure the vehicle against rolling away ( Ypage 104).
X If there is a flat tire, inspect the tires (Y page 214).
X Check the tire pressure (Y page 234).
X If necessary, correct the tire pressure. 156
Display
messagesOn-board computer and displays

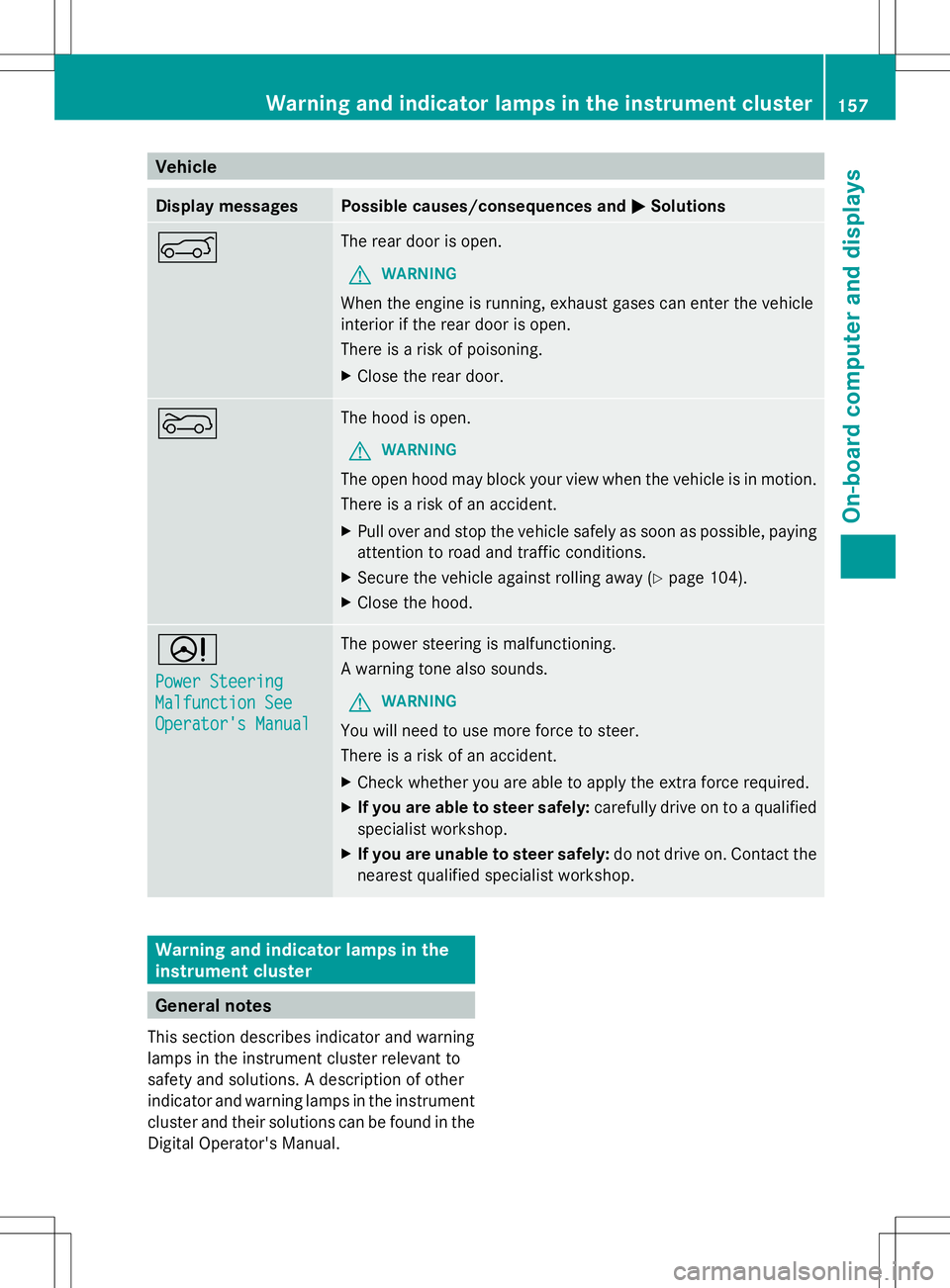

Vehicle
Display messages Possible causes/consequences and
M
MSolutions A The rear door is open.
G WARNING
When the engine is running, exhaust gases can enter the vehicle
interior if the rear door is open.
There is a risk of poisoning.
X Close the rear door. ? The hood is open.
G WARNING
The open hood may block your view when the vehicle is in motion.
There is a risk of an accident.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
X Secure the vehicle against rolling away (Y page 104).
X Close the hood. D
Power Steering Power Steering
Malfunction See Malfunction See
Operator's Manual Operator's Manual The power steering is malfunctioning.
A warning tone also sounds.
G WARNING
You will need to use more force to steer.
There is a risk of an accident.
X Check whether you are able to apply the extra force required.
X If you are able to steer safely: carefully drive on to a qualified
specialist workshop.
X If you are unable to steer safely: do not drive on. Contact the
nearest qualified specialist workshop. Warning and indicator lamps in the
instrument cluster General notes
This section describes indicator and warning
lamps in the instrument cluster relevant to
safety and solutions. A description of other
indicator and warning lamps in the instrument
cluster and their solutions can be found in the
Digital Operator's Manual. Warning and indicator lamps in the instrument cluster
157On-board computer and displays Z

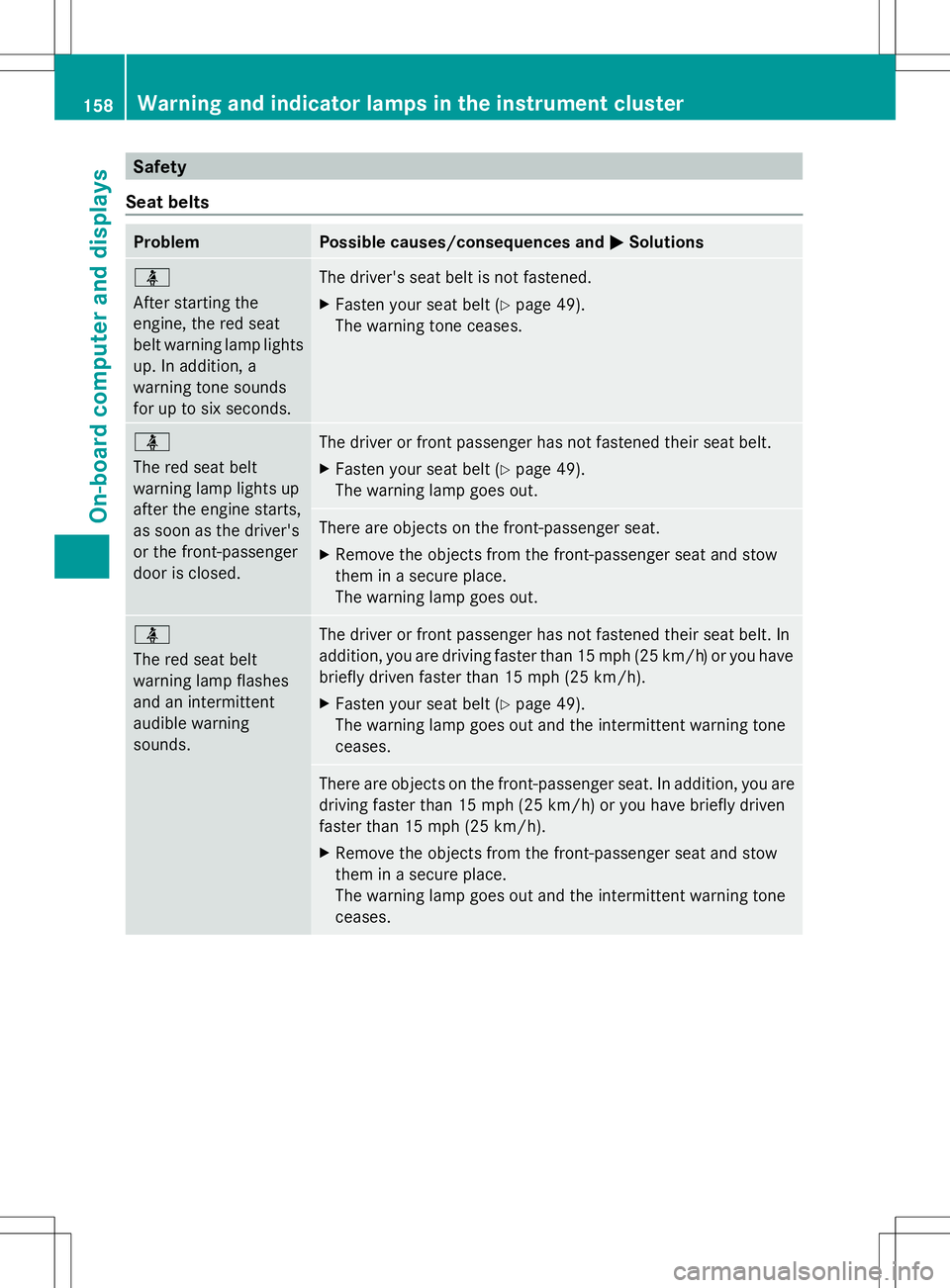

Safety
Seat belts Problem Possible causes/consequences and
M
MSolutions ü
After starting the
engine, the red seat
belt warning lamp lights
up. In addition, a
warning tone sounds
for up to six seconds.
The driver's seat belt is not fastened.
X
Fasten your seat belt (Y page 49).
The warning tone ceases. ü
The red seat belt
warning lamp lights up
after the engine starts,
as soon as the driver's
or the front-passenger
door is closed.
The driver or front passenger has not fastened their seat belt.
X Fasten your seat belt (Y page 49).
The warning lamp goes out. There are objects on the front-passenger seat.
X
Remove the objects from the front-passenger seat and stow
them in a secure place.
The warning lamp goes out. ü
The red seat belt
warning lamp flashes
and an intermittent
audible warning
sounds.
The driver or front passenger has not fastened their seat belt. In
addition, you are driving faster than 15 mph (25 km/h) or you have
briefly driven faster than 15 mph (25 km/h).
X Fasten your seat belt (Y page 49).
The warning lamp goes out and the intermittent warning tone
ceases. There are objects on the front-passenger seat. In addition, you are
driving faster than 15 mph (25 km/h) or you have briefly driven
faster than 15 mph (25 km/h).
X Remove the objects from the front-passenger seat and stow
them in a secure place.
The warning lamp goes out and the intermittent warning tone
ceases. 158
Warning and indicator lamps in the instrument clusterOn-board computer and displays
