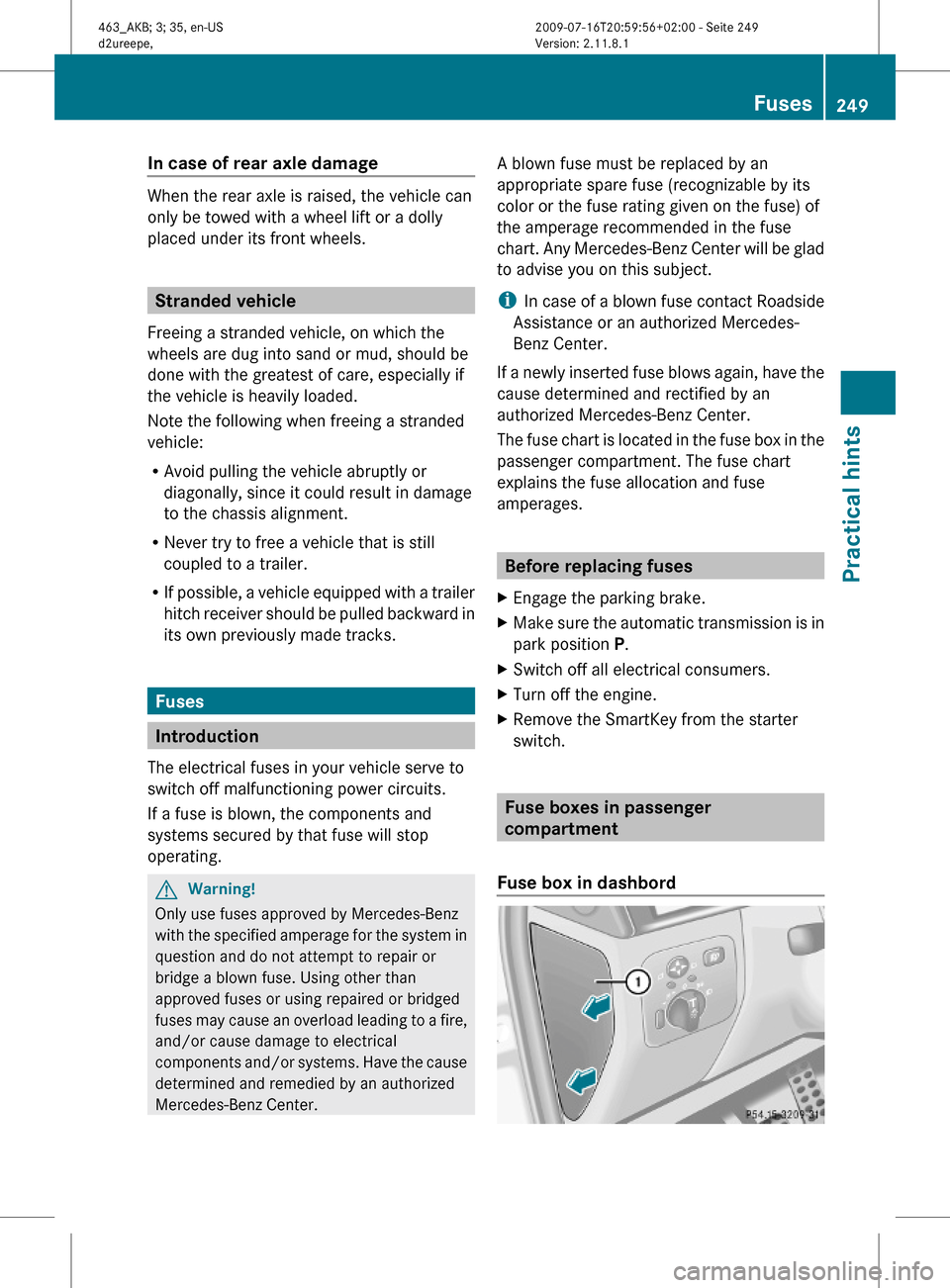

In case of rear axle damage
When the rear axle is raised, the vehicle can
only be towed with a wheel lift or a dolly
placed under its front wheels.
Stranded vehicle
Freeing a stranded vehicle, on which the
wheels are dug into sand or mud, should be
done with the greatest of care, especially if
the vehicle is heavily loaded.
Note the following when freeing a stranded
vehicle:
RAvoid pulling the vehicle abruptly or
diagonally, since it could result in damage
to the chassis alignment.
RNever try to free a vehicle that is still
coupled to a trailer.
RIf possible, a vehicle equipped with a trailer
hitch receiver should be pulled backward in
its own previously made tracks.
Fuses
Introduction
The electrical fuses in your vehicle serve to
switch off malfunctioning power circuits.
If a fuse is blown, the components and
systems secured by that fuse will stop
operating.
GWarning!
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system in
question and do not attempt to repair or
bridge a blown fuse. Using other than
approved fuses or using repaired or bridged
fuses may cause an overload leading to a fire,
and/or cause damage to electrical
components and/or systems. Have the cause
determined and remedied by an authorized
Mercedes-Benz Center.
A blown fuse must be replaced by an
appropriate spare fuse (recognizable by its
color or the fuse rating given on the fuse) of
the amperage recommended in the fuse
chart. Any Mercedes-Benz Center will be glad
to advise you on this subject.
iIn case of a blown fuse contact Roadside
Assistance or an authorized Mercedes-
Benz Center.
If a newly inserted fuse blows again, have the
cause determined and rectified by an
authorized Mercedes-Benz Center.
The fuse chart is located in the fuse box in the
passenger compartment. The fuse chart
explains the fuse allocation and fuse
amperages.
Before replacing fuses
XEngage the parking brake.XMake sure the automatic transmission is in
park position P.
XSwitch off all electrical consumers.XTurn off the engine.XRemove the SmartKey from the starter
switch.
Fuse boxes in passenger
compartment
Fuse box in dashbord
Fuses249Practical hints463_AKB; 3; 35, en-USd2ureepe,Version: 2.11.8.12009-07-16T20:59:56+02:00 - Seite 249Z

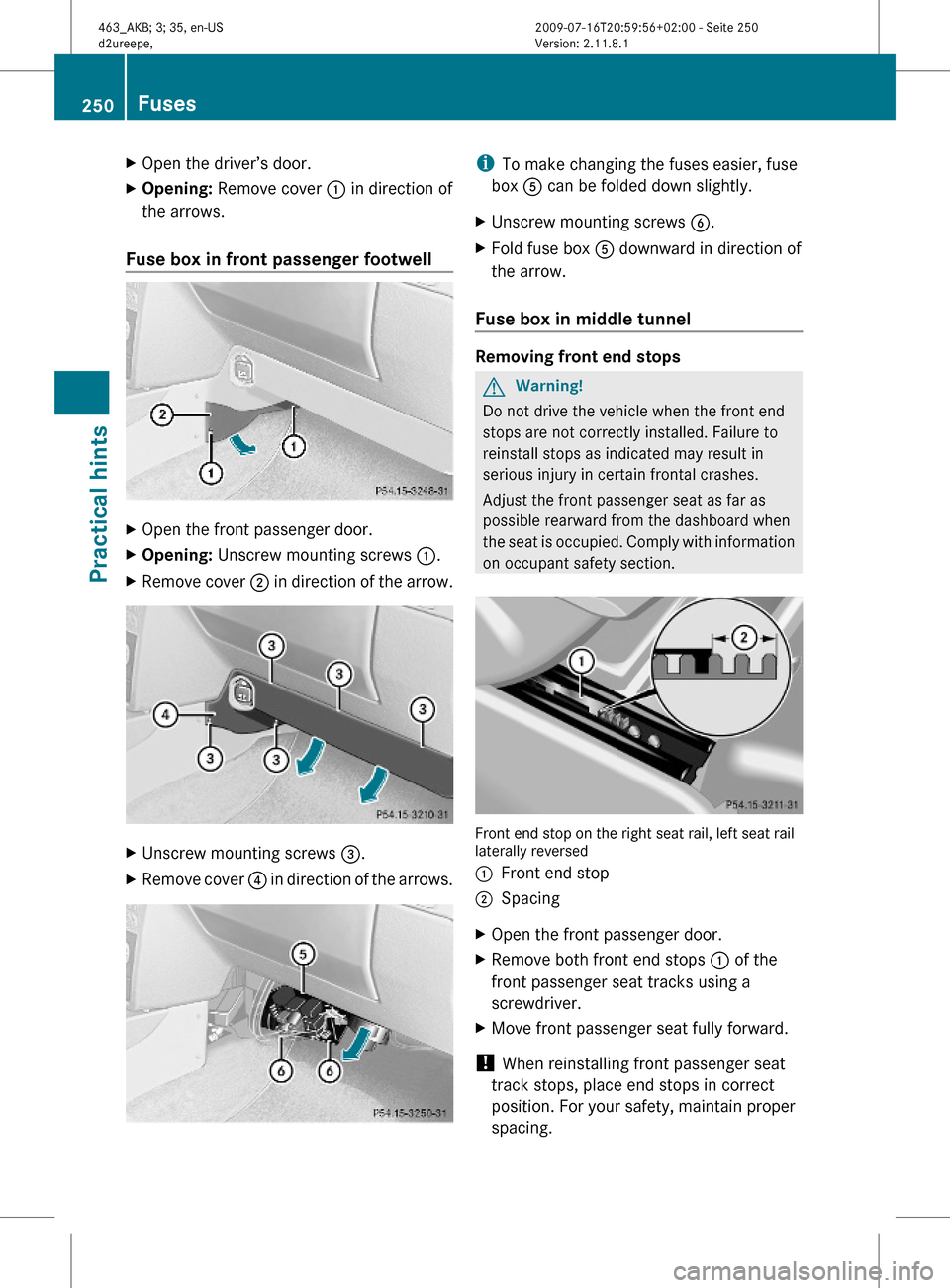

XOpen the driver’s door.XOpening: Remove cover : in direction of
the arrows.
Fuse box in front passenger footwell
XOpen the front passenger door.XOpening: Unscrew mounting screws :.XRemove cover ; in direction of the arrow.XUnscrew mounting screws =.XRemove cover ? in direction of the arrows.iTo make changing the fuses easier, fuse
box A can be folded down slightly.
XUnscrew mounting screws B.XFold fuse box A downward in direction of
the arrow.
Fuse box in middle tunnel
Removing front end stops
GWarning!
Do not drive the vehicle when the front end
stops are not correctly installed. Failure to
reinstall stops as indicated may result in
serious injury in certain frontal crashes.
Adjust the front passenger seat as far as
possible rearward from the dashboard when
the seat is occupied. Comply with information
on occupant safety section.
Front end stop on the right seat rail, left seat raillaterally reversed
:Front end stop;SpacingXOpen the front passenger door.XRemove both front end stops : of the
front passenger seat tracks using a
screwdriver.
XMove front passenger seat fully forward.
! When reinstalling front passenger seat
track stops, place end stops in correct
position. For your safety, maintain proper
spacing.
250FusesPractical hints
463_AKB; 3; 35, en-USd2ureepe,Version: 2.11.8.12009-07-16T20:59:56+02:00 - Seite 250

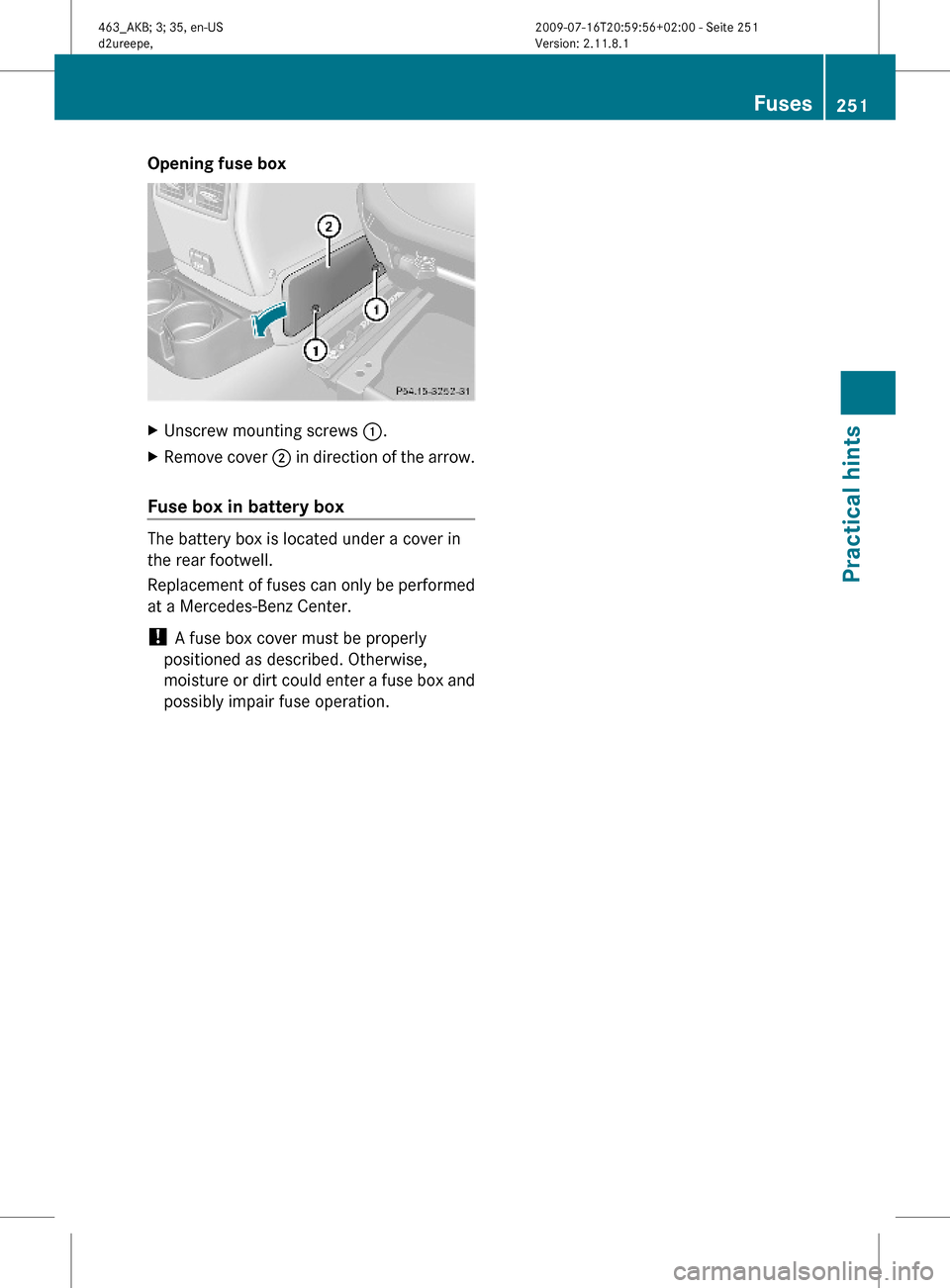

Opening fuse boxXUnscrew mounting screws :.XRemove cover ; in direction of the arrow.
Fuse box in battery box
The battery box is located under a cover in
the rear footwell.
Replacement of fuses can only be performed
at a Mercedes-Benz Center.
! A fuse box cover must be properly
positioned as described. Otherwise,
moisture or dirt could enter a fuse box and
possibly impair fuse operation.
Fuses251Practical hints463_AKB; 3; 35, en-USd2ureepe,Version: 2.11.8.12009-07-16T20:59:56+02:00 - Seite 251Z

252463_AKB; 3; 35, en-USd2ureepe,Version: 2.11.8.12009-07-16T20:59:56+02:00 - Seite 252

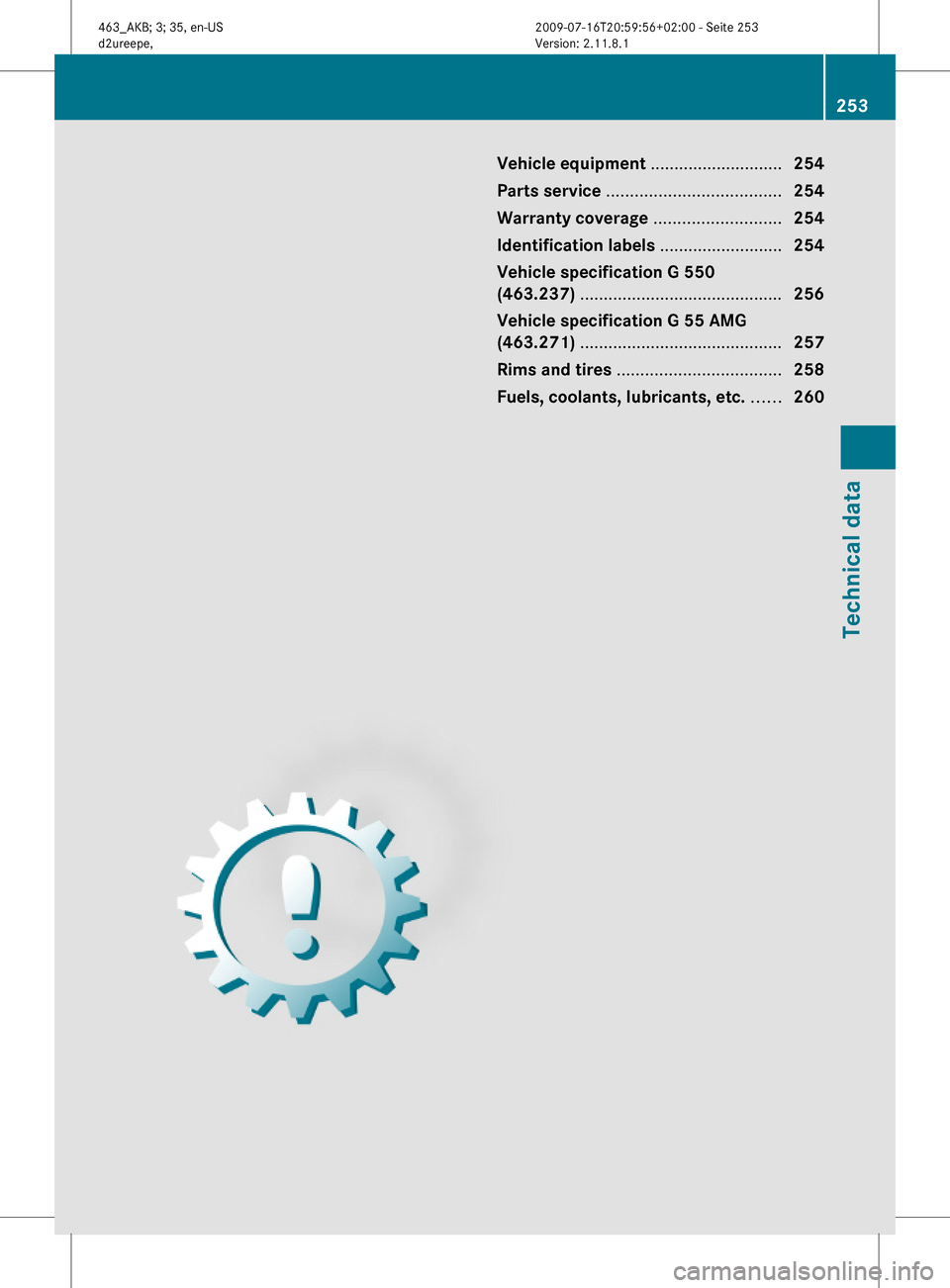

Vehicle equipment ............................254
Parts service .....................................254
Warranty coverage ...........................254
Identification labels ..........................254
Vehicle specification G 550
(463.237) ...........................................256
Vehicle specification G 55 AMG
(463.271) ...........................................257
Rims and tires ...................................258
Fuels, coolants, lubricants, etc. ......260
253Technical data463_AKB; 3; 35, en-USd2ureepe,Version: 2.11.8.12009-07-16T20:59:56+02:00 - Seite 253

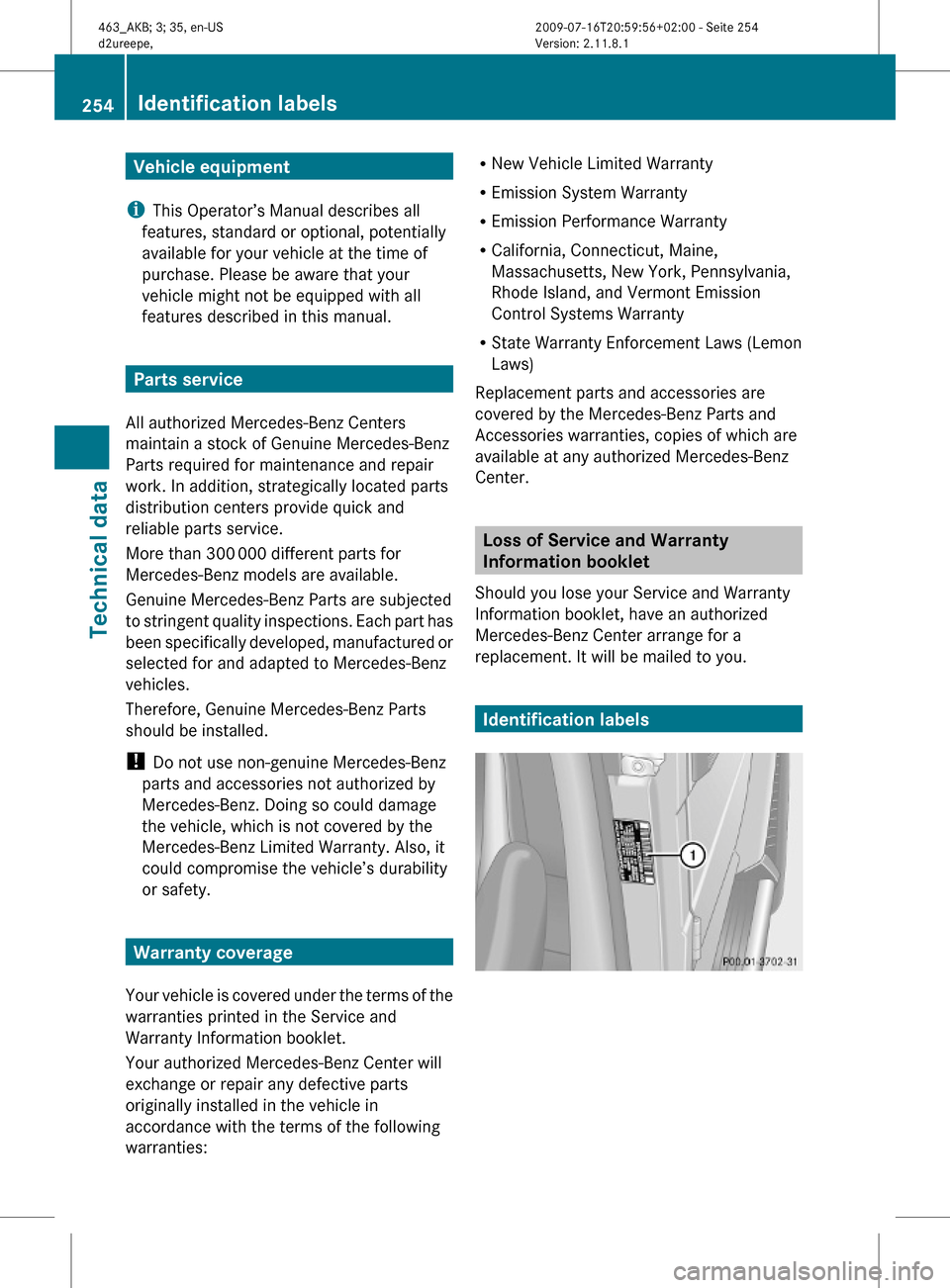

Vehicle equipment
iThis Operator’s Manual describes all
features, standard or optional, potentially
available for your vehicle at the time of
purchase. Please be aware that your
vehicle might not be equipped with all
features described in this manual.
Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine Mercedes-Benz
Parts required for maintenance and repair
work. In addition, strategically located parts
distribution centers provide quick and
reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz Parts are subjected
to stringent quality inspections. Each part has
been specifically developed, manufactured or
selected for and adapted to Mercedes-Benz
vehicles.
Therefore, Genuine Mercedes-Benz Parts
should be installed.
! Do not use non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz. Doing so could damage
the vehicle, which is not covered by the
Mercedes-Benz Limited Warranty. Also, it
could compromise the vehicle’s durability
or safety.
Warranty coverage
Your vehicle is covered under the terms of the
warranties printed in the Service and
Warranty Information booklet.
Your authorized Mercedes-Benz Center will
exchange or repair any defective parts
originally installed in the vehicle in
accordance with the terms of the following
warranties:
RNew Vehicle Limited Warranty
REmission System Warranty
REmission Performance Warranty
RCalifornia, Connecticut, Maine,
Massachusetts, New York, Pennsylvania,
Rhode Island, and Vermont Emission
Control Systems Warranty
RState Warranty Enforcement Laws (Lemon
Laws)
Replacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which are
available at any authorized Mercedes-Benz
Center.
Loss of Service and Warranty
Information booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Center arrange for a
replacement. It will be mailed to you.
Identification labels
254Identification labelsTechnical data
463_AKB; 3; 35, en-USd2ureepe,Version: 2.11.8.12009-07-16T20:59:56+02:00 - Seite 254

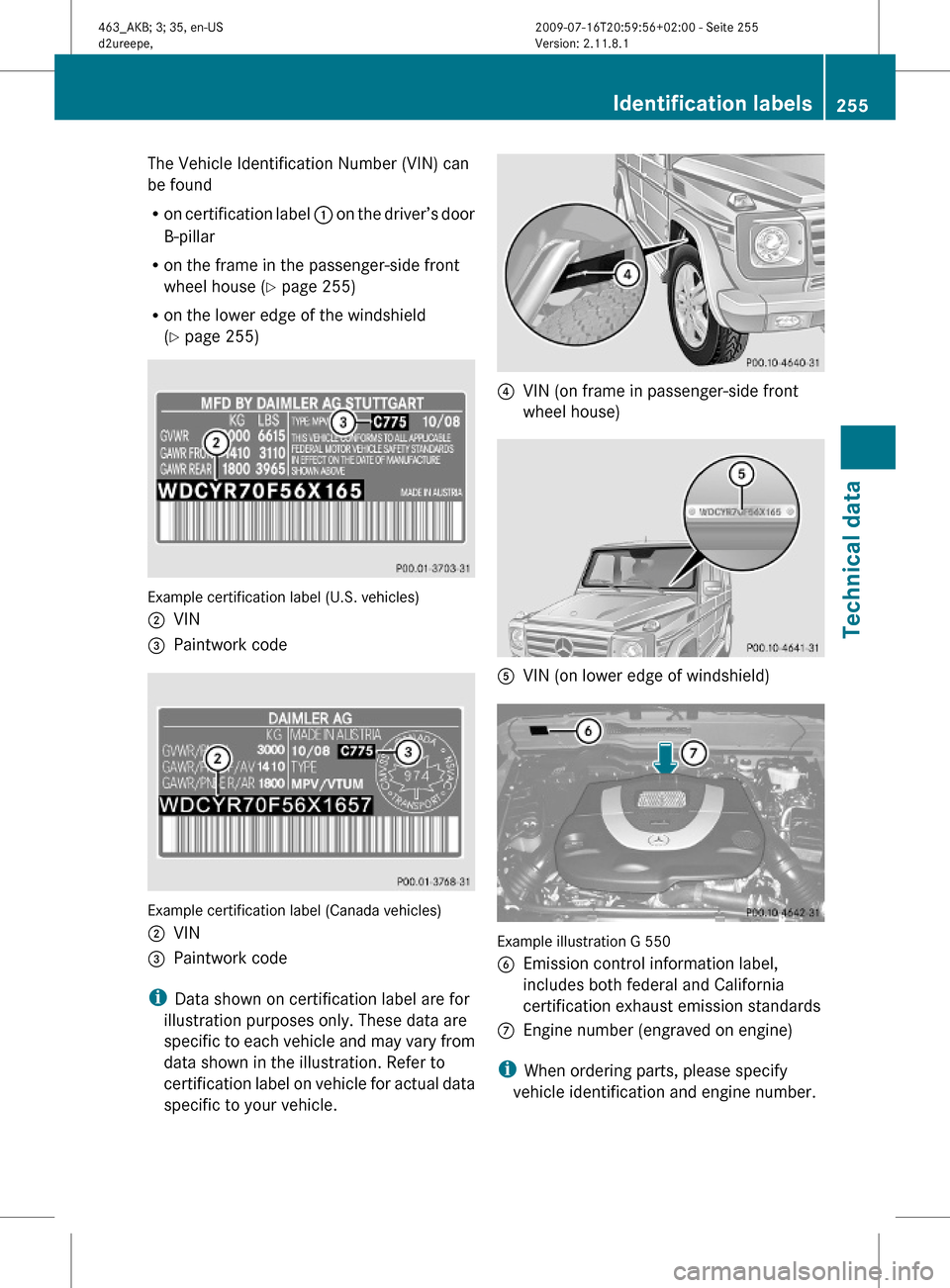

The Vehicle Identification Number (VIN) can
be found
Ron certification label : on the driver’s door
B-pillar
Ron the frame in the passenger-side front
wheel house (Y page 255)
Ron the lower edge of the windshield
(Y page 255)
Example certification label (U.S. vehicles)
;VIN=Paintwork code
Example certification label (Canada vehicles)
;VIN=Paintwork code
iData shown on certification label are for
illustration purposes only. These data are
specific to each vehicle and may vary from
data shown in the illustration. Refer to
certification label on vehicle for actual data
specific to your vehicle.
?VIN (on frame in passenger-side front
wheel house)
AVIN (on lower edge of windshield)
Example illustration G 550
BEmission control information label,
includes both federal and California
certification exhaust emission standards
CEngine number (engraved on engine)
iWhen ordering parts, please specify
vehicle identification and engine number.
Identification labels255Technical data463_AKB; 3; 35, en-USd2ureepe,Version: 2.11.8.12009-07-16T20:59:56+02:00 - Seite 255Z

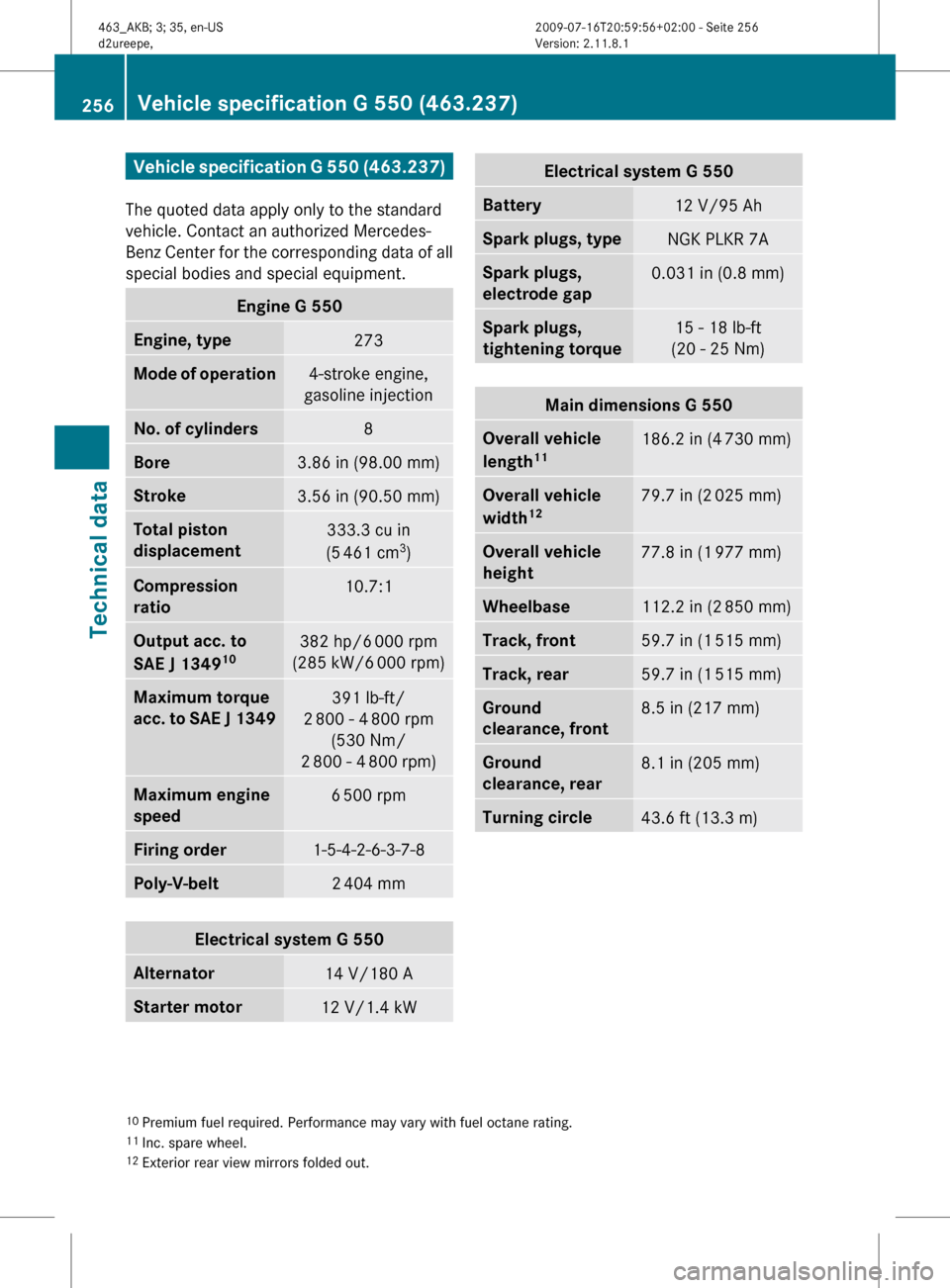

Vehicle specification G 550 (463.237)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center for the corresponding data of all
special bodies and special equipment.Engine G 550Engine, type273Mode of operation4-stroke engine,
gasoline injectionNo. of cylinders8Bore3.86 in (98.00 mm)Stroke3.56 in (90.50 mm)Total piston
displacement333.3 cu in
(5 461 cm 3
)Compression
ratio10.7:1Output acc. to
SAE J 1349 10382 hp/6
000 rpm
(285 kW/6 000 rpm)Maximum torque
acc. to SAE J 1349391 lb-ft/
2 800 - 4 800 rpm
(530 Nm/
2 800 - 4 800 rpm)Maximum engine
speed6 500 rpmFiring order1-5-4-2-6-3-7-8Poly-V-belt2 404 mmElectrical system G 550Alternator14 V/180 AStarter motor12 V/1.4 kWElectrical system G 550Battery12 V/95 AhSpark plugs, typeNGK PLKR 7ASpark plugs,
electrode gap0.031 in (0.8 mm)Spark plugs,
tightening torque15 - 18 lb-ft
(20 - 25 Nm)Main dimensions G 550Overall vehicle
length 11186.2 in (4
730 mm)Overall vehicle
width 1279.7 in (2
025 mm)Overall vehicle
height77.8 in (1 977 mm)Wheelbase112.2 in (2 850 mm)Track, front59.7 in (1 515 mm)Track, rear59.7 in (1 515 mm)Ground
clearance, front8.5 in (217 mm)Ground
clearance, rear8.1 in (205 mm)Turning circle43.6 ft (13.3 m)10 Premium fuel required. Performance may vary with fuel octane rating.
11 Inc. spare wheel.
12 Exterior rear view mirrors folded out.256Vehicle specification G 550 (463.237)Technical data
463_AKB; 3; 35, en-USd2ureepe,Version: 2.11.8.12009-07-16T20:59:56+02:00 - Seite 256

Weights and ratings G 550Gross Vehicle
Weight Rating
(GVWR) 136
615 lb (3 000 kg)Gross Axle
Weight Rating
(GAWR), front 143
110 lb (1 410 kg)Gross Axle
Weight Rating
(GAWR), rear 143
965 lb (1 800 kg)

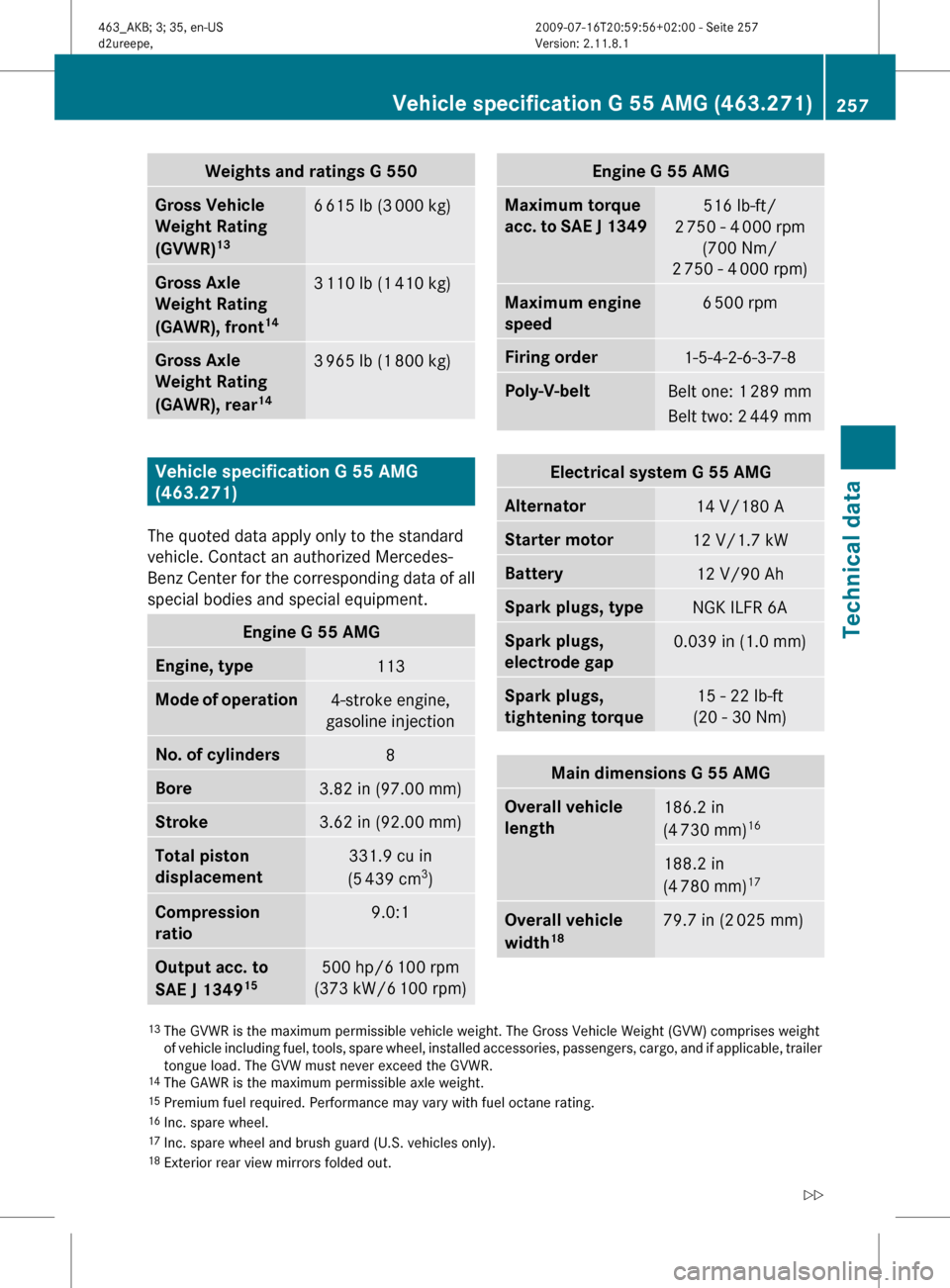

Vehicle specification G 55 AMG
(463.271)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center for the corresponding data of all
special bodies and special equipment.
Engine G 55 AMGEngine, type113Mode of operation4-stroke engine,
gasoline injectionNo. of cylinders8Bore3.82 in (97.00 mm)Stroke3.62 in (92.00 mm)Total piston
displacement331.9 cu in
(5 439 cm 3
)Compression
ratio9.0:1Output acc. to
SAE J 1349 15500 hp/6
100 rpm
(373 kW/6 100 rpm)Engine G 55 AMGMaximum torque
acc. to SAE J 1349516 lb-ft/
2 750 - 4 000 rpm
(700 Nm/
2 750 - 4 000 rpm)Maximum engine
speed6 500 rpmFiring order1-5-4-2-6-3-7-8Poly-V-beltBelt one: 1 289 mm
Belt two: 2 449 mmElectrical system G 55 AMGAlternator14 V/180 AStarter motor12 V/1.7 kWBattery12 V/90 AhSpark plugs, typeNGK ILFR 6ASpark plugs,
electrode gap0.039 in (1.0 mm)Spark plugs,
tightening torque15 - 22 lb-ft
(20 - 30 Nm)Main dimensions G 55 AMGOverall vehicle
length186.2 in
(4 730 mm) 16188.2 in
(4 780 mm) 17Overall vehicle
width 1879.7 in (2
025 mm)13
The GVWR is the maximum permissible vehicle weight. The Gross Vehicle Weight (GVW) comprises weight
of vehicle including fuel, tools, spare wheel, installed accessories, passengers, cargo, and if applicable, trailer
tongue load. The GVW must never exceed the GVWR.
14 The GAWR is the maximum permissible axle weight.
15 Premium fuel required. Performance may vary with fuel octane rating.
16 Inc. spare wheel.
17 Inc. spare wheel and brush guard (U.S. vehicles only).
18 Exterior rear view mirrors folded out.Vehicle specification G 55 AMG (463.271)257Technical data463_AKB; 3; 35, en-USd2ureepe,Version: 2.11.8.12009-07-16T20:59:56+02:00 - Seite 257Z

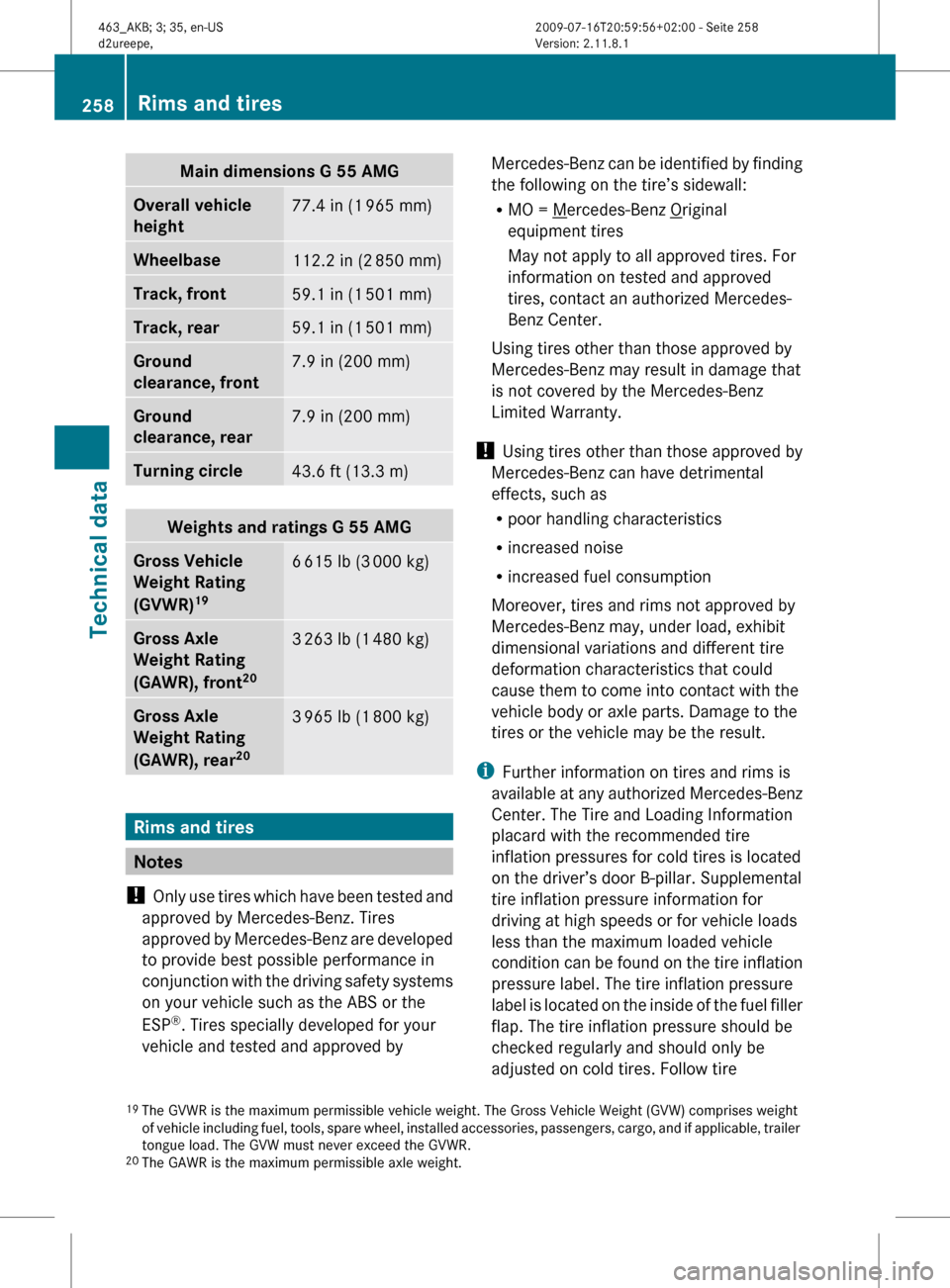

Main dimensions G 55 AMGOverall vehicle
height77.4 in (1 965 mm)Wheelbase112.2 in (2 850 mm)Track, front59.1 in (1 501 mm)Track, rear59.1 in (1 501 mm)Ground
clearance, front7.9 in (200 mm)Ground
clearance, rear7.9 in (200 mm)Turning circle43.6 ft (13.3 m)Weights and ratings G 55 AMGGross Vehicle
Weight Rating
(GVWR) 196
615 lb (3 000 kg)Gross Axle
Weight Rating
(GAWR), front 203
263 lb (1 480 kg)Gross Axle
Weight Rating
(GAWR), rear 203
965 lb (1 800 kg)
Rims and tires
Notes
! Only use tires which have been tested and
approved by Mercedes-Benz. Tires
approved by Mercedes-Benz are developed
to provide best possible performance in
conjunction with the driving safety systems
on your vehicle such as the ABS or the
ESP ®
. Tires specially developed for your
vehicle and tested and approved by
Mercedes-Benz can be identified by finding
the following on the tire’s sidewall:
R MO =
Mercedes-Benz Original
equipment tires
May not apply to all approved tires. For
information on tested and approved
tires, contact an authorized Mercedes-
Benz Center.
Using tires other than those approved by
Mercedes-Benz may result in damage that
is not covered by the Mercedes-Benz
Limited Warranty.
! Using tires other than those approved by
Mercedes-Benz can have detrimental
effects, such as
R poor handling characteristics
R increased noise
R increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit
dimensional variations and different tire
deformation characteristics that could
cause them to come into contact with the
vehicle body or axle parts. Damage to the
tires or the vehicle may be the result.
i Further information on tires and rims is
available at any authorized Mercedes-Benz
Center. The Tire and Loading Information
placard with the recommended tire
inflation pressures for cold tires is located
on the driver’s door B-pillar. Supplemental
tire inflation pressure information for
driving at high speeds or for vehicle loads
less than the maximum loaded vehicle
condition can be found on the tire inflation
pressure label. The tire inflation pressure
label is located on the inside of the fuel filler
flap. The tire inflation pressure should be
checked regularly and should only be
adjusted on cold tires. Follow tire
19 The GVWR is the maximum permissible vehicle weight. The Gross Vehicle Weight (GVW) comprises weight
of vehicle including fuel, tools, spare wheel, installed accessories, passengers, cargo, and if applicable, trailer
tongue load. The GVW must never exceed the GVWR.
20 The GAWR is the maximum permissible axle weight.258Rims and tiresTechnical data
463_AKB; 3; 35, en-USd2ureepe,Version: 2.11.8.12009-07-16T20:59:56+02:00 - Seite 258
