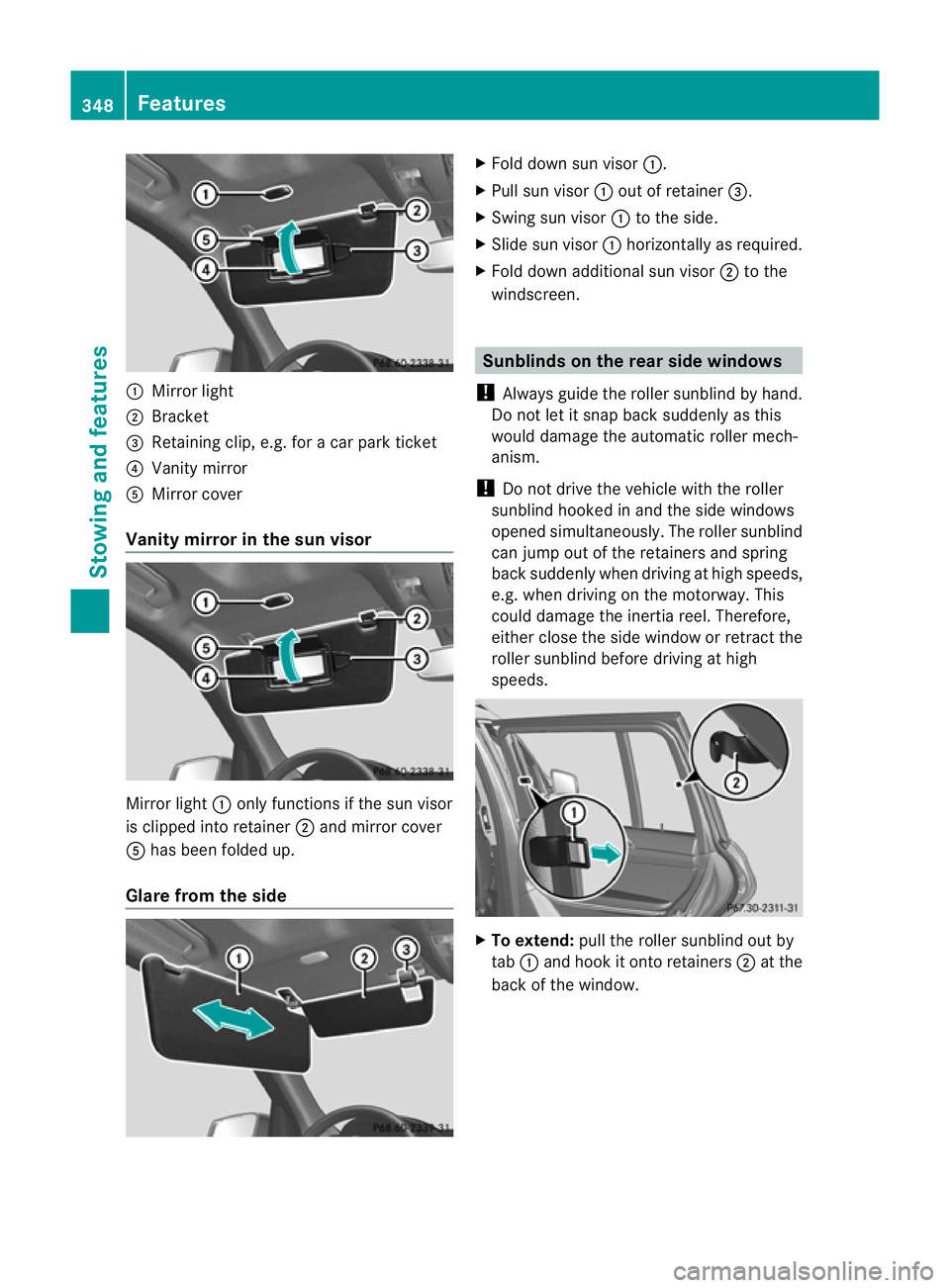

Mirror light
; Bracket
= Retainin gclip, e.g. for acar park ticket
? Vanity mirror
A Mirror cover
Vanity mirror in the sun visor Mirror light
:only functions if the sun visor
is clipped into retainer ;and mirror cover
A has been folded up.
Glare from the side X
Fold down sun visor :.
X Pull sun visor :out of retainer =.
X Swing sun visor :to the side.
X Slide sun visor :horizontally as required.
X Fold down additional sun visor ;to the
windscreen. Sunblinds on the rear side windows
! Always guide the roller sunblind by hand.
Do not let it snap back suddenly as this
would damage the automatic roller mech-
anism.
! Do not drive the vehicle with the roller
sunblind hooke dinand the sid ewindows
opened simultaneously. The roller sunblind
can jump out of the retainers and spring
back suddenly when drivin gathigh speeds,
e.g. when drivin gonthe motorway. This
could damage the inertia reel .Therefore,
either close the side window or retract the
roller sunblind before driving at high
speeds. X
To extend: pull the roller sunblind out by
tab :and hook it ont oretainers ;at the
back of the window. 348
FeaturesStowing and features
Page 352 of 441

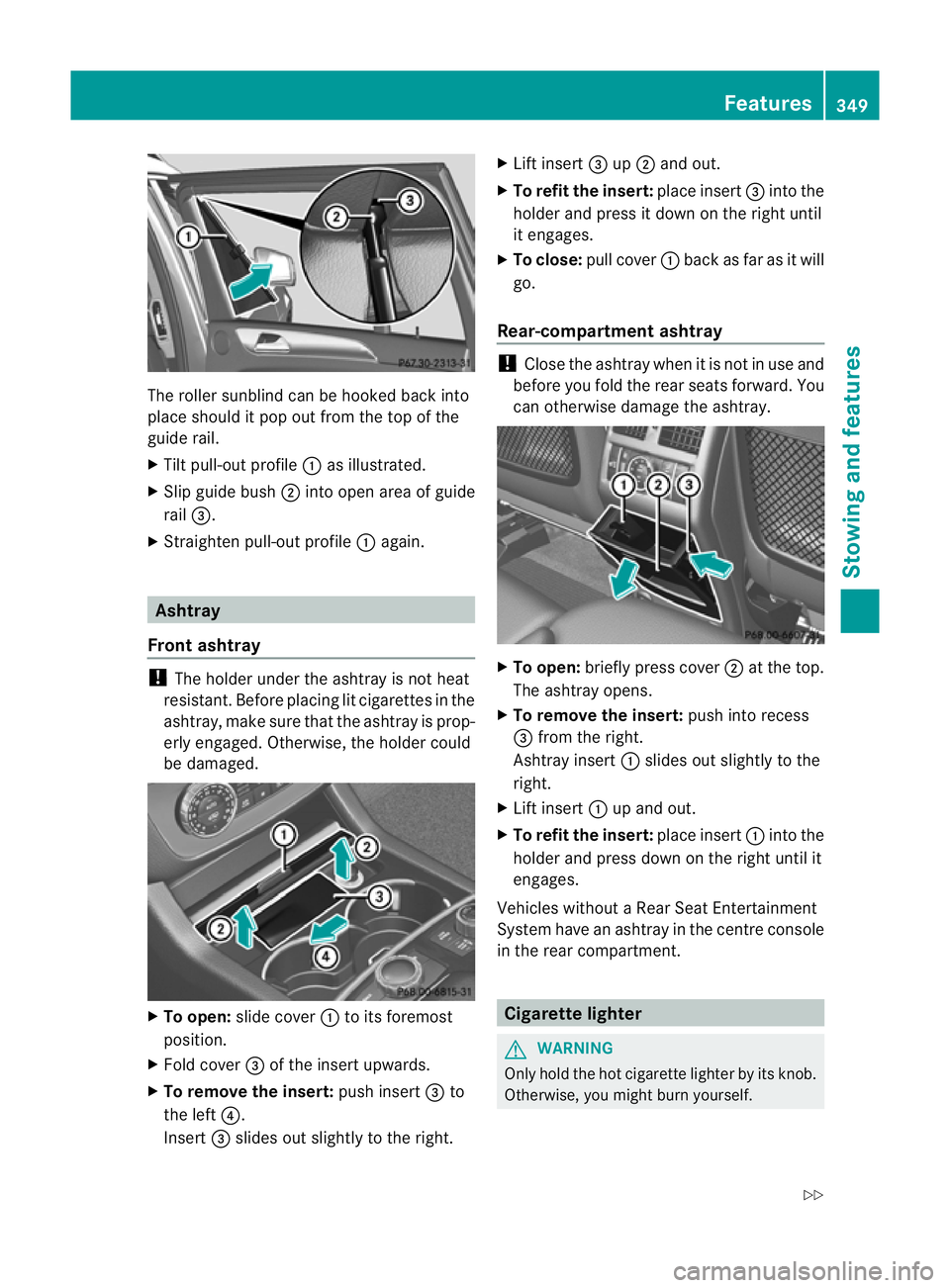

The roller sunblind can be hooked back into
plac eshould it pop out from the top of the
guide rail.
X Tilt pull-out profile :as illustrated.
X Sli pg uide bush ;into open area of guide
rail =.
X Straighten pull-out profile :again. Ashtray
Front ashtray !
The holder under the ashtray is not heat
resistant. Before placing lit cigarettes in the
ashtray, make sure that the ashtray is prop-
erly engaged. Othe rwise, the holder could
be damaged. X
To open: slide cover :to its foremost
position.
X Fold cover =of the insert upwards.
X To remove the insert: push insert=to
the left ?.
Insert =slides out slightly to the right. X
Lif tinsert =up; and out.
X To refit the insert: place insert=into the
holder and pres sitdown on the right until
it engages.
X To close: pull cover :back as far as it will
go.
Rea r-compartment ashtray !
Close the ashtray when it is not in use and
before you fold the rear seats forward. You
can otherwise damage the ashtray. X
To open: briefly press cover ;at the top.
The ashtray opens.
X To remove the insert: push intorecess
= from the right.
Ashtray insert :slides out slightly to the
right.
X Lif tinsert :up and out.
X To refit the insert: place insert:into the
holder and pres sdown on the right until it
engages.
Vehicles withou taRear Seat Entertainment
System have an ashtray in the centre console
in the rear compartment. Cigarett
elighter G
WAR
NING
Only hol dthe hot cigarette lighte rbyits knob.
Othe rwise, you might burn yourself. Features
349Stowing and features
Z
Page 353 of 441
Make sur
ethat children travellin ginthe vehi-
cle ar enot able to injure themselves on the
hot cigarette lighter or cause afire with it.

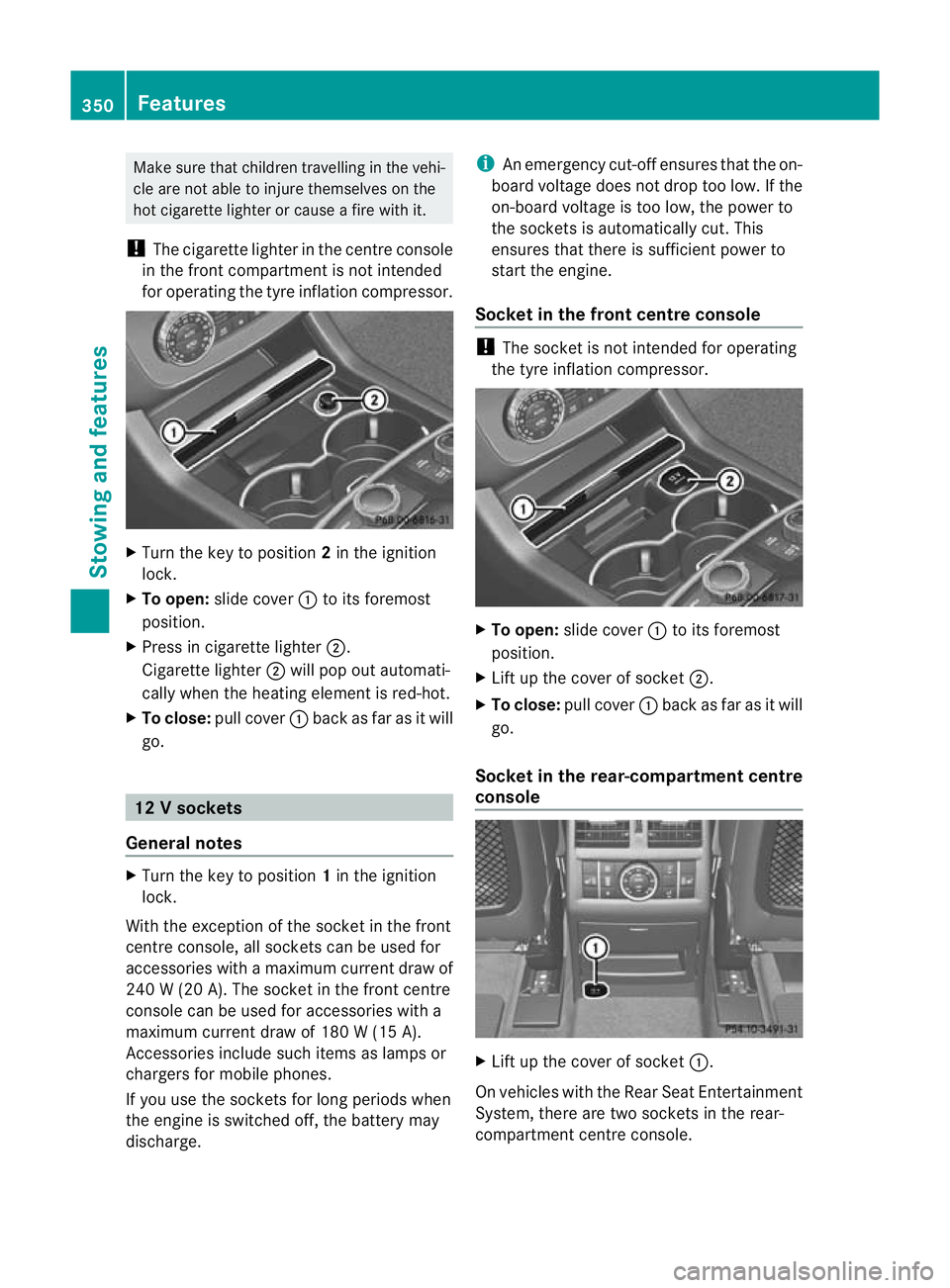

! The cigarette lighter in the centre console
in the front compartmen tisn ot intended
for operatin gthe tyr einflation compressor. X
Turn the key to position 2in the ignition
lock.
X To open: slide cover :to its foremost
position.
X Pres sinc igarette lighter ;.
Cigarette lighter ;will pop out automati-
cally when the heating element is red-hot.
X To close: pull cover :back as far as it will
go. 12
Vsockets
General notes X
Turn th ekey to position 1in th eignition
lock.
Wit hthe exception of th esocket in th efront
centr econsole, all socket scan be used for
accessories with amaximum curren tdraw of
240 W(20 A) .The socket in the front centre
console can be used for accessories with a
maximum curren tdraw of 180 W(15 A).
Accessories includ esuch items as lamp sor
charg ersf or mobi lephones.
If you use the sockets for long periods when
the engine is switched off ,the battery may
discharge. i
An emergency cut-of fensure sthat the on-
board voltage does not drop too low. If the
on-boar dvoltage is too low, the power to
the socket sisautomatically cut. This
ensures that there is sufficient power to
start the engine.
Socket in the front centre console !
The socket is not intended for operating
the tyre inflation compressor. X
To open: slide cover :to its foremost
position.
X Lift up the cover of socket ;.
X To close: pull cover :back as far as it will
go.
Socket in the rear-compartment centre
console X
Lift up the cover of socket :.
On vehicles with the Rear Seat Entertainment
System, there are two sockets in the rear-
compartmen tcentre console. 350
FeaturesStowing and features
Page 354 of 441
Socket in th

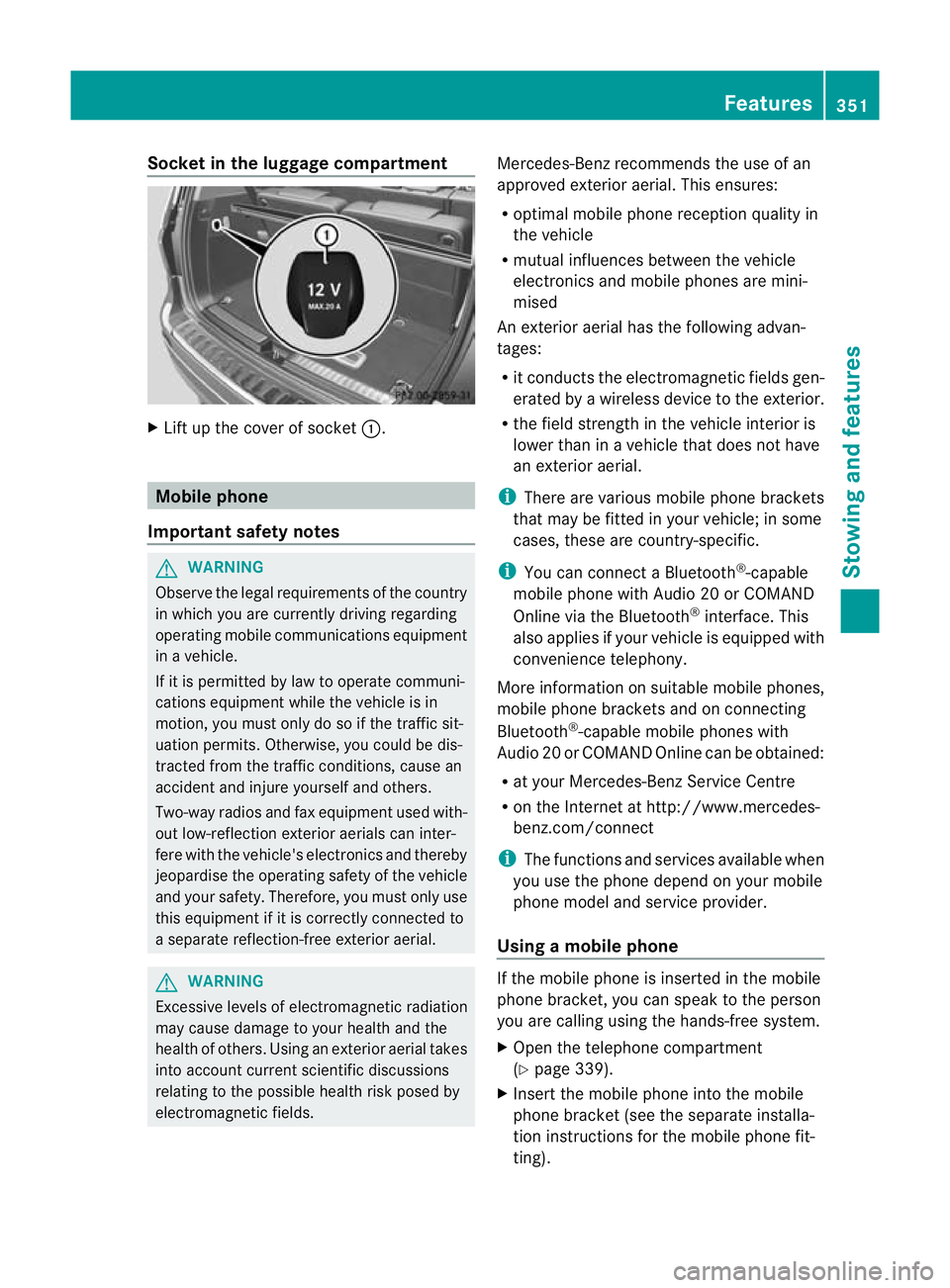

eluggage compartment X
Lift up th ecover of socket :. Mobile phone
Important safety notes G
WARNING
Observ ethe legal requirements of the country
in whic hyou are curren tlyd riving regarding
operatin gmobile communications equipment
in av ehicle.
If it is permitted by law to operat ecommuni-
cations equipment while the vehicle is in
motion, you must only do so if the traffic sit-
uation permits. Otherwise, you coul dbedis-
trac tedf rom th etraffic conditions, caus ean
accident and injure yourself and others.
Two-way radios and fax equipment used with-
out low-reflection exterior aerials can inter-
fere with the vehicle's electronics and thereby
jeopardise the operating safety of the vehicle
and your safety. Therefore, you must only use
this equipment if it is correctly connected to
as eparate reflection-free exterior aerial. G
WARNING
Excessive levels of electromagnetic radiation
may cause damage to your health and the
health of others. Usin ganexterior aerial takes
into account current scientific discussions
relating to the possible health risk posed by
electromagnetic fields. Mercedes-Benz recommends the use of an
approved exterior aerial
.This ensures:
R optimal mobile phone reception quality in
the vehicle
R mutua linfluences between the vehicle
electronics and mobil ephones ar emini-
mised
An exterior aerial has the following advan-
tages:
R it conduct sthe electromagnetic fields gen-
erated by awireless device to the exterior.
R the field strength in the vehicle interior is
lower than in avehicle that does not have
an exterior aerial.
i There are various mobile phone brackets
that may be fitted in your vehicle; in some
cases, these are country-specific.
i You can connect aBluetooth ®
-capable
mobile phone with Audio 20 or COMAND
Online via the Bluetooth ®
interface. This
also applies if your vehicle is equipped with
convenience telephony.
More information on suitable mobile phones,
mobile phone brackets and on connecting
Bluetooth ®
-capable mobile phones with
Audio 20 or COMAND Online can be obtained:
R at your Mercedes-Ben zService Centre
R on the In ternet at http://www.mercedes-
benz.com/connect
i The functions and services available when
you use the phone depend on your mobile
phone model and service provider.
Using amobile phone If th
emobile phon eisinserted in the mobile
pho nebracket ,you can speak to th eperson
you are calli ngusing the hands-free system.
X Open the telephone compartment
(Y page 339).
X Insert the mobil ephone int othe mobile
phone bracket (see the separate installa-
tion instructions for the mobile phone fit-
ting). Features
351Stowing and featu res Z
Page 355 of 441
i
On some mobile phone brackets, you first
hav etoc onnect the mobile phone via Blue-
tooth ®
to the mobile phone bracke t(see
the separate operating instructions for the
mobile phone bracket).
If this is the case, the mobile phone does
not hav etobei nsertedinto the bracket for
you to be able to use the telephone func-
tions .However, the charging function and
aerial function ar enot available.
Operating th emobile phone You can operate the telephone using the
6
and~ buttons on the multifunction
steering wheel. You can operate other mobile
phone functions via the on-board computer
(Y page 275).
When you remov ethe key from the ignition
lock ,the mobile phone stay sswitched on.
However, you can no longer use the hands-
free system.
If you have an active call and woul dlike to
take the key out of the ignition lock, first
remov ethe mobile phone from the bracket.
i When usin gabracke tconnected to the
mobile phone via Bluetooth ®
and you wish
to proceed with acall:
Switch to private mode before removing
the key from the ignition lock. Otherwise, it
may take up to 20 seconds before the
mobile phone separates from the system.
Only then can the telephone call continue.
Information on the necessary steps for set-
ting up "private mode" can be found in the
separate mobile phone operating instruc-
tions.
i Not all mobile phones support "private
mode". Garage door opener
Important safety notes The HomeLink
®
garage door opener integra-
ted in the rear-view mirror allows you to oper-
ate up to three different door and gate sys-
tems.
i The garage door opener is only available
for certain countries. Observe the legal
requirements for each individual country.
The HomeLink ®
garage door opener is
compatible with most European garage and
gate opener drives. More information on
HomeLink ®
and/or compatible products is
available from:
R at aq ualified specialised workshop
R the HomeLink ®
hotline
(0) 08000 466 354 65 (free of charge) or
+49 (0) 683 8907 277 (charge sapply)
R on the Internet at:
http://www.homelink.com

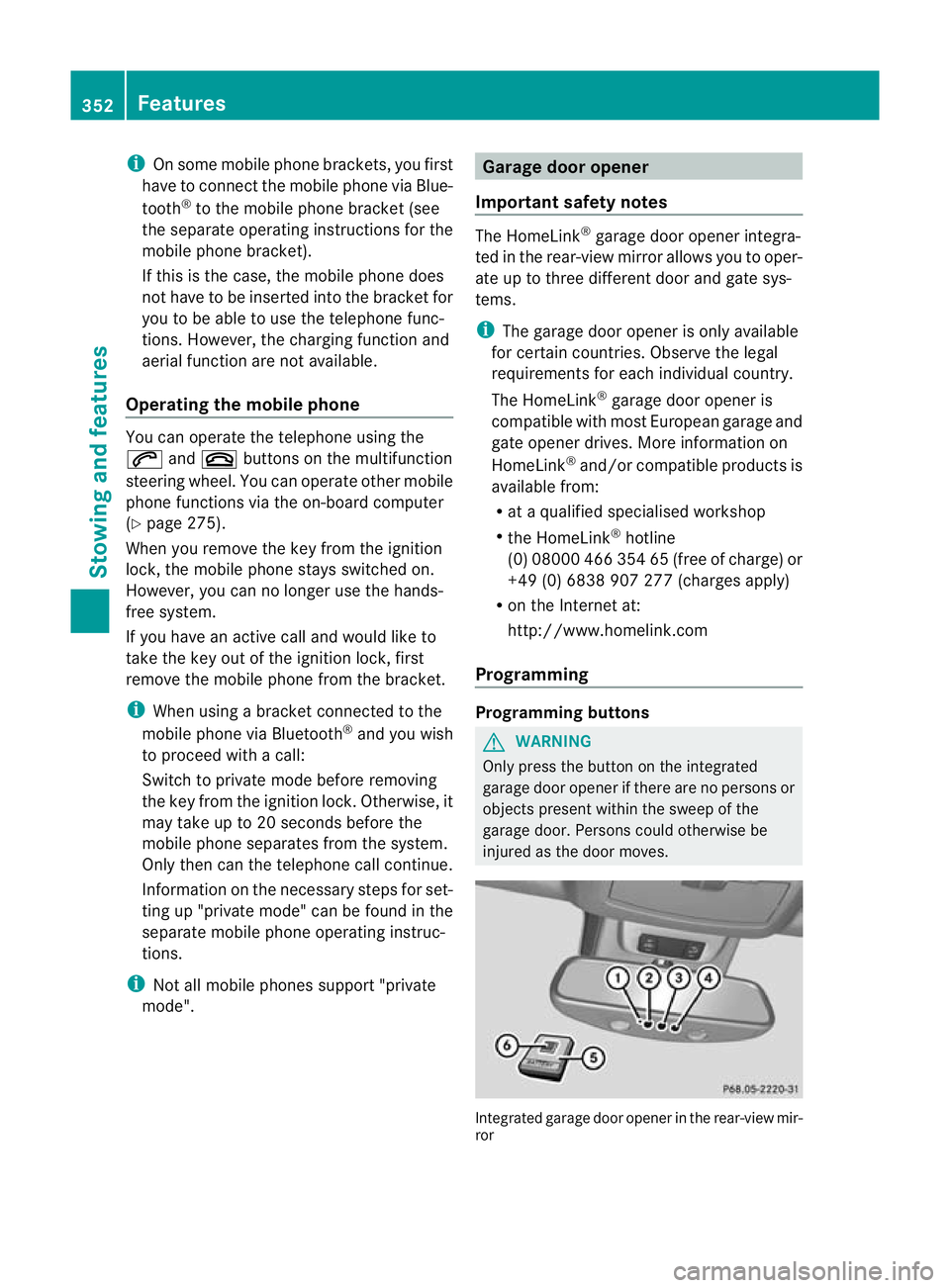

Progra mming Programming buttons
G
WARNING
Only press the button on the integrated
garage door opener if there are no persons or
object spresent withi nthe sweep of the
garage door. Person scould otherwise be
injure dasthe door moves. Integrated garage door opene
rinthe rear-view mir-
ror 352
FeaturesStowin
gand features
Page 356 of 441

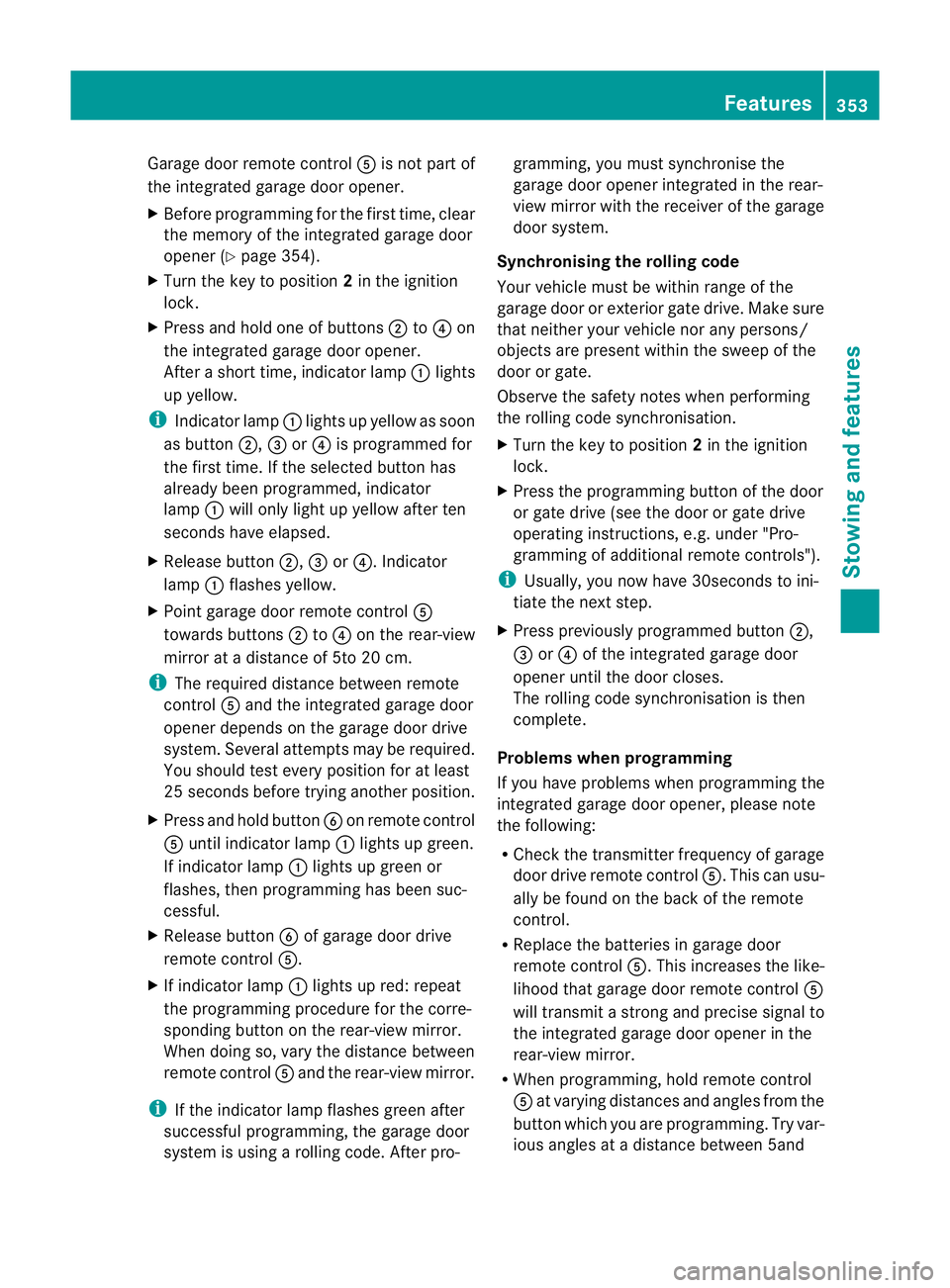

Garage door remote con
trol A is no tpart of
the integrated garage door opener.
X Before programmin gfor th efirst time, clear
th em emory of th eintegrated garage door
ope ner(Ypage 354).
X Turn th ekey to position 2in th eignition
lock.
X Press and hold on eofbuttons ;to? on
the integrate dgarag edoor opener.
Afte ras hort time, indicator lamp :lights
up yellow.
i Indicator lamp :lights up yellow as soon
as button ;,=or? is programmed for
the first time. If the selected button has
already been programmed ,indicator
lamp :will only light up yellow after ten
seconds have elapsed.
X Rele asebutton ;,=or?.I ndicator
lamp :flashes yellow.
X Point garage doo rremote control A
towards buttons ;to? on the rear-view
mirror at adistance of 5to 20 cm.
i The required distance between remote
control Aand the integrated garage door
opener depends on the garage door drive
system. Several attempt smay be required.
You should test every position for at least
25 seconds before trying another position.
X Press and hold button Bon remote control
A until indicator lamp :lights up green.
If indicator lamp :lights up green or
flashes ,then programming has been suc-
cessful.
X Release button Bof garage door drive
remote con trolA.
X Ifindicator lamp :lights up red: repeat
the programming procedur efor the corre-
spondin gbutton on the rear-view mirror.
When doing so, vary the distance between
remote control Aand the rear-view mirror.
i If the indicator lamp flashes green after
successful programming, the garage door
system is using arollin gcode. Af terp ro- gramming
,you must synchronise the
garage door opener integrated in the rear-
view mirror with the receive rofthe garage
door system.
Synchronising th erolling code
Your vehicle must be within range of the
garage door or exterior gate drive. Make sure
that neither your vehicle nor any persons/
objects are present within the sweep of the
door or gate.
Observe the safety notes when performing
the rolling code synchronisation.
X Turn the key to position 2in the ignition
lock.
X Press the programming button of the door
or gate drive (see the door or gate drive
operating instructions, e.g. under "Pro-
gramming of additional remote controls").
i Usually, you now have 30seconds to ini-
tiate the next step.
X Press previousl yprogramme dbutton ;,
= or? of the integrated garage door
opener until the door closes.
The rolling code synchronisatio nist hen
complete.
Problems when progra mming
If you have problems when programming the
integrated garage door opener, please note
the following:
R Check the transmitter frequency of garage
door driv eremote control A.This can usu-
ally be found on the bac kofthe remote
con trol.
R Replace the batteries in garage door
remote control A.This increases the like-
lihood that garage door remote con trolA
will transmit astron gand precis esignal to
the integrated garage door opener in the
rear-view mirror.
R When programming, hold remote control
A at varying distances and angles from the
button which you are programming. Try var-
ious angles at adistance between 5and Features
353Stowingand features Z
Page 357 of 441
30 cm or at the same ang
lebut at var ying
distances.
R If there is another remote control for the
same garage doo rdrive ,perf ormt he pro-
grammin gsteps again using this remote
control. Before performing thes esteps,
make sure that new batteries have been
fitted in garage doo rdrive remote control
A.
R Note that some remote controls transmit
onl yfor alimited perio d(the indicator lamp
on the remote control goe sout).Pres sbut-
ton Bon remote control Aagain before
transmission ends.
R Align the aerial cabl eofthe garage door
opener unit. This can improv esignal recep-
tion/transmission.
Opening or closing the garage door Once programmed, the integrated garage
door opener wil
lassume the function of the
garage door system's remote control. Please
also rea dthe oper ating instructions for the
garage door system.
X Turn the key to position 2in the ignition
lock.
X Press button ;,=or? which you have
programmed to operate the garage door.
Garage door system with afixed code: indi-
cator lamp :lights up green.
Garage door system with arolling code:
indicator lamp :flashes green.
i The transmitter will transmit asignal for
as long as the button is pressed. The trans-
mission is halted after amaximum of ten
seconds and indicator lamp :lights up
yellow. Pres sbutton ;,=or? again if
necessary. Clearing the memory X
Turn the key to position 2in the ignition
lock.
X Press buttons ;and ?.
The indicator lamp lights up yellow.
X Press and hold buttons ;and ?until the
indicator lamp turn sgreen.
i Make sure that yo uclear the memor yof
the integrated garage doo ropener before
selling the vehicle.
Frequencies Europe
Count
ry Radio
typeapproval num-
ber
Frequency range (MHz) AD (Andorra) 20 July
MHz: 27, 30, 40, 433
,868 AT (Aust
ria) Article
6ofDirective
1999/5/E CR&TT E18M ay
05
MHz :27, 40, 433 ,868 BE (Belgium) Articl
e6ofD irective
1999/5/E CR&TT E18M ay
05
MHz :27, 40, 433 ,868 BG (Bulga-
ria) Articl
e6ofD irective
1999/5/E CR&TT E12A pril
07
MHz: 27 ,40, 433, 868 CH (Switzer-
land) Article
6ofDirective
1999/5/EC R&TTE14357
27 May 05
MHz: 27, 40, 433 ,868 CY (Cyprus) Article
6ofDirective
1999/5/EC R&TTE 5May
05
MHz: 27, 40, 433 ,868 354
FeaturesSto
wing and featur es
Page 358 of 441
Country Radio type approval num-
ber
Frequency range (MHz)
CZ (Czech
Republic) General Licenc
eGL-30/R/
2000 Reg. No. 844 13 May
05
MHz: 27, 40, 433 DK (Den-
mark) Article
6ofDirective
1999/5/E CR&TT E20A pril
05
MHz: 27 ,40, 433, 868 DE (Ger-
many) Article
6ofDirective
1999/5/EC
R&TTE7519301 29 April 05
MHz: 27, 40, 433 ,868 EE (Eston
ia) Article
6ofDirective
1999/5/EC R&TTE 11 May
05
MHz: 27, 40, 433 ,868 ES (Sp
ain) 000438/2005,
000439/2005,
000440/2005
000441/2005,
000445/2005,
000446/2005
000447/2005
MHz: 27, 40, 433, 868
FI (Finland) Article
6ofDirective
1999/5/EC R&TTE10668
13 May 05
MHz: 27, 40, 433 ,868 FR (France) Article
6ofDirective
1999/5/EC R&TTE10668
13 May 05
27, 30, 40, 433 ,868 GI (Gibraltar) Article
6ofDirective
1999/5/EC R&TTE13 May
05 (UK)
MHz: 27, 40, 418 ,433, 868 Country Radio type approval num-
ber
Frequency rang
e(MHz) GR (Greece) Article
6ofDirective
1999/5/EC
R&TTE11409/18/4/2005
18 May 05
MHz: 27, 40, 433 ,868 HR (Croatia) SDR 224/06
MHz
:27, 40, 433, 868 HU (Hun-
gary) Article
6ofDirective
1999/5/EC R&TTE 18 May
05
MHz: 27, 40, 433 ,868 IC (Canary
Island
s) 000438/2005,
000439/2005
000440/2005,
000441/2005
000445/2005,
000446/2005
000447/2005, 3rd June
2005
MHz
:27, 40, 433, 868 IE (Ireland) Article
6ofDirective
1999/5/EC R&TTE 18 May
05
MHz: 27, 40, 433 ,868 IS (Iceland) Article
6ofDirective
1999/5/EC R&TTE 18 May
05
MHz: 27, 40, 433 ,868 Features
355Stowing and featur es Z
Page 359 of 441
Country Radio type approval num-
ber
Frequency range (MHz)
IT (Italy) DGPGSR/II/347487/
FOR/15347
DGPGSR/II/347487/
FOR/15348
DGPGSR/II/347487/
FOR/15350
DGPGSR/II/347487/
FOR/15357
DGPGSR/II/347487/
FOR/15358
DGPGSR/II/347487/
FOR/15359
MHz
:27,40 ,433 ,868 LI (Liechten-
stein) Article
6ofDirective
1999/5/E CR&TTE 14357
27 May 05
MHz: 27 ,40,433, 868 LT (Lithua-
nia) Article
6ofDirective
1999/5/EC
R&TTE27.4-1B-160 96May
05
MHz :27,40 ,433 ,868 LU (Lu
xem-
bourg) Article
6ofDirective
1999/5/EC
R&TTE150405/9538 24
May 05
MHz :27,40 ,433 ,868 LV (La
tvia) Article
6ofDirective
1999/5/E CR&TTE
27.4-1B-1609 26 April 06
MHz: 27 ,40,433, 868 MC (Mon-
aco) Article
6ofDirective
1999/5/E CR&TTE10668
13 May 05
MHz: 27 ,40,433, 868 Coun
try Radio type approval num-
ber
Frequency range (MHz)
MT (Malta) Article
6ofDirective
1999/5/E CR&TTE 18 May
05
MHz: 27 ,40,433, 868 NL (Ne
ther-
lands) Article
6ofDirective
1999/5/E CR&TTE 18 May
05
MHz: 27 ,40,433, 868 NO (No
rway) Article
6ofDirective
1999/5/EC
R&TTE05/02424-SA64 418
May 05
MHz :27, 40, 433, 868 PL (Poland) Article
6ofDirective
1999/5/E CR&TT E21A pril
05
MHz: 27 ,40, 433, 868 PT (P
ortugal) ANCOM-S08399/05
27, 40, 433, 868
RO (Roma-
nia) Article 6.4 of Directive
1999/5/EC R&TTE
MHz: 27, 30, 40, 433, 868
RU (Russian
Federation) POC
CDE.MJ05.H00015 13
May 05
MHz: 433 SE (Sweden) Article
6ofDirective
1999/5/EC R&TTE 18 May
05
MHz: 27, 40, 433 ,868 SI (Sl
ovenia) Articl
e6of Direct ive
1999/5/EC R&TTE
500-1/2005-437 9May 05
MHz: 27, 40, 433 ,868 356
FeaturesSto
wing and featur es
Page 360 of 441
Country Radio type approval num-
ber
Frequency range (MHz)
SK (Slova-
kia) Article
6ofDirective
1999/5/E CR&TTE
Slovak
206/11/200 54May 05
MHz :27,40 ,433 ,868 UK
(United
Kingdom) Article
6ofDirective
1999/5/E CR&TTE 18 May
05
MHz: 27 ,40, 418, 433, 868 Afri
ca Country Radio type approval num-
ber
Frequency range (MHz)
EG (Egypt) W-KLE-17/08 Mar. 06
MHz: 27, 30, 40, 418
,433,
868 RE (Réun
ion) Article
6ofDirective
1999/5/EC R&TTE 11 July
05
MHz: 27, 40, 433 ,868 ZA (So
uth
Africa) 11 October 2005
MHz: 27, 40, 433
America
Country Radio type approval num-
ber
Frequency range (MHz)
BB (Barba-
dos) Registration not required
MHz: 27, 40, 433, 868
CL (Chile) 38447/F-23 No.3.3634
MHz: 40, 433
GF (French
Guyana) Article
6ofDirective
1999/5/EC R&TTE10668
13 May 05
MHz: 27, 30, 40, 433 ,868 Country Radio type approval num-
ber
Frequency rang
e(MHz) GP (Guade-
lo
up e) Articl
e6of Directive
1999/5/EC R&TTE10668
13 May 05
MHz: 27 ,30, 40, 433, 868 MQ (M
artini-
que) Article
6ofDirective
1999/5/EC R&TTE 11 July
05
MHz: 27, 30, 40, 433 ,868 MX (M
exico) MHz: 280 to 390
Asia
Country Radio typ
eapproval num-
ber
Frequency range (MHz) AE (United
Arab Emi-
rates) 1623/5/10-2/26/76
MHz: 433
JO (Jordan) TRC/LPD/2005/23
MHz: 27, 30, 40, 433, 868
KW (Kuwait) 5O
ctober 2005
MHz: 27, 30, 40, 418, 433,
868 LB (Leba-
non) 2920/O&M/2006
/3July
05
MHz :27, 40, 433, 868 SA (Sa
udi
Arabia) 11_02_05/5024-5-6
MHz: 418, 433
SY (Syria) 279/4/14
/05March 06 TR (Turkey) National Certification 23
July 07
MHz: 433 Features
357Stowing and features Z
