Battery
Disconnecting, removing, reinstalling
and reconnecting the battery
Step 1 (Disconnecting)
Set the automatic transmission to
positionP (
page 191).
Firmly depress the parking brake
(
page 67).
Turn off the engine (page 68).
Leave the ignition switched on
(
page 42).
!Never loosen or detach battery terminal
clamps while the engine is running or the
SmartKey is in the starter switch. Otherwise the
alternator and other electronic components
could be severely damaged.
Have the battery checked regularly by an
authorized Mercedes-Benz Light Truck Center.
Contact your authorized Mercedes-Benz Light
Truck Center for further information.

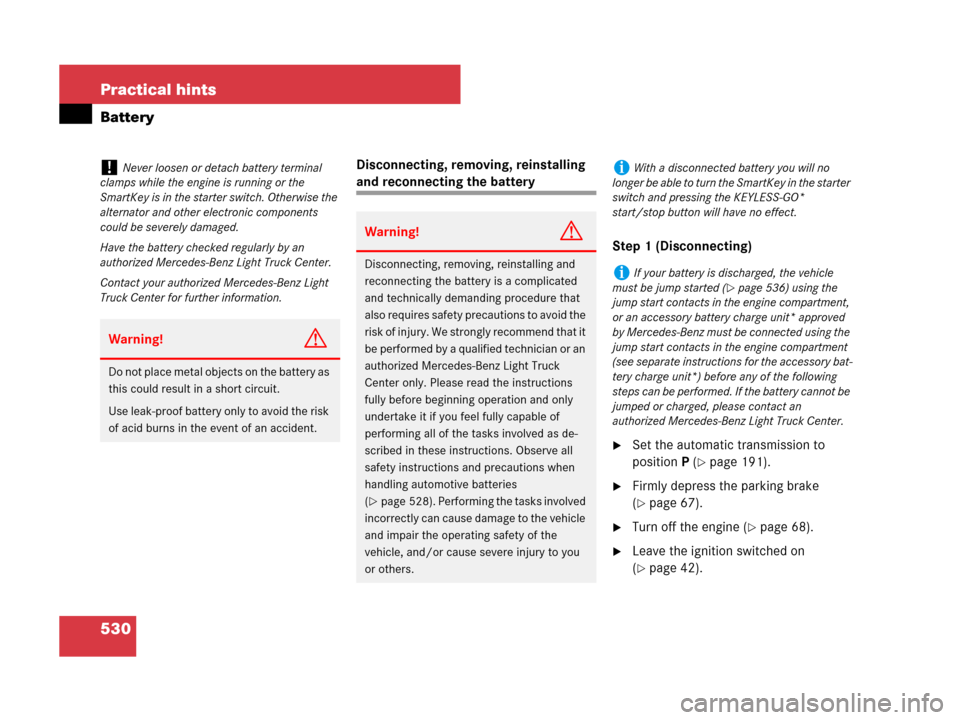

Warning!G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.
Warning!G
Disconnecting, removing, reinstalling and
reconnecting the battery is a complicated
and technically demanding procedure that
also requires safety precautions to avoid the
risk of injury. We strongly recommend that it
be performed by a qualified technician or an
authorized Mercedes-Benz Light Truck
Center only. Please read the instructions
fully before beginning operation and only
undertake it if you feel fully capable of
performing all of the tasks involved as de-
scribed in these instructions. Observe all
safety instructions and precautions when
handling automotive batteries
(
page 528). Performing the tasks involved
incorrectly can cause damage to the vehicle
and impair the operating safety of the
vehicle, and/or cause severe injury to you
or others.
iWith a disconnected battery you will no
longer be able to turn the SmartKey in the starter
switch and pressing the KEYLESS-GO*
start/stop button will have no effect.
iIf your battery is discharged, the vehicle
must be jump started (
page 536) using the
jump start contacts in the engine compartment,
or an accessory battery charge unit* approved
by Mercedes-Benz must be connected using the
jump start contacts in the engine compartment
(see separate instructions for the accessory bat-
tery charge unit*) before any of the following
steps can be performed. If the battery cannot be
jumped or charged, please contact an
authorized Mercedes-Benz Light Truck Center.
164.boo Seite 530 Freitag, 30. März 2007 12:54 12

531 Practical hints
Battery
Switch off all electrical consumers.
Read and observe safety instructions
and precautions (
page 528).
Open the front passenger door.
Move the front passenger seat to the
most forward position (
page 46).Step 2 (Disconnecting)

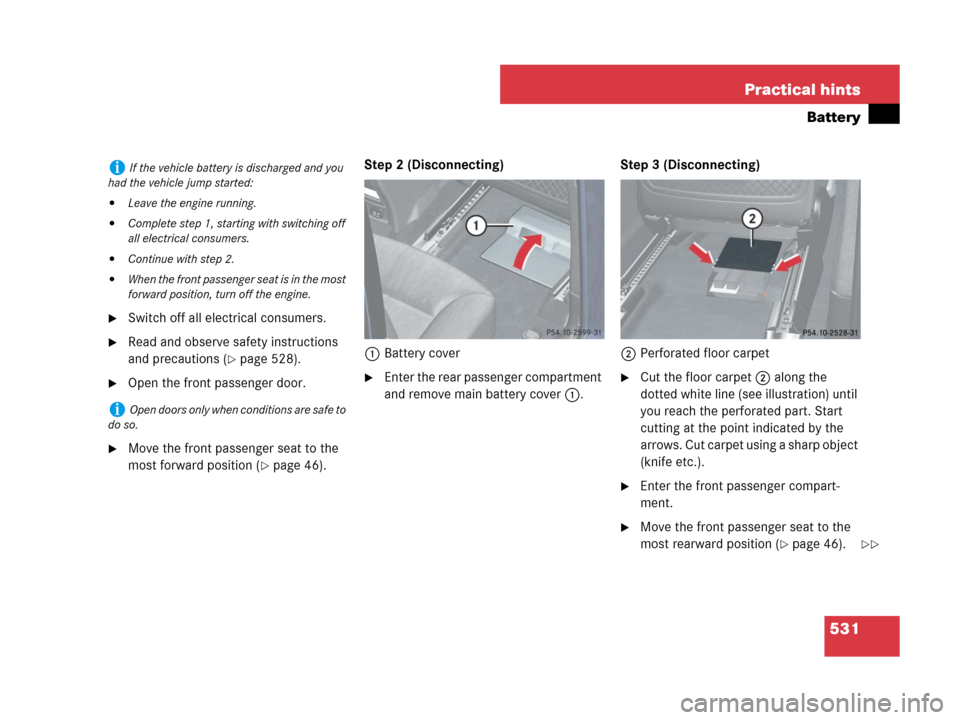

1Battery cover
Enter the rear passenger compartment
and remove main battery cover1.Step 3 (Disconnecting)
2Perforated floor carpetCut the floor carpet2 along the
dotted white line (see illustration) until
you reach the perforated part. Start
cutting at the point indicated by the
arrows. Cut carpet using a sharp object
(knife etc.).
Enter the front passenger compart-
ment.
Move the front passenger seat to the
most rearward position (
page 46).
iIf the vehicle battery is discharged and you
had the vehicle jump started:

Leave the engine running.

Complete step 1, starting with switching off
all electrical consumers.

Continue with step 2.

When the front passenger seat is in the most
forward position, turn off the engine.
iOpen doors only when conditions are safe to
do so.

164.boo Seite 531 Freitag, 30. März 2007 12:54 12

532 Practical hints
Battery

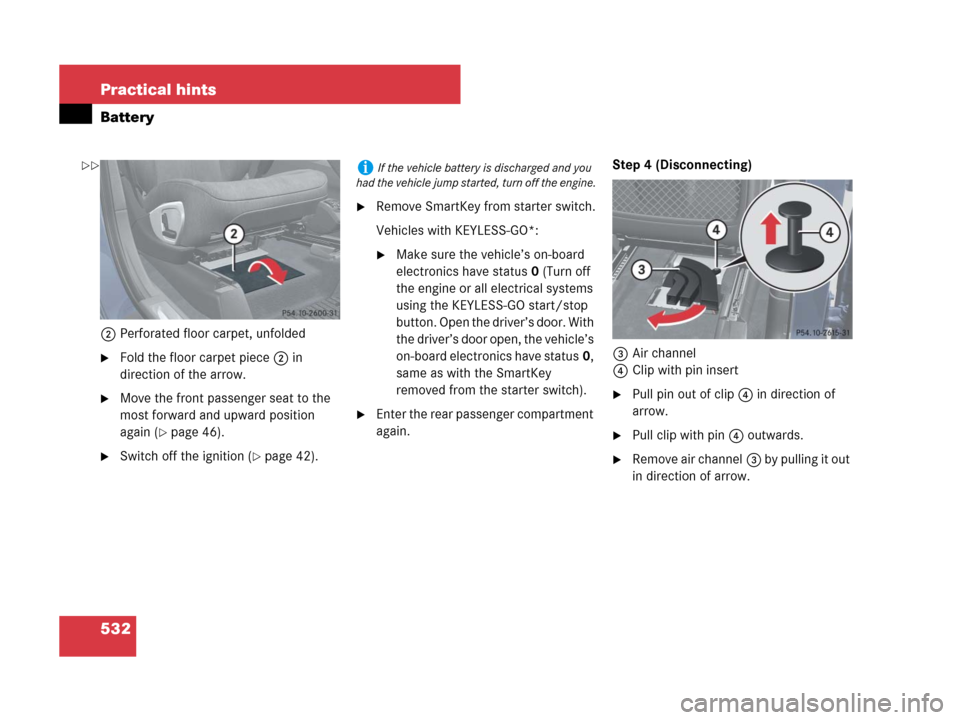

2Perforated floor carpet, unfolded
Fold the floor carpet piece2 in
direction of the arrow.
Move the front passenger seat to the
most forward and upward position
again (
page 46).
Switch off the ignition (page 42).
Remove SmartKey from starter switch.
Vehicles with KEYLESS-GO*:
Make sure the vehicle’s on-board
electronics have status0 (Turn off
the engine or all electrical systems
using the KEYLESS-GO start/stop
button. Open the driver’s door. With
the driver’s door open, the vehicle’s
on-board electronics have status0,
same as with the SmartKey
removed from the starter switch).
Enter the rear passenger compartment
again.Step 4 (Disconnecting)
3Air channel
4Clip with pin insert
Pull pin out of clip4 in direction of
arrow.
Pull clip with pin4 outwards.
Remove air channel3 by pulling it out
in direction of arrow.
iIf the vehicle battery is discharged and you
had the vehicle jump started, turn off the engine.
164.boo Seite 532 Freitag, 30. März 2007 12:54 12

533 Practical hints
Battery

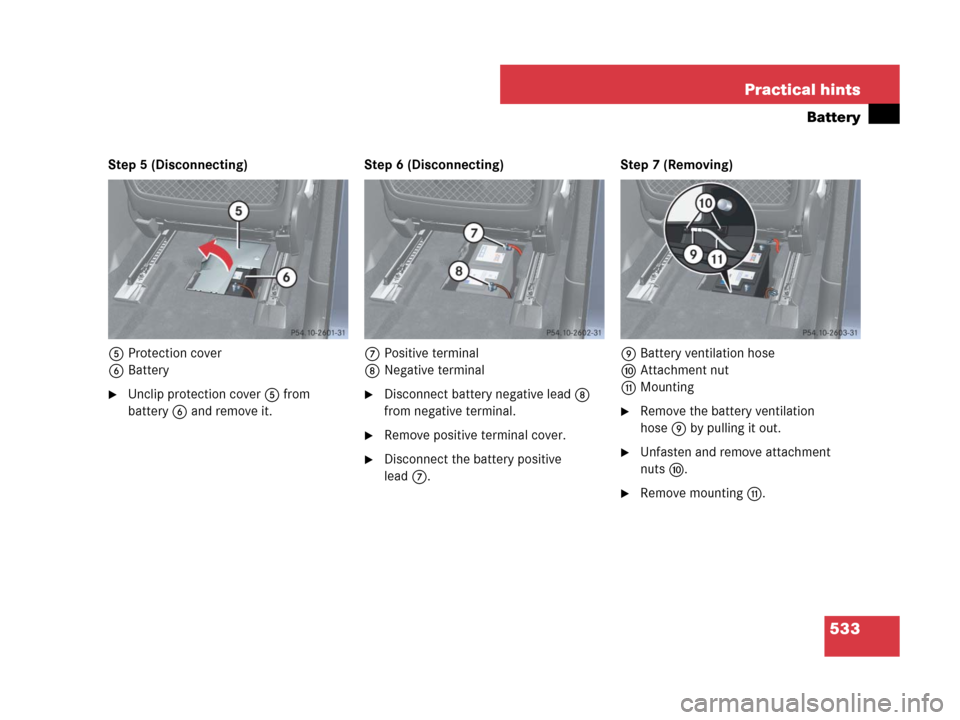

Step 5 (Disconnecting)
5Protection cover
6Battery
Unclip protection cover5 from
battery6 and remove it.Step 6 (Disconnecting)
7Positive terminal
8Negative terminalDisconnect battery negative lead8
from negative terminal.
Remove positive terminal cover.
Disconnect the battery positive
lead7.Step 7 (Removing)
9Battery ventilation hose
aAttachment nut
bMounting
Remove the battery ventilation
hose9 by pulling it out.
Unfasten and remove attachment
nutsa.
Remove mountingb.
164.boo Seite 533 Freitag, 30. März 2007 12:54 12

534 Practical hints
Battery

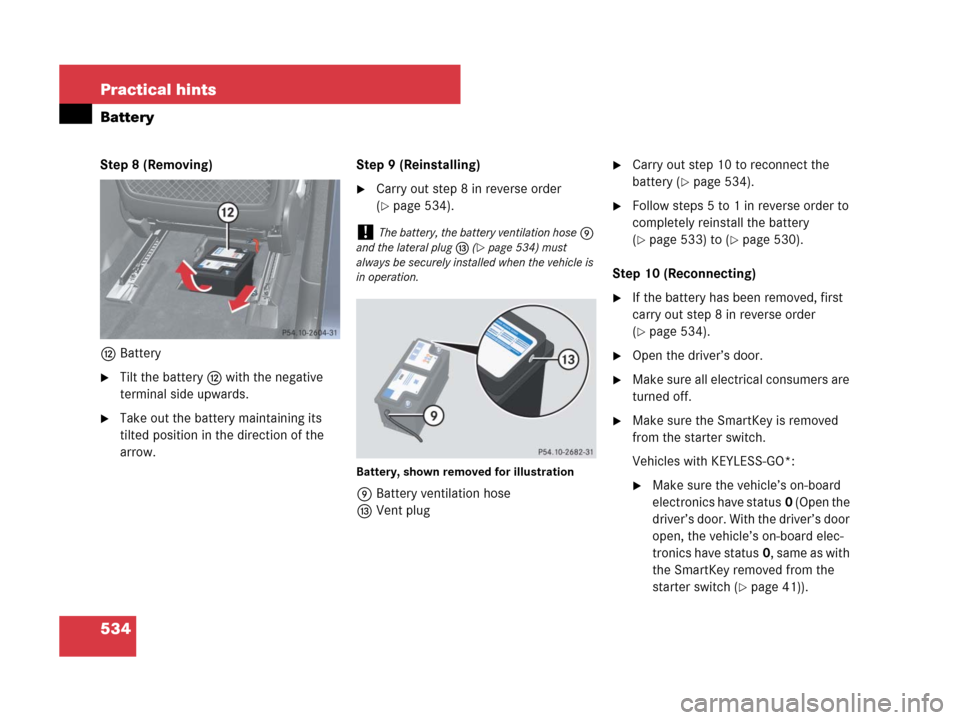

Step 8 (Removing)
cBattery
Tilt the batteryc with the negative
terminal side upwards.
Take out the battery maintaining its
tilted position in the direction of the
arrow.Step 9 (Reinstalling)
Carry out step 8 in reverse order
(
page 534).
Battery, shown removed for illustration
9Battery ventilation hose
dVent plug
Carry out step 10 to reconnect the
battery (
page 534).
Follow steps 5 to 1 in reverse order to
completely reinstall the battery
(
page 533) to (page 530).
Step 10 (Reconnecting)
If the battery has been removed, first
carry out step 8 in reverse order
(
page 534).
Open the driver’s door.
Make sure all electrical consumers are
turned off.
Make sure the SmartKey is removed
from the starter switch.
Vehicles with KEYLESS-GO*:
Make sure the vehicle’s on-board
electronics have status0 (Open the
driver’s door. With the driver’s door
open, the vehicle’s on-board elec-
tronics have status0, same as with
the SmartKey removed from the
starter switch (
page 41)).
!The battery, the battery ventilation hose9
and the lateral plugd (
page 534) must
always be securely installed when the vehicle is
in operation.
164.boo Seite 534 Freitag, 30. März 2007 12:54 12

535 Practical hints
Battery
Connect the positive lead to the posi-
tive terminal and fasten it’s cover
(
page 533).
Connect the negative lead to the nega-
tive terminal (
page 533).
Charging the battery
If the battery is discharged, the battery can
be charged using the jump-start contacts
located in the engine compartment
(
page 537).
Charge the battery in accordance with
the instructions of the battery charger
manufacturer.
Batteries contain materials that can harm
the environment if disposed of improperly.
Large 12-volt storage batteries contain
lead. Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
!Never invert the terminal connections!
iThe following procedures must be carried
out following any interruption of battery power
(e.g. due to reconnection):

Set the clock (page 174).
Vehicles with COMAND system with naviga-
tion module*: Time and date are set auto-
matically.

Synchronize the door windows
(
page 249).

Synchronize the power tilt/sliding sunroof*
(
page 253).

Synchronize the power folding exterior rear
view mirrors* (
page 209).
Warning!G
Never charge a battery while still installed in
the vehicle unless the accessory battery
charge unit approved by Mercedes-Benz is
being used. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.
An accessory battery charge unit specially
adapted for Mercedes-Benz vehicles and
tested and approved by Mercedes-Benz is
available, permitting the charging of the
battery in its installed position. Contact an
authorized Mercedes-Benz Light Truck
Center for information and availability.
Charge battery in accordance with the
separate instructions for the accessory
battery charger.
164.boo Seite 535 Freitag, 30. März 2007 12:54 12

536 Practical hints
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the bat-
tery of another vehicle. Observe the follow-
ing:

Jump starting should only be performed
using the jump-start contacts located
in the engine compartment
(
page 537).

Jump starting should only be performed
when the engine and catalytic
converter
1 are cold.

Do not start the engine if the battery is
frozen. Let the battery thaw out first.

Only jump start from batteries with the
same voltage rating (12 V). Jump start-
ing with a higher voltage battery could
damage the vehicle’s electrical system,
which will not be covered by the
Mercedes-Benz Limited Warranty.

Only use jumper cables with sufficient
cross-section and insulated terminal
clamps.

Always make sure the jumper cables
are not on or near pulleys, fans or other
parts that move when the engine is
started or running.
Warning!G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
1Vehicles with gasoline engine only.
!Do not tow-start the vehicle.
!Avoid repeated and lengthy starting
attempts.
Do not attempt to start the engine using a
battery quick charge unit.
If the engine does not run after several unsuc-
cessful starting attempts, have it checked at the
nearest authorized Mercedes-Benz Light Truck
Center.
Excessive unburned fuel generated by repeated
failed starting attempts may damage the catalyt-
ic converter
1.
Make sure the jumper cables do not have loose
or missing insulation.
Make sure the cable clamps do not touch any
other metal part while the other end is still at-
tached to a battery.
164.boo Seite 536 Freitag, 30. März 2007 12:54 12

537 Practical hints
Jump starting
The jump-start contacts are located in the
engine compartment.
1Negative (-) terminal
2Positive (+) terminal
3Positive terminal cover
Make sure the two vehicles do not
touch.
Turn off all electrical consumers.
Apply parking brake (page 67).
Set automatic transmission to
positionP (
page 191).
Open the hood (page 378).
Remove cover from negative
terminal1.
Flip up cover3 of positive terminal2
in direction of arrow.
1Negative terminal of discharged
battery
2Positive terminal of discharged battery
4Positive terminal of charged battery
5Negative terminal of charged battery
Connect positive terminal2 and4
with the jumper cable. Clamp cable to
charged battery4 first.
Start engine of the vehicle with the
charged battery and run at idle speed.
Connect negative terminals1 and5
of the batteries with the second jumper
cable. Clamp the cable to negative
terminal5 of the charged battery
first.
Start the engine of the disabled vehi-
cle.
You can now turn on the electrical consum-
ers. Do not switch on the headlamps under
any circumstances.
Remove the jumper cables first from
negative terminals1 and5 and then
from positive terminals2 and4.
You can now switch on the headlamps.
Have the battery checked at the near-
est authorized Mercedes-Benz Light
Truck Center.
Warning!G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(
page 528).
!Never invert the terminal connections!
164.boo Seite 537 Freitag, 30. März 2007 12:54 12

538 Practical hints
Towing the vehicle
Mercedes-Benz recommends that the
vehicle be transported with all wheels off
the ground using flatbed or appropriate
wheel lift/dolly equipment. This method is
preferable to other types of towing.If circumstances do not permit the recom-
mended towing methods, the vehicle may
be towed with all wheels on the ground
only so far as necessary to have the vehicle
moved to a safe location where the recom-
mended towing methods can be employed.
When towing the vehicle with all wheels on
the ground, the vehicle may be towed only
for distances up to 30 miles (50 km) and at
a speed not to exceed 30 mph (50 km/h).
!Do not tow-start the vehicle.
!Use flatbed or wheel lift/dolly equipment,
with the SmartKey in starter switch turned to
position0.
Do not tow with sling-type equipment. Towing
with sling-type equipment over bumpy roads will
damage radiator and supports.
To prevent damage during transport, do not tie
down vehicle by its chassis or suspension parts.
Use the towing eyes.
Switch off the ESP
® (page 105) and the
automatic central locking (
page 128).
!Do not tow with one axle raised. Doing so
could damage the transfer case, which is not
covered by the Mercedes-Benz Limited
Warranty.
All wheels must be on or off the ground. Observe
instructions for towing the vehicle with all
wheels on the ground.
Warning!G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if

the engine will not run

there is a malfunction in the brake
system

there is a malfunction in the power
supply or in the vehicle’s electrical
system
This is necessary to adequately control the
towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make sure the automatic trans-
mission is in neutral positionN.
164.boo Seite 538 Freitag, 30. März 2007 12:54 12

539 Practical hints
Towing the vehicle
If you want the gear position to remain in
neutral positionN, observe the following
instructions.Vehicles with SmartKey:
With the vehicle at a standstill and the
ignition switched on shift the automatic
transmission to neutral positionN.
If engaged, release the parking brake
(
page 59).
Switch off the ignition and leave the
SmartKey in the starter switch.
Vehicles with KEYLESS-GO*:
With the vehicle at a standstill, depress
the brake pedal and keep it pressed.
With the ignition switched on shift the
automatic transmission to park
positionP.
Release the brake pedal.
Warning!G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle. Adapt your driving accordingly.
!When towing the vehicle with all wheels on
the ground, the automatic transmission must be
in neutral positionN.
If you turn off the engine

using the SmartKey and

remove the SmartKey from the starter
switch
or

open a front door

or when using the KEYLESS-GO* start/stop
button and open a front door
the automatic transmission will shift to park
positionP automatically.
Warning!G
When leaving the SmartKey or SmartKey
with KEYLESS-GO* in the starter switch, do
not leave children unattended in the vehicle.
It is possible for children to switch on the
ignition which could result in unsupervised
use of vehicle equipment.
A child’s unsupervised access to a vehicle
could result in an accident and/or serious
personal injury.

164.boo Seite 539 Freitag, 30. März 2007 12:54 12
