540 Practical hints
Towing the vehicle
Remove the KEYLESS-GO* start/stop
button from the starter switch
(
page 43).
Insert the SmartKey with
KEYLESS-GO* into the starter switch.
Switch on the ignition.
Depress the brake pedal.
Shift the automatic transmission to
neutral positionN.
Release the brake pedal.
If engaged, release the parking brake
(
page 59).
Switch off the ignition and leave the
SmartKey with KEYLESS-GO* in the
starter switch.
Installing towing eye bolt
Depending on whether you are towing a
vehicle or you are being towed, the towing
eye bolt can be screwed into threaded
holes which are located behind covers on
the right-hand side of each bumper.
1Cover!Towing of the vehicle should only be done
using the properly installed towing eye bolt.
Never attach a tow cable, tow rope or tow rod to
the vehicle chassis, frame or suspension parts.
iTo signal turns while being towed with
hazard warning flasher in use, set the starter
switch to position2 and activate combination
switch for left or right turn signal in usual manner
– only the selected turn signal will operate.
Upon canceling the turn signal, the hazard warn-
ing flasher will operate again.

164.boo Seite 540 Freitag, 30. März 2007 12:54 12

541 Practical hints
Towing the vehicle
1Cover

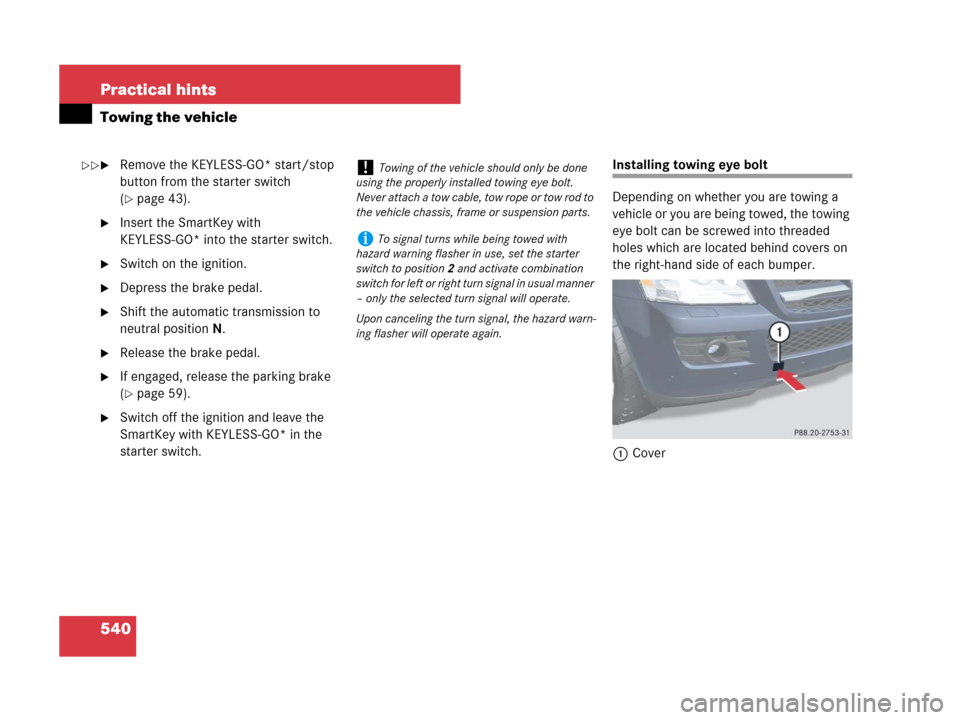

Example illustration front bumper
2Towing eye bolt
Removing cover
Press mark on cover1 as indicated by
the arrow.
Lift off cover1 to reveal the threaded
hole for towing eye bolt.Installing towing eye bolt
Take the towing eye bolt and wheel
wrench from the vehicle tool kit
(
page 490).
Screw towing eye bolt2 in clockwise
to its stop and tighten with wheel
wrench.
Removing towing eye bolt
Loosen towing eye bolt2 counter-
clockwise with wheel wrench.
Unscrew towing eye bolt2.
Store the towing eye bolt and wheel
wrench back into the vehicle tool kit
(
page 490).
Installing cover
Engage cover1 at top and press at
bottom.

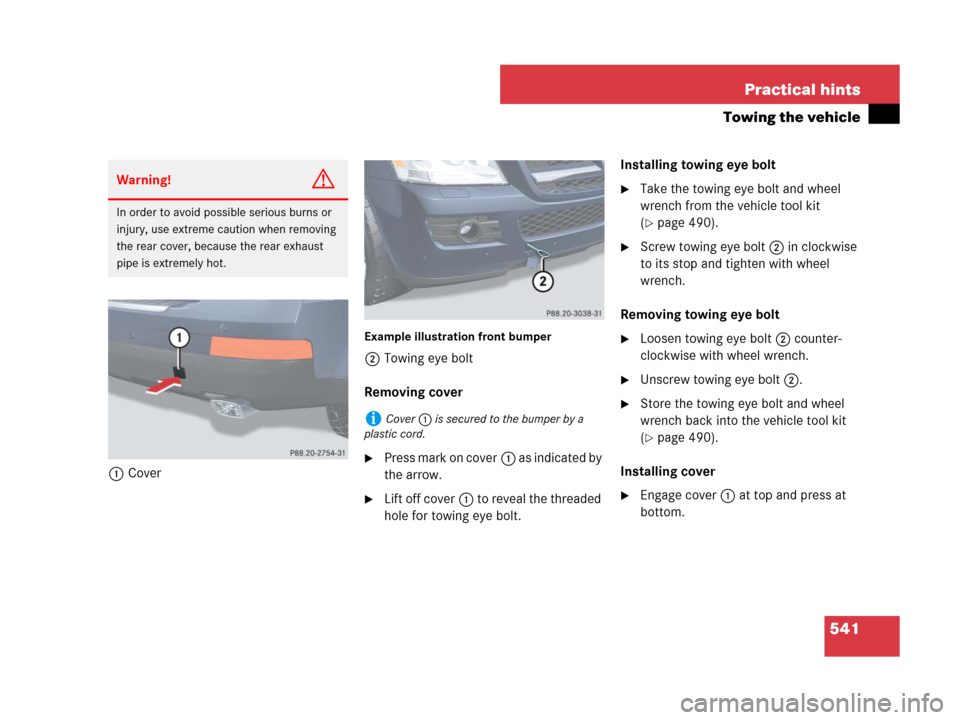

Warning!G
In order to avoid possible serious burns or
injury, use extreme caution when removing
the rear cover, because the rear exhaust
pipe is extremely hot.
iCover1 is secured to the bumper by a
plastic cord.
164.boo Seite 541 Freitag, 30. März 2007 12:54 12

542 Practical hints
Towing the vehicle
Stranded vehicle
Freeing a stranded vehicle, on which the
wheels are dug into sand or mud, should
be done with the greatest of care, especial-
ly if the vehicle is heavily loaded.
Avoid pulling the vehicle abruptly or diago-
nally, since it could result in damage to the
chassis alignment.
Never try to free a vehicle that is still cou-
pled to a trailer.
If possible, a vehicle equipped with trailer
hitch receiver should be pulled backward
in its own previously made tracks.
164.boo Seite 542 Freitag, 30. März 2007 12:54 12

543 Practical hints
Fuses
Fuses
The electrical fuses in your vehicle serve to
switch off malfunctioning power circuits.
If a fuse is blown, the components and sys-
tems secured by that fuse will stop operat-
ing.If a newly inserted fuse blows again, have
the cause determined and rectified by an
authorized Mercedes-Benz Light Truck
Center.
A fuse chart explains the fuse allocation
and fuse amperages. It is located in the
cargo compartment with the vehicle tool
kit (
page 490).
The electrical fuses are located in different
fuse boxes:

Fuse box in engine compartment
(
page 544)

Fuse box in cargo compartment
(
page 544)

Fuse box in passenger compartment
(
page 545)Before replacing fuses:
Apply parking brake (page 67).
Make sure the automatic transmission
is set toP (
page 191).
The gear position indicator in the multi-
function display should be on
P.
Turn off all electrical consumers.
Turn off the engine (page 41).
Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Open the driver’s door (this puts
the starter switch in position0,
same as with the SmartKey re-
moved from the starter switch). The
driver’s door then can be closed
again.
Warning!G
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system
in question and do not attempt to repair or
bridge a blown fuse. Using other than ap-
proved fuses or using repaired or bridged
fuses may cause an overload leading to a
fire, and/or cause damage to electrical
components and/or systems. Have the
cause determined and remedied by an au-
thorized Mercedes-Benz Light Truck Center.
iA blown fuse must be replaced by an appro-
priate spare fuse (recognizable by its color or the
fuse rating given on the fuse) of the amperage
recommended in the fuse chart. Any
Mercedes-Benz Light Truck Center will be glad to
advise you on this subject.
164.boo Seite 543 Freitag, 30. März 2007 12:54 12

544 Practical hints
Fuses
Fuse box in engine compartment
The fuse box is located on the passenger
side of the engine compartment.
Open the hood (page 378).
Fuse box GL 450 (GL 320 CDI, GL 550
similar)
1Fuse box cover
2Clamps
Pull clamps2 in direction of arrow.
Lift fuse box cover1 up.
Install fuse box cover in reverse order.
Close the hood after checking or re-
placing fuses (
page 379).
Fuse box in cargo compartment
The fuse box is located in the cargo com-
partment behind the passenger side trim
panel.
1Lock
2CoverRemoving/installing cover
Open the tailgate (page 122).
Insert a suitable object such as a coin
into the slot of lock1 (
page 544).
Turn lock1 counterclockwise by 90°
in direction of arrow.
Remove cover2.
Install cover2 in reverse order.
!The fuse box cover must be installed
properly to prevent moisture and/or dirt from
entering the fuse box and possibly impairing fuse
operation.
164.boo Seite 544 Freitag, 30. März 2007 12:54 12

545 Practical hints
Fuses
Fuse box in passenger compartment
The fuse box is located behind a cover in
the dashboard on the front passenger side.
1CoverOpening
Open the front passenger door.
Open the glove box (page 315).
Insert flat, blunt object as a lever into
the edge of the cover1 at the position
indicated by the arrow.
Loosen cover1 from dashboard using
lever.
Using your hands, pull cover1 out
and remove.
Closing
Hook cover1 into the opening at the
front.
Press cover1 back on until it engag-
es.
Emergency engine shut-down
If the engine cannot be turned off as de-
scribed in the “Getting started” section
(
page 68), you may use the following
emergency procedure.
Take the fuse chart from the vehicle
tool kit (
page 492).
Open the fuse box in engine compart-
ment (
page 544).
Remove fuse 120.
Find its location in the fuse chart.
!Do not use sharp objects such as a screw-
driver to open the fuse box cover1 in the dash-
board, as this could damage the fuse box cover
or the dashboard.
164.boo Seite 545 Freitag, 30. März 2007 12:54 12

546
164.boo Seite 546 Freitag, 30. März 2007 12:54 12

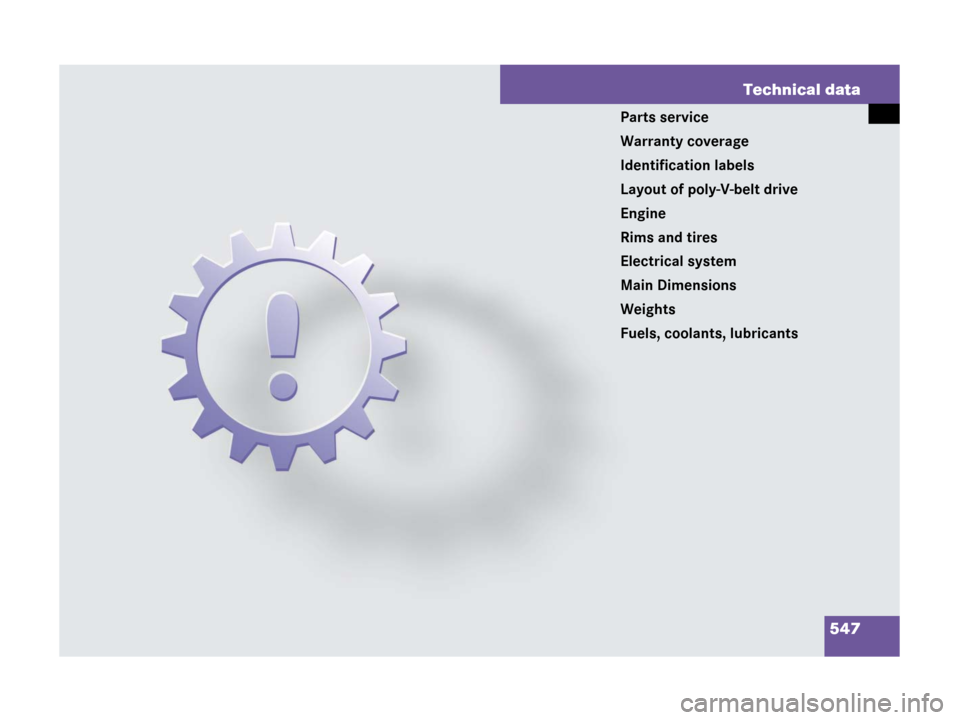

547 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main Dimensions
Weights
Fuels, coolants, lubricants
164.boo Seite 547 Freitag, 30. März 2007 12:54 12

548 Technical data
The “Technical data” section provides the
necessary technical data for your vehicle.
Parts service
All authorized Mercedes-Benz Light Truck
Centers maintain a stock of Genuine
Mercedes-Benz Parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz Parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz parts
should be installed.!The use of non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz could damage the vehicle, which
is not covered by the Mercedes-Benz Limited
Warranty, or could compromise the vehicle’s
durability or safety.
164.boo Seite 548 Freitag, 30. März 2007 12:54 12

549 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized Mercedes-Benz Light Truck
Center will exchange or repair any defec-
tive parts originally installed on the vehicle
in accordance with the terms of the follow-
ing warranties:

New Vehicle Limited Warranty

Emission System Warranty

Emission Performance Warranty

California, Maine, Massachusetts, and
Vermont Emission Control Systems
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties, copies of which
are available at any authorized
Mercedes-Benz Light Truck Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
Mercedes-Benz Light Truck Center arrange
for a replacement. It will be mailed to you.
164.boo Seite 549 Freitag, 30. März 2007 12:54 12
