MERCEDES-BENZ GLC SUV 2018 Owner's Manual

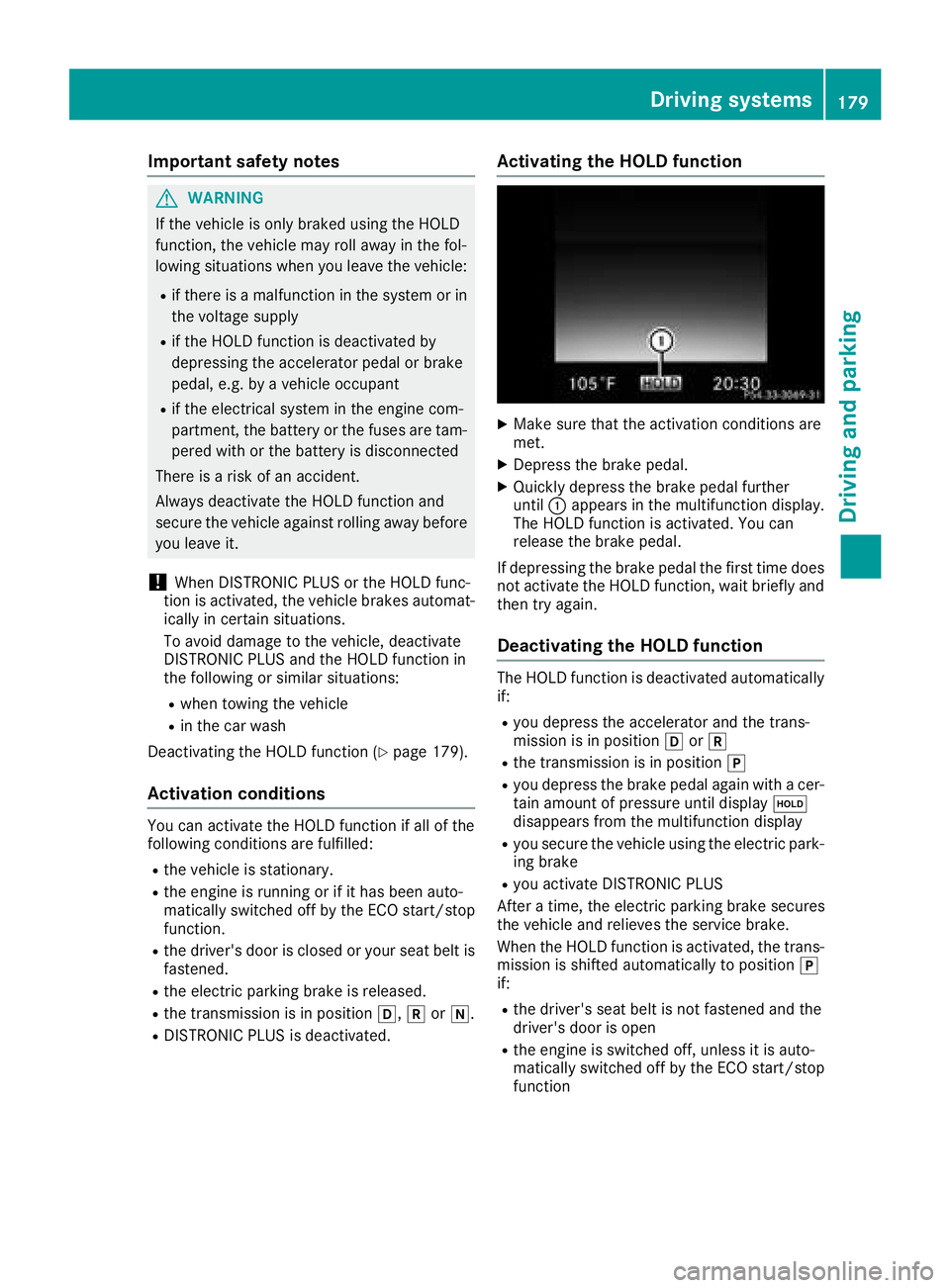

Important safety notes
GWARNING
If th evehicl eis only braked usin gth eHOLD
function ,th evehicl emay rol laway in th efol -
lowin gsituation swhen you leav eth evehicle:
Rif there is amalfunction in th esystem or in
th evoltag esuppl y
Rif theHOLD function is deactivated by
depressing th eaccelerato rpedal or brak e
pedal ,e.g. by avehicl eoccupant
Rif th eelectrical system in th eengin ecom-
partment, th ebattery or th efuses are tam -
pered wit hor th ebattery is disconnected
Ther eis aris kof an accident.
Always deactivat eth eHOLD function and
secure th evehicl eagainst rollin gaway before
you leav eit.
!When DISTRONI CPLU Sor th eHOLD func-
tion is activated, th evehicl ebrakes automat -
ically in certain situations.
To avoi ddamag eto th evehicle, deactivat e
DISTRONI CPLU Sand th eHOLD function in
th efollowin gor similar situations:
Rwhen towin gth evehicl e
Rin thecar wash
Deactivating th eHOLD function (
Ypage 179).
Activation conditions
You can activateth eHOLD function if all of th e
followin gcondition sare fulfilled :
Rthevehicl eis stationary.
Rth eengin eis runnin gor if it has been auto -
matically switched off by th eECO start/sto p
function .
Rthedriver' sdoor is closed or your seat belt is
fastened.
Rth eelectric parking brak eis released.
Rth etransmission is in position h,kori.
RDISTRONI CPLU Sis deactivated.
Activating the HOLD function
XMak esur ethat th eactivation condition sare
met .
XDepress th ebrak epedal .
XQuickly depress th ebrak epedal further
until :appear sin th emultifunction display.
The HOLD function is activated. You can
release th ebrak epedal .
If depressing th ebrak epedal th efirst time does
no tactivat eth eHOLD function ,wait briefly and
then tr yagain .
Deactivating the HOLD function
The HOLD function is deactivated automatically
if:
Ryou depress th eaccelerato rand th etrans -
mission is in position hork
Rthetransmission is in position j
Ryou depress thebrak epedal again wit h acer-
tai namoun tof pressur euntil display ë
disappear sfrom th emultifunction display
Ryou secure th evehicl eusin gth eelectric park -
ing brak e
Ryou activat eDISTRONI CPLU S
Afte r atime, th eelectric parking brak esecures
th evehicl eand relieves th eservic ebrake.
When th eHOLD function is activated, th etrans -
mission is shifte dautomatically to position j
if:
Rth edriver' sseat belt is no tfastene dand th e
driver' sdoor is open
Rth eengin eis switched off ,unless it is auto -
matically switched off by th eECO start/sto p
function
Driving systems179
Driving and parking
Z

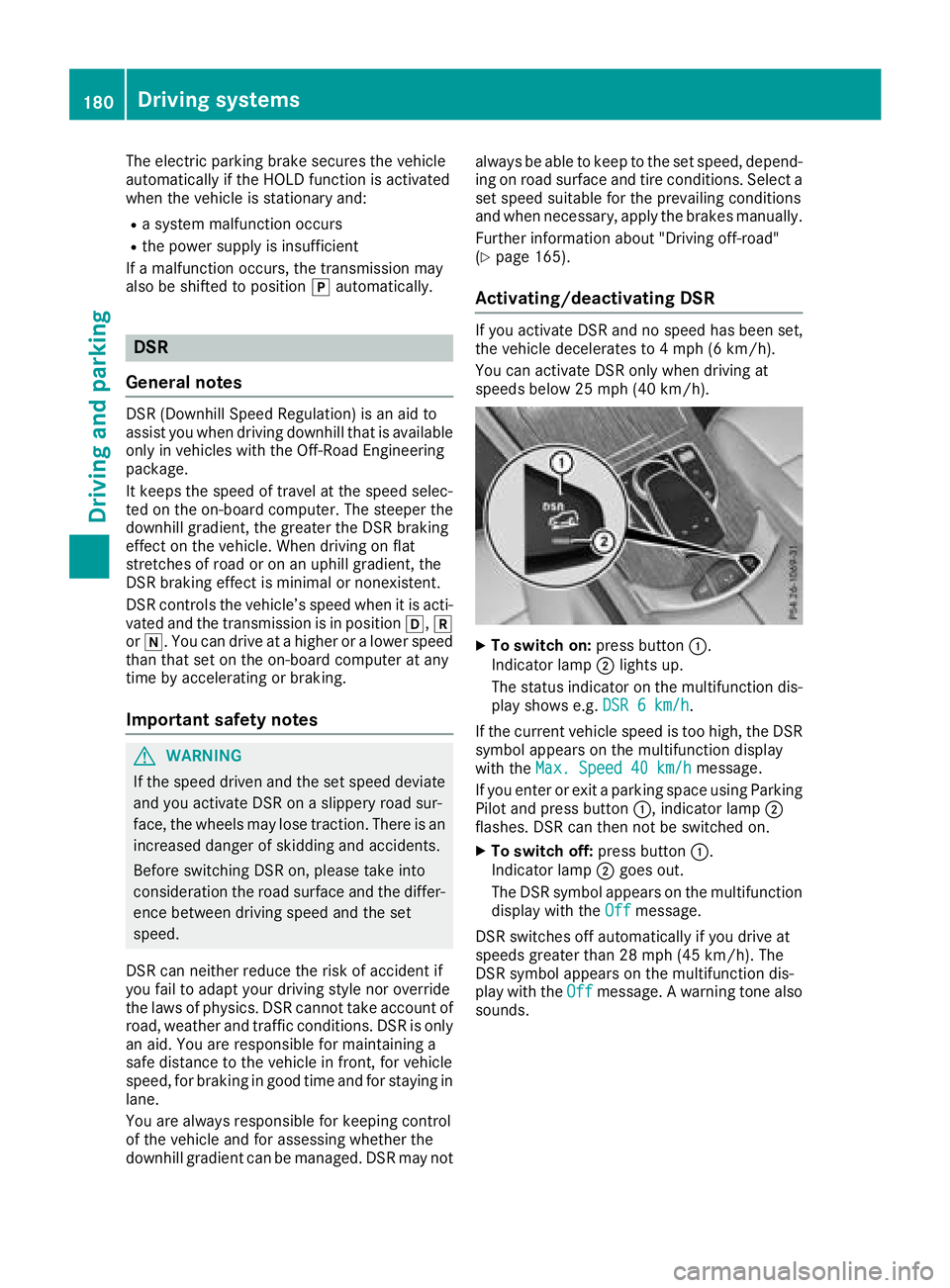

The electric parking brake secures the vehicle
automatically if the HOLD function is activated
when the vehicle is stationary and:
Ra system malfunction occurs
Rthe power supply is insufficient
If a malfunction occurs, the transmission may
also be shifted to position jautomatically.
DSR
General notes
DSR (Downhill Speed Regulation) is an aid to
assist you when driving downhill that is available only in vehicles with the Off-Road Engineering
package.
It keeps the speed of travel at the speed selec-
ted on the on-board computer. The steeper the
downhill gradient, the greater the DSR braking
effect on the vehicle. When driving on flat
stretches of road or on an uphill gradient, the
DSR braking effect is minimal or nonexistent.
DSR controls the vehicle’s speed when it is acti-
vated and the transmission is in position h,k
or i. You can drive at a higher or a lower speed
than that set on the on-board computer at any
time by accelerating or braking.
Important safety notes
GWARNING
If the speed driven and the set speed deviate and you activate DSR on a slippery road sur-
face, the wheels may lose traction. There is an
increased danger of skidding and accidents.
Before switching DSR on, please take into
consideration the road surface and the differ- ence between driving speed and the set
speed.
DSR can neither reduce the risk of accident if
you fail to adapt your driving style nor override
the laws of physics. DSR cannot take account of
road, weather and traffic conditions. DSR is only
an aid. You are responsible for maintaining a
safe distance to the vehicle in front, for vehicle
speed, for braking in good time and for staying in
lane.
You are always responsible for keeping control
of the vehicle and for assessing whether the
downhill gradient can be managed. DSR may not always be able to keep to the set speed, depend-
ing on road surface and tire conditions. Select a
set speed suitable for the prevailing conditions
and when necessary, apply the brakes manually.
Further information about "Driving off-road"
(
Ypage 165).
Activating/deactivating DSR
If you activate DSR and no speed has been set,
the vehicle decelerates to 4 mph (6 km/h).
You can activate DSR only when driving at
speeds below 25 mph (40 km/h).
XTo switch on: press button:.
Indicator lamp ;lights up.
The status indicator on the multifunction dis- play shows e.g. DSR 6 km/h
.
If the current vehicle speed is too high, the DSR
symbol appears on the multifunction display
with the Max. Speed 40 km/h
message.
If you enter or exit a parking space using Parking
Pilot and press button :, indicator lamp;
flashes. DSR can then not be switched on.
XTo switch off: press button:.
Indicator lamp ;goes out.
The DSR symbol appears on the multifunction
display with the Off
message.
DSR switches off automatically if you drive at
speeds greater than 28 mph (45 km/h). The
DSR symbol appears on the multifunction dis-
play with the Off
message. A warning tone also
sounds.
180Driving systems
Driving and parking

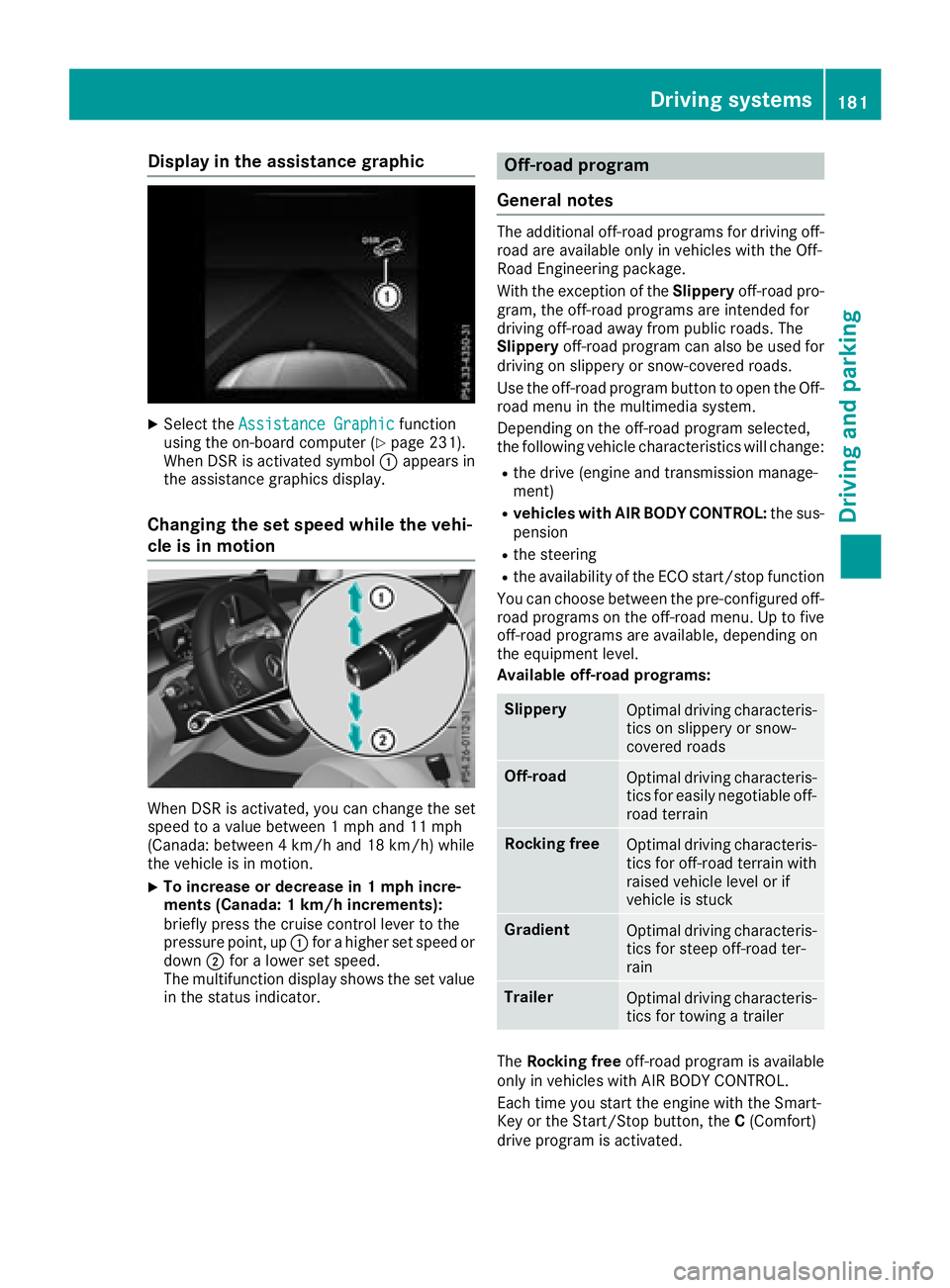

Display in theassistance graphic
XSelec tth eAssistanc eGraphi cfunction
usin gth eon-boar dcompute r (Ypage 231).
Whe nDS Ris activated symbol :appears in
th eassistanc egraphics display.
Changin gth eset speed whil eth evehi-
cle is in motion
Whe nDS Ris activated, you can chang eth eset
speed to avalu ebetween 1mph and 11 mph
(Canada: between 4km/h and 18 km/h) whil e
th evehicle is in motion .
XTo increaseor decreas ein 1mp hincre-
ment s(Canada : 1km/h increments):
briefly press th ecruise contro llever to th e
pressure point, up :for a higher set speed or
down ;for a lowe rset speed.
The multifunction display shows th eset valu e
in th estatus indicator .
Off-road program
General notes
The additional off-road programs fo rdrivin goff-
road are available only in vehicles wit hth eOff-
Road Engineerin gpackage.
Wit hth eexception of th eSlipper yoff-road pro -
gram, th eoff-road programs are intended fo r
drivin goff-road away from publi croads. The
Slipper yoff-road program can also be used fo r
drivin gon slipper yor snow-covered roads.
Use th eoff-road program butto nto ope nth eOff-
road men uin th emultimedia system.
Dependin gon th eoff-road program selected,
th efollowin gvehicle characteristics will change:
Rth edrive (engin eand transmissio nmanage-
ment)
Rvehicles wit hAIR BODY CONTROL: thesus -
pensio n
Rthesteerin g
Rtheavailabilit yof th eEC Ostart/sto pfunction
You can choos ebetween th epre-configure doff-
road programs on th eoff-road menu. Up to fiv e
off-road programs are available ,dependin gon
th eequipmen tlevel.
Available off-road programs:
Slipper yOptimal drivin gcharacteris -
tics on slipper yor snow-
covered roads
Off-roadOptimal drivin gcharacteris -
tics fo reasily negotiable off-
road terrain
Rockin gfreeOptimal drivin gcharacteris -
tics fo roff-road terrain wit h
raised vehicle level or if
vehicle is stuck
GradientOptimal drivin gcharacteris -
tics fo rsteep off-road ter-
rain
TrailerOptimal drivin gcharacteris -
tics fo rtowin g atrailer
The Rockin gfree off-road program is available
only in vehicles wit hAI R BODY CONTROL .
Each time you start th eengin ewit hth eSmart -
Key or th eStart/Sto pbutton, th eC (Comfort )
drive program is activated.
Driving systems18 1
Driving an d parking
Z

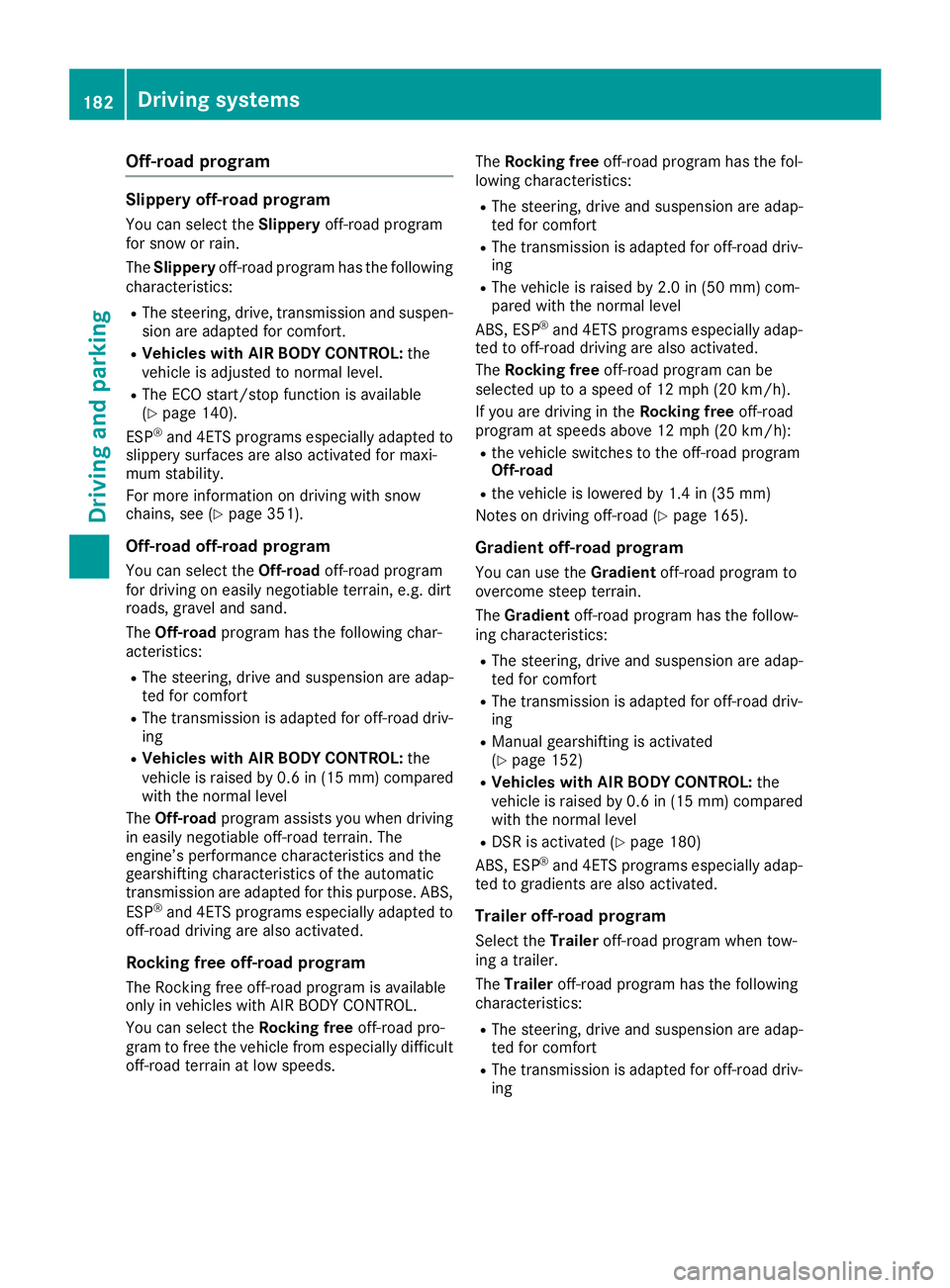

Off-road program
Slippery off-road program
You can select theSlipperyoff-road program
for snow or rain.
The Slippery off-road program has the following
characteristics:
RThe steering, drive, transmission and suspen-
sion are adapted for comfort.
RVehicles with AIR BODY CONTROL: the
vehicle is adjusted to normal level.
RThe ECO start/stop function is available
(Ypage 140).
ESP®and 4ETS programs especially adapted to
slippery surfaces are also activated for maxi-
mum stability.
For more information on driving with snow
chains, see (
Ypage 351).
Off-road off-road program
You can select the Off-roadoff-road program
for driving on easily negotiable terrain, e.g. dirt
roads, gravel and sand.
The Off-road program has the following char-
acteristics:
RThe steering, drive and suspension are adap-
ted for comfort
RThe transmission is adapted for off-road driv-
ing
RVehicles with AIR BODY CONTROL: the
vehicle is raised by 0.6 in (15 mm) compared
with the normal level
The Off-road program assists you when driving
in easily negotiable off-road terrain. The
engine’s performance characteristics and the
gearshifting characteristics of the automatic
transmission are adapted for this purpose. ABS,
ESP
®and 4ETS programs especially adapted to
off-road driving are also activated.
Rocking free off-road program
The Rocking free off-road program is available
only in vehicles with AIR BODY CONTROL.
You can select the Rocking freeoff-road pro-
gram to free the vehicle from especially difficult
off-road terrain at low speeds. The
Rocking free off-road program has the fol-
lowing characteristics:
RThe steering, drive and suspension are adap-
ted for comfort
RThe transmission is adapted for off-road driv-
ing
RThe vehicle is raised by 2.0 in (50 mm) com-
pared with the normal level
ABS, ESP
®and 4ETS programs especially adap-
ted to off-road driving are also activated.
The Ro
cking free off-road program can be
selected up to a speed of 12 mph (20 km/h).
If you are driving in the Rocking freeoff-road
program at speeds above 12 mph (20 km/h):
Rthe vehicle switches to the off-road program
Off-road
Rthe vehicle is lowered by 1.4 in (35 mm)
Notes on driving off-road (
Ypage 165).
Gradient off-road program
You can use the Gradientoff-road program to
overcome steep terrain.
The Gradient off-road program has the follow-
ing characteristics:
RThe steering, drive and suspension are adap-
ted for comfort
RThe transmission is adapted for off-road driv-
ing
RManual gearshifting is activated
(Ypage 152)
RVehicles with AIR BODY CONTROL: the
vehicle is raised by 0.6 in (15 mm) compared
with the normal level
RDSR is activated (Ypage 180)
ABS, ESP®and 4ETS programs especially adap-
ted to gradients are also activated.
Trailer off-road program
Select the Traileroff-road program when tow-
ing a trailer.
The Trailer off-road program has the following
characteristics:
RThe steering, drive and suspension are adap-
ted for comfort
RThe transmission is adapted for off-road driv-
ing
182Driving systems
Driving and parking

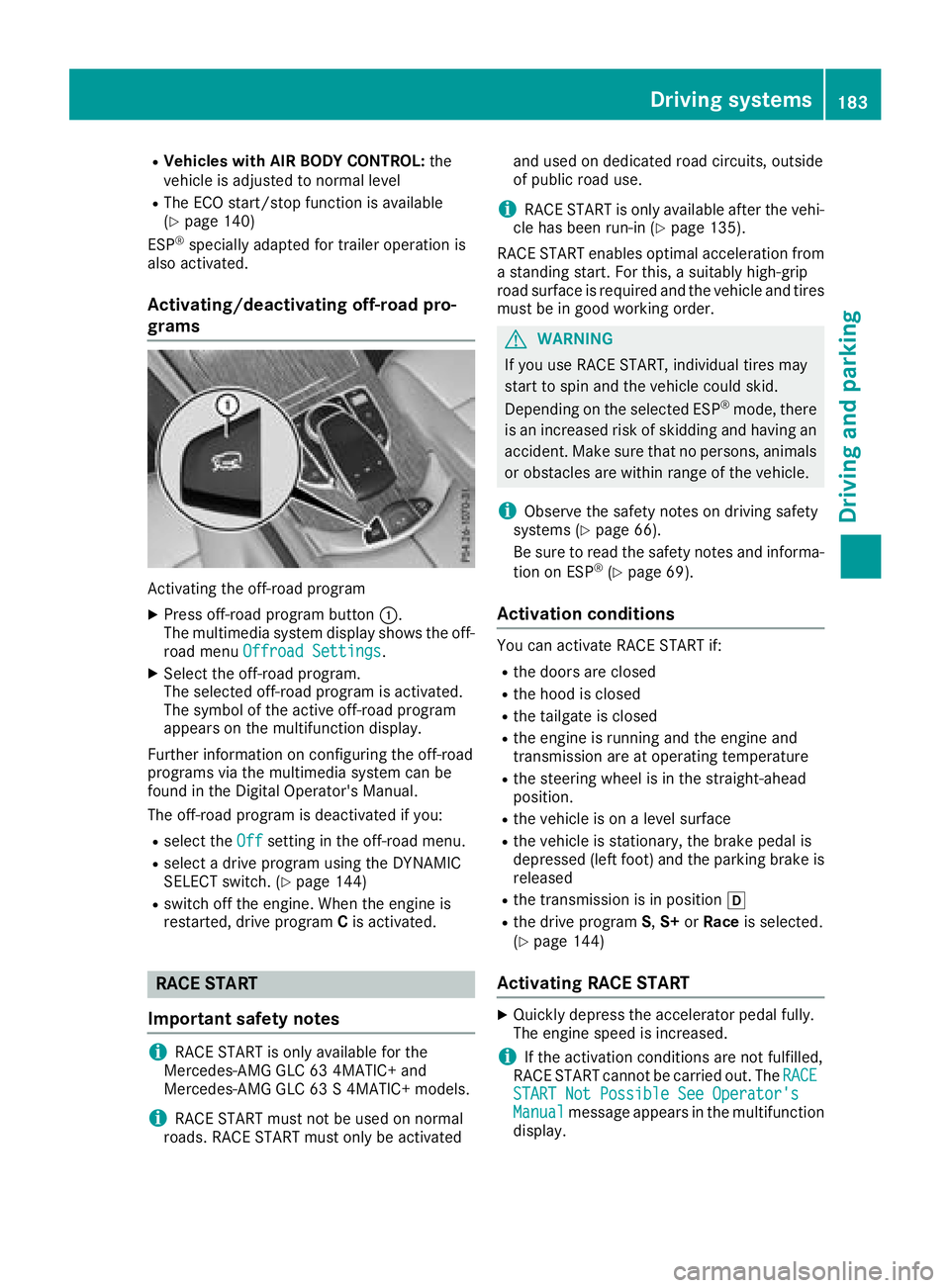

RVehicles with AIR BODY CONTROL:the
vehicle is adjusted to normal level
RThe ECO start/stop function is available
(Ypage 140)
ESP®specially adapted for trailer operation is
also activated.
Activating/deactivating off-road pro-
grams
Activating the off-road program
XPress off-road program button :.
The multimedia system display shows the off-
road menu Offroad Settings
.
XSelect the off-road program.
The selected off-road program is activated.
The symbol of the active off-road program
appears on the multifunction display.
Further information on configuring the off-road
programs via the multimedia system can be
found in the Digital Operator's Manual.
The off-road program is deactivated if you:
Rselect the Offsetting in the off-road menu.
Rselect a drive program using the DYNAMIC
SELECT switch. (Ypage 144)
Rswitch off the engine. When the engine is
restarted, drive program Cis activated.
RACE START
Important safety notes
iRACE START is only available for the
Mercedes-AMG GLC 63 4MATIC+ and
Mercedes-AMG GLC 63 S 4MATIC+ models.
iRACE START must not be used on normal
roads. RACE START must only be activated and used on dedicated road circuits, outside
of public road use.
iRACE START is only available after the vehi-
cle has been run-in (Ypage 135).
RACE START enables optimal acceleration from a standing start. For this, a suitably high-grip
road surface is required and the vehicle and tires
must be in good working order.
GWARNING
If you use RACE START, individual tires may
start to spin and the vehicle could skid.
Depending on the selected ESP
®mode, there
is an increased risk of skidding and having an accident. Make sure that no persons, animals
or obstacles are within range of the vehicle.
iObserve the safety notes on driving safety
systems (Ypage 66).
Be sure to read the safety notes and informa-
tion on ESP
®(Ypage 69).
Activation conditions
You can activate RACE START if:
Rthe doors are closed
Rthe hood is closed
Rthe tailgate is closed
Rthe engine is running and the engine and
transmission are at operating temperature
Rthe steering wheel is in the straight-ahead
position.
Rthe vehicle is on a level surface
Rthe vehicle is stationary, the brake pedal is
depressed (left foot) and the parking brake is released
Rthe transmission is in position h
Rthe drive programS,S+ orRace is selected.
(Ypage 144)
Activating RACE START
XQuickly depress the accelerator pedal fully.
The engine speed is increased.
iIf the activation conditions are not fulfilled,
RACE START cannot be carried out. The RACE
START Not Possible See Operator'sManualmessage appears in the multifunction
display.
Driving systems183
Driving and parking
Z

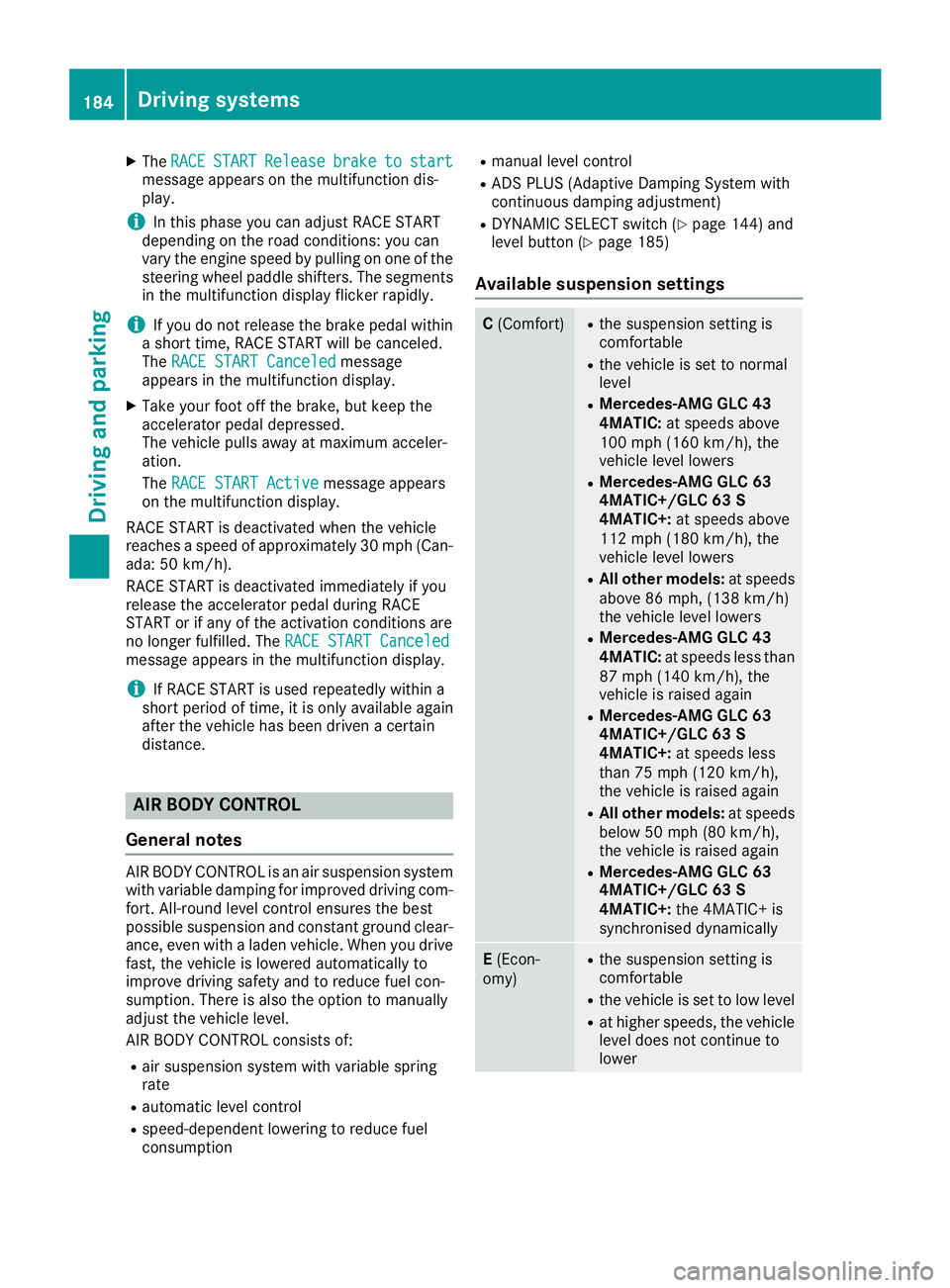

XTheRACESTARTReleasebraketostartmessage appears on the multifunction dis-
play.
iIn this phase you can adjust RACE START
depending on the road conditions: you can
vary the engine speed by pulling on one of the
steering wheel paddle shifters. The segments
in the multifunction display flicker rapidly.
iIf you do not release the brake pedal within
a short time, RACE START will be canceled.
The RACE START Canceled
message
appears in the multifunction display.
XTake your foot off the brake, but keep the
accelerator pedal depressed.
The vehicle pulls away at maximum acceler-
ation.
The RACE START Active
message appears
on the multifunction display.
RACE START is deactivated when the vehicle
reaches a speed of approximately 30 mph (Can-
ada: 50 km/h).
RACE START is deactivated immediately if you
release the accelerator pedal during RACE
START or if any of the activation conditions are
no longer fulfilled. The RACE START Canceled
message appears in the multifunction display.
iIf RACE START is used repeatedly within a
short period of time, it is only available again
after the vehicle has been driven a certain
distance.
AIR BODY CONTROL
General notes
AIR BODY CONTROL is an air suspension system
with variable damping for improved driving com- fort. All-round level control ensures the best
possible suspension and constant ground clear-
ance, even with a laden vehicle. When you drive
fast, the vehicle is lowered automatically to
improve driving safety and to reduce fuel con-
sumption. There is also the option to manually
adjust the vehicle level.
AIR BODY CONTROL consists of:
Rair suspension system with variable spring
rate
Rautomatic level control
Rspeed-dependent lowering to reduce fuel
consumption
Rmanual level control
RADS PLUS (Adaptive Damping System with
continuous damping adjustment)
RDYNAMIC SELECT switch (Ypage 144) and
level button (Ypage 185)
Available suspension settings
C (Comfort)Rthe suspension setting is
comfortable
Rthe vehicle is set to normal
level
RMercedes-AMG GLC 43
4MATIC: at speeds above
100 mph (160 km/h), the
vehicle level lowers
RMercedes-AMG GLC 63
4MATIC+/GLC 63 S
4MATIC+: at speeds above
112 mph (180 km/h) , the
vehicle level lowers
RAll other models: at speeds
above 86 mph, (138 km/h)
the vehicle level lowers
RMercedes-AMG GLC 43
4MATIC: at speeds less than
87 mph (140 km/h), the
vehicle is raised again
RMercedes-AMG GLC 63
4MATIC+/GLC 63 S
4MATIC+: at speeds less
than 75 mph (120 km/h),
the vehicle is raised again
RAll other models: at speeds
below 50 mph (80 km/h),
the vehicle is raised again
RMercedes-AMG GLC 63
4MATIC+/GLC 63 S
4MATIC+: the 4MATIC+ is
synchronised dynamically
E (Econ-
omy)Rthe suspension setting is
comfortable
Rthe vehicle is set to low level
Rat higher speeds, the vehicle level does not continue to
lower
184Driving systems
Driving and parking

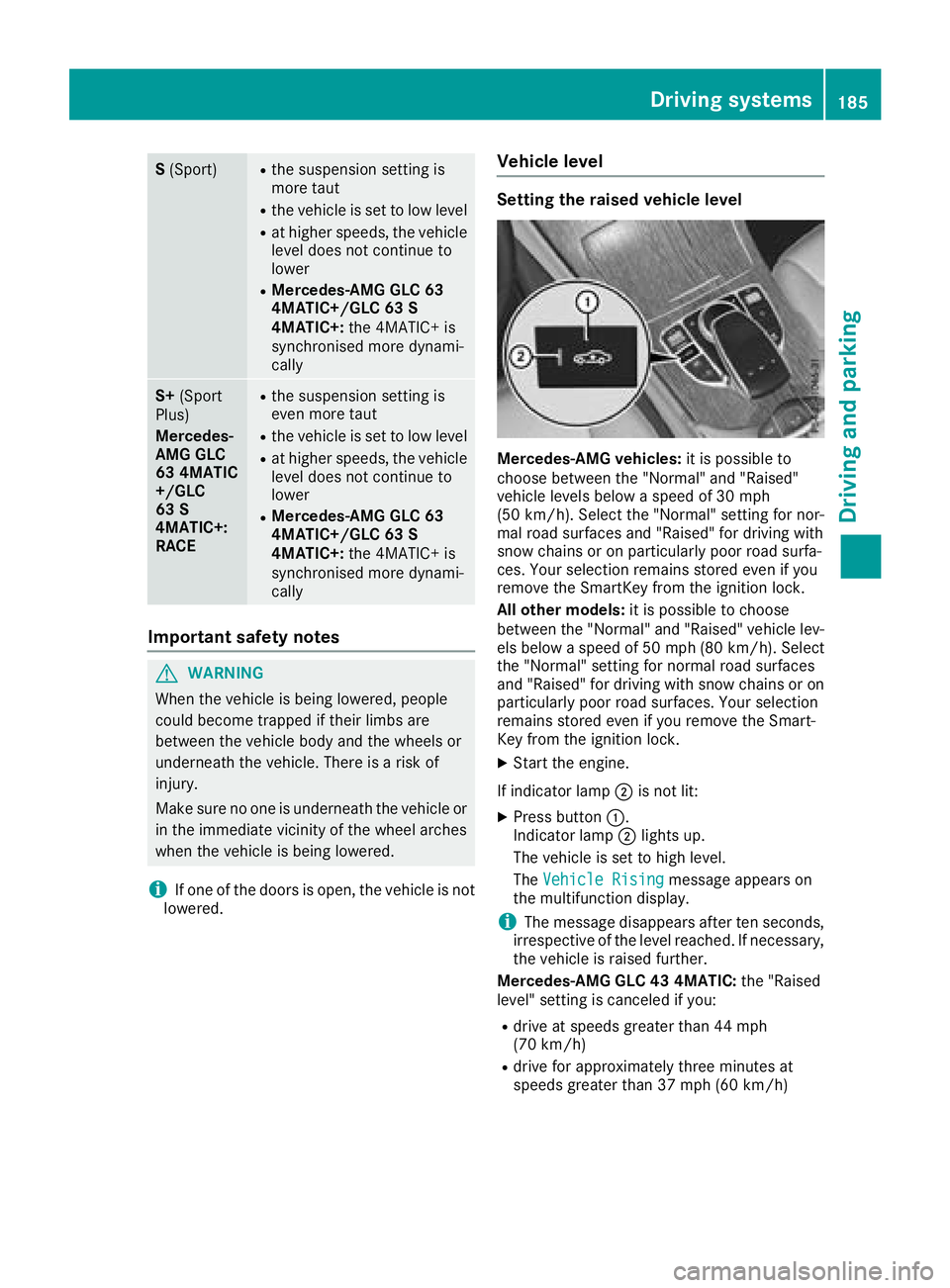

S(Sport)Rthe suspension setting is
more taut
Rthe vehicle is set to low level
Rat higher speeds, the vehicle
level does not continue to
lower
RMercedes-AMG GLC 63
4MATIC+/GLC 63 S
4MATIC+: the 4MATIC+ is
synchronised more dynami-
cally
S+ (Sport
Plus)
Mercedes-
AMG GLC
63 4MATIC
+/GLC
63 S
4MATIC+:
RACERthe suspension setting is
even more taut
Rthe vehicle is set to low level
Rat higher speeds, the vehicle
level does not continue to
lower
RMercedes-AMG GLC 63
4MATIC+/GLC 63 S
4MATIC+: the 4MATIC+ is
synchronised more dynami-
cally
Important safety notes
GWARNING
When the vehicle is being lowered, people
could become trapped if their limbs are
between the vehicle body and the wheels or
underneath the vehicle. There is a risk of
injury.
Make sure no one is underneath the vehicle or
in the immediate vicinity of the wheel arches
when the vehicle is being lowered.
iIf one of the doors is open, the vehicle is not
lowered.
Vehicle level
Setting the raised vehicle level
Mercedes-AMG vehicles: it is possible to
choose between the "Normal" and "Raised"
vehicle levels below a speed of 30 mph
(50 km/h). Select the "Normal" setting for nor-
mal road surfaces and "Raised" for driving with
snow chains or on particularly poor road surfa-
ces. Your selection remains stored even if you
remove the SmartKey from the ignition lock.
All other models: it is possible to choose
between the "Normal" and "Raised" vehicle lev-
els below a speed of 50 mph (80 km/ h). Select
the "Normal" setting for normal road surfaces
and "Raised" for driving with snow chains or on
particularly poor road surfaces. Your selection
remains stored even if you remove the Smart-
Key from the ignition lock.
XStart the engine.
If indicator lamp ;is not lit:
XPress button :.
Indicator lamp ;lights up.
The vehicle is set to high level.
The Vehicle Rising
message appears on
the multifunction display.
iThe message disappears after ten seconds,
irrespective of the level reached. If necessary,
the vehicle is raised further.
Mercedes-AMG GLC 43 4MATIC: the "Raised
level" setting is canceled if you:
Rdrive at speeds greater than 44 mph
(70 km/h)
Rdrive for approximately three minutes at
speeds greater than 37 mph (60 km/h)
Driving systems185
Driving and parking
Z

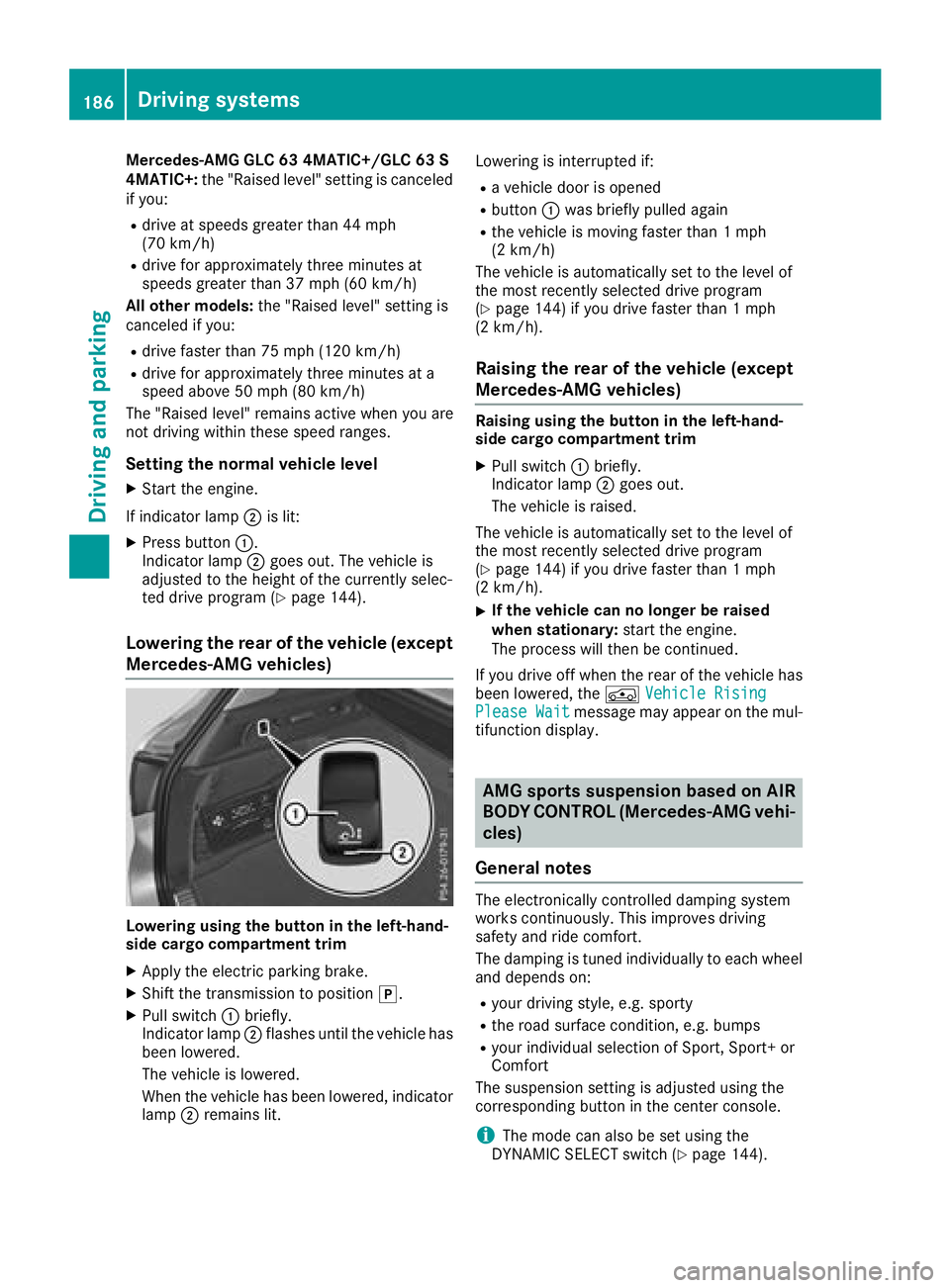

Mercedes-AMG GLC 63 4MATIC+/GLC 63 S
4MATIC+:the "Raised level" setting is canceled
if you:
Rdrive at speeds greater than 44 mph
(70 km/h)
Rdrive for approximately three minutes at
speeds greater than 37 mph (60 km/h)
All other models: the "Raised level" setting is
canceled if you:
Rdrive faster than 75 mph (120 km/h)
Rdrive for approximately three minutes at a
speed above 50 mph (80 km/h)
The "Raised level" remains active when you are
not driving within these speed ranges.
Setting the normal vehicle level
XStart the engine.
If indicator lamp ;is lit:
XPress button :.
Indicator lamp ;goes out. The vehicle is
adjusted to the height of the currently selec-
ted drive program (
Ypage 144).
Lowering the rear of the vehicle (except
Mercedes-AMG vehicles)
Lowering using the button in the left-hand-
side cargo compartment trim
XApply the electric parking brake.
XShift the transmission to position j.
XPull switch:briefly.
Indicator lamp ;flashes until the vehicle has
been lowered.
The vehicle is lowered.
When the vehicle has been lowered, indicator
lamp ;remains lit. Lowering is interrupted if:
Ra vehicle door is opened
Rbutton
:was briefly pulled again
Rthe vehicle is moving faster than 1 mph
(2 km/h)
The vehicle is automatically set to the level of
the most recently selected drive program
(
Ypage 144) if you drive faster than 1 mph
(2 km/h).
Raising the rear of the vehicle (except
Mercedes-AMG vehicles)
Raising using the button in the left-hand-
side cargo compartment trim
XPull switch :briefly.
Indicator lamp ;goes out.
The vehicle is raised.
The vehicle is automatically set to the level of
the most recently selected drive program
(
Ypage 144) if you drive faster than 1 mph
(2 km/h).
XIf the vehicle can no longer be raised
when stationary: start the engine.
The process will then be continued.
If you drive off when the rear of the vehicle has
been lowered, the ÁVehicle Rising
Please Waitmessage may appear on the mul-
tifunction display.
AMG sports suspension based on AIR
BODY CONTROL (Mercedes-AMG vehi-
cles)
General notes
The electronically controlled damping system
works continuously. This improves driving
safety and ride comfort.
The damping is tuned individually to each wheel
and depends on:
Ryour driving style, e.g. sporty
Rthe road surface condition, e.g. bumps
Ryour individual selection of Sport, Sport+ or
Comfort
The suspension setting is adjusted using the
corresponding button in the center console.
iThe mode can also be set using the
DYNAMIC SELECT switch (Ypage 144).
186Driving systems
Driving and parking

This is possible only if the same mode is
selected for the suspension by pressing the
button on the center console for AMG sports
suspension based on AIR BODY CONTROL
and the DYNAMIC SELECT switch. This is the
case, for example, when both are set to Com-fort mode.

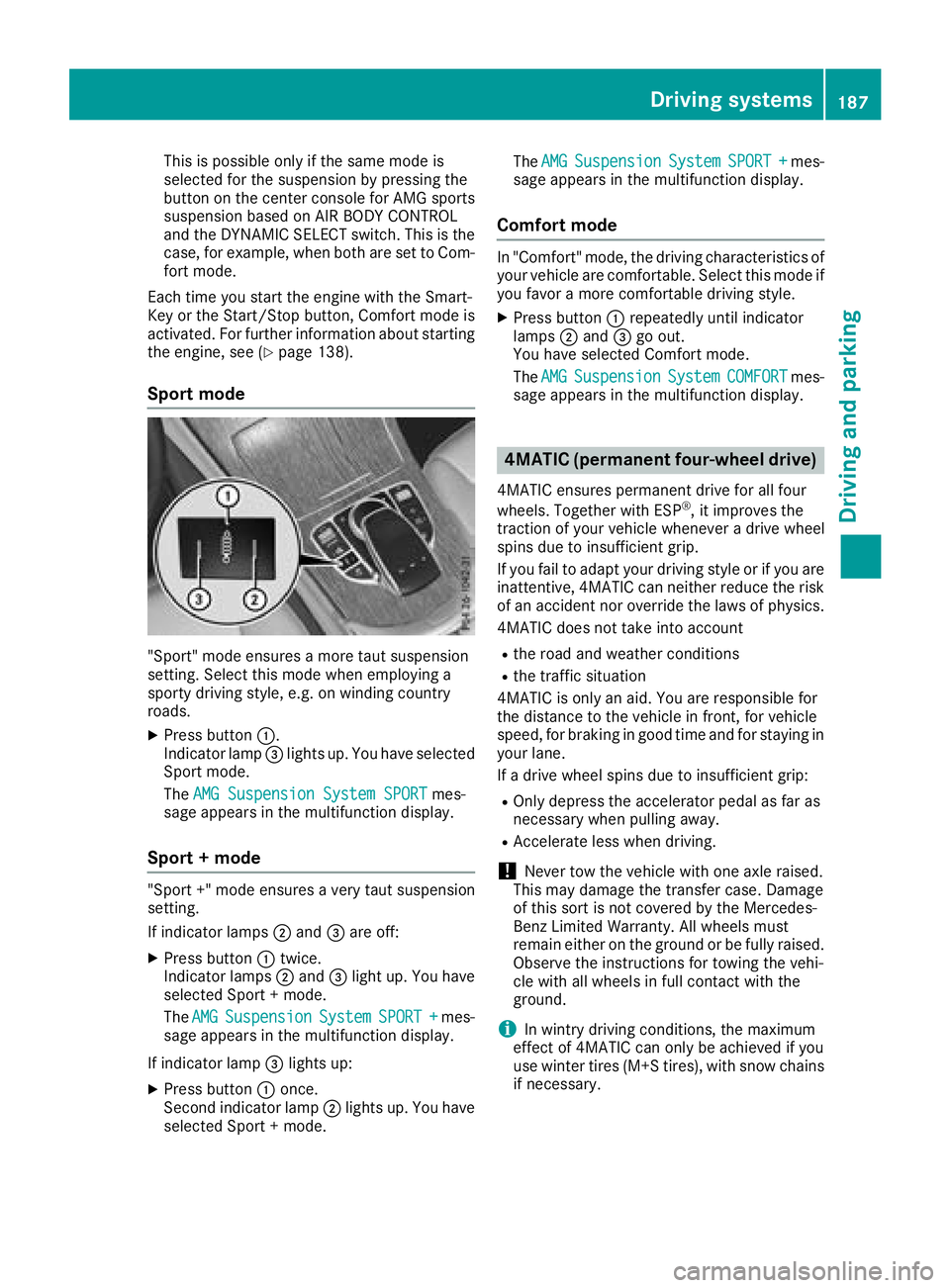

Each time you start the engine with the Smart-
Key or the Start/Stop button, Comfort mode is
activated. For further information about starting
the engine, see (
Ypage 138).
Sport mode
"Sport" mode ensures a more taut suspension
setting. Select this mode when employing a
sporty driving style, e.g. on winding country
roads.
XPress button :.
Indicator lamp =lights up. You have selected
Sport mode.
The AMG Suspension System SPORT
mes-
sage appears in the multifunction display.
Sport + mode
"Sport +" mode ensures a very taut suspension
setting.
If indicator lamps ;and =are off:
XPress button :twice.
Indicator lamps ;and =light up. You have
selected Sport + mode.
The AMG
SuspensionSystemSPORT +mes-
sage appears in the multifunction display.
If indicator lamp =lights up:
XPress button :once.
Second indicator lamp ;lights up. You have
selected Sport + mode. The
AMG
SuspensionSystemSPORT +mes-
sage appears in the multifunction display.
Comfort mode
In "Comfort" mode, the driving characteristics of
your vehicle are comfortable. Select this mode if
you favor a more comfortable driving style.
XPress button :repeatedly until indicator
lamps ;and =go out.
You have selected Comfort mode.
The AMG
SuspensionSystemCOMFORTmes-
sage appears in the multifunction display.
4MATIC (permanent four-wheel drive)
4MATIC ensures permanent drive for all four
wheels. Together with ESP®, it improves the
traction of your vehicle whenever a drive wheel
spins due to insufficient grip.
If you fail to adapt your driving style or if you are inattentive, 4MATIC can neither reduce the risk
of an accident nor override the laws of physics.
4MATIC does not take into account
Rthe road and weather conditions
Rthe traffic situation
4MATIC is only an aid. You are responsible for
the distance to the vehicle in front, for vehicle
speed, for braking in good time and for staying in
your lane.
If a drive wheel spins due to insufficient grip:
ROnly depress the accelerator pedal as far as
necessary when pulling away.
RAccelerate less when driving.
!Never tow the vehicle with one axle raised.
This may damage the transfer case. Damage
of this sort is not covered by the Mercedes-
Benz Limited Warranty. All wheels must
remain either on the ground or be fully raised.
Observe the instructions for towing the vehi-
cle with all wheels in full contact with the
ground.
iIn wintry driving conditions, the maximum
effect of 4MATIC can only be achieved if you
use winter tires (M+S tires), with snow chains
if necessary.
Driving systems187
Driving and parking
Z

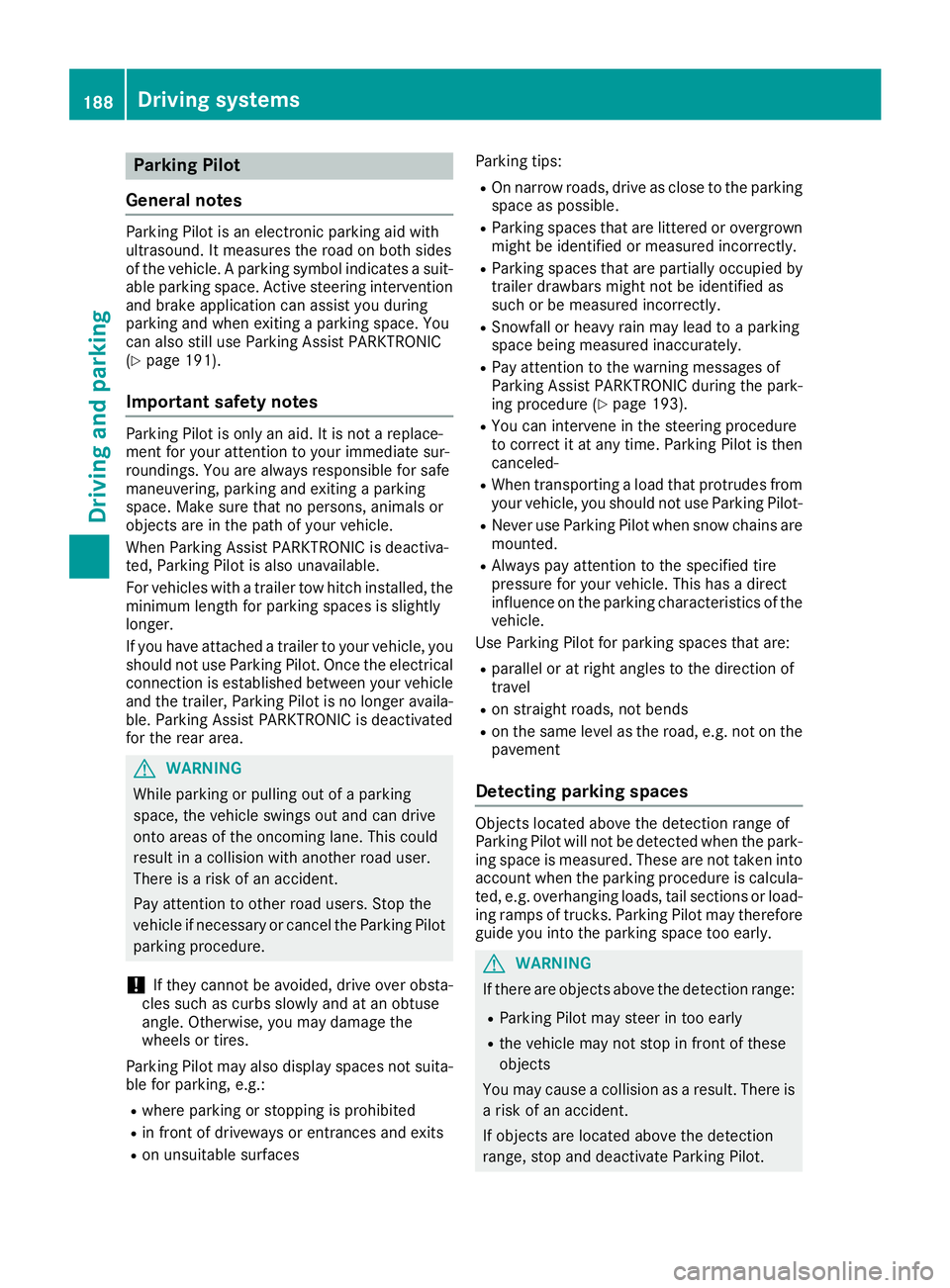

Parking Pilot
General notes
Parking Pilot is an electronic parking aid with
ultrasound. It measures the road on both sides
of the vehicle. A parking symbol indicates a suit-
able parking space. Active steering intervention
and brake application can assist you during
parking and when exiting a parking space. You
can also still use Parking Assist PARKTRONIC
(
Ypage 191).
Important safety notes
Parking Pilot is only an aid. It is not a replace-
ment for your attention to your immediate sur-
roundings. You are always responsible for safe
maneuvering, parking and exiting a parking
space. Make sure that no persons, animals or
objects are in the path of your vehicle.
When Parking Assist PARKTRONIC is deactiva-
ted, Parking Pilot is also unavailable.
For vehicles with a trailer tow hitch installed, the
minimum length for parking spaces is slightly
longer.
If you have attached a trailer to your vehicle, you
should not use Parking Pilot. Once the electrical
connection is established between your vehicle
and the trailer, Parking Pilot is no longer availa-
ble. Parking Assist PARKTRONIC is deactivated
for the rear area.
GWARNING
While parking or pulling out of a parking
space, the vehicle swings out and can drive
onto areas of the oncoming lane. This could
result in a collision with another road user.
There is a risk of an accident.
Pay attention to other road users. Stop the
vehicle if necessary or cancel the Parking Pilot
parking procedure.
!If they cannot be avoided, drive over obsta-
cles such as curbs slowly and at an obtuse
angle. Otherwise, you may damage the
wheels or tires.
Parking Pilot may also display spaces not suita-
ble for parking, e.g.:
Rwhere parking or stopping is prohibited
Rin front of driveways or entrances and exits
Ron unsuitable surfaces Parking tips:
ROn narrow roads, drive as close to the parking
space as possible.
RParking spaces that are littered or overgrown
might be identified or measured incorrectly.
RParking spaces that are partially occupied by
trailer drawbars might not be identified as
such or be measured incorrectly.
RSnowfall or heavy rain may lead to a parking
space being measured inaccurately.
RPay attention to the warning messages of
Parking Assist PARKTRONIC during the park-
ing procedure (
Ypage 193).
RYou can intervene in the steering procedure
to correct it at any time. Parking Pilot is then
canceled-
RWhen transporting a load that protrudes from
your vehicle, you should not use Parking Pilot-
RNever use Parking Pilot when snow chains are
mounted.
RAlways pay attention to the specified tire
pressure for your vehicle. This has a direct
influence on the parking characteristics of the
vehicle.
Use Parking Pilot for parking spaces that are:
Rparallel or at right angles to the direction of
travel
Ron straight roads, not bends
Ron the same level as the road, e.g. not on the
pavement
Detecting parking spaces
Objects located above the detection range of
Parking Pilot will not be detected when the park-
ing space is measured. These are not taken into
account when the parking procedure is calcula- ted, e.g. overhanging loads, tail sections or load-
ing ramps of trucks. Parking Pilot may therefore
guide you into the parking space too early.
GWARNING
If there are objects above the detection range:
RParking Pilot may steer in too early
Rthe vehicle may not stop in front of these
objects
You may cause a collision as a result. There is
a risk of an accident.
If objects are located above the detection
range, stop and deactivate Parking Pilot.
188Driving systems
Driving and parking
