MERCEDES-BENZ GLE 2016 Owners Manual

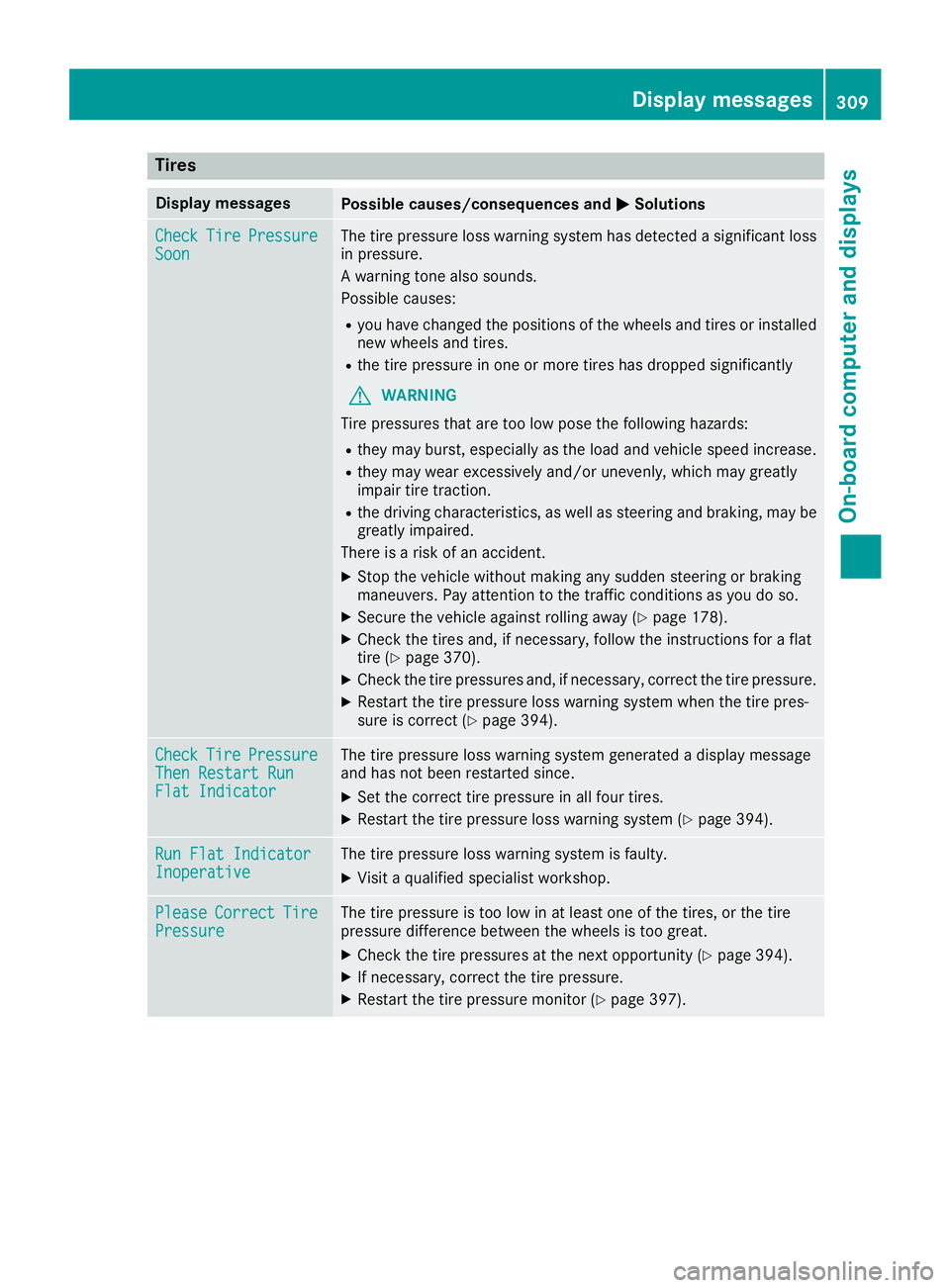

Tires Display messages
Possible causes/consequences and P Solutions
Check Tire Pressure
Soon The tire pressure loss warning system has detected a significant loss
in pressure.
A warning tone also sounds.
Possible causes: R
you have changed the positions of the wheels and tires or installed
new wheels and tires. R
the tire pressure in one or more tires has dropped significantly
G WARNING
Tire pressures that are too low pose the following hazards: R
they may burst, especially as the load and vehicle speed increase. R
they may wear excessively and/or unevenly, which may greatly
impair tire traction. R
the driving characteristics, as well as steering and braking, may be
greatly impaired.
There is a risk of an accident. X
Stop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so. X
Secure the vehicle against rolling away ( Y
page 178).X
Check the tires and, if necessary, follow the instructions for a flat
tire ( Y
page 370). X
Check the tire pressures and, if necessary, correct the tire pressure. X
Restart the tire pressure loss warning system when the tire pres-
sure is correct ( Y
page 394).
Check Tire Pressure
Then Restart Run
Flat Indicator The tire pressure loss warning system generated a display message
and has not been restarted since. X
Set the correct tire pressure in all four tires. X
Restart the tire pressure loss warning system ( Y
page 394).
Run Flat Indicator
Inoperative The tire pressure loss warning system is faulty. X
Visit a qualified specialist workshop.
Please Correct Tire
Pressure The tire pressure is too low in at least one of the tires, or the tire
pressure difference between the wheels is too great. X
Check the tire pressures at the next opportunity ( Y
page 394).X
If necessary, correct the tire pressure. X
Restart the tire pressure monitor ( Y
page 397).Displa y messages 30 9
On-board computer and displays Z

Display messages
Possible causes/consequences and P Solutions

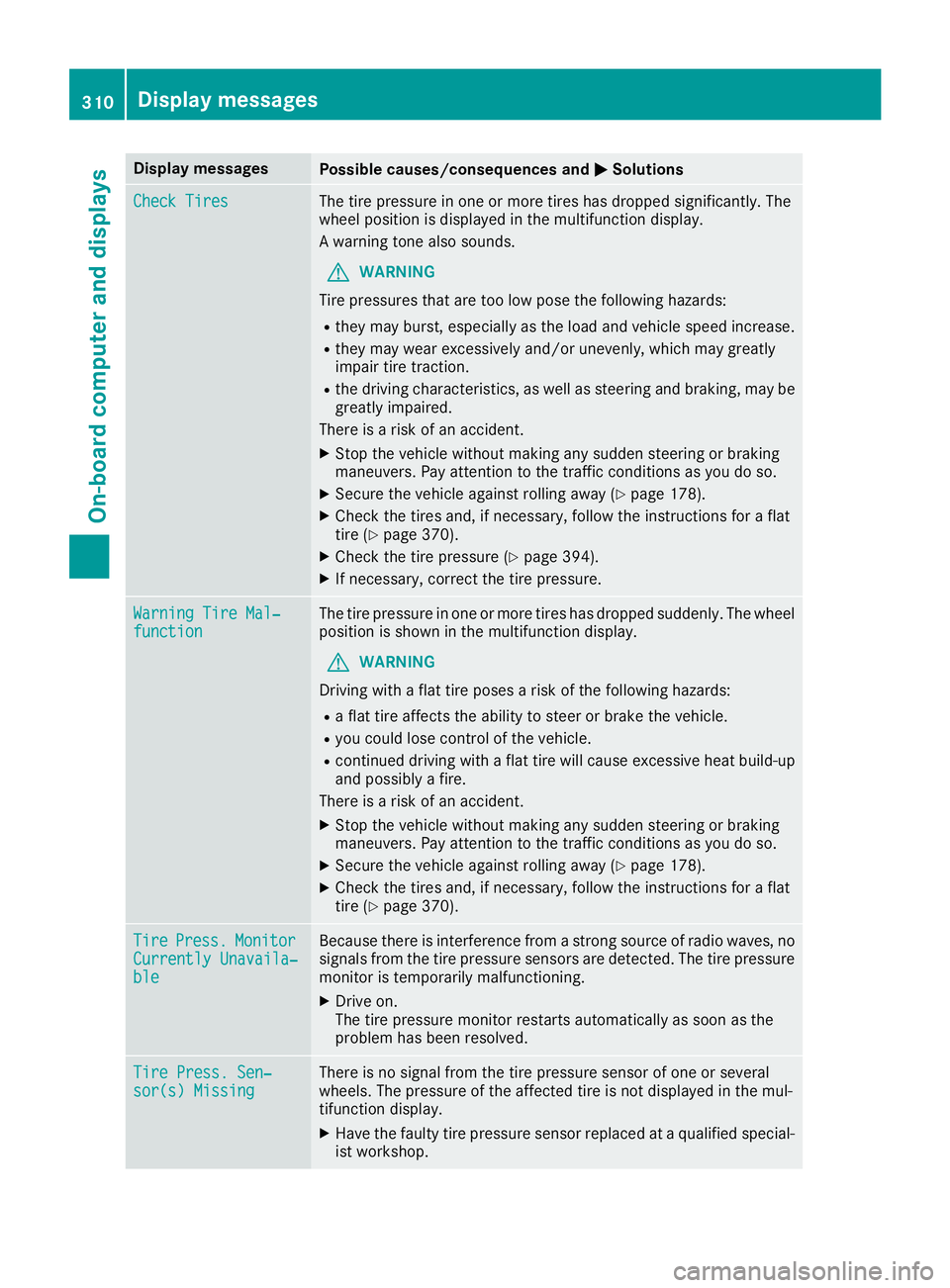

Check Tires The tire pressur e in on e or mor e tires has dropped significantly. The
whee l position is displayed in th e multifunction display.
A warning tone also sounds.
G WARNIN G
Tir e pressures that are to o low pos e th e followin g hazards :R
they may burst, especially as th e load and vehicl e speed increase.R
they may wear excessivel y and/o r unevenly, whic h may greatl y
impair tire traction .R
th e drivin g characteristics , as well as steering and braking , may be
greatl y impaired.
There is a ris k of an accident.X
Stop th e vehicl e without making any sudden steering or braking
maneuvers . Pay attention to th e traffic condition s as you do so.X
Secur e th e vehicl e against rollin g away ( Y
page 178).X
Chec k th e tires and , if necessary, follow th e instruction s for a flat
tire ( Y
page 370). X
Chec k th e tire pressur e ( Y
page 394).X
If necessary, correc t th e tire pressure.
Warnin g Tir e Mal ‐
function The tire pressur e in on e or mor e tires has dropped suddenly. The whee l
position is shown in th e multifunction display.
G WARNIN G
Drivin g wit h a flat tire poses a ris k of th e followin g hazards :R
a flat tire affects th e abilit y to steer or brak e th e vehicle.R
you could lose control of th e vehicle.R
continued drivin g wit h a flat tire will caus e excessive heat build-up
and possibl y a fire.
There is a ris k of an accident.X
Stop th e vehicl e without making any sudden steering or braking
maneuvers . Pay attention to th e traffic condition s as you do so.X
Secur e th e vehicl e against rollin g away ( Y
page 178).X
Chec k th e tires and , if necessary, follow th e instruction s for a flat
tire ( Y
page 370).
Tir e Press. Monito r
Currently Unavaila‐
ble Becaus e there is interferenc e from a stron g source of radi o waves, no
signals from th e tire pressur e sensor s are detected. The tire pressur e
monitor is temporarily malfunctioning .X
Drive on .
The tire pressur e monitor restarts automatically as soo n as th e
problem has been resolved.
Tir e Press. Sen ‐
sor(s) Missin g There is no signal from th e tire pressur e sensor of on e or several
wheels. The pressur e of th e affecte d tire is no t displayed in th e mul-
tifunction display. X
Hav e th e fault y tire pressur e sensor replace d at a qualified special -
ist workshop .310
Display messages
On-board computer and displays

Display messages
Possible causes/consequences and P Solutions

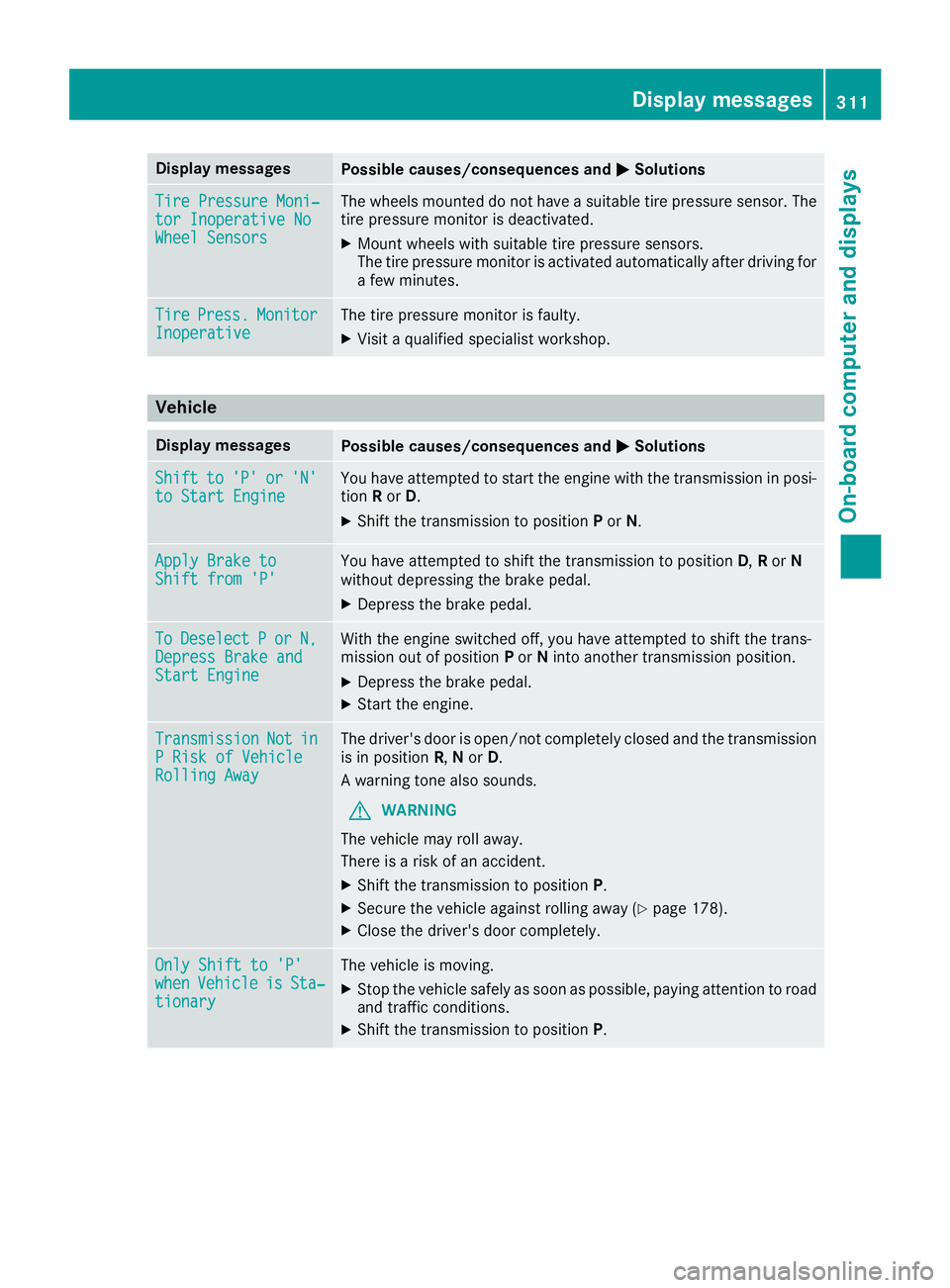

Tir e Pressure Moni‐
tor Inoperative No
Wheel Sensor s The wheels mounte d do no t hav e a suitable tire pressur e sensor . The
tire pressur e monitor is deactivated. X
Moun t wheels wit h suitable tire pressur e sensors.
The tire pressur e monitor is activated automatically after drivin g for
a few minutes.
Tir e Press. Monito r
Inoperative The tire pressur e monitor is faulty.X
Visit a qualified specialist workshop .
Vehicle Display messages
Possible causes/consequences and P Solutions
Shift to 'P' or 'N'
to Start Engine You hav e attempte d to start th e engin e wit h th e transmission in posi-
tion R or D . X
Shift th e transmission to position P or N .
Apply Brake to
Shift fro m 'P' You hav e attempte d to shift th e transmission to position D , R or N
without depressing th e brak e pedal .X
Depress th e brak e pedal .
To Deselect P or N,
Depres s Brake and
Start Engine Wit h th e engin e switched off , you hav e attempte d to shift th e trans -
mission out of position P or N int o another transmission position .X
Depress th e brak e pedal .X
Start th e engine.
Transmission Not in
P Ris k of Vehicl e
Rollin g Awa y The driver's door is open/not completely closed and th e transmission
is in position R , N or D .
A warning tone also sounds.
G WARNIN G
The vehicl e may rol l away.
There is a ris k of an accident.X
Shift th e transmission to position P .X
Secur e th e vehicl e against rollin g away ( Y
page 178).X
Clos e th e driver's door completely.
Onl y Shift to 'P'
whe n Vehicl e is Sta ‐
tionar y The vehicl e is moving .X
Stop th e vehicl e safely as soo n as possible, payin g attention to roa d
and traffic conditions. X
Shift th e transmission to position P .Display messages 31 1
On-board computer and displays Z

Display messages
Possible causes/consequences and P Solutions

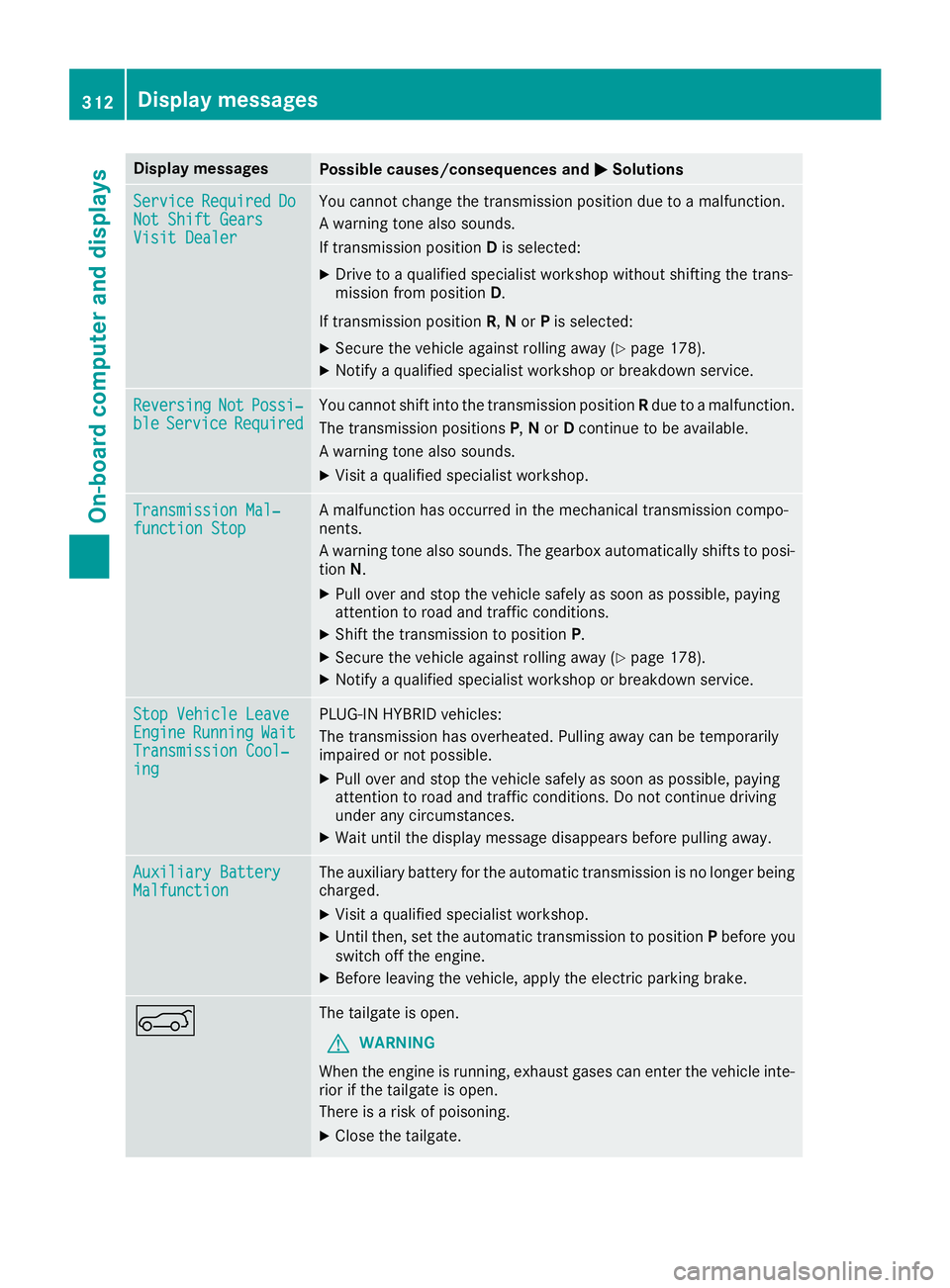

Servic e Required Do
Not Shift Gears
Visit Dealer You canno t chang e th e transmission position due to a malfunction .
A warning tone also sounds.
If transmission position D is selected:X
Drive to a qualified specialist workshop without shifting th e trans -
mission from position D .
If transmission position R , N or P is selected:X
Secur e th e vehicl e against rollin g away ( Y
page 178).X
Notify a qualified specialist workshop or breakdown service.
Reversing Not Possi‐
ble Servic e Required You canno t shift int o th e transmission position R due to a malfunction .
The transmission position s P , N or D continu e to be available.
A warning tone also sounds. X
Visit a qualified specialist workshop .
Transmission Mal ‐
function Sto p A malfunction has occurred in th e mechanical transmission compo -
nents.
A warning tone also sounds. The gearbox automatically shift s to posi-
tion N . X
Pull ove r and stop th e vehicl e safely as soo n as possible, payin g
attention to roa d and traffic conditions.X
Shift th e transmission to position P .X
Secur e th e vehicl e against rollin g away ( Y
page 178).X
Notify a qualified specialist workshop or breakdown service.
Sto p Vehicl e Leave
Engine Runnin g Wai t
Transmission Cool‐
ing PLUG-I N HYBRID vehicles:
The transmission has overheated. Pullin g away can be temporarily
impaire d or no t possible.X
Pull ove r and stop th e vehicl e safely as soo n as possible, payin g
attention to roa d and traffic conditions. Do no t continu e drivin g
under any circumstances. X
Wait until th e display message disappear s before pullin g away.
Auxiliary Batter y
Malfunction The auxiliary battery for th e automatic transmission is no longer bein g
charged. X
Visit a qualified specialist workshop .X
Unti l then , set th e automatic transmission to position P before you
switch off th e engine.X
Befor e leaving th e vehicle, apply th e electric parking brake.
e The tailgat e is open .
G WARNIN G
Whe n th e engin e is running, exhaust gase s can ente r th e vehicl e inte-
rio r if th e tailgat e is open .
There is a ris k of poisoning .X
Clos e th e tailgate.312
Display messages
On-board computer and displays

Display messages
Possible causes/consequences and P Solutions

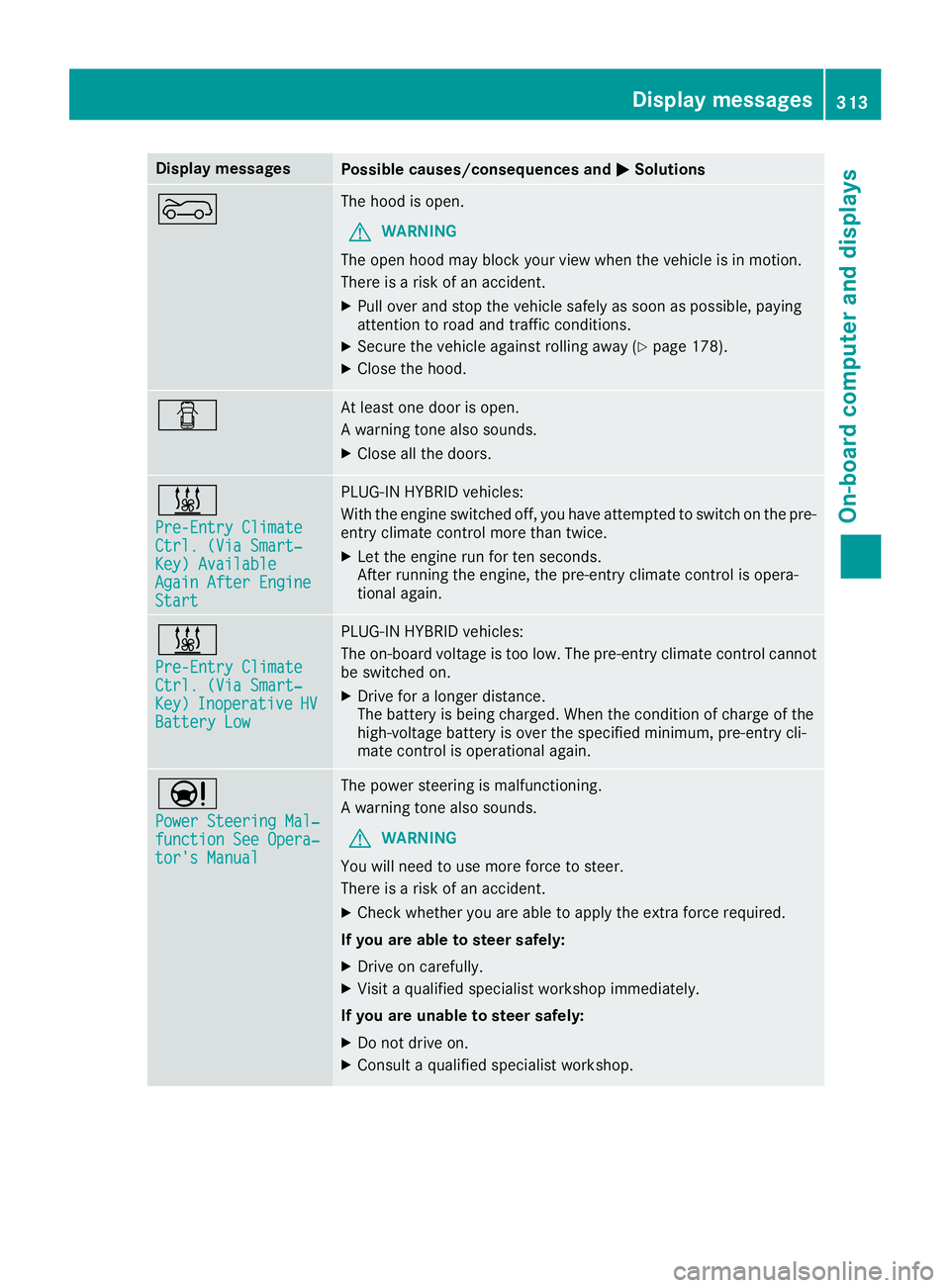

f The hoo d is open .
G WARNIN G
The open hoo d may bloc k your vie w when th e vehicl e is in motion .
There is a ris k of an accident.X
Pull ove r and stop th e vehicl e safely as soo n as possible, payin g
attention to roa d and traffic conditions.X
Secur e th e vehicl e against rollin g away ( Y
page 178).X
Clos e th e hood.
Q At least on e door is open .
A warning tone also sounds. X
Clos e all th e doors.
; Pre-Entry Climat e
Ctrl. (Vi a Smart‐
Key ) Available
Again After Engine
Start PLUG-I N HYBRID vehicles:
Wit h th e engin e switched off , you hav e attempte d to switch on th e pre -
entr y climat e control mor e than twice .X
Let th e engin e run for te n seconds.
Afte r runnin g th e engine, th e pre-entry climat e control is opera-
tional again .
; Pre-Entry Climat e
Ctrl. (Vi a Smart‐
Key ) Inoperative HV
Batter y Low PLUG-I N HYBRID vehicles:
The on-boar d voltag e is to o low. The pre-entry climat e control canno t
be switched on .X
Drive for a longer distance.
The battery is bein g charged. Whe n th e condition of charg e of th e
high-voltage battery is ove r th e specified minimum , pre-entry cli -
mat e control is operational again .

Display messages
Possible causes/consequences and P Solutions

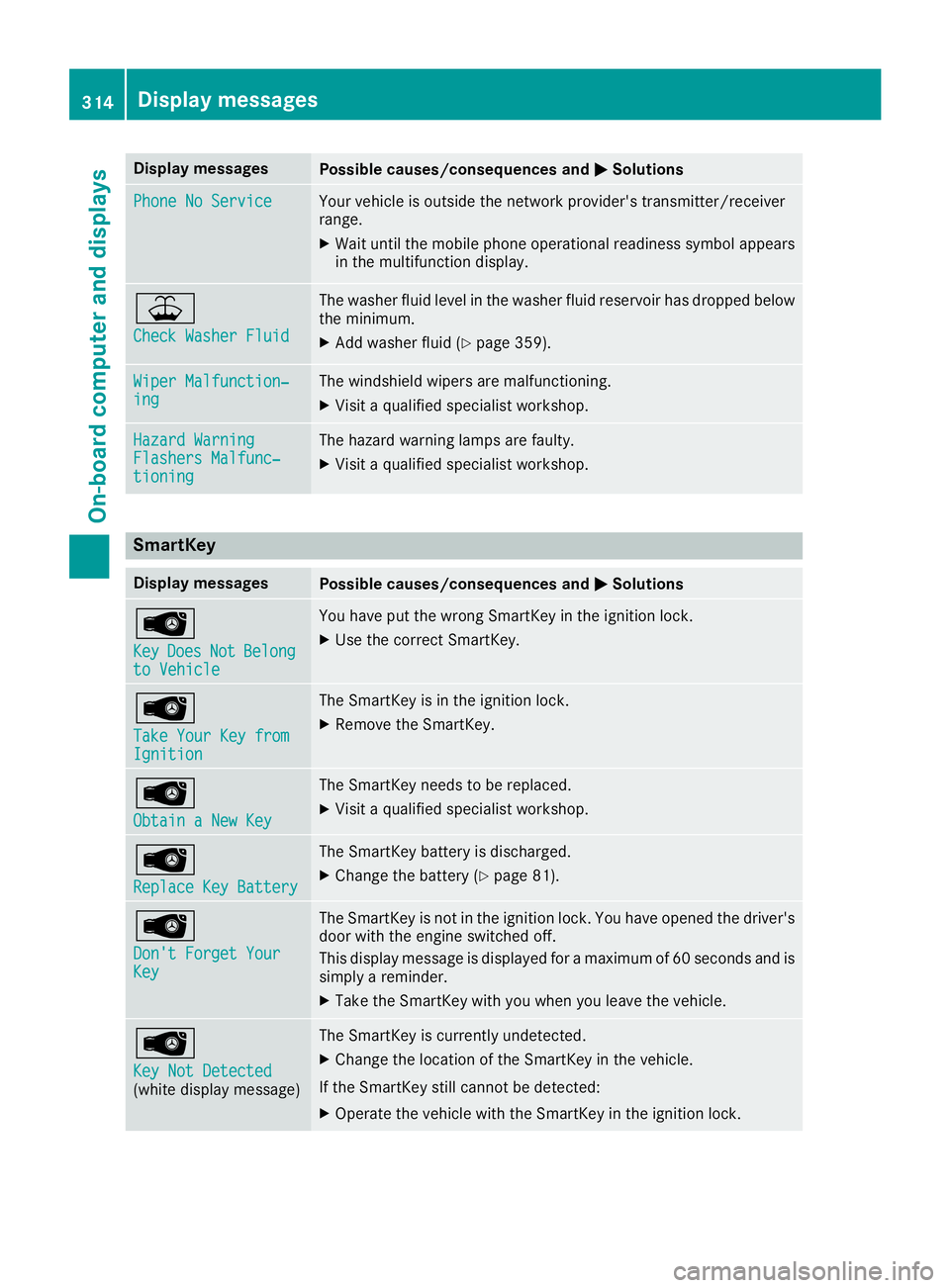

Phone No Servic e Your vehicl e is outside th e network provider' s transmitter/receiver
range. X
Wait until th e mobile phone operational readiness symbol appear s
in th e multifunction display.

Display messages
Possible causes/consequences and P Solutions

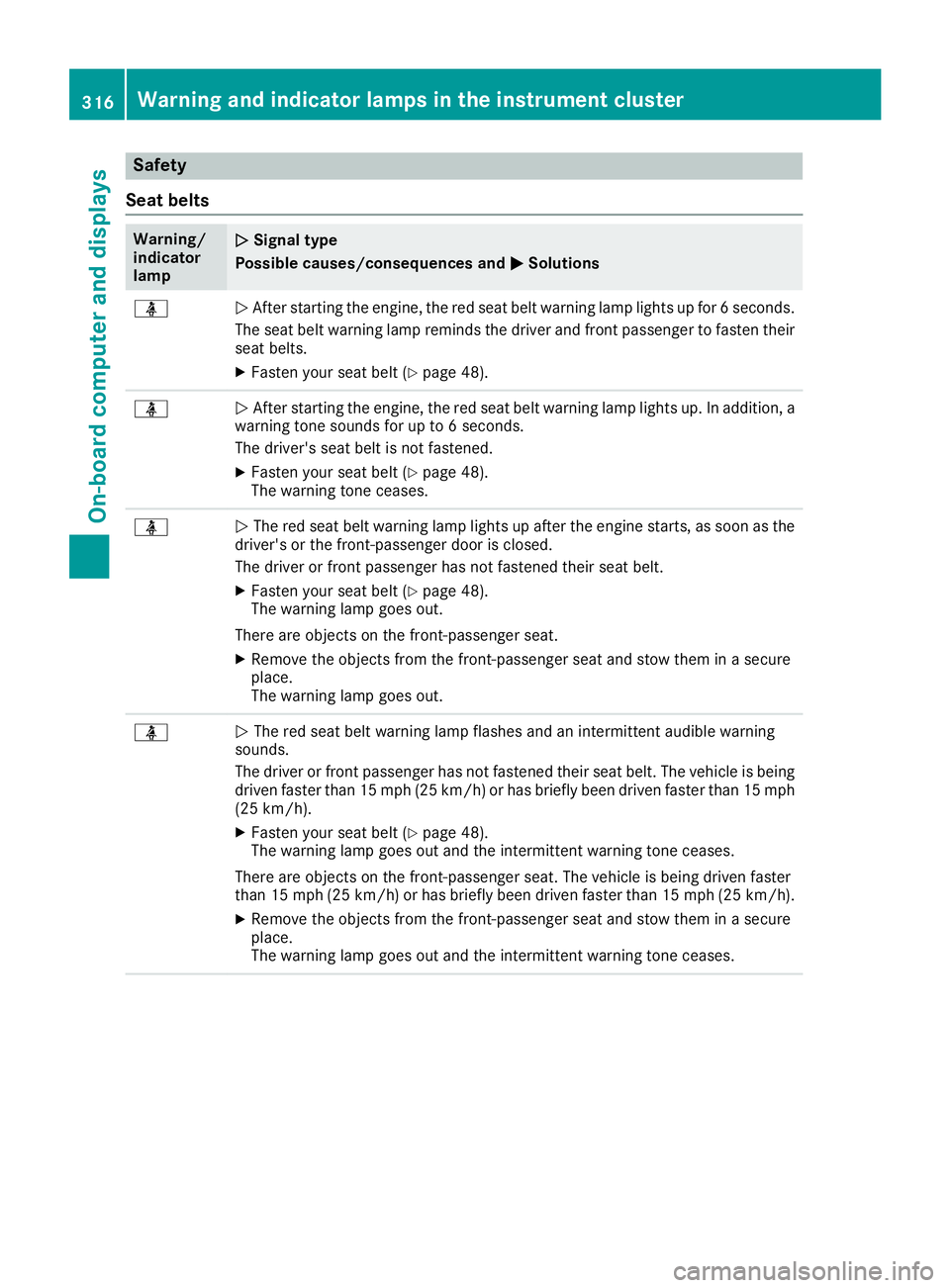

Safety
Seat belts Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions

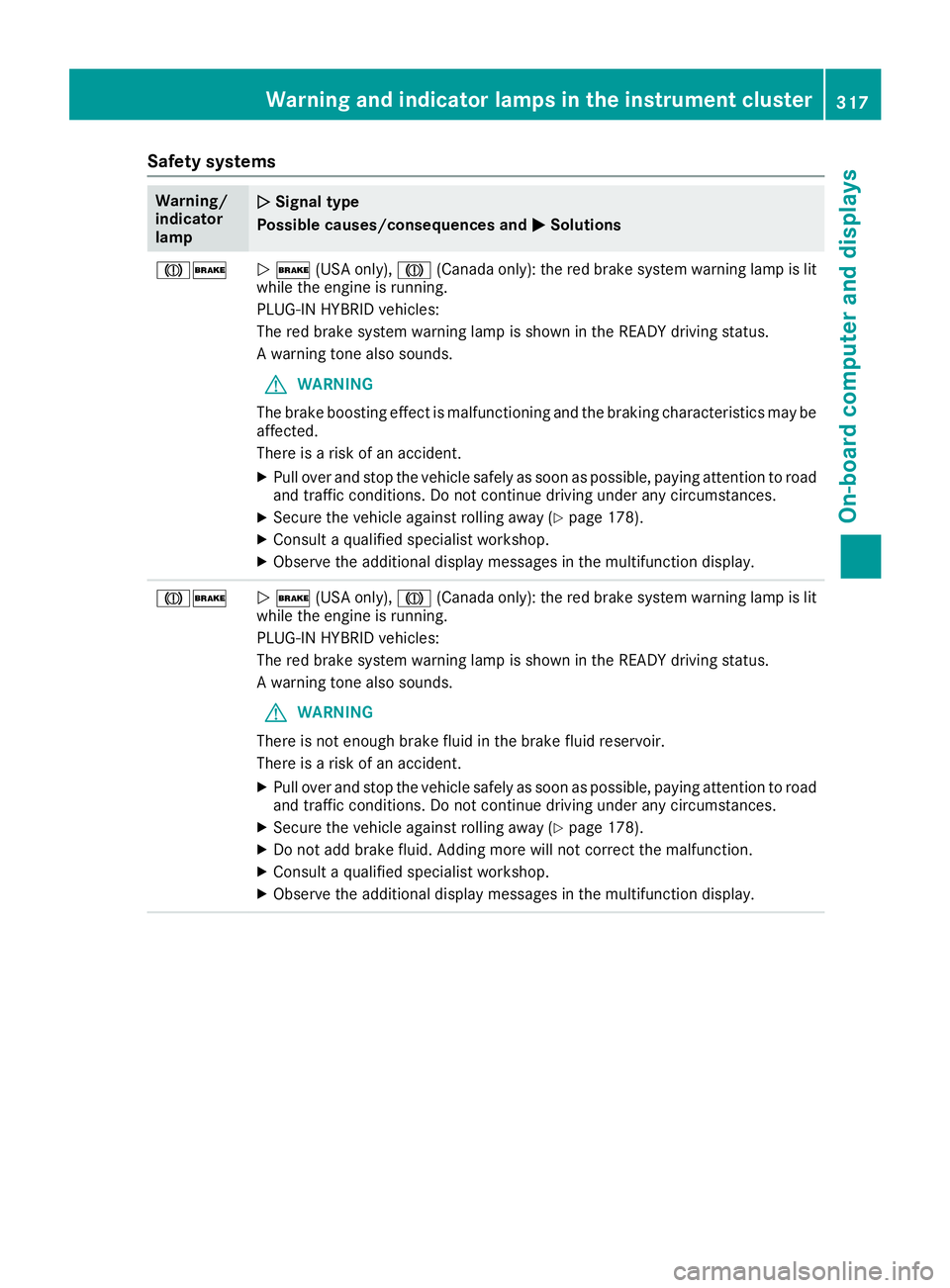

Safety systems Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions
M'
Q ' (USA only), M (Canada only): the red brake system warning lamp is lit
while the engine is running.
PLUG-IN HYBRID vehicles:
The red brake system warning lamp is shown in the READY driving status.
A warning tone also sounds.
G WARNING
The brake boosting effect is malfunctioning and the braking characteristics may be
affected.
There is a risk of an accident. X
Pull over and stop the vehicle safely as soon as possible, paying attention to road
and traffic conditions. Do not continue driving under any circumstances. X
Secure the vehicle against rolling away ( Y
page 178).X
Consult a qualified specialist workshop. X
Observe the additional display messages in the multifunction display.

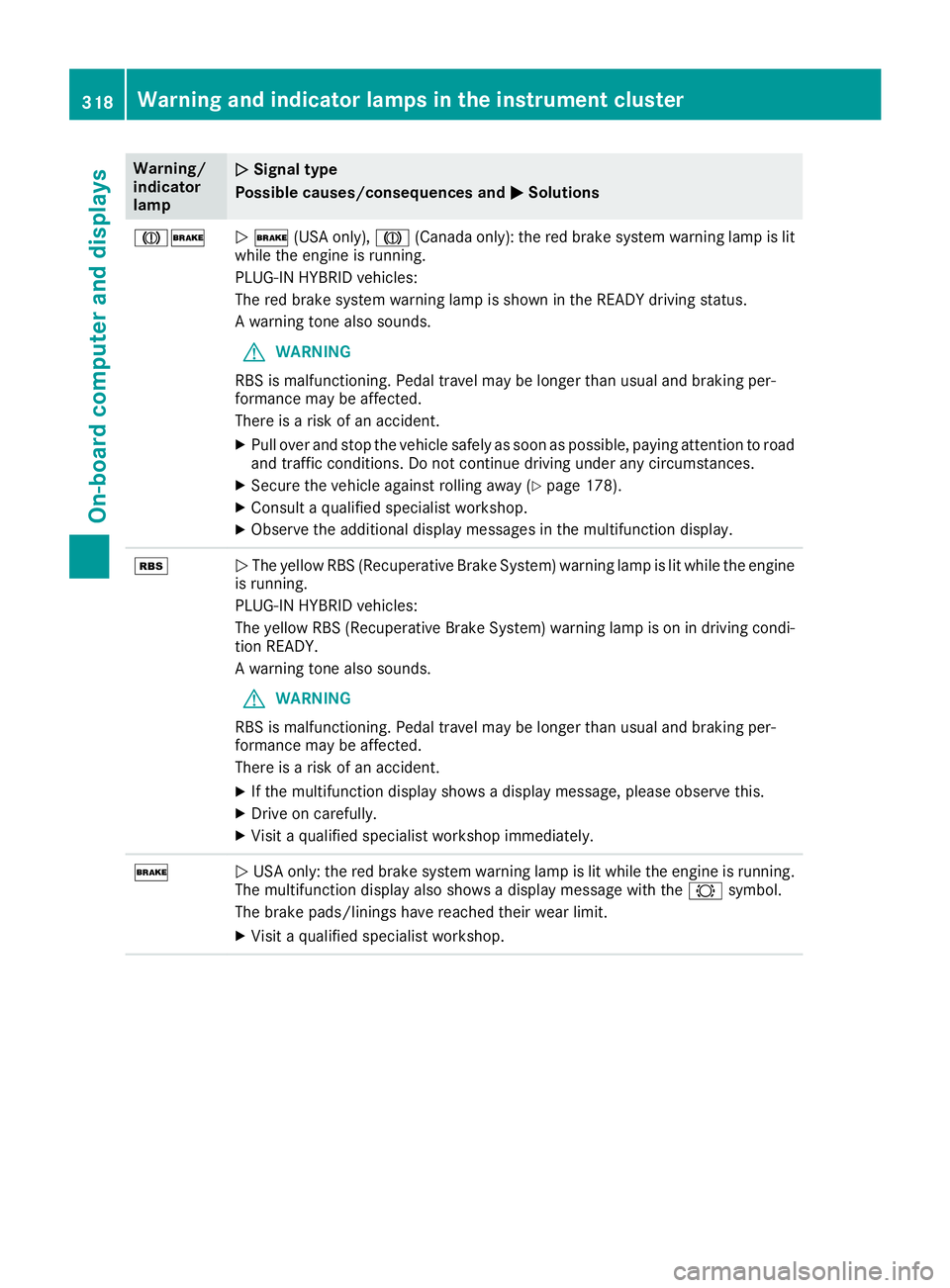

M'
Q ' (USA only), M (Canada only): the red brake system warning lamp is lit
while the engine is running.
PLUG-IN HYBRID vehicles:
The red brake system warning lamp is shown in the READY driving status.
A warning tone also sounds.
G WARNING
There is not enough brake fluid in the brake fluid reservoir.
There is a risk of an accident. X
Pull over and stop the vehicle safely as soon as possible, paying attention to road
and traffic conditions. Do not continue driving under any circumstances. X
Secure the vehicle against rolling away ( Y
page 178).X
Do not add brake fluid. Adding more will not correct the malfunction. X
Consult a qualified specialist workshop. X
Observe the additional display messages in the multifunction display.Warning and indicator lamps in the instrument cluster 317
On-board computer and displays Z

Warning/
indicator
lamp Q Signal type
Possible causes/consequences and P Solutions
M'
Q ' (USA only), M (Canada only): the red brake system warning lamp is lit
while the engine is running.
PLUG-IN HYBRID vehicles:
The red brake system warning lamp is shown in the READY driving status.
A warning tone also sounds.
G WARNING
RBS is malfunctioning. Pedal travel may be longer than usual and braking per-
formance may be affected.
There is a risk of an accident. X
Pull over and stop the vehicle safely as soon as possible, paying attention to road
and traffic conditions. Do not continue driving under any circumstances. X
Secure the vehicle against rolling away ( Y
page 178).X
Consult a qualified specialist workshop. X
Observe the additional display messages in the multifunction display.
