necessary, have bulbs changed at a qualified
specialist workshop. X
Switch off the lights.
X Ope nthe hood.
X Turn housing cover 0002counter-clockwise
and pull it out.
X Push the lever of holder 0003upwards until
holder 0003is released.
X Pull out bulb holder 0003.
X Take the bulb out of bulb holder 0003.
X Insert the new bulb into bulb holder 0003.
X Insert holder 0003from above and press it
until it engages.
X Align housing cover 0002and turn it
clockwise until it engages.
Turn signal X
Switch off the lights.
X Open the hood.
X Turn housing cover 0002counter-clockwise
and pull it out. X
Grip the back of lever extension 0003and pull
it out in a straight line.
X Take the bulb out of lever extension 0003.
X Insert the new bulb into lever
extension 0003. X
Re-insert lever extension 0003downwards
(swelling) with guide rail 0021. Changing the rear bulbs
Opening and closing the side trim
panels You must open the side trim panel in the
cargo compartment before you can change
the bulbs in the tail lamps.
Left-hand side trim panel Replacing bulbs
119Lights and windshield wipers Z

Right-hand side trim panel
X
To open: turnrelease knob 000290° in the
direction of the arrow and remove side trim
panel 0003.
X To close: insert side trim panel 0003and turn
release knob 000290° in the opposite
direction to the arrow.
Tail lamp X
Switch off the lights.
X Open the cargo compartment.
X Open the side trim panel (Y page 119).X
Pull out connector 0002.
X Turn fender nut 000390° counter-clockwise
and pull out the bulb holder. X
Backup lamp 0002 :
remove the bulb from
bulb holder.
X Inser tthe new bulb into the bulb holder.
X Re-install bulb holder.
X Turn fender nut 90° clockwise.
X Insert the connector.
X Close the side trim panel (Y page 119). Windshield wipers
Switching the windshield wipers on/
off
! Do not operate the windshield wipers
when the windshield is dry, as this could
damage the wiper blades. Moreover, dust
that has collected on the windshield can
scratch the glass if wiping takes place when
the windshield is dry.
! If the windshield wipers leave smears on
the windshield after the vehicle has been
washed in an automatic car wash, wax or
other residues may be the reason for this.
Cleant he windshield using washer fluid
after washing the vehicle in an automatic
car wash. 120
Windshield wipersLights and windshield wipers

Combination switch
0004
0008 Windshield wiper off
0005 0001 Intermittent wipe, low 7
0006 0002 Intermittent wipe, high 8
000A 0018 Continuous wipe, slow
000B 0012 Continuous wipe, fast
001F 0006 Single wipe/ 0007To wipe the
windshield using washer fluid
X Switch on the ignition.
X Turn the combination switch to the
corresponding position.
! Vehicles with a rain sensor :ifthe
windshield becomes dirty in dry weather
conditions, the windshield wipers may be
activated inadvertently. This could then
damage the windshield wiper blades or
scratch the windshield.
For this reason, you should always switch
off the windshield wipers in dry weather.
If the wiper blades are worn, the windshield
will no longer be wiped properly. This could
prevent you from observing the traffic
conditions. Replace the wiper blades twice a
year, ideally in spring and fall. Switching the rear window wiper on/
off
Combination switch
0002
0001 Switch
0005 000E To wipe with washer fluid
0006 ITo switch on intermittent wiping
000A 0To switch off intermittent wiping
000B 000E To wipe with washer fluid
X Turn the SmartKey to position 1or 2in the
ignition lock.
X Turn switch 0002on the combination switch
to the corresponding position.
When the rear window wiper is switched on,
the icon appears in the instrumentc luster. Replacing the wiper blades
Important safety notes G
WARNING
If the windshield wipers begin to move while
you are changing the wiper blades, you could
be trapped by the wiper arm. There is a risk
of injury.
Always switch off the windshield wipers and
ignition before changing the wiper blades.
! Neve ropen the hood/tailgate if a wiper
arm has been folded away from the
windshield/rear window.
7 Rain senso rset to low sensitivity.
8 Rain sensor set to high sensitivity. Windshield wipers
121Lights and windshield wipers Z

Never fold a windshield wipera
rm without
a wiper blade back onto the windshield/
rear window.
Hold the windshield wiper arm firmly when
you change the wiper blade. If you release
the wiper arm without a wiper blade and it
falls onto the windshield/rear window, the
windshield/rear window may be damaged
by the force of the impact.
Mercedes-Benz recommends that you have
the wiper blades changed at aqualified
specialist workshop.
! To avoid damaging the wiper blades,
make sure that you touch only the wiper
arm of the wiper.
Changing the windshield wiper blades Moving the wiper blades to
avertical
position
! Before changing the wiper blades, always
set the wiper arms to a vertical position
using the combination switch. There is
otherwise a risk of damagin gthe hood.
Vehicles without KEYLESS-GO
X Turn the SmartKey to position 1or 2in the
ignition lock.
X Set the windshield wipers to
position 0018.
X When the wiper arms have reached a
vertical position, turn the SmartKey to
position 0and remove it from the ignition
lock.
Vehicles with KEYLESS-GO
X Switch off the engine.
X Remove your foot from the brake pedal.
X Set the windshield wipers to
position 0018.
X Press the Start/Stop button repeatedly
until the windshield wipers start.
X When the wiper arms have reached a
vertical position, press the Start/Stop
button. Removing the wiper blades
X
Fold the wiper arm away from the
windshield until it engages.
X Set the wiper blade at right angles to the
wiper arm. X
Remove the wiper blade from the retaining
pin on the wiper arm in the direction of the
arrow.
Installing the wiper blades
X Push the new wiper blade onto the
retaining pin on the wiper arm in the
opposite direction to the arrow.
Make sure that the wiper blade slides fully
onto the retaining pin on the wiper arm.
X Turn the wiper blade parallel to the wiper
arm.
X Fold the wiper arm back onto the
windshield.
Replacing the rear window wiper blade Removing the wiper blades122
Windshield wipersLights and windshield wipers

X
Remove the SmartKey from the ignition
lock.

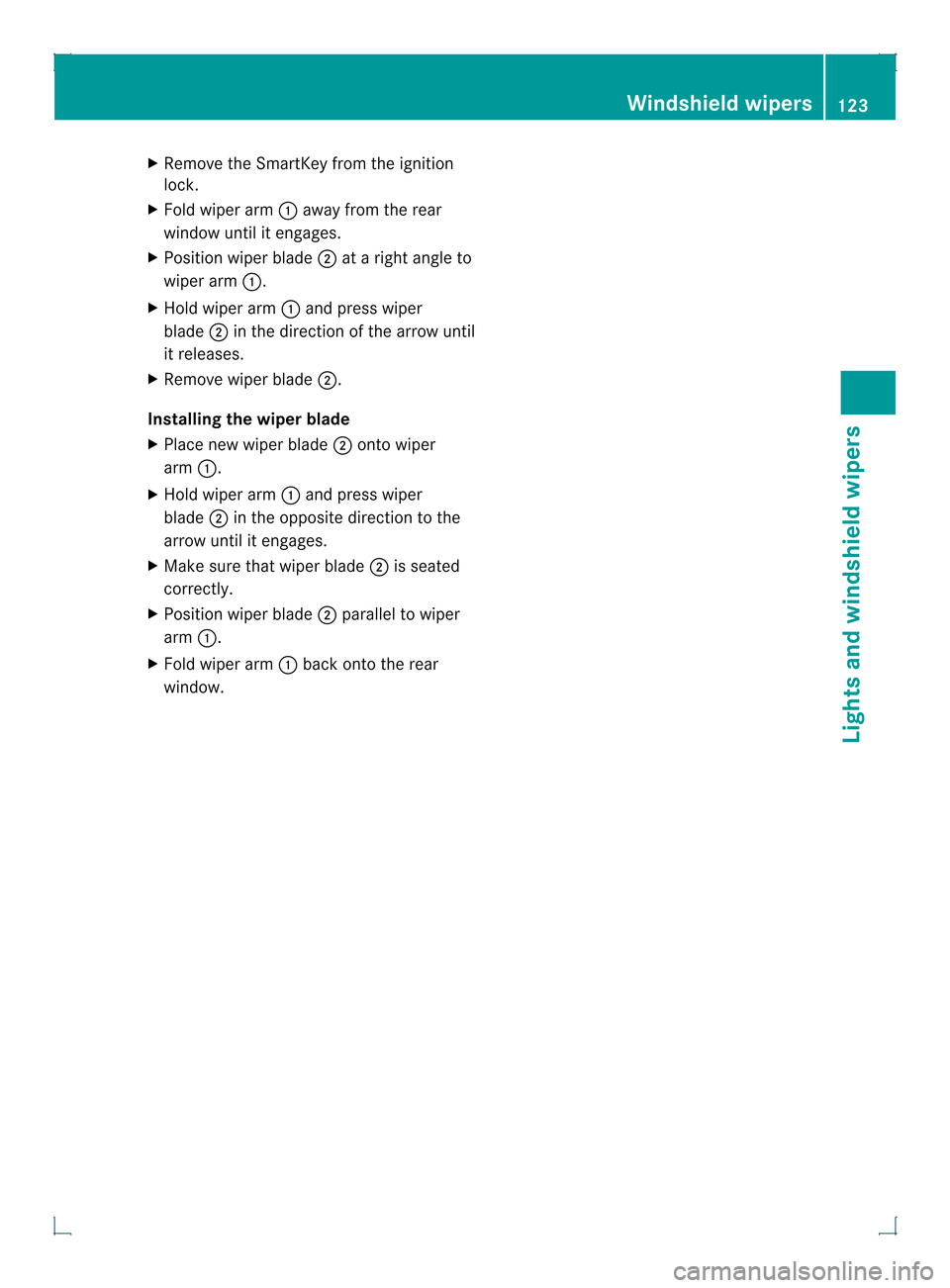

X Fold wiper arm 0002away from the rear
window until it engages.
X Position wiper blade 0003at a right angle to
wiper arm 0002.
X Hold wiper arm 0002and press wiper
blade 0003in the direction of the arrow until
it releases.
X Remove wiper blade 0003.
Installing the wipe rblade
X Place new wiper blade 0003onto wiper
arm 0002.
X Hold wiper arm 0002and press wiper
blade 0003in the opposite direction to the
arrow until it engages.
X Make sure that wiper blade 0003is seated
correctly.
X Position wiper blade 0003parallel to wiper
arm 0002.
X Fold wiper arm 0002back onto the rear
window. Windshield wipers
123Lights and windshield wipers Z

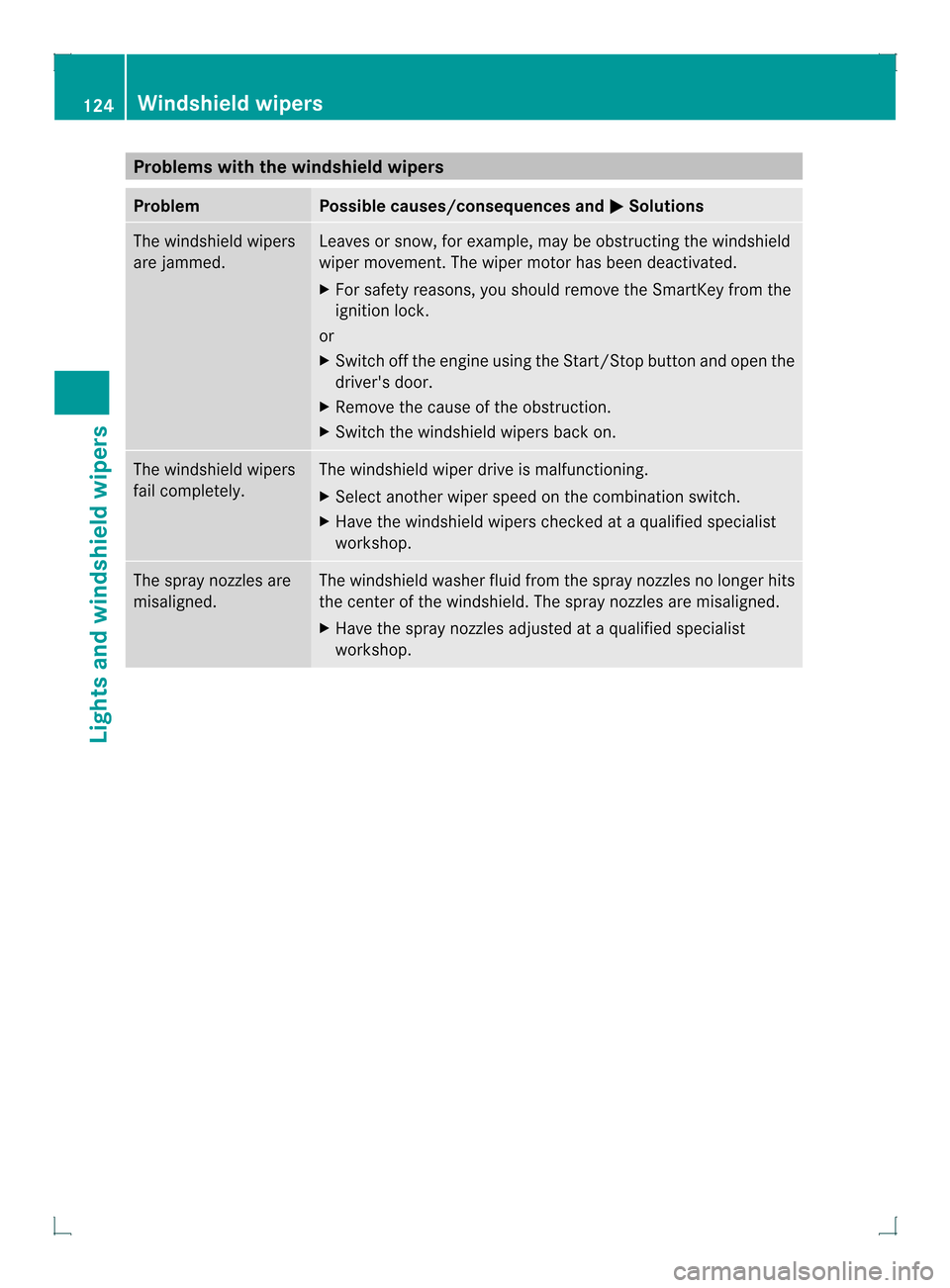

Problems with the windshield wipers
Problem Possible causes/consequences and
0001 Solutions
The windshield wipers
are jammed. Leaves or snow, for example, may be obstructing the windshield
wiper movement.T
he wiper motor has been deactivated.
X For safety reasons, you should remove the SmartKey from the
ignition lock.
or
X Switch off the engine using the Start/Stop button and open the
driver's door.
X Remove the cause of the obstruction.
X Switch the windshield wipers back on. The windshield wipers
fail completely. The windshield wiper drive is malfunctioning.
X
Select another wiper speed on the combination switch.
X Have the windshield wipers checked at a qualified specialist
workshop. The spray nozzles are
misaligned. The windshield washer fluid from the spray nozzles no longer hits
the center of the windshield. The spray nozzles are misaligned.
X
Have the spray nozzles adjusted at a qualified specialist
workshop. 124
Windshield wipersLights and windshield wipers

Useful information
............................126
Overview of climate control sys-
tems ................................................... 126
Operating the climate control sys-
tems ................................................... 131
Setting the air vents .........................137 125Climate control

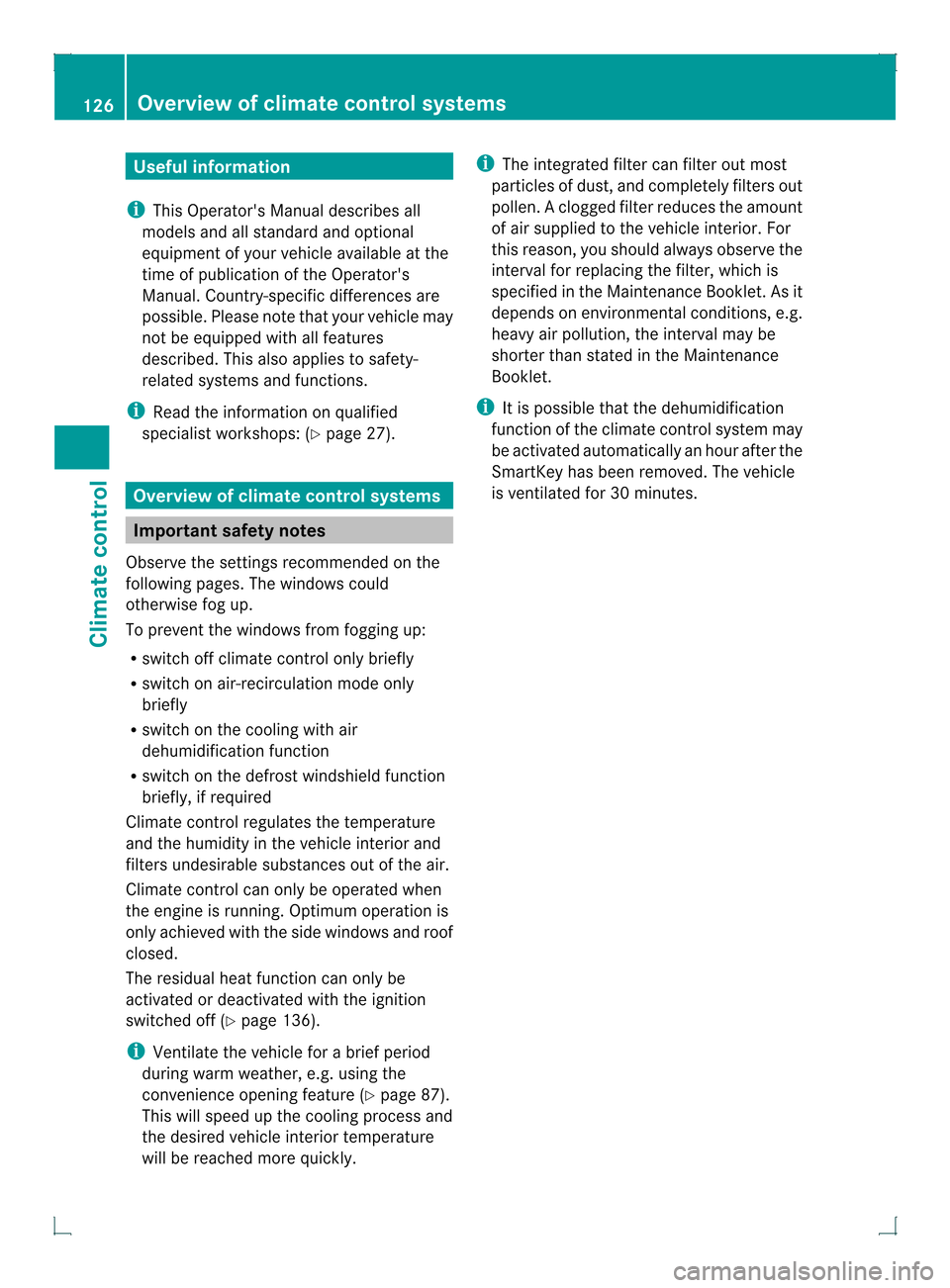

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 27).Overview of climate control systems
Important safety notes
Observe the settings recommended on the
following pages. The windows could
otherwise fog up.
To preven tthe windows from fogging up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air
dehumidification function
R switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof
closed.
The residual heat function can only be
activated or deactivated with the ignition
switched off (Y page 136).
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the
convenience opening feature (Y page 87).
This will speed up the cooling process and
the desired vehicle interior temperature
will be reached more quickly. i
The integrated filter can filter out most
particles of dust, and completely filters out
pollen. Aclogged filter reduces the amount
of air supplied to the vehicle interior .For
this reason, you should always observe the
interval for replacing the filter, which is
specified in the Maintenance Booklet .As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Maintenance
Booklet.
i It is possible that the dehumidification
function of the climate control system may
be activated automatically an hour after the
SmartKey has been removed. The vehicle
is ventilated for 30 minutes. 126
Overview of climate control systemsClimate control

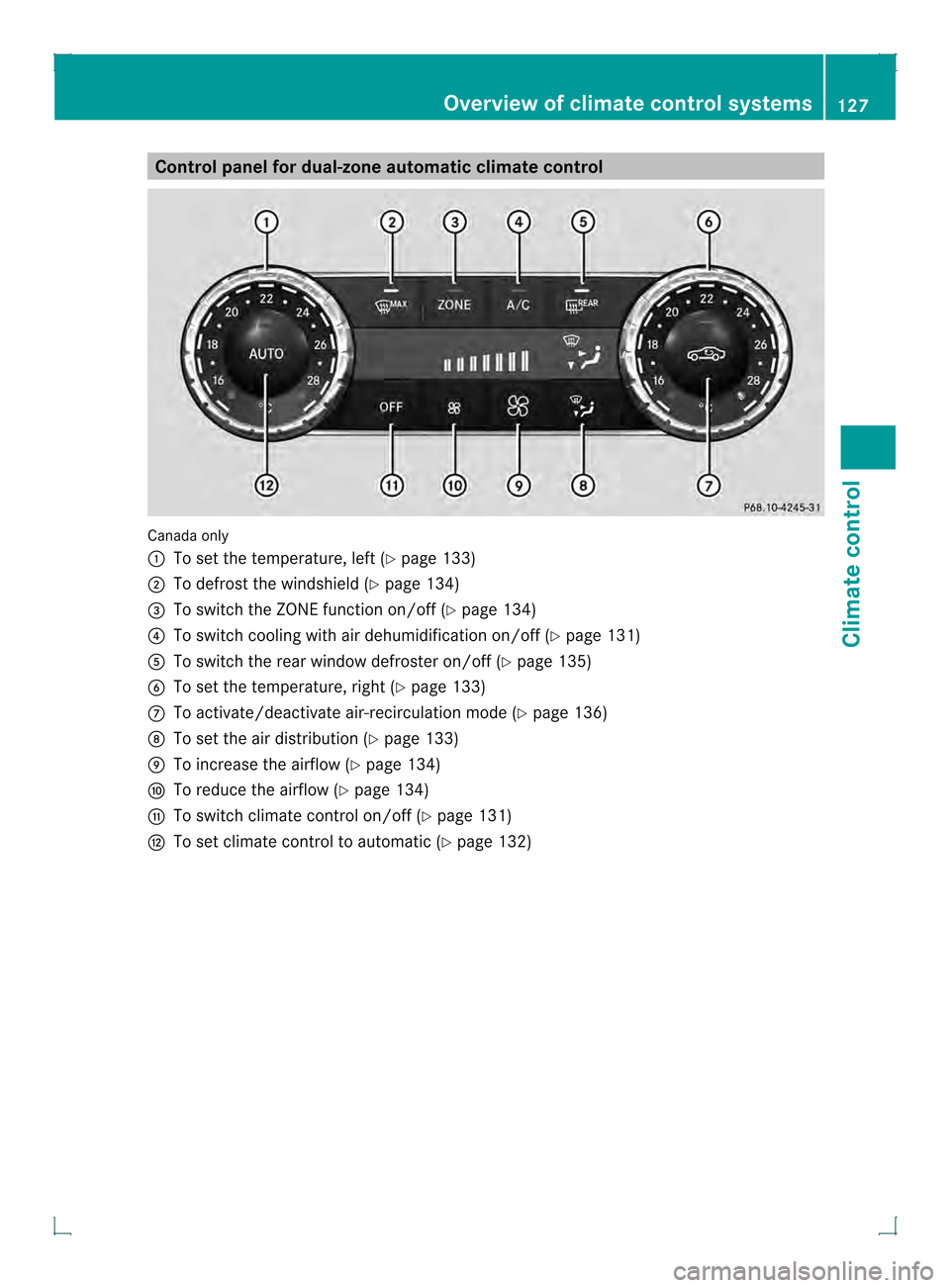

Control panel for dual-zone automatic climate control
Canada only
0002
To set the temperature, left (Y page 133)
0003 To defros tthe windshield (Y page 134)
0021 To switch the ZONE function on/off (Y page 134)
0020 To switch cooling with air dehumidification on/off (Y page 131)
001E To switch the rear window defroster on/off (Y page 135)
001F To set the temperature, right (Y page 133)
0011 To activate/deactivate air-recirculation mode (Y page 136)
0012 To set the air distribution (Y page 133)
0013 To increase the airflow (Y page 134)
0014 To reduce the airflow (Y page 134)
0015 To switch climate control on/off (Y page 131)
0017 To set climate control to automatic (Y page 132) Overview of climate control systems
127Climate control

USA only
0002
To set the temperature, left (Y page 133)
0003 To defrost the windshield (Y page 134)
0021 To switch maximum cooling on/off (Y page 135)
0020 To switch cooling with air dehumidification on/off (Y page 131)
001E To switch the rear window defroster on/off (Y page 135)
001F To set the temperature, right (Y page 133)
0011 To activate/deactivate air-recirculation mode (Y page 136)
0012 To set the air distribution (Y page 133)
0013 To increase the airflow (Y page 134)
0014 To reduce the airflow (Y page 134)
0015 To switch climate control on/off (Y page 131)
0017 To set climate control to automatic (Y page 132)Notes on using dual-zone automatic
climate control
Automatic climate control The following contains notes and
recommendations on optimum use of dual-
zone automatic climate control.
R
Activate climate control using the 0004and
0005 buttons. The indicator lamps in the
0004 and0005 buttons light up.
R Set the temperature to 72 ‡ (22 †). R
Only use the "windshield defrosting"
function briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side as well.T he
indicator lamp in the 0003button goes out. 128
Overview of climate control systemsClimate control
