129Climate control

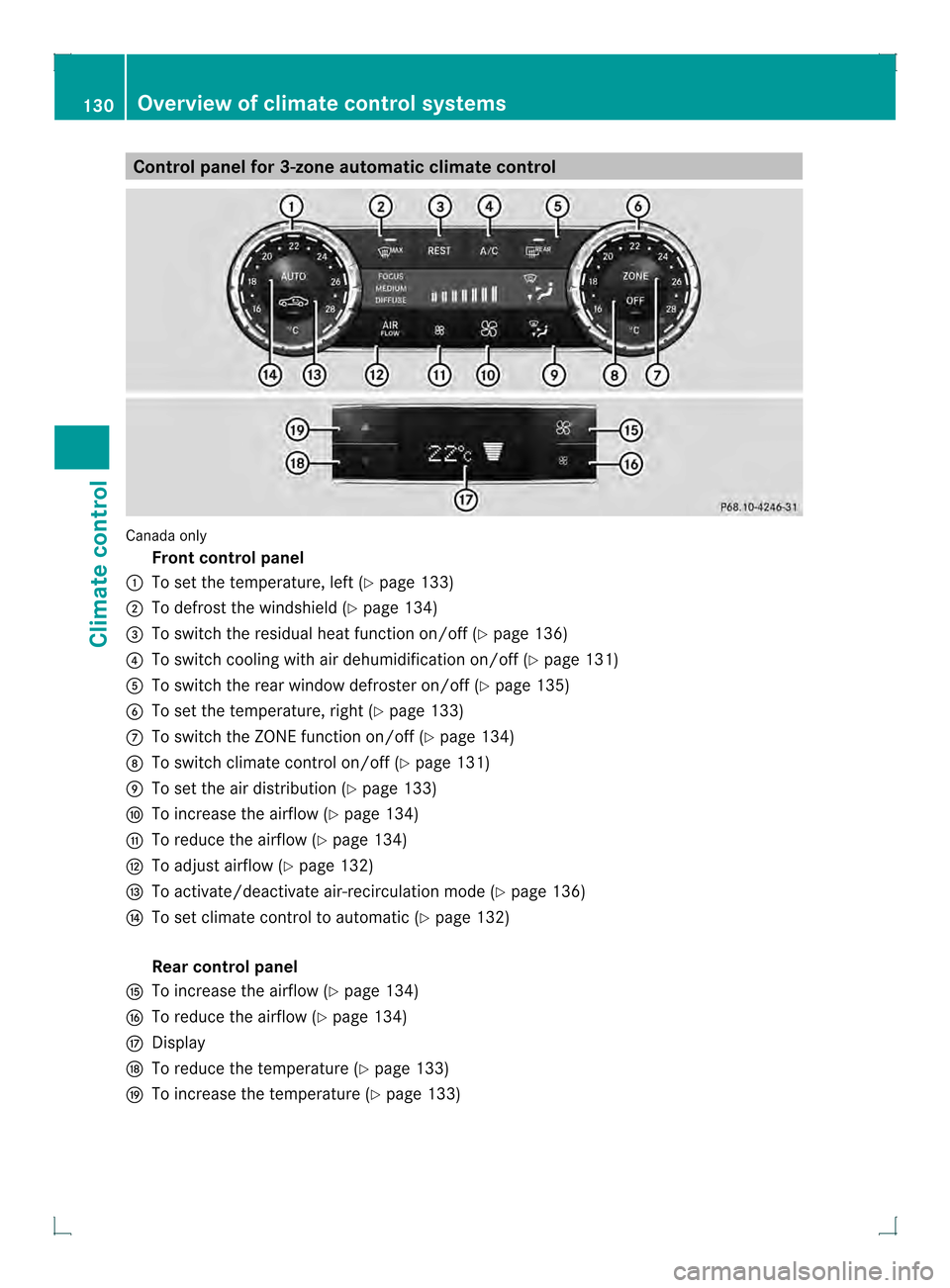

Control panel for 3-zone automatic climate control
Canada only
Fron tcontrol panel
0002 To set the temperature, left (Y page 133)
0003 To defrost the windshield (Y page 134)
0021 To switch the residual heat function on/off (Y page 136)
0020 To switch cooling with air dehumidificatio non/off (Y page 131)
001E To switch the rea rwindow defroster on/off (Y page 135)
001F To set the temperature, right (Y page 133)
0011 To switch the ZONE function on/off (Y page 134)
0012 To switch climate control on/off (Y page 131)
0013 To set the air distribution (Y page 133)
0014 To increase the airflow (Y page 134)
0015 To reduce the airflow (Y page 134)
0017 To adjust airflow (Y page 132)
0018 To activate/deactivate air-recirculation mode (Y page 136)
0019 To set climate control to automatic (Y page 132)
Rear control panel
001A To increase the airflow (Y page 134)
001C To reduce the airflow (Y page 134)
001D Display
0022 To reduce the temperature (Y page 133)
0023 To increase the temperature (Y page 133)130
Overview of climate control systemsClimate control

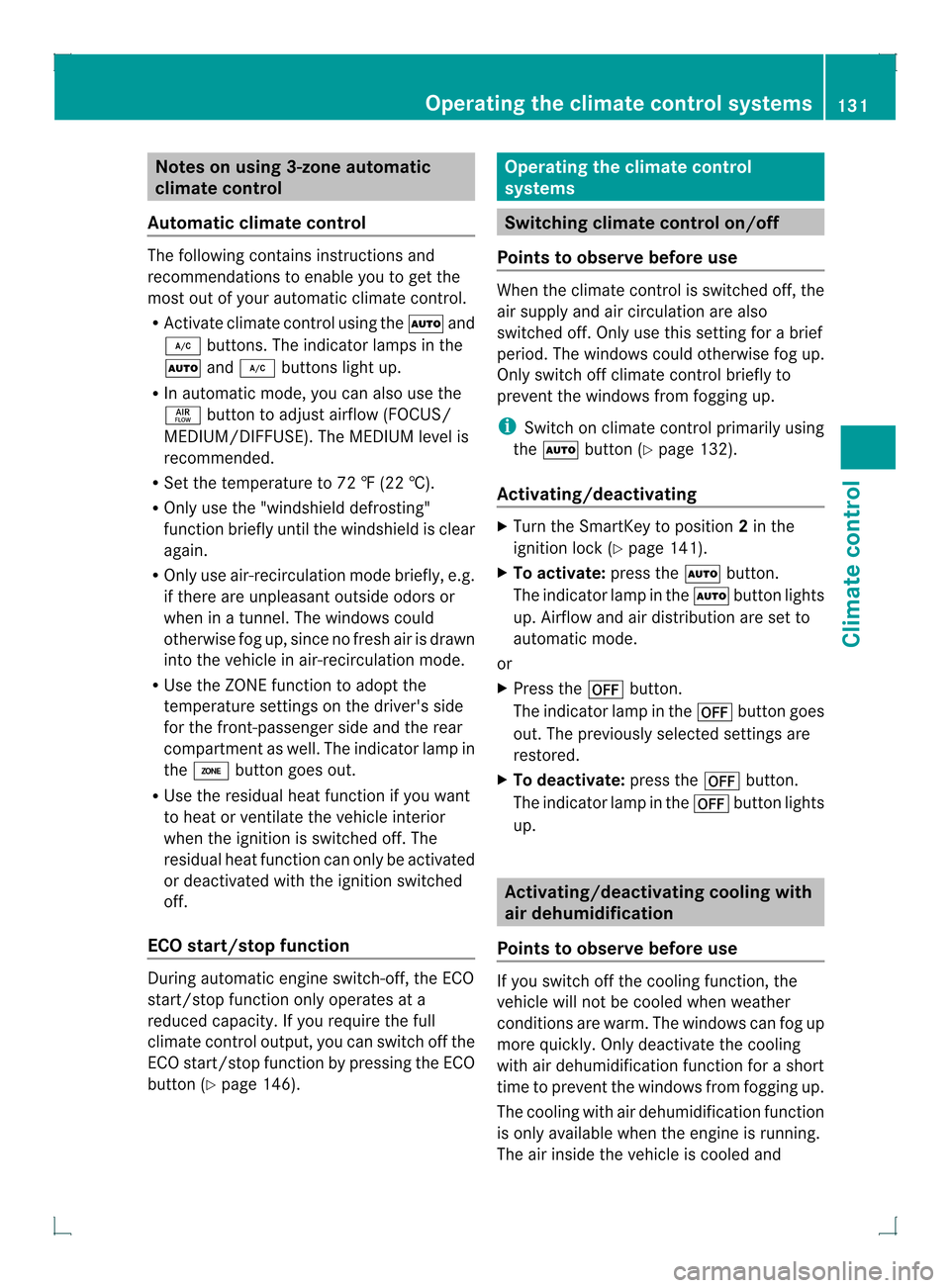

Notes on using 3-zone automatic
climate control
Automatic climate control The following contains instructions and
recommendations to enable you to ge tthe
most out of your automatic climate control.
R Activate climate control using the 0004and
0005 buttons. The indicator lamps in the
0004 and0005 buttons light up.
R In automatic mode, you can also use the
000A button to adjust airflow (FOCUS/
MEDIUM/DIFFUSE). The MEDIUM level is
recommended.
R Set the temperature to 72 ‡ (22 †).
R Only use the "windshield defrosting"
function briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side and the rear
compartmenta s well.The indicator lamp in
the 0003 button goes out.
R Use the residual heat function if you want
to heat or ventilate the vehicle interior
when the ignition is switched off. The
residual heat function can only be activated
or deactivated with the ignition switched
off.

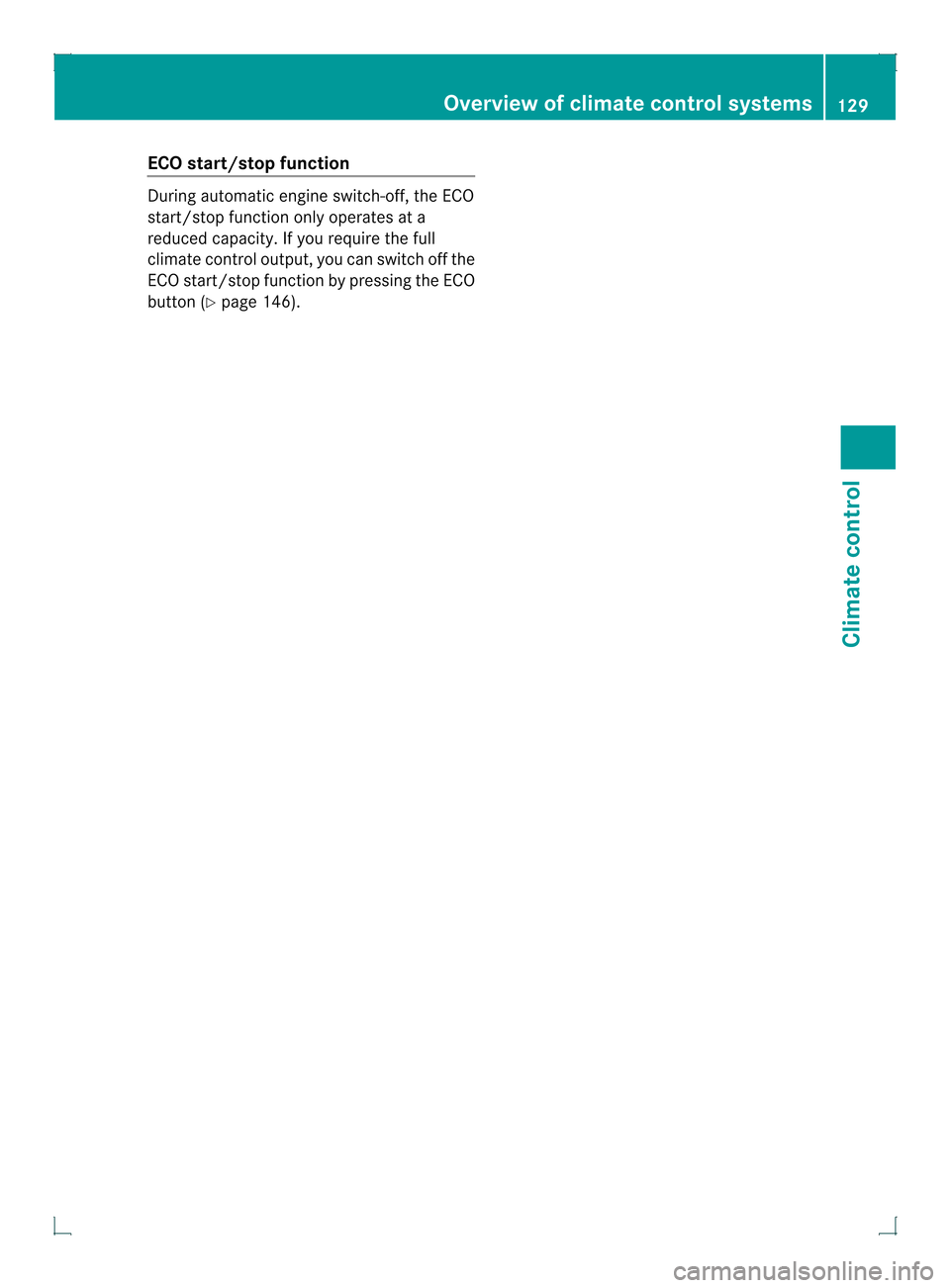

ECO start/stop function During automatic engine switch-off, the ECO
start/stop function only operates at a
reduced capacity. If you require the full
climate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (Y page 146). Operating the climate control
systems
Switching climate control on/off
Points to observe before use When the climate control is switched off, the
air supply and air circulation are also
switched off. Only use this setting for a brief
period. The windows could otherwise fog up.
Only switch off climate control briefly to
prevent the windows from fogging up.
i
Switch on climate control primarily using
the 0004 button (Y page 132).
Activating/deactivating X
Turn the SmartKey to position 2in the
ignition lock (Y page 141).
X To activate: press the0004button.
The indicator lamp in the 0004button lights
up. Airflow and air distribution are set to
automatic mode.
or
X Press the 000Cbutton.
The indicator lamp in the 000Cbutton goes
out. The previously selected settings are
restored.
X To deactivate: press the000Cbutton.
The indicator lamp in the 000Cbutton lights
up. Activating/deactivating cooling with
air dehumidification
Points to observe before use If you switch off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog up
more quickly. Only deactivate the cooling
with air dehumidification function for a short
time to prevent the windows from fogging up.
The cooling with air dehumidification function
is only available when the engine is running.
The air inside the vehicle is cooled andOperating the climate control systems
131Climate control

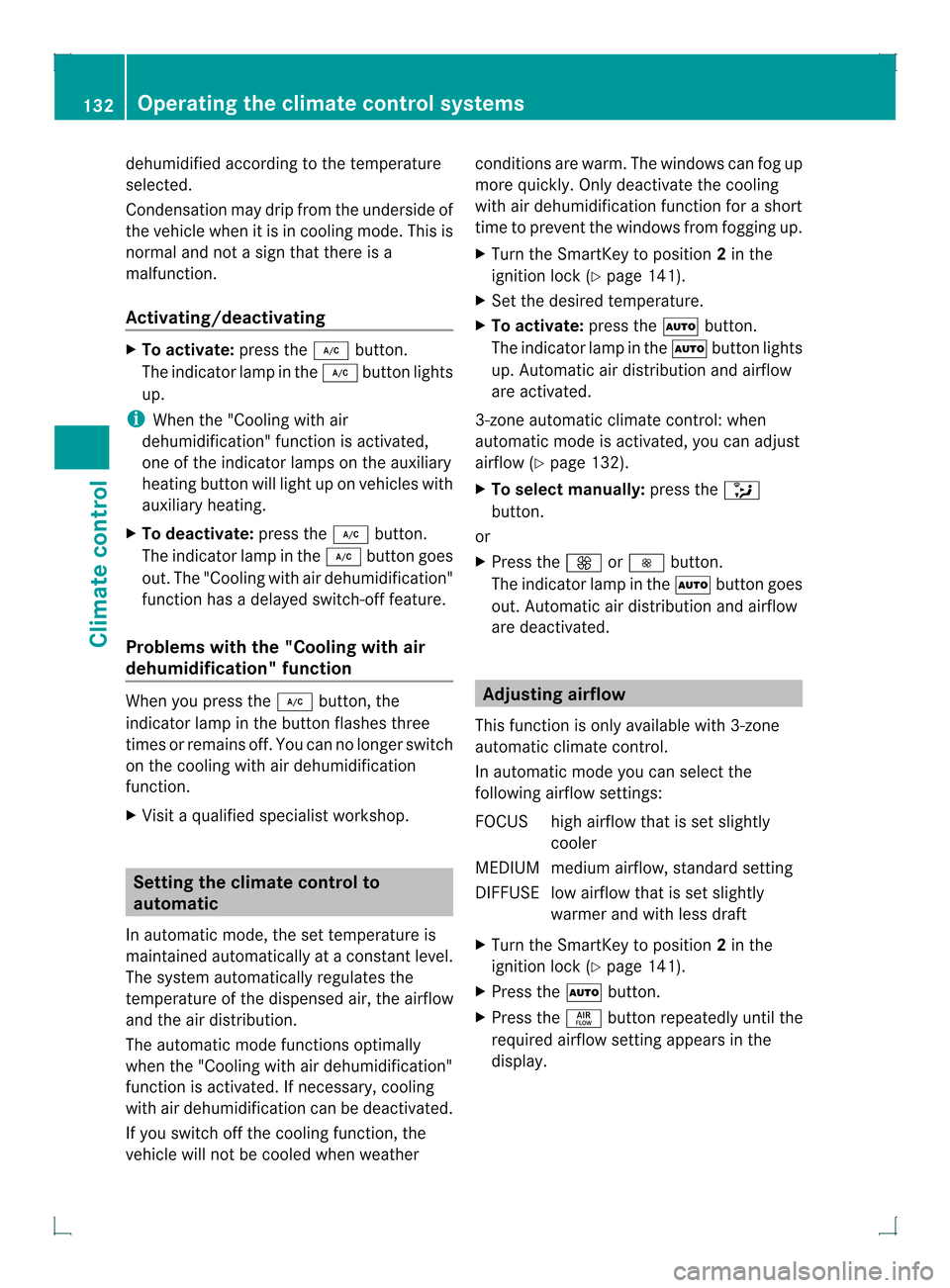

dehumidified according to the temperature
selected.
Condensation may drip from the underside of
the vehicle when it is in cooling mode. This is
normal and not a sign that there is a
malfunction.
Activating/deactivating
X
To activate: press the0005button.
The indicator lamp in the 0005button lights
up.
i When the "Cooling with air
dehumidification" function is activated,
one of the indicator lamps on the auxiliary
heating button will light up on vehicles with
auxiliary heating.
X To deactivate: press the0005button.
The indicator lamp in the 0005button goes
out. The "Cooling with air dehumidification"
function has a delayed switch-of ffeature.
Problems with the "Cooling with air
dehumidification" function When you press the
0005button, the
indicator lamp in the button flashes three
times or remains off. You can no longer switch
on the cooling with air dehumidification
function.
X Visit a qualified specialist workshop. Setting the climate control to
automatic
In automatic mode, the set temperature is
maintained automatically at a constan tlevel.
The system automatically regulates the
temperature of the dispensed air, the airflow
and the air distribution.
The automatic mode functions optimally
when the "Cooling with air dehumidification"
function is activated. If necessary, cooling
with air dehumidification can be deactivated.
If you switch off the cooling function, the
vehicle will not be cooled when weather conditions are warm. The windows can fog up
more quickly. Only deactivate the cooling
with air dehumidification function for a short
time to preven
tthe windows from fogging up.
X Turn the SmartKey to position 2in the
ignition lock (Y page 141).
X Set the desired temperature.
X To activate: press the0004button.
The indicator lamp in the 0004button lights
up. Automatic air distribution and airflow
are activated.
3-zone automatic climate control: when
automatic mode is activated, you can adjust
airflow (Y page 132).
X To selectm anually:press the 0015
button.
or
X Press the 0017or0016 button.
The indicator lamp in the 0004button goes
out. Automatic aird istribution and airflow
are deactivated. Adjusting airflow
This function is only available with 3-zone
automatic climate control.
In automatic mode you can select the
following airflow settings:
FOCUS high airflow that is set slightly cooler
MEDIUM medium airflow, standard setting
DIFFUSE low airflow that is set slightly warmer and with less draft
X Turn the SmartKey to position 2in the
ignition lock (Y page 141).
X Press the 0004button.
X Press the 000Abutton repeatedly until the
required airflow setting appears in the
display. 132
Operating the climate control systemsClimate control

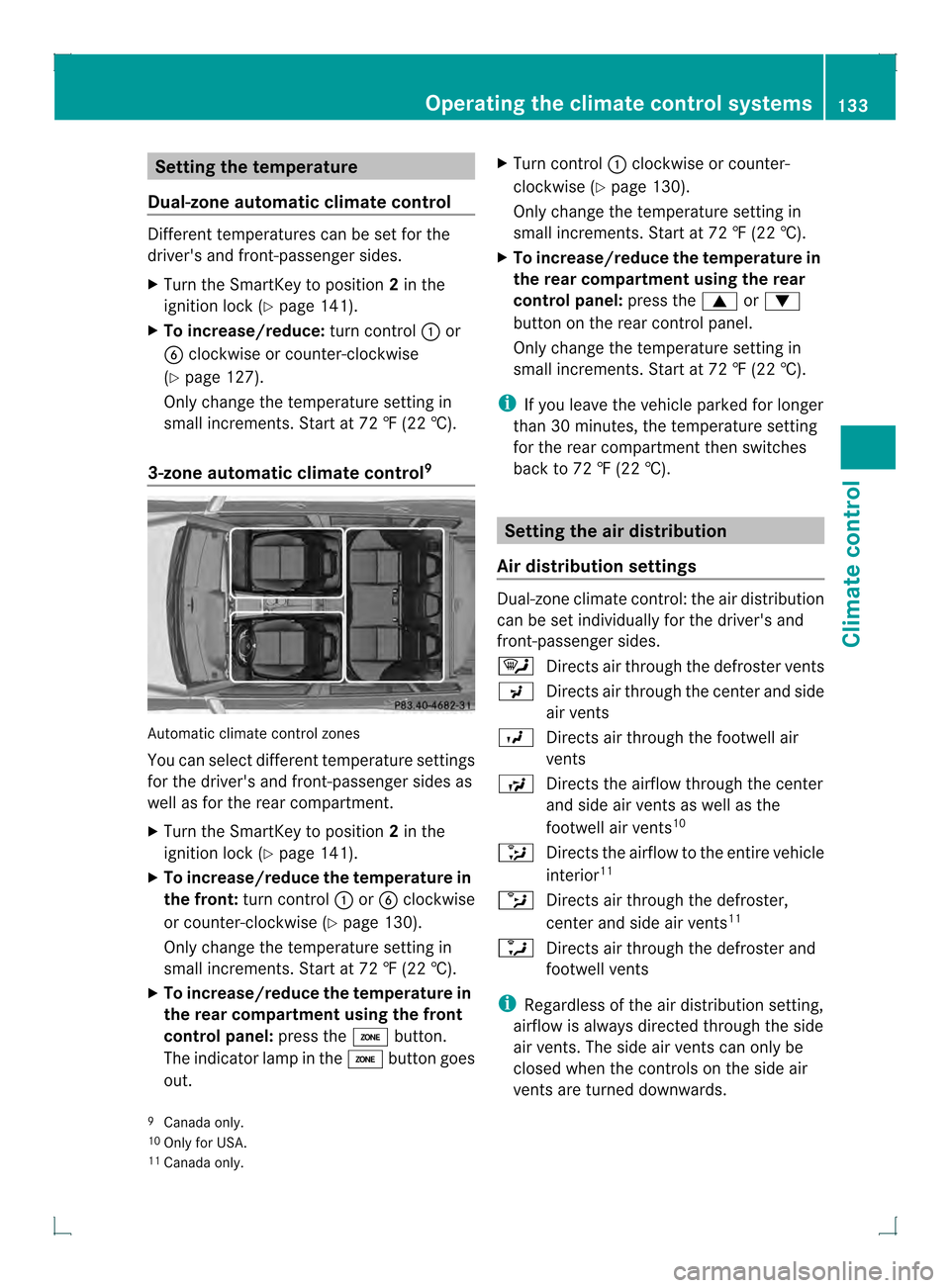

Setting the temperature
Dual-zone automatic climate control Different temperatures can be set for the
driver's and front-passenger sides.
X Turn the SmartKey to position 2in the
ignition lock (Y page 141).
X To increase/reduce: turn control0002or
001F clockwise or counter-clockwise
(Y page 127).
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †).
3-zone automatic climate control 9Automatic climate control zones
You can select different temperature settings
for the driver's and front-passenger sides as
well as for the rear compartment.
X Turn the SmartKey to position 2in the
ignition lock (Y page 141).
X To increase/reduce the temperature in
the front: turn control 0002or001F clockwise
or counter-clockwise (Y page 130).
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †).
X To increase/reduce the temperature in
the rear compartment using the front
control panel: press the0003button.
The indicator lamp in the 0003button goes
out. X
Turn control 0002clockwise or counter-
clockwise (Y page 130).
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †).
X To increase/reduce the temperature in
the rear compartment using the rear
control panel: press the0003or0004
button on the rear control panel.
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †).
i If you leave the vehicle parked for longer
than 30 minutes, the temperature setting
for the rear compartment then switches
back to 72 ‡ (22 †). Setting the air distribution
Air distribution settings Dual-zone climate control: the air distribution
can be set individually for the driver's and
front-passenger sides.
0006
Directs air through the defroster vents
0019 Directs air through the center and side
air vents
0018 Directs air through the footwell air
vents
001A Directs the airflow through the center
and side air vents as well as the
footwell air vents 10
0015 Directs the airflow to the entire vehicle
interior 11
0014 Directs air through the defroster,
center and side air vents 11
0013 Directs air through the defroster and
footwell vents
i Regardless of the air distribution setting,
airflow is always directed through the side
air vents. The side air vents can only be
closed when the controls on the side air
vents are turned downwards.
9 Canada only.
10 Only for USA.
11 Canada only. Operating the climate control systems
133Climate control

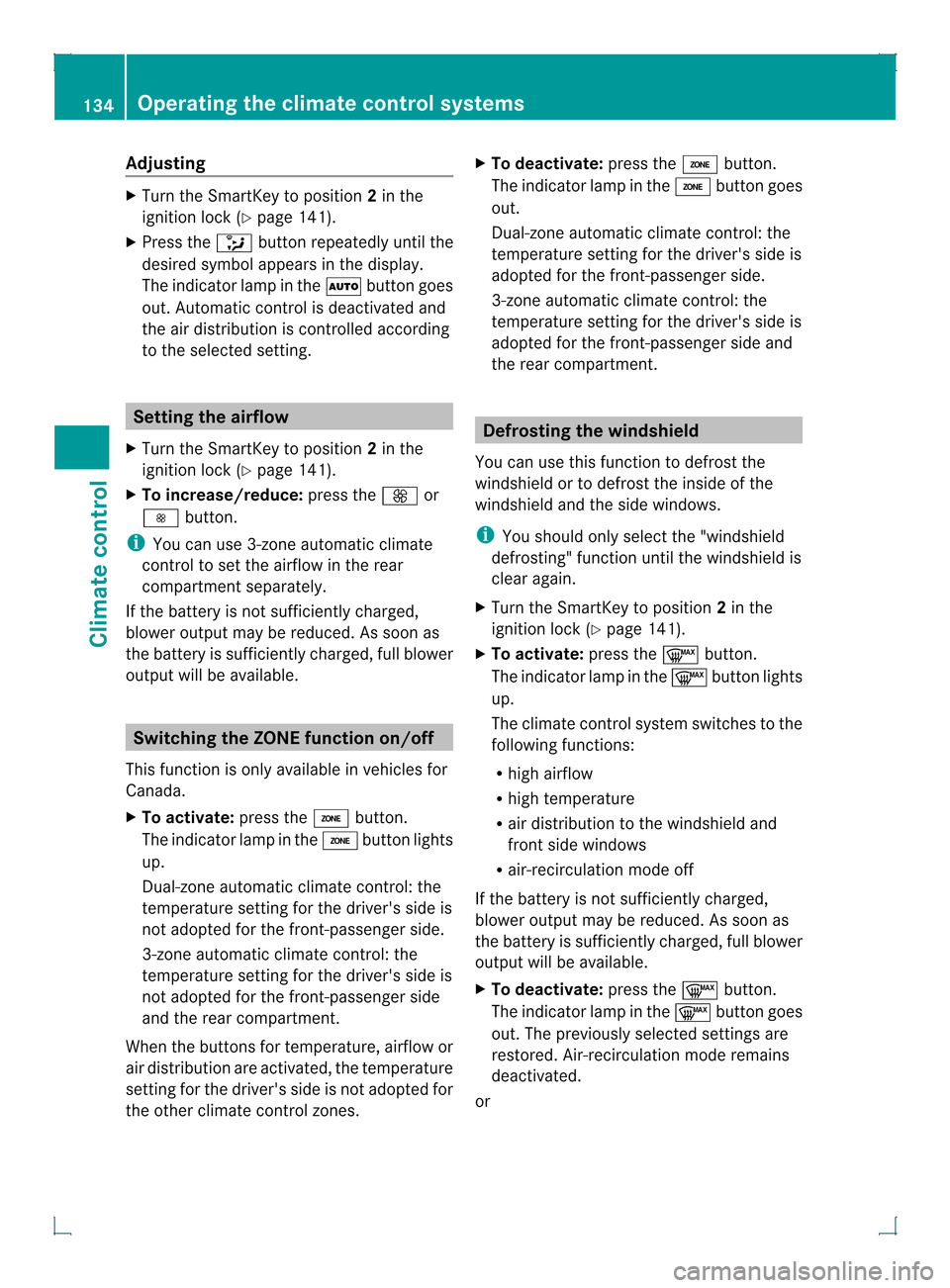

Adjusting
X
Turn the SmartKey to position 2in the
ignition loc k(Ypage 141).
X Press the 0015button repeatedly until the
desired symbol appears in the display.
The indicator lamp in the 0004button goes
out. Automatic control is deactivated and
the air distribution is controlled according
to the selected setting. Setting the airflow
X Turn the SmartKey to position 2in the
ignition lock (Y page 141).
X To increase/reduce: press the0017or
0016 button.
i You can use 3-zone automatic climate
control to set the airflow in the rear
compartment separately.
If the battery is not sufficiently charged,
blower output may be reduced. As soon as
the battery is sufficiently charged, full blower
output will be available. Switching the ZONE function on/off
This function is only available in vehicles for
Canada.
X To activate: press the0003button.
The indicator lamp in the 0003button lights
up.
Dual-zone automatic climate control: the
temperature setting for the driver's side is
not adopted for the front-passenger side.
3-zone automatic climate control: the
temperature setting for the driver's side is
not adopted for the front-passenger side
and the rear compartment.
When the buttons for temperature, airflow or
air distribution are activated, the temperature
setting for the driver's side is not adopted for
the other climate control zones. X
To deactivate: press the0003button.
The indicator lamp in the 0003button goes
out.
Dual-zone automatic climate control: the
temperature setting for the driver's side is
adopted for the front-passenger side.
3-zone automatic climate control: the
temperature setting for the driver's side is
adopted for the front-passenger side and
the rear compartment. Defrosting the windshield
You can use this function to defrost the
windshield or to defrost the inside of the
windshield and the side windows.
i You should only select the "windshield
defrosting" function until the windshield is
clear again.
X Turn the SmartKey to position 2in the
ignition lock (Y page 141).
X To activate: press the0007button.
The indicator lamp in the 0007button lights
up.
The climate control system switches to the
following functions:
R high airflow
R high temperature
R air distribution to the windshield and
fron tside windows
R air-recirculation mode off
If the battery is not sufficiently charged,
blower output may be reduced. As soon as
the battery is sufficiently charged, full blower
output will be available.
X To deactivate: press the0007button.
The indicator lamp in the 0007button goes
out. The previously selected settings are
restored. Air-recirculation mode remains
deactivated.
or 134
Operating the climate control systemsClimate control

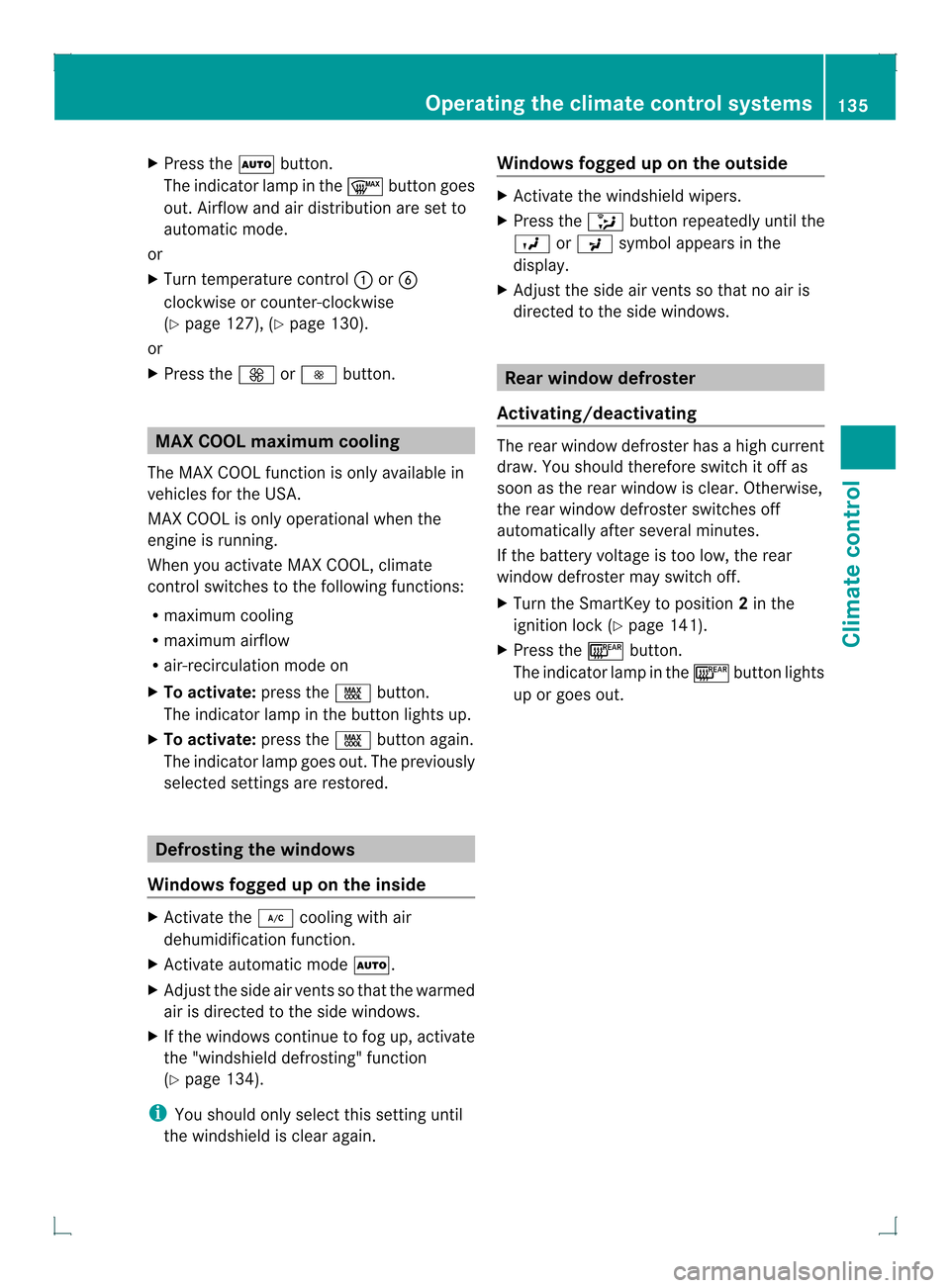

X
Press the 0004button.
The indicator lamp in the 0007button goes
out. Airflow and air distribution are set to
automatic mode.
or
X Turn temperature control 0002or001F
clockwise or counter-clockwise
(Y page 127), (Y page 130).
or
X Press the 0017or0016 button. MAX COOL maximum cooling
The MAX COOL function is only available in
vehicles for the USA.
MAX COOL is only operational when the
engine is running.
When you activate MAX COOL, climate
control switches to the following functions:
R maximum cooling
R maximum airflow
R air-recirculation mode on
X To activate: press the0001button.
The indicator lamp in the button lights up.
X To activate: press the0001button again.
The indicator lamp goes out. The previously
selected settings are restored. Defrosting the windows
Windows fogged up on the inside X
Activate the 0005cooling with air
dehumidification function.
X Activate automatic mode 0004.
X Adjust the side air vents so that the warmed
air is directed to the side windows.
X If the windows continue to fog up, activate
the "windshield defrosting" function
(Y page 134).
i You should only select this setting until
the windshield is clear again. Windows fogged up on the outside X
Activate the windshield wipers.
X Press the 0015button repeatedly until the
0018 or0019 symbol appears in the
display.
X Adjust the side air ventss o that no air is
directed to the side windows. Rear window defroster
Activating/deactivating The rear window defroster has a high current
draw. You should therefore switch it off as
soon as the rear window is clear. Otherwise,
the rear window defroster switches off
automatically after several minutes.
If the battery voltage is too low, the rear
window defroster may switch off.
X
Turn the SmartKey to position 2in the
ignition lock (Y page 141).
X Press the 000Bbutton.
The indicator lamp in the 000Bbutton lights
up or goes out. Operating the climate control systems
135Climate control

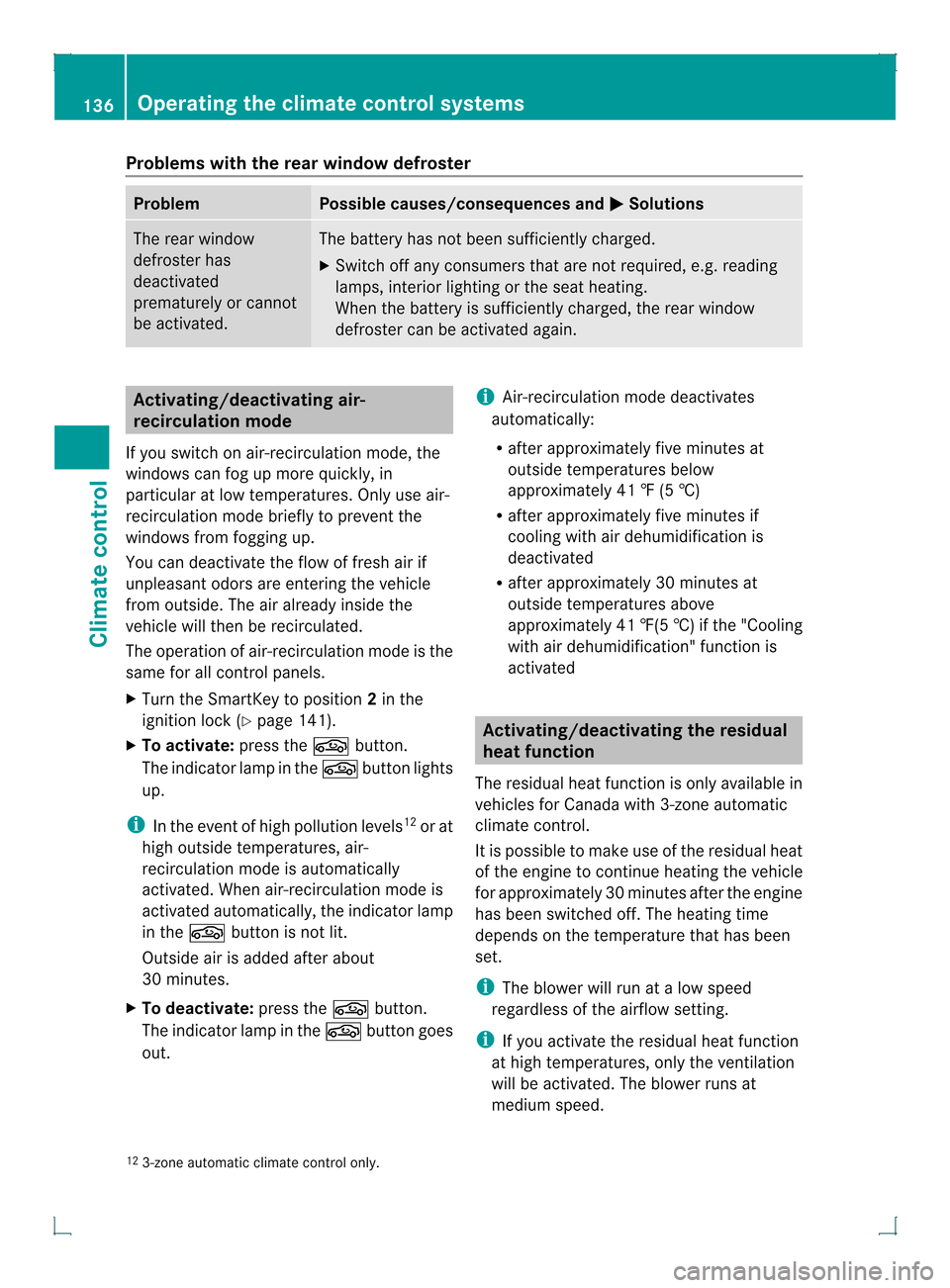

Problems with the rear window defroster
Problem Possible causes/consequences and
0001 Solutions
The rear window
defroster has
deactivated
prematurely or cannot
be activated. The battery has not been sufficiently charged.
X
Switch off any consumers that are not required, e.g. reading
lamps, interior lighting or the seat heating.
When the battery is sufficiently charged, the rear window
defroster can be activated again. Activating/deactivating air-
recirculation mode
If you switch on air-recirculation mode, the
windows can fog up more quickly, in
particular at low temperatures. Only use air-
recirculation mode briefly to prevent the
windows from fogging up.
You can deactivate the flow of fresh air if
unpleasant odors are enteringt he vehicle
from outside. The air already inside the
vehicle will then be recirculated.
The operation of air-recirculation mode is the
same for all control panels.
X Turn the SmartKey to position 2in the
ignition lock (Y page 141).
X To activate: press the0011button.
The indicator lamp in the 0011button lights
up.
i In the event of high pollution levels 12
or at
high outside temperatures, air-
recirculation mode is automatically
activated. When air-recirculation mode is
activated automatically, the indicator lamp
in the 0011button is not lit.
Outside air is added after about
30 minutes.
X To deactivate: press the0011button.
The indicator lamp in the 0011button goes
out. i
Air-recirculation mode deactivates
automatically:
R after approximately five minutes at
outside temperatures below
approximately 41 ‡ (5 †)
R after approximately five minutes if
cooling with air dehumidification is
deactivated
R after approximately 30 minutes at
outside temperatures above
approximately 41 ‡(5 †)if the "Cooling
with air dehumidification" function is
activated Activating/deactivating the residual
heat function
The residual heat function is only available in
vehicles for Canada with 3-zone automatic
climate control.
It is possible to make use of the residual heat
of the engine to continue heating the vehicle
for approximately 30 minutes after the engine
has been switched off .The heating time
depends on the temperature that has been
set.
i The blower will run at a low speed
regardless of the airflow setting.
i If you activate the residual heat function
at high temperatures, only the ventilation
will be activated. The blower runs at
medium speed.
12 3-zone automatic climate control only. 136
Operating the climate control systemsClimate control

X
Turn the SmartKey to position 0in the
ignition lock (Y page 141) or remove it.
X To activate: press the0002button.
The indicator lamp in the 0002button lights
up.
i If the residual heat function is activated,
the windows may fog up on the inside.
X To deactivate: press the0002button.
The indicator lamp in the 0002button goes
out.
i Residual heat is deactivated
automatically:
R after approximately 30 minutes
R when the ignition is switched on
R if the battery voltage drops
R when the auxiliary heating is activated Setting the air vents
Important safety notes
G
WARNING
Very hot or very cold air can flow from the air
vents. This could result in burns or frostbite in
the immediate vicinity of the air vents. There
is a risk of injury.
Make sure that all vehicle occupants always
maintain a sufficient distance to the air
outlets. If necessary, redirect the airflow to
another area of the vehicle interior.
In order to ensure the direct flow of fresh air
through the air vents into the vehicle interior,
please observe the following notes:
R keep the air inlet between the windshield
and the hood free of blockages, such as ice,
snow or leaves.
R never cover the air vents or air intake grilles
in the vehicle interior.
i For virtually draft-free ventilation, adjust
the sliders of the air vents to the center
position. Setting the center air vents
X
To open the center air vent: turn the
adjuster in one of center air vents 0002
counter-clockwise.
X To close the center air vent: turn the
adjuster in one of center air vents 0002
clockwise until it engages. Setting the side air vents
0002
Side window defroster vent
0003 Side air vent
X To open aside air vent: turn the adjuster
in side air vent 0003counter-clockwise.
X To close aside air vent: turn the adjuster
in side air vent 0003clockwise until it
engages. Setting the glove box air vent
When automatic climate control is activated,
the glove box can be ventilated, for instance Setting the air vents
137Climate control Z

to cool its contents. The level of airflow
depends on the airflow and ai
rdistribution
settings.
! Close the air ven twhen heating the
vehicle.
At high outside temperatures, open the air
vent and activate the "cooling with air
dehumidification" function. Otherwise,
temperature-sensitive items stored in the
glove box could be damaged. 0002
Air vent thumbwheel
0003 Air vent
X To open/close: turn thumbwheel 0002
clockwise or counter-clockwise. Setting the rear-compartment air
vents
0002
Rear-compartment air vent thumbwheel
0003 Rear-compartment air vent, right 0021
Rear control panel, only with 3-zone
automatic climate control 13
0020 Rear-compartment air vent, left
X To open/close: turn thumbwheel 0002up or
down.
13 Canada only. 138
Setting the air ventsClimate control
