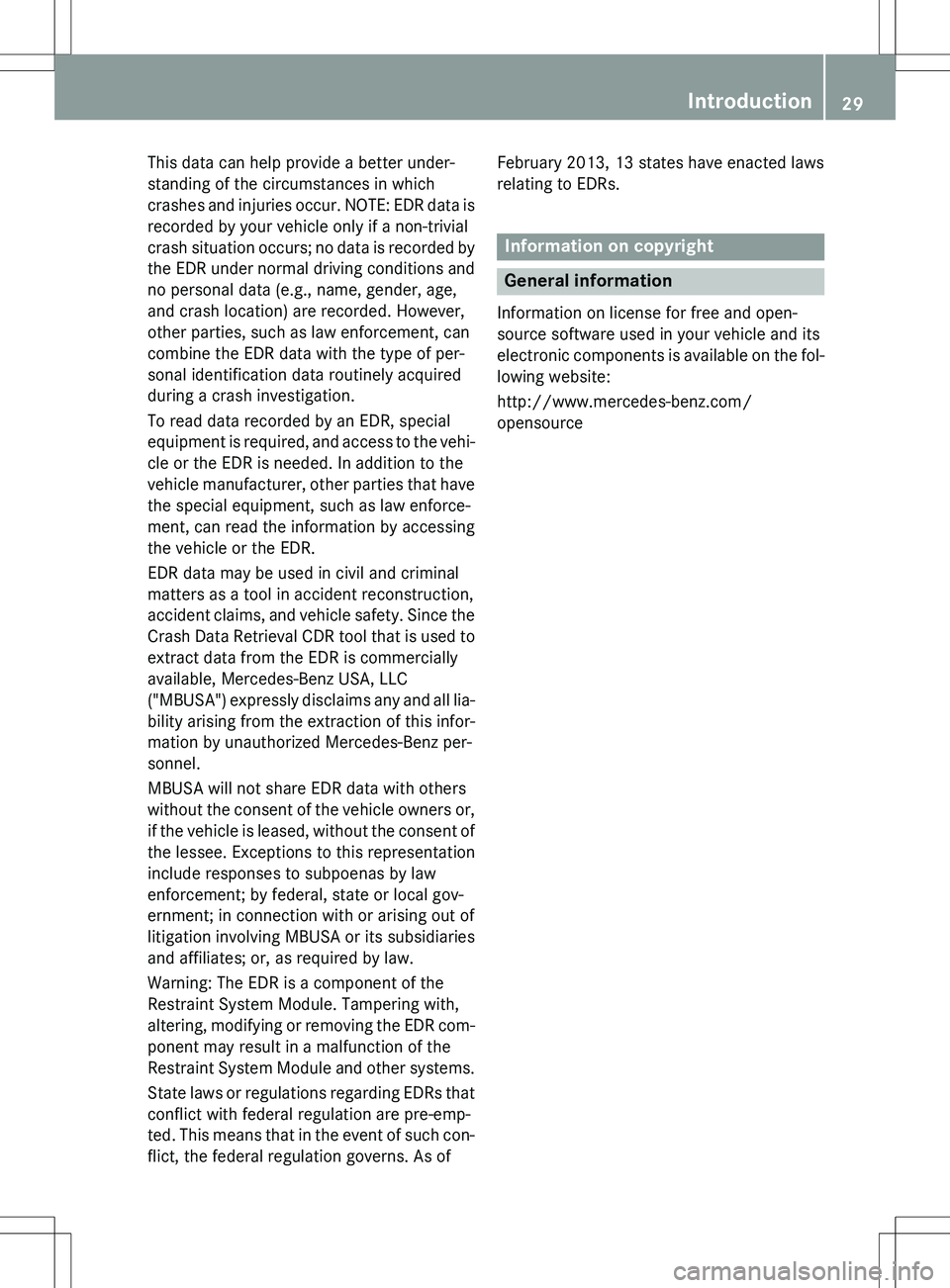

This data can help provide a better under-
standing of the circumstances in which
crashes and injuries occur. NOTE: EDR data is
recorded by your vehicle only if a non-trivial
crash situation occurs; no data is recorded by the EDR under normal driving conditions andno personal data (e.g., name, gender, age,
and crash location) are recorded. However,
other parties, such as law enforcement, can
combine the EDR data with the type of per-
sonal identification data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special
equipment is required, and access to the vehi-
cle or the EDR is needed. In addition to the
vehicle manufacturer, other parties that have
the special equipment, such as law enforce-
ment, can read the information by accessing
the vehicle or the EDR.
EDR data may be used in civil and criminal
matters as a tool in accident reconstruction,
accident claims, and vehicle safety. Since the Crash Data Retrieval CDR tool that is used to extract data from the EDR is commercially
available, Mercedes-Benz USA, LLC
("MBUSA") expressly disclaims any and all lia-
bility arising from the extraction of this infor- mation by unauthorized Mercedes-Benz per-
sonnel.
MBUSA will not share EDR data with others
without the consent of the vehicle owners or,
if the vehicle is leased, without the consent of
the lessee. Exceptions to this representation
include responses to subpoenas by law
enforcement; by federal, state or local gov-
ernment; in connection with or arising out of
litigation involving MBUSA or its subsidiaries
and affiliates; or, as required by law.
Warning: The EDR is a component of the
Restraint System Module. Tampering with,
altering, modifying or removing the EDR com- ponent may result in a malfunction of the
Restraint System Module and other systems.
State laws or regulations regarding EDRs that
conflict with federal regulation are pre-emp-
ted. This means that in the event of such con- flict, the federal regulation governs. As of February 2013, 13 states have enacted laws
relating to EDRs.
Information on copyright
General information
Information on license for free and open-
source software used in your vehicle and its
electronic components is available on the fol-
lowing website:
http://www.mercedes-benz.com/
opensource
Introduction29
Z
Cockpit................................................. 32
Instrument cluster ..............................33
Multifunction steering wheel .............35
Center console .................................... 36
Overhead control panel ......................38
Door control panel .............................. 39
31
At a glance
Cockpit
FunctionPage
:Steering wheel paddle
shifters
160
;Combination switch118
=Instrument cluster33
?Horn
APARKTRONIC warning dis-
play
186
BOverhead control panel38
COperates the climate con-
trol systems
132
DIgnition lock149
Start/Stop button149
FunctionPage
EAdjusts the steering wheel
manually
106
FAdjusts the steering wheel
electrically
106
GCruise control lever175
HParking brake169
IDiagnostics connection26
JOpens the hood300
KReleases the parking brake169
LLight switch116
32Cockpit
At a glance

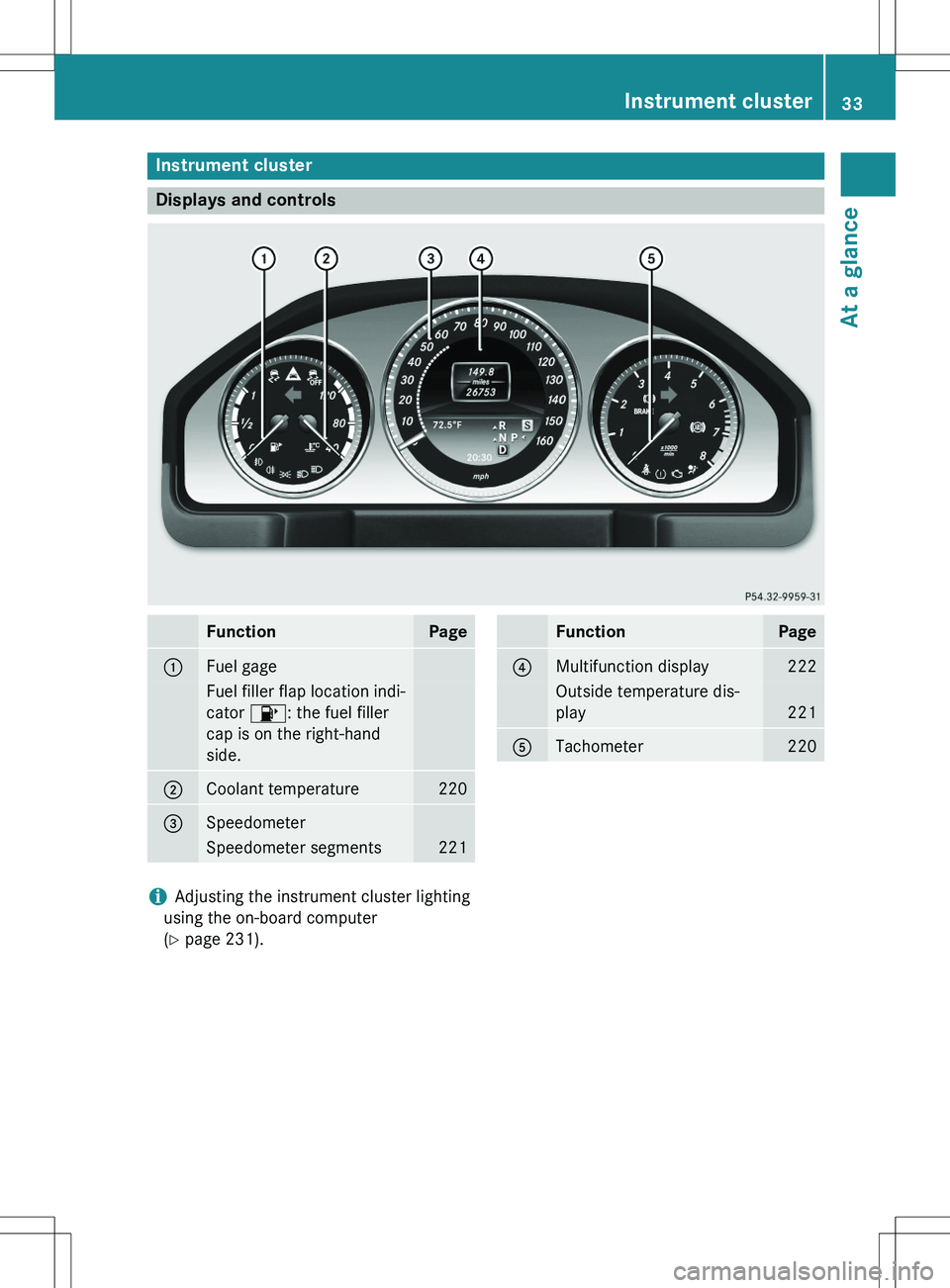

Instrument cluster
Displays and controls
FunctionPage
:Fuel gage
Fuel filler flap location indi-
cator 8: the fuel filler
cap is on the right-hand
side.
;Coolant temperature220
=Speedometer
Speedometer segments221
FunctionPage
?Multifunction display222
Outside temperature dis-
play
221
ATachometer220
iAdjusting the instrument cluster lighting
using the on-board computer
( Y page 231).
Instrument cluster33
At a glance
Warning and indicator lamps
FunctionPage
:÷ ESP®264
;·
Distance warning270
=å ESP®
OFF264
?$ Brakes (USA only)262
AJ Brakes (Canada only)262
B#! Turn signals118
C! ABS262
D6 SRS266
E; Check Engine267
Fh Tire pressure monitor271
Gü Seat belt260
FunctionPage
H% Diesel engine: pre-
glow
151
I? Coolant268
JK High-beam head-
lamps
118
KL Low-beam head-
lamps
117
LT Parking lamps118
MR Rear fog lamp118
NN Front fog lamps117
O8 Reserve fuel267
34Instrument cluster
At a glance

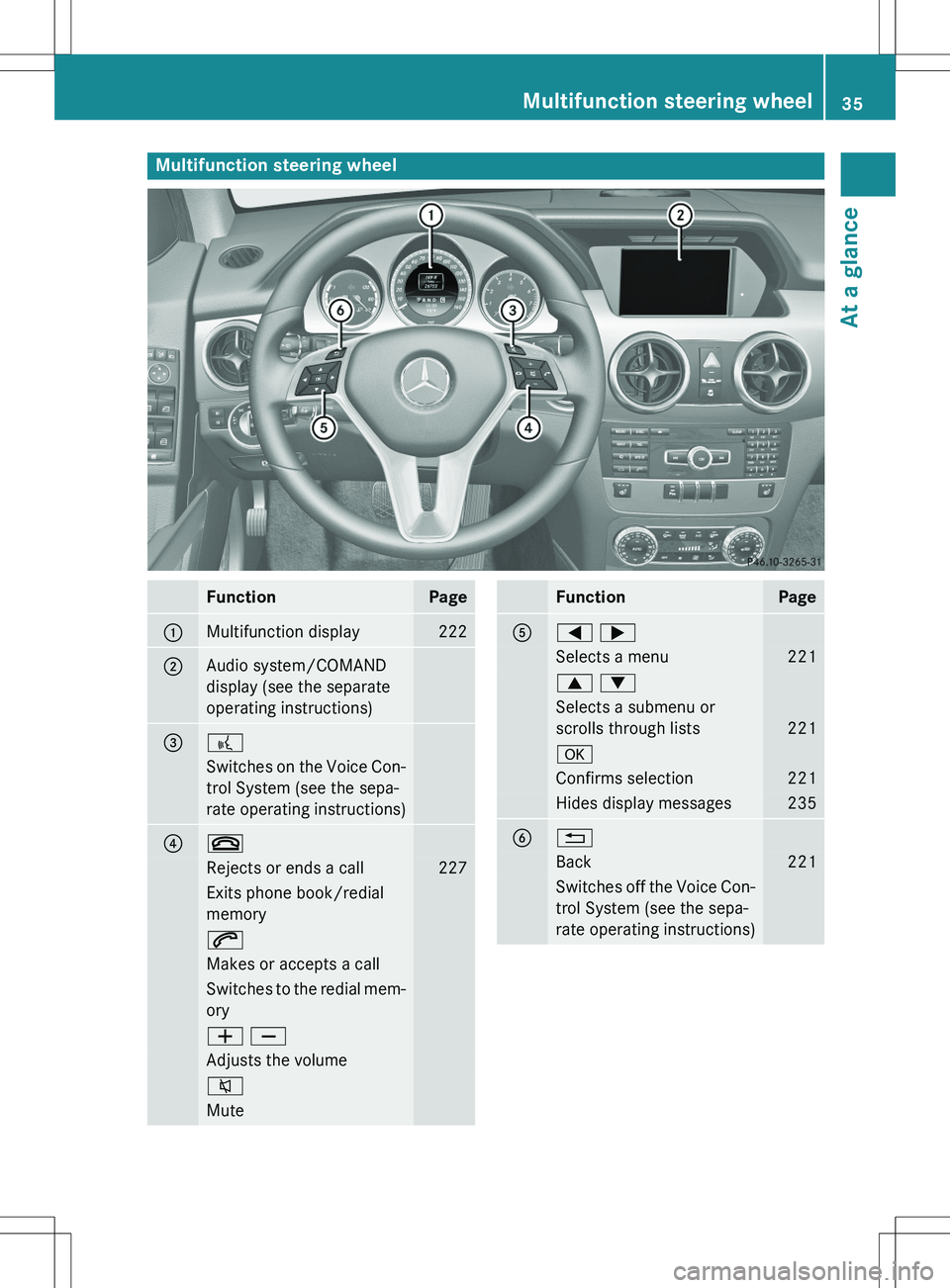

Multifunction steering wheel
FunctionPage
:Multifunction display222
;Audio system/COMAND
display (see the separate
operating instructions)
=?
Switches on the Voice Con-
trol System (see the sepa-
rate operating instructions)
?~
Rejects or ends a call227
Exits phone book/redial
memory
6
Makes or accepts a call
Switches to the redial mem- ory
W X
Adjusts the volume
8
Mute
FunctionPage
A= ;
Selects a menu221
9 :
Selects a submenu or
scrolls through lists
221
a
Confirms selection221
Hides display messages235
B%
Back221
Switches off the Voice Con-
trol System (see the sepa-
rate operating instructions)
Multifunction steering wheel35
At a glance

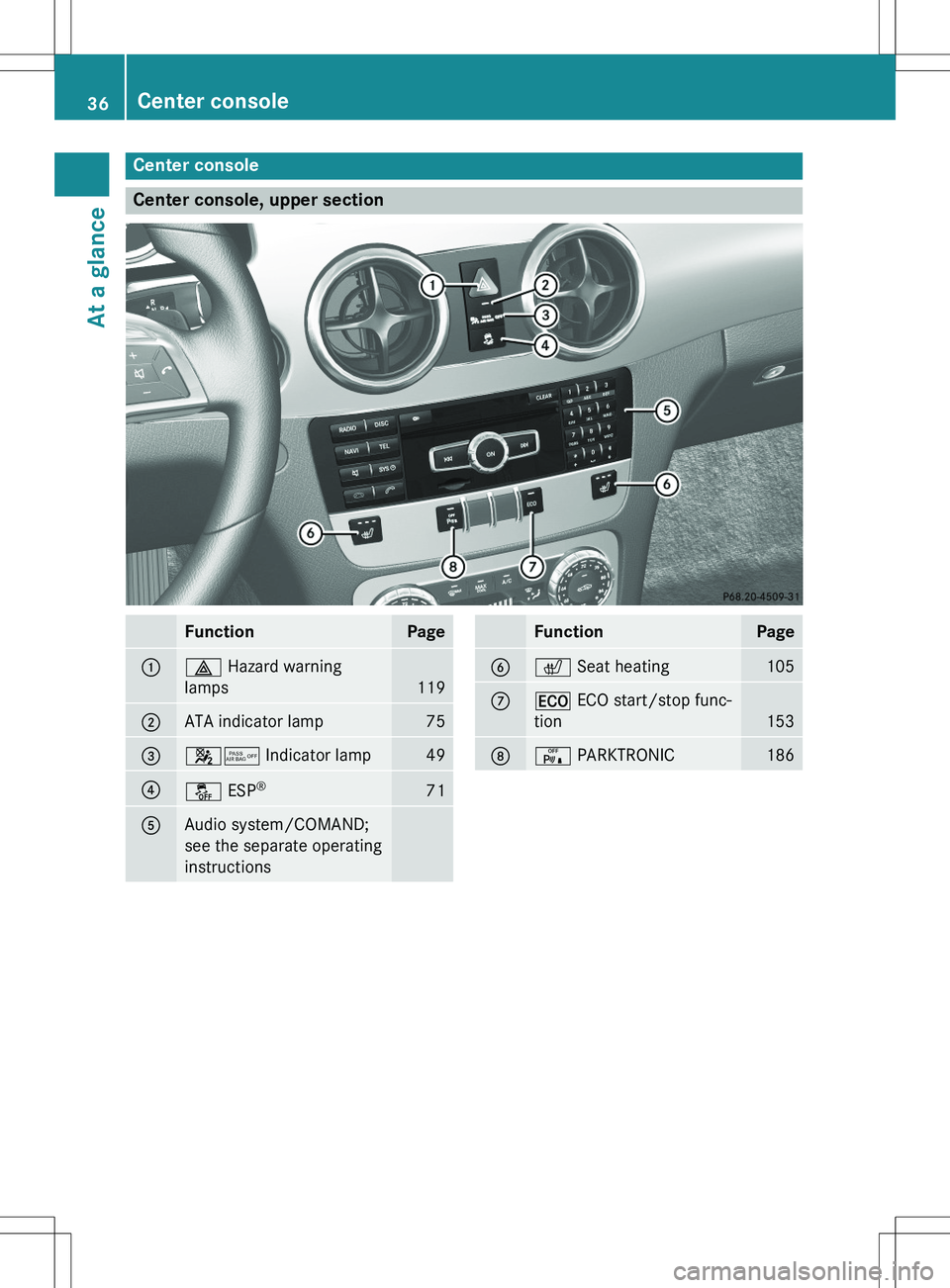

Center console
Center console, upper section
FunctionPage
:£ Hazard warning
lamps
119
;ATA indicator lamp75
=45 Indicator lamp49
?å ESP®71
AAudio system/COMAND;
see the separate operating
instructions
FunctionPage
Bc
Seat heating105
C¤ ECO start/stop func-
tion
153
Dc PARKTRONIC186
36Center console
At a glance

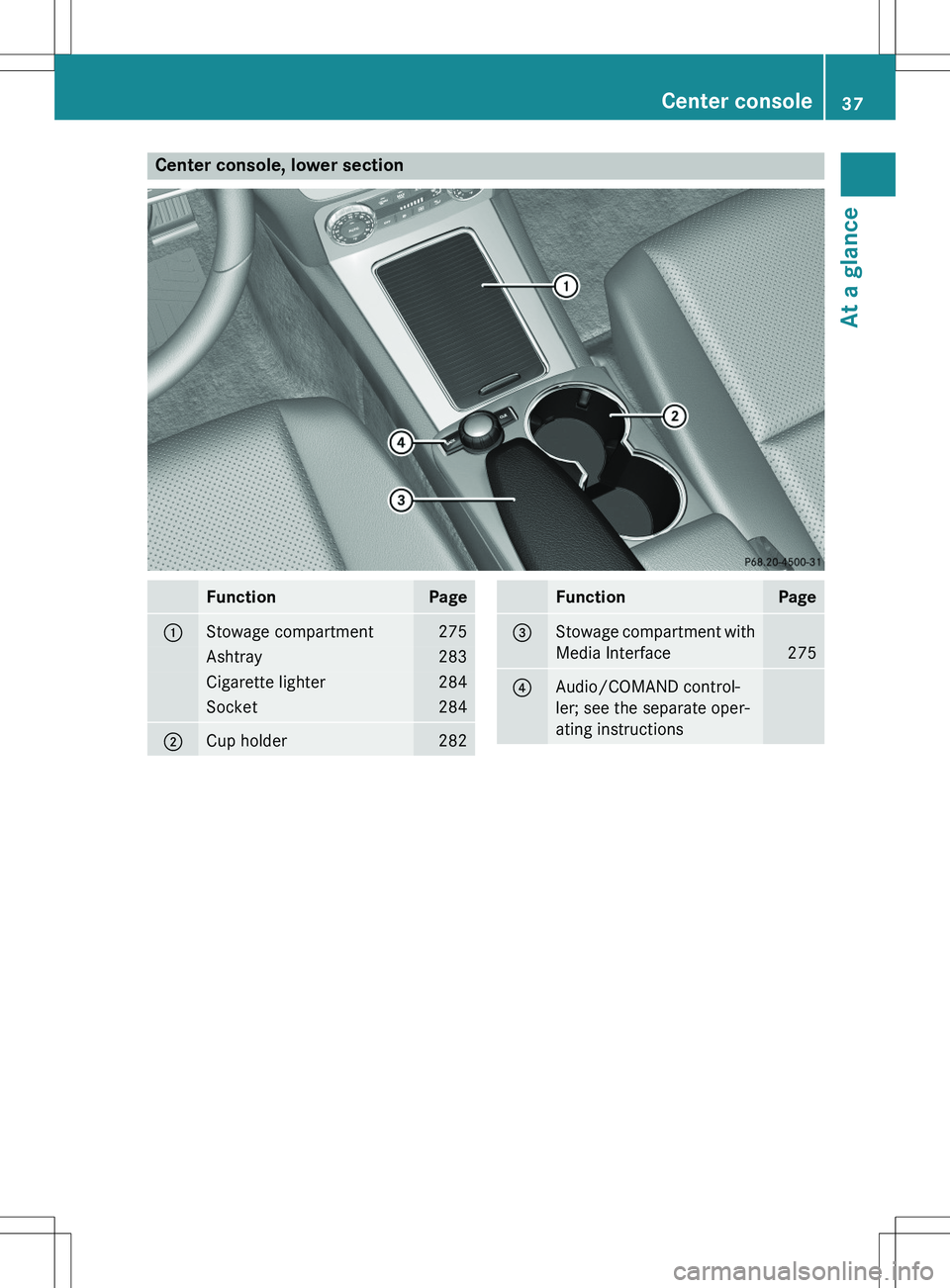

Center console, lower section
FunctionPage
:Stowage compartment275
Ashtray283
Cigarette lighter284
Socket284
;Cup holder282
FunctionPage
=Stowage compartment with
Media Interface
275
?Audio/COMAND control-
ler; see the separate oper-
ating instructions
Center console37
At a glance

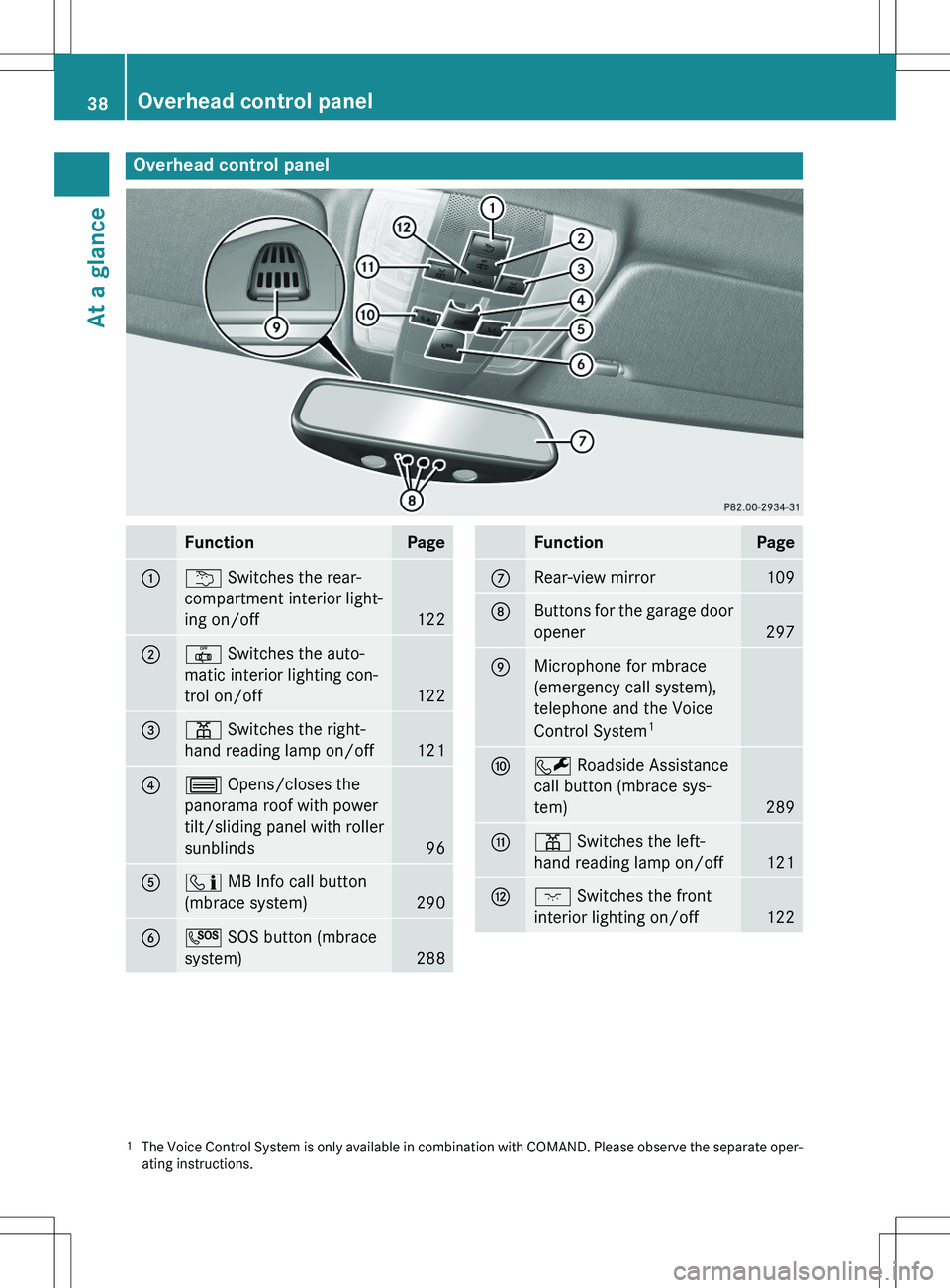

Overhead control panel
FunctionPage
:u Switches the rear-
compartment interior light-
ing on/off
122
;| Switches the auto-
matic interior lighting con-
trol on/off
122
=p Switches the right-
hand reading lamp on/off
121
?3 Opens/closes the
panorama roof with power
tilt/sliding panel with roller sunblinds
96
Aï MB Info call button
(mbrace system)
290
BG SOS button (mbrace
system)
288
FunctionPage
CRear-view mirror109
DButtons for the garage door opener
297
EMicrophone for mbrace
(emergency call system),
telephone and the Voice
Control System 1
FF
Roadside Assistance
call button (mbrace sys-
tem)
289
Gp Switches the left-
hand reading lamp on/off
121
Hc Switches the front
interior lighting on/off
122
1 The Voice Control System is only available in combinati on with COMAND. Please observe the separate oper-
ating instructions.
38Overhead control panel
At a glance
