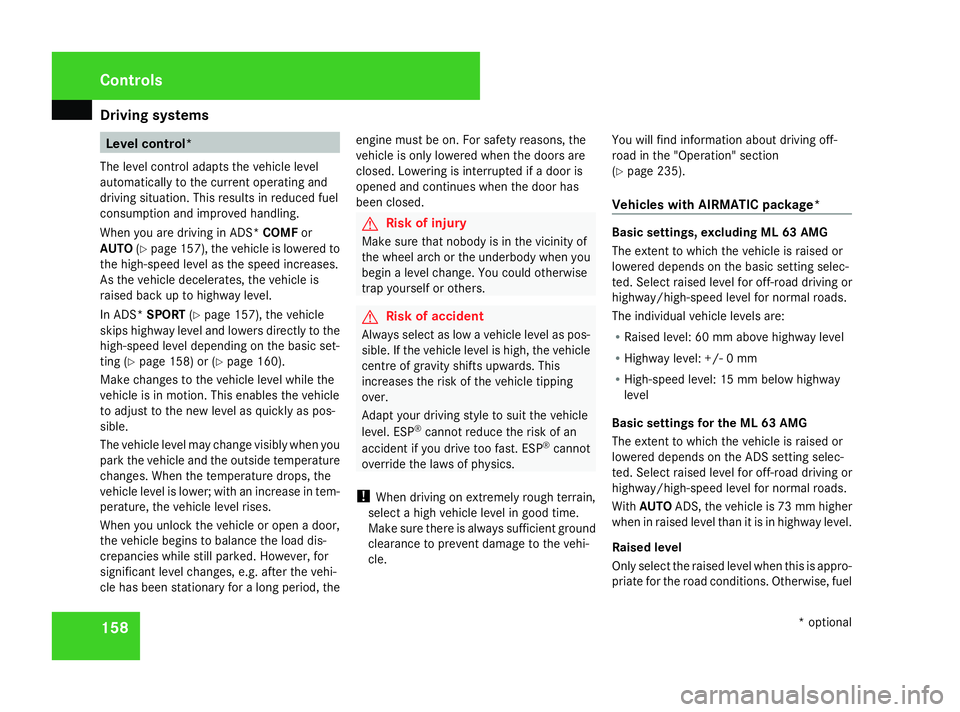

Driving sys
tems 158 Level control*
The level control adapts the vehicle level
automatically to the current operating and
driving situation. This results in reduced fuel
consumption and improved handling.
When you are driving in ADS* COMFor
AUTO (Ypage 157), the vehicle is lowered to
the high-speed level as the speed increases.
As the vehicle decelerates, the vehicle is
raised back up to highway level.
In ADS* SPORT(Ypage 157), the vehicle
skips highway level and lowers directly to the
high-speed level depending on the basic set-
ting (Y page 158) or (Y page 160).
Make changes to the vehicle level while the
vehicle is in motion. This enables the vehicle
to adjust to the new level as quickly as pos-
sible.
The vehicle level may change visibly when you
park the vehicle and the outside temperature
changes. When the temperature drops, the
vehicle level is lower; with an increase in tem-
perature, the vehicle level rises.
When you unlock the vehicle or open a door,
the vehicle begins to balance the load dis-
crepancies while still parked. However, for
significant level changes, e.g. after the vehi-
cle has been stationary for a long period, the engine must be on. For safety reasons, the
vehicle is only lowered when the doors are
closed. Lowering is interrupted if a door is
opened and continues when the door has
been closed. G
Risk of injury
Make sure that nobody is in the vicinity of
the wheel arch or the underbody when you
begin a level change. You could otherwise
trap yourself or others. G
Risk of accident
Always select as low a vehicle level as pos-
sible. If the vehicle level is high, the vehicle
centre of gravity shifts upwards. This
increases the risk of the vehicle tipping
over.
Adapt your driving style to suit the vehicle
level. ESP ®
cannot reduce the risk of an
accident if you drive too fast. ESP ®
cannot
override the laws of physics.
! When driving on extremely rough terrain,
select a high vehicle level in good time.
Make sure there is always sufficient ground
clearance to prevent damage to the vehi-
cle. You will find information about driving off-
road in the "Operation" section
(Y
page 235).
Vehicles with AIRMATIC package* Basic settings, excluding ML 63 AMG
The extent to which the vehicle is raised or
lowered depends on the basic setting selec-
ted. Select raised level for off-road driving or
highway/high-speed level for normal roads.
The individual vehicle levels are:
R
Raised level: 60 mm above highway level
R Highway level: +/- 0 mm
R High-speed level: 15 mm below highway
level
Basic settings for the ML 63 AMG
The extent to which the vehicle is raised or
lowered depends on the ADS setting selec-
ted. Select raised level for off-road driving or
highway/high-speed level for normal roads.
With AUTO ADS, the vehicle is 73 mm higher
when in raised level than it is in highway level.
Raised level
Only select the raised level when this is appro-
priate for the road conditions. Otherwise, fuel Controls
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 158 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Driving sys

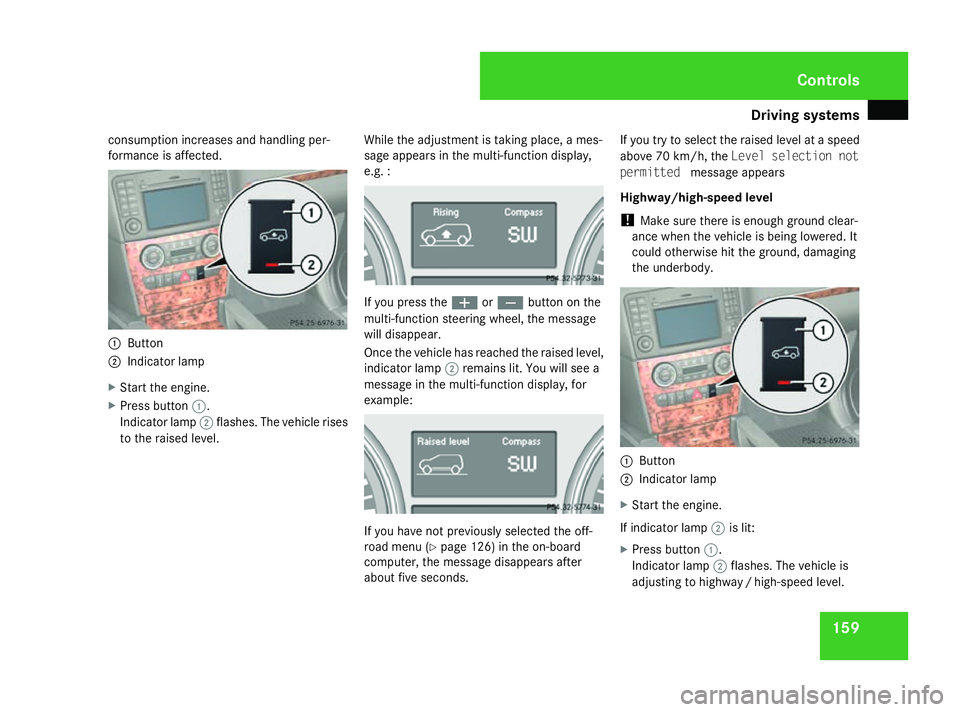

tems 159
consumption increases and handling per-
formance is affected.
1
Button
2 Indicator lamp
X Start the engine.
X Press button 1.
Indicator lamp 2flashes. The vehicle rises
to the raised level. While the adjustment is taking place, a mes-
sage appears in the multi-function display,
e.g. : If you press the
æorç button on the
multi-function steering wheel, the message
will disappear.
Once the vehicle has reached the raised level,
indicator lamp 2remains lit. You will see a
message in the multi-function display, for
example: If you have not previously selected the off-
road menu (Y
page 126) in the on-board
computer, the message disappears after
about five seconds. If you try to select the raised level at a speed
above 70 km/h, the Level selection not
permitted message appears
Highway/high-speed level
! Make sure there is enough ground clear-
ance when the vehicle is being lowered. It
could otherwise hit the ground, damaging
the underbody. 1
Button
2 Indicator lamp
X Start the engine.
If indicator lamp 2is lit:
X Press button 1.
Indicator lamp 2flashes. The vehicle is
adjusting to highwa y/high-speed level. Controls
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 159 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Driving sys

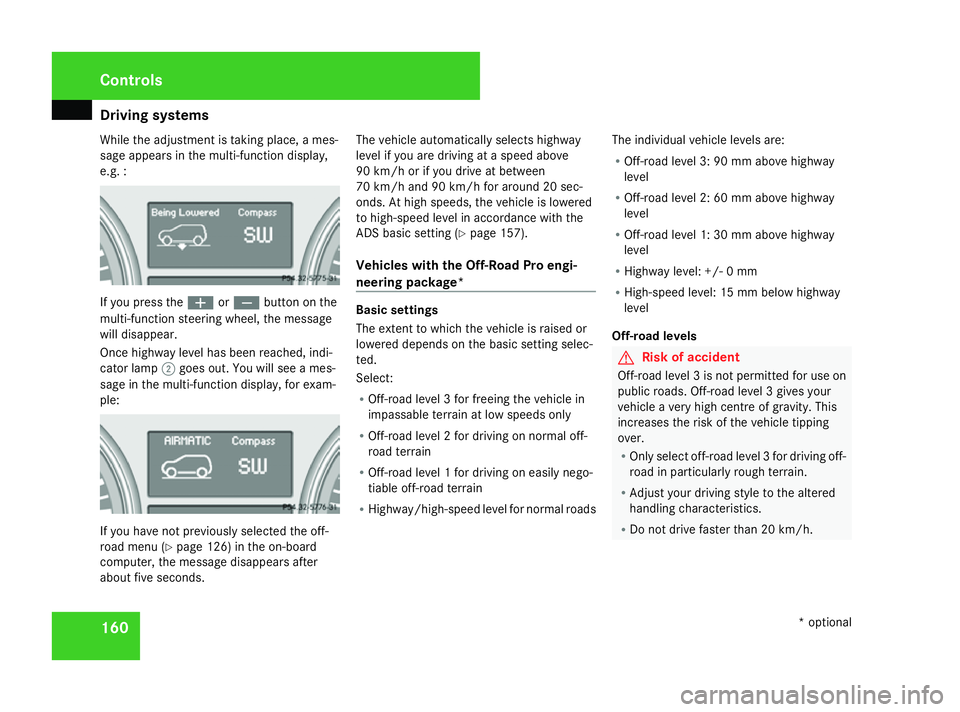

tems 160
While the adjustment is taking place, a mes-
sage appears in the multi-function display,
e.g. : If you press the
æorç button on the
multi-function steering wheel, the message
will disappear.
Once highway level has been reached, indi-
cator lamp 2goes out. You will see a mes-
sage in the multi-function display, for exam-
ple: If you have not previously selected the off-
road menu (Y page 126) in the on-board
computer, the message disappears after
about five seconds. The vehicle automatically selects highway
level if you are driving at a speed above
90 km/h or if you drive at between
70 km/h and 90 km/h for around 20 sec-
onds. At high speeds, the vehicle is lowered
to high-speed level in accordance with the
ADS basic setting (Y page 157).
Vehicles with the Off-Road Pro engi-
neering package* Basic settings
The extent to which the vehicle is raised or
lowered depends on the basic setting selec-
ted.
Select:
R
Off-road level 3 for freeing the vehicle in
impassable terrain at low speeds only
R Off-road level 2 for driving on normal off-
road terrain
R Off-road level 1 for driving on easily nego-
tiable off-road terrain
R Highway/high-speed level for normal roads The individual vehicle levels are:
R
Off-road level 3: 90 mm above highway
level
R Off-road level 2: 60 mm above highway
level
R Off-road level 1: 30 mm above highway
level
R Highway level: +/- 0 mm
R High-speed level: 15 mm below highway
level
Off-road levels G
Risk of accident
Off-road level 3 is not permitted for use on
public roads. Off-road level 3 gives your
vehicle a very high centre of gravity. This
increases the risk of the vehicle tipping
over.
R Only select off-road level 3 for driving off-
road in particularly rough terrain.
R Adjust your driving style to the altered
handling characteristics.
R Do not drive faster than 20 km/h. Controls
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 160 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Driving sys

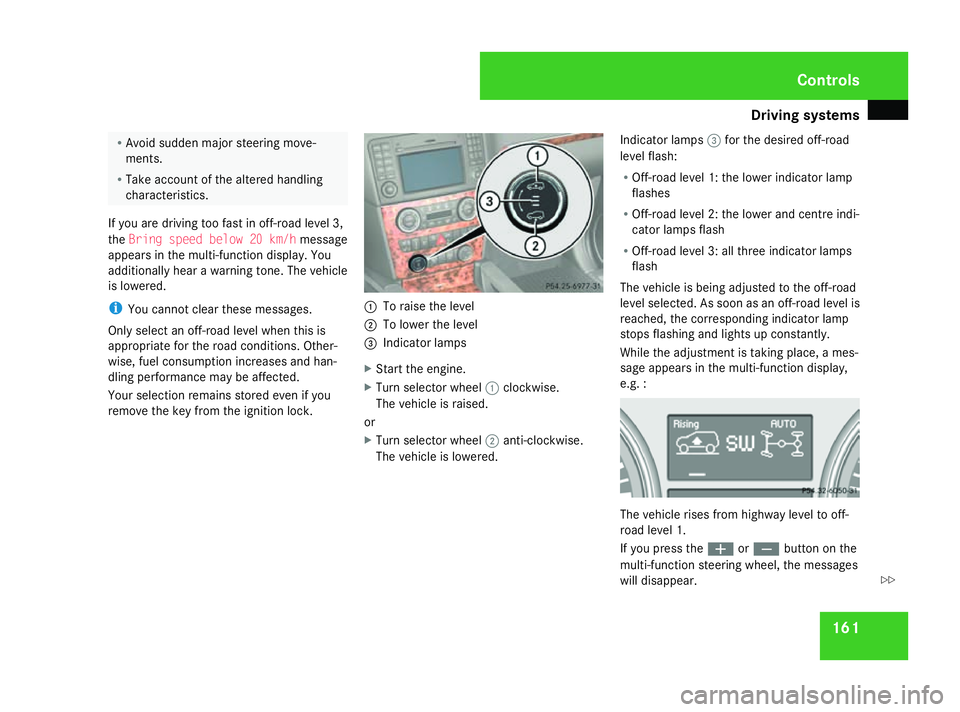

tems 161R
Avoid sudden major steering move-
ments.
R Take account of the altered handling
characteristics.
If you are driving too fast in off-road level 3,
the Bring speed below 20 km/h message
appears in the multi-function display. You
additionally hear a warning tone. The vehicle
is lowered.
i You cannot clear these messages.
Only select an off-road level when this is
appropriate for the road conditions. Other-
wise, fuel consumption increases and han-
dling performance may be affected.
Your selection remains stored even if you
remove the key from the ignition lock. 1
To raise the level
2 To lower the level
3 Indicator lamps
X Start the engine.
X Turn selector wheel 1clockwise.
The vehicle is raised.
or
X Turn selector wheel 2anti-clockwise.
The vehicle is lowered. Indicator lamps
3for the desired off-road
level flash:
R Off-road level 1: the lower indicator lamp
flashes
R Off-road level 2: the lower and centre indi-
cator lamps flash
R Off-road level 3: all three indicator lamps
flash
The vehicle is being adjusted to the off-road
level selected. As soon as an off-road level is
reached, the corresponding indicator lamp
stops flashing and lights up constantly.
While the adjustment is taking place, a mes-
sage appears in the multi-function display,
e.g. : The vehicle rises from highway level to off-
road level 1.
If you press the
æorç button on the
multi-function steering wheel, the messages
will disappear. Controls
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 161 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Driving sys

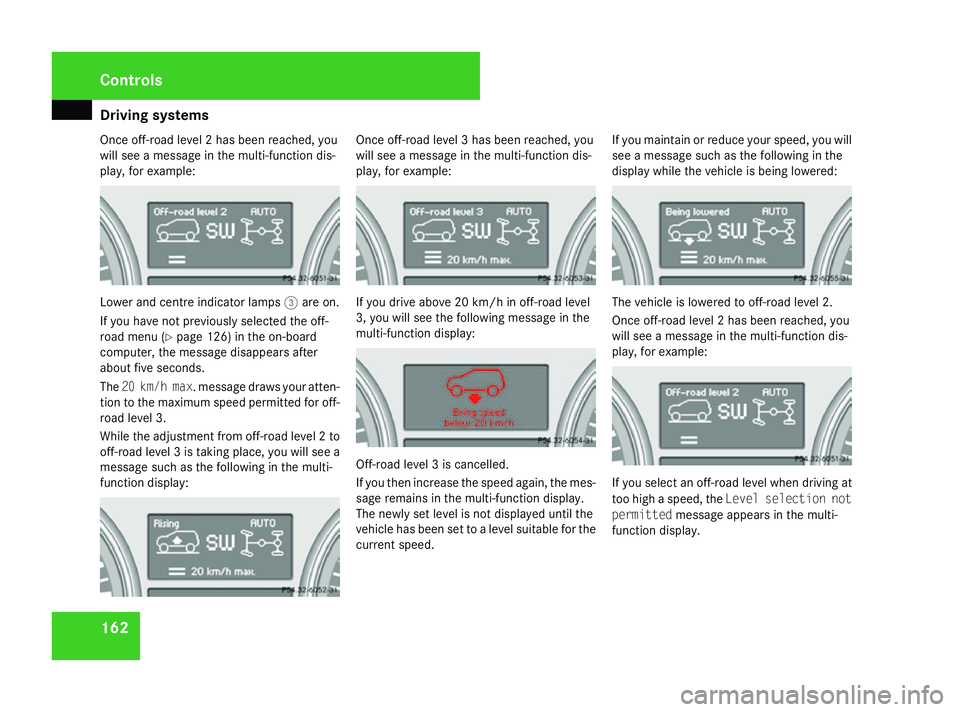

tems 162
Once off-road level 2 has been reached, you
will see a message in the multi-function dis-
play, for example: Lower and centre indicator lamps
3are on.
If you have not previously selected the off-
road menu (Y page 126) in the on-board
computer, the message disappears after
about five seconds.
The 20 km/h max . message draws your atten-
tion to the maximum speed permitted for off-
road level 3.
While the adjustment from off-road level 2 to
off-road level 3 is taking place, you will see a
message such as the following in the multi-
function display: Once off-road level 3 has been reached, you
will see a message in the multi-function dis-
play, for example:
If you drive above 20 km/h in off-road level
3, you will see the following message in the
multi-function display:
Off-road level 3 is cancelled.
If you then increase the speed again, the mes-
sage remains in the multi-function display.
The newly set level is not displayed until the
vehicle has been set to a level suitable for the
current speed.If you maintain or reduce your speed, you will
see a message such as the following in the
display while the vehicle is being lowered: The vehicle is lowered to off-road level 2.
Once off-road level 2 has been reached, you
will see a message in the multi-function dis-
play, for example: If you select an off-road level when driving at
too high a speed, the
Level selection not
permitted message appears in the multi-
function display. Controls
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 162 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Driving sys

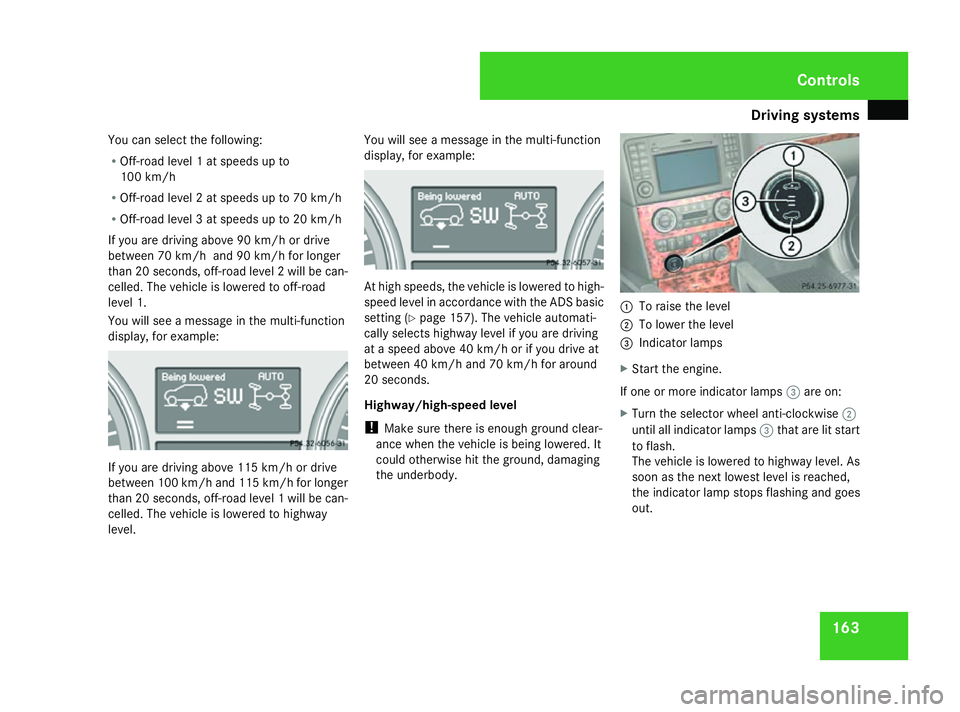

tems 163
You can select the following:
R
Off-road level 1 at speeds up to
100 km/h
R Off-road level 2 at speeds up to 70 km/h
R Off-road level 3 at speeds up to 20 km/h
If you are driving above 90 km/h or drive
between 70 km/h and 90 km/h for longer
than 20 seconds, off-road level 2 will be can-
celled. The vehicle is lowered to off-road
level 1.
You will see a message in the multi-function
display, for example: If you are driving above 115 km/h or drive
between 100 km/h and 115 km/h for longer
than 20 seconds, off-road level 1 will be can-
celled. The vehicle is lowered to highway
level. You will see a message in the multi-function
display, for example: At high speeds, the vehicle is lowered to high-
speed level in accordance with the ADS basic
setting (
Ypage 157). The vehicle automati-
cally selects highway level if you are driving
at a speed above 40 km/h or if you drive at
between 40 km/h and 70 km/h for around
20 seconds.
Highway/high-speed level
! Make sure there is enough ground clear-
ance when the vehicle is being lowered. It
could otherwise hit the ground, damaging
the underbody. 1
To raise the level
2 To lower the level
3 Indicator lamps
X Start the engine.
If one or more indicator lamps 3are on:
X Turn the selector wheel anti-clockwise 2
until all indicator lamps 3that are lit start
to flash.
The vehicle is lowered to highway level. As
soon as the next lowest level is reached,
the indicator lamp stops flashing and goes
out. Controls
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 163 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Driving sys
tems 164

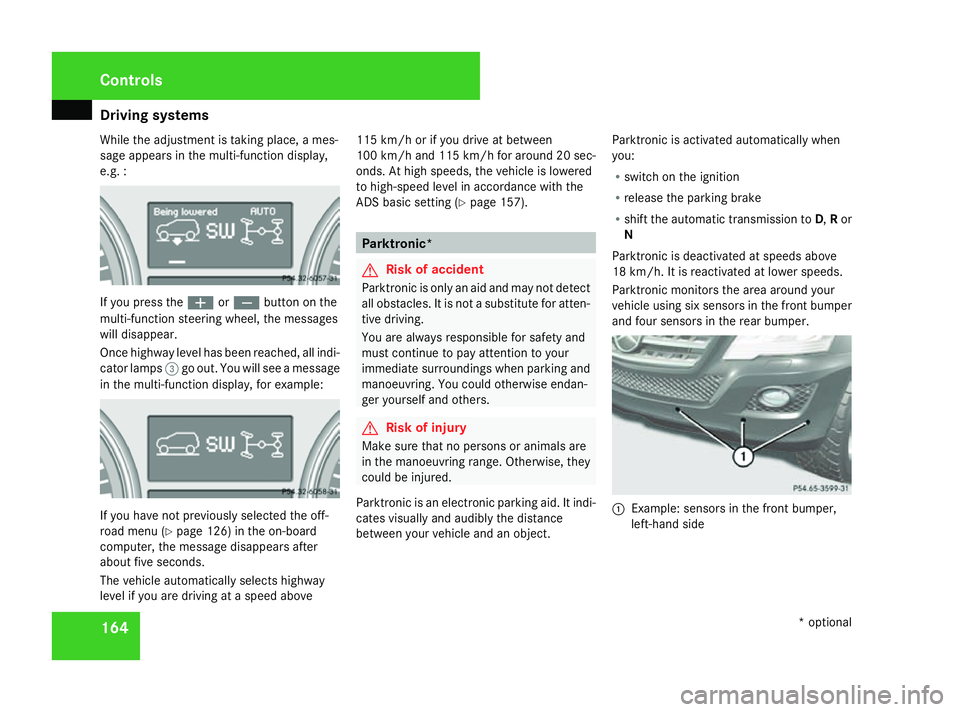

While the adjustment is taking place, a mes-
sage appears in the multi-function display,
e.g. : If you press the
æorç button on the
multi-function steering wheel, the messages
will disappear.
Once highway level has been reached, all indi-
cator lamps 3go out. You will see a message
in the multi-function display, for example: If you have not previously selected the off-
road menu (Y page 126) in the on-board
computer, the message disappears after
about five seconds.
The vehicle automatically selects highway
level if you are driving at a speed above 115 km/h or if you drive at between
100 km/h and 115 km/h for around 20 sec-
onds. At high speeds, the vehicle is lowered
to high-speed level in accordance with the
ADS basic setting (Y
page 157). Parktronic*
G
Risk of accident
Parktronic is only an aid and may not detect
all obstacles. It is not a substitute for atten-
tive driving.
You are always responsible for safety and
must continue to pay attention to your
immediate surroundings when parking and
manoeuvring. You could otherwise endan-
ger yourself and others. G
Risk of injury
Make sure that no persons or animals are
in the manoeuvring range. Otherwise, they
could be injured.
Parktronic is an electronic parking aid. It indi-
cates visually and audibly the distance
between your vehicle and an object. Parktronic is activated automatically when
you:
R
switch on the ignition
R release the parking brake
R shift the automatic transmission to D,Ror
N
Parktronic is deactivated at speeds above
18 km/h. It is reactivated at lower speeds.
Parktronic monitors the area around your
vehicle using six sensors in the front bumper
and four sensors in the rear bumper. 1
Example: sensors in the front bumper,
left-hand side Controls
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 164 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Driving sys
tems 165

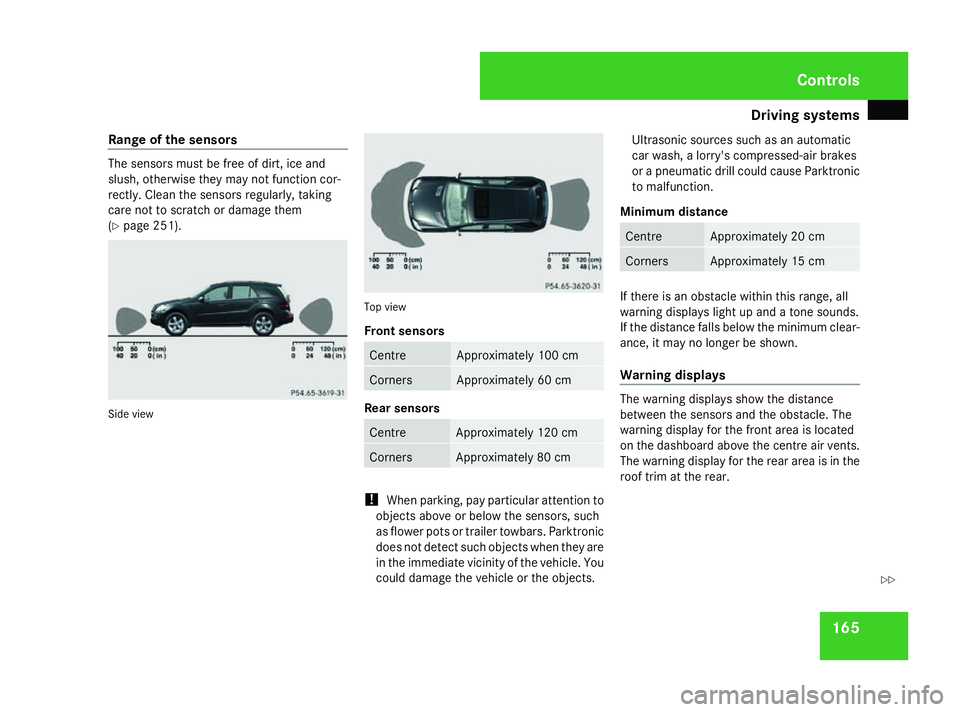

Range of the sensors The sensors must be free of dirt, ice and
slush, otherwise they may not function cor-
rectly. Clean the sensors regularly, taking
care not to scratch or damage them
(Y
page 251). Side view Top view
Front sensors
Centre Approximately 100 cm
Corners Approximately 60 cm
Rear sensors
Centre Approximately 120 cm
Corners Approximately 80 cm
!
When parking, pay particular attention to
objects above or below the sensors, such
as flower pots or trailer towbars. Parktronic
does not detect such objects when they are
in the immediate vicinity of the vehicle. You
could damage the vehicle or the objects. Ultrasonic sources such as an automatic
car wash, a lorry's compressed-air brakes
or a pneumatic drill could cause Parktronic
to malfunction.
Minimum distance Centre Approximately 20 cm
Corners Approximately 15 cm
If there is an obstacle within this range, all
warning displays light up and a tone sounds.
If the distance falls below the minimum clear-
ance, it may no longer be shown.
Warning displays The warning displays show the distance
between the sensors and the obstacle. The
warning display for the front area is located
on the dashboard above the centre air vents.
The warning display for the rear area is in the
roof trim at the rear. Controls
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 165 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Driving sys

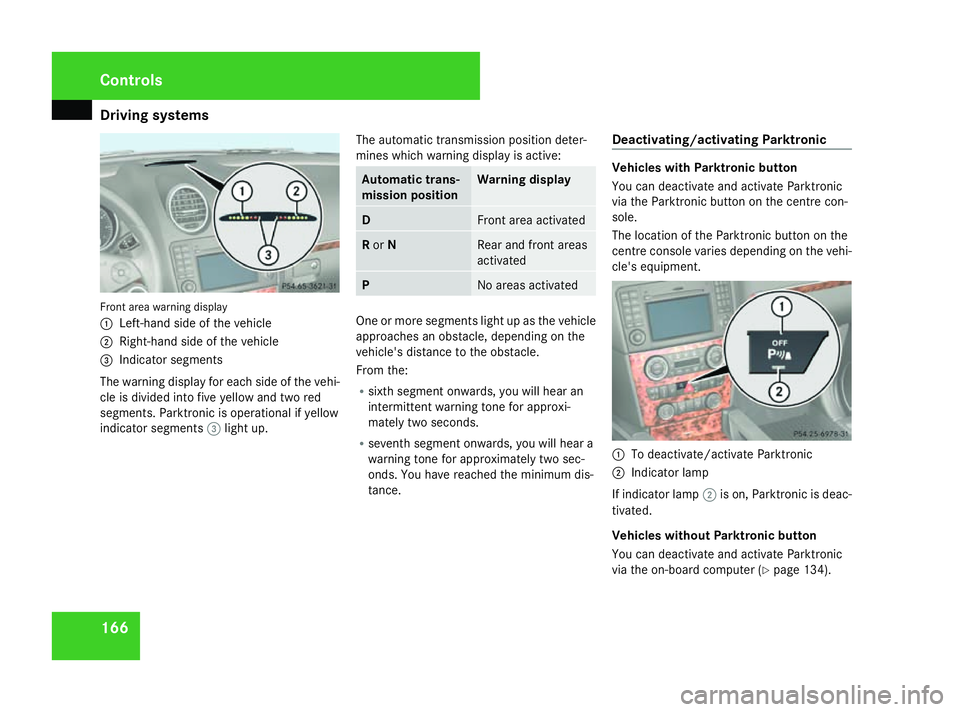

tems 166Front area warning display
1
Left-hand side of the vehicle
2 Right-hand side of the vehicle
3 Indicator segments
The warning display for each side of the vehi-
cle is divided into five yellow and two red
segments. Parktronic is operational if yellow
indicator segments 3light up. The automatic transmission position deter-
mines which warning display is active: Automatic trans-
mission position Warning display
D Front area activated
R
or N Rear and front areas
activated
P No areas activated
One or more segments light up as the vehicle
approaches an obstacle, depending on the
vehicle's distance to the obstacle.
From the:
R sixth segment onwards, you will hear an
intermittent warning tone for approxi-
mately two seconds.
R seventh segment onwards, you will hear a
warning tone for approximately two sec-
onds. You have reached the minimum dis-
tance. Deactivating/activating Parktronic Vehicles with Parktronic button
You can deactivate and activate Parktronic
via the Parktronic button on the centre con-
sole.
The location of the Parktronic button on the
centre console varies depending on the vehi-
cle's equipment.
1
To deactivate/activate Parktronic
2 Indicator lamp
If indicator lamp 2is on, Parktronic is deac-
tivated.
Vehicles without Parktronic button
You can deactivate and activate Parktronic
via the on-board computer (Y page 134).Controls
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 166 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Driving sys
tems 167

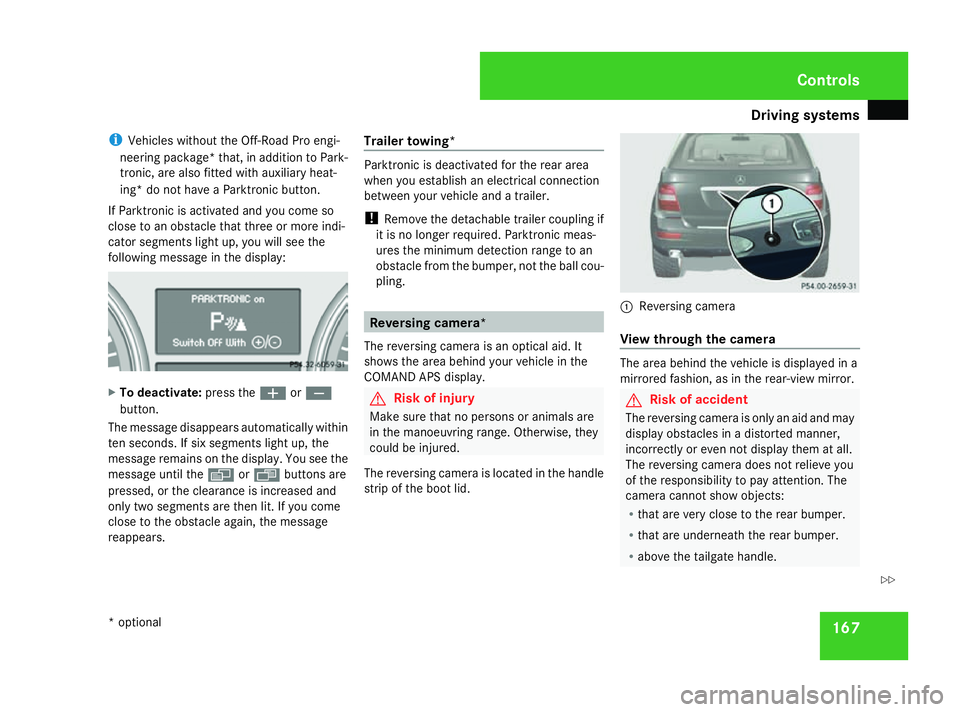

i
Vehicles without the Off-Road Pro engi-
neering package *that, in addition to Park-
tronic, are also fitted with auxiliary heat-
ing* do not have a Parktronic button.
If Parktronic is activated and you come so
close to an obstacle that three or more indi-
cator segments light up, you will see the
following message in the display: X
To deactivate: press theæorç
button.
The message disappears automatically within
ten seconds. If six segments light up, the
message remains on the display. You see the
message until the èor· buttons are
pressed, or the clearance is increased and
only two segments are then lit. If you come
close to the obstacle again, the message
reappears. Trailer towing* Parktronic is deactivated for the rear area
when you establish an electrical connection
between your vehicle and a trailer.
!
Remove the detachable trailer coupling if
it is no longer required. Parktronic meas-
ures the minimum detection range to an
obstacle from the bumper, not the ball cou-
pling. Reversing camera*
The reversing camera is an optical aid. It
shows the area behind your vehicle in the
COMAND APS display. G
Risk of injury
Make sure that no persons or animals are
in the manoeuvring range. Otherwise, they
could be injured.
The reversing camera is located in the handle
strip of the boot lid. 1
Reversing camera
View through the camera The area behind the vehicle is displayed in a
mirrored fashion, as in the rear-view mirror.
G
Risk of accident
The reversing camera is only an aid and may
display obstacles in a distorted manner,
incorrectly or even not display them at all.
The reversing camera does not relieve you
of the responsibility to pay attention. The
camera cannot show objects:
R that are very close to the rear bumper.
R that are underneath the rear bumper.
R above the tailgate handle. Controls
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 167 ZDateiname: 6515_4293_02_buchblock.pdf; preflight
