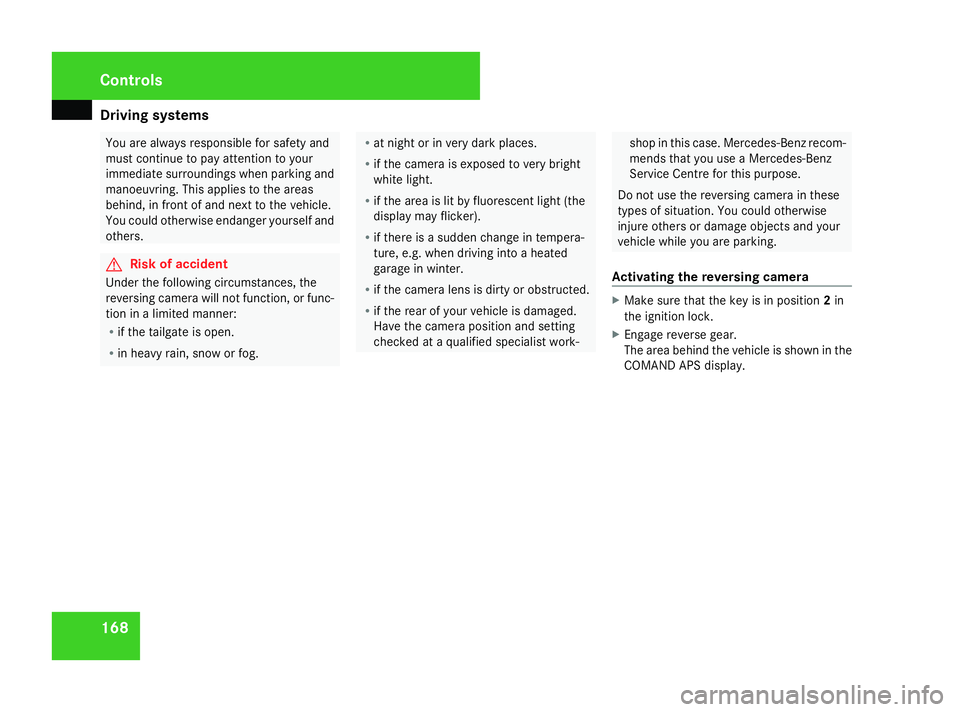

Driving sys
tems 168 You are always responsible for safety and
must continue to pay attention to your
immediate surroundings when parking and
manoeuvring. This applies to the areas
behind, in front of and next to the vehicle.
You could otherwise endanger yourself and
others. G
Risk of accident
Under the following circumstances, the
reversing camera will not function, or func-
tion in a limited manner:
R if the tailgate is open.
R in heavy rain, snow or fog. R
at night or in very dark places.
R if the camera is exposed to very bright
white light.
R if the area is lit by fluorescent light (the
display may flicker).
R if there is a sudden change in tempera-
ture, e.g. when driving into a heated
garage in winter.
R if the camera lens is dirty or obstructed.
R if the rear of your vehicle is damaged.
Have the camera position and setting
checked at a qualified specialist work- shop in this case. Mercedes-Benz recom-
mends that you use a Mercedes-Benz
Service Centre for this purpose.
Do not use the reversing camera in these
types of situation. You could otherwise
injure others or damage objects and your
vehicle while you are parking.
Activating the reversing camera X
Make sure that the key is in position 2in
the ignition lock.
X Engage reverse gear.
The area behind the vehicle is shown in the
COMAND APS display. Controls
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 168 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Air conditioning
169Air conditioning

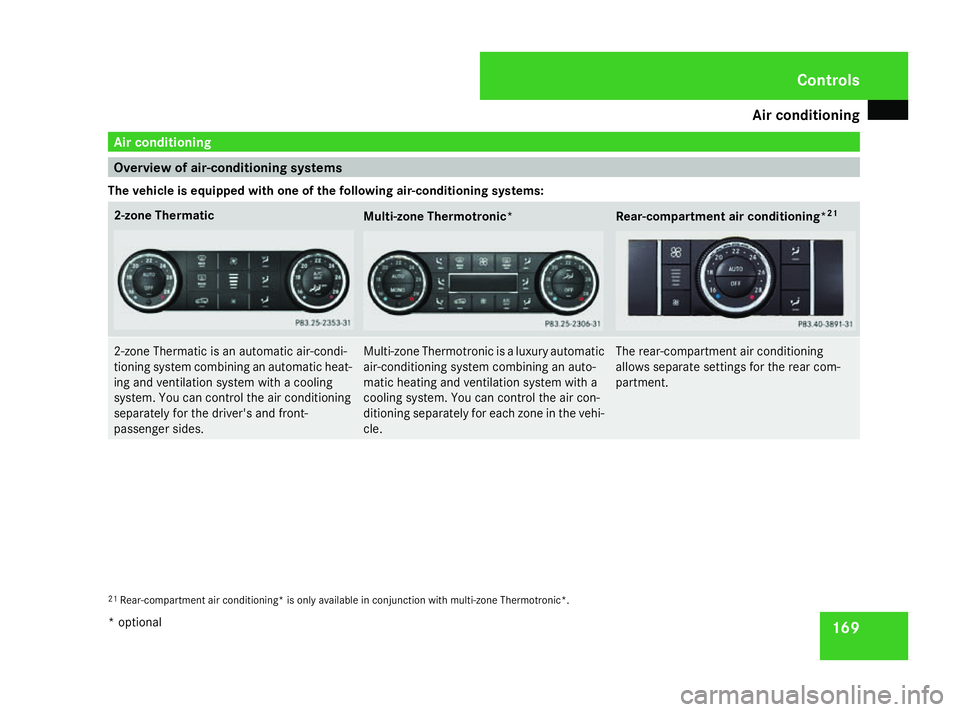

Overview of air-conditioning systems
The vehicle is equipped with one of the following air-conditioning systems: 2-zone Thermatic
Multi-zone Thermotronic* Rear-compartment air conditioning*
212-zone Thermatic is an automatic air-condi-
tioning system combining an automatic heat-
ing and ventilation system with a cooling
system. You can control the air conditioning
separately for the driver's and front-
passenger sides. Multi-zone Thermotronic is a luxury automatic
air-conditioning system combining an auto-
matic heating and ventilation system with a
cooling system. You can control the air con-
ditioning separately for each zone in the vehi-
cle. The rear-compartment air conditioning
allows separate settings for the rear com-
partment.
21
Rear-compartment air conditioning* is only available in conjunction with multi-zone Thermotronic*. Cont
rols
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 169 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Air conditioning

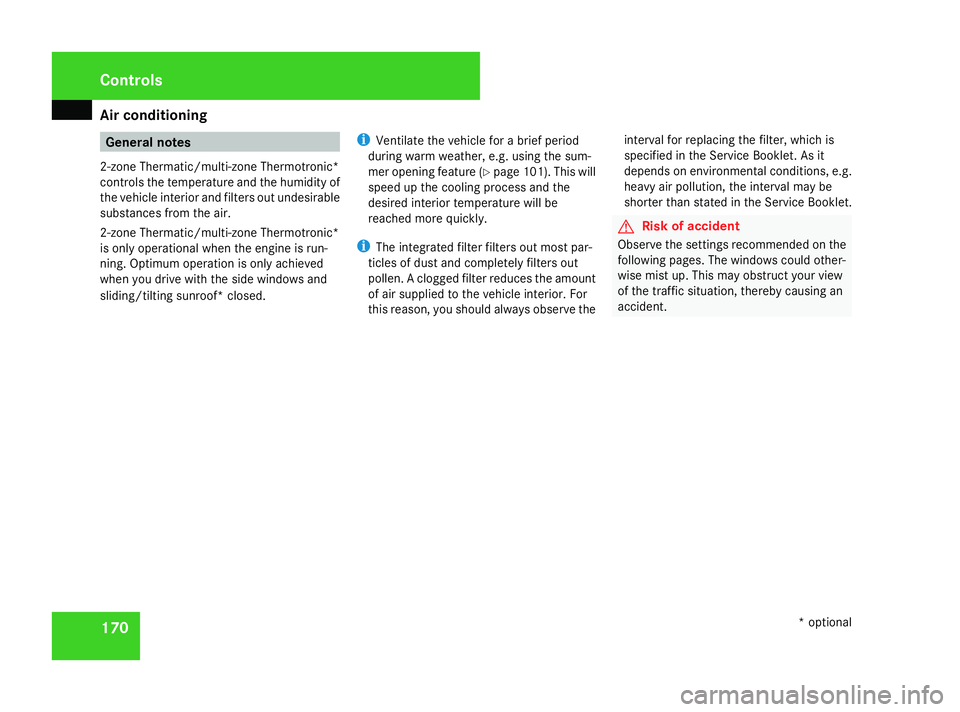

170 General notes
2-zone Thermatic/multi-zone Thermotronic*
controls the temperature and the humidity of
the vehicle interior and filters out undesirable
substances from the air.
2-zone Thermatic/multi-zone Thermotronic*
is only operational when the engine is run-
ning. Optimum operation is only achieved
when you drive with the side windows and
sliding/tilting sunroof* closed. i
Ventilate the vehicle for a brief period
during warm weather, e.g. using the sum-
mer opening feature (Y page 101). This will
speed up the cooling process and the
desired interior temperature will be
reached more quickly.
i The integrated filter filters out most par-
ticles of dust and completely filters out
pollen. A clogged filter reduces the amount
of air supplied to the vehicle interior. For
this reason, you should always observe the interval for replacing the filter, which is
specified in the Service Booklet. As it
depends on environmental conditions, e.g.
heavy air pollution, the interval may be
shorter than stated in the Service Booklet. G
Risk of accident
Observe the settings recommended on the
following pages. The windows could other-
wise mist up. This may obstruct your view
of the traffic situation, thereby causing an
accident. Cont
rols
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 170 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Air conditioning

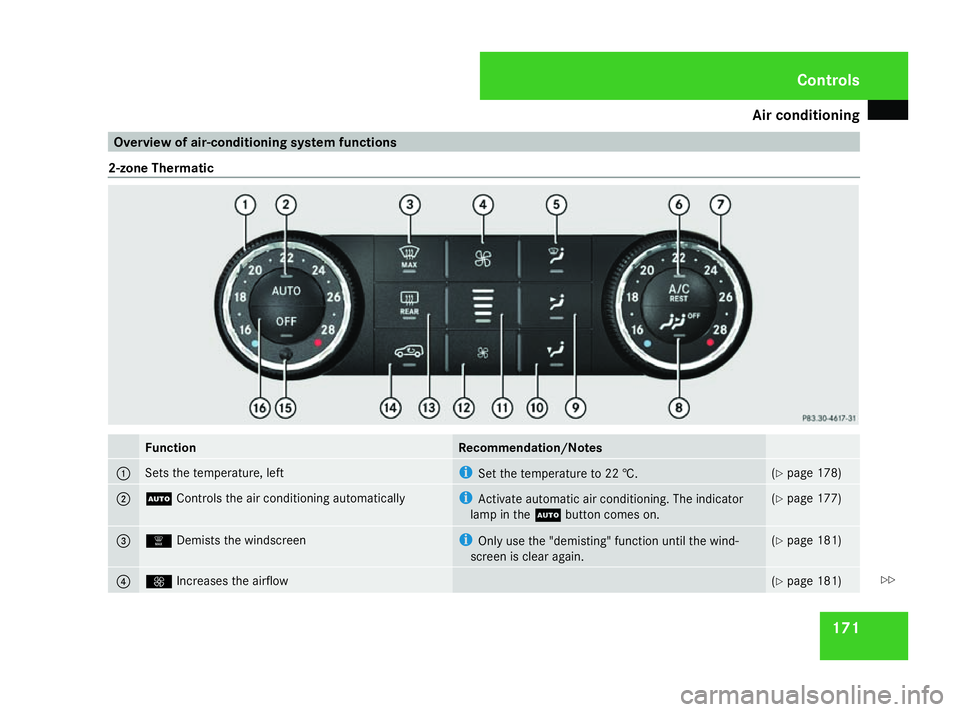

171Overview of air-conditioning system functions
2-zone Thermatic Function Recommendation/Notes
1 Sets the temperature, left i
Set the temperature to 22 †. (Y
page 178) 2 U
Controls the air conditioning automatically i
Activate automatic air conditioning. The indicator
lamp in the Ubutton comes on. (Y
page 177) 3 |
Demists the windscreen i
Only use the "demisting" function until the wind-
screen is clear again. (Y
page 181) 4 Q
Increases the airflow (Y
page 181) Cont
rols
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 171 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Air conditioning

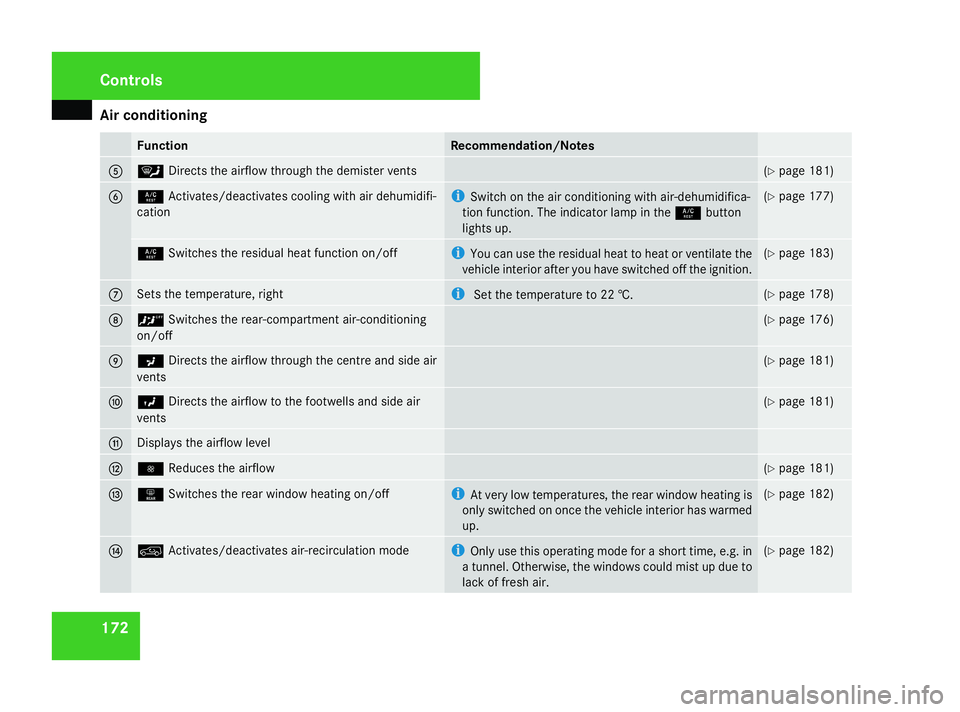

172 Function Recommendation/Notes
5 {
Directs the airflow through the demister vents (Y
page 181) 6 9
Activates/deactivates cooling with air dehumidifi-
cation i
Switch on the air conditioning with air-dehumidifica-
tion function. The indicator lamp in the 9button
lights up. (Y
page 177) 9
Switches the residual heat function on/off i
You can use the residual heat to heat or ventilate the
vehicle interior after you have switched off the ignition. (Y
page 183) 7 Sets the temperature, right i
Set the temperature to 22 †. (Y
page 178) 8 <
Switches the rear-compartment air-conditioning
on/off (Y
page 176) 9 a
Directs the airflow through the centre and side air
vents (Y
page 181) a Y
Directs the airflow to the footwells and side air
vents (Y
page 181) b Displays the airflow level
c ·
Reduces the airflow (Y
page 181) d 1
Switches the rear window heating on/off i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warmed
up. (Y
page 182) e :
Activates/deactivates air-recirculation mode i
Only use this operating mode for a short time, e.g. in
a tunnel. Otherwise, the windows could mist up due to
lack of fresh air. (Y
page 182) Cont
rols
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 172 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Air conditioning

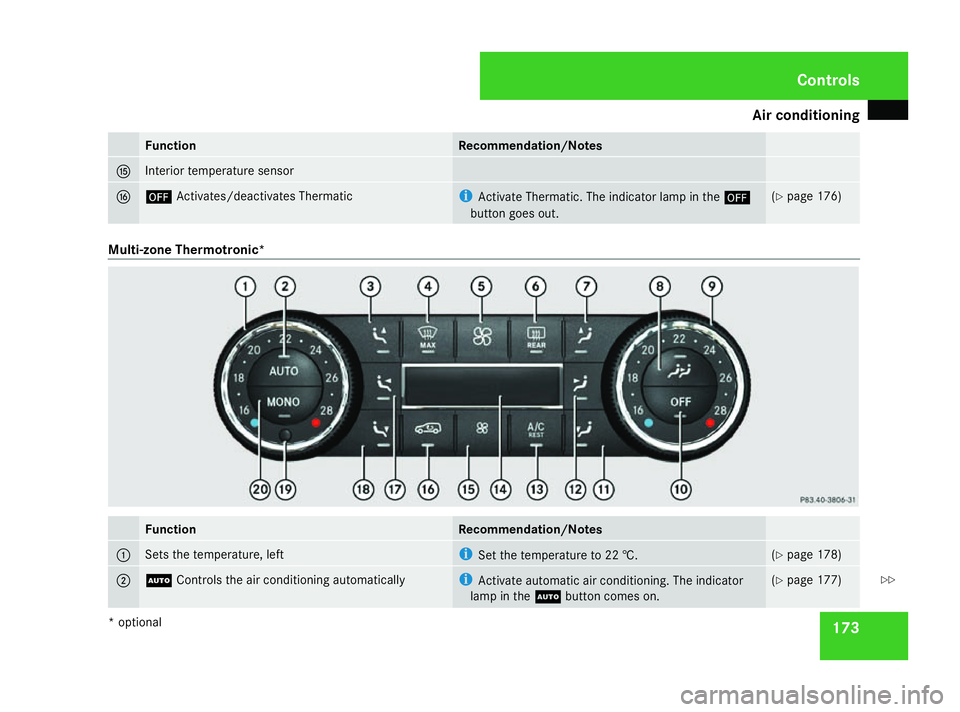

173Function Recommendation/Notes
f Interior temperature sensor
g ´
Activates/deactivates Thermatic i
Activate Thermatic. The indicator lamp in the ´
button goes out. (Y
page 176) Multi-zone Thermotronic*
Function Recommendation/Notes
1 Sets the temperature, left i
Set the temperature to 22 †. (Y
page 178) 2 U
Controls the air conditioning automatically i
Activate automatic air conditioning. The indicator
lamp in the Ubutton comes on. (Y
page 177) Cont
rols
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 173 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Air conditioning

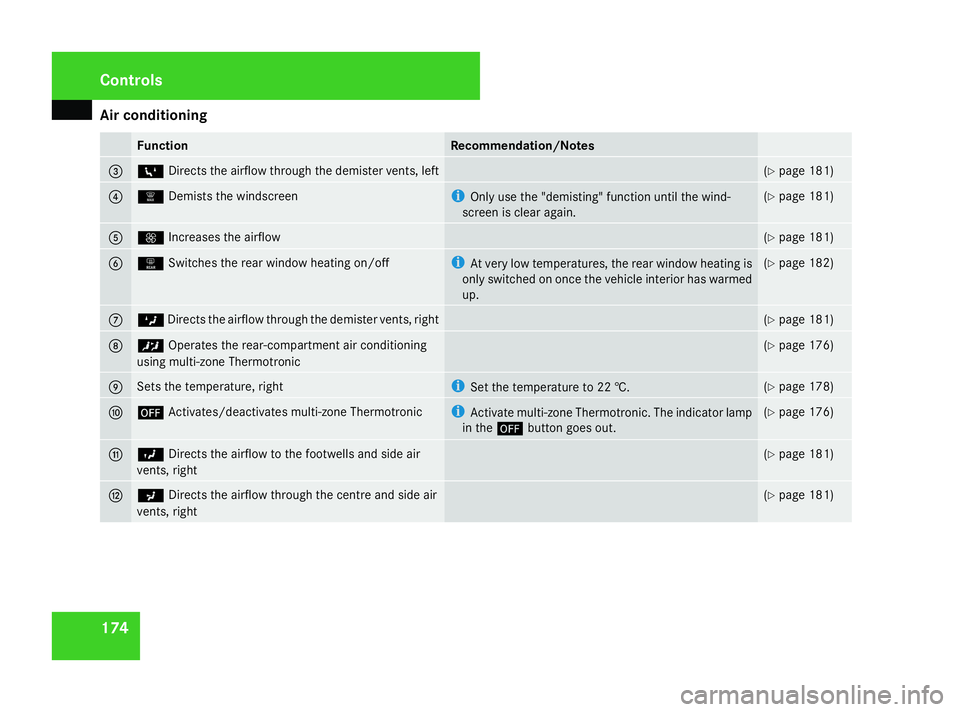

174 Function Recommendation/Notes
3 6
Directs the airflow through the demister vents, left (Y
page 181) 4 |
Demists the windscreen i
Only use the "demisting" function until the wind-
screen is clear again. (Y
page 181) 5 Q
Increases the airflow (Y
page 181) 6 1
Switches the rear window heating on/off i
At very low temperatures, the rear window heating is
only switched on once the vehicle interior has warmed
up. (Y
page 182) 7 Z
Directs the airflow through the demister vents, right (Y
page 181) 8 ™
Operates the rear-compartment air conditioning
using multi-zone Thermotronic (Y
page 176) 9 Sets the temperature, right i
Set the temperature to 22 †. (Y
page 178) a ´
Activates/deactivates multi-zone Thermotronic i
Activate multi-zone Thermotronic. The indicator lamp
in the ´button goes out. (Y
page 176) b Y
Directs the airflow to the footwells and side air
vents, right (Y
page 181) c a
Directs the airflow through the centre and side air
vents, right (Y
page 181) Cont
rols
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 174 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Air conditioning

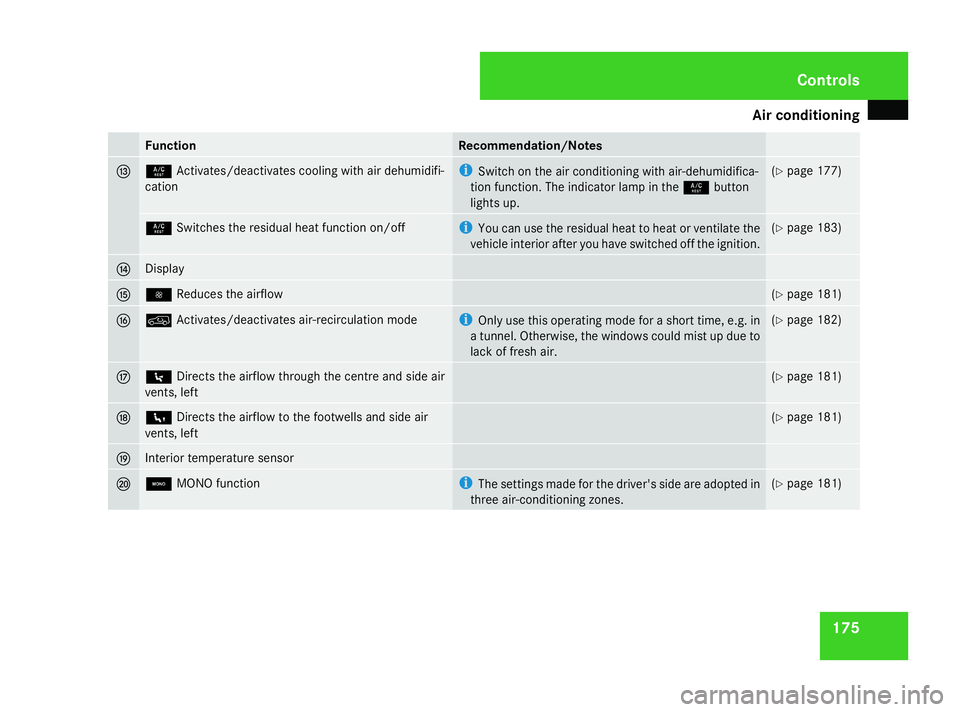

175Function Recommendation/Notes
d 9
Activates/deactivates cooling with air dehumidifi-
cation i
Switch on the air conditioning with air-dehumidifica-
tion function. The indicator lamp in the 9button
lights up. (Y
page 177) 9
Switches the residual heat function on/off i
You can use the residual heat to heat or ventilate the
vehicle interior after you have switched off the ignition. (Y
page 183) e Display
f ·
Reduces the airflow (Y
page 181) g :
Activates/deactivates air-recirculation mode i
Only use this operating mode for a short time, e.g. in
a tunnel. Otherwise, the windows could mist up due to
lack of fresh air. (Y
page 182) h 7
Directs the airflow through the centre and side air
vents, left (Y
page 181) j 8
Directs the airflow to the footwells and side air
vents, left (Y
page 181) k Interior temperature sensor
l ;
MONO function i
The settings made for the driver's side are adopted in
three air-conditioning zones. (Y
page 181) Cont
rols
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 175 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

Air conditioning
176

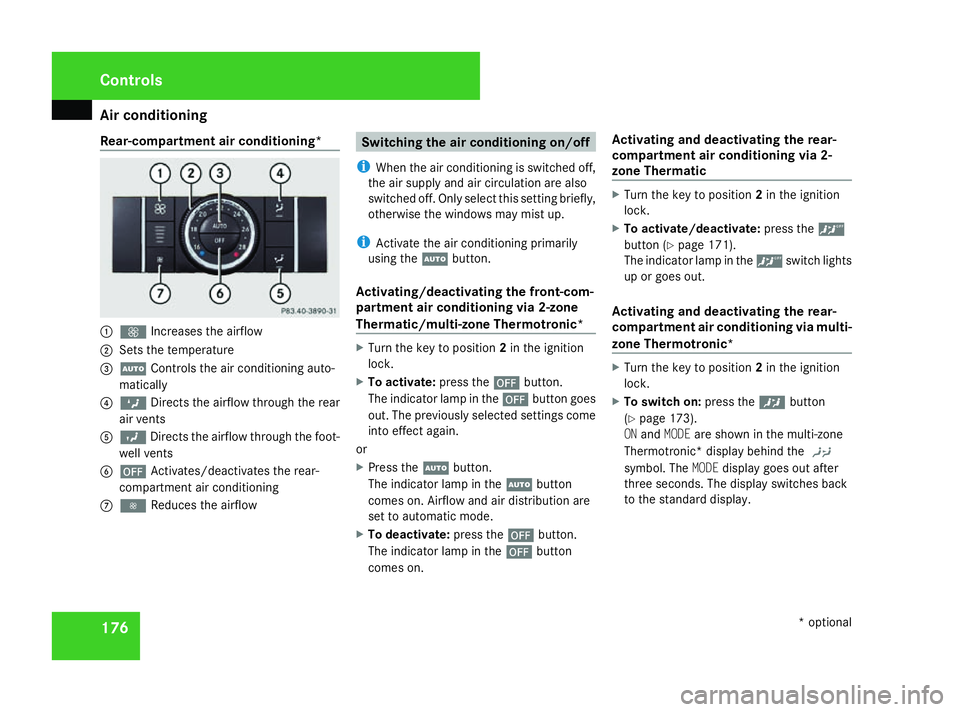

Rear-compartment air conditioning*
1
Q Increases the airflow
2 Sets the temperature
3 U Controls the air conditioning auto-
matically
4 Z Directs the airflow through the rear
air vents
5 Y Directs the airflow through the foot-
well vents
6 ´ Activates/deactivates the rear-
compartment air conditioning
7 · Reduces the airflow Switching the air conditioning on/off
i When the air conditioning is switched off,
the air supply and air circulation are also
switched off. Only select this setting briefly,
otherwise the windows may mist up.
i Activate the air conditioning primarily
using the Ubutton.
Activating/deactivating the front-com-
partment air conditioning via 2-zone
Thermatic/multi-zone Thermotronic* X
Turn the key to position 2in the ignition
lock.
X To activate: press the´button.
The indicator lamp in the ´button goes
out. The previously selected settings come
into effect again.
or
X Press the Ubutton.
The indicator lamp in the Ubutton
comes on. Airflow and air distribution are
set to automatic mode.
X To deactivate: press the´button.
The indicator lamp in the ´button
comes on. Activating and deactivating the rear-
compartment air conditioning via 2-
zone Thermatic X
Turn the key to position 2in the ignition
lock.
X To activate/deactivate: press the<
button (Y page 171).
The indicator lamp in the up or goes out.
Activating and deactivating the rear-
compartment air conditioning via multi-
zone Thermotronic* X
Turn the key to position 2in the ignition
lock.
X To switch on: press the™button
(Y page 173).
ON and MODE are shown in the multi-zone
Thermotronic* display behind the )
symbol. The MODEdisplay goes out after
three seconds. The display switches back
to the standard display. Cont
rols
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 176 Dateiname: 6515_4293_02_buchblock.pdf; preflight

Air conditioning
177

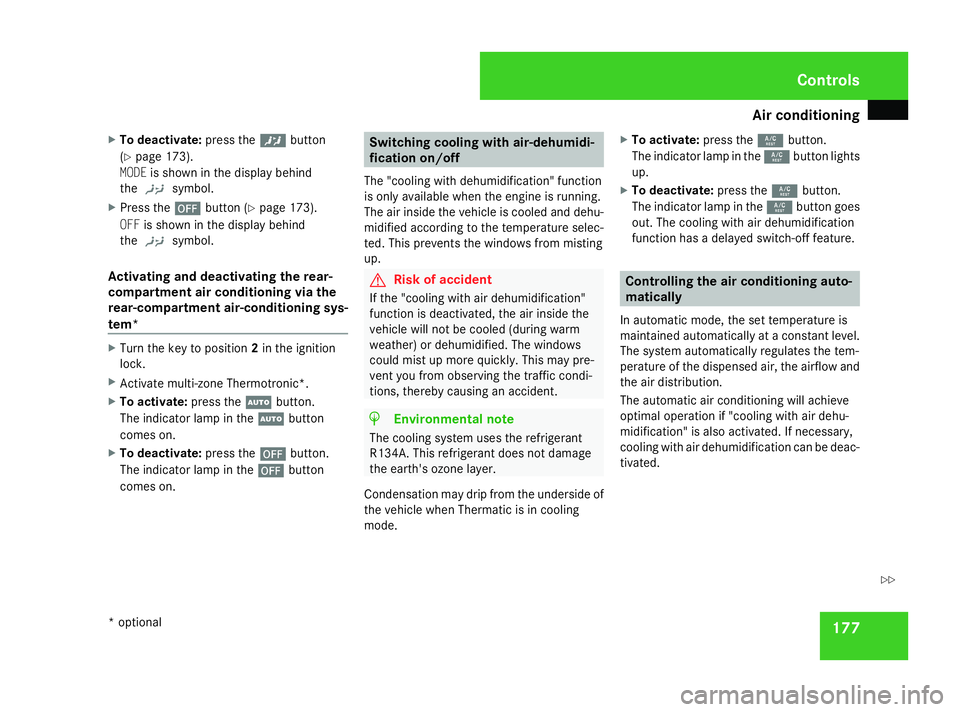

X
To deactivate: press the™button
(Y page 173).
MODE is shown in the display behind
the ) symbol.
X Press the ´button (Y page 173).
OFF is shown in the display behind
the ) symbol.
Activating and deactivating the rear-
compartment air conditioning via the
rear-compartment air-conditioning sys-
tem* X
Turn the key to position 2in the ignition
lock.
X Activate multi-zone Thermotronic*.
X To activate: press theUbutton.
The indicator lamp in the Ubutton
comes on.
X To deactivate: press the´button.
The indicator lamp in the ´button
comes on. Switching cooling with air-dehumidi-
fication on/off
The "cooling with dehumidification" function
is only available when the engine is running.
The air inside the vehicle is cooled and dehu-
midified according to the temperature selec-
ted. This prevents the windows from misting
up. G
Risk of accident
If the "cooling with air dehumidification"
function is deactivated, the air inside the
vehicle will not be cooled (during warm
weather) or dehumidified. The windows
could mist up more quickly. This may pre-
vent you from observing the traffic condi-
tions, thereby causing an accident. H
Environmental note
The cooling system uses the refrigerant
R134A. This refrigerant does not damage
the earth's ozone layer.
Condensation may drip from the underside of
the vehicle when Thermatic is in cooling
mode. X
To activate: press the9button.
The indicator lamp in the 9button lights
up.
X To deactivate: press the9button.
The indicator lamp in the 9button goes
out. The cooling with air dehumidification
function has a delayed switch-off feature. Controlling the air conditioning auto-
matically
In automatic mode, the set temperature is
maintained automatically at a constant level.
The system automatically regulates the tem-
perature of the dispensed air, the airflow and
the air distribution.
The automatic air conditioning will achieve
optimal operation if "cooling with air dehu-
midification" is also activated. If necessary,
cooling with air dehumidification can be deac-
tivated. Cont
rols
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 177 ZDateiname: 6515_4293_02_buchblock.pdf; preflight
