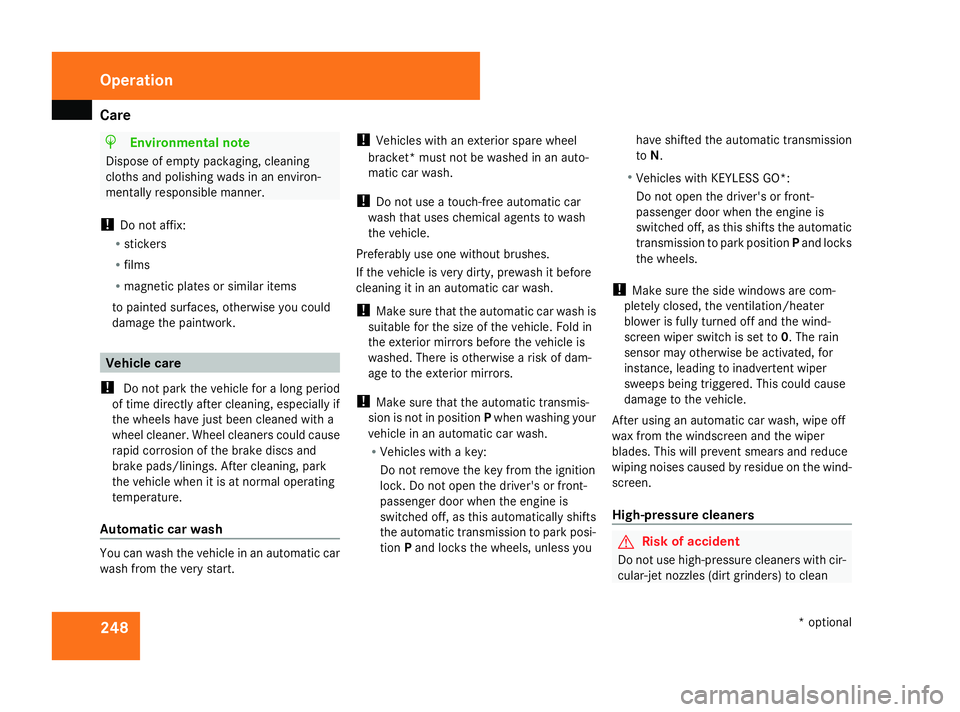

Page 251 of 381

Care
248 H
Environmental note
Dispose of empty packaging, cleaning
cloths and polishing wads in an environ-
mentally responsible manner.
! Do not affix:
R stickers
R films
R magnetic plates or similar items
to painted surfaces, otherwise you could
damage the paintwork. Vehicle care
! Do not park the vehicle for a long period
of time directly after cleaning, especially if
the wheels have just been cleaned with a
wheel cleaner. Wheel cleaners could cause
rapid corrosion of the brake discs and
brake pads/linings. After cleaning, park
the vehicle when it is at normal operating
temperature.
Automatic car wash You can wash the vehicle in an automatic car
wash from the very start. !
Vehicles with an exterior spare wheel
bracket* must not be washed in an auto-
matic car wash.
! Do not use a touch-free automatic car
wash that uses chemical agents to wash
the vehicle.
Preferably use one without brushes.
If the vehicle is very dirty, prewash it before
cleaning it in an automatic car wash.
! Make sure that the automatic car wash is
suitable for the size of the vehicle. Fold in
the exterior mirrors before the vehicle is
washed. There is otherwise a risk of dam-
age to the exterior mirrors.
! Make sure that the automatic transmis-
sion is not in position Pwhen washing your
vehicle in an automatic car wash.
R Vehicles with a key:
Do not remove the key from the ignition
lock. Do not open the driver's or front-
passenger door when the engine is
switched off, as this automatically shifts
the automatic transmission to park posi-
tion Pand locks the wheels, unless you have shifted the automatic transmission
to
N.
R Vehicles with KEYLESS GO*:
Do not open the driver's or front-
passenger door when the engine is
switched off, as this shifts the automatic
transmission to park position Pand locks
the wheels.
! Make sure the side windows are com-
pletely closed, the ventilation/heater
blower is fully turned off and the wind-
screen wiper switch is set to 0. The rain
sensor may otherwise be activated, for
instance, leading to inadvertent wiper
sweeps being triggered. This could cause
damage to the vehicle.
After using an automatic car wash, wipe off
wax from the windscreen and the wiper
blades. This will prevent smears and reduce
wiping noises caused by residue on the wind-
screen.
High-pressure cleaners G
Risk of accident
Do not use high-pressure cleaners with cir-
cular-jet nozzles (dirt grinders) to clean Operation
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 248Dateiname: 6515_4293_02_buchblock.pdf; preflight

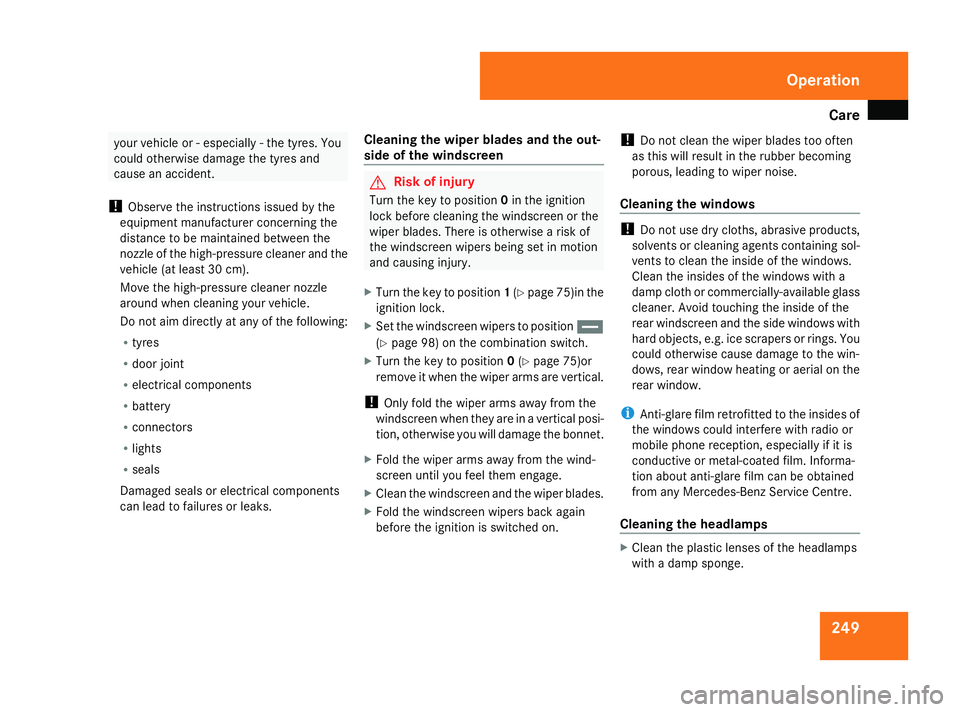

Page 252 of 381

Care
249your vehicle or - especially - the tyres. You
could otherwise damage the tyres and
cause an accident.
! Observe the instructions issued by the
equipment manufacturer concerning the
distance to be maintained between the
nozzle of the high-pressure cleaner and the
vehicle (at least 30 cm).
Move the high-pressure cleaner nozzle
around when cleaning your vehicle.
Do not aim directly at any of the following:
R tyres
R door joint
R electrical components
R battery
R connectors
R lights
R seals
Damaged seals or electrical components
can lead to failures or leaks. Cleaning the wiper blades and the out-
side of the windscreen G
Risk of injury
Turn the key to position 0in the ignition
lock before cleaning the windscreen or the
wiper blades. There is otherwise a risk of
the windscreen wipers being set in motion
and causing injury.
X Turn the key to position 1(Y page 75)in the
ignition lock.
X Set the windscreen wipers to position u
(Y page 98) on the combination switch.
X Turn the key to position 0(Y page 75)or
remove it when the wiper arms are vertical.
! Only fold the wiper arms away from the
windscreen when they are in a vertical posi-
tion, otherwise you will damage the bonnet.
X Fold the wiper arms away from the wind-
screen until you feel them engage.
X Clean the windscreen and the wiper blades.
X Fold the windscreen wipers back again
before the ignition is switched on. !
Do not clean the wiper blades too often
as this will result in the rubber becoming
porous, leading to wiper noise.
Cleaning the windows !
Do not use dry cloths, abrasive products,
solvents or cleaning agents containing sol-
vents to clean the inside of the windows.
Clean the insides of the windows with a
damp cloth or commercially-available glass
cleaner. Avoid touching the inside of the
rear windscreen and the side windows with
hard objects, e.g. ice scrapers or rings. You
could otherwise cause damage to the win-
dows, rear window heating or aerial on the
rear window.
i Anti-glare film retrofitted to the insides of
the windows could interfere with radio or
mobile phone reception, especially if it is
conductive or metal-coated film. Informa-
tion about anti-glare film can be obtained
from any Mercedes-Benz Service Centre.
Cleaning the headlamps X
Clean the plastic lenses of the headlamps
with a damp sponge. Operation
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 249 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

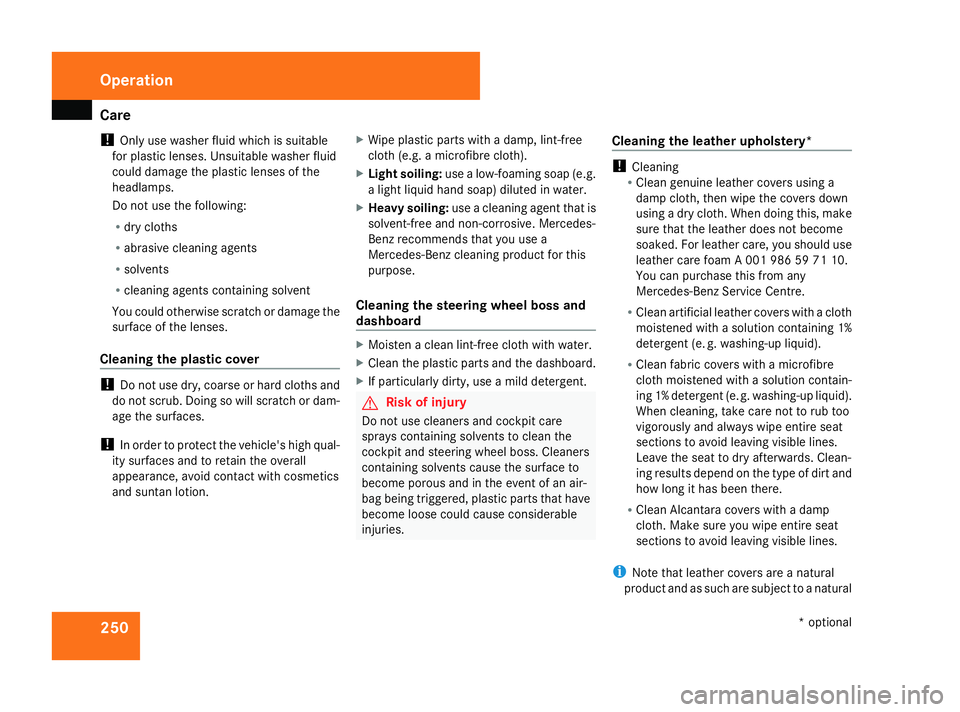

Page 253 of 381

Care
250
!
Only use washer fluid which is suitable
for plastic lenses. Unsuitable washer fluid
could damage the plastic lenses of the
headlamps.
Do not use the following:
R dry cloths
R abrasive cleaning agents
R solvents
R cleaning agents containing solvent
You could otherwise scratch or damage the
surface of the lenses.
Cleaning the plastic cover !
Do not use dry, coarse or hard cloths and
do not scrub. Doing so will scratch or dam-
age the surfaces.
! In order to protect the vehicle's high qual-
ity surfaces and to retain the overall
appearance, avoid contact with cosmetics
and suntan lotion. X
Wipe plastic parts with a damp, lint-free
cloth (e.g. a microfibre cloth).
X Light soiling: use a low-foaming soap (e.g.
a light liquid hand soap) diluted in water.
X Heavy soiling: use a cleaning agent that is
solvent-free and non-corrosive. Mercedes-
Benz recommends that you use a
Mercedes-Benz cleaning product for this
purpose.
Cleaning the steering wheel boss and
dashboard X
Moisten a clean lint-free cloth with water.
X Clean the plastic parts and the dashboard.
X If particularly dirty, use a mild detergent. G
Risk of injury
Do not use cleaners and cockpit care
sprays containing solvents to clean the
cockpit and steering wheel boss. Cleaners
containing solvents cause the surface to
become porous and in the event of an air-
bag being triggered, plastic parts that have
become loose could cause considerable
injuries. Cleaning the leather upholstery* !
Cleaning
R Clean genuine leather covers using a
damp cloth, then wipe the covers down
using a dry cloth. When doing this, make
sure that the leather does not become
soaked. For leather care, you should use
leather care foam A 001 986 59 71 10.
You can purchase this from any
Mercedes-Benz Service Centre.
R Clean artificial leather covers with a cloth
moistened with a solution containing 1%
detergent (e. g. washing-up liquid).
R Clean fabric covers with a microfibre
cloth moistened with a solution contain-
ing 1% detergent (e. g. washing-up liquid).
When cleaning, take care not to rub too
vigorously and always wipe entire seat
sections to avoid leaving visible lines.
Leave the seat to dry afterwards. Clean-
ing results depend on the type of dirt and
how long it has been there.
R Clean Alcantara covers with a damp
cloth. Make sure you wipe entire seat
sections to avoid leaving visible lines.
i Note that leather covers are a natural
product and as such are subject to a natural Operation
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 250Dateiname: 6515_4293_02_buchblock.pdf; preflight

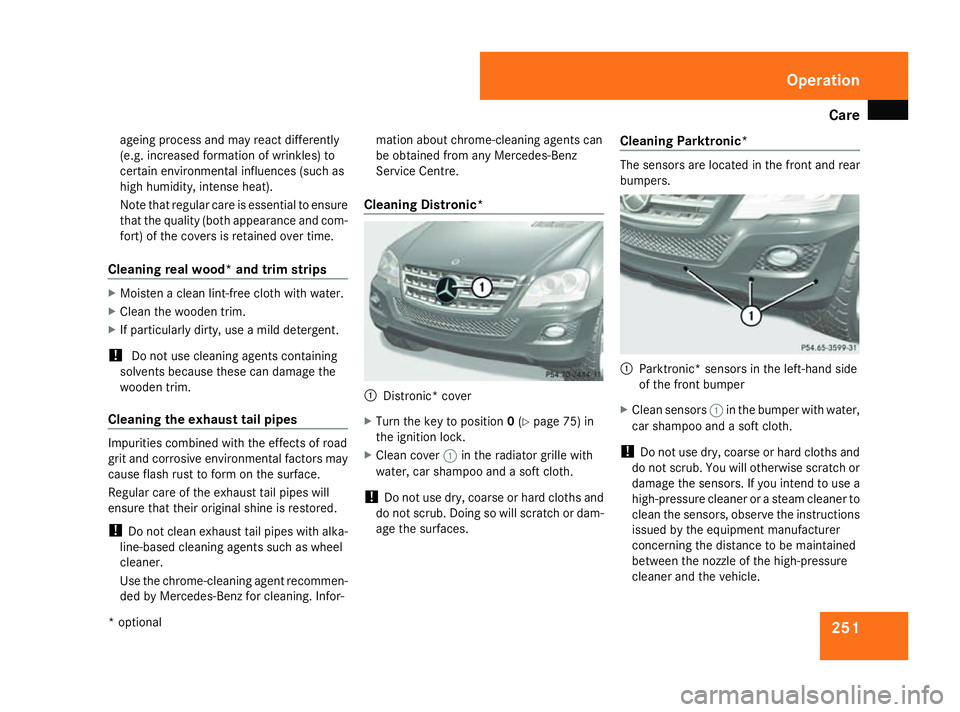

Page 254 of 381

Care
251
ageing process and may react differently
(e.g. increased formation of wrinkles) to
certain environmental influences (such as
high humidity, intense heat).
Note that regular care is essential to ensure
that the quality (both appearance and com-
fort) of the covers is retained over time.
Cleaning real wood* and trim strips X
Moisten a clean lint-free cloth with water.
X Clean the wooden trim.
X If particularly dirty, use a mild detergent.
! Do not use cleaning agents containing
solvents because these can damage the
wooden trim.
Cleaning the exhaust tail pipes Impurities combined with the effects of road
grit and corrosive environmental factors may
cause flash rust to form on the surface.
Regular care of the exhaust tail pipes will
ensure that their original shine is restored.
! Do not clean exhaust tail pipes with alka-
line-based cleaning agents such as wheel
cleaner.
Use the chrome-cleaning agent recommen-
ded by Mercedes-Benz for cleaning. Infor- mation about chrome-cleaning agents can
be obtained from any Mercedes-Benz
Service Centre.
Cleaning Distronic* 1
Distronic* cover
X Turn the key to position 0(Y page 75) in
the ignition lock.
X Clean cover 1in the radiator grille with
water, car shampoo and a soft cloth.
! Do not use dry, coarse or hard cloths and
do not scrub. Doing so will scratch or dam-
age the surfaces. Cleaning Parktronic* The sensors are located in the front and rear
bumpers.
1
Parktronic* sensors in the left-hand side
of the front bumper
X Clean sensors 1in the bumper with water,
car shampoo and a soft cloth.
! Do not use dry, coarse or hard cloths and
do not scrub. You will otherwise scratch or
damage the sensors. If you intend to use a
high-pressure cleaner or a steam cleaner to
clean the sensors, observe the instructions
issued by the equipment manufacturer
concerning the distance to be maintained
between the nozzle of the high-pressure
cleaner and the vehicle. Operation
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 251 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

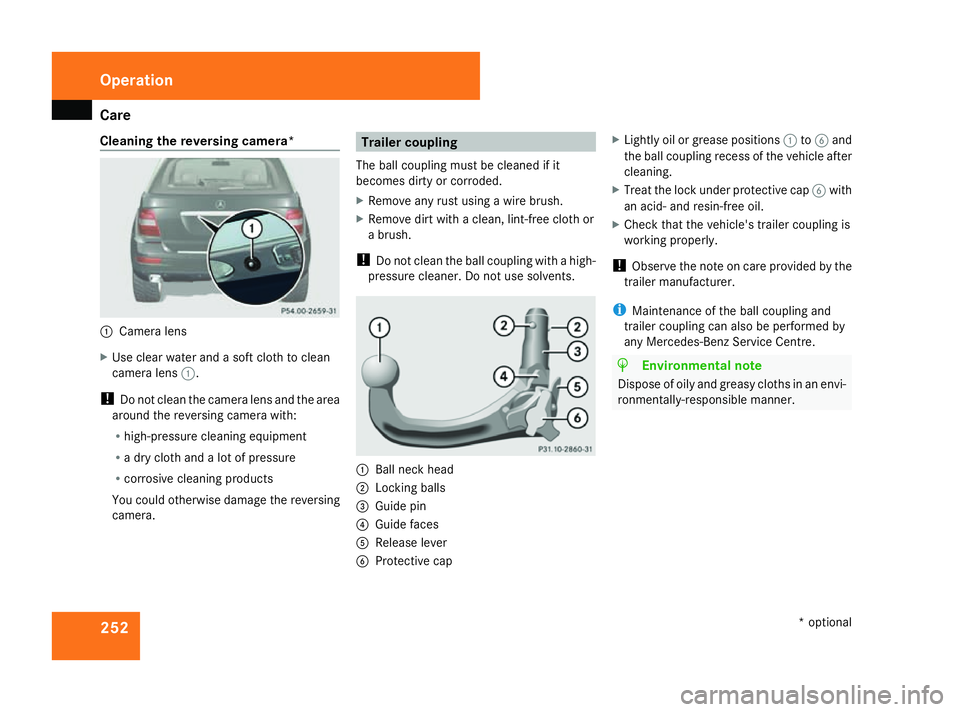

Page 255 of 381

Care
252
Cleaning the reversing camera*
1
Camera lens
X Use clear water and a soft cloth to clean
camera lens 1.
! Do not clean the camera lens and the area
around the reversing camera with:
R high-pressure cleaning equipment
R a dry cloth and a lot of pressure
R corrosive cleaning products
You could otherwise damage the reversing
camera. Trailer coupling
The ball coupling must be cleaned if it
becomes dirty or corroded.
X Remove any rust using a wire brush.
X Remove dirt with a clean, lint-free cloth or
a brush.
! Do not clean the ball coupling with a high-
pressure cleaner. Do not use solvents. 1
Ball neck head
2 Locking balls
3 Guide pin
4 Guide faces
5 Release lever
6 Protective cap X
Lightly oil or grease positions 1to6 and
the ball coupling recess of the vehicle after
cleaning.
X Treat the lock under protective cap 6with
an acid- and resin-free oil.
X Check that the vehicle's trailer coupling is
working properly.
! Observe the note on care provided by the
trailer manufacturer.
i Maintenance of the ball coupling and
trailer coupling can also be performed by
any Mercedes-Benz Service Centre. H
Environmental note
Dispose of oily and greasy cloths in an envi-
ronmentally-responsible manner. Operation
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 252Dateiname: 6515_4293_02_buchblock.pdf; preflight
Page 256 of 381

253

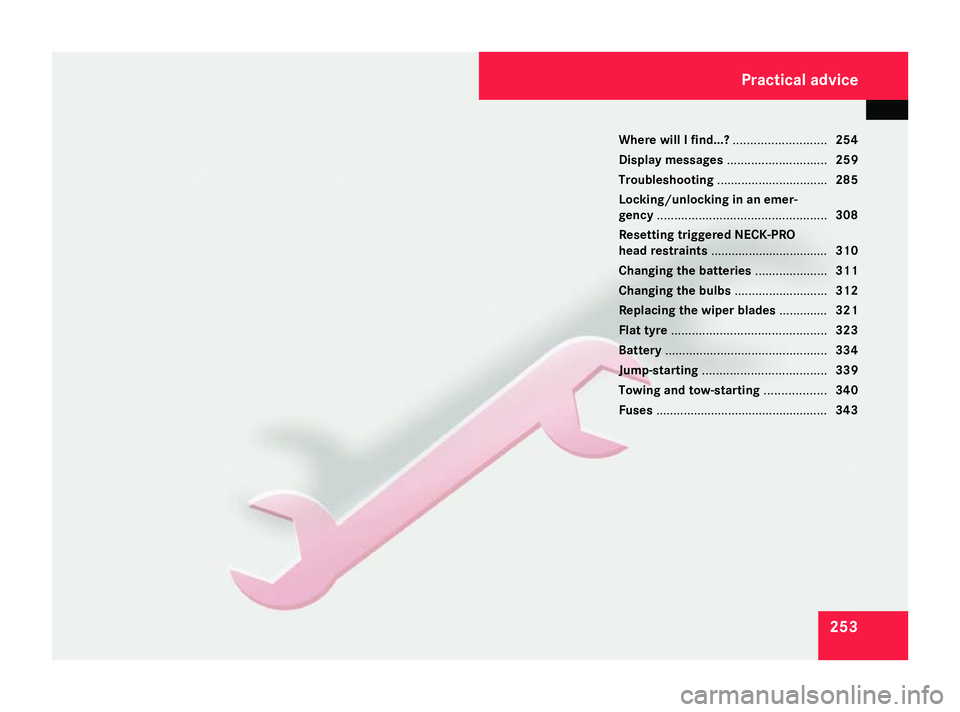

Where will I find...?
...........................254
Display messages ............................. 259
Troubleshooting ................................ 285
Locking/unlocking in an emer-
gency ................................................. 308
Resetting triggered NECK-PRO
head restraints .................................. 310
Changing the batteries .....................311
Changing the bulbs ...........................312
Replacing the wiper blades ..............321
Flat tyre ............................................. 323
Battery ............................................... 334
Jump-starting .................................... 339
Towing and tow-starting ..................340
Fuses .................................................. 343 Practical advice
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 253 Dateiname: 6515_4293_02_buchblock.pdf; preflight
Page 257 of 381

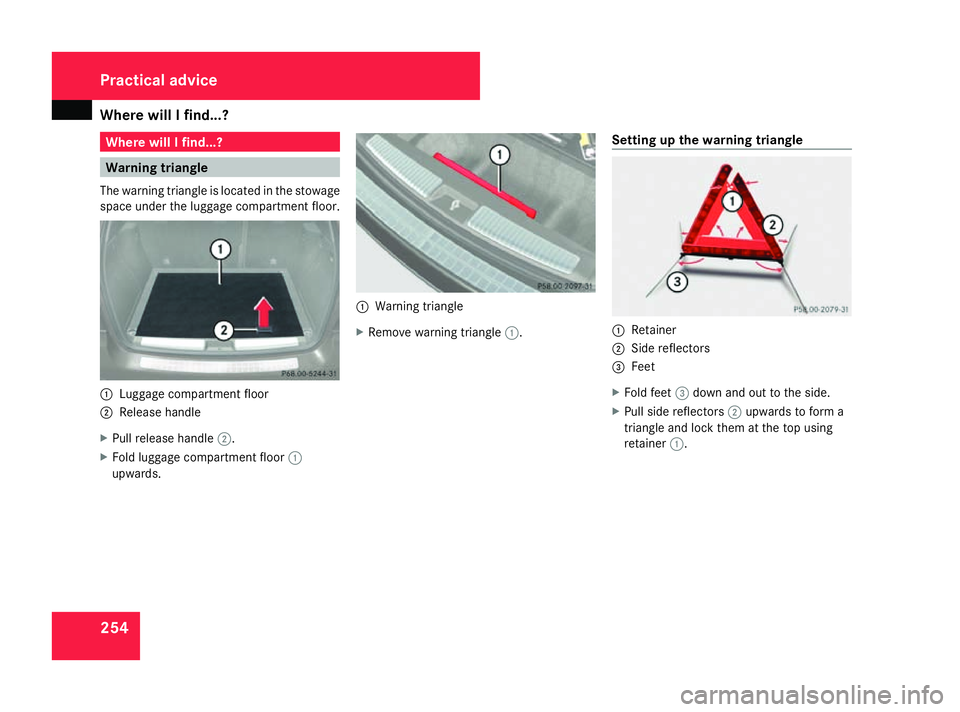

Where will I find...?
254 Where will I find...?
Warning triangle
The warning triangle is located in the stowage
space under the luggage compartment floor. 1
Luggage compartment floor
2 Release handle
X Pull release handle 2.
X Fold luggage compartment floor 1
upwards. 1
Warning triangle
X Remove warning triangle 1.Setting up the warning triangle 1
Retainer
2 Side reflectors
3 Feet
X Fold feet 3down and out to the side.
X Pull side reflectors 2upwards to form a
triangle and lock them at the top using
retainer 1. Practical advice
164_AKB; 5; 5, en-GB
wobuchh
, Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 254Dateiname: 6515_4293_02_buchblock.pdf; preflight
Page 258 of 381

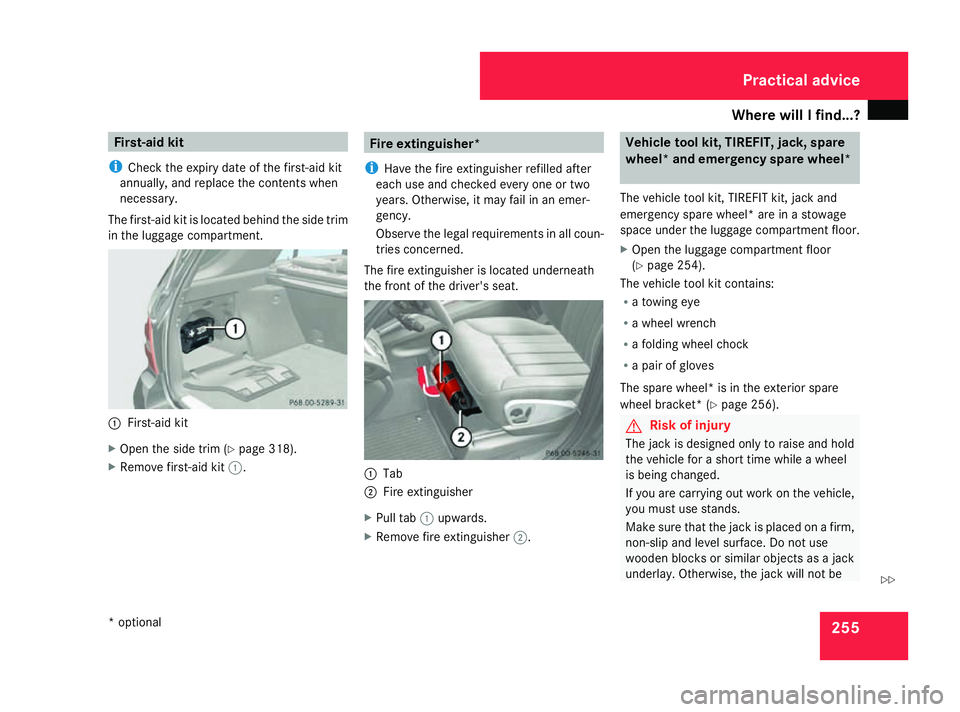

Where will I find...?
255First-aid kit
i Check the expiry date of the first-aid kit
annually, and replace the contents when
necessary.
The first-aid kit is located behind the side trim
in the luggage compartment. 1
First-aid kit
X Open the side trim (Y page 318).
X Remove first-aid kit 1. Fire extinguisher*
i Have the fire extinguisher refilled after
each use and checked every one or two
years. Otherwise, it may fail in an emer-
gency.
Observe the legal requirements in all coun-
tries concerned.
The fire extinguisher is located underneath
the front of the driver's seat. 1
Tab
2 Fire extinguisher
X Pull tab 1upwards.
X Remove fire extinguisher 2. Vehicle tool kit, TIREFIT, jack, spare
wheel* and emergency spare wheel*
The vehicle tool kit, TIREFIT kit, jack and
emergency spare wheel* are in a stowage
space under the luggage compartment floor.
X Open the luggage compartment floor
(Y page 254).
The vehicle tool kit contains:
R a towing eye
R a wheel wrench
R a folding wheel chock
R a pair of gloves
The spare wheel* is in the exterior spare
wheel bracket* (Y page 256). G
Risk of injury
The jack is designed only to raise and hold
the vehicle for a short time while a wheel
is being changed.
If you are carrying out work on the vehicle,
you must use stands.
Make sure that the jack is placed on a firm,
non-slip and level surface. Do not use
wooden blocks or similar objects as a jack
underlay. Otherwise, the jack will not be Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 255 ZDateiname: 6515_4293_02_buchblock.pdf; preflight
Page 259 of 381

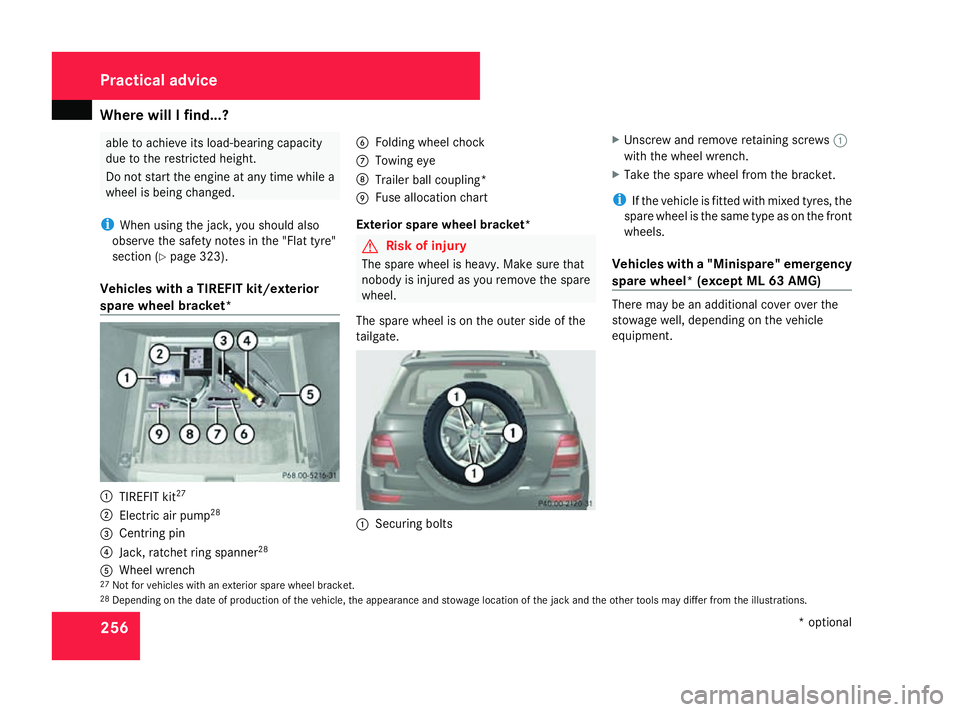

Where will I find...?
256 able to achieve its load-bearing capacity
due to the restricted height.
Do not start the engine at any time while a
wheel is being changed.
i When using the jack, you should also
observe the safety notes in the "Flat tyre"
section (Y page 323).
Vehicles with a TIREFIT kit/exterior
spare wheel bracket* 1
TIREFIT kit 27
2 Electric air pump 28
3 Centring pin
4 Jack, ratchet ring spanner 28
5 Wheel wrench 6
Folding wheel chock
7 Towing eye
8 Trailer ball coupling*
9 Fuse allocation chart
Exterior spare wheel bracket* G
Risk of injury
The spare wheel is heavy. Make sure that
nobody is injured as you remove the spare
wheel.
The spare wheel is on the outer side of the
tailgate. 1
Securing bolts X
Unscrew and remove retaining screws 1
with the wheel wrench.
X Take the spare wheel from the bracket.
i If the vehicle is fitted with mixed tyres, the
spare wheel is the same type as on the front
wheels.
Vehicles with a "Minispare" emergency
spare wheel* (except ML 63 AMG) There may be an additional cover over the
stowage well, depending on the vehicle
equipment.
27 Not for vehicles with an exterior spare wheel bracket.
28 Depending on the date of production of the vehicle, the appearance and stowage location of the jack and the other tools may differ from the illustrations. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 256Dateiname: 6515_4293_02_buchblock.pdf; preflight
Page 260 of 381

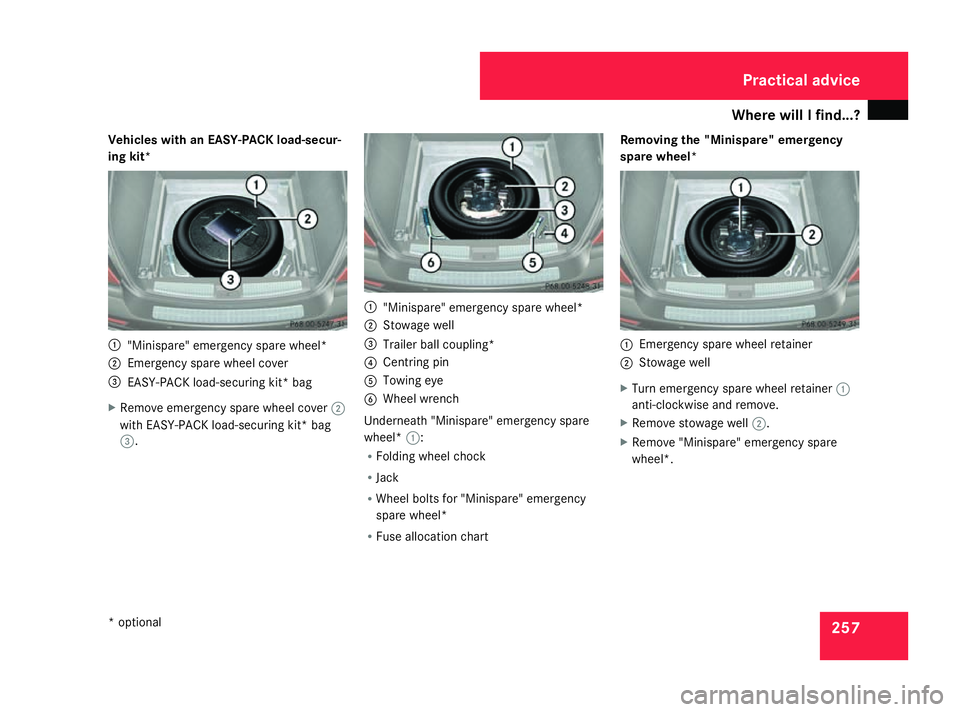

Where will I find...?
257
Vehicles with an EASY-PACK load-secur-
ing kit*
1
"Minispare" emergency spare wheel*
2 Emergency spare wheel cover
3 EASY-PACK load-securing kit* bag
X Remove emergency spare wheel cover 2
with EASY-PACK load-securing kit* bag
3. 1
"Minispare" emergency spare wheel*
2 Stowage well
3 Trailer ball coupling*
4 Centring pin
5 Towing eye
6 Wheel wrench
Underneath "Minispare" emergency spare
wheel* 1:
R Folding wheel chock
R Jack
R Wheel bolts for "Minispare" emergency
spare wheel*
R Fuse allocation chart Removing the "Minispare" emergency
spare wheel*
1
Emergency spare wheel retainer
2 Stowage well
X Turn emergency spare wheel retainer 1
anti-clockwise and remove.
X Remove stowage well 2.
X Remove "Minispare" emergency spare
wheel*. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 257 ZDateiname: 6515_4293_02_buchblock.pdf; preflight
