MERCEDES-BENZ ML SUV 2008 Owners Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2008, Model line: ML SUV, Model: MERCEDES-BENZ ML SUV 2008Pages: 381, PDF Size: 7.18 MB
Page 261 of 381

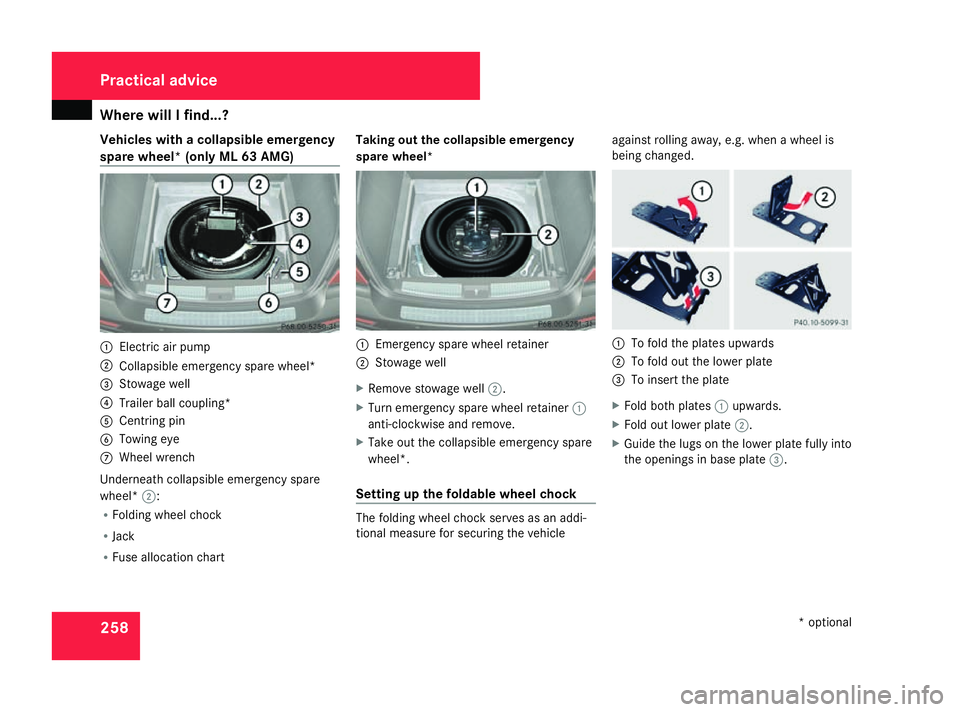

Where will I find...?
258
Vehicles with a collapsible emergency
spare wheel* (only ML 63 AMG) 1
Electric air pump
2 Collapsible emergency spare wheel*
3 Stowage well
4 Trailer ball coupling*
5 Centring pin
6 Towing eye
7 Wheel wrench
Underneath collapsible emergency spare
wheel* 2:
R Folding wheel chock
R Jack
R Fuse allocation chart Taking out the collapsible emergency
spare wheel*
1
Emergency spare wheel retainer
2 Stowage well
X Remove stowage well 2.
X Turn emergency spare wheel retainer 1
anti-clockwise and remove.
X Take out the collapsible emergency spare
wheel*.
Setting up the foldable wheel chock The folding wheel chock serves as an addi-
tional measure for securing the vehicleagainst rolling away, e.g. when a wheel is
being changed.
1
To fold the plates upwards
2 To fold out the lower plate
3 To insert the plate
X Fold both plates 1upwards.
X Fold out lower plate 2.
X Guide the lugs on the lower plate fully into
the openings in base plate 3.Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 258Dateiname: 6515_4293_02_buchblock.pdf; preflight
Page 262 of 381

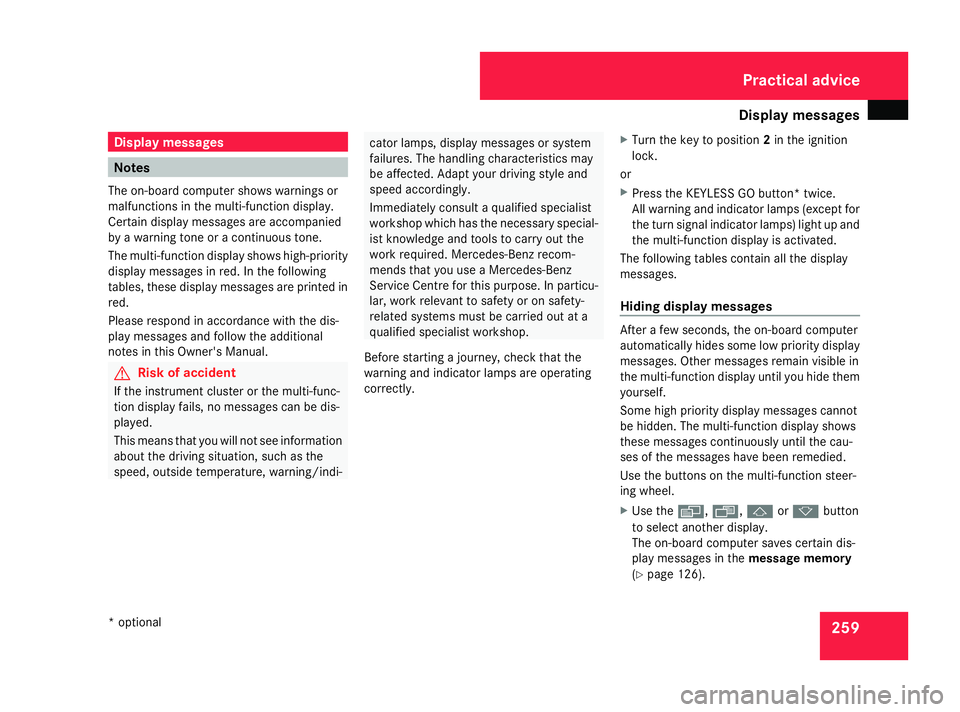

Display
messages 259Display messages
Notes
The on-board computer shows warnings or
malfunctions in the multi-function display.
Certain display messages are accompanied
by a warning tone or a continuous tone.
The multi-function display shows high-priority
display messages in red. In the following
tables, these display messages are printed in
red.
Please respond in accordance with the dis-
play messages and follow the additional
notes in this Owner's Manual. G
Risk of accident
If the instrument cluster or the multi-func-
tion display fails, no messages can be dis-
played.
This means that you will not see information
about the driving situation, such as the
speed, outside temperature, warning/indi- cator lamps, display messages or system
failures. The handling characteristics may
be affected. Adapt your driving style and
speed accordingly.
Immediately consult a qualified specialist
workshop which has the necessary special-
ist knowledge and tools to carry out the
work required. Mercedes-Benz recom-
mends that you use a Mercedes-Benz
Service Centre for this purpose. In particu-
lar, work relevant to safety or on safety-
related systems must be carried out at a
qualified specialist workshop.
Before starting a journey, check that the
warning and indicator lamps are operating
correctly. X
Turn the key to position 2in the ignition
lock.
or
X Press the KEYLESS GO button* twice.
All warning and indicator lamps (except for
the turn signal indicator lamps) light up and
the multi-function display is activated.
The following tables contain all the display
messages.
Hiding display messages After a few seconds, the on-board computer
automatically hides some low priority display
messages. Other messages remain visible in
the multi-function display until you hide them
yourself.
Some high priority display messages cannot
be hidden. The multi-function display shows
these messages continuously until the cau-
ses of the messages have been remedied.
Use the buttons on the multi-function steer-
ing wheel.
X
Use the è,·,jork button
to select another display.
The on-board computer saves certain dis-
play messages in the message memory
(Y page 126). Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 259 ZDateiname: 6515_4293_02_buchblock.pdf; preflight
Page 263 of 381
Display

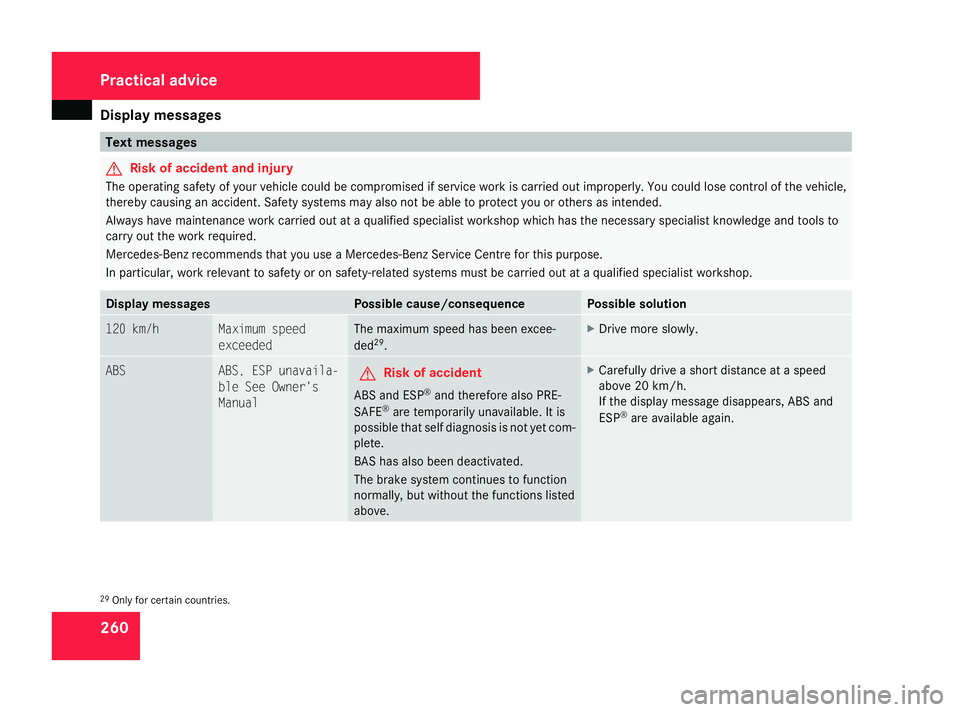

messages 260 Text messages
G
Risk of accident and injury
The operating safety of your vehicle could be compromised if service work is carried out improperly. You could lose control of the vehicle,
thereby causing an accident. Safety systems may also not be able to protect you or others as intended.
Always have maintenance work carried out at a qualified specialist workshop which has the necessary specialist knowledge and tools to
carry out the work required.
Mercedes-Benz recommends that you use a Mercedes-Benz Service Centre for this purpose.
In particular, work relevant to safety or on safety-related systems must be carried out at a qualified specialist workshop. Display messages Possible cause/consequence Possible solution
120 km/h Maximum speed
exceeded The maximum speed has been excee-
ded
29
. X
Drive more slowly. ABS ABS, ESP unavaila-
ble See Owner's
Manual
G
Risk of accident
ABS and ESP ®
and therefore also PRE-
SAFE ®
are temporarily unavailable. It is
possible that self diagnosis is not yet com-
plete.
BAS has also been deactivated.
The brake system continues to function
normally, but without the functions listed
above. X
Carefully drive a short distance at a speed
above 20 km/h.
If the display message disappears, ABS and
ESP ®
are available again. 29
Only for certain countries. Practical advi
ce
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 260Dateiname: 6515_4293_02_buchblock.pdf; preflight
Page 264 of 381
Display
messages 261Display messages Possible cause/consequence Possible solution

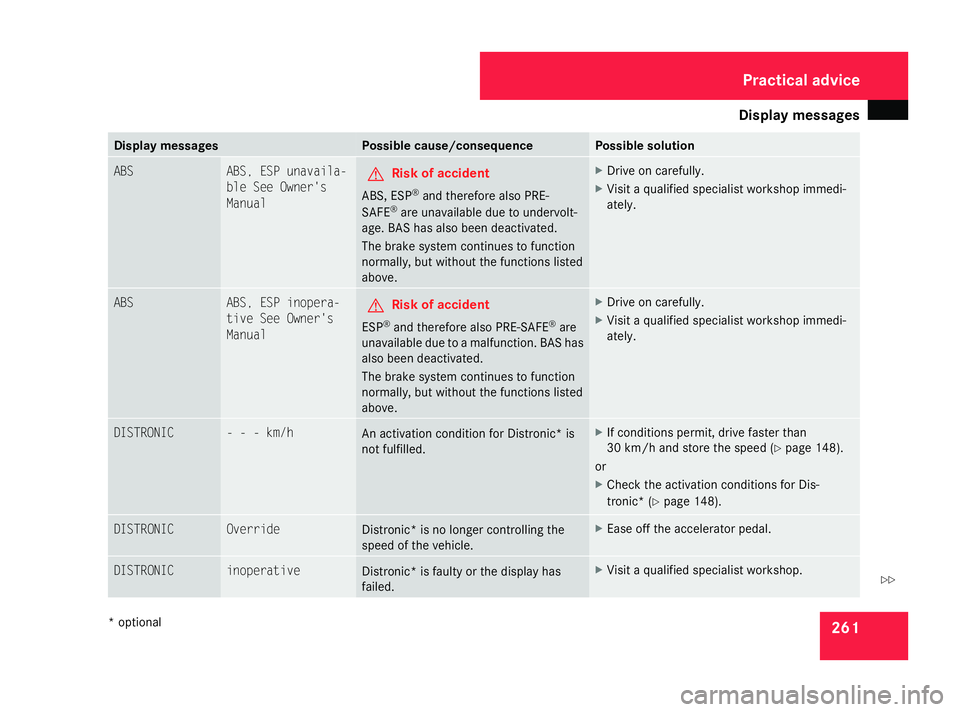

ABS ABS, ESP unavaila-
ble See Owner's
Manual G
Risk of accident
ABS, ESP ®
and therefore also PRE-
SAFE ®
are unavailable due to undervolt-
age. BAS has also been deactivated.
The brake system continues to function
normally, but without the functions listed
above. X
Drive on carefully.
X Visit a qualified specialist workshop immedi-
ately. ABS ABS, ESP inopera-
tive See Owner's
Manual G
Risk of accident
ESP ®
and therefore also PRE-SAFE ®
are
unavailable due to a malfunction. BAS has
also been deactivated.
The brake system continues to function
normally, but without the functions listed
above. X
Drive on carefully.
X Visit a qualified specialist workshop immedi-
ately. DISTRONIC - - - km/h
An activation condition for Distronic
*is
not fulfilled. X
If conditions permit, drive faster than
30 km/h and store the speed (Y page 148).
or
X Check the activation conditions for Dis-
tronic* (Y page 148). DISTRONIC Override
Distronic* is no longer controlling the
speed of the vehicle. X
Ease off the accelerator pedal. DISTRONIC inoperative
Distronic* is faulty or the display has
failed. X
Visit a qualified specialist workshop. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 261 ZDateiname: 6515_4293_02_buchblock.pdf; preflight
Page 265 of 381
Display
messages 262 Display messages Possible cause/consequence Possible solution

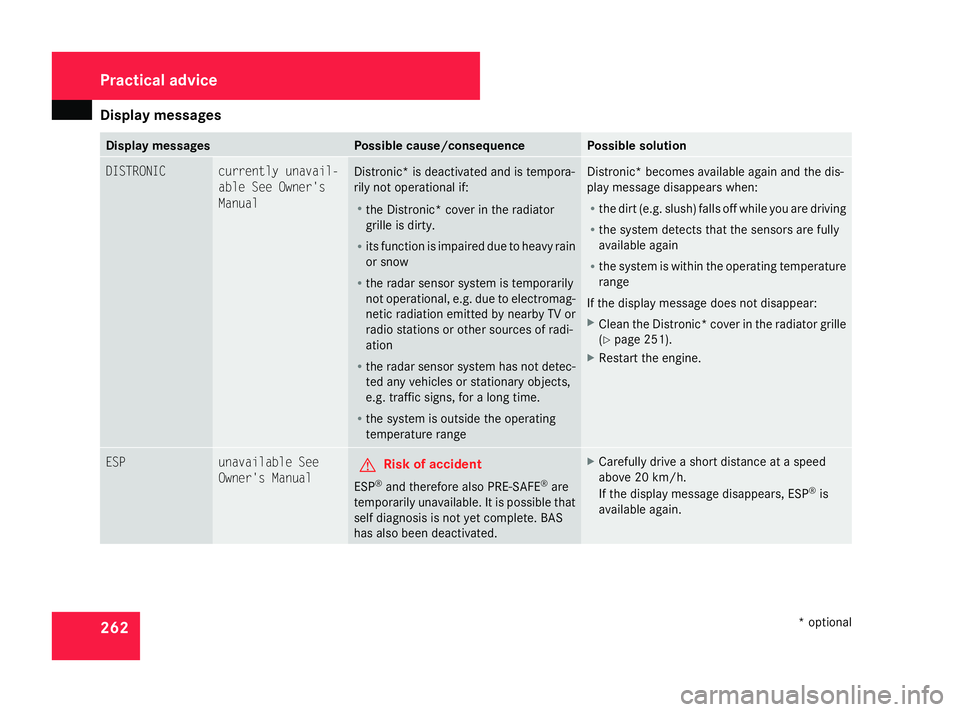

DISTRONIC currently unavail-
able See Owner's
Manual
Distronic
* is deactivated and is tempora-
rily not operational if:
R the Distronic* cover in the radiator
grille is dirty.
R its function is impaired due to heavy rain
or snow
R the radar sensor system is temporarily
not operational, e.g. due to electromag-
netic radiation emitted by nearby TV or
radio stations or other sources of radi-
ation
R the radar sensor system has not detec-
ted any vehicles or stationary objects,
e.g. traffic signs, for a long time.
R the system is outside the operating
temperature range Distronic* becomes available again and the dis-
play message disappears when:
R
the dirt (e.g. slush) falls off while you are driving
R the system detects that the sensors are fully
available again
R the system is within the operating temperature
range
If the display message does not disappear:
X Clean the Distronic* cover in the radiator grille
(Y page 251).
X Restart the engine. ESP unavailable See
Owner's Manual
G
Risk of accident
ESP ®
and therefore also PRE-SAFE ®
are
temporarily unavailable. It is possible that
self diagnosis is not yet complete. BAS
has also been deactivated. X
Carefully drive a short distance at a speed
above 20 km/h.
If the display message disappears, ESP ®
is
available again. Practical advice
* optional
164_AKB; 5; 5, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T11:55:12+02:00 - Seite 262 Dateiname: 6515_4293_02_buchblock.pdf; preflight
Page 266 of 381
Display
messages 263Display messages Possible cause/consequence Possible solution

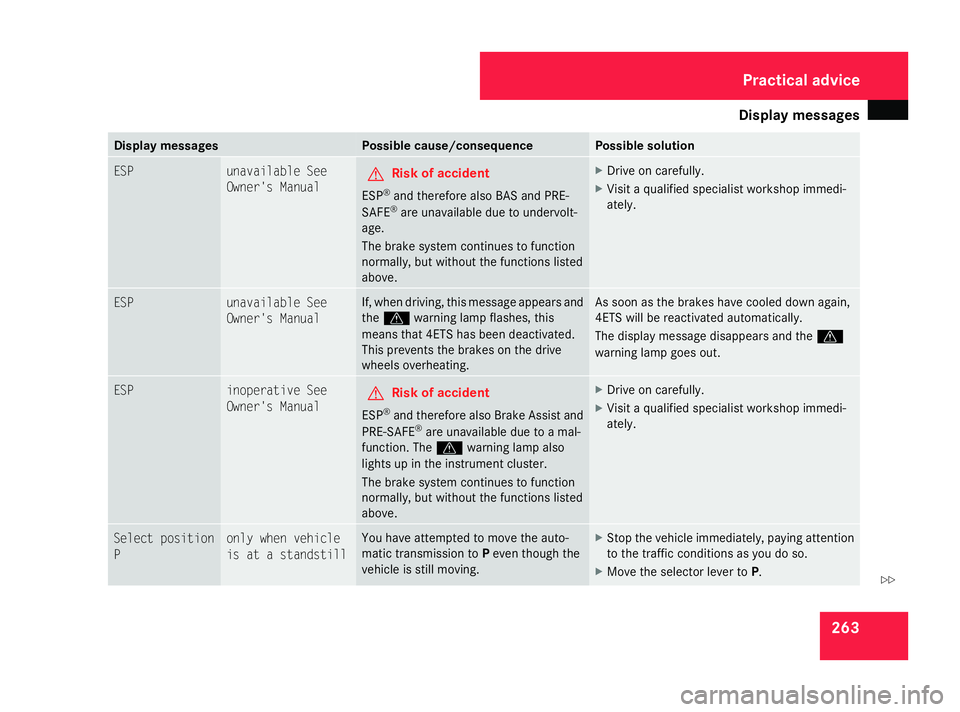

ESP unavailable See
Owner's Manual G
Risk of accident
ESP ®
and therefore also BAS and PRE-
SAFE ®
are unavailable due to undervolt-
age.
The brake system continues to function
normally, but without the functions listed
above. X
Drive on carefully.
X Visit a qualified specialist workshop immedi-
ately. ESP unavailable See
Owner's Manual If, when driving, this message appears and
the
v warning lamp flashes, this
means that 4ETS has been deactivated.
This prevents the brakes on the drive
wheels overheating. As soon as the brakes have cooled down again,
4ETS will be reactivated automatically.
The display message disappears and the v
warning lamp goes out. ESP inoperative See
Owner's Manual G
Risk of accident
ESP ®
and therefore also Brake Assist and
PRE-SAFE ®
are unavailable due to a mal-
function. The vwarning lamp also
lights up in the instrument cluster.
The brake system continues to function
normally, but without the functions listed
above. X
Drive on carefully.
X Visit a qualified specialist workshop immedi-
ately. Select position
P only when vehicle
is at a standstill You have attempted to move the auto-
matic transmission to
Peven though the
vehicle is still moving. X
Stop the vehicle immediately, paying attention
to the traffic conditions as you do so.
X Move the selector lever to P. Practical advi
ce
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 263 ZDateiname: 6515_4293_02_buchblock.pdf; preflight
Page 267 of 381
Display
messages 264 Display messages Possible cause/consequence Possible solution

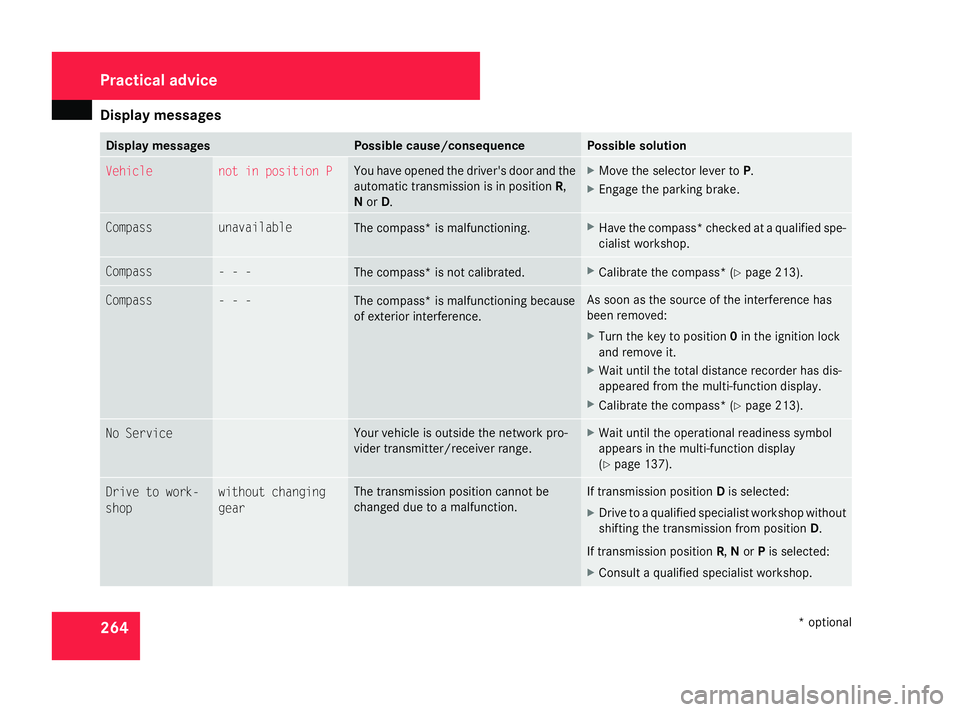

Vehicle not in position P You have opened the driver's door and the
automatic transmission is in position
R,
N or D. X
Move the selector lever to P.
X Engage the parking brake. Compass unavailable
The compass* is malfunctioning. X
Have the compass* checked at a qualified spe-
cialist workshop. Compass - - -
The compass* is not calibrated. X
Calibrate the compass* (Y page 213).Compass - - -
The compass* is malfunctioning because
of exterior interference. As soon as the source of the interference has
been removed:
X
Turn the key to position 0in the ignition lock
and remove it.
X Wait until the total distance recorder has dis-
appeared from the multi-function display.
X Calibrate the compass* (Y page 213).No Service Your vehicle is outside the network pro-
vider transmitter/receiver range. X
Wait until the operational readiness symbol
appears in the multi-function display
(Y page 137). Drive to work-
shop without changing
gear The transmission position cannot be
changed due to a malfunction. If transmission position
Dis selected:
X Drive to a qualified specialist workshop without
shifting the transmission from position D.
If transmission position R,Nor Pis selected:
X Consult a qualified specialist workshop. Practical advi
ce
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 264Dateiname: 6515_4293_02_buchblock.pdf; preflight
Page 268 of 381
Display
messages 265Display messages Possible cause/consequence Possible solution

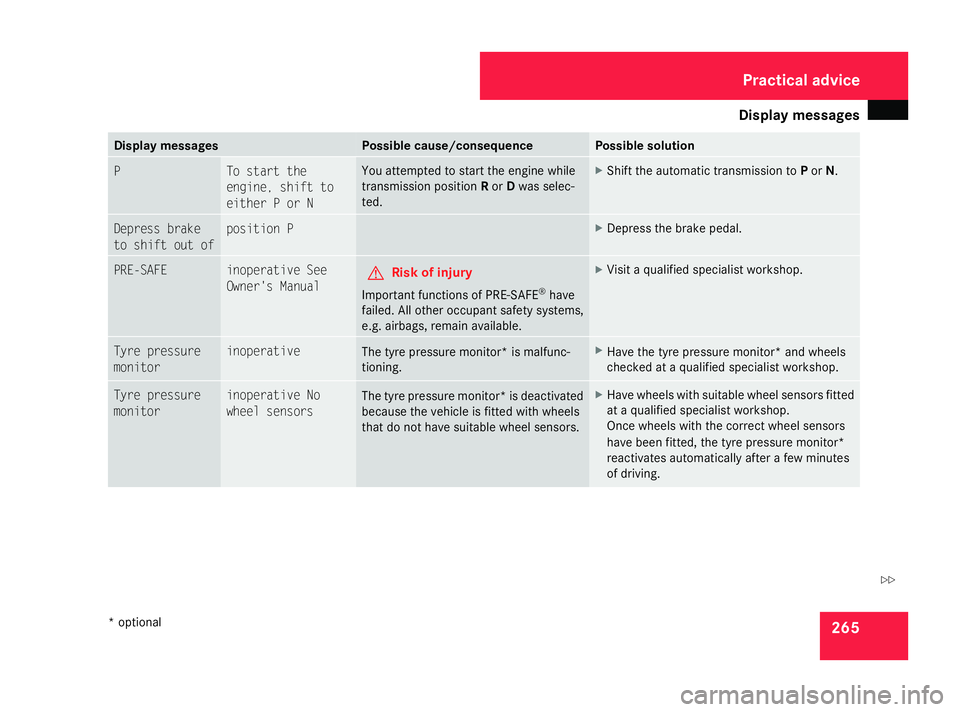

P To start the
engine, shift to
either P or N You attempted to start the engine while
transmission position
Ror Dwas selec-
ted. X
Shift the automatic transmission to Por N. Depress brake
to shift out of position P X
Depress the brake pedal. PRE-SAFE inoperative See
Owner's Manual G
Risk of injury
Important functions of PRE-SAFE ®
have
failed. All other occupant safety systems,
e.g. airbags, remain available. X
Visit a qualified specialist workshop. Tyre pressure
monitor inoperative
The tyre pressure monitor* is malfunc-
tioning. X
Have the tyre pressure monitor* and wheels
checked at a qualified specialist workshop. Tyre pressure
monitor inoperative No
wheel sensors The tyre pressure monitor* is deactivated
because the vehicle is fitted with wheels
that do not have suitable wheel sensors. X
Have wheels with suitable wheel sensors fitted
at a qualified specialist workshop.
Once wheels with the correct wheel sensors
have been fitted, the tyre pressure monitor*
reactivates automatically after a few minutes
of driving. Practical advi
ce
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 265 ZDateiname: 6515_4293_02_buchblock.pdf; preflight

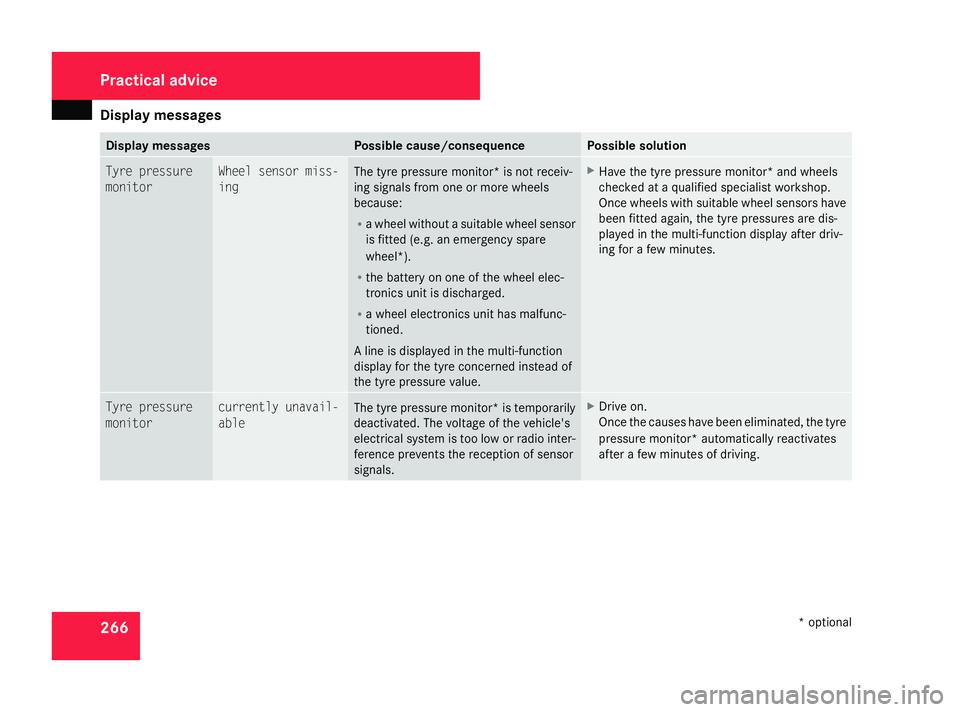

Page 269 of 381
Display
messages 266 Display messages Possible cause/consequence Possible solution
Tyre pressure
monitor Wheel sensor miss-
ing
The tyre pressure monitor* is not receiv-
ing signals from one or more wheels
because:
R
a wheel without a suitable wheel sensor
is fitted (e.g. an emergency spare
wheel*).
R the battery on one of the wheel elec-
tronics unit is discharged.
R a wheel electronics unit has malfunc-
tioned.
A line is displayed in the multi-function
display for the tyre concerned instead of
the tyre pressure value. X
Have the tyre pressure monitor* and wheels
checked at a qualified specialist workshop.
Once wheels with suitable wheel sensors have
been fitted again, the tyre pressures are dis-
played in the multi-function display after driv-
ing for a few minutes. Tyre pressure
monitor currently unavail-
able
The tyre pressure monitor* is temporarily
deactivated. The voltage of the vehicle's
electrical system is too low or radio inter-
ference prevents the reception of sensor
signals. X
Drive on.
Once the causes have been eliminated, the tyre
pressure monitor* automatically reactivates
after a few minutes of driving. Practical advi
ce
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 266Dateiname: 6515_4293_02_buchblock.pdf; preflight

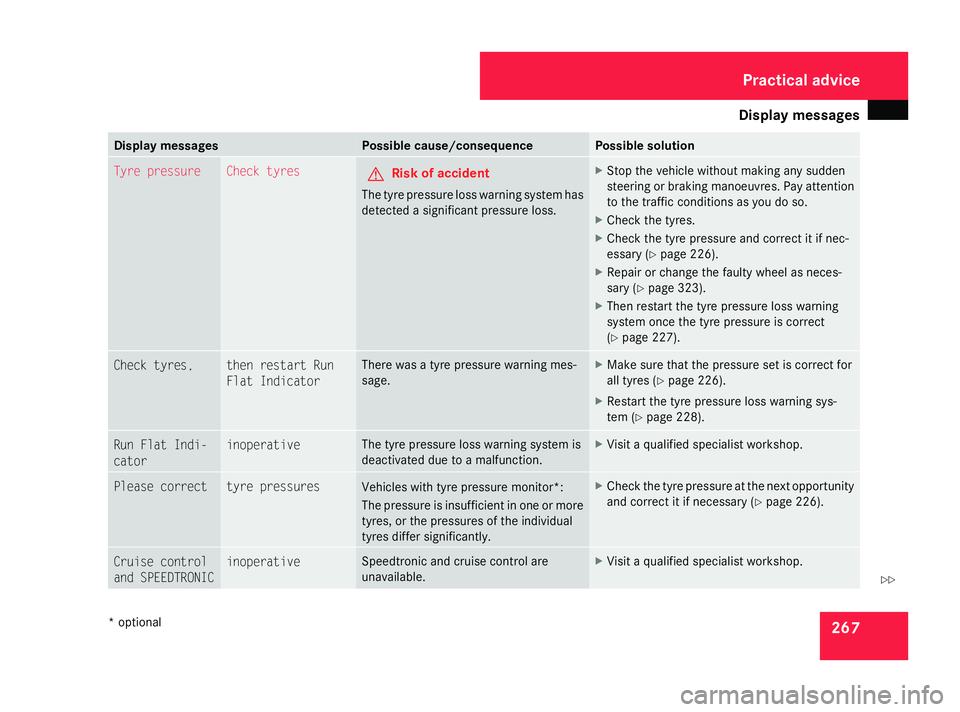

Page 270 of 381
Display
messages 267Display messages Possible cause/consequence Possible solution
Tyre pressure Check tyres
G
Risk of accident
The tyre pressure loss warning system has
detected a significant pressure loss. X
Stop the vehicle without making any sudden
steering or braking manoeuvres. Pay attention
to the traffic conditions as you do so.
X Check the tyres.
X Check the tyre pressure and correct it if nec-
essary (Y page 226).
X Repair or change the faulty wheel as neces-
sary (Y page 323).
X Then restart the tyre pressure loss warning
system once the tyre pressure is correct
(Y page 227). Check tyres, then restart Run
Flat Indicator There was a tyre pressure warning mes-
sage. X
Make sure that the pressure set is correct for
all tyres (Y page 226).
X Restart the tyre pressure loss warning sys-
tem (Y page 228). Run Flat Indi-
cator inoperative The tyre pressure loss warning system is
deactivated due to a malfunction. X
Visit a qualified specialist workshop. Please correct tyre pressures
Vehicles with tyre pressure monitor*:
The pressure is insufficient in one or more
tyres, or the pressures of the individual
tyres differ significantly. X
Check the tyre pressure at the next opportunity
and correct it if necessary ( Ypage 226). Cruise control
and SPEEDTRONIC inoperative Speedtronic and cruise control are
unavailable. X
Visit a qualified specialist workshop. Practical advi
ce
* optional
164_AKB; 5; 5, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T11:55:12+02:00 - Seite 267 ZDateiname: 6515_4293_02_buchblock.pdf; preflight
