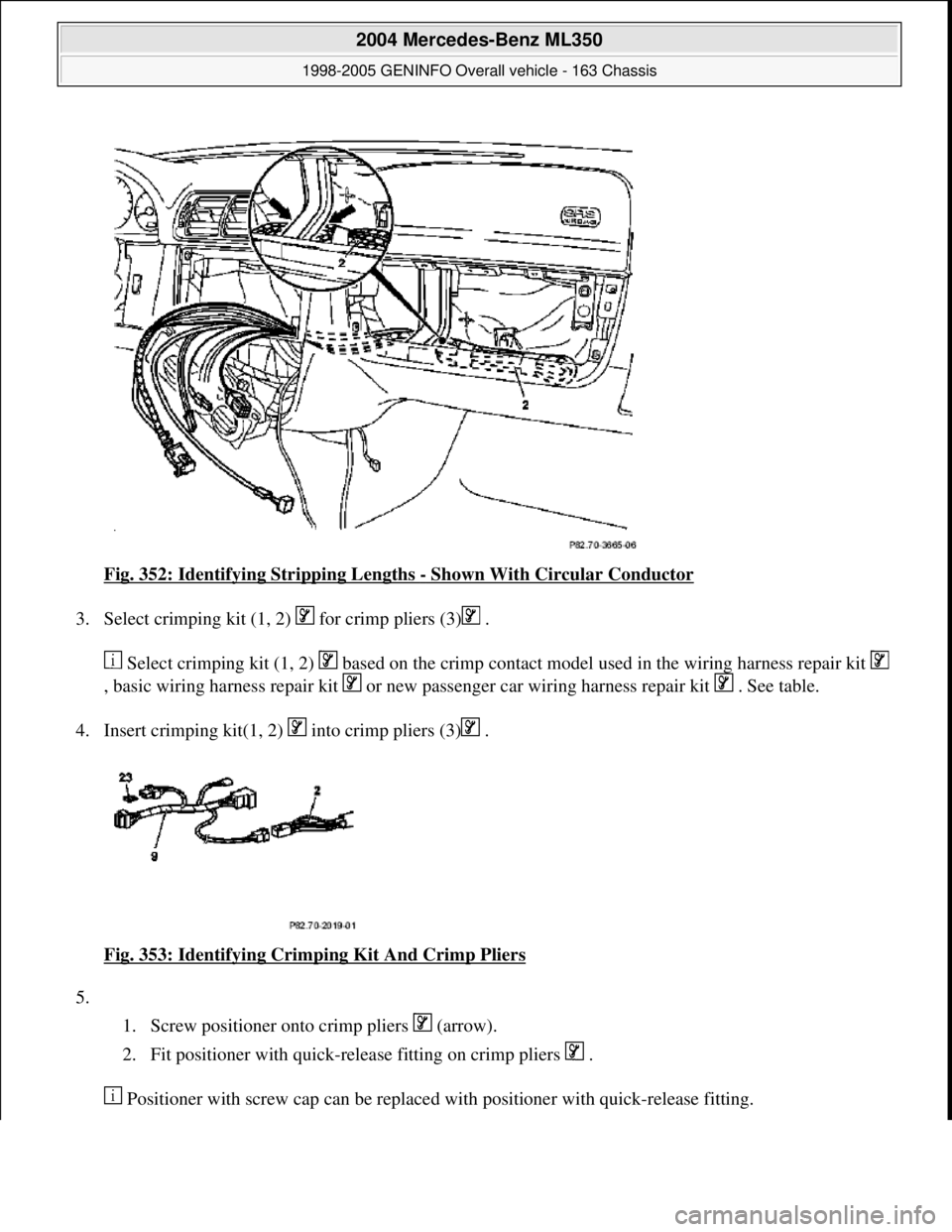

Fig. 352: Identifying Stripping Lengths - Shown With Circular Conductor
3. Select crimping kit (1, 2) for crimp pliers (3) .
Select crimping kit (1, 2) based on the crimp contact model used in the wiring harness repair kit
, basic wiring harness repair kit or new passenger car wiring harness repair kit . See table.
4. Insert crimping kit(1, 2) into crimp pliers (3) .
Fig. 353: Identifying Crimping Kit And Crimp Pliers

5.
1. Screw positioner onto crimp pliers (arrow).
2. Fit positioner with quick-release fitting on crimp pliers .
Positioner with screw cap can be replaced with positioner with quic
k-release fitting.

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 256 © 2006 Mitchell Repair Information Company, LLC.

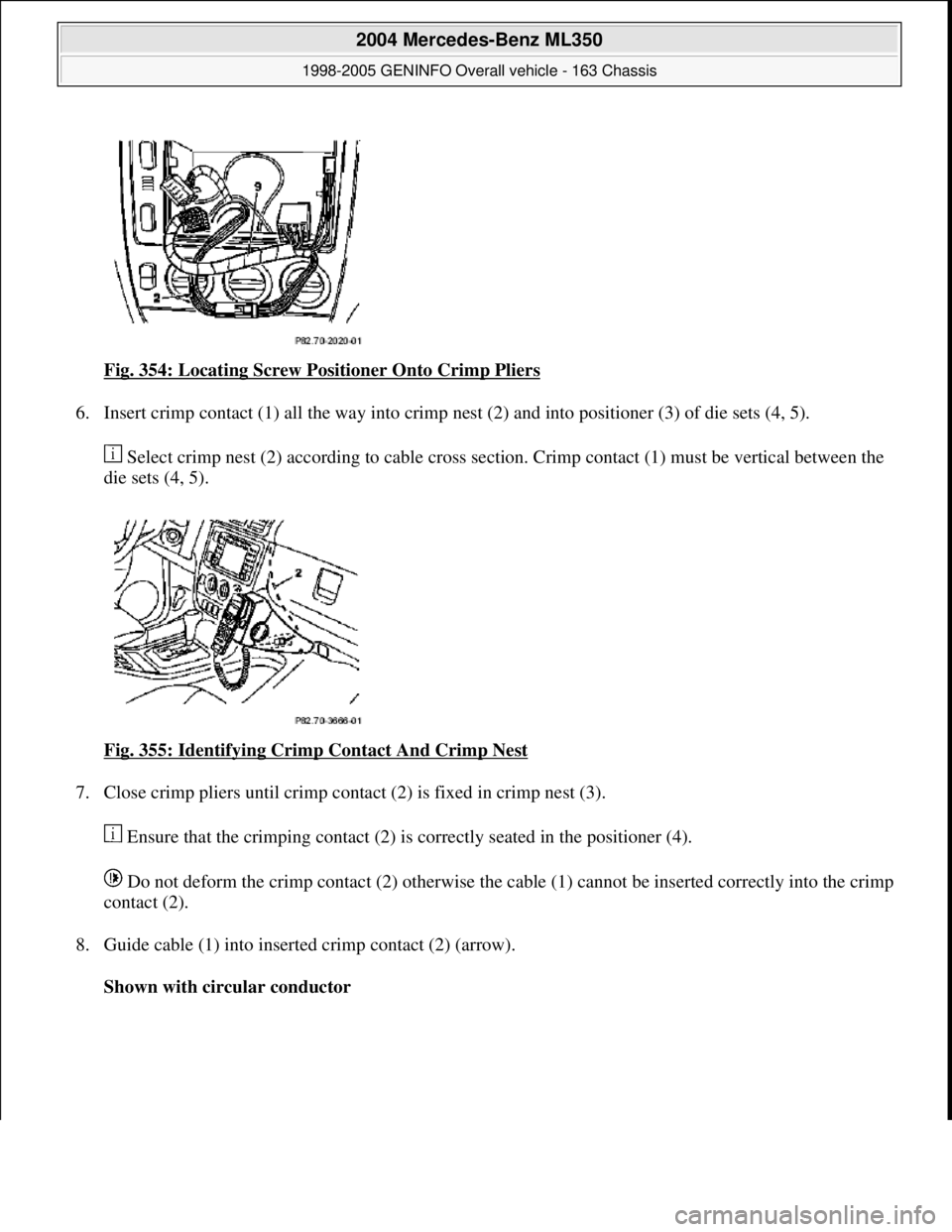

Fig. 354: Locating Screw Positioner Onto Crimp Pliers
6. Insert crimp contact (1) all the way into crimp nest (2) and into positioner (3) of die sets (4, 5).
Select crimp nest (2) according to cable cross section. Crimp contact (1) must be vertical between the
die sets (4, 5).
Fig. 355: Identifying Crimp Contact And Crimp Nest

7. Close crimp pliers until crimp contact (2) is fixed in crimp nest (3).
Ensure that the crimping contact (2) is correctly seated in the positioner (4).
Do not deform the crimp contact (2) otherwise the cable (1) cannot be inserted correctly into the crimp
contact (2).
8. Guide cable (1) into inserted crimp contact (2) (arrow).
Shown with circular conductor

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 257 © 2006 Mitchell Repair Information Company, LLC.

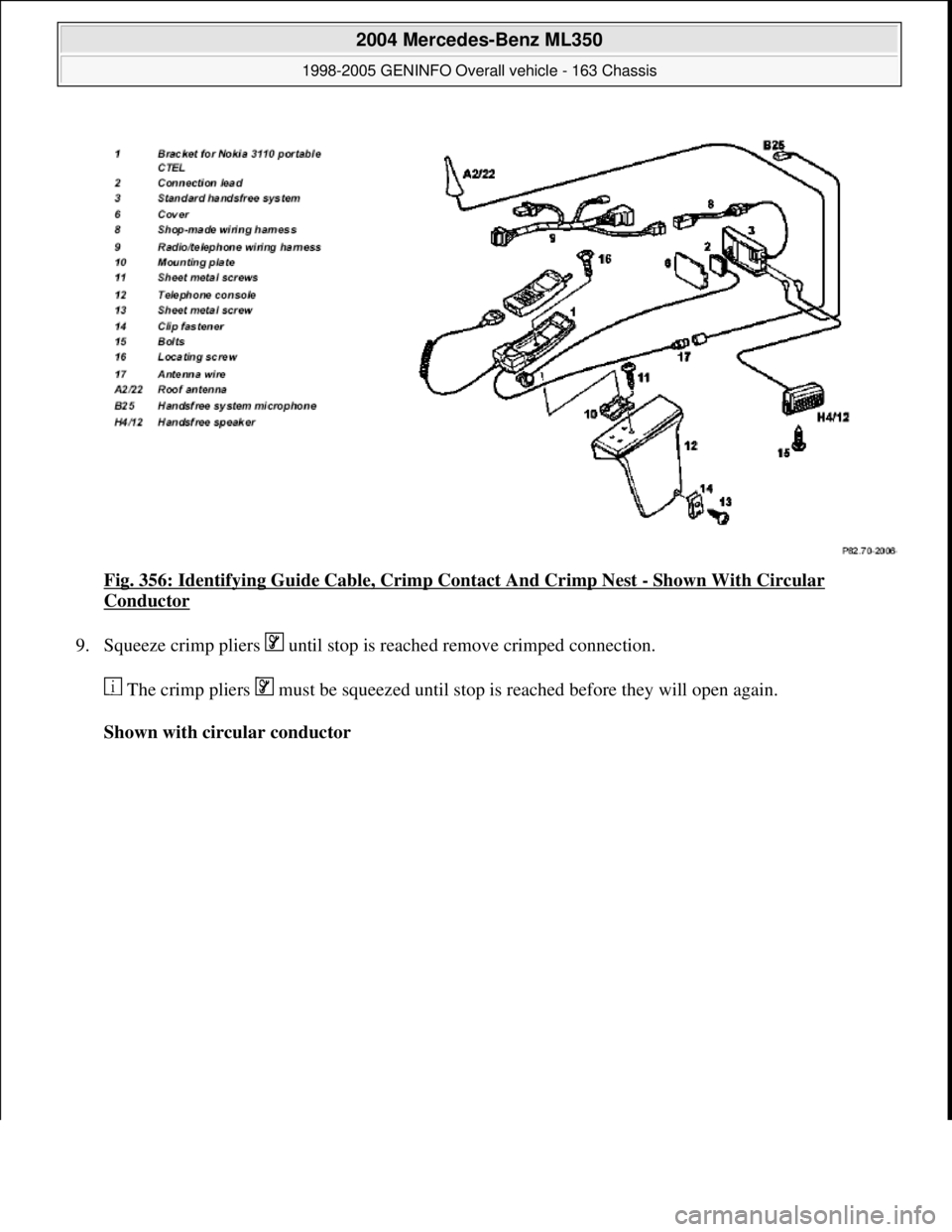

Fig. 356: Identifying Guide Cable, Crimp Contact And Crimp Nest - Shown With Circular
Conductor
9. Squeeze crimp pliers until stop is reached remove crimped connection.
The crimp pliers must be squeezed until stop is reached before they will open again.
Shown with circular conductor

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 258 © 2006 Mitchell Repair Information Company, LLC.

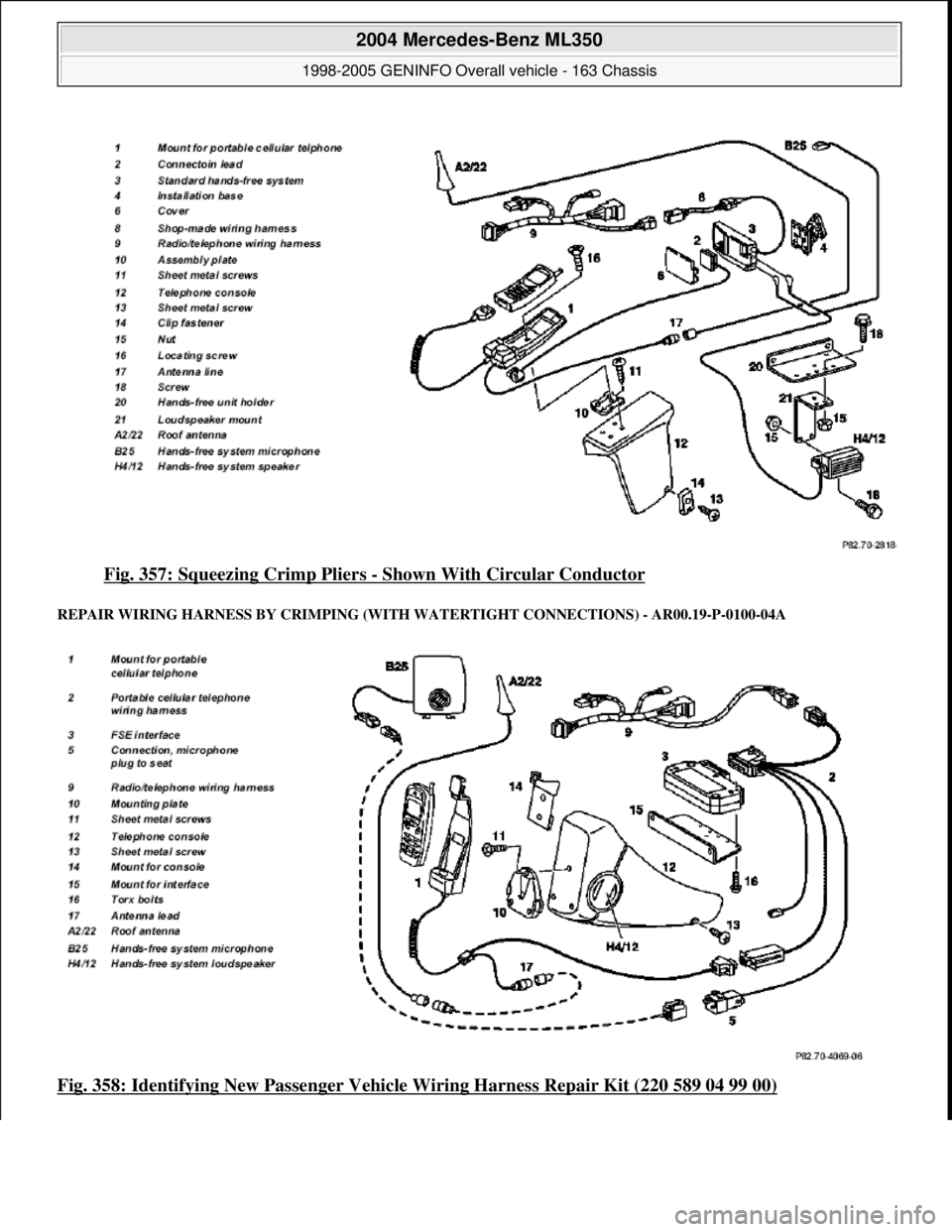

Fig. 357: Squeezing Crimp Pliers - Shown With Circular Conductor
REPAIR WIRING HARNESS BY CRIMPING (WITH WATERTIGHT CONNECTIONS) - AR00.19-P-0100-04A
Fig. 358: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 259 © 2006 Mitchell Repair Information Company, LLC.

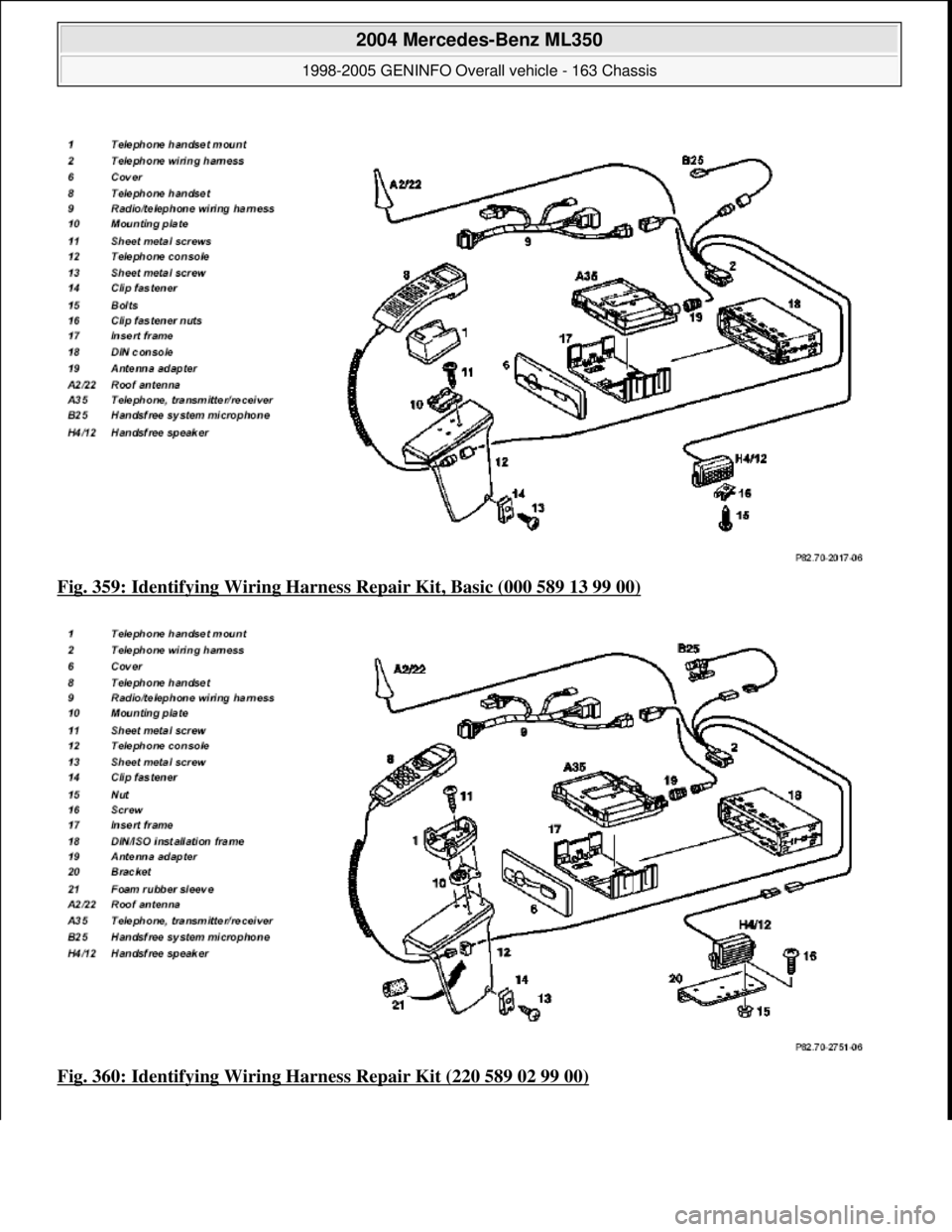

Fig. 359: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)
Fig. 360: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 260 © 2006 Mitchell Repair Information Company, LLC.

Fig. 361: Identifying Crimp Pliers (220 589 01 99 10)
Fig. 362: Identifying Wi re Stripper (220 589 01 99 40)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 261 © 2006 Mitchell Repair Information Company, LLC.

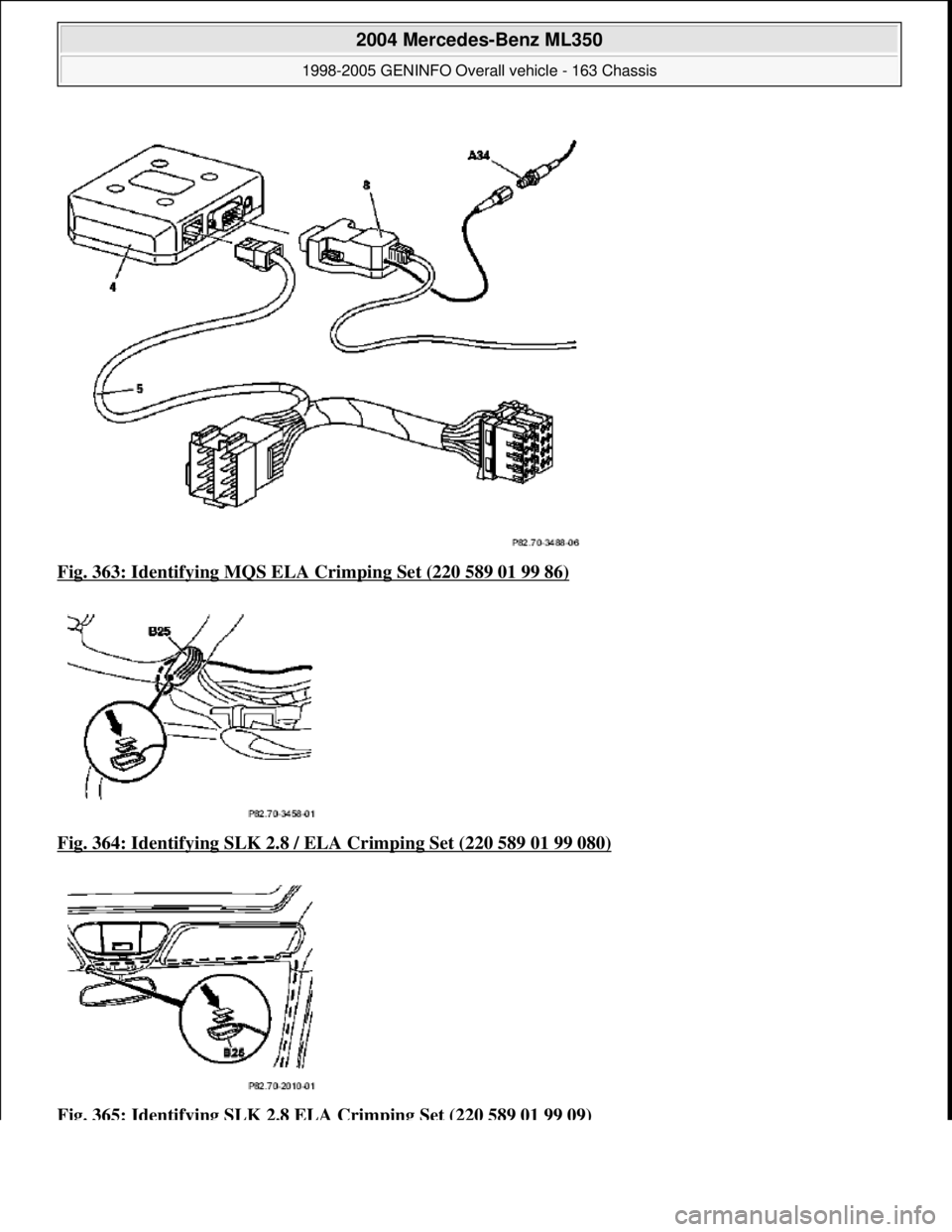

Fig. 363: Identifying MQS ELA Crimping Set (220 589 01 99 86)
Fig. 364: Identifying SLK 2.8 / ELA Crimping Set (220 589 01 99 080)

Fig. 365: Identifying SLK 2.8 ELA Crimping Set (220 589 01 99 09)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 262 © 2006 Mitchell Repair Information Company, LLC.

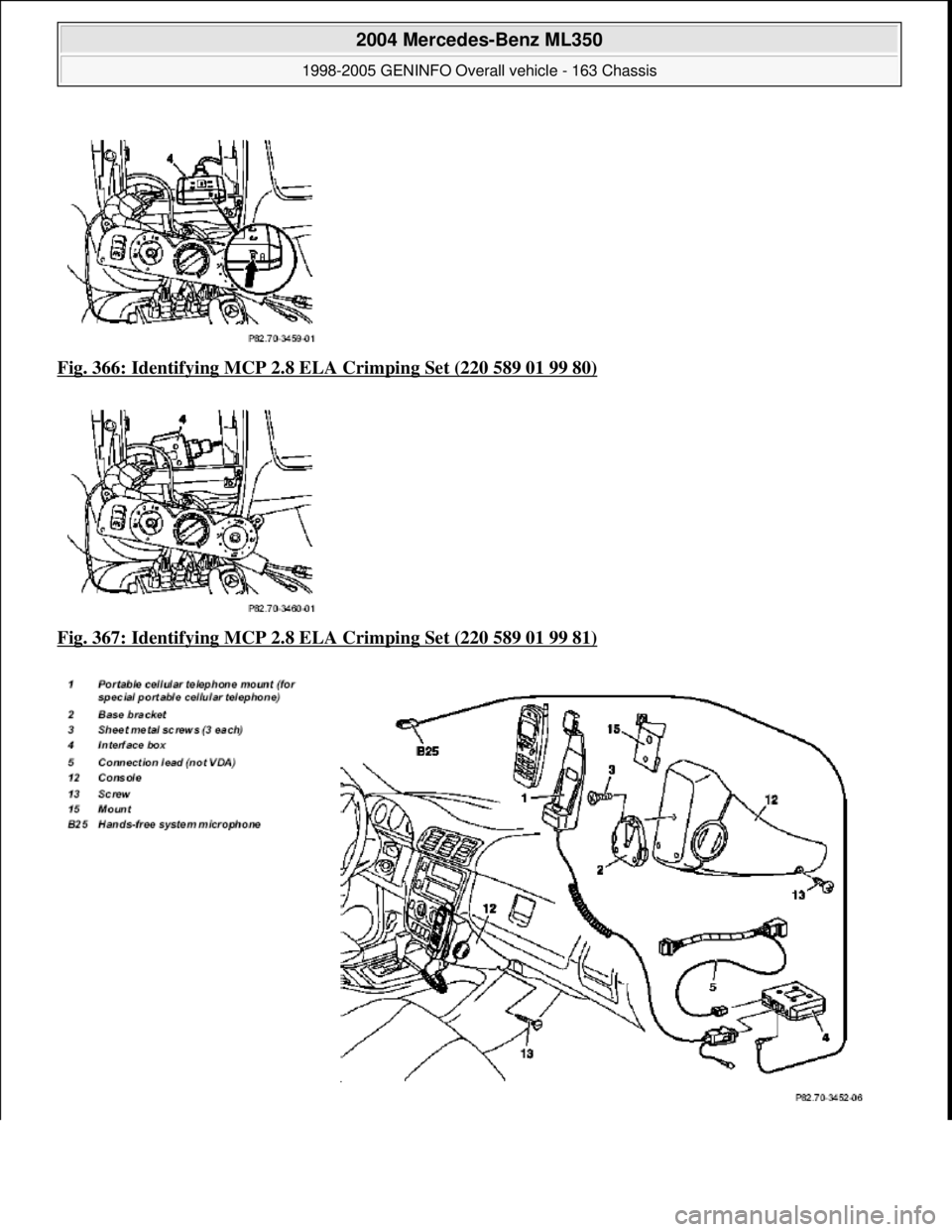

Fig. 366: Identifying MCP 2.8 EL A Crimping Set (220 589 01 99 80)
Fig. 367: Identifying MCP 2.8 EL A Crimping Set (220 589 01 99 81)


2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 263 © 2006 Mitchell Repair Information Company, LLC.

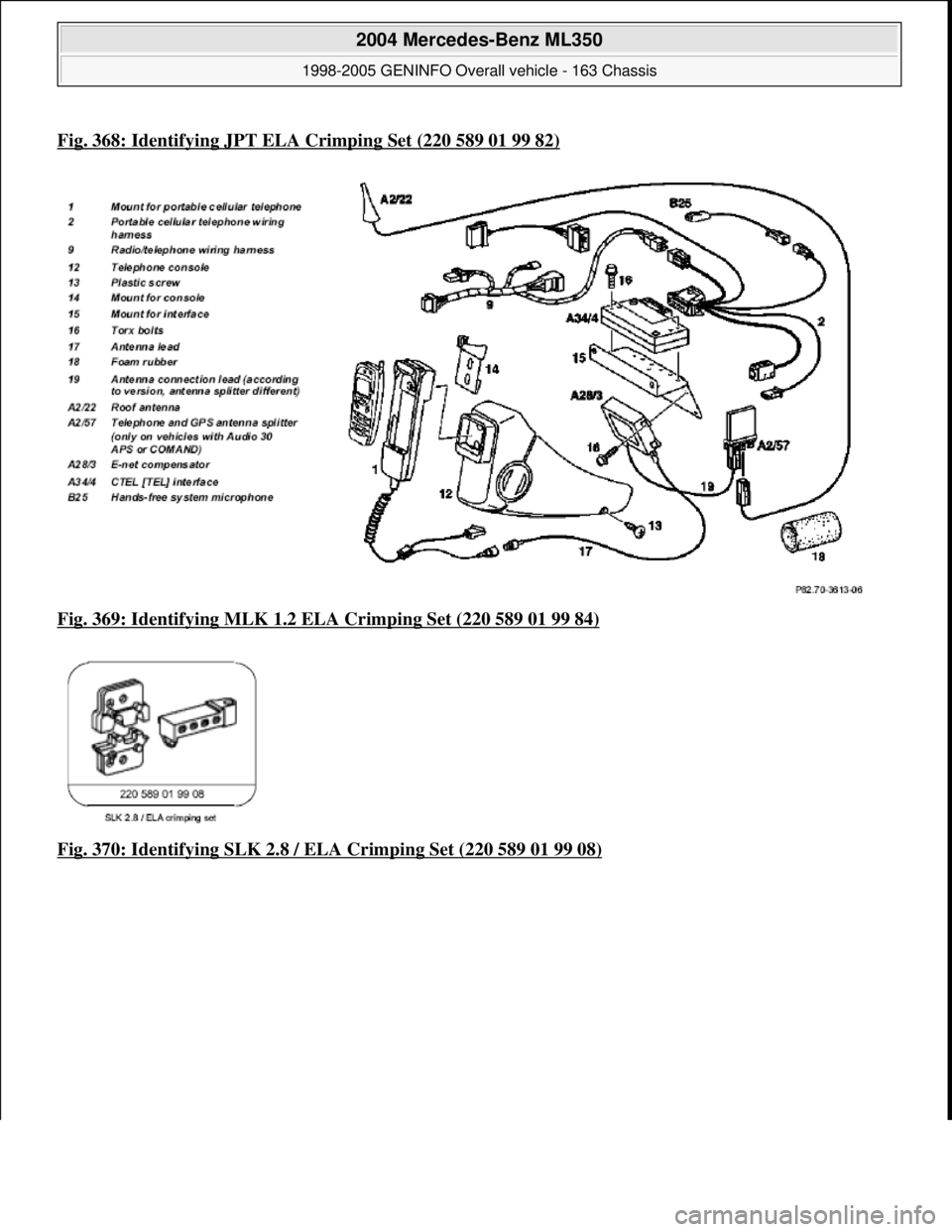

Fig. 368: Identifying JPT ELA Crimping Set (220 589 01 99 82)
Fig. 369: Identifying MLK 1.2 ELA Crimping Set (220 589 01 99 84)
Fig. 370: Identifying SLK 2.8 / ELA Crimping Set (220 589 01 99 08)

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 264 © 2006 Mitchell Repair Information Company, LLC.

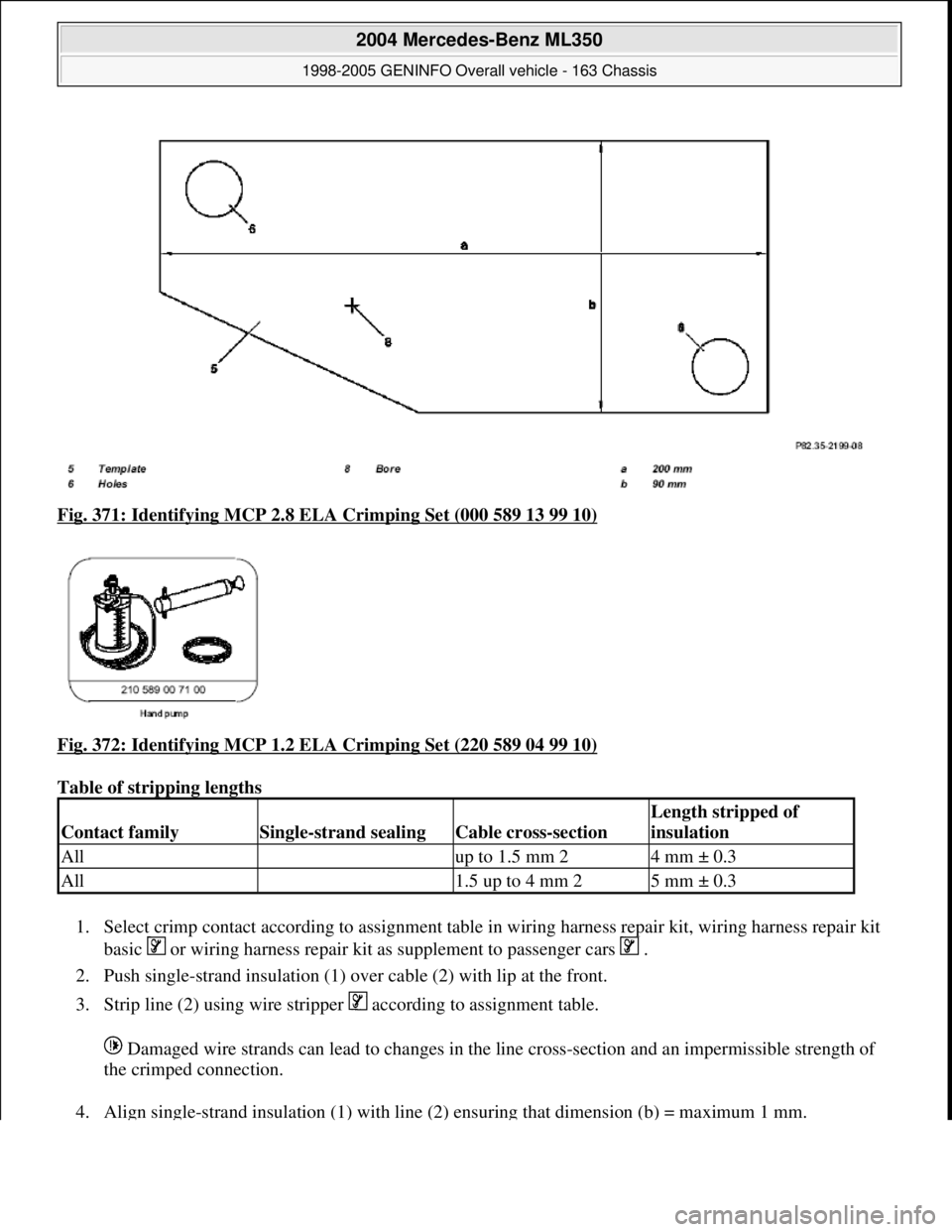

Fig. 371: Identifying MCP 2.8 EL A Crimping Set (000 589 13 99 10)
Fig. 372: Identifying MCP 1.2 EL A Crimping Set (220 589 04 99 10)

Table of stripping lengths
1. Select crimp contact accor ding to assignment table in wiring harnes s repair kit, wiring harness repair kit
basic or wiring harness repair kit as supplement to passenger cars .
2. Push single-strand insulation (1) over cable (2) with lip at the front.
3. Strip line (2) using wire strippe r according to assignment table.
Damaged wire strands can lead to changes in the line cross-section and an impermissible strength of
the crimped connection.
4. Ali
gn single-strand insulation (1) with line (2) ensuring that dimension (b) = maximum 1 mm.
Contact familySingle-strand sealingCable cross-section
Length stripped of
insulation
All up to 1.5 mm 24 mm ± 0.3
All 1.5 up to 4 mm 25 mm ± 0.3
