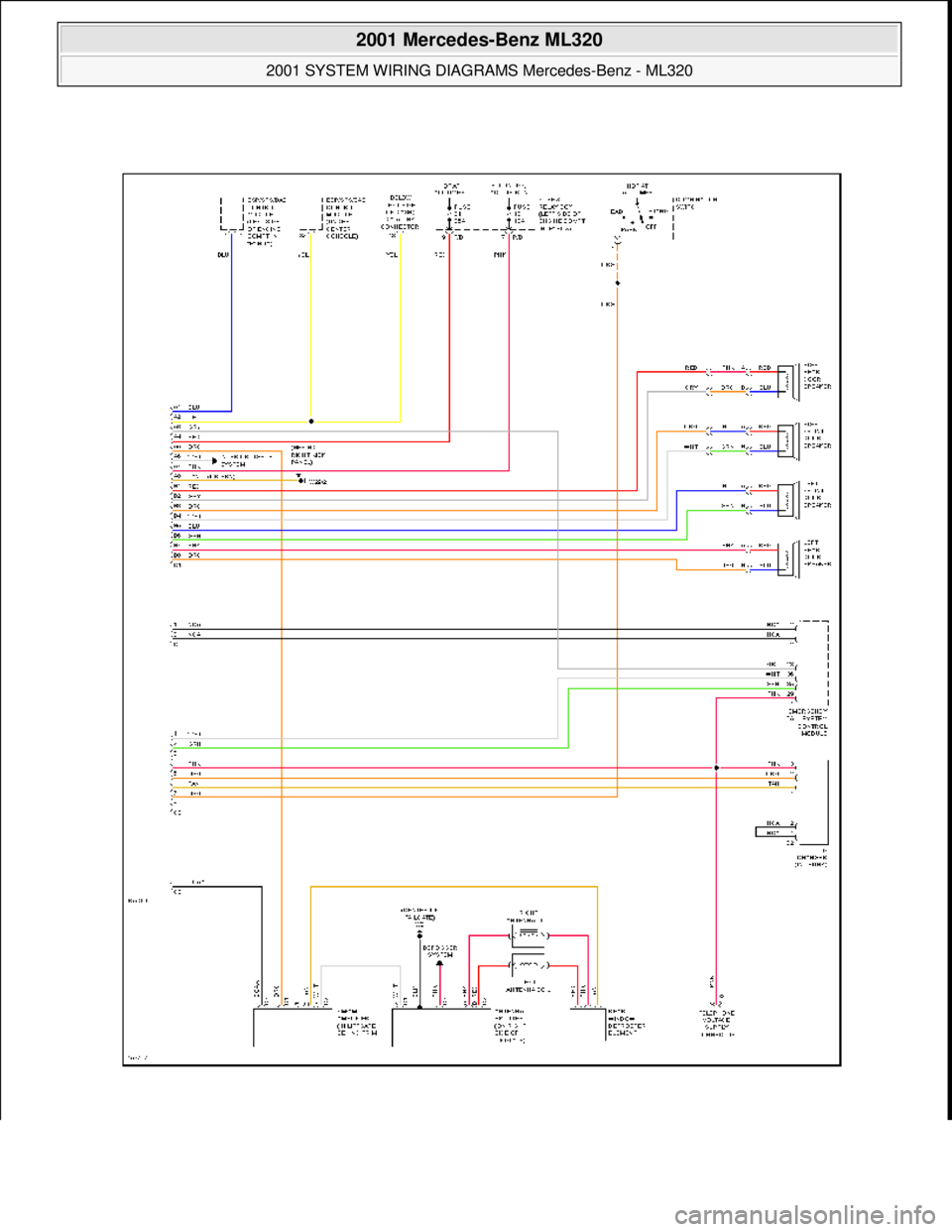

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 51: Rear Quarter Windows Circuit RADIO 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 103 © 2006 Mitchell Repair

Page 4102 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 104 © 2006 Mitchell Repair Information Company, LLC.

Page 4103 of 4133

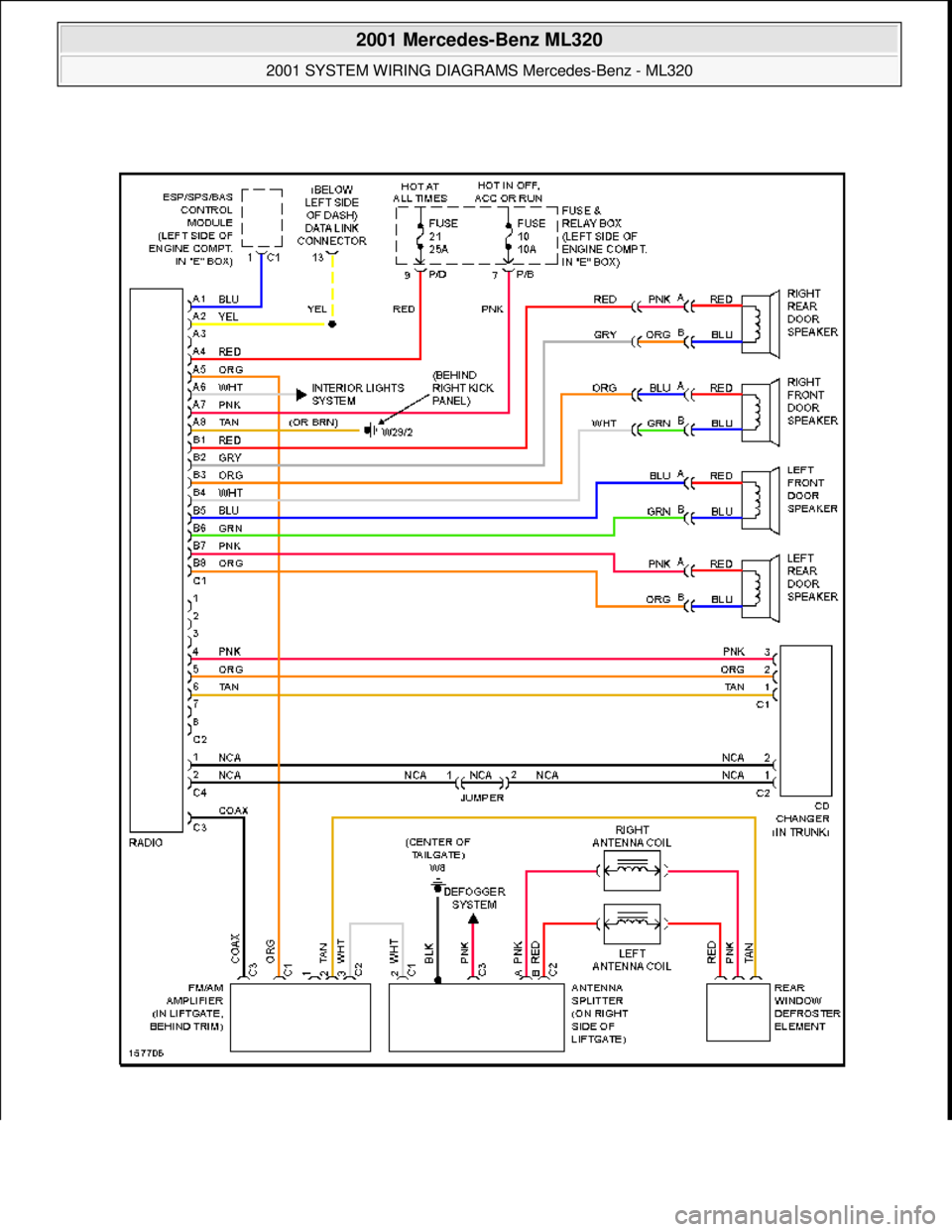

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 52: Base Radio Circuit, W/ Emergency Call System 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 105 © 2006 Mitchel

Page 4104 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 106 © 2006 Mitchell Repair Information Company, LLC.

Page 4105 of 4133

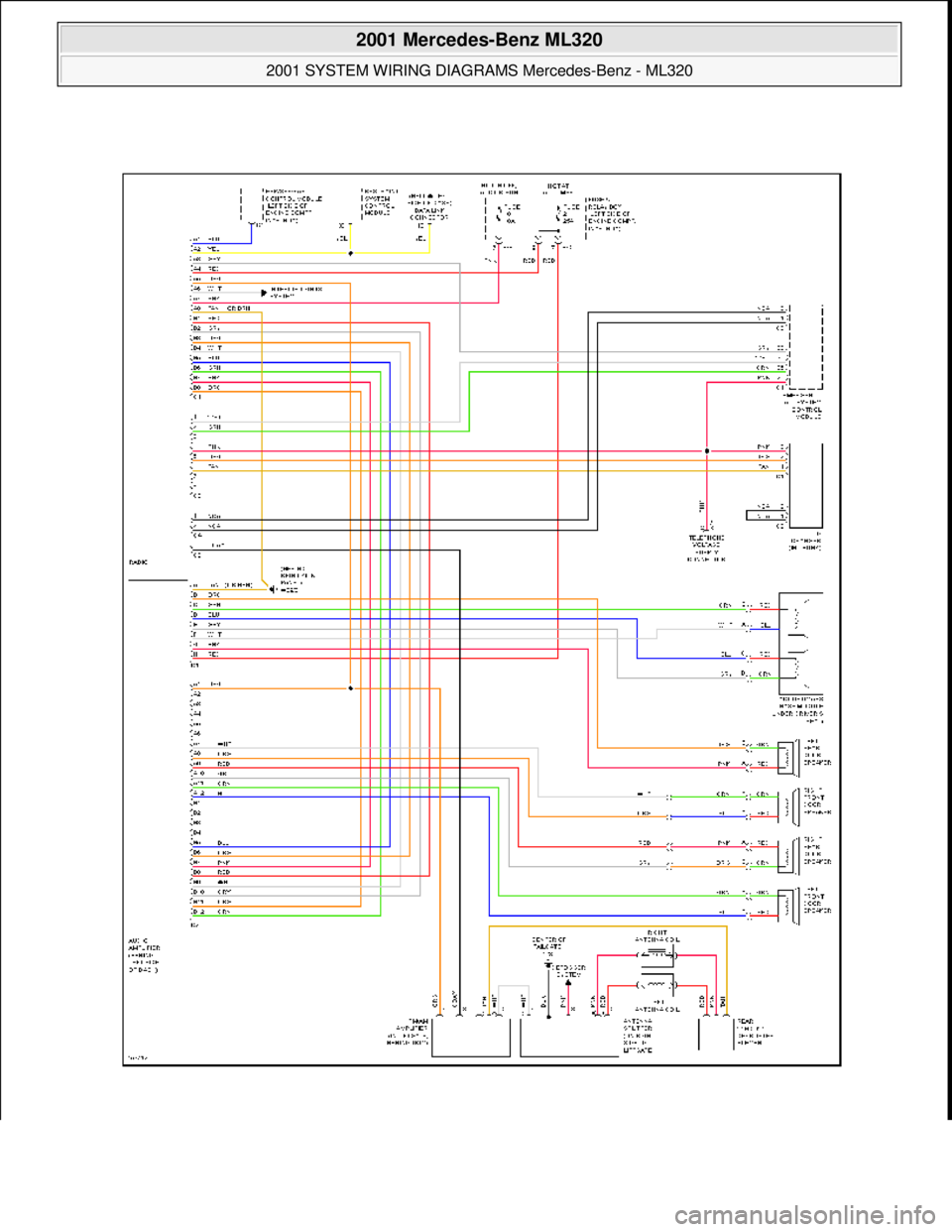

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 53: Base Radio Circuit, W/O Emergency Call System 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 107 © 2006 Mitche

Page 4106 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 108 © 2006 Mitchell Repair Information Company, LLC.

Page 4107 of 4133

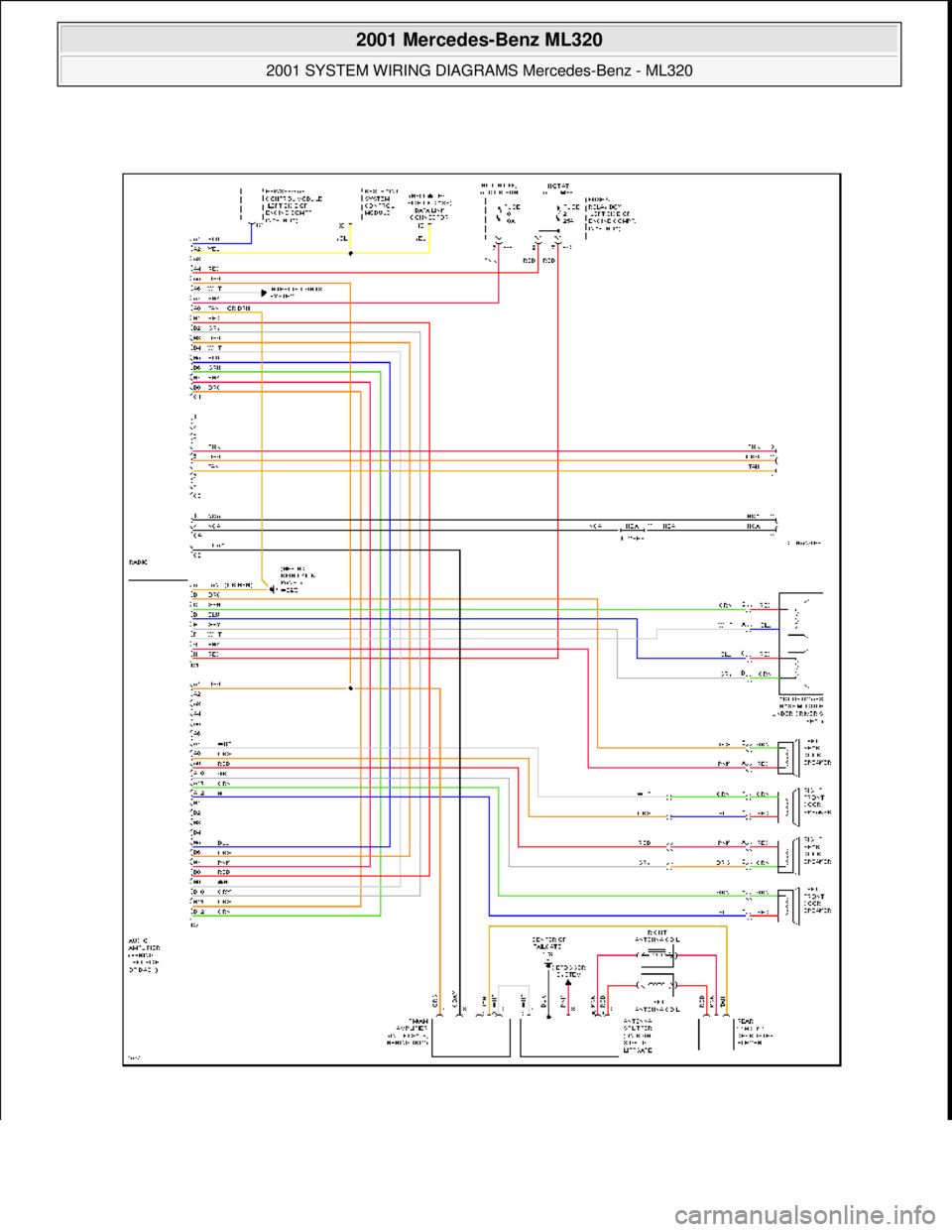

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 54: Premium Sound Radio Circuit, W/ Emergency Call System 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 109 © 200

Page 4108 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 110 © 2006 Mitchell Repair Information Company, LLC.

Page 4109 of 4133

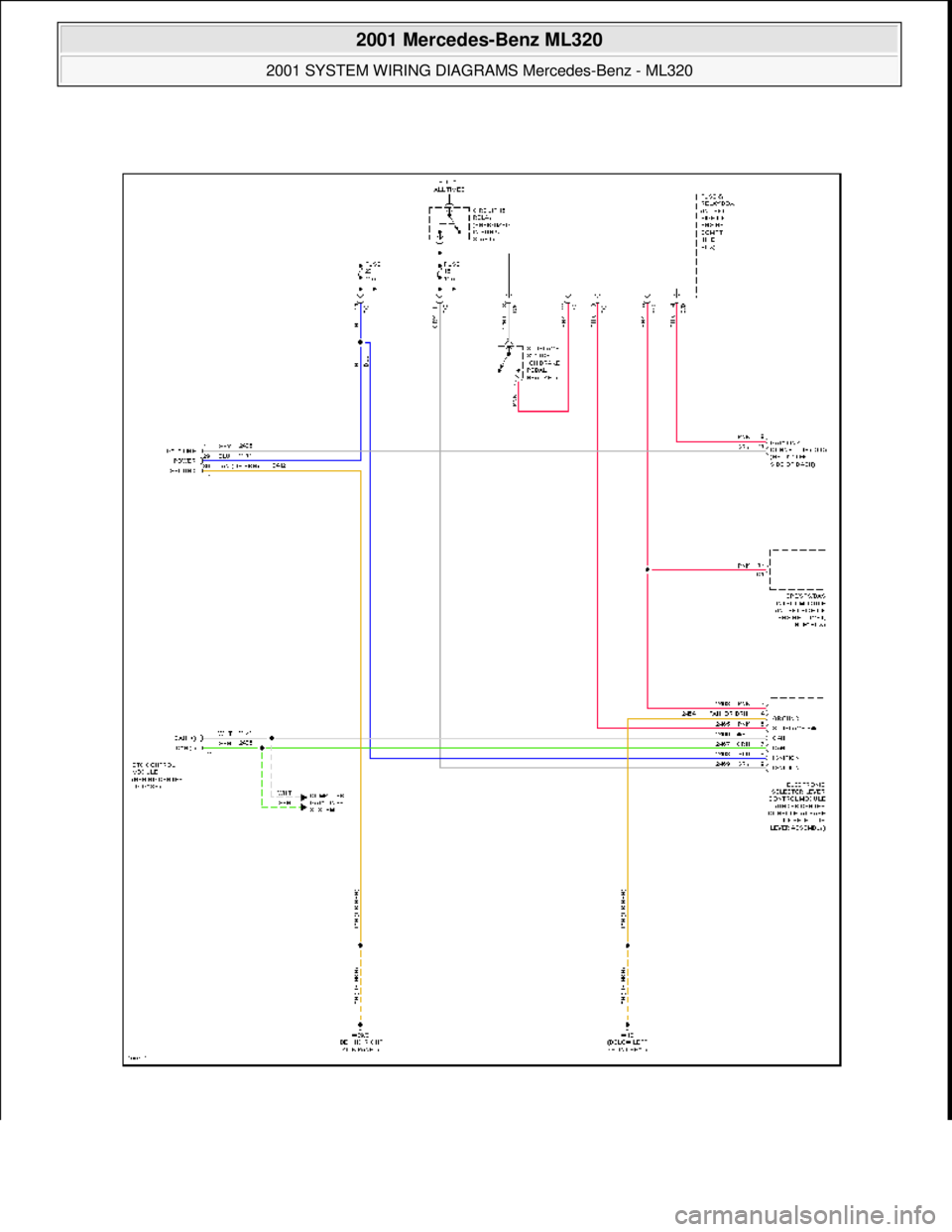

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 55: Premium Sound Radio Circuit, W/O Emergency Call System SHIFT INTERLOCK 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00

Page 4110 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 112 © 2006 Mitchell Repair Information Company, LLC.
