Page 4071 of 4133

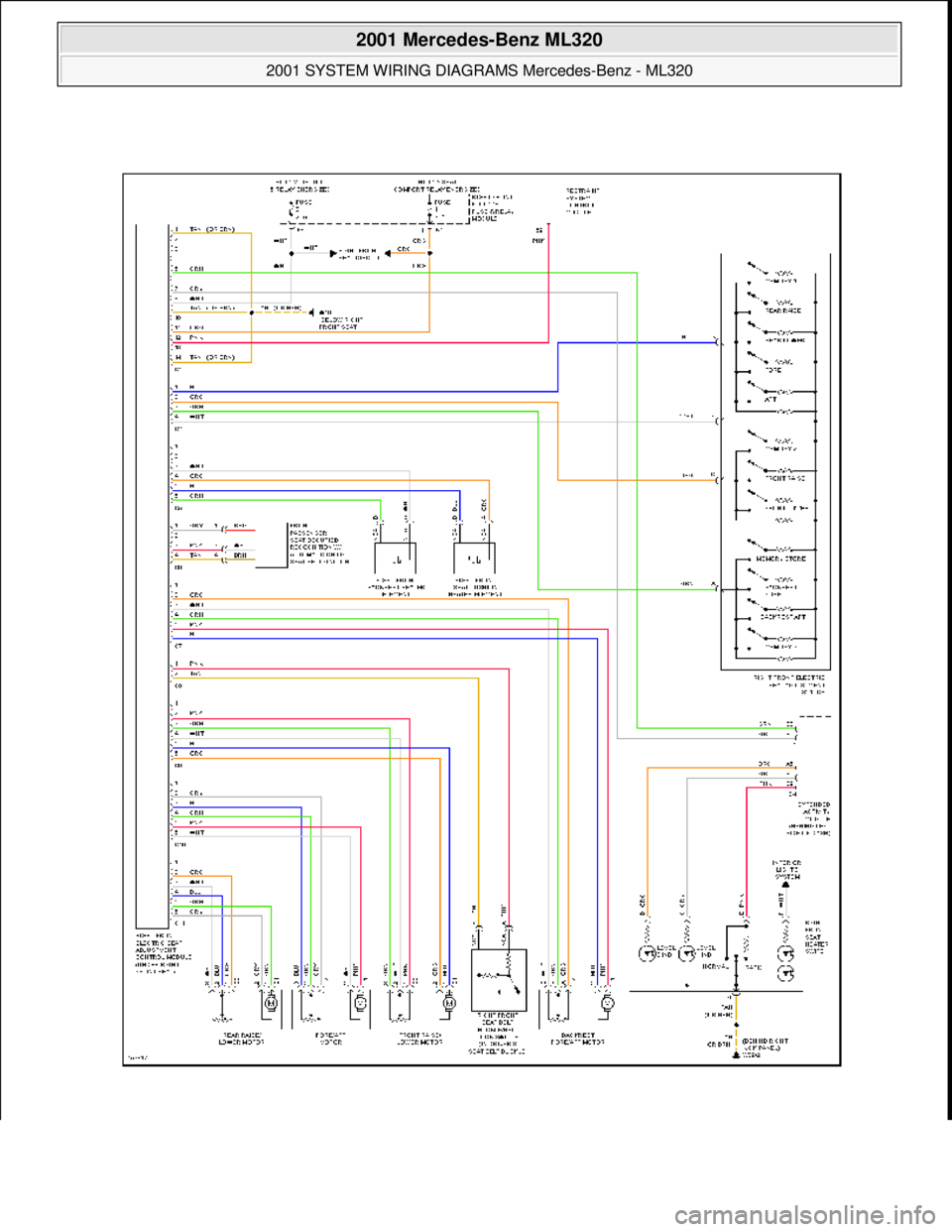

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 36: Driver"s Memory Seat Circuit 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 73 © 2006 Mitchell Repair Informa

Page 4072 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 74 © 2006 Mitchell Repair Information Company, LLC.

Page 4073 of 4133

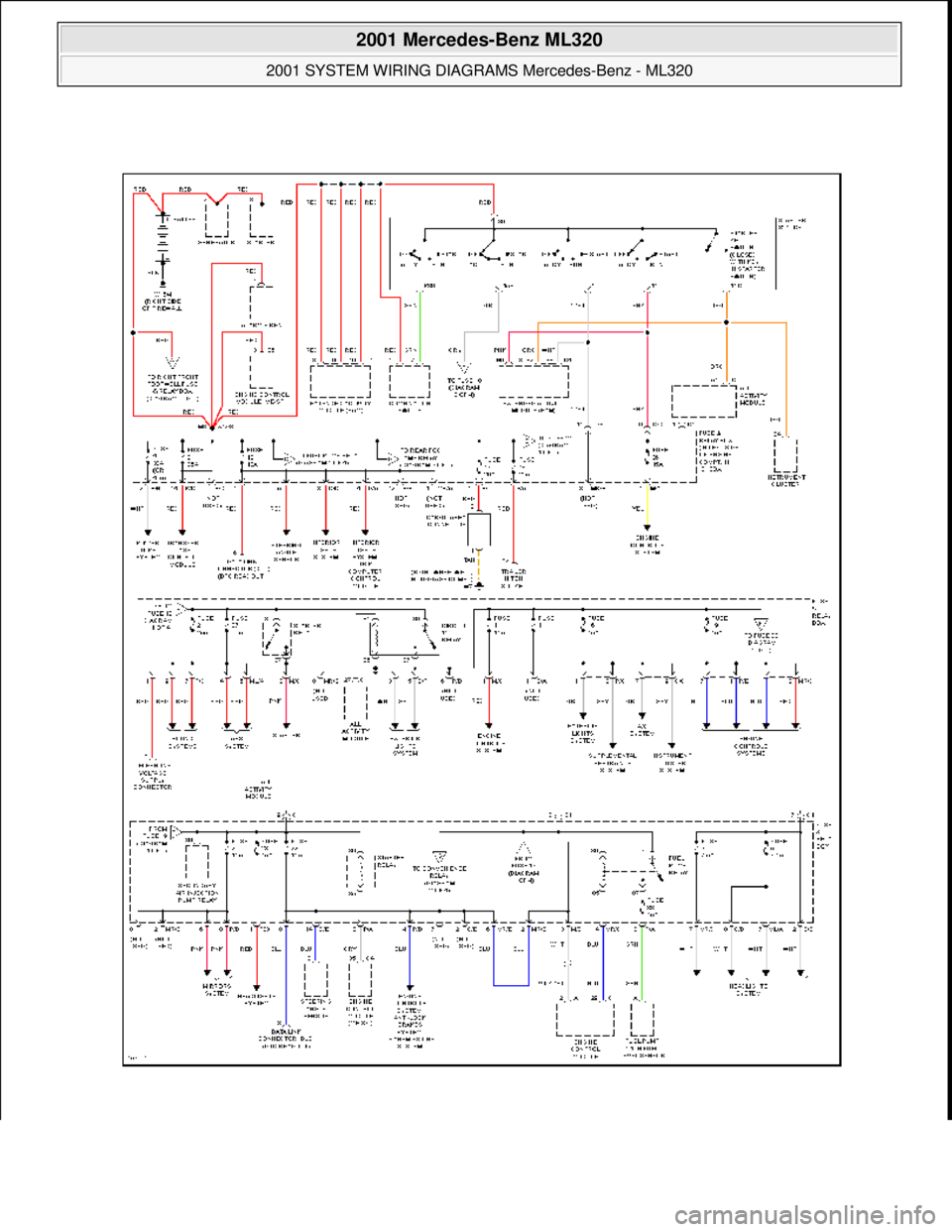

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 37: Passenger"s Memory Seat Circuit POWER DISTRIBUTION 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 75 © 2006 M

Page 4074 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 76 © 2006 Mitchell Repair Information Company, LLC.

Page 4075 of 4133

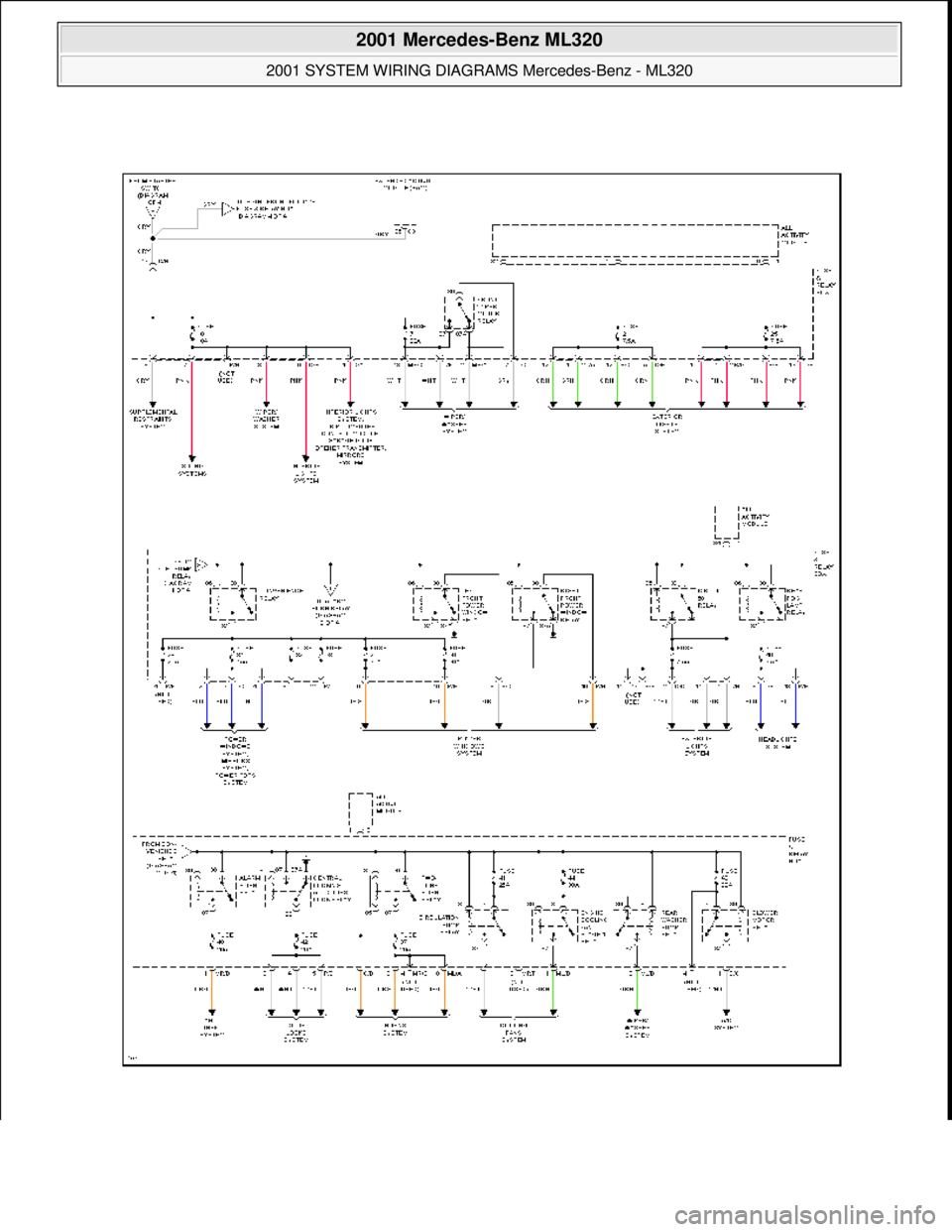

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 38: Power Distribution Circuit (1 of 4) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 77 © 2006 Mitchell Repair I

Page 4076 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 78 © 2006 Mitchell Repair Information Company, LLC.

Page 4077 of 4133

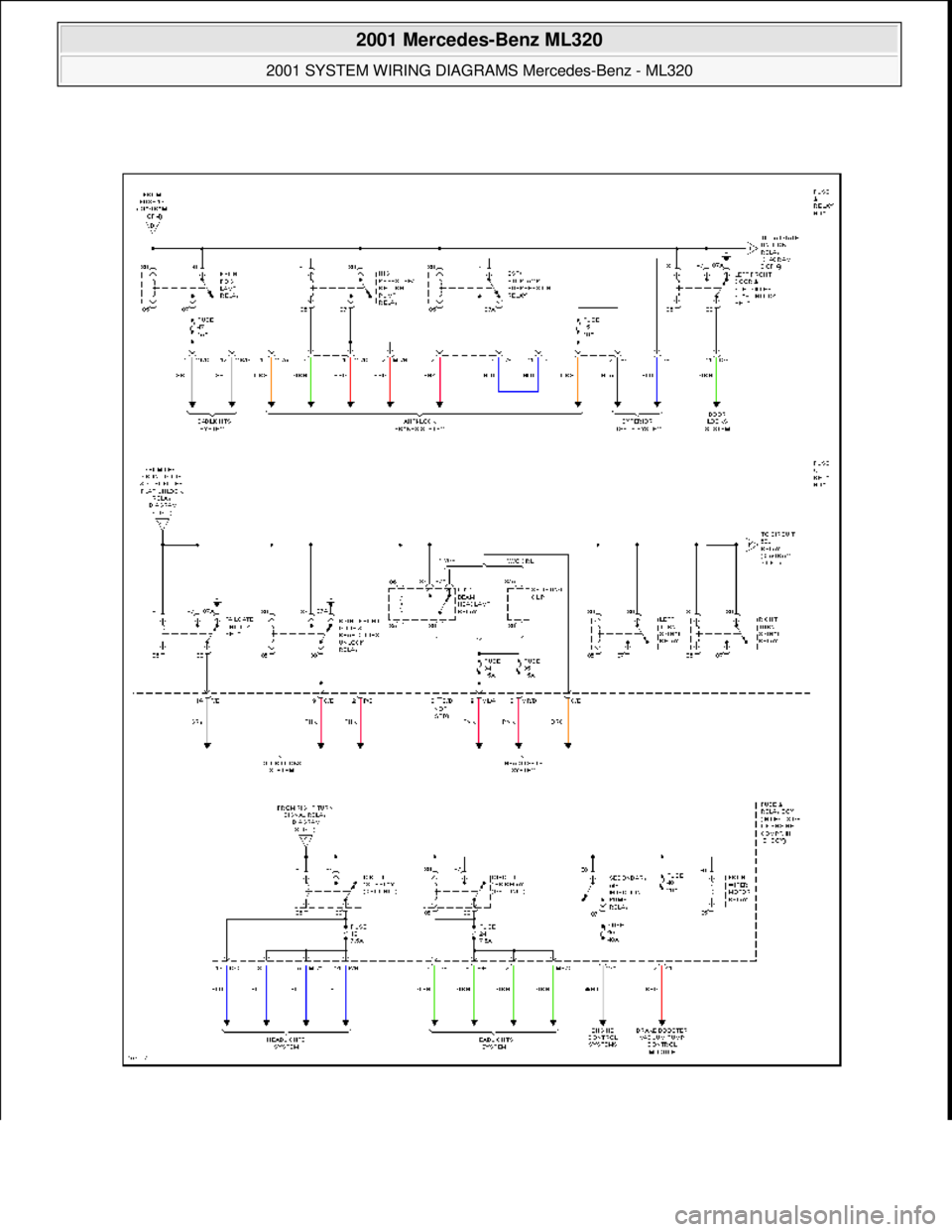

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 39: Power Distribution Circuit (2 of 4) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:27:59 PMPage 79 © 2006 Mitchell Repair I

Page 4078 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 80 © 2006 Mitchell Repair Information Company, LLC.

Page 4079 of 4133

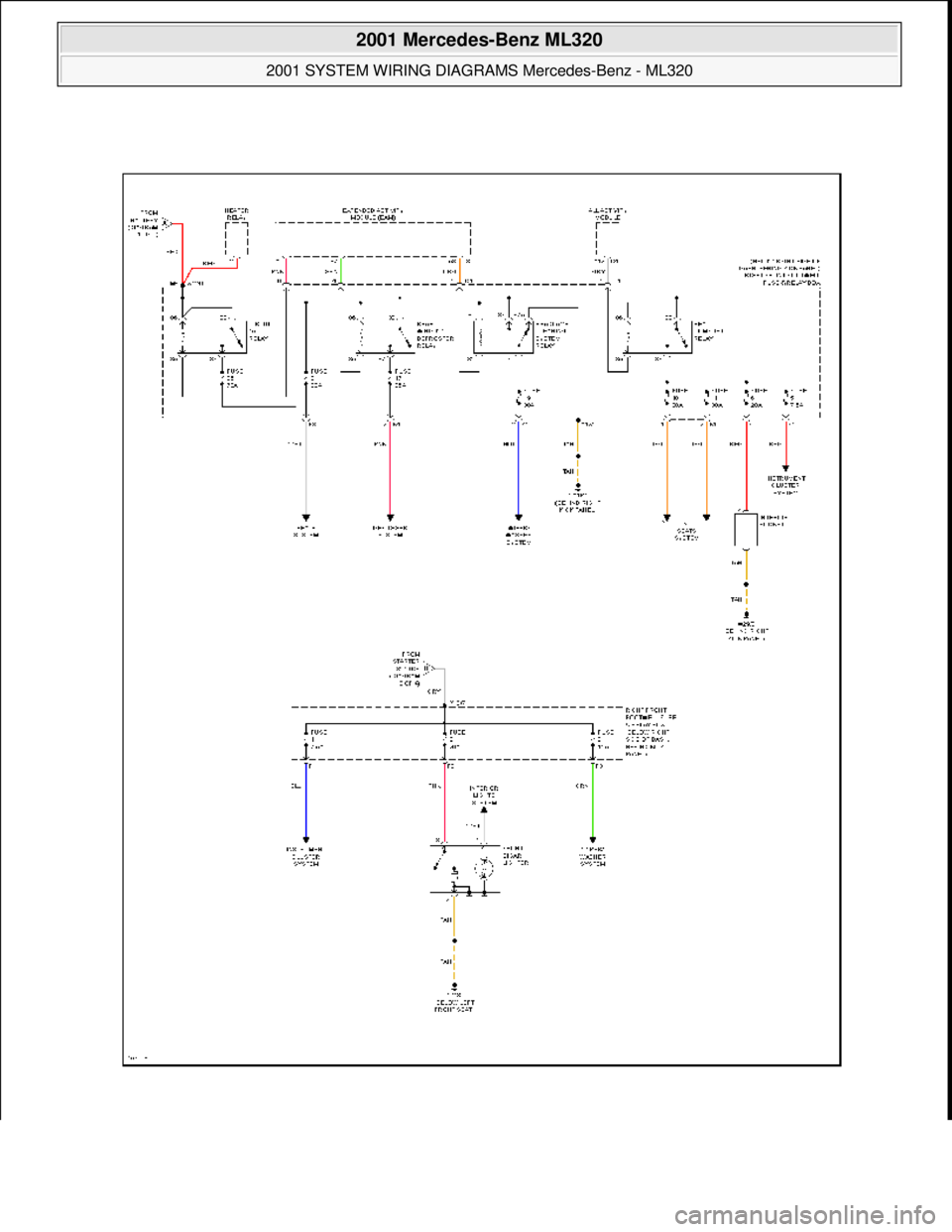

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 40: Power Distribution Circuit (3 of 4) 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 81 © 2006 Mitchell Repair I

Page 4080 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 82 © 2006 Mitchell Repair Information Company, LLC.
