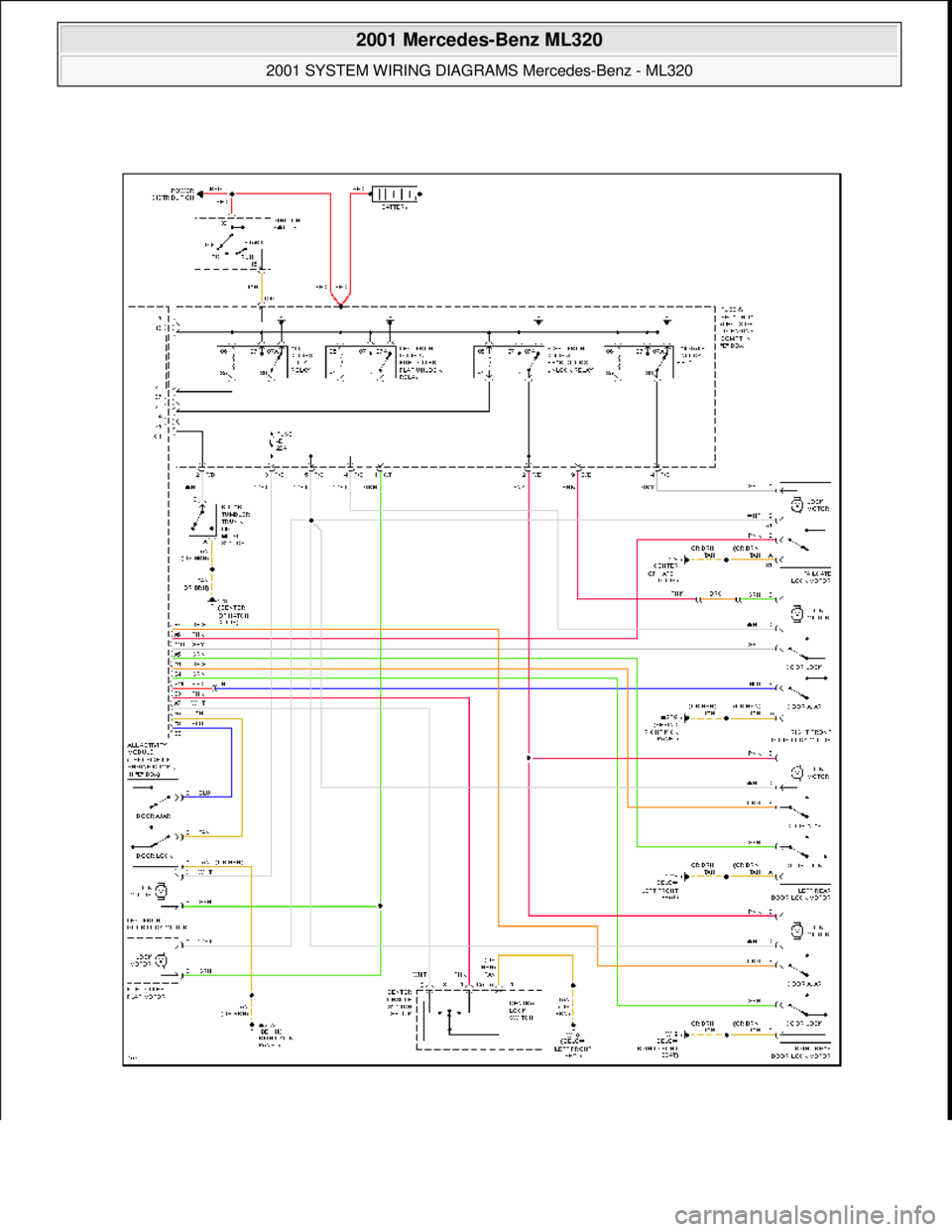

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 41: Power Distribution Circuit (4 of 4) POWER DOOR LOCKS 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 83 © 2006

Page 4082 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 84 © 2006 Mitchell Repair Information Company, LLC.

Page 4083 of 4133

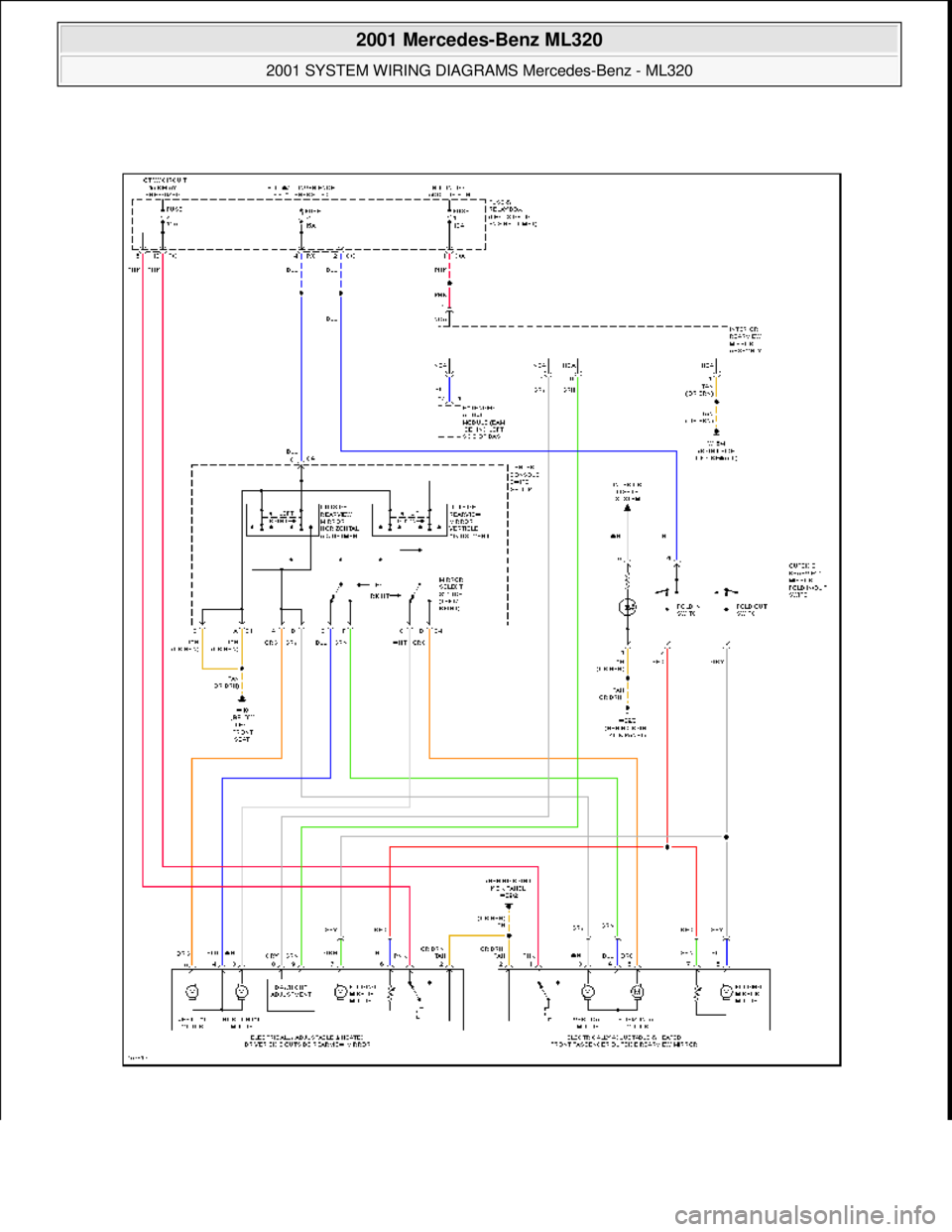

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 42: Power Door Locks Circuit POWER MIRRORS 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 85 © 2006 Mitchell Rep

Page 4084 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 86 © 2006 Mitchell Repair Information Company, LLC.

Page 4085 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 43: Power Mirrors Circuit POWER SEATS 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 87 © 2006 Mitchell Repair I

Page 4086 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 88 © 2006 Mitchell Repair Information Company, LLC.

Page 4087 of 4133

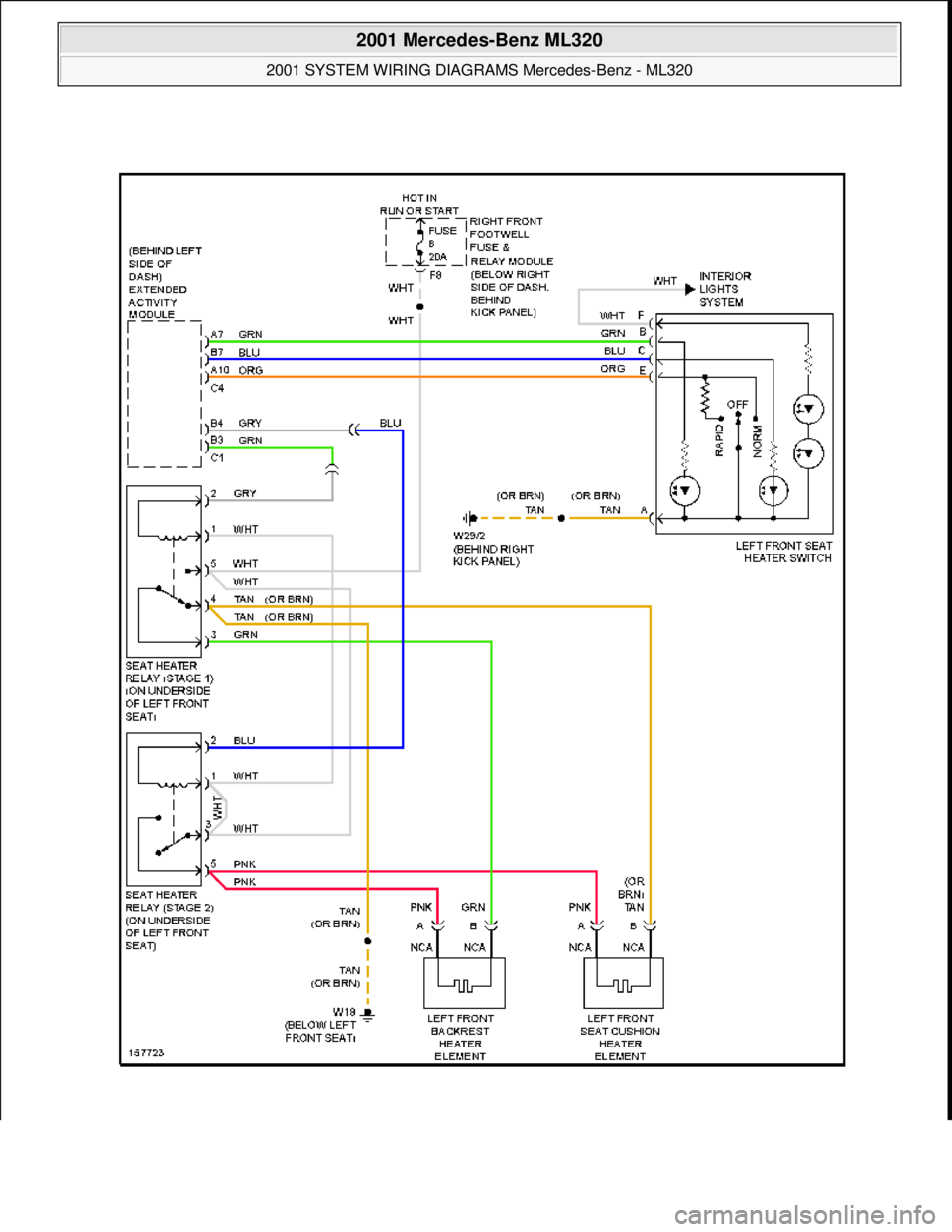

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 44: Driver Heated Seat Circuit 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 89 © 2006 Mitchell Repair Informati

Page 4088 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 90 © 2006 Mitchell Repair Information Company, LLC.

Page 4089 of 4133

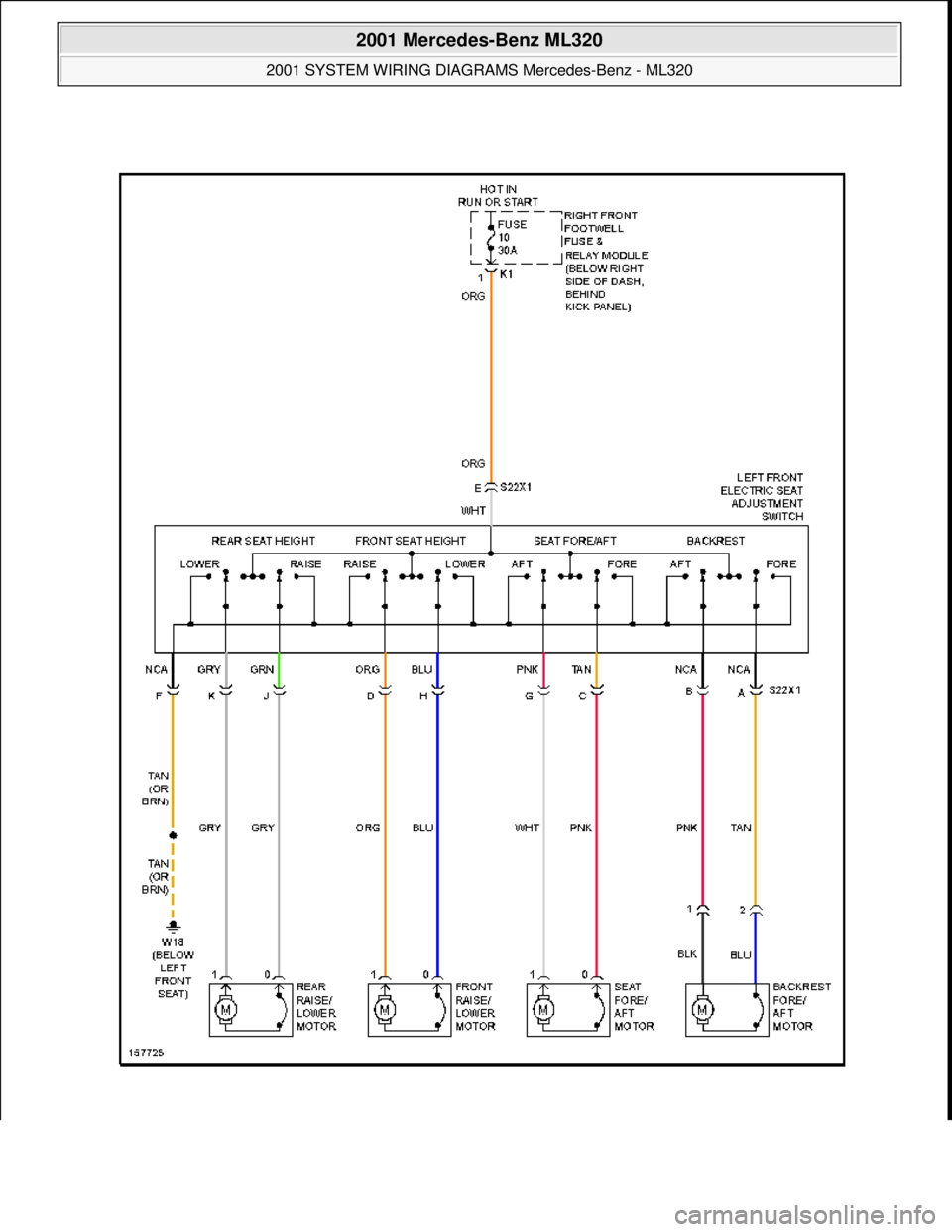

MERCEDES-BENZ ML350 1997 Complete Repair Manual Fig. 45: Driver Power Seat Circuit 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 91 © 2006 Mitchell Repair Informatio

Page 4090 of 4133

MERCEDES-BENZ ML350 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2001 SYSTEM WIRING DIAGRAMS Mercedes-Benz - ML320 me Saturday, October 02, 2010 3:28:00 PMPage 92 © 2006 Mitchell Repair Information Company, LLC.
