Loading

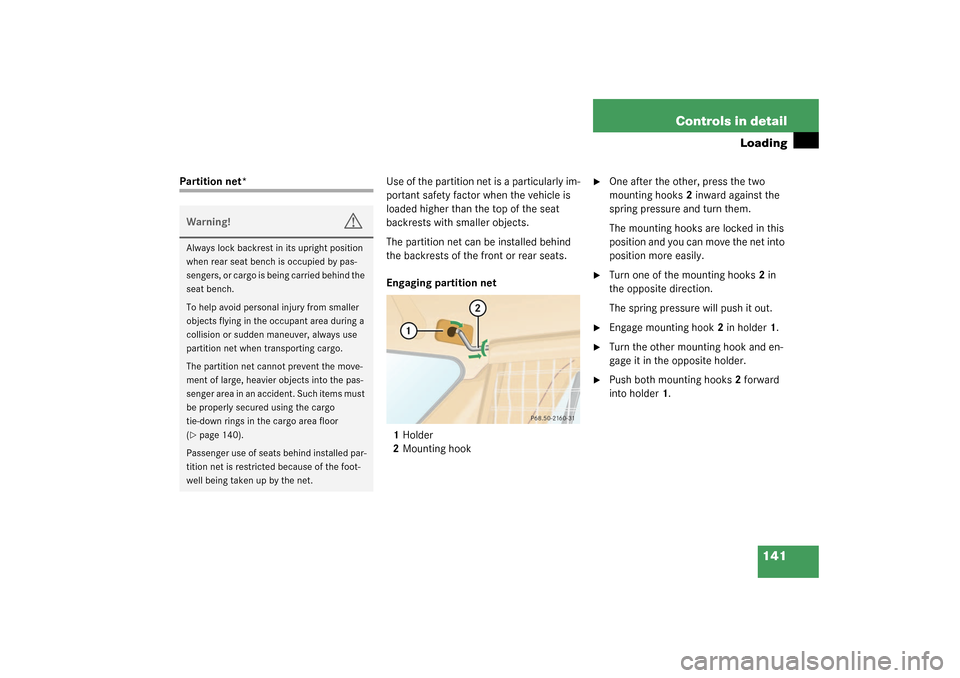

Partition net*Use of the partition net is a particularly im-
portant safety factor when the vehicle is
loaded higher than the top of the seat
backrests with smaller objects.
The partition net can be installed behind
the backrests of the front or rear seats.
Engaging partition net
1Holder
2Mounting hook

One after the other, press the two
mounting hooks2 inward against the
spring pressure and turn them.
The mounting hooks are locked in this
position and you can move the net into
position more easily.

Turn one of the mounting hooks2 in
the opposite direction.
The spring pressure will push it out.

Engage mounting hook2 in holder1.

Turn the other mounting hook and en-
gage it in the opposite holder.

Push both mounting hooks2 forward
into holder1.
Warning!
G
Always lock backrest in its upright position
when rear seat bench is occupied by pas-
sengers, or cargo is being carried behind the
seat bench.
To help avoid personal injury from smaller
objects flying in the occupant area during a
collision or sudden maneuver, always use
partition net when transporting cargo.
The partition net cannot prevent the move-
ment of large, heavier objects into the pas-
senger area in an accident. Such items must
be properly secured using the cargo
tie-down rings in the cargo area floor
(page 140).
Passenger use of seats behind installed par-
tition net is restricted because of the foot-
well being taken up by the net.

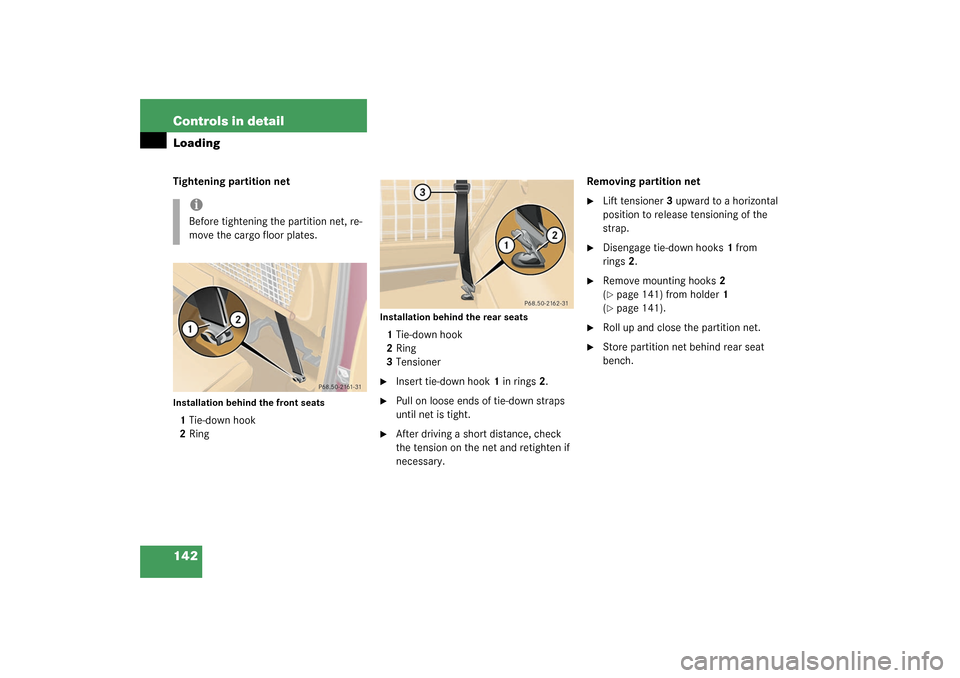

142 Controls in detailLoadingTightening partition netInstallation behind the front seats1Tie-down hook
2Ring
Installation behind the rear seats1Tie-down hook
2Ring
3Tensioner
Insert tie-down hook1 in rings2.

Pull on loose ends of tie-down straps
until net is tight.

After driving a short distance, check
the tension on the net and retighten if
necessary.Removing partition net

Lift tensioner3 upward to a horizontal
position to release tensioning of the
strap.

Disengage tie-down hooks1 from
rings2.

Remove mounting hooks2
(page 141) from holder1
(page 141).

Roll up and close the partition net.

Store partition net behind rear seat
bench.
iBefore tightening the partition net, re-
move the cargo floor plates.

143 Controls in detail
Loading

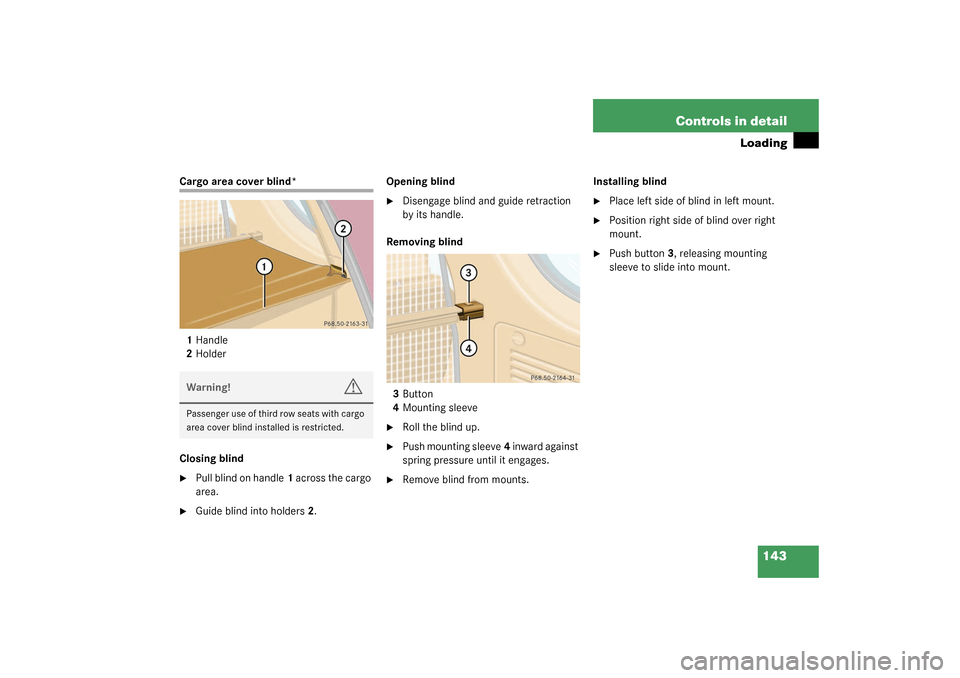

Cargo area cover blind*
1Handle
2Holder
Closing blind
Pull blind on handle1 across the cargo
area.

Guide blind into holders2.Opening blind

Disengage blind and guide retraction
by its handle.
Removing blind
3Button
4Mounting sleeve

Roll the blind up.

Push mounting sleeve4 inward against
spring pressure until it engages.

Remove blind from mounts.Installing blind

Place left side of blind in left mount.

Position right side of blind over right
mount.

Push button3, releasing mounting
sleeve to slide into mount.
Warning!
G
Passenger use of third row seats with cargo
area cover blind installed is restricted.

144 Controls in detailLoadingCargo floor plates

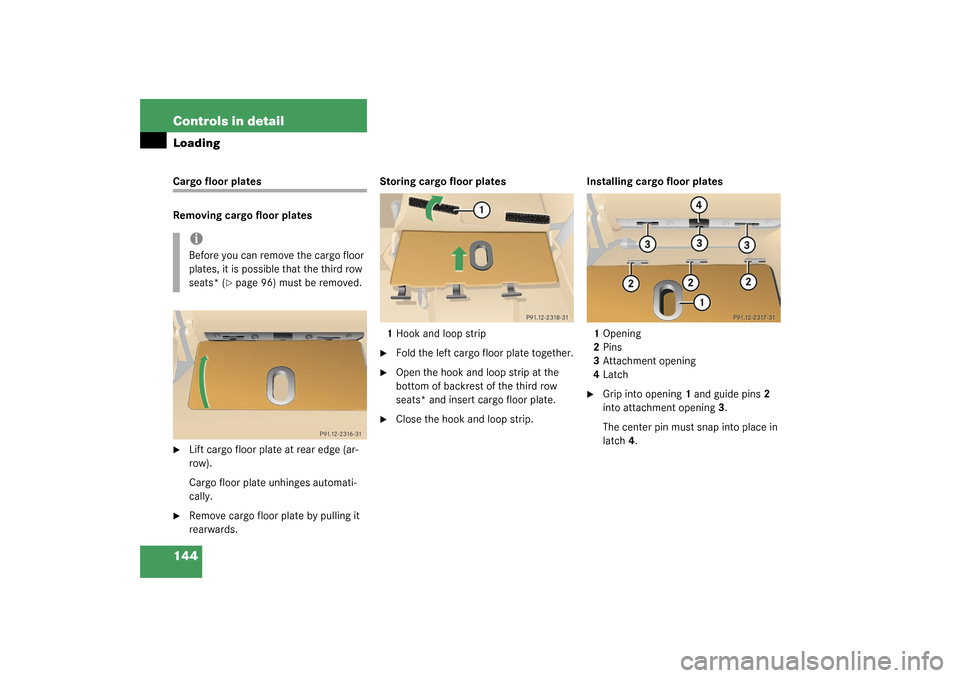

Removing cargo floor plates
Lift cargo floor plate at rear edge (ar-
row).
Cargo floor plate unhinges automati-
cally.

Remove cargo floor plate by pulling it
rearwards.Storing cargo floor plates
1Hook and loop strip

Fold the left cargo floor plate together.

Open the hook and loop strip at the
bottom of backrest of the third row
seats* and insert cargo floor plate.

Close the hook and loop strip. Installing cargo floor plates
1Opening
2Pins
3Attachment opening
4Latch

Grip into opening1 and guide pins2
into attachment opening3.
The center pin must snap into place in
latch4.
iBefore you can remove the cargo floor
plates, it is possible that the third row
seats* (
page 96) must be removed.

145 Controls in detail
Loading
Roof rack*Roof rails
For further information inquire at your
Mercedes-Benz Light Truck Center.
Warning!
G
Take into consideration that when the roof
rack is loaded, the handling characteristics
are different from those when operating the
vehicles without the roof rack loaded.
The maximum roof load when using roof
rack systems is 220 lbs. (100 kg).
!Attach roof racks to the roof rails only.
Use only those roof racks approved by
Mercedes-Benz for your vehicle model.
Follow manufacturer’s installation in-
structions.
The vehicle could otherwise be dam-
aged.

146 Controls in detailDriving systems

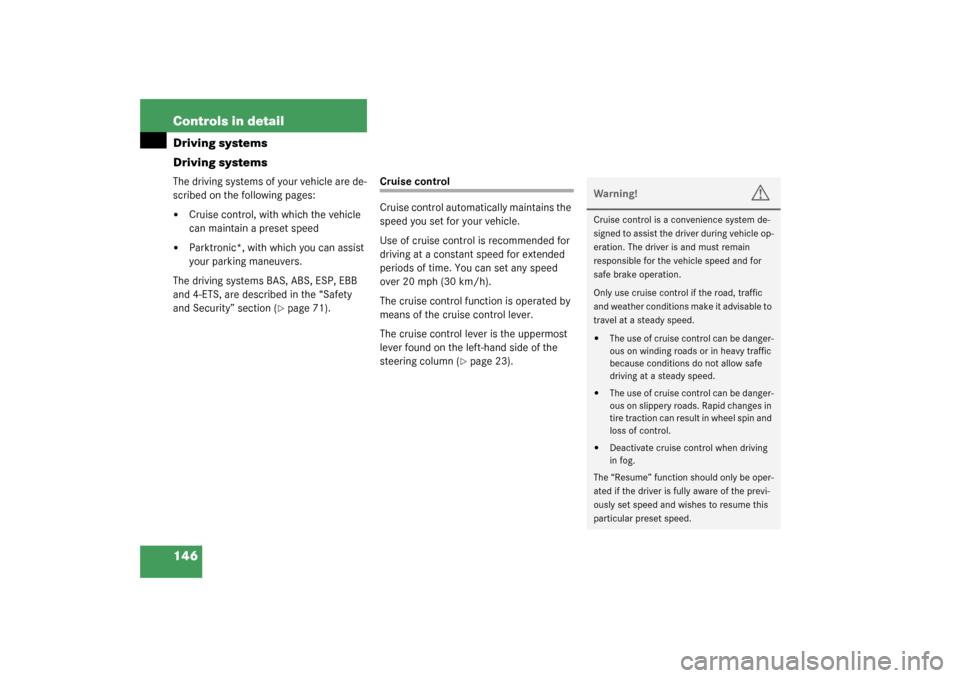

Driving systemsThe driving systems of your vehicle are de-
scribed on the following pages:

Cruise control, with which the vehicle
can maintain a preset speed


Parktronic*, with which you can assist
your parking maneuvers.
The driving systems BAS, ABS, ESP, EBB
and 4-ETS, are described in the “Safety
and Security” section (
page 71).
Cruise control
Cruise control automatically maintains the
speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set any speed
over 20 mph (30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever found on the left-hand side of the
steering column (
page 23).
Warning!
G
Cruise control is a convenience system de-
signed to assist the driver during vehicle op-
eration. The driver is and must remain
responsible for the vehicle speed and for
safe brake operation.
Only use cruise control if the road, traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

147 Controls in detail
Driving systems

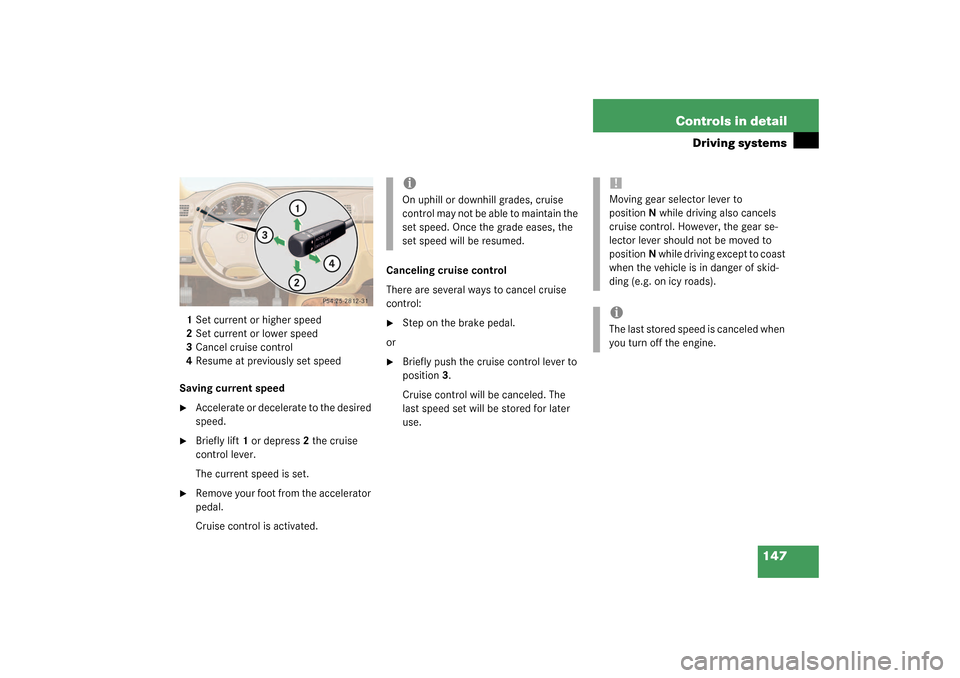

1Set current or higher speed
2Set current or lower speed
3Cancel cruise control
4Resume at previously set speed
Saving current speed
Accelerate or decelerate to the desired
speed.

Briefly lift1 or depress2 the cruise
control lever.
The current speed is set.

Remove your foot from the accelerator
pedal.
Cruise control is activated.Canceling cruise control
There are several ways to cancel cruise
control:

Step on the brake pedal.
or

Briefly push the cruise control lever to
position3.
Cruise control will be canceled. The
last speed set will be stored for later
use.iOn uphill or downhill grades, cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
!Moving gear selector lever to
positionN while driving also cancels
cruise control. However, the gear se-
lector lever should not be moved to
positionN while driving except to coast
when the vehicle is in danger of skid-
ding (e.g. on icy roads).iThe last stored speed is canceled when
you turn off the engine.

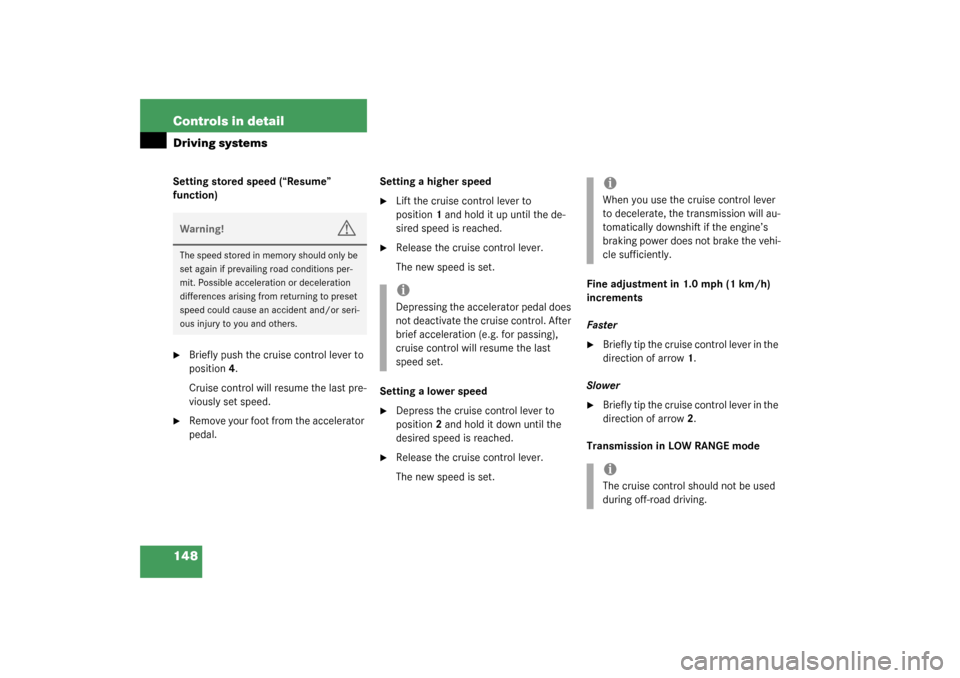

148 Controls in detailDriving systemsSetting stored speed (“Resume”
function)
Briefly push the cruise control lever to
position4.
Cruise control will resume the last pre-
viously set speed.

Remove your foot from the accelerator
pedal.Setting a higher speed

Lift the cruise control lever to
position1 and hold it up until the de-
sired speed is reached.

Release the cruise control lever.
The new speed is set.
Setting a lower speed

Depress the cruise control lever to
position2 and hold it down until the
desired speed is reached.

Release the cruise control lever.
The new speed is set.Fine adjustment in 1.0 mph (1 km/h)
increments
Faster

Briefly tip the cruise control lever in the
direction of arrow1.
Slower

Briefly tip the cruise control lever in the
direction of arrow2.
Transmission in LOW RANGE mode
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to preset
speed could cause an accident and/or seri-
ous injury to you and others.
iDepressing the accelerator pedal does
not deactivate the cruise control. After
brief acceleration (e.g. for passing),
cruise control will resume the last
speed set.
iWhen you use the cruise control lever
to decelerate, the transmission will au-
tomatically downshift if the engine’s
braking power does not brake the vehi-
cle sufficiently.iThe cruise control should not be used
during off-road driving.

149 Controls in detail
Driving systems

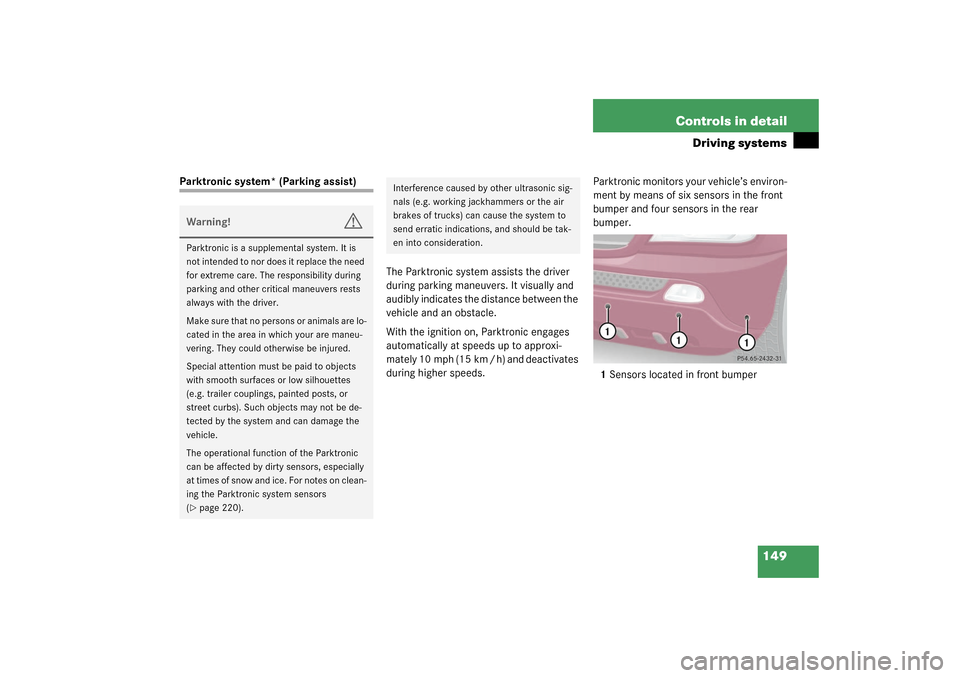

Parktronic system* (Parking assist)
The Parktronic system assists the driver
during parking maneuvers. It visually and
audibly indicates the distance between the
vehicle and an obstacle.
With the ignition on, Parktronic engages
automatically at speeds up to approxi-
mately 10 mph (15 km / h) and deactivates
during higher speeds.Parktronic monitors your vehicle’s environ-
ment by means of six sensors in the front
bumper and four sensors in the rear
bumper.
1Sensors located in front bumperWarning!
G
Parktronic is a supplemental system. It is
not intended to nor does it replace the need
for extreme care. The responsibility during
parking and other critical maneuvers rests
always with the driver.
Make sure that no persons or animals are lo-
cated in the area in which your are maneu-
vering. They could otherwise be injured.
Special attention must be paid to objects
with smooth surfaces or low silhouettes
(e.g. trailer couplings, painted posts, or
street curbs). Such objects may not be de-
tected by the system and can damage the
vehicle.
The operational function of the Parktronic
can be affected by dirty sensors, especially
at times of snow and ice. For notes on clean-
ing the Parktronic system sensors
(page 220).
Interference caused by other ultrasonic sig-
nals (e.g. working jackhammers or the air
brakes of trucks) can cause the system to
send erratic indications, and should be tak-
en into consideration.

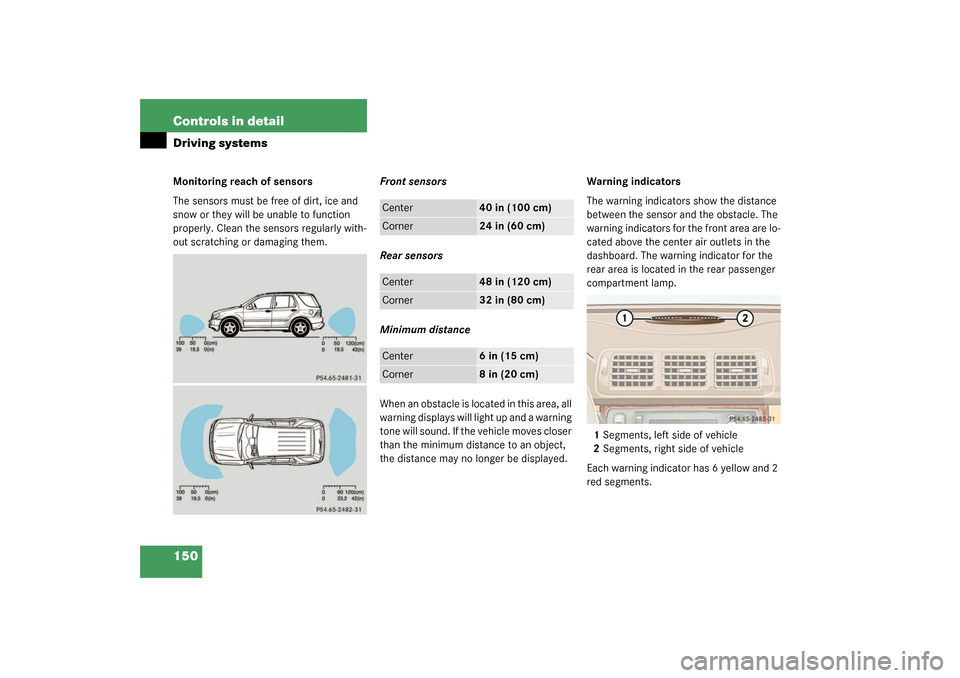

150 Controls in detailDriving systemsMonitoring reach of sensors
The sensors must be free of dirt, ice and
snow or they will be unable to function
properly. Clean the sensors regularly with-
out scratching or damaging them.Front sensors
Rear sensors
Minimum distance
When an obstacle is located in this area, all
warning displays will light up and a warning
tone will sound. If the vehicle moves closer
than the minimum distance to an object,
the distance may no longer be displayed.Warning indicators
The warning indicators show the distance
between the sensor and the obstacle. The
warning indicators for the front area are lo-
cated above the center air outlets in the
dashboard. The warning indicator for the
rear area is located in the rear passenger
compartment lamp.
1Segments, left side of vehicle
2Segments, right side of vehicle
Each warning indicator has 6 yellow and 2
red segments.
Center
40 in (100 cm)
Corner
24 in (60 cm)
Center
48 in (120 cm)
Corner
32 in (80 cm)
Center
6 in (15 cm)
Corner
8 in (20 cm)
