MERCEDES-BENZ ML350 2004 W163 Owner's Manual

261 Practical hints
Unlocking / locking in an emergency
Unlocking / locking in an emergency
Unlocking the vehicle
Unlocking the driver’s door
If you are unable to unlock the driver’s
door using the remote control, open the
door using the key.
1Release button
Press release button1 on the remote
control.
The key folds out.2Unlocking
3Locking

Remove the protective cap from the
door lock.

Unlock the door with the mechanical
key. To do so, push the mechanical key
in the lock until it stops and turn it to
the left.
iUnlocking and opening the driver’s
door with the mechanical key will trig-
ger the anti-theft alarm system. To can-
cel the alarm, do one of the following:

Press buttonŒ or‹ on the
remote control.


Insert the key in the steering lock.

262 Practical hintsUnlocking / locking in an emergencyLocking the vehicle
If you are unable to lock the vehicle with
the remote control, lock it with the me-
chanical key as follows:
Close the passenger doors and the lift-
gate.

Press the upper part of the central
locking button in the cockpit
(page 93).

Check to see whether the locking
knobs on the passenger doors are still
visible. If necessary push them down
manually.

Lock the liftgate if necessary from in-
side (
page 91).

Lock the driver’s door with the me-
chanical key.Changing batteries in the remote
control
If the batteries in the remote control are
discharged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Light Truck Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.1Release button
2Battery cover
Replacement batteries: Lithium, type
CR 2025 or equivalent.

Unfold the key by pressing release
button1.
Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen changing batteries, always re-
place both batteries.
The required replacement batteries are
available at any Mercedes-Benz Light
Truck Center.

263 Practical hints
Unlocking / locking in an emergency

Pull off battery cover2 in direction of
arrow.

Remove the batteries.

Using a lint-free cloth, insert new bat-
teries under the contact spring with the
plus (+) side facing up.

Press battery cover2 onto housing
until locked in place.

Push each button to assure proper op-
eration of the remote control.
If remote control does not function cor-
rectly after replacing the batteries, the
system may have to be resynchronized.Synchronizing remote control

Turn key in steering lock to position2
(page 33), then to position0 and re-
move.

Within ten seconds, push and hold
button‹ while pushing
buttonΠfive times.

Release the button, and press‹,
Œ orŠ once.
The remote control is resynchronized.

Recheck all of the remote control func-
tions.
Fuel filler flap
1Cover
2Lock rod
Open the tailgate.

Open cover1 in cargo area behind
the left trim panel.

Turn lock rod2 clockwise (arrow) to
the end stop.
The fuel filler flap can now be opened.
iI f i t i s n o t p o s s i b l e t o r e s y n c h r o n i z e t h e
remote control, have the system
checked at your authorized
Mercedes-Benz Light Truck Center.

264 Practical hintsUnlocking / locking in an emergencyManually unlocking the transmission gear selector lever
In the case of power failure the transmis-
sion gear selector lever can be manually
unlocked, e.g. to tow the vehicle.
1Pin

Insert a pin1, e.g. ball point pen, into
the covered opening below the
position D of the shift pattern.

Perform the following two steps simul-
taneously:
Push the pin down.

Move gear selector lever from
positionP.

Remove pin1.
The cover returns to its closed position
after moving the gear selector lever to
positionD.iThe gear selector lever is locked again
when moving it to positionP.

265 Practical hints
Opening / closing in an emergency
Opening / closing in an emergency
Sliding / pop-up roof*
You can open or close the sliding / pop-up
r o o f m a n u a l l y s h o u l d a n e l e c t r i c a l m a l f u n c -
tion occur.
The sliding / pop-up roof drive is located
behind the cover between the front interior
lamps.
1Hexagon drive hole
2Crank
3Cover

Pry off cover3 using a flat blade
srewdriver.

Obtain crank2.

Insert crank2 through hole.

Turn crank2 clockwise to:

slide roof closed


raise roof at the rear

Turn crank2 counterclockwise to:

slide roof open


lower roof at the rear
The sliding / pop-up roof must be synchro-
nized if it has been operated manually
(
page 149).iPush crank2 upward while turning it,
to disengage the electric motor.

266 Practical hintsReplacing bulbs
Replacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Light Truck Center
for headlamp adjustment.

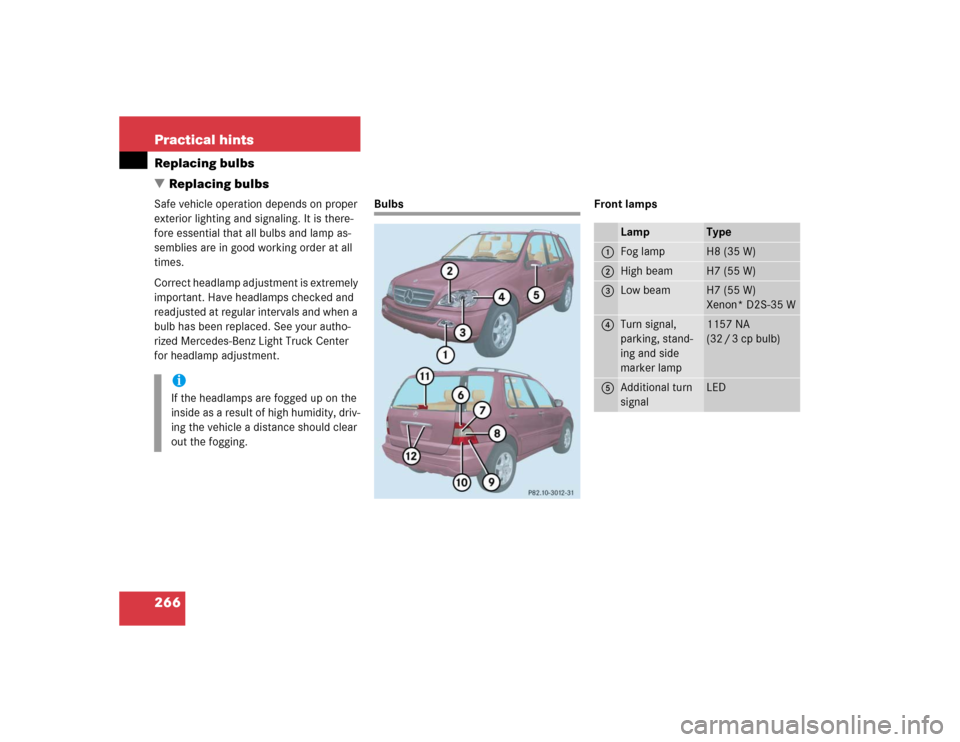

Bulbs Front lamps
iIf the headlamps are fogged up on the
inside as a result of high humidity, driv-
ing the vehicle a distance should clear
out the fogging.
Lamp
Type
1
Fog lamp
H8 (35 W)
2
High beam
H7 (55 W)
3
Low beam
H7 (55 W)
Xenon* D2S-35 W
4
Turn signal,
parking, stand-
ing and side
marker lamp
1157 NA
(32 / 3 cp bulb)
5
Additional turn
signal
LED

267 Practical hints
Replacing bulbs
Rear lamps Notes on bulb replacement


Use only 12-volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Light Truck Center.


Have the LEDs and bulbs for the follow-
ing lamps replaced by an authorized
Mercedes-Benz Light Truck Center:

Additional turn signals in the exteri-
or rear view mirrors


Bi-Xenon lamps*


Front fog lamps (vehicles with sport
package)*

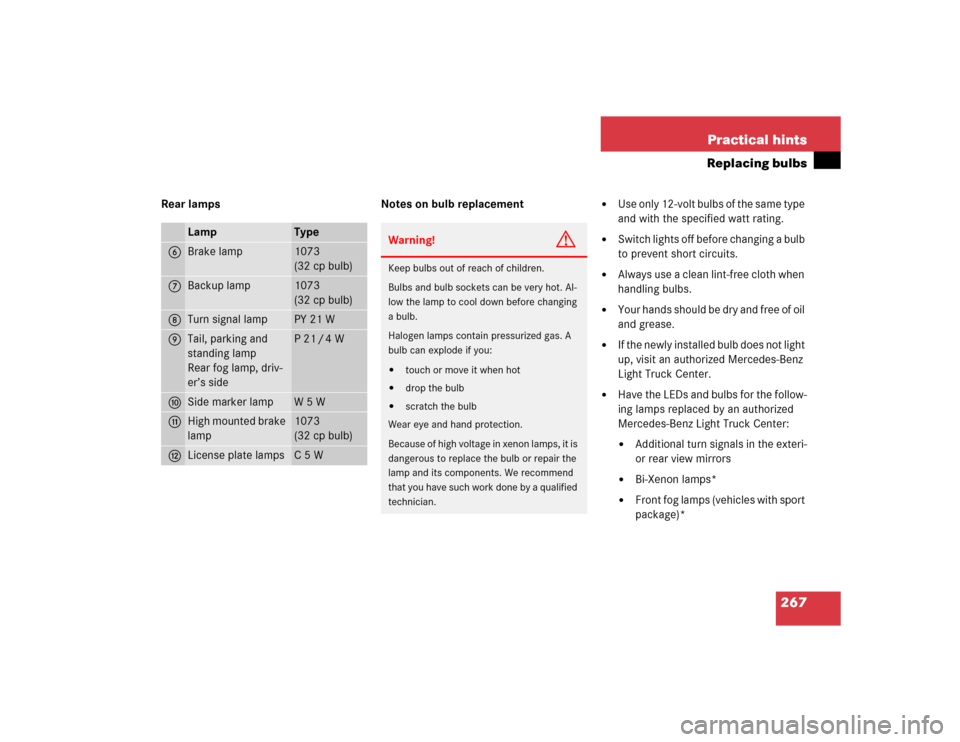

Lamp
Type
6
Brake lamp
1073
(32 cp bulb)
7
Backup lamp
1073
(32 cp bulb)
8
Turn signal lamp
PY 21 W
9
Tail, parking and
standing lamp
Rear fog lamp, driv-
er’s side
P 21 / 4 W
a
Side marker lamp
W5W
b
High mounted brake
lamp
1073
(32 cp bulb)
c
License plate lamps
C 5 W
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.

268 Practical hintsReplacing bulbsReplacing bulbs for front lamps
Replacing low beam bulbs
1Low beam halogen or Bi-Xenon* head-
lamp cover with locking tab2Electrical connector
Bi-Xenon* headlampHalogen headlamp

Switch off the lights.

Open the hood (
page 217).

Push down tab at top end of cover1
and remove.

Pull electrical connector2 off.

Unclip the retainer springs and take out
the bulb.

Insert the new bulb so that the base lo-
cates in the recess on the holder.

Clip the retainer springs.

Plug the connector2 onto the bulb.

Align headlamp cover and click into
place.
Warning!
G
Do not remove the cover
1
for the
Bi-Xenon headlamp. Because of high voltage
in xenon lamps, it is dangerous to replace
the bulb or repair the lamp and its compo-
nents. We recommend that you have such
work done by a qualified technician.

269 Practical hints
Replacing bulbs
High beam bulbs
1High beam headlamp cover with lock-
ing tab
Switch off the lights.

Open the hood (
page 217).

Twist cover1 counterclockwise and
remove.2Electrical connector

Pull electrical connector2 off.

Unclip the retainer springs and take out
the bulb.

Insert the new bulb so that the base lo-
cates in the recess on the holder.

Clip the retainer springs.

Plug the connector2 onto the bulb.

Align headlamp cover and click into
place.Turn signal, parking, standing and side
marker lamp bulbs
1Bulb socket

Switch off the lights.

Open the hood (
page 217).

Twist bulb socket1 counterclockwise
and pull out.

Push bulb into socket, turn counter-
clockwise and remove.

Insert new bulb in socket, push in and
twist clockwise.

Reinstall the bulb socket.


270 Practical hintsReplacing bulbs
Align headlamp cover and click into
place.
Fog lamp bulbs
1Fog lamp

Switch off the lights.

Use a suitable object (e.g. screwdriver)
to press on the release lever behind the
front panel.
Front fog lamp1 releases.

Remove fog lamp out of bumper.2Bulb socket
3Tabs

Twist bulb socket2 counterclockwise
to its end stop and pull out.

Pull bulb out of the bulb socket.

Insert new bulb in socket.

Reinstall bulb socket2.

Twist bulb socket2 clockwise to its
end stop.

Reinstall fog lamp into the bumper.
Make sure tabs3 firmly seat into the
slots of holder.
Replacing bulbs for rear lamps
Tail lamp assemblies
Switch off the lights.

Open liftgate.
1Screws
2Tail, parking and standing lamp
Fog lamp, driver’s side
3Side marker lamp
4Turn signal lamp
5Backup lamp
6Brake lamp

Remove screws1.

Remove tail lamp.
