Page 291 of 344

MERCEDES-BENZ ML350 2004 W163 Owners Manual 291 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the “warranties” printed in the Service and
Warranty Information booklet. Your
authorized Merc

Page 292 of 344

MERCEDES-BENZ ML350 2004 W163 Owners Manual 292 Technical dataIdentification labels
Identification labels1Certification label and Paintwork num-
ber2Engine number (engraved on engine)
3VIN, visible (lower edge of windshield)
4Emission control

Page 293 of 344

MERCEDES-BENZ ML350 2004 W163 Owners Manual 293 Technical data
Layout of poly-V-belt drive
Layout of poly-V-belt drive
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator

Page 294 of 344

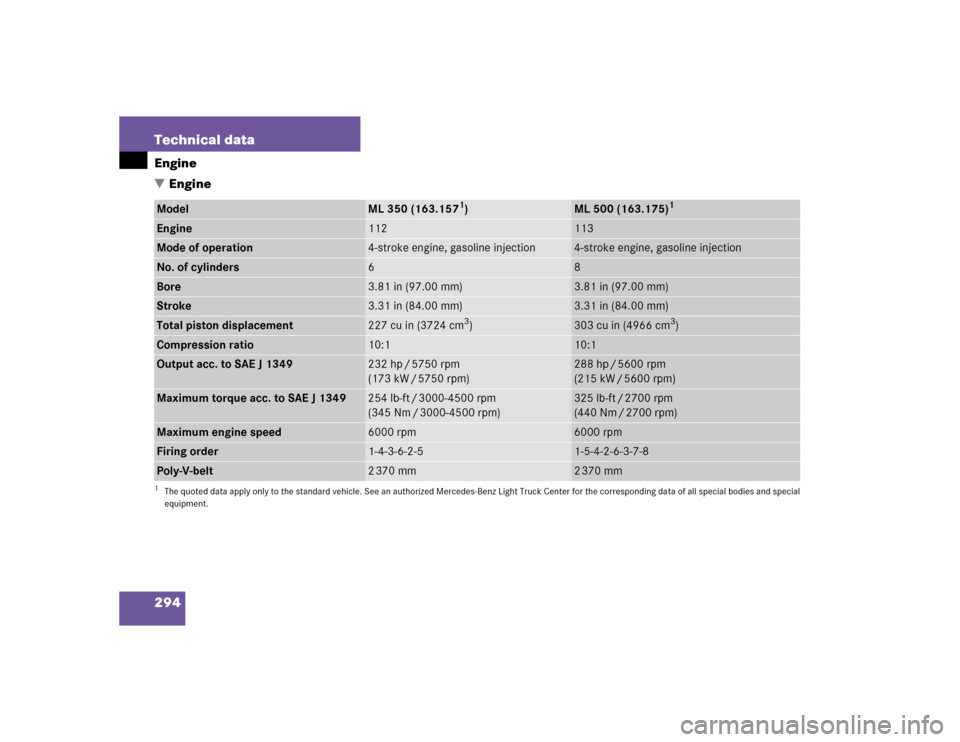

MERCEDES-BENZ ML350 2004 W163 Owners Manual 294 Technical dataEngine
EngineModel
ML 350 (163.157
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Light Truck Center for the corresponding data of all speci

Page 295 of 344

MERCEDES-BENZ ML350 2004 W163 Owners Manual 295 Technical data
Rims and tires
Rims and tires
Use only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can

Page 296 of 344

MERCEDES-BENZ ML350 2004 W163 Owners Manual 296 Technical dataRims and tiresSpare wheelModel
ML 350, ML 500
Rim
4Jx18 H2 ET0
Wheel offset
0 in (0 mm)
Space-saver tire
T155 / 90 D18 113M
1
1Must not be used with snow chains.

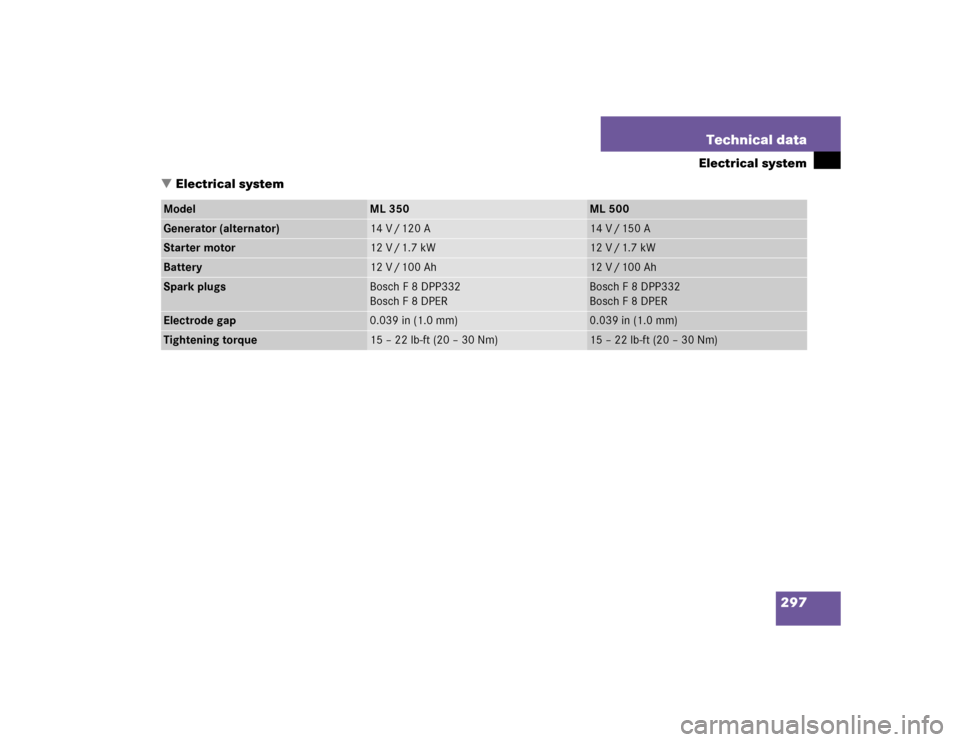

Page 297 of 344

MERCEDES-BENZ ML350 2004 W163 Owners Manual 297 Technical data
Electrical system
Electrical system
Model
ML 350
ML 500
Generator (alternator)
14 V / 120 A
14 V / 150 A
Starter motor
12 V / 1.7 kW
12 V / 1.7 kW
Battery
12 V / 100 Ah
12 V / 100

Page 298 of 344

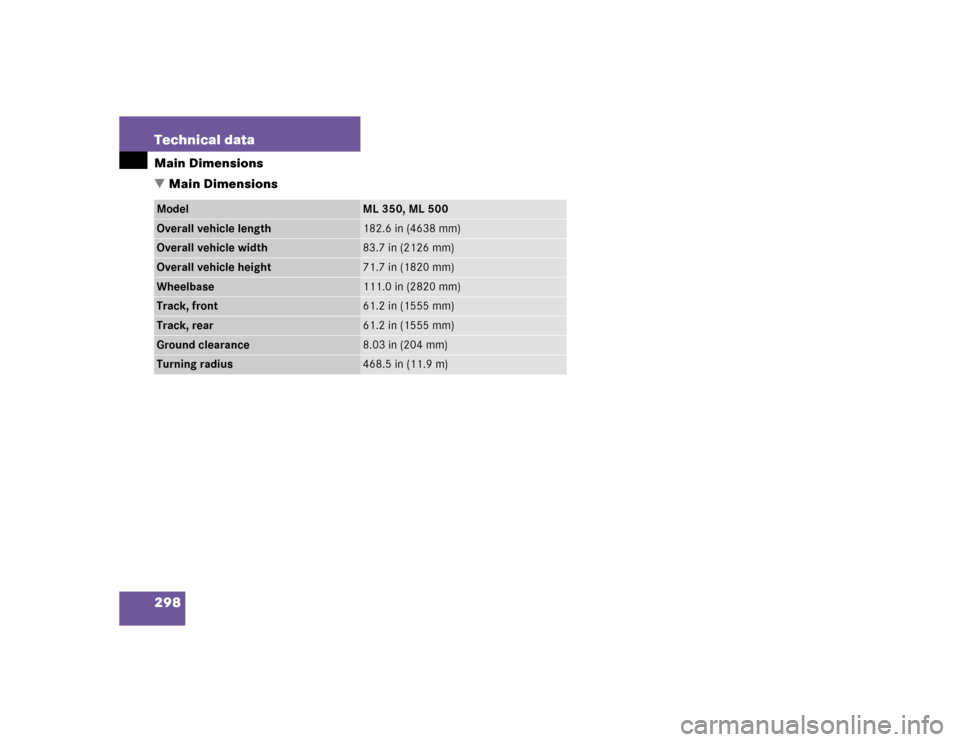

MERCEDES-BENZ ML350 2004 W163 Owners Manual 298 Technical dataMain Dimensions
Main DimensionsModel
ML 350, ML 500
Overall vehicle length
182.6 in (4638 mm)
Overall vehicle width
83.7 in (2126 mm)
Overall vehicle height
71.7 in (1820 mm)
Wheelb

Page 299 of 344

MERCEDES-BENZ ML350 2004 W163 Owners Manual 299 Technical data

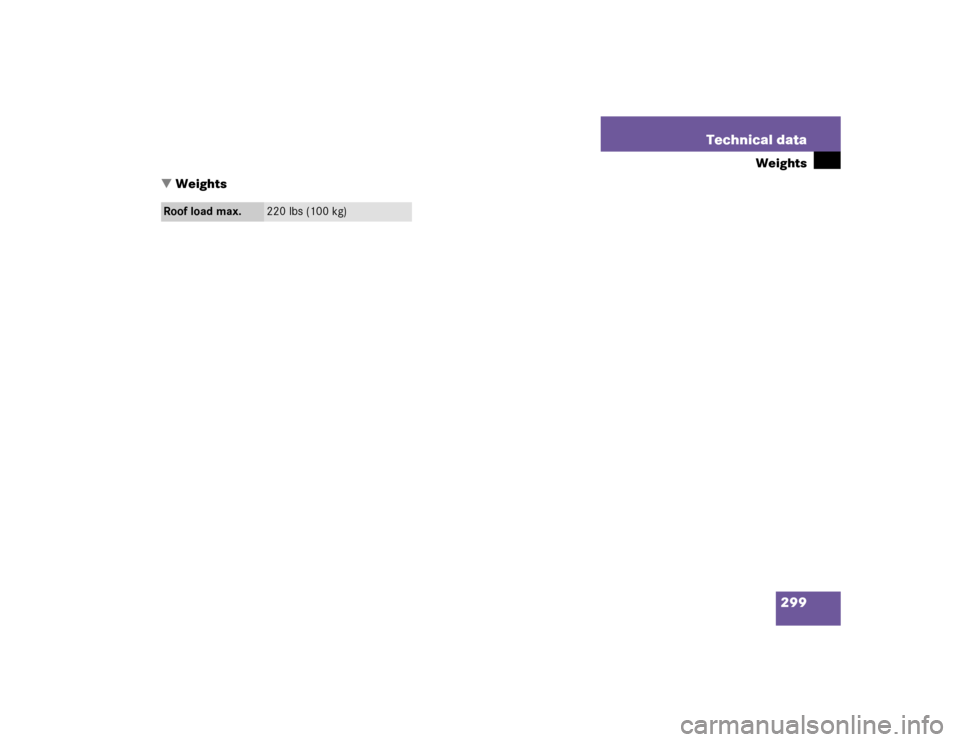

Weights
Weights
Roof load max.
220 lbs (100 kg)

Page 300 of 344

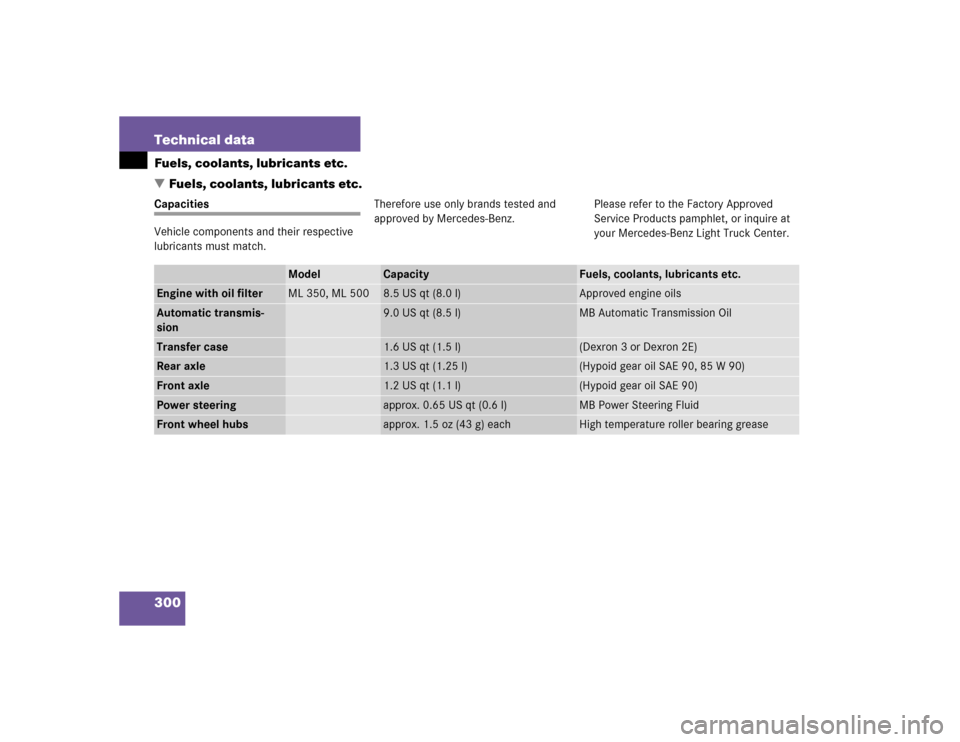

MERCEDES-BENZ ML350 2004 W163 Owners Manual 300 Technical dataFuels, coolants, lubricants etc.
Fuels, coolants, lubricants etc.Capacities
Vehicle components and their respective
lubricants must match.Therefore use only brands tested and
appr
