MERCEDES-BENZ ML430 1997 Complete Repair Manual

AD54.30-P-5000-02A
Display instruments controlled via CAN

troubleshooting chart IC

The following display instruments or indicator lamps/ malfunction

indicator lamps receive their information from the traction system

control module (N47) via CAN data buses (an appropriate message

appears in the display on vehicles with multi-function display):

D
Total mileage recorder, trip odometer

D
Electronic speedometer

D
Low brake fluid level/parking brake indicator lamp (except model 163

parking brake indicator lamp only via CAN)

D
Brake pad wear indicator lamp

D
ABS MIL

D
ETS, ASR, ESP indicator lamp

D
ETS, ASR, ESP malfunction indicator lamp

Model 163 only:

The
"Low-Range"
indicator lamp receives its information from the

transfer case control module (N78) via CAN data buses.

The
"Fog lamps"
indicator lamp (only model 163 except

I
) receives

its information from the All-activity module (AAM, N10) via CAN data

buses.

Model 168 only:

The
" Gear indicator "
indicator lamp receives its information from the

gear recognition module (A61) or from automatic clutch control module

(N15/4) via CAN data buses.
The following display instruments or indicator lamps/

malfunction indicator lamps receive their information from the

injection system control module (N3) via CAN data buses (an

appropriate message appears in the display on vehicles with

multi-function display):

D
Tachometer

D
Low engine oil level lamp

D
Engine coolant temperature

D
Preglow indicator lamp (diesel only)

D
Vehicle speed warning

D
Vehicle speed limit warning

D
Severe leak warning (

I
only), the fuel reserve indicator lamp

(A1e4) flashes

D
Active Service System (ASSYST):

D
Oil condition

D
Oil level

D
Oil temperature

D
Mass volumetric efficiency (load moment)

D
Engine speed, engine coolant temperature

Copyright DaimlerChrysler AG 05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

Integrated V60 Digital Cellular Phone
In-Vehicle Operation Guide
Mercedes-Benz
Mercedes-Benz USA, LLC
One Mercedes Drive
Montvale, New Jersey 07645
© 2001 Mercedes-Benz USA, LLC
Technical Information
Order Number S-2790-02A
Printed in the USA
All illustrations and specifications contained in this folder
are based on the latest product information available at the
time of publication approval.
Mercedes-Benz reserves the right to make changes at any
time, without notice.6809437A95-O
10/01-RGC

Please familiarize yourself with these operating instructions and your Motorola cellular
telephone before attempting to operate it while driving.
We continuously strive to improve the integrated telephone system and we ask for your
understanding that we reserve the right to make changes in design and equipment.
Therefore, information, illustrations and descriptions in this operating manual might differ
from your vehicle.
If there are any equipment details that are not shown or described in these operating
instructions, or if you have any questions regarding the descriptions or the operation of the
digital telephone system, your authorized Mercedes-Benz Center will be happy to assist you.
Please read this manual carefully before putting it aside. Then return it to your vehicle where
it will be handy for your reference.
We extend our best wishes for many miles of safe, pleasurable driving.
DaimlerChrysler Aktiengesellschaft

1

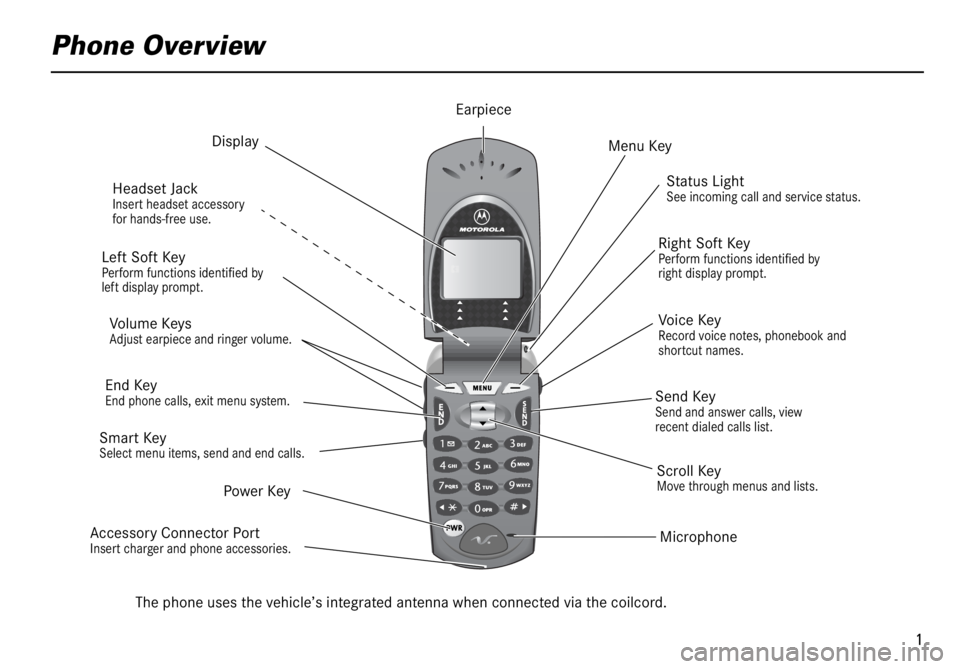

Phone Overview

The phone uses the vehicle’s integrated antenna when connected via the coilcord.
Earpiece
Headset Jack
Insert headset accessory
for hands-free use.
Status LightSee incoming call and service status.
Volume KeysAdjust earpiece and ringer volume.
Accessory Connector PortInsert charger and phone accessories.
Right Soft KeyPerform functions identified by
right display prompt.
Menu Key
Scroll Key
Move through menus and lists.Power Key
Microphone Voice Key
Record voice notes, phonebook and
shortcut names.
Send KeySend and answer calls, view
recent dialed calls list.
Smart KeySelect menu items, send and end calls.
End KeyEnd phone calls, exit menu system.
Left Soft KeyPerform functions identified by
left display prompt.
Display

2
Personal Communications Sector
600 North U.S. Highway 45
Libertyville, Illinois 60048
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States)
1-800-461-4575 (Canada)
www.motorola.com (United States)
www.motorola.ca (Canada)
MOTOROLA, the Stylized M Logo and all other trademarks indicated as such herein are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. All
other product or service names are the property of their respective owners.
© 2001 Motorola, Inc. All rights reserved. Printed in the U.S.A.

SS S S
oo o o
ff f f
tt t t
ww w w
aa a a
rr r r
ee e e

CC C C
oo o o
pp p p
yy y y
rr r r
iii i
gg g g
hh h h
tt t t

NN N N
oo o o
tt t t
iii i
cc c c
ee e e
The Motorola products described in this manual may include copyrighted Motorola and third party software stored in semiconductor memories or
other media. Laws in the United States and other countries preserve for Motorola and third party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by
law. Furthermore, the purchase of the Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise,
any license under the copyrights, patents, or patent applications of Motorola or any third party software provider, except for the normal, non-
exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Manual number: 6809435A59-O

3
Features
This telephone system is fully integrated with your Mercedes-Benz audio system and steering wheel switches
*
. You can
scroll through the first 99 entries in your phone book and access the entire phone number memory; place, receive, and
terminate calls; change volume; and view call status (such as Ready, Dialing, Incoming Call, Call Active, No Service, Redial,
etc.). Because exact phone features are dependent on the particular audio system installed in your vehicle, detailed oper-
ation is covered in your audio system manual. Please refer to it.
Notes:
• In order for your Mercedes-Benz volume controls to work in conjunction with your Motorola phone (to change ringer
volume or adjust call volume), the vehicle must have either the engine running or the ignition key turned clockwise
to the last position before starting the engine.
• Your phone includes many new features that take additional time to initialize, resulting in increased power up/down
time. Please wait until the phone is completely powered up before using any feature from both the radio and phone
controls.
Finding Information on Phone Features
Your new Mercedes-Benz telephone operates in two modes:
•
Vehicular Mode
—when the phone is inserted and snapped into the privacy cradle in the vehicle
•
Portable Mode
—when the phone is operating as a stand alone device (NOT inserted and snapped into the privacy
cradle in the vehicle)
Most features of your new Mercedes-Benz telephone are available in both modes.
This guide contains basic information on using your phone in Vehicular Mode to place and receive calls.
* Not available on all models.

4
Refer to the user’s guide for your phone for information on the following:
• Installing and charging your phone’s battery
• Turning the phone on and off
• Placing, receiving, and ending calls
• Redialing numbers
• Reading your phone’s indicators
• Controlling phone volume
• Storing numbers in your phone’s built-in phonebook
• Other phone options and features
NN N N
oo o o
tt t t
ee e e
::: :

Your cellular carrier may not support some of the features of your new Mercedes-Benz Integrated System; to find out
what features are available, contact your cellular carrier.

5
Vehicular Mode Operation
When you connect your phone to your Mercedes-Benz vehicle, the phone is ready to operate in Vehicular Mode.
In Vehicular Mode, your phone is connected to many integrated features of your vehicle and its audio system, offering
these advantages:
• You can use your phone in either Hands Free mode or in privacy mode.
• Your phone uses your vehicle’s speakers for better sound fidelity in Hands Free mode.
• Your vehicle charges your phone’s battery when the vehicle is running.
• When you place or receive a call, your vehicle’s radio, CD, and/or tape player volume is automatically muted so you
can hear the person on the other end.
Before you use your phone in Vehicular Mode, you should familiarize yourself with how this system operates.
Switching into Vehicular Mode
Switch your phone into Vehicular Mode by
docking
it.
To dock your phone:
Step

11 1 1

Angle the phone into the cradle so that the connector on the bottom of the phone engages the connector built into
the cradle.
22 2 2

Pivot the top end of the phone down to latch it into place.
NN N N
oo o o
tt t t
ee e e
::: :

If you are using the slim or high performance battery with your phone, you must ensure that the battery insert
is installed correctly. See “Installing the Special Battery Insert” on page 6.
33 3 3

To latch the cradle into the holder, close the phone’s flip, and angle the coilcord end of the cradle into the shrouded
end of the holder.

6
Notes:
• Your phone plays a confirmation beep when docked. Wait for this beep before undocking.
• While in Vehicular Mode, the phone operates on the vehicle’s integrated cellular antenna.
CC C C
aa a a
uu u u
tt t t
iii i
oo o o
nn n n
::: :
Mercedes-Benz recommends keeping the phone docked in the cradle while operating the vehicle. If you
must use the handset for privacy operation, stop the vehicle prior to removing the phone from the cradle.
Installing the Special Battery Insert
The V60 cradle is supplied with a special insert to make it easier to align the phone with the cradle’s embedded connector
when you use certain batteries.
YY Y Y
oo o o
uu u u

ss s s
hh h h
oo o o
uu u u
lll l
dd d d

oo o o
nn n n
lll l
yy y y

iii i
nn n n
ss s s
tt t t
aa a a
lll l
lll l

tt t t
hh h h
iii i
ss s s

iii i
nn n n
ss s s
ee e e
rr r r
tt t t

iii i
ff f f

yy y y
oo o o
uu u u

aa a a
rr r r
ee e e

uu u u
ss s s
iii i
nn n n
gg g g

tt t t
hh h h
ee e e

ss s s
lll l
iii i
mm m m

oo o o
rr r r

hh h h
iii i
gg g g
hh h h

pp p p
ee e e
rr r r
ff f f
oo o o
rr r r
mm m m
aa a a
nn n n
cc c c
ee e e

bb b b
aa a a
tt t t
tt t t
ee e e
rr r r
yy y y
... .

The slim battery is supplied as a standard component in the CDMA V60 kit, while the high performance battery is standard
in the TDMA V60 kit. You should remove the insert when using the optional extra capacity battery.
To install the insert:
44 4 4

Pivot the cradle down to securely latch it.
NN N N
oo o o
tt t t
ee e e
::: :

The cradle should never be placed into the holder with the phone’s flip open.
CC C C
lll l
oo o o
ss s s
ee e e

tt t t
hh h h
ee e e

ff f f
lll l
iii i
pp p p

bb b b
ee e e
ff f f
oo o o
rr r r
ee e e

ss s s
ee e e
cc c c
uu u u
rr r r
iii i
nn n n
gg g g

tt t t
hh h h
ee e e

cc c c
rr r r
aa a a
dd d d
lll l
ee e e

iii i
nn n n

tt t t
hh h h
ee e e

hh h h
oo o o
lll l
dd d d
ee e e
rr r r
in order to prevent damage to the phone when the console cover is closed.
Step

11 1 1

Align the four tabs on the side of the insert with the corresponding slots in the cradle.
22 2 2

Gently push the insert into the slots until it snaps into place.
If you are using the slim battery, the side marked “FOR USE WITH SLIM BATTERY” should face up.
If you are using the high performance battery, the side marked “FOR USE WITH HIGH PERFORMANCE BATTERY” should face up.
33 3 3

If you plan to use the extra capacity battery with your phone, remove the insert by gently prying it out with a small
flat screwdriver, exercising care not to mar the side walls of the cradle.
Step

7
When in Vehicular Mode
In Vehicular Mode, the phone turns on automatically each time you turn on the vehicle ignition if the head unit is turned
on.
To turn off the phone, open the flip, and press P
. If your ignition is on when you turn your phone off, a flashing battery
icon and
Pwr

will appear in the display. While in this mode, calls cannot be placed or received. The next time the ignition is
turned on, the phone will turn on. To turn the phone back on, press P
again.
If your phone is on for more than five minutes when your vehicle’s ignition is off, the phone automatically turns itself off to
conserve your vehicle’s battery.
Switching Out of Vehicular Mode
To disengage your phone from Vehicular Mode:
To remove the cradle from the holder, press the release button on the holder.
NN N N
oo o o
tt t t
ee e e
::: :

If you switch out of Vehicular Mode during a call, the party on the other end will hear a click.
Step

Remove the phone from the cradle by pressing the black tab on the top of the cradle.
You can remove the phone with the cradle in or out of the holder.
