MERCEDES-BENZ R-CLASS FAMILY TOURER 2013 Owner's Guide

28

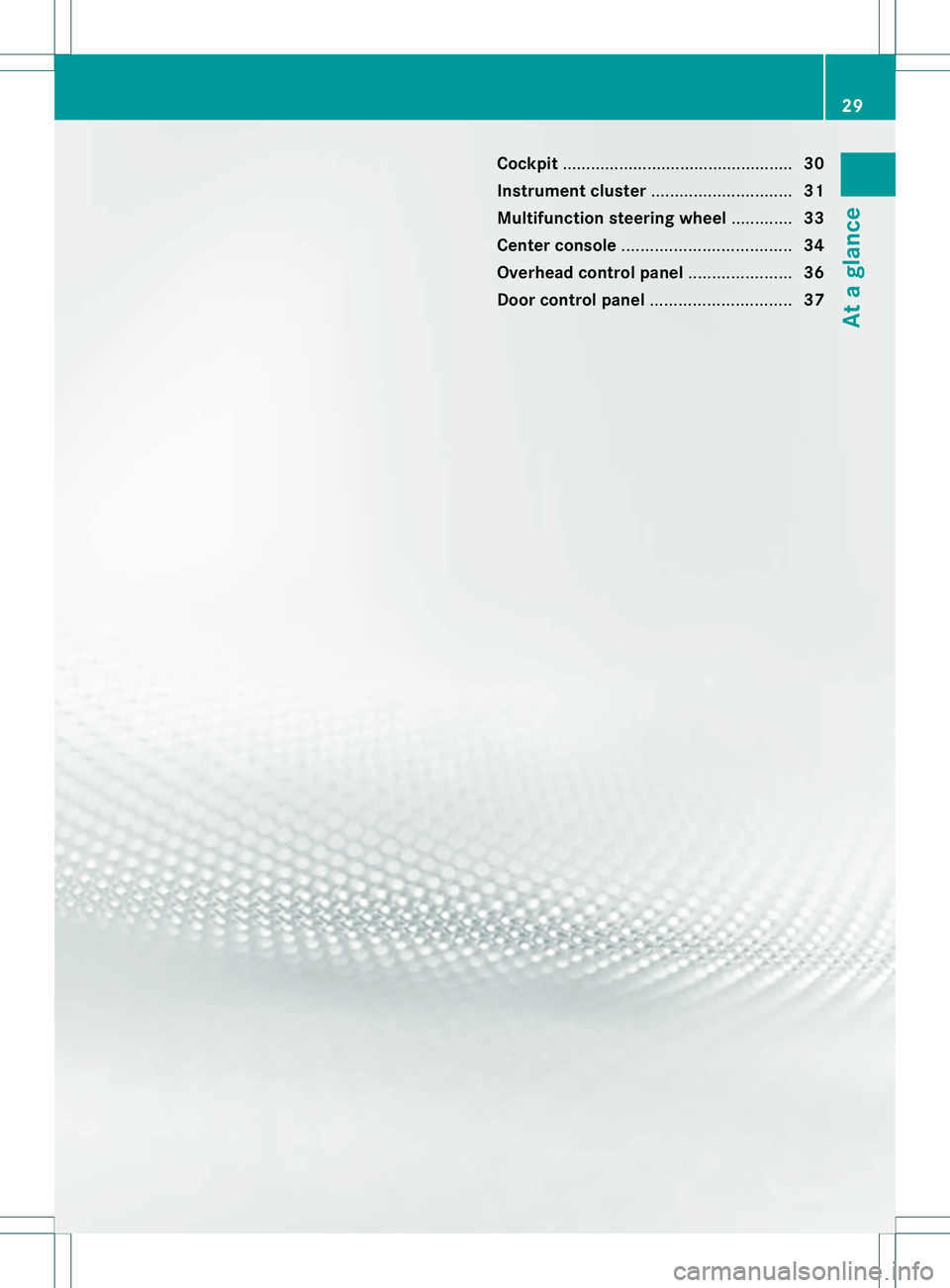

Cockpit
................................................. 30
Instrumentc luster.............................. 31
Multifunction steering wheel .............33
Center console .................................... 34
Overhea dcontrol panel ...................... 36
Door control panel .............................. 37 29At a glance

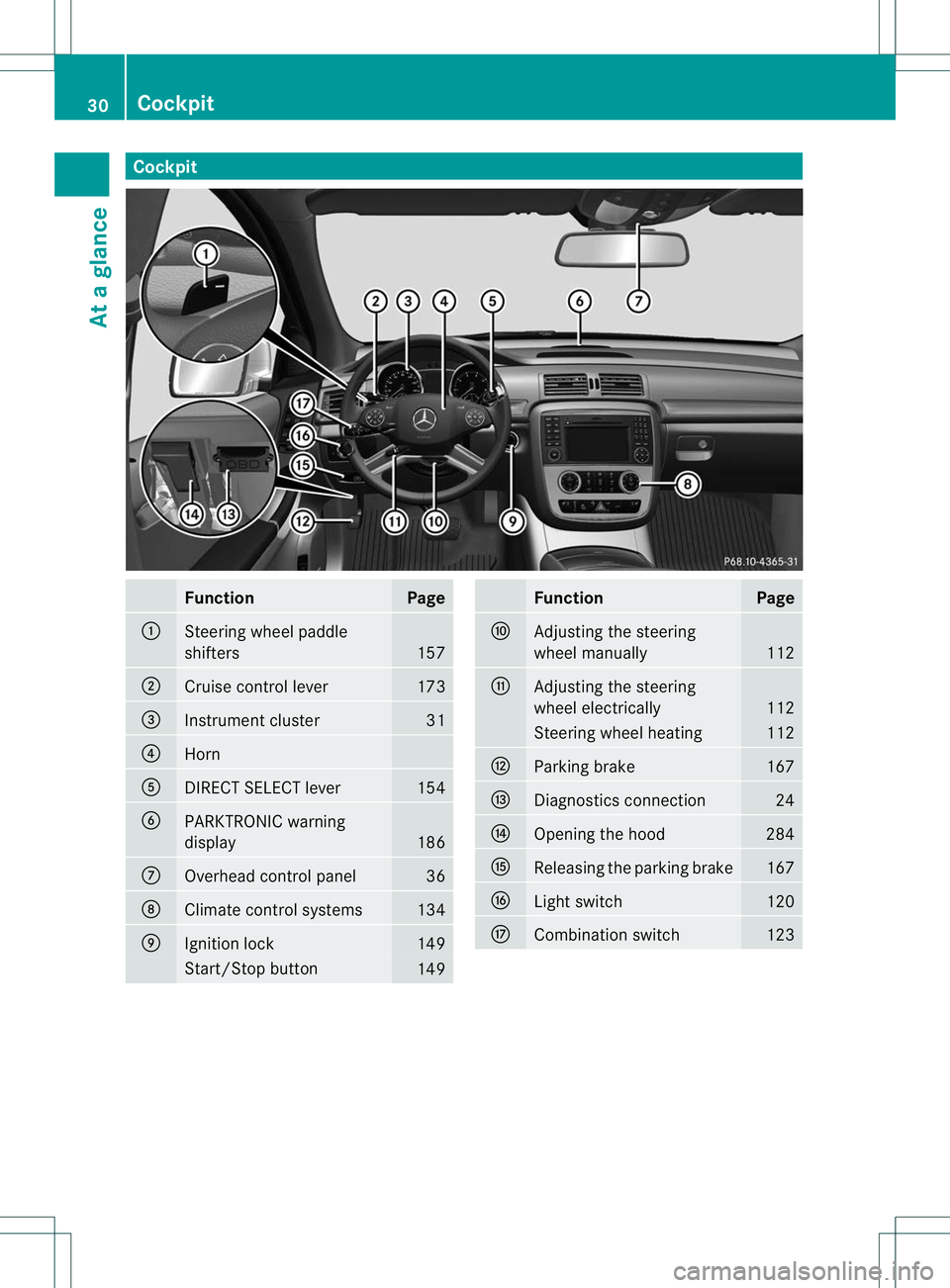

Cockpit
Function Page
:
Steering wheel paddle
shifters
157
;
Cruise control lever 173
=
Instrument cluster 31
?
Horn
A
DIRECT SELECT lever 154
B
PARKTRONIC warning
display
186
C
Overhead control panel 36
D
Climate control systems 134
E
Ignition lock 149
Start/Stop button
149 Function Page
F
Adjusting the steering
wheel manually
112
G
Adjusting the steering
wheel electrically
112
Steering wheel heating 112
H
Parking brake 167
I
Diagnostics connection 24
J
Opening the hood 284
K
Releasing the parking brake 167
L
Ligh
tswitch 120
M
Combinatio
nswitch 12330
CockpitAt a glance

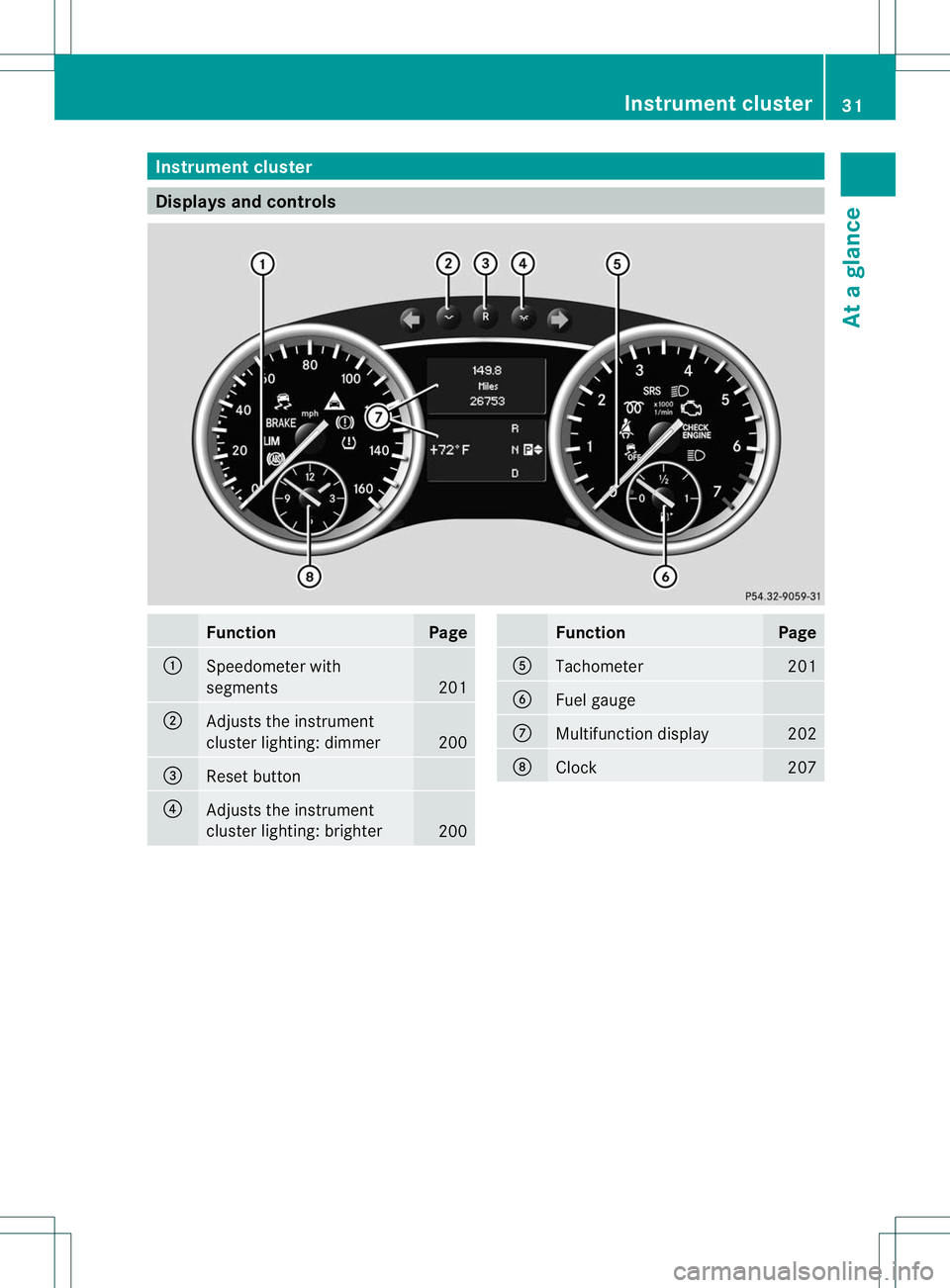

Instrumen
tcluster Displays and controls
Function Page
:
Speedometer with
segments
201
;
Adjusts the instrument
cluster lighting: dimmer
200
=
Reset button
?
Adjusts the instrument
cluster lighting: brighter
200 Function Page
A
Tachometer 201
B
Fuel gauge
C
Multifunction display 202
D
Clock 207Instrument cluster
31At a glance

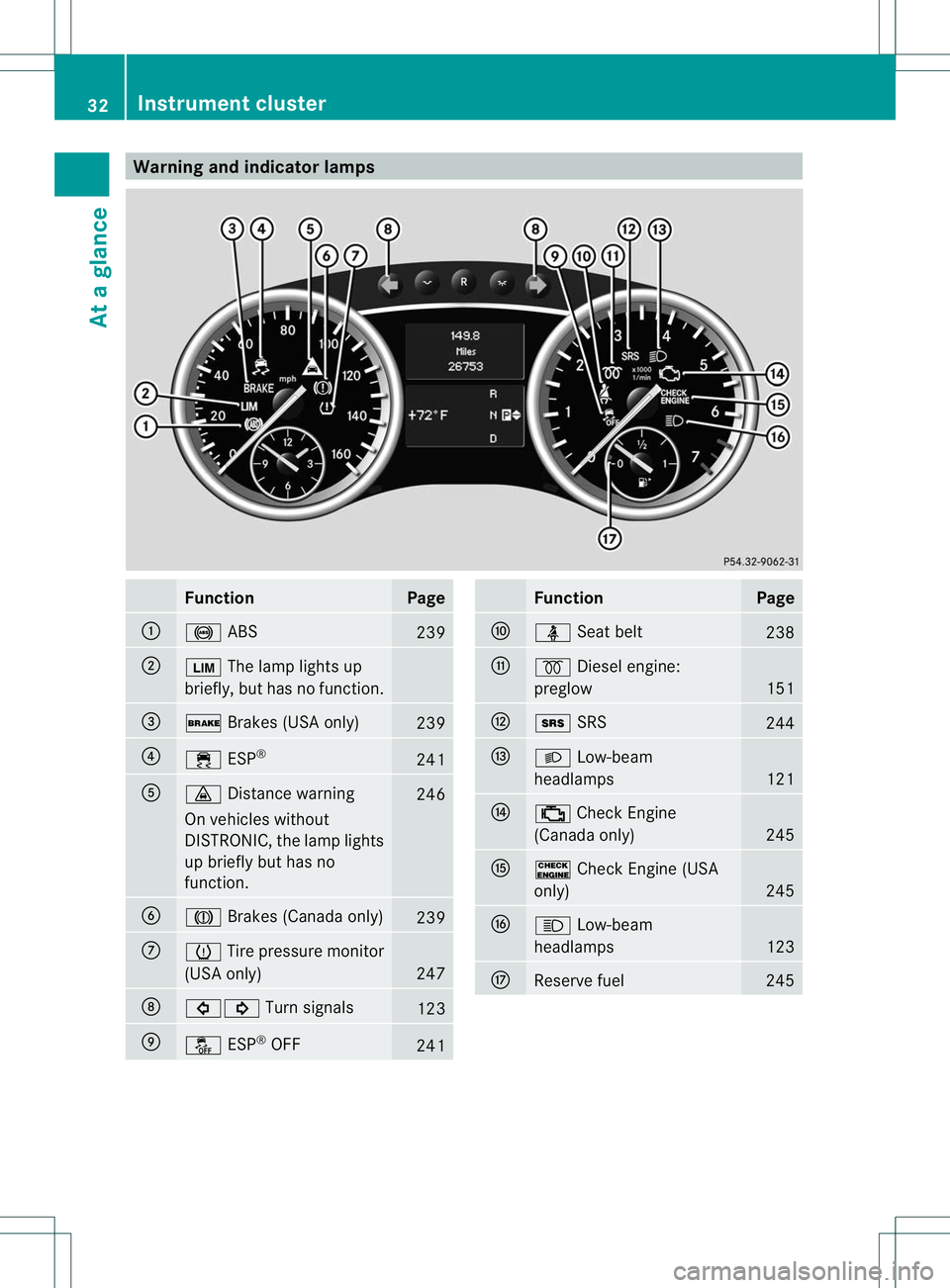

Warning and indicator lamps
Function Page
:
!
ABS 239
;
È
The lamp lights up
briefly, but has no function. =
$
Brakes (USA only) 239
?
÷
ESP® 241
A
·
Distance warning 246
On vehicles without
DISTRONIC, the lamp lights
up briefly but has no
function.
B
J
Brakes (Canada only) 239
C
h
Tire pressure monitor
(USA only) 247
D
#!
Turn signals 123
E
å
ESP®
OFF 241 Function Page
F
ü
Seat belt 238
G
%
Diesel engine:
preglow 151
H
+
SRS 244
I
L
Low-beam
headlamps 121
J
;
Check Engine
(Canada only) 245
K
!
Check Engine (USA
only) 245
L
K
Low-beam
headlamps 123
M
Reserve fuel 24532
Instrument clusterAt a glance

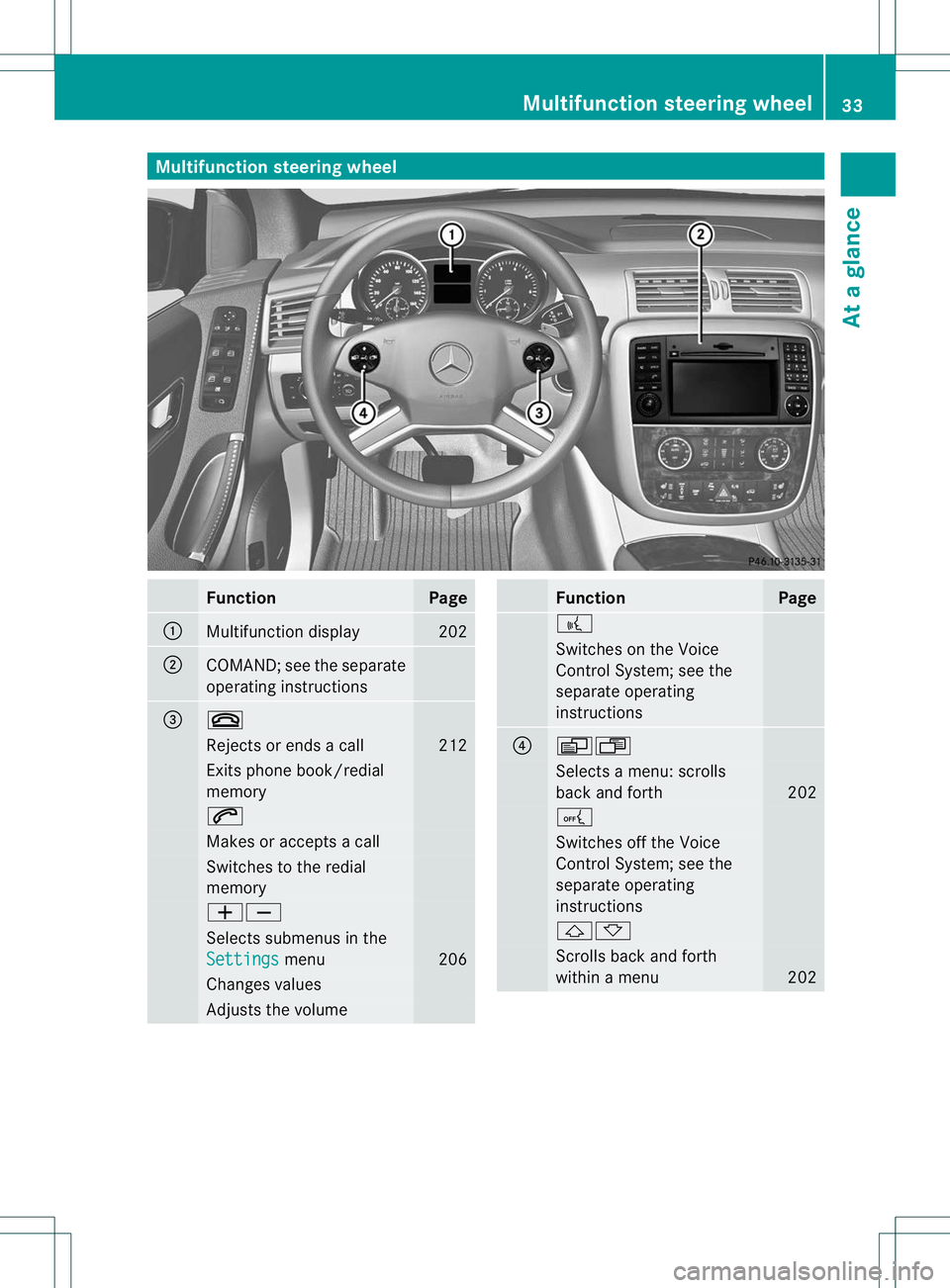

Multifunction steering wheel
Function Page
:
Multifunction display 202
;
COMAND; see the separate
operating instructions
=
~
Rejects or ends a call 212
Exits phone book/redial
memory
6
Makes or accepts a call
Switches to the redial
memory
WX
Selects submenus in the
Settings
menu 206
Changes values
Adjusts the volume Function Page
?
Switches on the Voice
Control System; see the
separate operating
instructions
?
VU
Selects a menu: scrolls
back and forth
202
A
Switches off the Voice
Control System; see the
separate operating
instructions
&*
Scrolls back and forth
withi
namenu 202Multifunction steering wheel
33At a glance

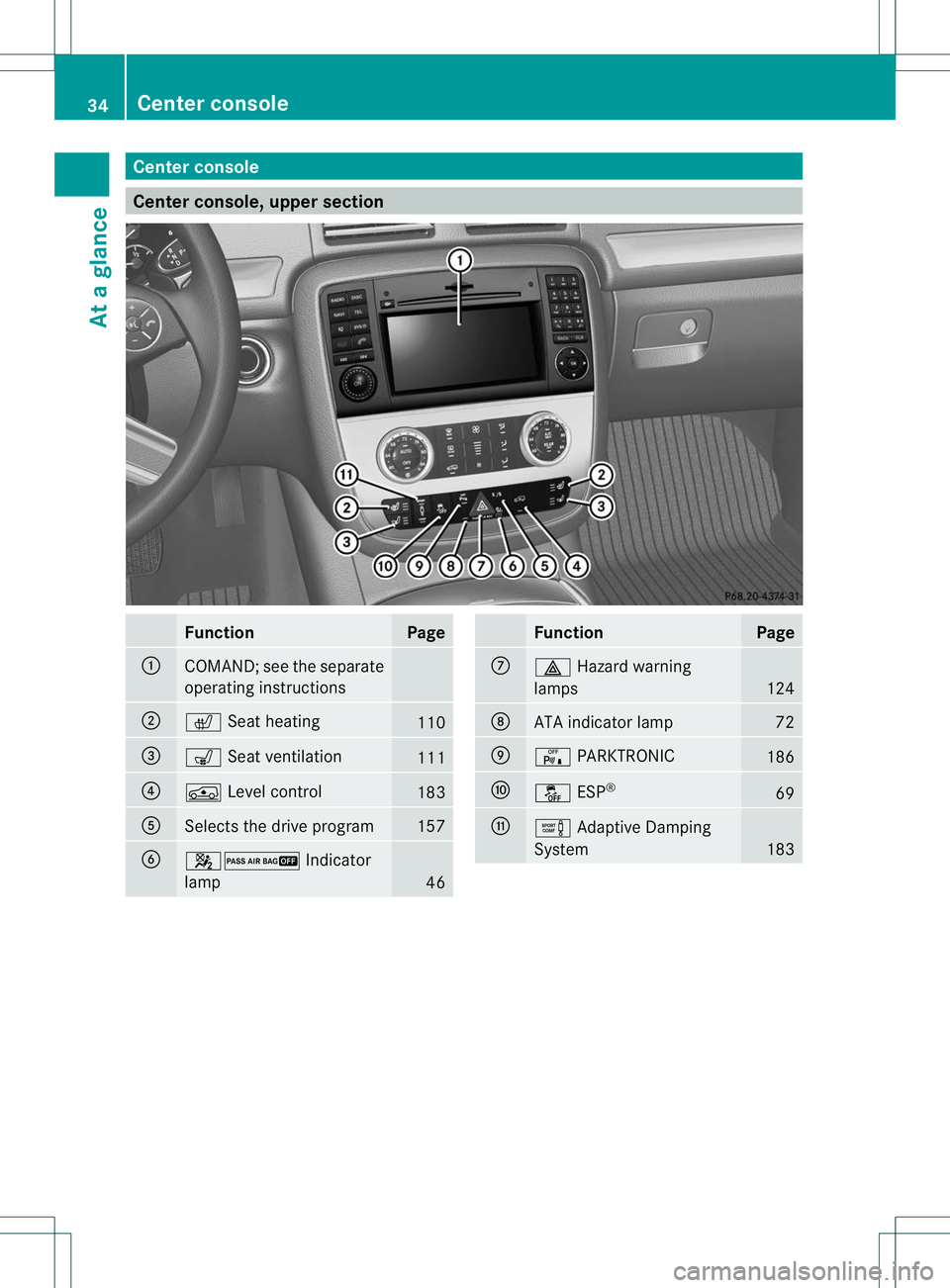

Center console
Center console, upper section
Function Page
:
COMAND; see the separate
operating instructions
;
c
Seat heating 110
=
s
Seat ventilation 111
?
Á
Level control 183
A
Selects the drive program 157
B
42
Indicator
lamp 46 Function Page
C
£
Hazard warning
lamps 124
D
ATA indicator lamp 72
E
c
PARKTRONIC 186
F
å
ESP® 69
G
e
Adaptive Damping
System 18334
Center consoleAt a glance

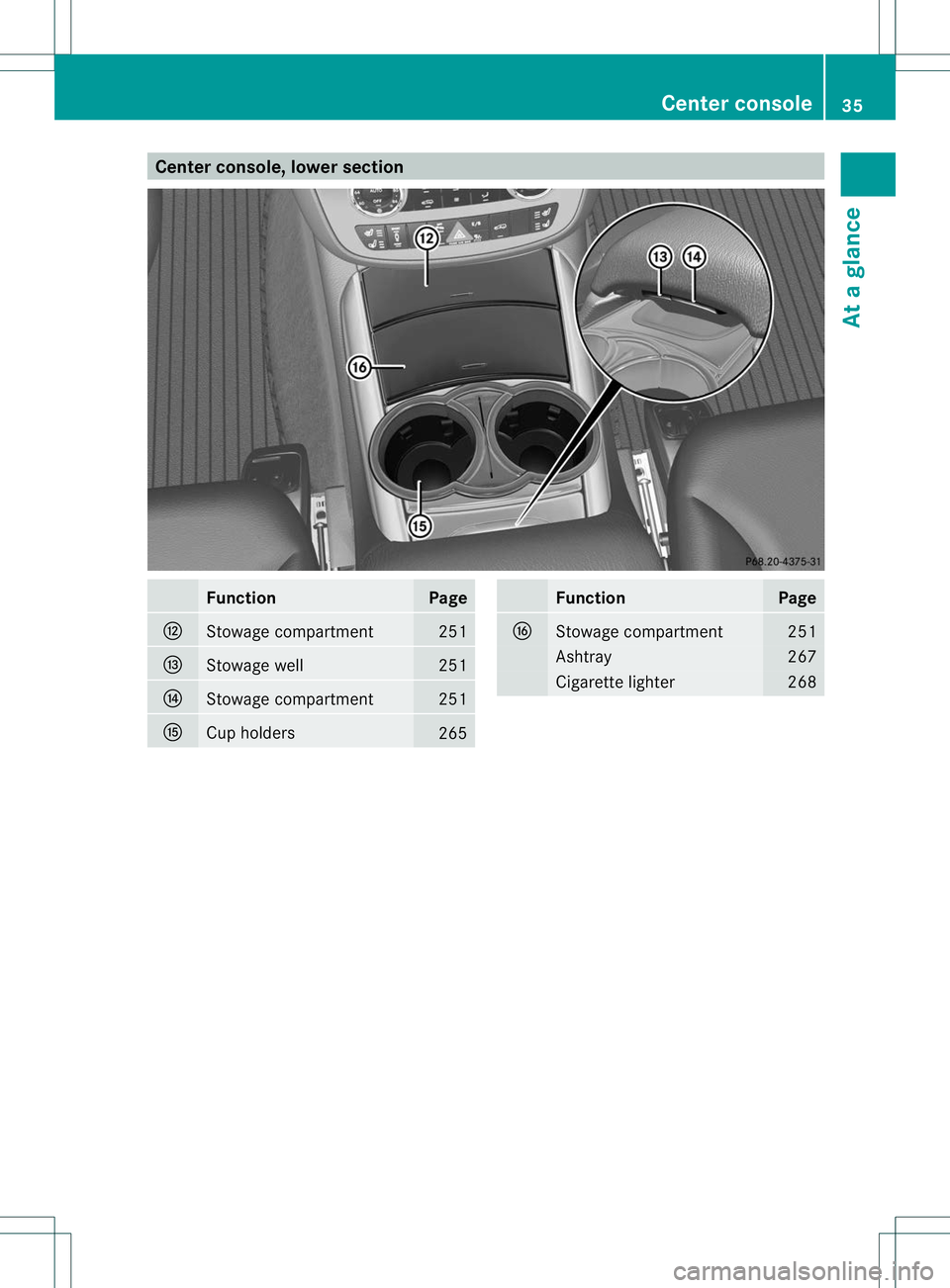

Center console, lower section
Function Page
H
Stowage compartment 251
I
Stowage well 251
J
Stowage compartment 251
K
Cup holders
265 Function Page
L
Stowage compartment 251
Ashtray 267
Cigarette lighter 268Center console
35At a glance

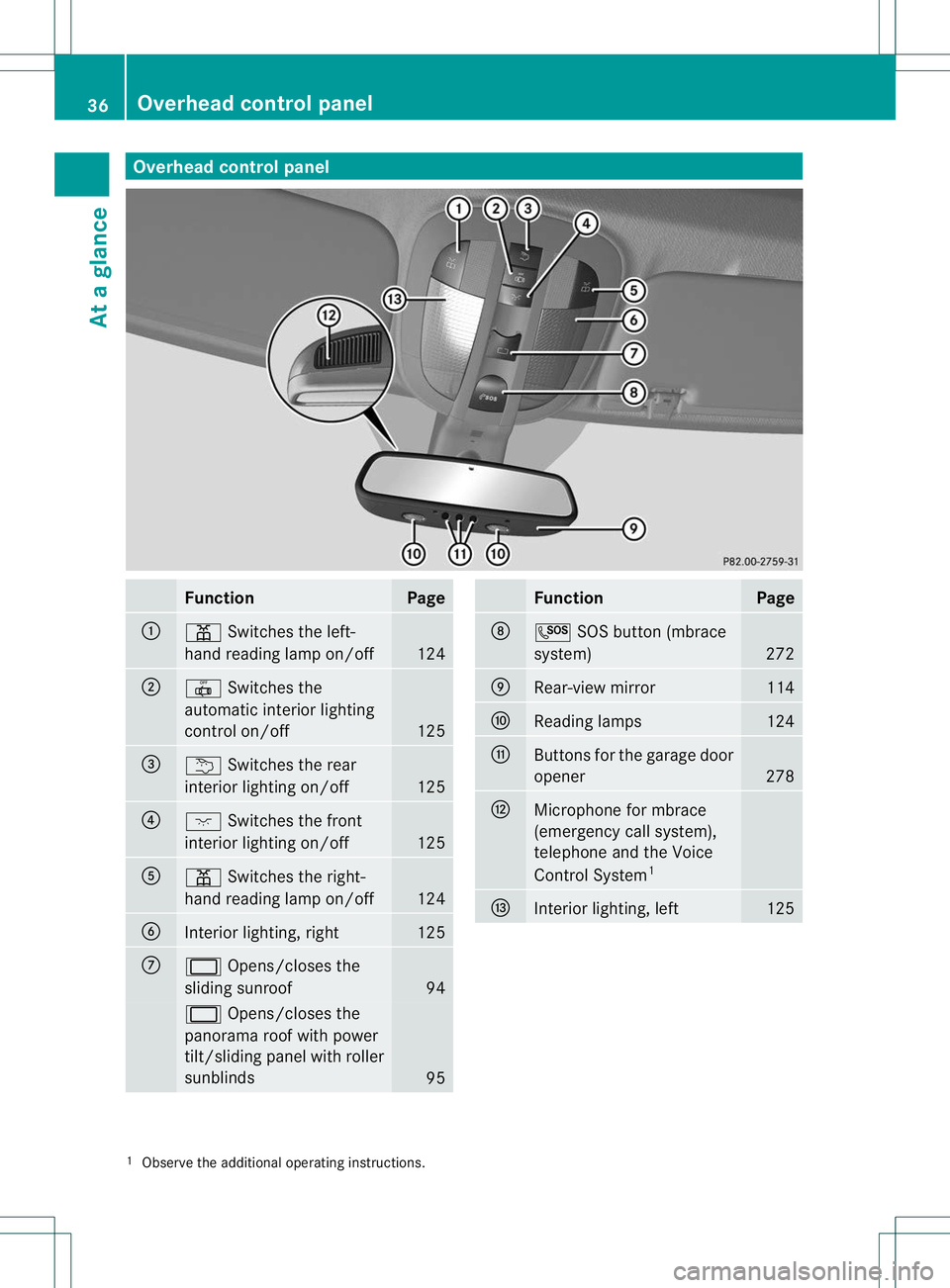

Overhea
dcontrol panel Function Page
:
p
Switches the left-
hand reading lamp on/off 124
;
|
Switches the
automatic interio rlighting
control on/off 125
=
u
Switches the rear
interior lighting on/off 125
?
c
Switches the front
interior lighting on/off 125
A
p
Switches the right-
hand reading lamp on/off 124
B
Interior lighting, right 125
C
2
Opens/closes the
sliding sunroof 94
2
Opens/closes the
panorama roof with power
tilt/sliding panel with roller
sunblinds 95 Function Page
D
G
SOS button (mbrace
system) 272
E
Rear-view mirror 114
F
Reading lamps 124
G
Buttons for the garage door
opener
278
H
Microphone for mbrace
(emergency call system),
telephone and the Voice
Control System
1 I
Interior lighting, left 125
1
Observe the additional operating instructions. 36
Overhead control panelAt a glance

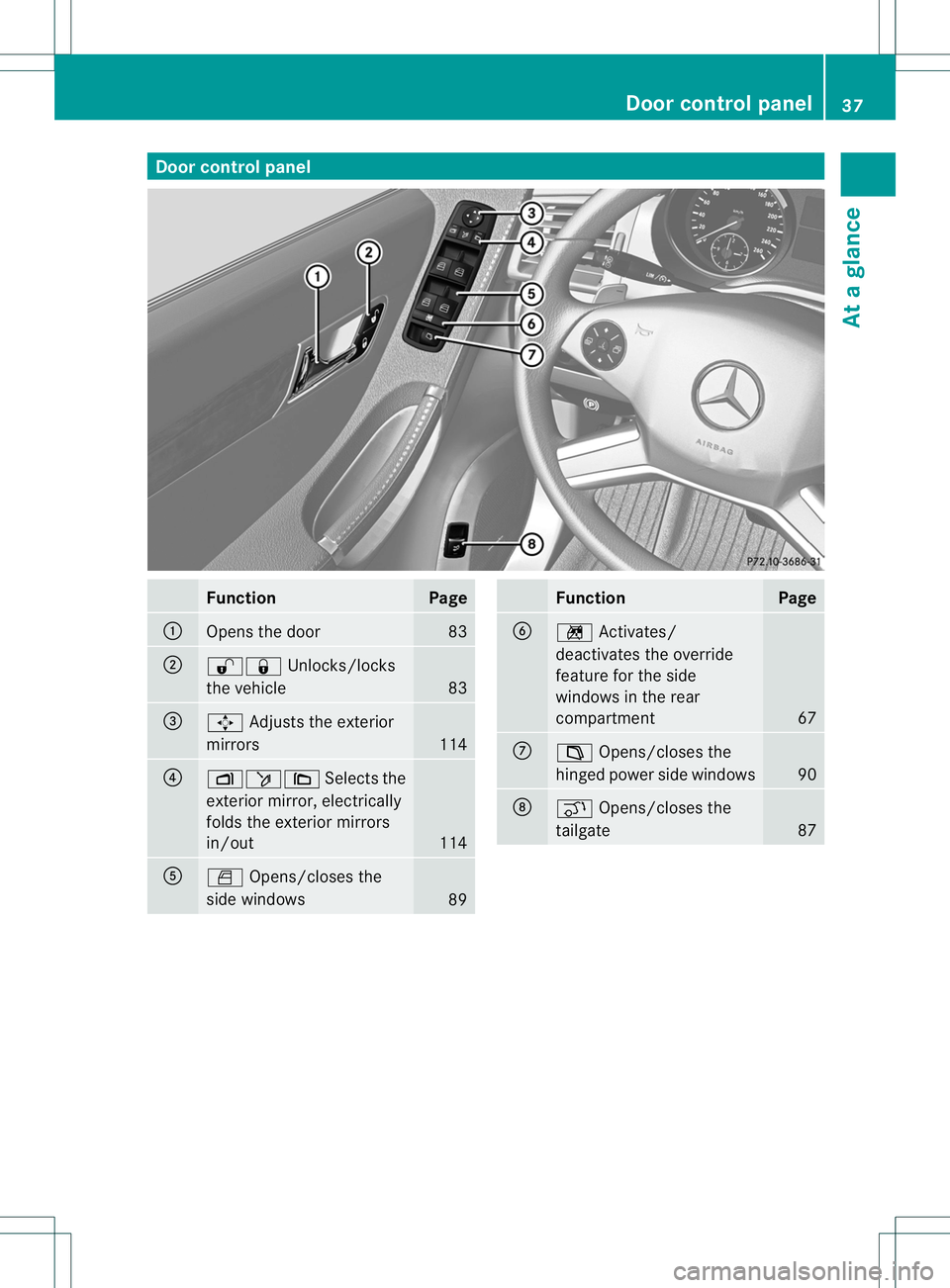

Door control panel
Function Page
:
Opens the door 83
;
%&
Unlocks/locks
the vehicle 83
=
7
Adjusts the exterior
mirrors 114
?
Zö\
Selects the
exterio rmirror, electrically
folds the exterior mirrors
in/out 114
A
W
Opens/closes the
side windows 89 Function Page
B
n
Activates/
deactivates the override
feature for the side
windows in the rear
compartment 67
C
±
Opens/closes the
hinged power side windows 90
D
q
Opens/closes the
tailgate 87Door control panel
37At a glance
