Display
messages 258 Display messages Possible cause/consequence Possible solution
DISTRONIC currently unavail-
able See Owner's
Manual
Distronic
* is deactivated and is tempora-
rily not operational if:
R the Distronic* cover in the radiator
grille is dirty.
R its function is impaired due to heavy rain
or snow
R the radar sensor system is temporarily
not operational, e.g. due to electromag-
netic radiation emitted by nearby TV or
radio stations or other sources of radi-
ation
R the radar sensor system has not detec-
ted any vehicles or stationary objects,
e.g. traffic signs, for a long time.
R the system is outside the operating
temperature range Distronic* becomes available again and the dis-
play message disappears when:
R
the dirt (e.g. slush) falls off while you are driving
R the system detects that the sensors are fully
available again
R the system is within the operating temperature
range
If the display message does not disappear:
X Clean the Distronic* cover in the radiator grille
(Y page 247).
X Restart the engine. ESP unavailable See
Owner's Manual
G
Risk of accident
ESP ®
and therefore also PRE-SAFE ®
are
temporarily unavailable. It is possible that
self diagnosis is not yet complete. BAS
has also been deactivated. X
Carefully drive a short distance at a speed
above 20 km/h.
If the display message disappears, ESP ®
is
available again. Practical advice
* optional
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 258 Dateiname: 6515_1825_02_buchblock.pdf; preflight

Display
messages 259Display messages Possible cause/consequence Possible solution
ESP unavailable See
Owner's Manual G
Risk of accident
ESP ®
and therefore also BAS and PRE-
SAFE ®
are unavailable due to undervolt-
age.
The brake system continues to function
normally, but without the functions listed
above. X
Drive on carefully.
X Visit a qualified specialist workshop immedi-
ately. ESP unavailable See
Owner's Manual If, when driving, this message appears and
the
v warning lamp flashes, this
means that 4ETS has been deactivated.
This prevents the brakes on the drive
wheels overheating. As soon as the brakes have cooled down again,
4ETS will be reactivated automatically.
The display message disappears and the v
warning lamp goes out. ESP inoperative See
Owner's Manual G
Risk of accident
ESP ®
and therefore also Brake Assist and
PRE-SAFE ®
are unavailable due to a mal-
function. The vwarning lamp also
lights up in the instrument cluster.
The brake system continues to function
normally, but without the functions listed
above. X
Drive on carefully.
X Visit a qualified specialist workshop immedi-
ately. Select position
P only when vehicle
is at a standstill You have attempted to move the auto-
matic transmission to
Peven though the
vehicle is still moving. X
Stop the vehicle immediately, paying attention
to the traffic conditions as you do so.
X Move the selector lever to P. Practical advi
ce
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 259 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Display
messages 264 Display messages Possible cause/consequence Possible solution
DISTRONIC and
SPEEDTRONIC inoperative
Distronic
* andSpeedtronic are unavaila-
ble. X
Visit a qualified specialist workshop. Cruise control - - - km/h A condition for activating cruise control
has not been met. X
Activate ESP ®
(Ypage 61)
X If conditions permit, drive faster than
30 km/h and store the speed (Y page 140).Symbol messages
G
Risk of accident and injury
The operating safety of your vehicle could be compromised if service work is carried out improperly. You could lose control of the vehicle,
thereby causing an accident. Safety systems may also not be able to protect you or others as intended.
Always have maintenance work carried out at a qualified specialist workshop which has the necessary specialist knowledge and tools to
carry out the work required.
Mercedes-Benz recommends that you use a Mercedes-Benz Service Centre for this purpose.
In particular, work relevant to safety or on safety-related systems must be carried out at a qualified specialist workshop. Display messages Possible cause/consequence Possible solution
a This message always appears when the
tailgate is open. X
Close the tailgate. G
Risk of accident
Vehicles with an anti-theft alarm sys-
tem*:
You are driving with the bonnet open. X
Stop the vehicle. Pay attention to the traffic
conditions as you do so.
X Close the bonnet. Practical advice
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 264Dateiname: 6515_1825_02_buchblock.pdf; preflight

Display

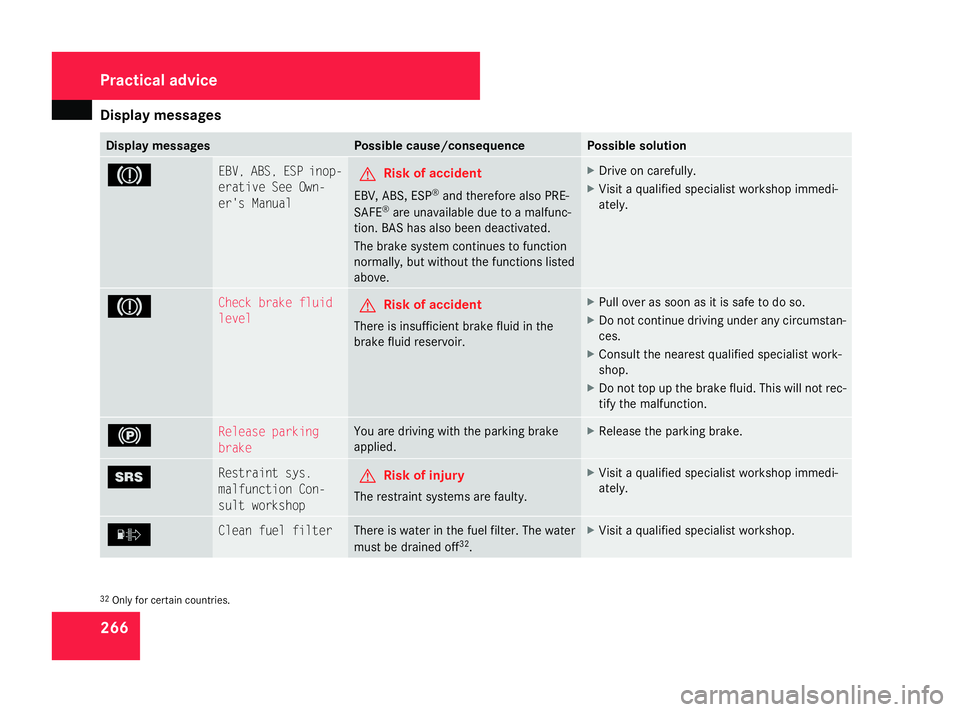

messages 266 Display messages Possible cause/consequence Possible solution
3 EBV, ABS, ESP inop-
erative See Own-
er's Manual
G
Risk of accident
EBV, ABS, ESP ®
and therefore also PRE-
SAFE ®
are unavailable due to a malfunc-
tion. BAS has also been deactivated.
The brake system continues to function
normally, but without the functions listed
above. X
Drive on carefully.
X Visit a qualified specialist workshop immedi-
ately. 3 Check brake fluid
level
G
Risk of accident
There is insufficient brake fluid in the
brake fluid reservoir. X
Pull over as soon as it is safe to do so.
X Do not continue driving under any circumstan-
ces.
X Consult the nearest qualified specialist work-
shop.
X Do not top up the brake fluid. This will not rec-
tify the malfunction. ! Release parking
brake You are driving with the parking brake
applied. X
Release the parking brake. 1 Restraint sys.
malfunction Con-
sult workshop
G
Risk of injury
The restraint systems are faulty. X
Visit a qualified specialist workshop immedi-
ately. ] Clean fuel filter There is water in the fuel filter. The water
must be drained off
32
. X
Visit a qualified specialist workshop. 32
Only for certain countries. Practical advi
ce
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 266Dateiname: 6515_1825_02_buchblock.pdf; preflight

Troubleshooting
281Indicator and warning lamps in the instrument cluster
Problem Possible cause/consequence Suggested solutions
-
The yellow ABS warning
lamp comes on while the
engine is running. G
Risk of accident
ABS has been deactivated due to
a malfunction. Therefore, Brake
Assist, ESP ®
and PRE-SAFE ®
are,
for example, also deactivated.
The brake system continues to
function normally, but without
electronic support. The wheels
could therefore lock if you brake
hard, for example. X
Drive on carefully.
X Observe the additional messages in the multi-function display
(Y page 255).
X Visit a qualified specialist workshop as soon as possible. -
The yellow ABS warning
lamp comes on while the
engine is running. G
Risk of accident
ABS has been deactivated due to
undervoltage. It is possible that
the battery is not being charged.
Therefore, the following systems
are, for example, also deactiva-
ted: Brake Assist, ESP ®
, BAS and
PRE-SAFE ®
.
The brake system continues to
function normally, but without
electronic support. The wheels
could therefore lock if you brake
hard, for example. X
Switch off consumers that are not required, e.g. reading lamps,
interior lighting, etc.
ABS will be available again as soon as the vehicle's electrical sys-
tem voltage increases. Practical advice
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 281 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Troubleshooting
282 Problem Possible cause/consequence Suggested solutions
v
3
- The yellow ESP
®
warning
lamp, the red brake sys-
tem warning lamp and the
yellow ABS warning lamp
light up while the engine is
running. You will also hear
a warning tone. G
Risk of accident
The electronic brake force distri-
bution (EBV) is faulty. Therefore,
ABS, Brake Assist, ESP ®
and PRE-
SAFE ®
are, for example, no lon-
ger available. The brake system
continues to function normally,
but without electronic support.
The wheels could therefore lock
if you brake hard, for example. X
Drive on carefully.
X Visit a qualified specialist workshop. v
The yellow ESP ®
warning
lamp flashes while the
vehicle is in motion. G
Risk of accident
ESP ®
, ABS or traction control has
intervened because at least one
wheel has reached its grip limit
and is threatening to spin or lock.
Cruise control or Distronic* is
deactivated. X
Only depress the accelerator pedal as far as necessary when pull-
ing away.
X Release the accelerator pedal while you are driving.
X Adapt your driving style to suit the road and weather conditions.
X Do not deactivate ESP ®
.
Exceptions: ( Ypage 61). v
The yellow ESP ®
warning
lamp is lit while the engine
is running. G
Risk of accident
ESP ®
is deactivated. ESP ®
will
not stabilise the vehicle if it starts
to skid or if a wheel starts to spin. X
Reactivate ESP ®
.
Exceptions: ( Ypage 61).
X Adapt your driving style to suit the road and weather conditions. Practical advice
* optional
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 282 Dateiname: 6515_1825_02_buchblock.pdf; preflight

Troubleshooting
283Problem Possible cause/consequence Suggested solutions
v
The yellow ESP ®
warning
lamp is lit while the engine
is running. In addition, a
message appears in the
multi-function display. G
Risk of accident
ESP ®
is unavailable due to a mal-
function. ESP ®
will not stabilise
the vehicle if it starts to skid or if
a wheel starts to spin. X
Observe the additional messages in the multi-function display
(Y page 255).
X Drive on carefully.
X Visit a qualified specialist workshop. 1
The red SRS warning lamp
is lit while the engine is
running. G
Risk of injury
The restraint systems are faulty.
The airbags or belt tensioners
may either be triggered uninten-
tionally or, in the event of an acci-
dent, not be triggered at all. X
Visit a qualified specialist workshop immediately. 3
The red brake system
warning lamp comes on
while you are driving. You
will also hear a warning
tone. You are driving with the parking
brake applied. X
Release the parking brake.
The warning lamp goes out and the warning tone ceases. 3
The red brake system
warning lamp comes on
while the engine is run-
ning. You will also hear a
warning tone. G
Risk of accident
There is insufficient brake fluid in
the fluid reservoir. X
Do not continue driving under any circumstances.
X Consult a qualified specialist workshop immediately.
X Observe the additional messages in the multi-function display
(Y page 255).
X Under no circumstances should you top up the brake fluid. This will
not rectify the fault. Practical advice
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 283 ZDateiname: 6515_1825_02_buchblock.pdf; preflight

Troubleshooting
290 Engine
Problem Possible cause/consequence Suggested solutions
The engine will not start. You can
hear the starter motor operating. R
There is a malfunction in the
engine electronics.
R There is a malfunction in the
fuel supply. X
Turn the key back to position 0(Y page 76)in the ignition lock
before the next starting attempt.
X Try to start the engine again (Y page 110). When doing so, remem-
ber that excessively long and frequent attempts to start the engine
will drain the battery.
If the engine does not start after several attempts:
X Consult a qualified specialist workshop. The engine will not start. You can
hear the starter motor operating.
The reserve fuel warning lamp is
on and the fuel gauge shows 0. The fuel tank has been run dry. X
Refuel the vehicle.
X Bleed the fuel system (Y page 289).The engine will not start. You can-
not hear the starter motor oper-
ating. The on-board voltage is too low
because the starter battery is too
weak or discharged. X
Jump-start the vehicle (Y page 329).
If the engine does not start despite attempting to jump-start it:
X Consult a qualified specialist workshop. The starter motor was exposed to
a thermal load that was too high. X
Allow the starter motor to cool down for approximately two
minutes.
X Try to start the engine again.
If the engine still does not start:
X Consult a qualified specialist workshop. Practical advice
251_AKB; 5; 7, en-GB
wobuchh
,V ersion: 2.10.6
2008-05-11T14:51:51+02:00 - Seite 290 Dateiname: 6515_1825_02_buchblock.pdf; preflight

Changing the bulbs
310 Changing the rear bulbs
Opening and closing the side trim pan-
els You must open the side trim panel in the load
compartment before changing the bulbs in
the tail lamps. Left-hand side trim panel
1
Release catch
2 Side trim panel Right-hand side trim panel
1
Release catch
2 Side trim panel
X To open: insert a suitable object, e.g. a
coin, into the slot of release catch 1on
side trim panel 2.
X Turn release catch 190° in the direction
of the arrow and remove side trim panel
2.
X To close: insert side trim panel 2and turn
catch 190° in the opposite direction to
the arrow. Changing the tail lamps X
Switch off the lights.
X Open the luggage compartment.
X Open the side trim panel (Y page 310). Tail lamps
1
Brake lamp/tail lamp/parking lamp
2 Turn signal lamp
3 Rear fog lamp
4 Reversing lamp
X Turn the corresponding bulb holder anti-
clockwise and remove it.
X Take the bulb out of the bulb holder.
X Insert the new bulb into the bulb holder.
X Insert the bulb holder and turn it clockwise.
X Close the side trim panel (Y page 310).Practical advice
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 310Dateiname: 6515_1825_02_buchblock.pdf; preflight

Flat tyre
317Changing a wheel/fitting the emer-
gency spare wheel*
G
Risk of accident
The wheel dimensions and tyre size of the
emergency spare wheel* may differ from
those of the standard wheels.
The handling characteristics of your vehicle
will change if you fit an emergency spare
wheel*. Adapt your style of driving accord-
ingly.
You may only use the emergency spare
wheel* for a short while. Do not exceed the
maximum speed of 80 km/h and do not
deactivate ESP ®
.
Never drive the vehicle with more than one
emergency spare wheel* fitted. G
Risk of accident
Have the emergency spare wheel*
replaced as soon as possible at a qualified
specialist workshop which has the neces-
sary specialist knowledge and tools to carry
out the work required. Mercedes-Benz rec-
ommends that you use a Mercedes-Benz
Service Centre for this purpose. In particu-
lar, work relevant to safety or on safety- related systems must be carried out at a
qualified specialist workshop.
Preparing the vehicle X
Prepare the vehicle as described
(Y page 313).
X If a trailer is coupled, uncouple it.
X Position the wheels in the straight-ahead
position.
X Take the following from the stowage well
beneath the luggage compartment floor:
R
the emergency spare wheel
R the electric air pump
R the vehicle tool kit
R the wheel chock
R the jack
X Secure the vehicle to prevent it from rolling
away.
On level ground: place chocks or similar
items under the front and rear of the wheel
that is diagonally opposite the wheel you
wish to change. Securing a vehicle on level ground (example illus-
tration)
X
On downhill gradients: place chocks or
similar items under both wheels of the
other axle. Securing a vehicle on slight downhill slopes (exam-
ple illustration) Practical advice
* optional
251_AKB; 5; 7, en-GB
wobuchh,
Version: 2.10.6 2008-05-11T14:51:51+02:00 - Seite 317 ZDateiname: 6515_1825_02_buchblock.pdf; preflight
