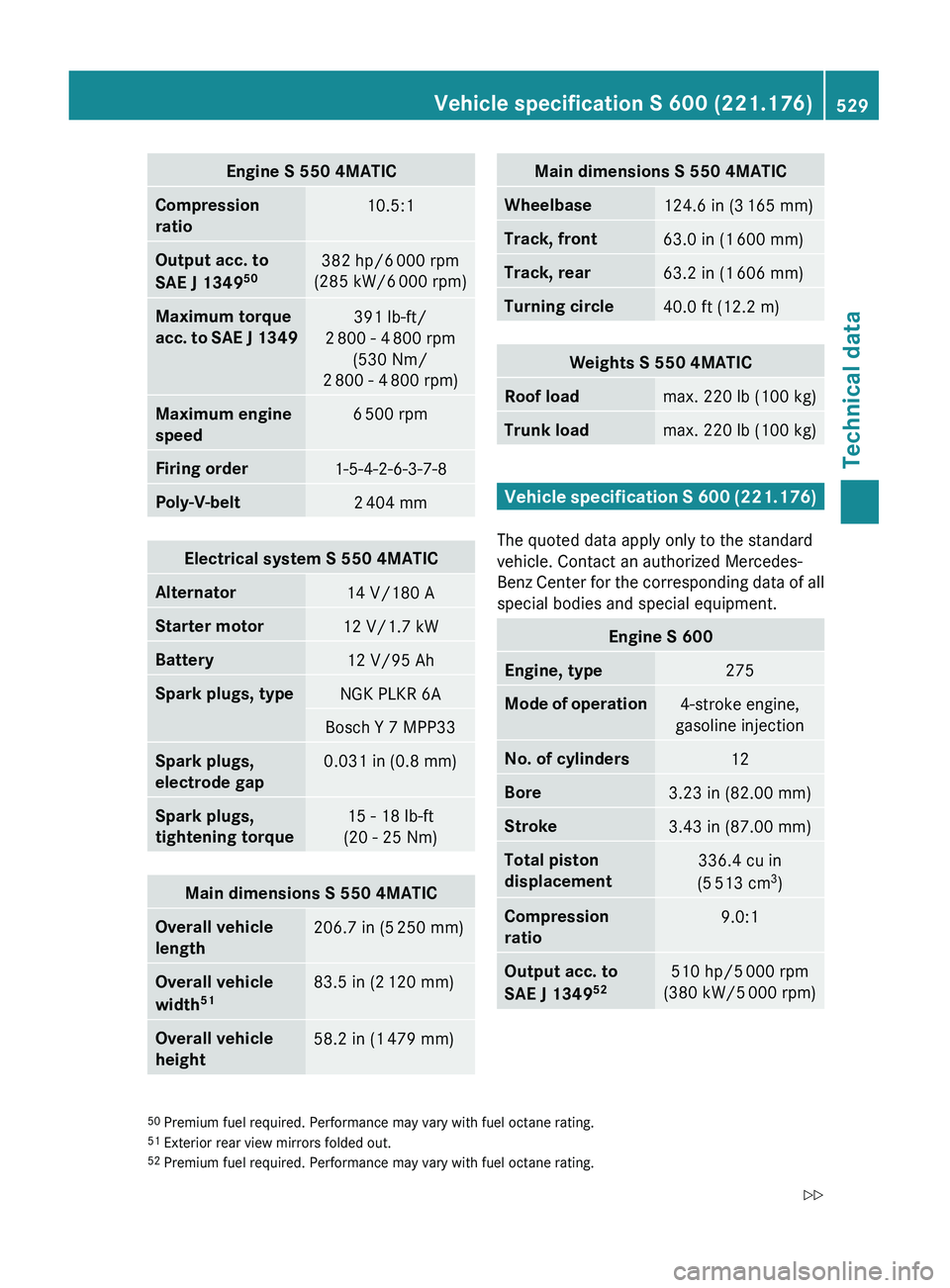

Engine S 550 4MATICCompression
ratio10.5:1Output acc. to
SAE J 1349 50382 hp/6
000 rpm
(285 kW/6 000 rpm)Maximum torque
acc. to SAE J 1349391 lb-ft/
2 800 - 4 800 rpm
(530 Nm/
2 800 - 4 800 rpm)Maximum engine
speed6 500 rpmFiring order1-5-4-2-6-3-7-8Poly-V-belt2 404 mmElectrical system S 550 4MATICAlternator14 V/180 AStarter motor12 V/1.7 kWBattery12 V/95 AhSpark plugs, typeNGK PLKR 6ABosch Y 7 MPP33Spark plugs,
electrode gap0.031 in (0.8 mm)Spark plugs,
tightening torque15 - 18 lb-ft
(20 - 25 Nm)Main dimensions S 550 4MATICOverall vehicle
length206.7 in (5 250 mm)Overall vehicle
width 5183.5 in (2
120 mm)Overall vehicle
height58.2 in (1 479 mm)Main dimensions S 550 4MATICWheelbase124.6 in (3 165 mm)Track, front63.0 in (1 600 mm)Track, rear63.2 in (1 606 mm)Turning circle40.0 ft (12.2 m)Weights S 550 4MATICRoof loadmax. 220 lb (100 kg)Trunk loadmax. 220 lb (100 kg)
Vehicle specification S 600 (221.176)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center for the corresponding data of all
special bodies and special equipment.
Engine S 600Engine, type275Mode of operation4-stroke engine,
gasoline injectionNo. of cylinders12Bore3.23 in (82.00 mm)Stroke3.43 in (87.00 mm)Total piston
displacement336.4 cu in
(5 513 cm 3
)Compression
ratio9.0:1Output acc. to
SAE J 1349 52510 hp/5
000 rpm
(380 kW/5 000 rpm)50
Premium fuel required. Performance may vary with fuel octane rating.
51 Exterior rear view mirrors folded out.
52 Premium fuel required. Performance may vary with fuel octane rating.Vehicle specification S 600 (221.176)529Technical data221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 529Z

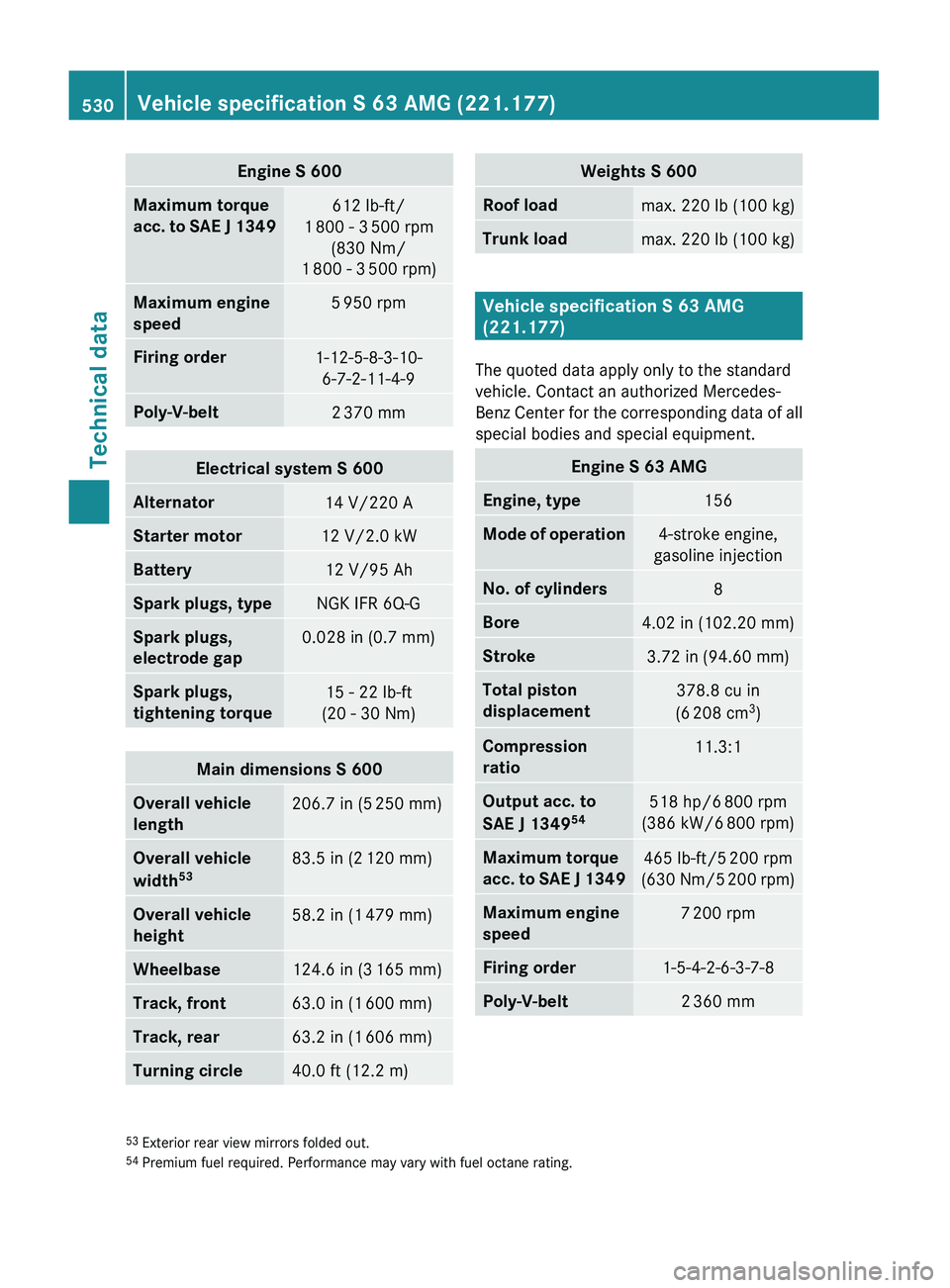

Engine S 600Maximum torque
acc. to SAE J 1349612 lb-ft/
1 800 - 3 500 rpm
(830 Nm/
1 800 - 3 500 rpm)Maximum engine
speed5 950 rpmFiring order1-12-5-8-3-10-
6-7-2-11-4-9Poly-V-belt2 370 mmElectrical system S 600Alternator14 V/220 AStarter motor12 V/2.0 kWBattery12 V/95 AhSpark plugs, typeNGK IFR 6Q-GSpark plugs,
electrode gap0.028 in (0.7 mm)Spark plugs,
tightening torque15 - 22 lb-ft
(20 - 30 Nm)Main dimensions S 600Overall vehicle
length206.7 in (5 250 mm)Overall vehicle
width 5383.5 in (2
120 mm)Overall vehicle
height58.2 in (1 479 mm)Wheelbase124.6 in (3 165 mm)Track, front63.0 in (1 600 mm)Track, rear63.2 in (1 606 mm)Turning circle40.0 ft (12.2 m)Weights S 600Roof loadmax. 220 lb (100 kg)Trunk loadmax. 220 lb (100 kg)
Vehicle specification S 63 AMG
(221.177)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center for the corresponding data of all
special bodies and special equipment.
Engine S 63 AMGEngine, type156Mode of operation4-stroke engine,
gasoline injectionNo. of cylinders8Bore4.02 in (102.20 mm)Stroke3.72 in (94.60 mm)Total piston
displacement378.8 cu in
(6 208 cm 3
)Compression
ratio11.3:1Output acc. to
SAE J 1349 54518 hp/6
800 rpm
(386 kW/6 800 rpm)Maximum torque
acc. to SAE J 1349465 lb-ft/5 200 rpm
( 630 Nm/5 200 rpm)Maximum engine
speed7 200 rpmFiring order1-5-4-2-6-3-7-8Poly-V-belt2 360 mm53
Exterior rear view mirrors folded out.
54 Premium fuel required. Performance may vary with fuel octane rating.530Vehicle specification S 63 AMG (221.177)Technical data
221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 530

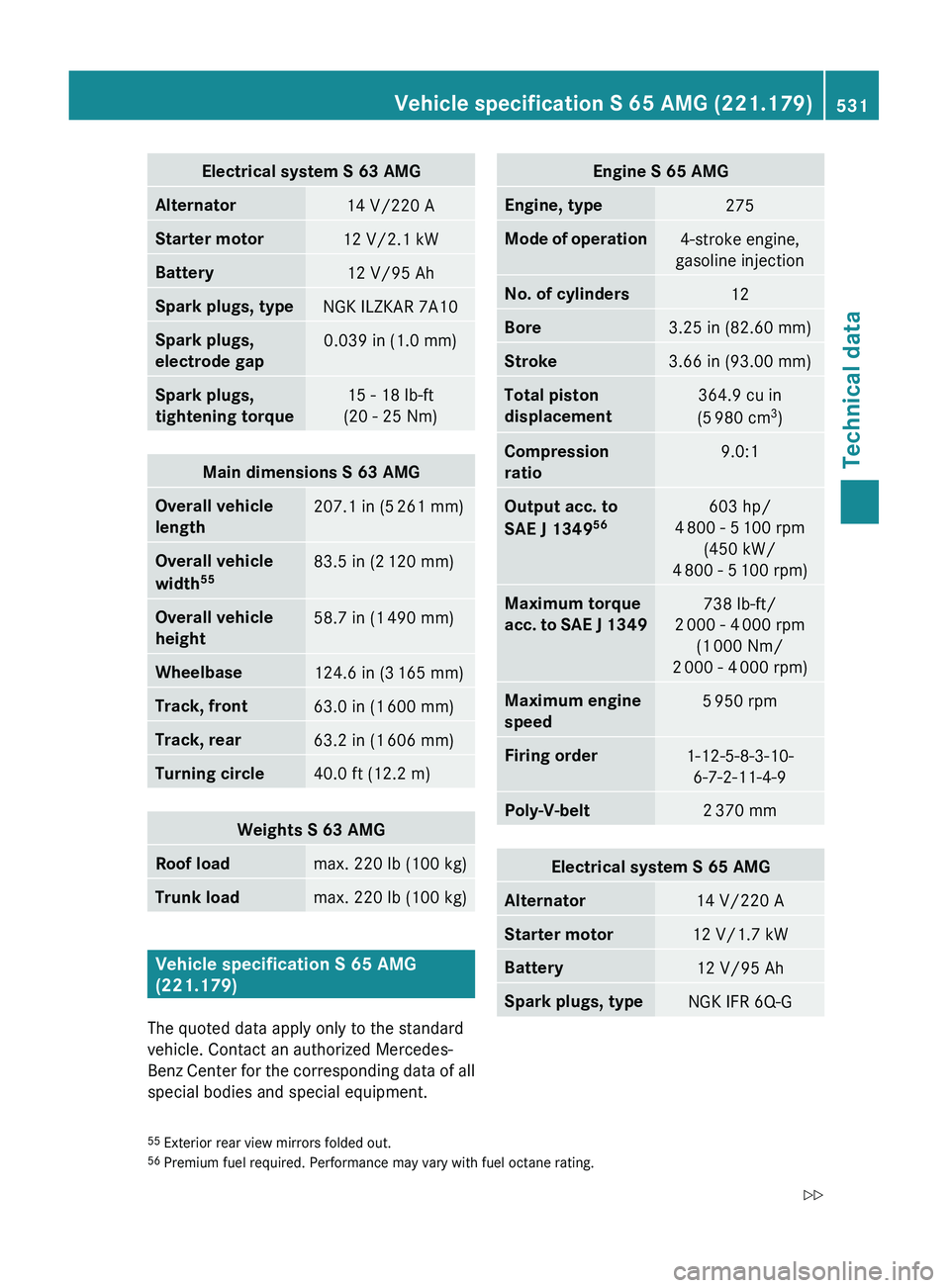

Electrical system S 63 AMGAlternator14 V/220 AStarter motor12 V/2.1 kWBattery12 V/95 AhSpark plugs, typeNGK ILZKAR 7A10Spark plugs,
electrode gap0.039 in (1.0 mm)Spark plugs,
tightening torque15 - 18 lb-ft
(20 - 25 Nm)Main dimensions S 63 AMGOverall vehicle
length207.1 in (5 261 mm)Overall vehicle
width 5583.5 in (2
120 mm)Overall vehicle
height58.7 in (1 490 mm)Wheelbase124.6 in (3 165 mm)Track, front63.0 in (1 600 mm)Track, rear63.2 in (1 606 mm)Turning circle40.0 ft (12.2 m)Weights S 63 AMGRoof loadmax. 220 lb (100 kg)Trunk loadmax. 220 lb (100 kg)
Vehicle specification S 65 AMG
(221.179)
The quoted data apply only to the standard
vehicle. Contact an authorized Mercedes-
Benz Center for the corresponding data of all
special bodies and special equipment.
Engine S 65 AMGEngine, type275Mode of operation4-stroke engine,
gasoline injectionNo. of cylinders12Bore3.25 in (82.60 mm)Stroke3.66 in (93.00 mm)Total piston
displacement364.9 cu in
(5 980 cm 3
)Compression
ratio9.0:1Output acc. to
SAE J 1349 56603 hp/
4 800 - 5 100 rpm
(450 kW/
4 800 - 5 100 rpm)Maximum torque
acc. to SAE J 1349738 lb-ft/
2 000 - 4 000 rpm
(1 000 Nm/
2 000 - 4 000 rpm)Maximum engine
speed5 950 rpmFiring order1-12-5-8-3-10-
6-7-2-11-4-9Poly-V-belt2 370 mmElectrical system S 65 AMGAlternator14 V/220 AStarter motor12 V/1.7 kWBattery12 V/95 AhSpark plugs, typeNGK IFR 6Q-G55
Exterior rear view mirrors folded out.
56 Premium fuel required. Performance may vary with fuel octane rating.Vehicle specification S 65 AMG (221.179)531Technical data221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 531Z

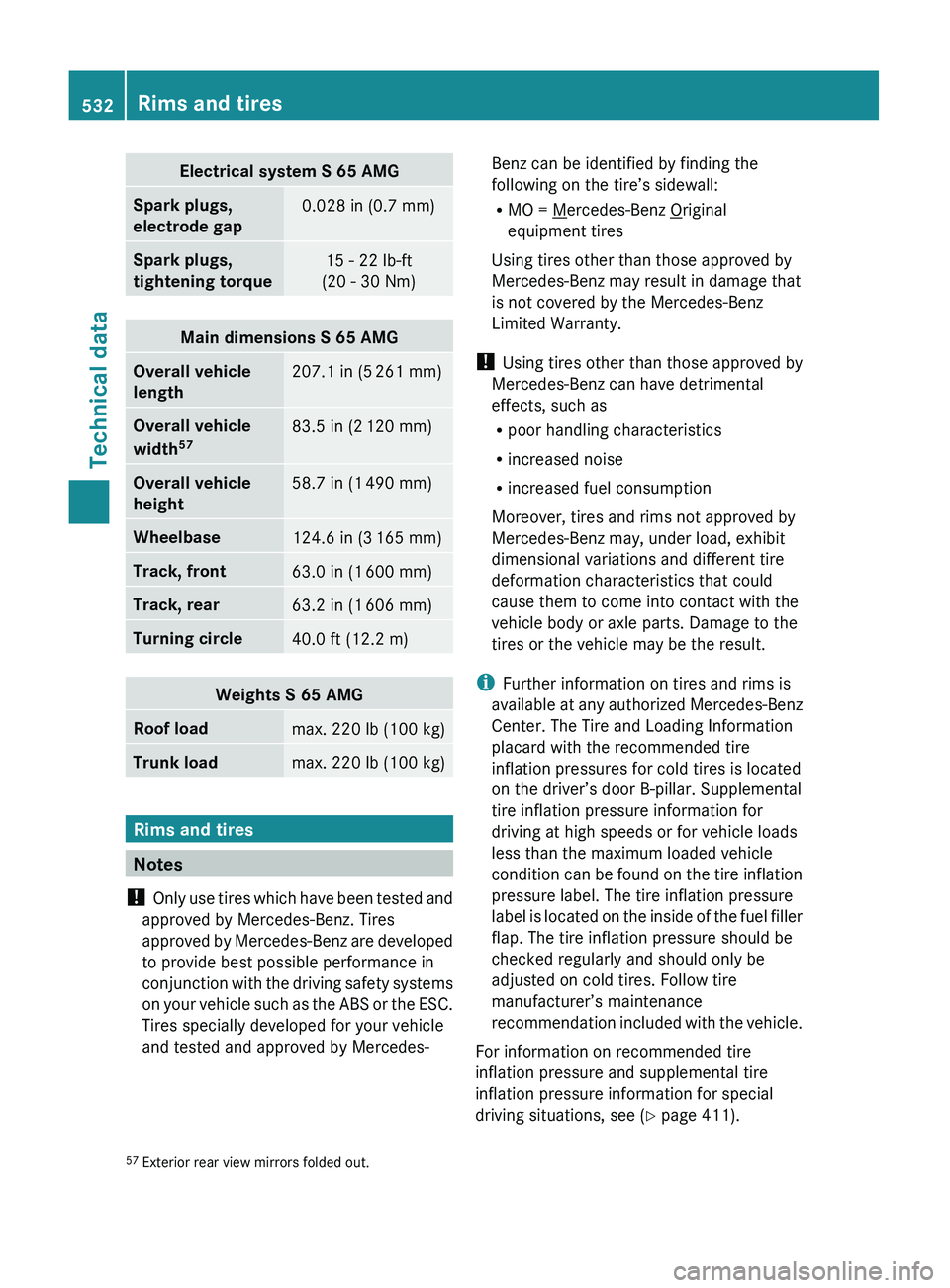

Electrical system S 65 AMGSpark plugs,
electrode gap0.028 in (0.7 mm)Spark plugs,
tightening torque15 - 22 lb-ft
(20 - 30 Nm)Main dimensions S 65 AMGOverall vehicle
length207.1 in (5 261 mm)Overall vehicle
width 5783.5 in (2
120 mm)Overall vehicle
height58.7 in (1 490 mm)Wheelbase124.6 in (3 165 mm)Track, front63.0 in (1 600 mm)Track, rear63.2 in (1 606 mm)Turning circle40.0 ft (12.2 m)Weights S 65 AMGRoof loadmax. 220 lb (100 kg)Trunk loadmax. 220 lb (100 kg)
Rims and tires
Notes
! Only use tires which have been tested and
approved by Mercedes-Benz. Tires
approved by Mercedes-Benz are developed
to provide best possible performance in
conjunction with the driving safety systems
on your vehicle such as the ABS or the ESC.
Tires specially developed for your vehicle
and tested and approved by Mercedes-
Benz can be identified by finding the
following on the tire’s sidewall:
R MO =
Mercedes-Benz Original
equipment tires
Using tires other than those approved by
Mercedes-Benz may result in damage that
is not covered by the Mercedes-Benz
Limited Warranty.
! Using tires other than those approved by
Mercedes-Benz can have detrimental
effects, such as
R poor handling characteristics
R increased noise
R increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit
dimensional variations and different tire
deformation characteristics that could
cause them to come into contact with the
vehicle body or axle parts. Damage to the
tires or the vehicle may be the result.
i Further information on tires and rims is
available at any authorized Mercedes-Benz
Center. The Tire and Loading Information
placard with the recommended tire
inflation pressures for cold tires is located
on the driver’s door B-pillar. Supplemental
tire inflation pressure information for
driving at high speeds or for vehicle loads
less than the maximum loaded vehicle
condition can be found on the tire inflation
pressure label. The tire inflation pressure
label is located on the inside of the fuel filler
flap. The tire inflation pressure should be
checked regularly and should only be
adjusted on cold tires. Follow tire
manufacturer’s maintenance
recommendation included with the vehicle.
For information on recommended tire
inflation pressure and supplemental tire
inflation pressure information for special
driving situations, see ( Y page 411).
57
Exterior rear view mirrors folded out.532Rims and tiresTechnical data
221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 532

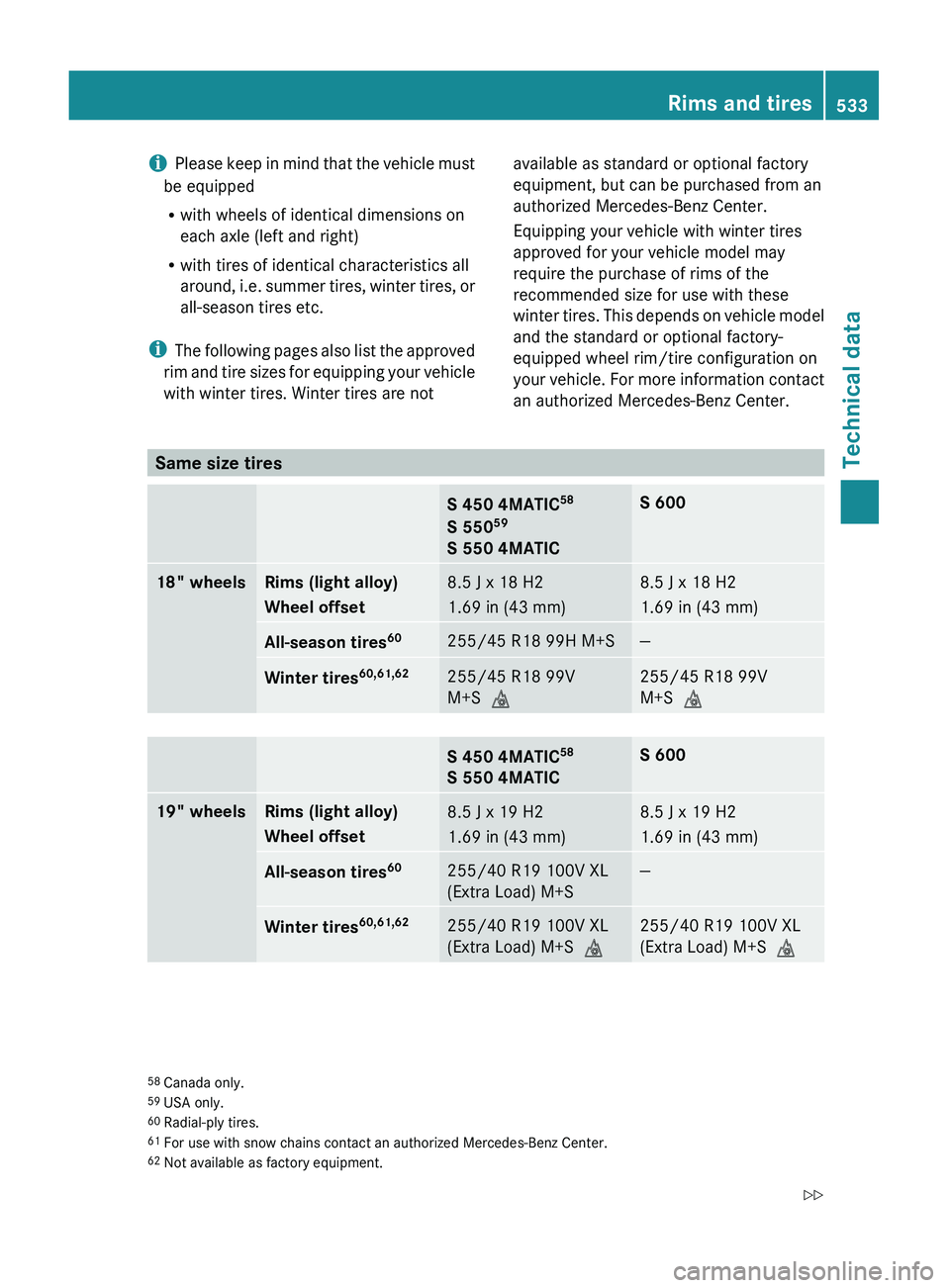

iPlease keep in mind that the vehicle must
be equipped
R with wheels of identical dimensions on
each axle (left and right)
R with tires of identical characteristics all
around, i.e. summer tires, winter tires, or
all-season tires etc.
i The following pages also list the approved
rim and tire sizes for equipping your vehicle
with winter tires. Winter tires are notavailable as standard or optional factory
equipment, but can be purchased from an
authorized Mercedes-Benz Center.
Equipping your vehicle with winter tires
approved for your vehicle model may
require the purchase of rims of the
recommended size for use with these
winter tires. This depends on vehicle model
and the standard or optional factory-
equipped wheel rim/tire configuration on
your vehicle. For more information contact
an authorized Mercedes-Benz Center.
Same size tires
S 450 4MATIC 58
S 550 59
S 550 4MATICS 60018" wheelsRims (light alloy)
Wheel offset8.5 J x 18 H2
1.69 in (43 mm)8.5 J x 18 H2
1.69 in (43 mm)All-season tires 60255/45 R18 99H M+S—Winter tires60,61,62255/45 R18 99V
M+S 004D255/45 R18 99V
M+S 004DS 450 4MATIC 58
S 550 4MATICS 60019" wheelsRims (light alloy)
Wheel offset8.5 J x 19 H2
1.69 in (43 mm)8.5 J x 19 H2
1.69 in (43 mm)All-season tires 60255/40 R19 100V XL
(Extra Load) M+S—Winter tires 60,61,62255/40 R19 100V XL
(Extra Load) M+S 004D255/40 R19 100V XL
(Extra Load) M+S 004D58
Canada only.
59 USA only.
60 Radial-ply tires.
61 For use with snow chains contact an authorized Mercedes-Benz Center.
62 Not available as factory equipment.Rims and tires533Technical data221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 533Z

S 450 4MATIC (AMG Sport Package)58
S 550 4MATIC (AMG Sport Package)19" wheelsAMG rims (light alloy)
Wheel offset8.5 J x 19 H2
1.69 in (43 mm)All-season tires 60255/40 R19 100V XL (Extra Load) M+SWinter tires60,61,62255/40 R19 100V XL (Extra Load) M+S
004DS 63 AMG
S 63 AMG (Performance Package)
S 65 AMG19" wheelsAMG rims (light alloy)
Wheel offset8.5 J x 19 H2
1.69 in (43 mm)Winter tires 60,61,62255/40 R19 100V XL (Extra Load) M+S
004D58
Canada only.
60 Radial-ply tires.
61 For use with snow chains contact an authorized Mercedes-Benz Center.
62 Not available as factory equipment.534Rims and tiresTechnical data
221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 534

Mixed size tiresS 55063
S 600 6318" wheelsFront axleRims (light alloy)
Wheel offset8.5 J x 18 H2
1.69 in (43 mm)All-season tires 64255/45 R18 99H M+SRear axleRims (light alloy)
Wheel offset9.5 J x 18 H2
1.69 in (43 mm)All-season tires 64,65275/45 R18 103H M+SS 55063
S 60019" wheelsFront axleRims (light alloy)
Wheel offset8.5 J x 19 H2
1.69 in (43 mm)All-season tires 64255/40 R19 100V XL (Extra Load)
M+SRear axleRims (light alloy)
Wheel offset9.5 J x 19 H2
1.69 in (43 mm)All-season tires 64,65275/40 R19 101V M+SS 550 (AMG Sport Package)
S 600 (AMG Sport Package) 6619" wheelsFront axleAMG rims (light alloy)
Wheel offset8.5 J x 19 H2
1.69 in (43 mm)All-season tires 64255/40 R19 100V XL (Extra Load)
M+SRear axleAMG rims (light alloy)
Wheel offset9.5 J x 19 H2
1.69 in (43 mm)All-season tires 64,65275/40 R19 101V M+S63
USA only.
64 Radial-ply tires.
65 Must not be used with snow chains.
66 Canada only.Rims and tires535Technical data221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 535Z

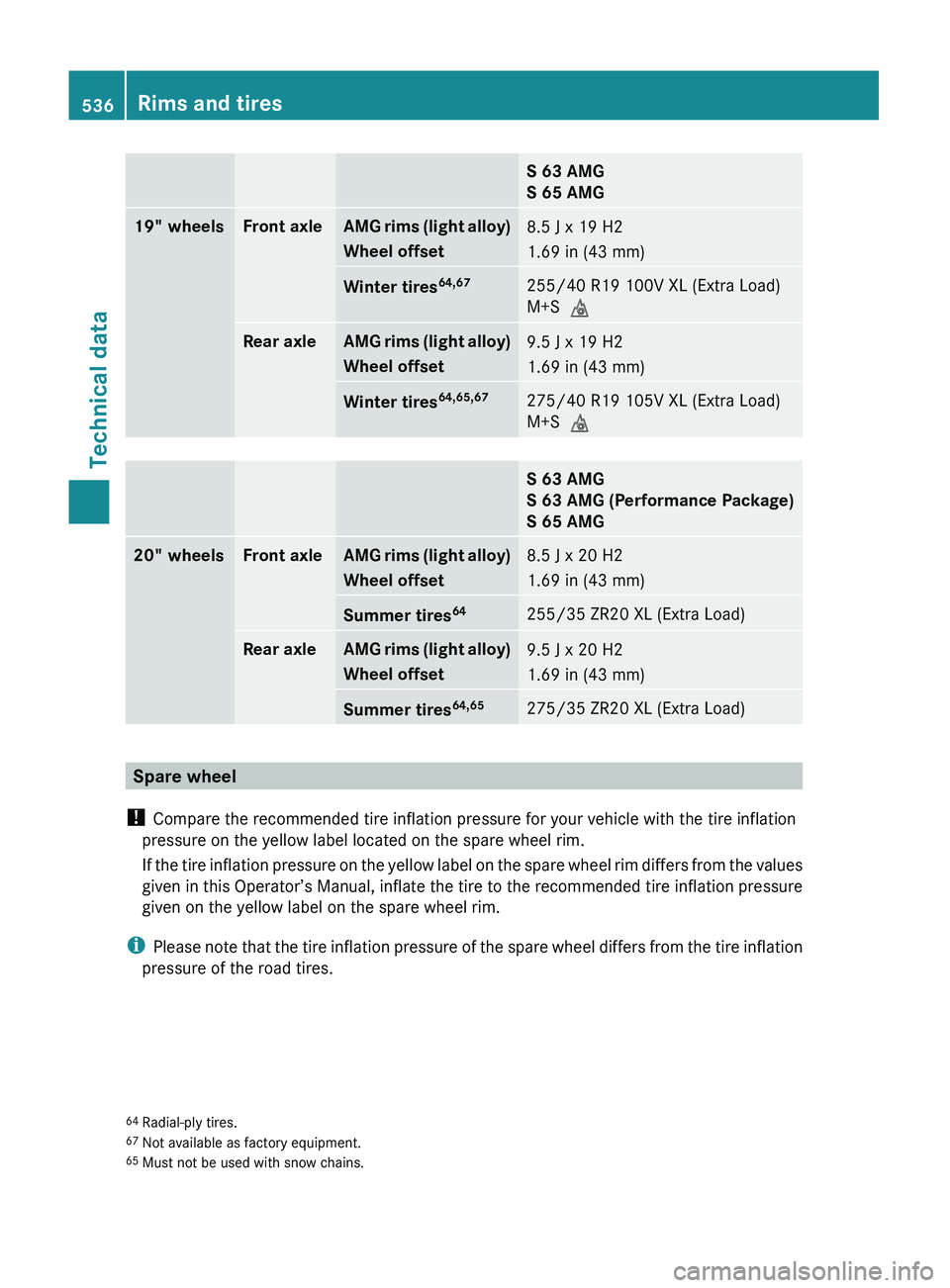

S 63 AMG
S 65 AMG19" wheelsFront axleAMG rims (light alloy)
Wheel offset8.5 J x 19 H2
1.69 in (43 mm)Winter tires 64,67255/40 R19 100V XL (Extra Load)
M+S 004DRear axleAMG rims (light alloy)
Wheel offset9.5 J x 19 H2
1.69 in (43 mm)Winter tires 64,65,67275/40 R19 105V XL (Extra Load)
M+S 004DS 63 AMG
S 63 AMG (Performance Package)
S 65 AMG20" wheelsFront axleAMG rims (light alloy)
Wheel offset8.5 J x 20 H2
1.69 in (43 mm)Summer tires 64255/35 ZR20 XL (Extra Load)Rear axleAMG rims (light alloy)
Wheel offset9.5 J x 20 H2
1.69 in (43 mm)Summer tires 64,65275/35 ZR20 XL (Extra Load)
Spare wheel
! Compare the recommended tire inflation pressure for your vehicle with the tire inflation
pressure on the yellow label located on the spare wheel rim.
If the tire inflation pressure on the yellow label on the spare wheel rim differs from the values
given in this Operator’s Manual, inflate the tire to the recommended tire inflation pressure
given on the yellow label on the spare wheel rim.
i Please note that the tire inflation pressure of the spare wheel differs from the tire inflation
pressure of the road tires.
64 Radial-ply tires.
67 Not available as factory equipment.
65 Must not be used with snow chains.536Rims and tiresTechnical data
221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 536

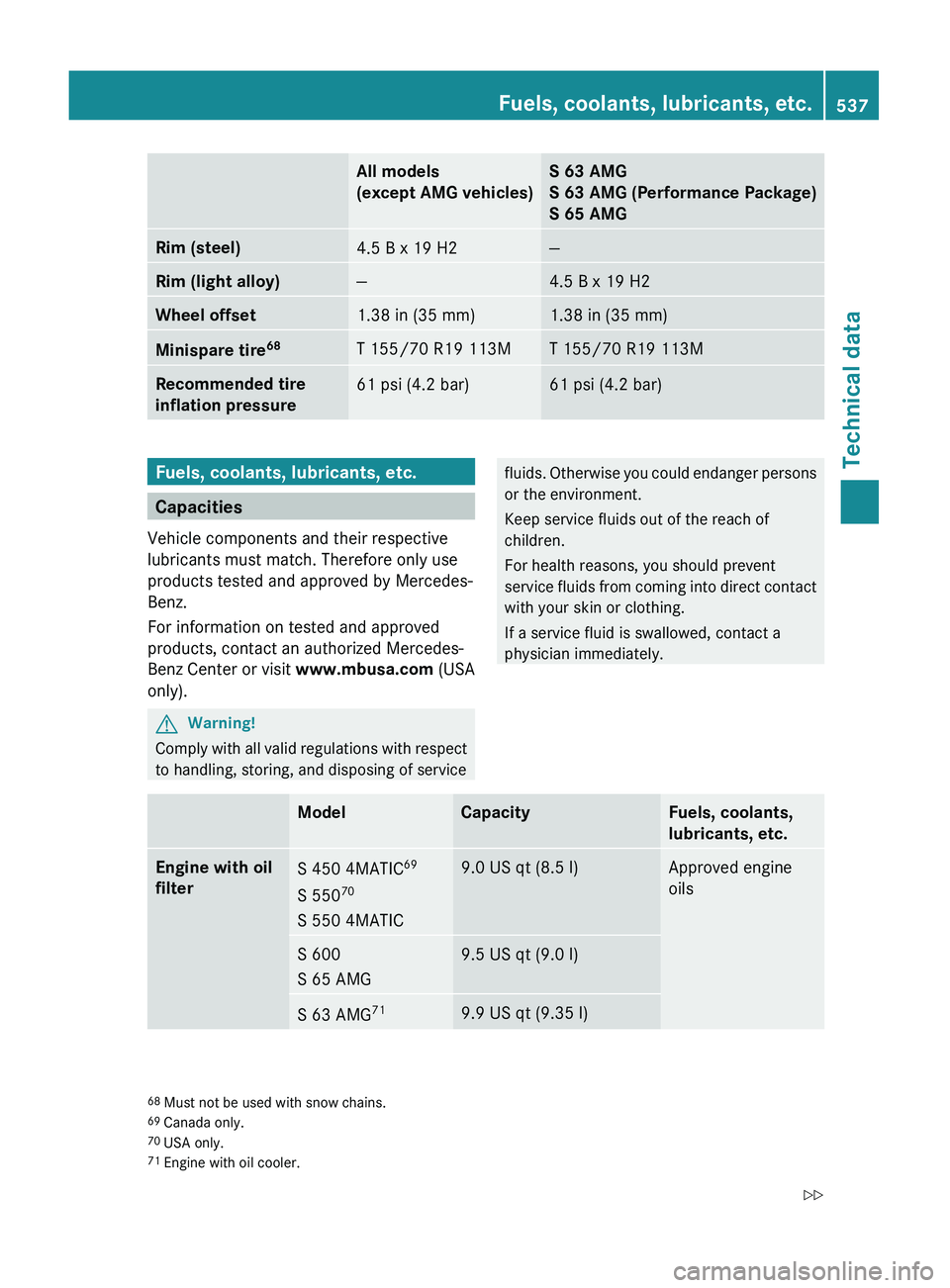

All models
(except AMG vehicles)S 63 AMG
S 63 AMG (Performance Package)
S 65 AMGRim (steel)4.5 B x 19 H2—Rim (light alloy)—4.5 B x 19 H2Wheel offset1.38 in (35 mm)1.38 in (35 mm)Minispare tire 68T 155/70 R19 113MT 155/70 R19 113MRecommended tire
inflation pressure61 psi (4.2 bar)61 psi (4.2 bar)Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by Mercedes-
Benz.
For information on tested and approved
products, contact an authorized Mercedes-
Benz Center or visit www.mbusa.com (USA
only).
GWarning!
Comply with all valid regulations with respect
to handling, storing, and disposing of service
fluids. Otherwise you could endanger persons
or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct contact
with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.ModelCapacityFuels, coolants,
lubricants, etc.Engine with oil
filterS 450 4MATIC 69
S 550 70
S 550 4MATIC9.0 US qt (8.5 l)Approved engine
oilsS 600
S 65 AMG9.5 US qt (9.0 l)S 63 AMG 719.9 US qt (9.35 l)68
Must not be used with snow chains.
69 Canada only.
70 USA only.
71 Engine with oil cooler.Fuels, coolants, lubricants, etc.537Technical data221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 537Z

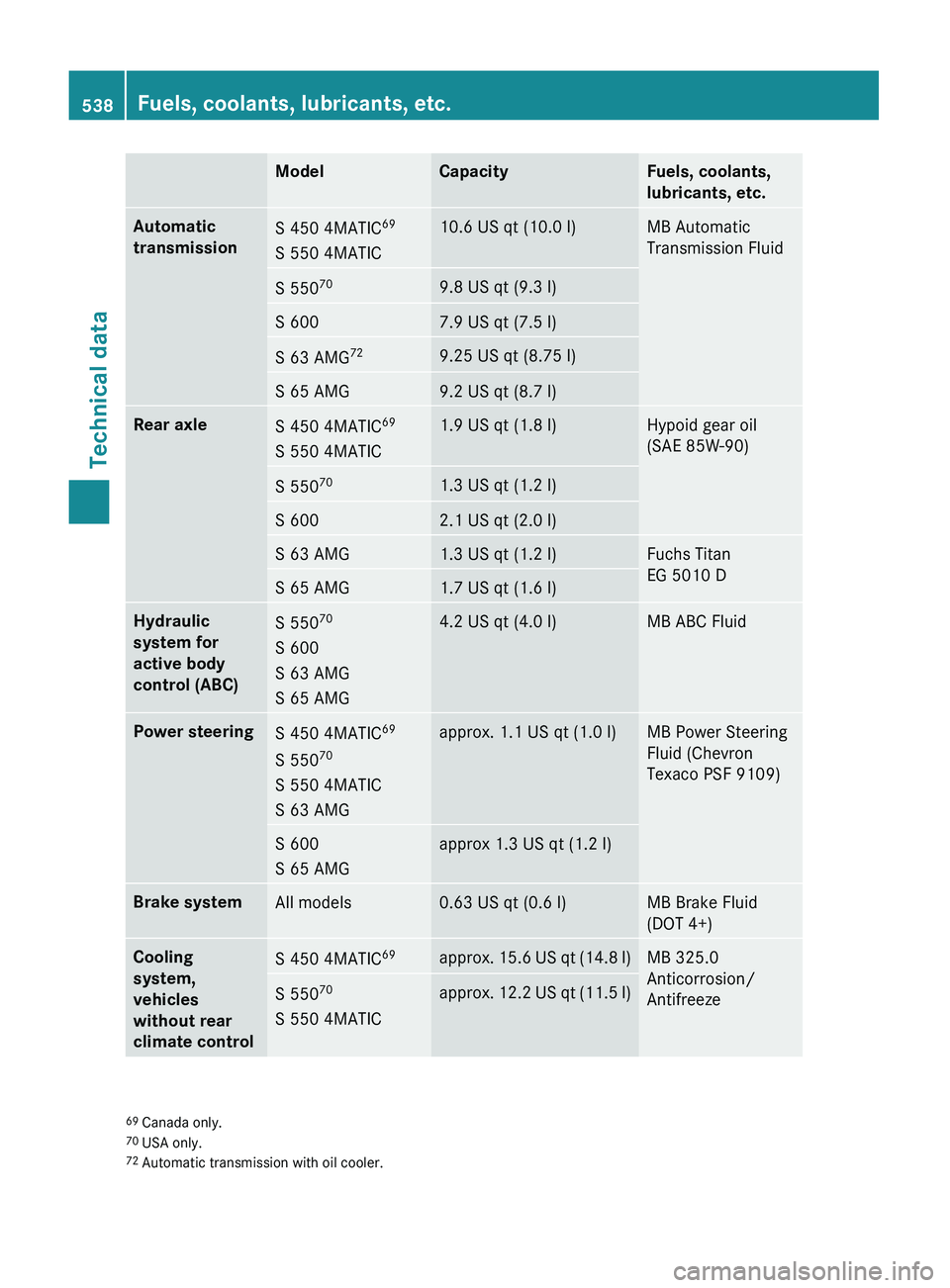

ModelCapacityFuels, coolants,
lubricants, etc.Automatic
transmissionS 450 4MATIC 69
S 550 4MATIC10.6 US qt (10.0 l)MB Automatic
Transmission FluidS 550 709.8 US qt (9.3 l)S 6007.9 US qt (7.5 l)S 63 AMG 729.25 US qt (8.75 l)S 65 AMG9.2 US qt (8.7 l)Rear axleS 450 4MATIC 69
S 550 4MATIC1.9 US qt (1.8 l)Hypoid gear oil
(SAE 85W-90)S 550 701.3 US qt (1.2 l)S 6002.1 US qt (2.0 l)S 63 AMG1.3 US qt (1.2 l)Fuchs Titan
EG 5010 DS 65 AMG1.7 US qt (1.6 l)Hydraulic
system for
active body
control (ABC)S 550 70
S 600
S 63 AMG
S 65 AMG4.2 US qt (4.0 l)MB ABC FluidPower steeringS 450 4MATIC 69
S 550 70
S 550 4MATIC
S 63 AMGapprox. 1.1 US qt (1.0 l)MB Power Steering
Fluid (Chevron
Texaco PSF 9109)S 600
S 65 AMGapprox 1.3 US qt (1.2 l)Brake systemAll models0.63 US qt (0.6 l)MB Brake Fluid
(DOT 4+)Cooling
system,
vehicles
without rear
climate controlS 450 4MATIC 69approx. 15.6 US qt (14.8 l)MB 325.0
Anticorrosion/
AntifreezeS 550 70
S 550 4MATICapprox. 12.2 US qt (11.5 l)69 Canada only.
70 USA only.
72 Automatic transmission with oil cooler.538Fuels, coolants, lubricants, etc.Technical data
221_AKB; 6; 20, en-USd2ugruen,Version: 2.11.8.12009-09-24T13:28:17+02:00 - Seite 538
