Page 281 of 524

MERCEDES-BENZ S-Class 2011 W221 Owners Manual Never use a bulb which has been dropped.
Such a bulb may break or even explode and
injure you.
Halogen bulbs are pressurized and can
explode when you change them, particularly
if they are very hot. Yo

Page 282 of 524

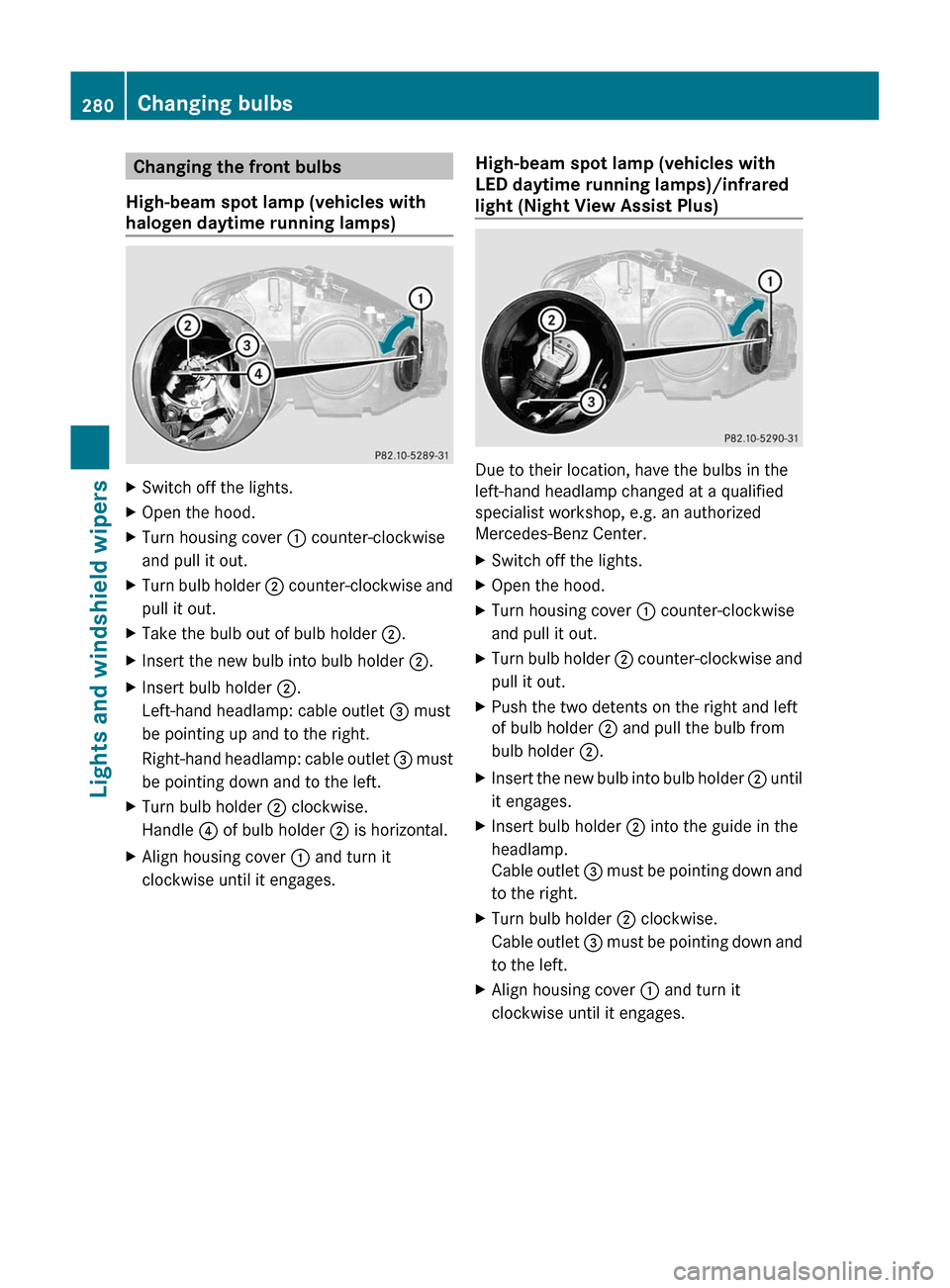

MERCEDES-BENZ S-Class 2011 W221 Owners Manual Changing the front bulbs
High-beam spot lamp (vehicles with
halogen daytime running lamps)
XSwitch off the lights.XOpen the hood.XTurn housing cover : counter-clockwise
and pull it out.
XTurn bulb hol

Page 283 of 524

MERCEDES-BENZ S-Class 2011 W221 Owners Manual Windshield wipers
Switching the windshield wipers on/
off
GWarning!
Wiper blades are components that are subject
to wear and tear. Replace the wiper blades
twice a year, preferably in the spring and f

Page 284 of 524

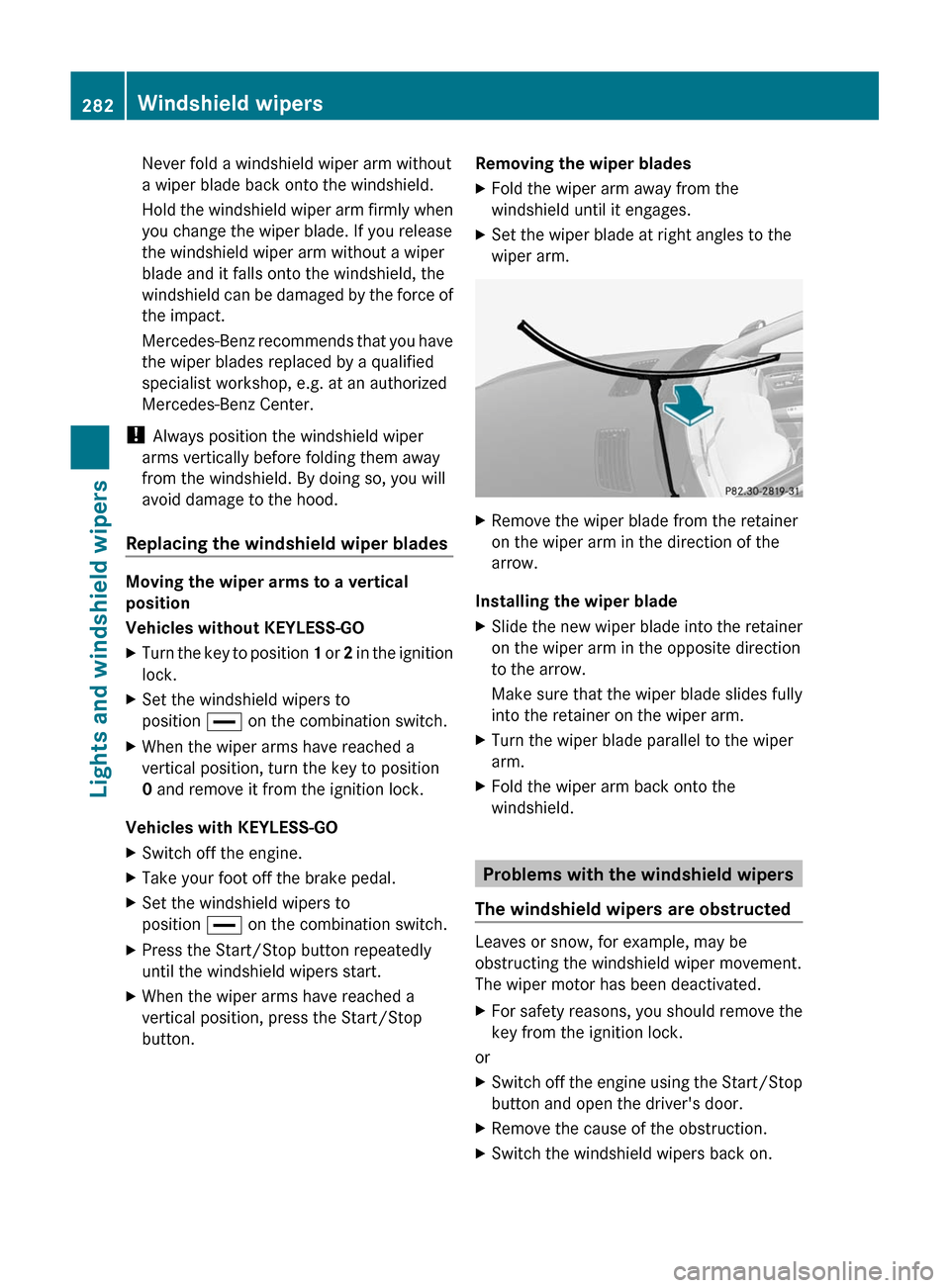

MERCEDES-BENZ S-Class 2011 W221 Owners Manual Never fold a windshield wiper arm without
a wiper blade back onto the windshield.
Hold the windshield wiper arm firmly when
you change the wiper blade. If you release
the windshield wiper arm without

Page 285 of 524

MERCEDES-BENZ S-Class 2011 W221 Owners Manual The windshield wipers are inoperative
The windshield wiper drive is malfunctioning.
XSelect another wiper speed on the
combination switch.XHave the windshield wipers checked at a
qualified specialist

Page 286 of 524

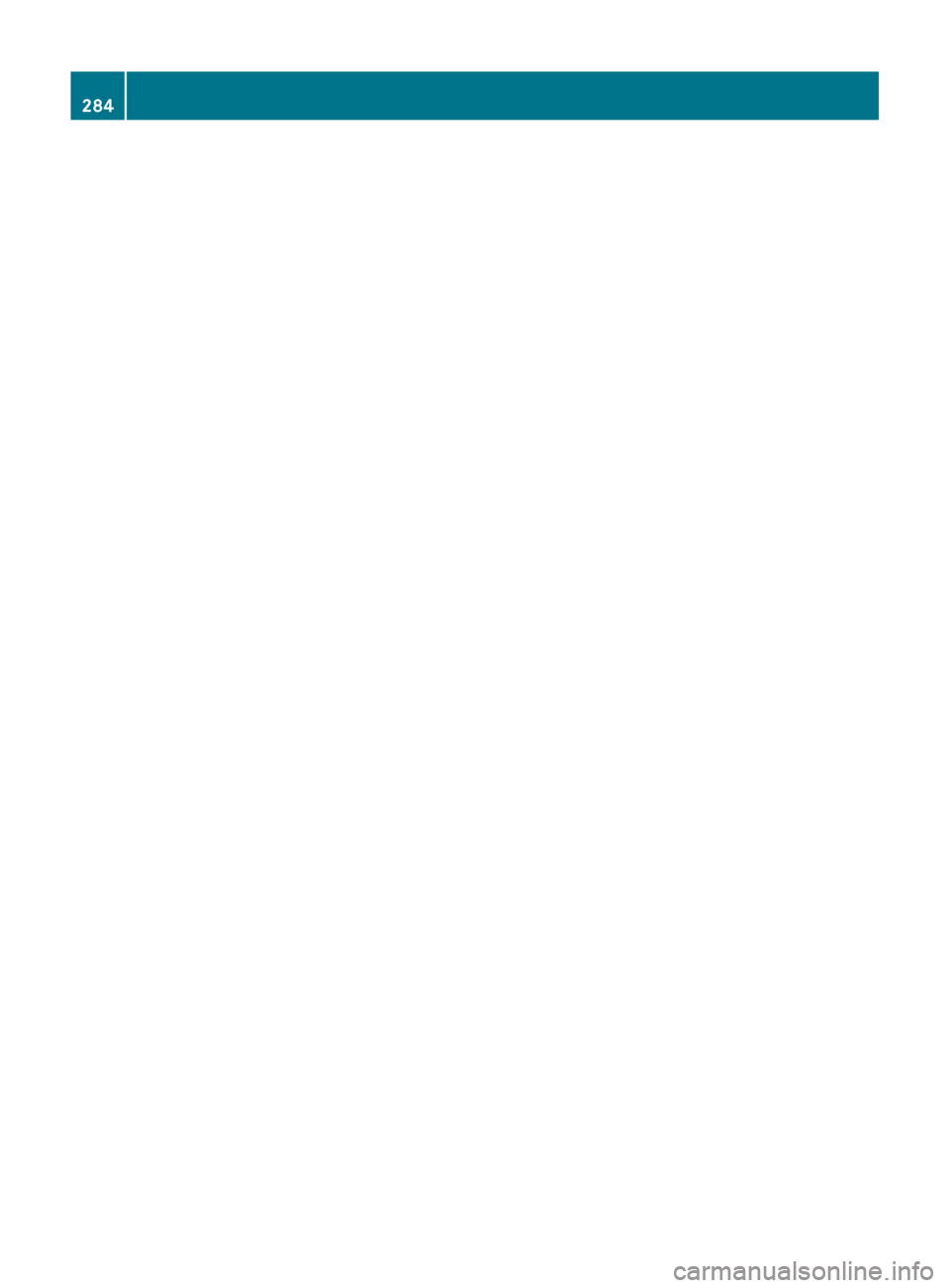

MERCEDES-BENZ S-Class 2011 W221 Owners Manual 284

Page 287 of 524

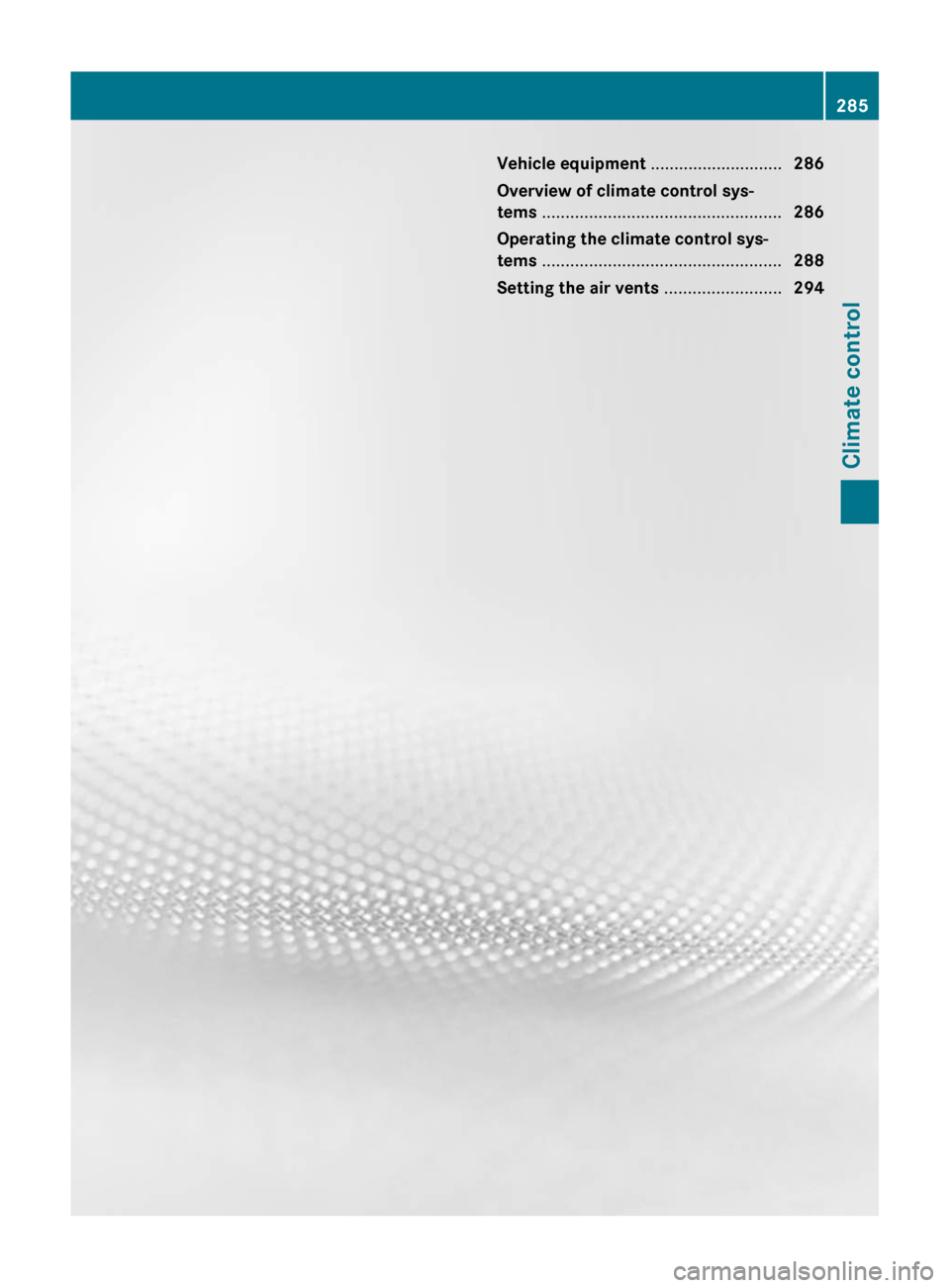

MERCEDES-BENZ S-Class 2011 W221 Owners Manual Vehicle equipment ............................286
Overview of climate control sys-
tems  ................................................... 286
Operating the climate control sys-
tems  ..............

Page 288 of 524

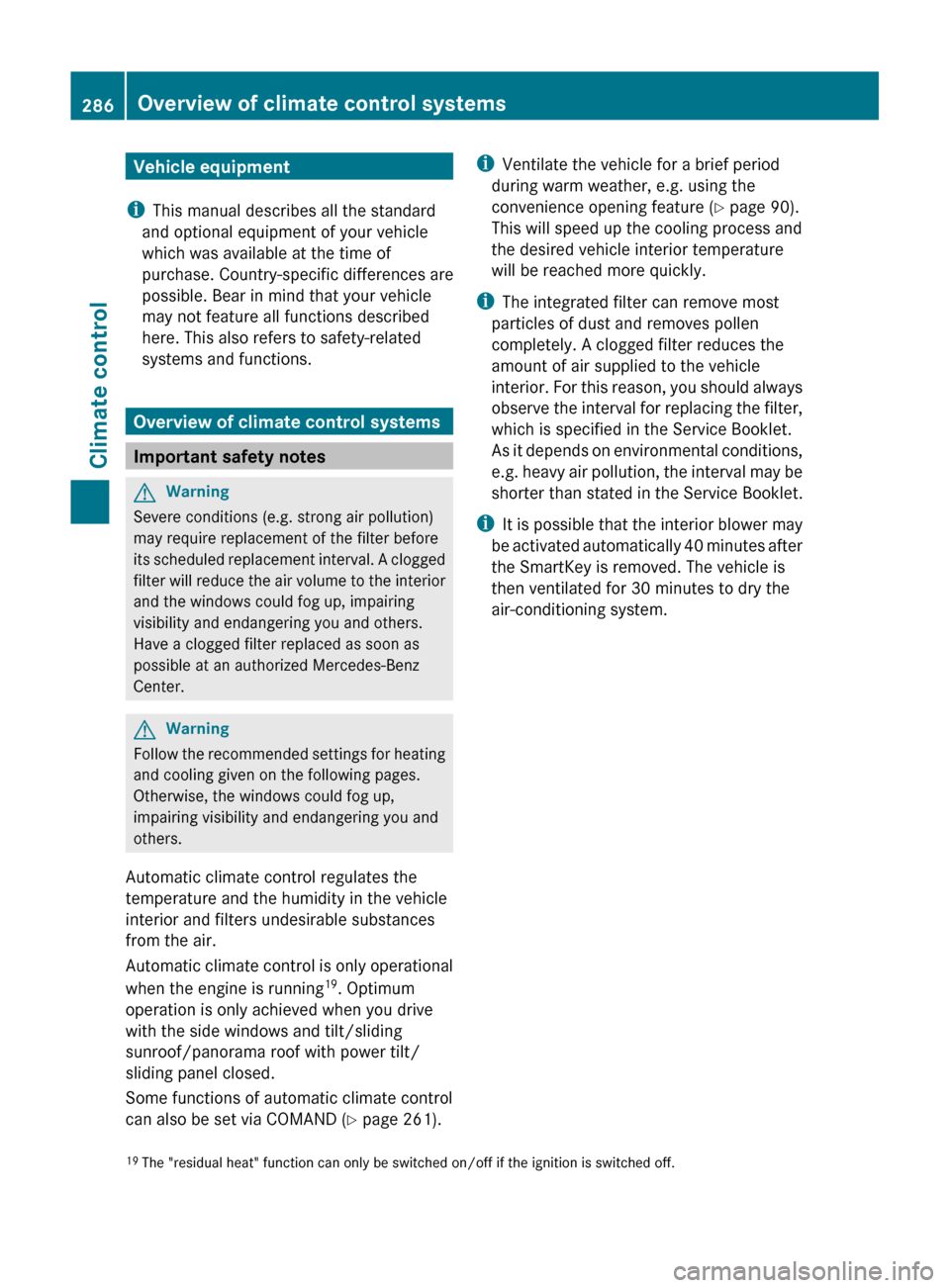

MERCEDES-BENZ S-Class 2011 W221 Owners Manual Vehicle equipment
i This manual describes all the standard
and optional equipment of your vehicle
which was available at the time of
purchase. Country-specific differences are
possible. Bear in mind t

Page 289 of 524

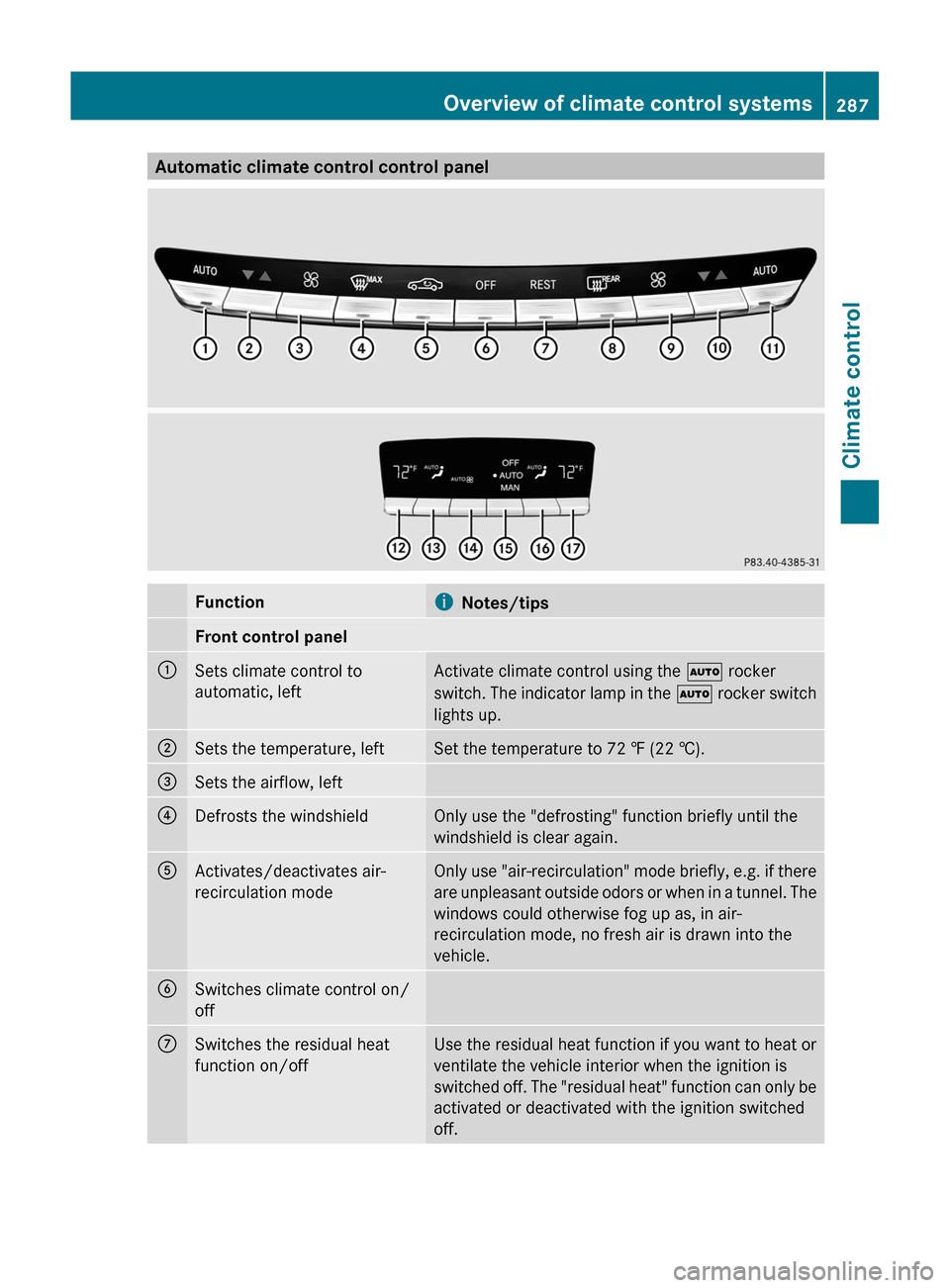

MERCEDES-BENZ S-Class 2011 W221 Owners Manual Automatic climate control control panelFunctioniNotes/tipsFront control panel:Sets climate control to
automatic, left
Activate climate control using the à rocker
switch. The indicator lamp in the Ã

Page 290 of 524

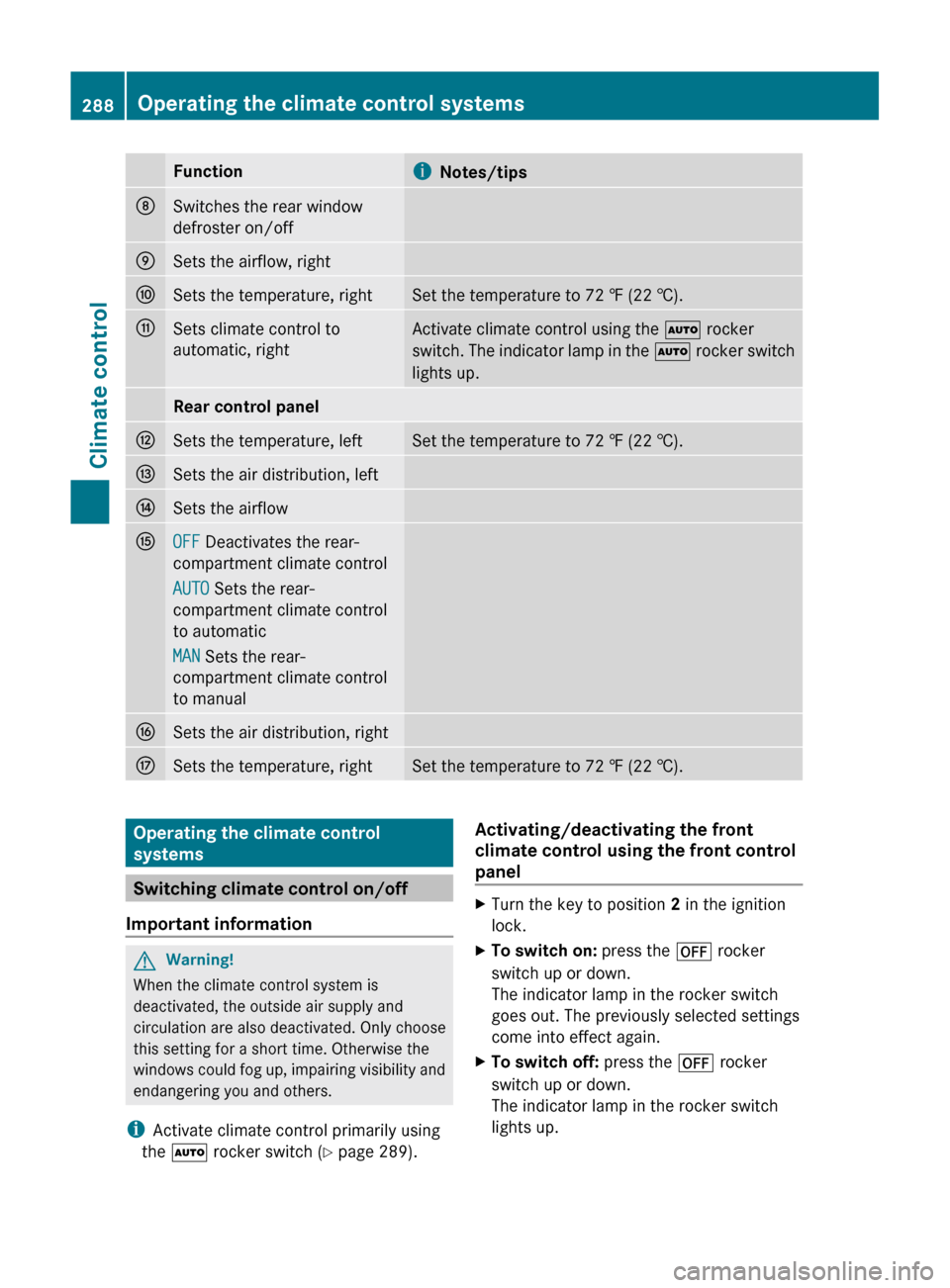

MERCEDES-BENZ S-Class 2011 W221 Owners Manual FunctioniNotes/tipsDSwitches the rear window
defroster on/offESets the airflow, rightFSets the temperature, rightSet the temperature to 72 ‡ (22 †).GSets climate control to
automatic, rightActivat
