MERCEDES-BENZ S CLASS 2019 Owners Manual

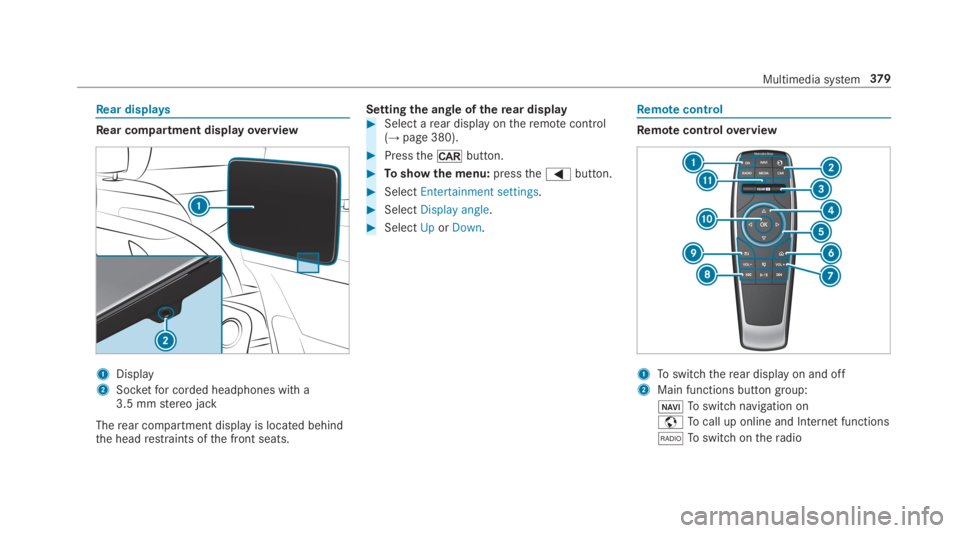

Rear displays
Rear compartment displayoverview
1Display
2Socketfor corded headphones with a3.5 mmstereo jack
Therear compartment display is located behindthe headrestraints ofthe front seats.
Settingthe angle oftherear display#Select arear display ontheremotecontrol(→page380).
#Pressthebutton.
#Toshowthe menu:presstheYbutton.
#SelectEntertainment settings.
#SelectDisplay angle.
#SelectUporDown.
Remotecontrol
Remotecontroloverview
1Toswitchtherear display on and off
2Main functions buttongroup:

#Turndial1.COMAND: multimedia system
LREAR:rear display,left
RREAR:rear display,right
Replacing batteries (remotecontrol)
Requirements:RThere are two type AAA,1.5 V batteriesfortheremotecontrol.
Observethe safety and environmental note(→page377).
The battery compartment is located onthereverse side.
#Pushthe catchtab downwards andtakeoffthe battery compartment cover.
#Removedischarged batteries fromthe bat‐terycompartment.
#Insert new batteries. Observethe polaritymarkings onthe batteries and battery com‐partment.
#Firstplacethe battery compartment coverontheretaining lugs inthe battery compart‐ment.
#Allowthe catchtabtoengage inthe batterycompartment.

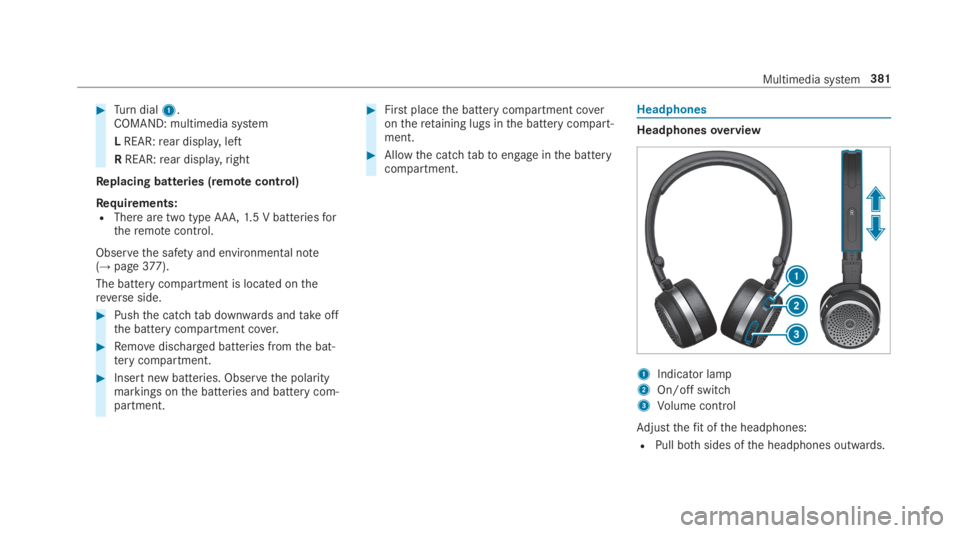

Headphones
Headphonesoverview
1Indicator lamp
2On/off switch
3Volume control
Adjustthefit ofthe headphones:
RPull bothsides ofthe headphones outwards.
Multimedia system381

RPullthe headphone band inthe direction ofthe arrow.
Indicator lamp11
LED color Meaning
Green The batteries are fullycharged. The batteries havebeen inserted correctly.
RedThe batteries are almost dis‐charged.
The LED lightsup.The cordless headphonesare switched on and connec‐tedtoarear display.
The LEDflashes.The cordless headphonesare searchingfor a connec‐tiontoarear display.
The LED isdark.The cordless headphonesare switched off.
The batteries are discharged.
The headphones automatically switch off iftheyhavenotreceived an audio signalfor approx‐
imatelythree minutes. This preservesthe batter‐ies.
Switching headphones on/off#Press2(→page 381).
Selectingtherear displayfor the head‐phones
#Moveswitch1toL (leftrear display) or R(rightrear display).
Settingthevolumefor headphones#Turnvolume control3(→page 381).
Replacing batteries (headphones)
Requirements:RThere are two type AAA,1.5 V batteriesforthe cordless headphones.
Observethe safety and environmental note(→page377).
%The operating duration ofthe headphoneswith a set of batteries is upto40 hours.
382Multimedia system

The battery compartment is located onthe leftheadphone.
#Switchthe headphones off.
#Turnbattery compartment cover1counter-clockwise andremove.
#Removedischarged batteries fromthe bat‐terycompartment.
#Insert new batteries. Observethe polaritymarkings onthe batteries and battery com‐partment.
#Replace battery compartment cover1andturn it clockwise until it engages.
#Switchthe headphones on.Ifthe batteries havebeen inserted correctly,the indicator lamp will light up green.
Blu-ray driveoverview
1Disc slot
2Toinsert/eject datastorage medium
Depending onthevehicle equipment,the Blu-raydrive is located inthefollowing positions:
Rattherear ofthe center console undertheautomatic climate control panel
Multimedia system383

Rbetweentherear shelf andthrough-load skibag
Overview ofRear Seat Entertainment Systemports
1HDMI port
2USB ports
Depending onthevehicle equipment,the portsare located inthefollowing positions:
Rinthestowage box betweentherear seats or
Rintherear armrest
Rear seats
Adjusting therear seatsRear Seat Entertainment System:
,System.aSeat
#SelectSide BolstersorLumbar.
#Selectthe setting.
Memory function
#Savethe seat adjustments withthe memoryfunction (→page117).
Selecting the massage programfor therearseatsRear Seat Entertainment System:
,System.aSeat
#SelectMassage.
#Select a massage program.The massage programrunsfor approximately8to18minutes, depending onthe setting.
#Tosetthe massage intensity: switchHighIntensityonsor offS.
Overview of massageandworkout programOverview of massage andworkout programs(→page109).
Resettingrear seat settingsRear Seat Entertainment System:
,System.aSeat.Reset
#SelectYesorNo.
Settingtherear climate control
Rear Seat Entertainment System:
,System.bClimate Control
Activating theSYNCfunction
#SelectSYNC.
#Switchthe function onsor offS.
384Multimedia system

Activating the A/C function
#SelectA/C.
#Activatesor deactivateSthe function.
Controllingtherear climate control automat‐ically
#SelectAUTO.
#Activatesor deactivateSthe function.
Settingthe airflow
#SelectAirflow.
#Setthe airflow.
Settingthetemperature
#SelectTemperature.
#Setthetemperature.
Settingthe air distribution
#SelectAir Distribution.
#Setthe air distribution.
Starting ENERGIZINGcomfort intherearpassenger compartment
Rear Seat Entertainment System:
,System.ENERGIZING Comfort
ENERGIZING comfort programoverview
#For anoverview oftheavailable ENERGIZINGcomfortprogram (→page 299).
Startingthe ENERGIZING comfort programThe ENERGIZING comfort program can only bestarted viatherear displayforthe seattowhichtherear display belongs.
#For information onstarting ENERGIZINGcomfortprogram (→page 300).
StartingPowerNapfor therear seatsFortherear seatsthePower Napfunction isavailableforyou as an additional ENERGIZINGcomfort program.
%PowerNap can only bestarted whenyou aredriving duetothe battery powerrequired.
The programruns inthree phases:
RSleep onset phase:relaxing music is playedinthis phase, andthewarmed seats providea subtle massage.
RSleep phase:the active functions are deacti‐vated orrestricted as much as possible.
RWaking phase:inthis phase, slightlystimu‐lating music is played, andthe air is purifiedwith ionization and scented. The seat isven‐tilated. Thevehicle interior is illuminated withstimulating light.
#SelectPower Nap.The program isstarted.
ConfiguringPowerNap
#Call up additional optionsÜforPowerNap.
#Tosetthe duration:selectDuration XX Min.
#Setthe desiredrunning time.
#Toselectthe function:switchthe functionsincluded inthe program onsor offS.
Multimedia system385

Depending onthe setting,the program willrunfor between15and 30 minutes.
Adjusting the ambient lighting in therearpassenger compartment
Rear Seat Entertainment System:
,System.Ambient Light
#Changethe settings.
%For information about adjustingthe ambientlighting (→page150).
Activating/deactivating the panel heating
Rear Seat Entertainment System:
,System.bPanel Heating
#Activate or deactivatefunction.
Adjusting the entertainment system settings
Rear Seat Entertainment System:
,System.Entertainment System settings
Settingthe display brightness
#SelectDisplay settings.
#SelectBrightness.
#Adjustthe brightness.
Tiltingthe display
#SelectDisplay settings.
#SelectDisplay angle.
#Tiltthe displayUporDown.
Settingthe display design
#SelectDisplay settings.
#SelectDay Design,Night DesignorAuto-matic.
Adjusting the equalizer
#SelectAudio settings.
#SelectEqualizer.
#Setthe equalizer.
%For further information aboutthe equalizer(→page375).
Activating audio on cabin
#SelectAudio settings.
#SelectSwitch the speaker source on or off.Ifthe function is switched on,the currentmedia source is output viathevehicle'sspeakers.
Settingthe language
Rear Seat Entertainment System:
,System
#SelectLanguage.
#Setthe desired language.
Switching offthe display
Rear Seat Entertainment System:
,System
#SelectDisplay Off.The display is switched off.
386Multimedia system

Navigation
Switching navigation onRear Seat Entertainment System:
,Navigation
#Alternatively: pressthe

Re-establishing an Internet connection
Requirements:RObservetherequirementsforthe Internetfunctions intherear passenger compartment(→page 387).
If an Internetconnection istemporarily discon‐nected, it can bere-established intheRear SeatEntertainment System.
#Call uptheweb browser (→page 350).
#Enter a URL and open it.
Media
Information about media mode intherearpassenger compartmentTheRear Seat Entertainment System includes aBlu-ray drive (→page 383), two USB ports andan HDMI port (→page 384).
Depending onthevehicle model and equipmentlevel,the Blu-raydrive isfound:
Rattherear ofthe center console undertheautomatic climate control panel
Rbetweentherear shelf andthrough-load skibag
Datastorage media and devices supportedbytheRear Seat Entertainment System:
RSD cards
RUSBstorage device
RAudio CD
RData CD
RDataDVD
RVideoDVD
RBD (Blu-raydisc) video
RiPod®
RiPhone®
RMTP devices
RBluetooth®audio
Bluetooth®audio equipment can only beauthorized usingthe multimedia system.
TheRear Seat Entertainment System supports atotal of upto50,000files. TheRear Seat Enter‐
tainment System can also accessfiles onthemultimedia system.
Further information about audio mode(→page 354).
Further information about Bluetooth®audio(→page 364).
is a trademark ofDVDFormat/LogoLicensing Corporation.
