MERCEDES-BENZ S-CLASS CABRIOLET 2019 Owner's Manual

R

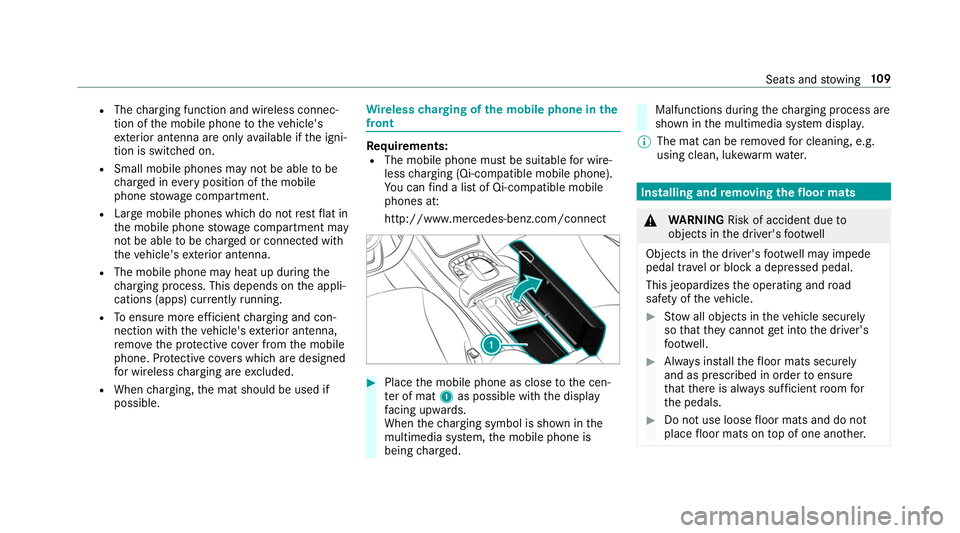

The charging function and wireless connec‐
tion of the mobile phone totheve hicle's
ex terior antenna are only available if the igni‐
tion is switched on.
R Small mobile phones may not be able tobe
ch arge d in every position of the mobile
phone stowage compartment.
R Largemobile phones which do not rest flat in
th e mobile phone stowage compartment may
not be able tobe charge d or connec ted with
th eve hicle's exterior antenna.
R The mobile phone may heat up during the
ch arging process. This depends on the appli‐
cations (apps) cur rently running.
R Toensure more ef ficient charging and con‐
nection with theve hicle's exterior antenna,
re mo vethe pr otective co ver from the mobile
phone. Pr otective co vers which are designed
fo r wireless charging are excluded.
R When charging, the mat should be used if
possible. Wire
lesscharging of the mobile phone in the
front Re
quirements:
R The mobile phone must be suitable for wire‐
less charging (Qi-compatible mobile phone).
Yo u can find a li stof Qi-compatible mobile
phones at:
http://www.mercedes-benz.com/connect #
Place the mobile phone as close tothe cen‐
te r of mat 1as possible with the display
fa cing up wards.
When thech arging symbol is shown in the
multimedia sy stem, the mobile phone is
being charge d. Malfunctions during
thech arging process are
shown in the multimedia sy stem displa y.
% The mat can be remo vedfo r cleaning, e.g.
using clean, luk ewarmwate r. Installing and
removing the floor mats &
WARNING Risk of accident due to
objects in the driver's foot we ll
Objects in the driver's foot we ll may impede
pedal tr avel or block a depressed pedal.
This jeopardizes the operating and road
saf ety of theve hicle. #
Stow all objects in theve hicle securely
so that they cannot getinto the driver's
fo ot we ll. #
Alw ays ins tallth efloor mats securely
and as prescribed in order toensure
th at there is alw ays suf ficient room for
th e pedals. #
Do not use loose floor mats and do not
place floor mats on top of one ano ther. Seats and
stowing 109

#

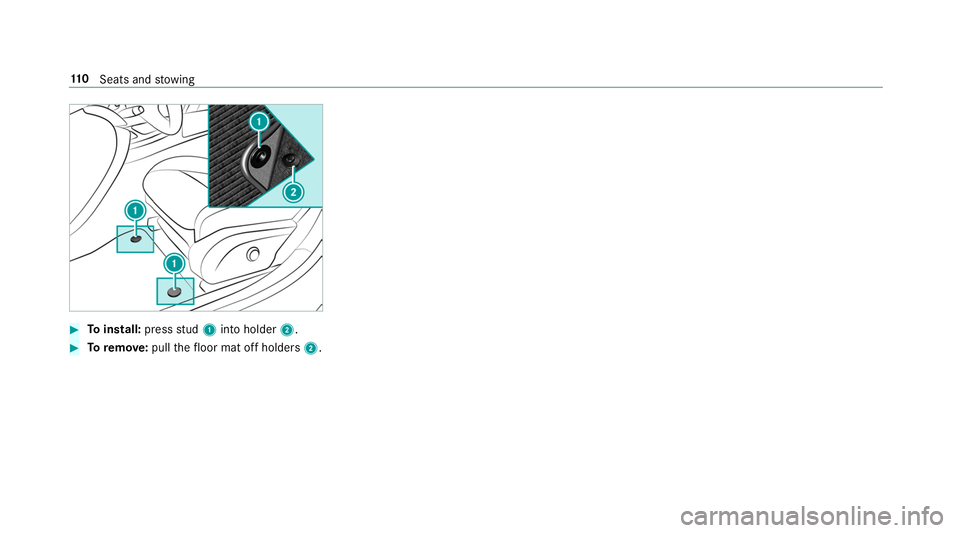

Toinstall: pressstud 1 into holder 2. #
Toremo ve:pull thefloor mat off holders 2.11 0
Seats and stowing

Exterior lighting
Information about lighting sy
stems and your
re sponsibility The
various lighting sy stems of theve hicle are
only aids. The driver of theve hicle is responsible
fo r cor rect vehicle illumination in accordance
with the pr evailing light and visibility conditions,
legal requirements and traf fic situation. Light switch
Ope
rating the light switch 0047
0063 Leftstanding light
0048 0064 Rightstanding light
0049 0060 Parking lights and license plate lamp
004A 0058 Automatic driving lights (prefer red light
switch position) 004B
0058 Low beam/high beam
6 005E Switches there ar fog lights on or off
When low beam is activated, the0060 indicator
lamp forth e parking lights is deactivated and
re placed bythe0058 low beam indicator lamp. #
Alw ays park your vehicle safely and in a well-
lit area, in accordance with there leva nt le gal
st ipulations.
* NO
TEBattery discharging byoperating
th est anding lights Operating
thest anding lights over a period of
hours puts a stra in on the batter y. #
Where possible, switch on the
ri ght 0064 or left 0063parking light. In
the case of se vere battery discharging, the
st anding lights or parking lights are automati‐
cally swit ched off tofacilitate the next engine
st art.
The exterior lighting (e xcept standing and park‐
ing lights) swit ches off automatically when the
driver's door is opened. Light and visibility
111

R

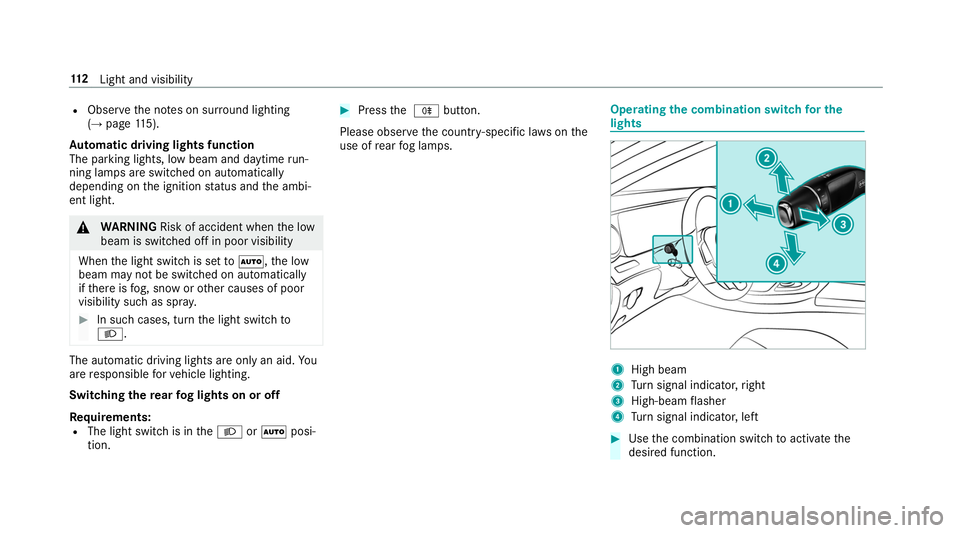

Obser vethe no tes on sur round lighting
(→ page 115).
Au tomatic driving lights function
The pa rking lights, low beam and daytime run‐
ning la mps are switched on automatically
depending on the ignition status and the ambi‐
ent light. &
WARNING Risk of accident when the low
beam is switched off in poor visibility
When the light switch is set to0058 ,th e low
beam may not be switched on automatically
if th ere is fog, snow or other causes of poor
visibility such as spr ay.#
In such cases, turn the light switch to
0058 . The automatic driving lights are only an aid.
Yo u
are responsible forve hicle lighting.
Switching there ar fog lights on or off
Re quirements:
R The light switch is in the0058 or0058 posi‐
tion. #
Press the 005E button.
Please obser vethe count ry-specific la wsonthe
use of rear fog lamps. Operating
the combination switch for the
lights 1
High beam
2 Turn signal indicator, right
3 High-beam flasher
4 Turn signal indicator, left #
Use the combination switch toactivate the
desired function. 11 2
Light and visibility

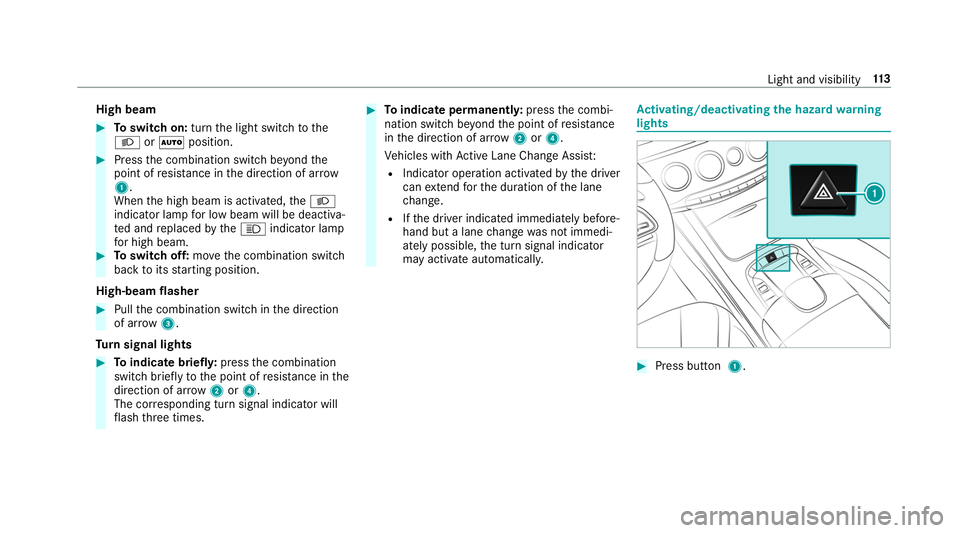

High beam
#
Toswitch on: turnthe light switch tothe
0058 or0058 position. #
Press the combination switch be yond the
point of resis tance in the direction of ar row
1 .
When the high beam is activated, the0058
indicator lamp for low beam will be deactiva‐
te d and replaced bythe0057 indicator lamp
fo r high beam. #
Toswitch off: movethe combination switch
back toits starting position.
High-beam flasher #
Pull the combination switch in the direction
of ar row3.
Tu rn signal lights #
Toindicate briefl y:press the combination
switch briefly tothe point of resis tance in the
direction of ar row2or4.
The cor responding turn signal indicator will
fl ash thre e times. #
Toindicate permanentl y:press the combi‐
nation switch be yond the point of resis tance
in the direction of ar row2or4.
Ve hicles with Active Lane Change Assi st:
R Indicator operation activated bythe driver
can extend forth e duration of the lane
ch ange.
R Ifth e driver indicated immediately before‐
hand but a lane change was not immedi‐
ately possible, the turn signal indicator
may activate automaticall y. Ac
tivating/deactivating the hazard warning
lights #
Press button 1. Light and visibility
11 3

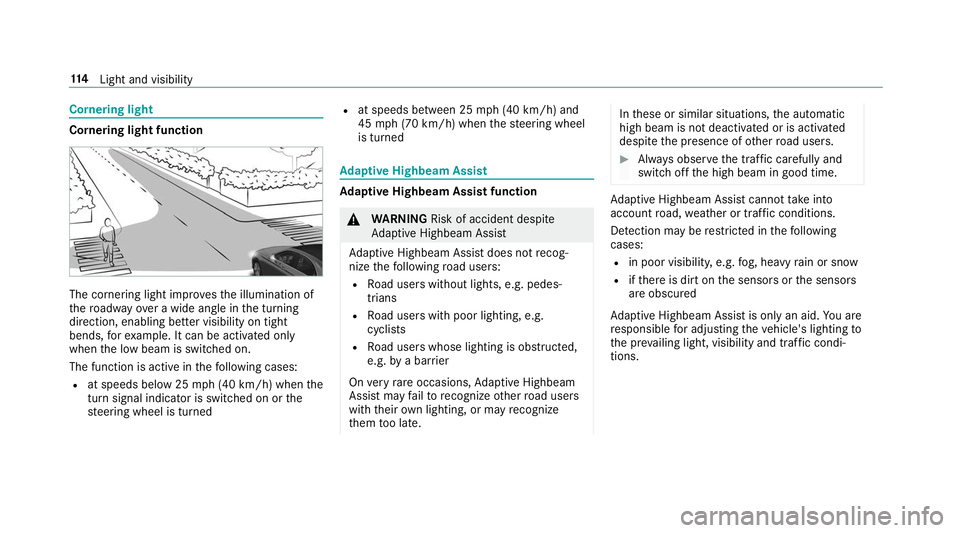

Cornering light
Cornering light function
The cornering light impr
ovesth e illumination of
th ero adw ayove r a wide angle in the turning
direction, enabling better visibility on tight
bends, forex ample. It can be activated on ly
when the low beam is switched on.
The function is active in thefo llowing cases:
R at speeds below 25 mph (4 0 km/h) when the
turn signal indica tor is switched on or the
st eering wheel is turned R
at speeds between 25 mph (4 0 km/h) and
45 mph (70 km/h) when thesteering wheel
is turned Ad
aptive Highbeam Assist Ad
aptive Highbeam Assist function &
WARNING Risk of accident despi te
Ad aptive Highbeam Assist
Ad aptive Highbeam Assist does not recog‐
nize thefo llowing road users:
R Road users without lights, e.g. pedes‐
trians
R Road users with poor lighting, e.g.
cyclists
R Road users whose lighting is obstructed,
e.g. bya bar rier
On very rare occasions, Adaptive Highbeam
Assist may failto recognize other road users
with their own lighting, or may recognize
th em too late. In
these or similar situations, the automatic
high beam is not deactivated or is activated
despite the presence of other road users. #
Alw ays obser vethe tra ffic carefully and
switch off the high beam in good time. Ad
aptive Highbeam Assist cannot take into
account road, weather or traf fic conditions.
De tection may be restricted in thefo llowing
cases:
R in poor visibilit y,e.g. fog, heavy rain or snow
R ifth ere is dirt on the sensors or the sensors
are obscured
Ad aptive Highbeam Assist is on lyan aid. You are
re sponsible for adju sting theve hicle's lighting to
th e pr evailing light, visibility and traf fic condi‐
tions. 11 4
Light and visibility

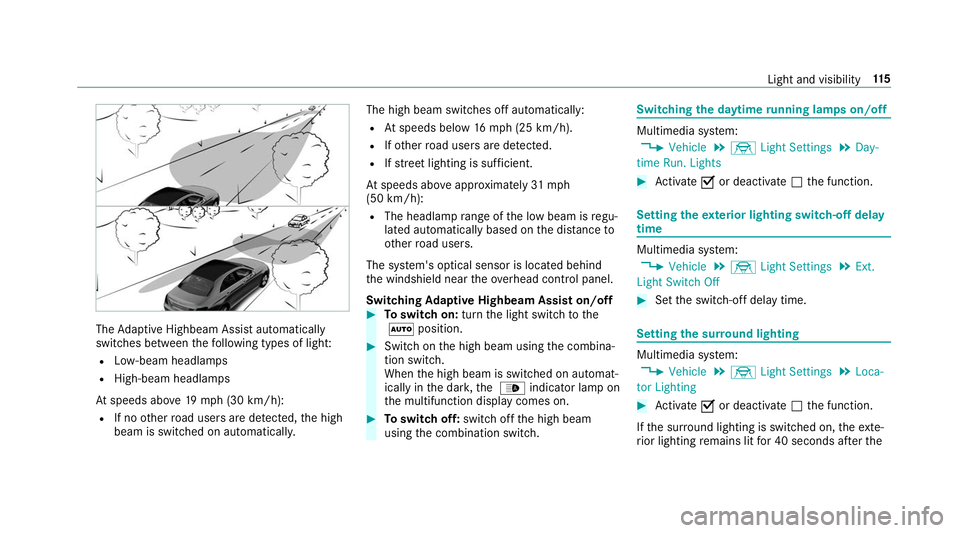

The
Adaptive Highbeam Assist automatically
swit ches between thefo llowing types of light:
R Low-beam headlamps
R High-beam headlamps
At speeds abo ve19 mp h (3 0 km/h):
R If no other road users are de tected, the high
beam is switched on automaticall y.The high beam switches off automatically:
R Atspeeds below 16mp h (25 km/h).
R Ifot her road users are de tected.
R Ifstre et lighting is suf ficient.
At speeds abo veappr oximately 31mph
(50 km/h):
R The headlamp range of the low beam is regu‐
lated automatically based on the dis tance to
ot her road users.
The sy stem's optical sensor is located behind
th e windshield near theov erhead control panel.
Switching Adaptive Highbeam Assist on/off #
Toswitch on: turnthe light switch tothe
0058 position. #
Switch on the high beam using the combina‐
tion switch.
When the high beam is switched on automat‐
ically in the dar k,the 00CE indicator lamp on
th e multifunction display comes on. #
Toswitch off: switch offthe high beam
using the combination switch. Switching
the daytime running lamps on/off Multimedia sy
stem:
, Vehicle .
÷ Light Settings .
Day-
time Run. Lights #
Activate 0073or deacti vate 0053 the function. Setting
theex terior lighting switch-off delay
time Multimedia sy
stem:
, Vehicle .
÷ Light Settings .
Ext.
Light Switch Off #
Set the switch-off delay time. Setting
the sur round lighting Multimedia sy
stem:
, Vehicle .
÷ Light Settings .
Loca-
tor Lighting #
Activate 0073or deacti vate 0053 the function.
If th e sur round lighting is swit ched on, theex te‐
ri or lighting remains lit for 40 seconds af terthe Light and visibility
11 5

ve
hicle is unloc ked. When youstart theve hicle,
th e sur round lighting is deactivated and the

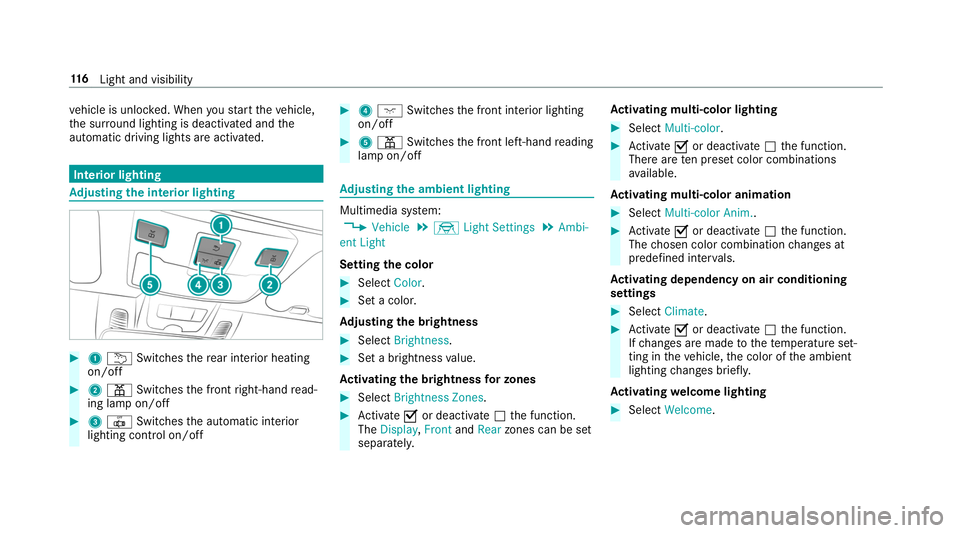

automatic driving lights are activated. Interior lighting
Ad
justing the in terior lighting #
1 0042 Switches there ar interior heating
on/off #
2 003D Switches the front right-hand read‐
ing lamp on/off #
3 0033 Switches the automatic interior
lighting control on/off #
4 004A Switches the front interior lighting
on/off #
5 003D Switches the front left-hand reading
lamp on/off Ad
justing the ambient lighting Multimedia sy
stem:
, Vehicle .
÷ Light Settings .
Ambi-
ent Light
Setting the color #
Select Color. #
Set a colo r.
Ad justing the brightness #
Select Brightness . #
Set a brightness value.
Ac tivating the brightness for zones #
Select Brightness Zones . #
Activate 0073or deacti vate 0053 the function.
The Display ,Front andRear zones can be set
separately. Ac
tivating multi-color lighting #
Select Multi-color. #
Activate 0073or deacti vate 0053 the function.
There are ten preset color combinations
av ailable.
Ac tivating multi-color animation #
Select Multi-color Anim. . #
Activate 0073or deacti vate 0053 the function.
The chosen color combination changes at
predefined inter vals.
Ac tivating dependency on air conditioning
settings #
Select Climate. #
Activate 0073or deacti vate 0053 the function.
If ch anges are made tothete mp erature set‐
ting in theve hicle, the color of the ambient
lighting changes brief ly.
Ac tivating welcome lighting #
Select Welcome. 11 6
Light and visibility

#

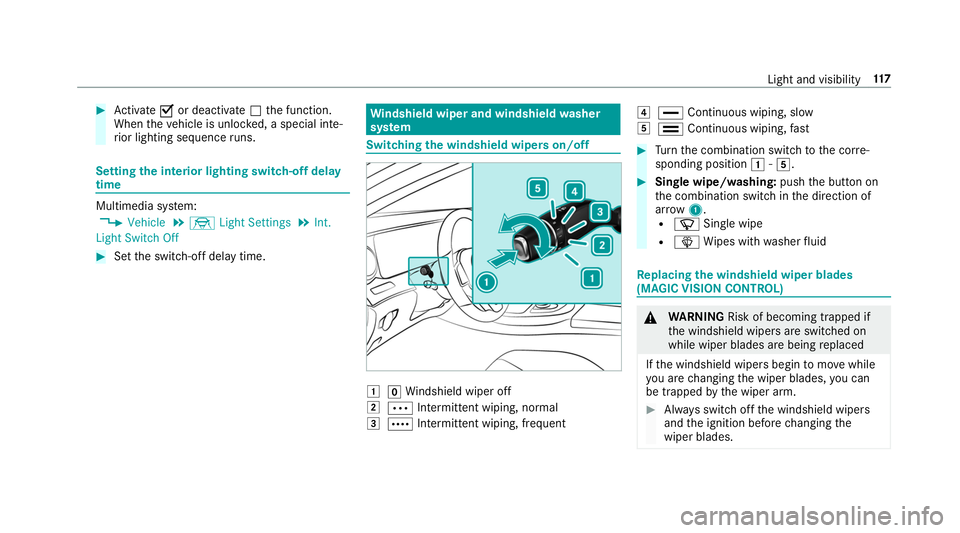

Activate 0073or deacti vate 0053 the function.
When theve hicle is unloc ked, a special inte‐
ri or lighting sequence runs. Setting the in
terior lighting switch-off delay
time Multimedia sy
stem:
, Vehicle .
÷ Light Settings .
Int.
Light Switch Off #
Set the switch-off delay time. Wi
ndshield wiper and windshield washer
sy stem Switching
the windshield wipers on/off 0047
005AWindshield wiper off
0048 0062 Intermittent wiping, normal
0049 0063 Intermittent wiping, frequent 004A
00AA Continuous wiping, sl ow
004B 00A9 Continuous wiping, fast #
Turn the combination switch tothe cor re‐
sponding position 0047-004B. #
Single wipe/washing: pushthe button on
th e combination switch in the direction of
ar row 1.
R 00D3 Single wipe
R 00D4 Wipes with washer fluid Re
placing the windshield wiper blades
(MAGIC VISION CONTROL) &
WARNING Risk of becoming trapped if
th e windshield wipers are switched on
while wiper blades are being replaced
If th e windshield wipers begin tomo vewhile
yo u are changing the wiper blades, you can
be trapped bythe wiper arm. #
Alw ays switch off the windshield wipers
and the ignition before changing the
wiper blades. Light and visibility
117

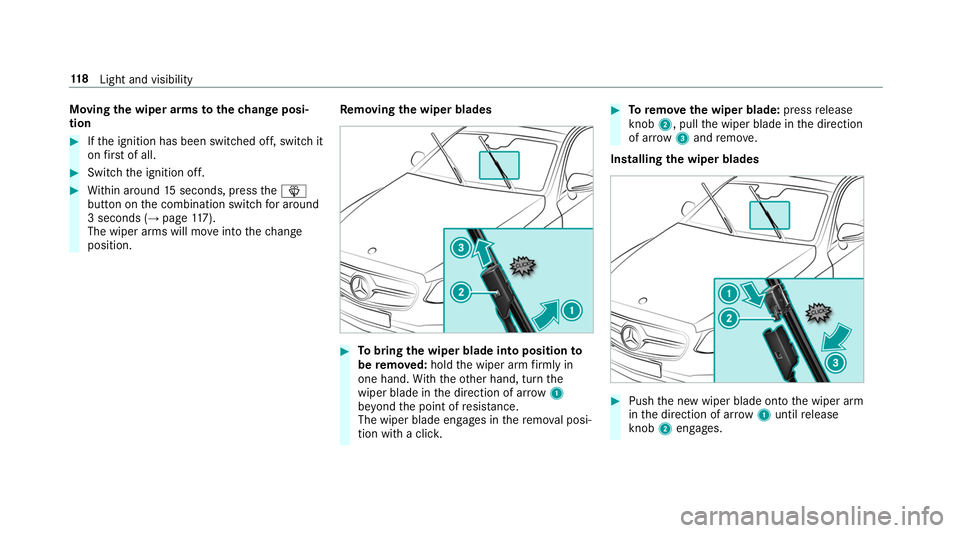

Moving
the wiper arms tothech ange posi‐
tion #
Ifth e ignition has been switched off, switch it
on firs t of all. #
Switch the ignition off. #
Within around 15seconds, press the00D4
button on the combination switch for around
3 seconds (→ page117).
The wiper arms will mo veinto thech ange
position. Re
moving the wiper blades #
Tobring the wiper blade into position to
be remo ved: hold the wiper arm firm ly in
one hand. With th eot her hand, turn the
wiper blade in the direction of ar row1
be yond the point of resis tance.
The wiper blade engages in there mo val posi‐
tion with a clic k. #
Toremo vethe wiper blade: pressrelease
knob 2, pull the wiper blade in the direction
of ar row3and remo ve.
Installing the wiper blades #
Push the new wiper blade onto the wiper arm
in the direction of ar row1until release
knob 2engages. 11 8
Light and visibility
