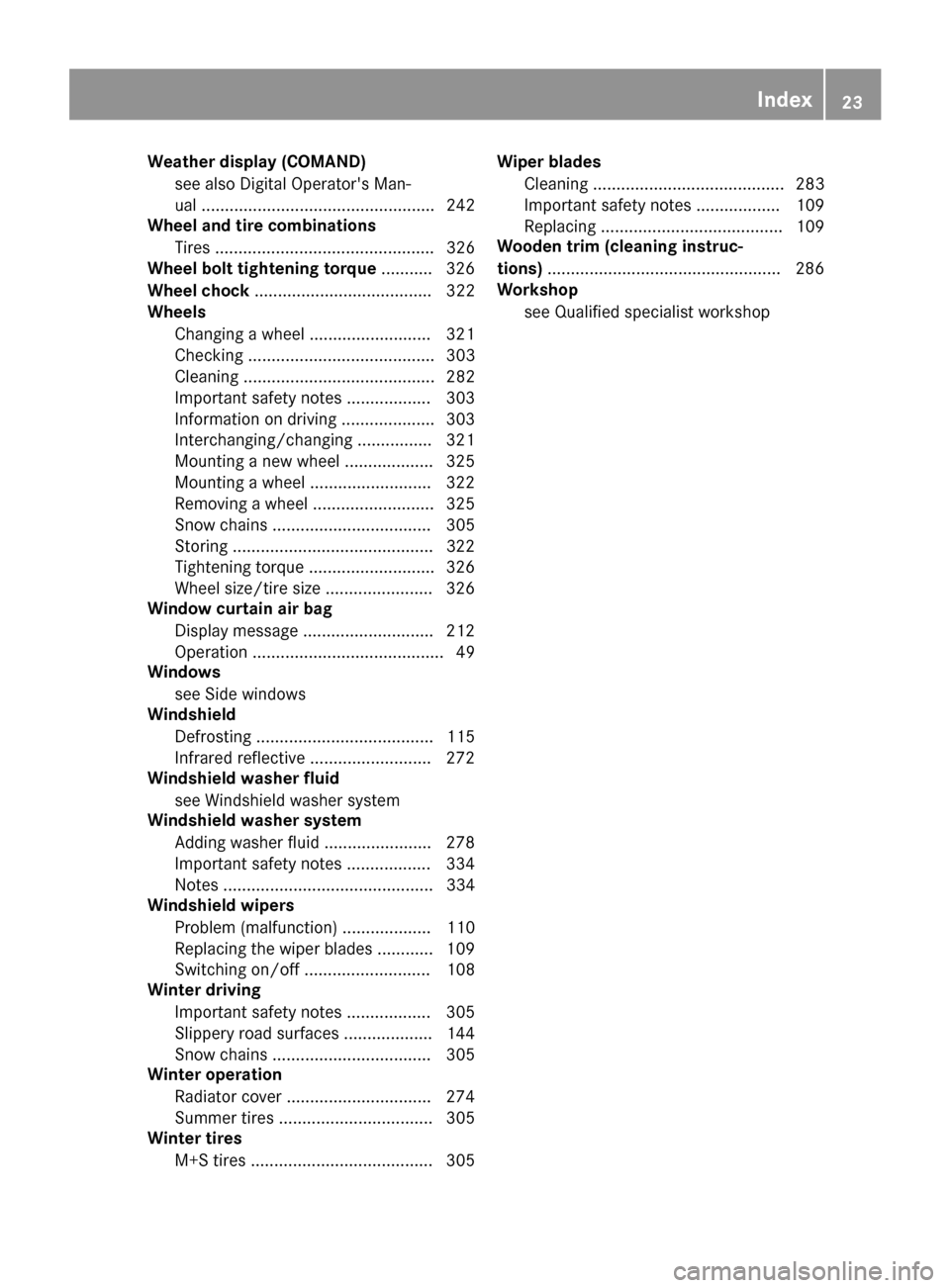

Page 25 of 338
Weather display (COMAND)see also Digital Operator's Man-
ual .................................................. 242
Wheel and tire combinations
Tires ............................................... 326
Wheel bolt tightening torque ........... 326
Wheel chock ...................................... 322
Wheels
Changing a wheel .......................... 321
Checking ........................................ 303
Cleaning ......................................... 282
Important safety notes .................. 303
Information on driving .................... 303
Interchanging/changing ................ 321
Mounting a new wheel ...................3 25
Mounting a wheel .......................... 322
Removing a wheel .......................... 325
Snow chains .................................. 305
Storing ...........................................3 22
Tightening torque ........................... 326
Wheel size/tire size ....................... 326
Window curtain air bag
Display message ............................ 212
Operation ......................................... 49
Windows
see Side windows
Windshield
Defrosting ...................................... 115
Infrared reflective .......................... 272
Windshield washer fluid
see Windshield washer system
Windshield washer system
Adding washer fluid ....................... 278
Important safety notes .................. 334
Notes ............................................. 334
Windshield wipers
Problem (malfunction) ................... 110
Replacing the wiper blades ............ 109
Switching on/off ........................... 108
Winter driving
Important safety notes .................. 305
Slippery road surfaces ................... 144
Snow chains .................................. 305
Winter operation
Radiator cover ............................... 274
Summer tires ................................. 305
Winter tires
M+S tires ....................................... 305 Wiper blades
Cleaning ......................................... 283
Important safety notes .................. 109
R
eplacing ....................................... 109
Wooden trim (cleaning instruc-
tions) ..................................................2 86
Workshop
see Qualified specialist workshop
Index23

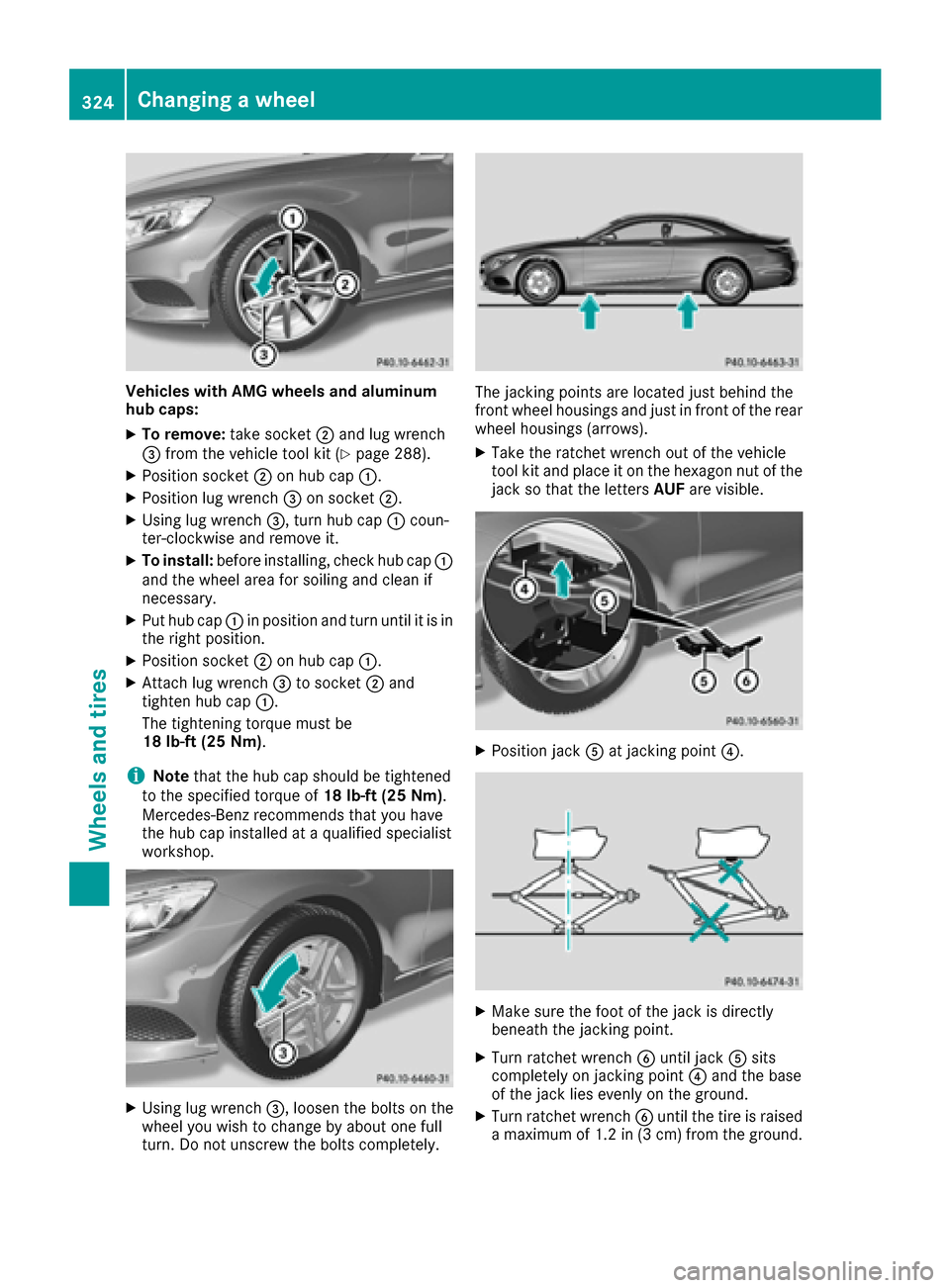

Page 326 of 338
Vehicles with AMG wheels and aluminum
hub caps:
XTo remove:take socket0044and lug wrench
0087 from the vehicle tool kit (Ypage 288).
XPosition socket 0044on hub cap 0043.
XPosition lug wrench 0087on socket 0044.
XUsing lug wrench 0087, turn hub cap0043coun-
ter-clockwise and remove it.
XTo install: before installing, check hub cap 0043
and the wheel area for soiling and clean if
necessary.
XPut hub cap 0043in position and turn until it is in
the right position.
XPosition socket 0044on hub cap 0043.
XAttach lug wrench 0087to socket 0044and
tighten hub cap 0043.
The tightening torque must be
18 lb-ft (25 Nm) .
iNotethat the hub cap should be tightened
to the specified torque of 18 lb-ft (25 Nm).
Mercedes-Benz recommends that you have
the hub cap installed at a qualified specialist
workshop.
XUsing lug wrench 0087, loosen the bolts on the
wheel you wish to change by about one full
turn. Do not unscrew the bolts completely.
The jacking points are located just behind the
front wheel housings and just in front of the rear
wheel housings (arrows).
XTake the ratchet wrench out of the vehicle
tool kit and place it on the hexagon nut of the
jack so that the letters AUFare visible.
XPosition jack 0083at jacking point 0085.
XMake sure the foot of the jack is directly
beneath the jacking point.
XTurn ratchet wrench 0084until jack 0083sits
completely on jacking point 0085and the base
of the jack lies evenly on the ground.
XTurn ratchet wrench 0084until the tire is raised
a maximum of 1.2 in (3 cm) from the ground.
324Changing a wheel
Wheels and tires

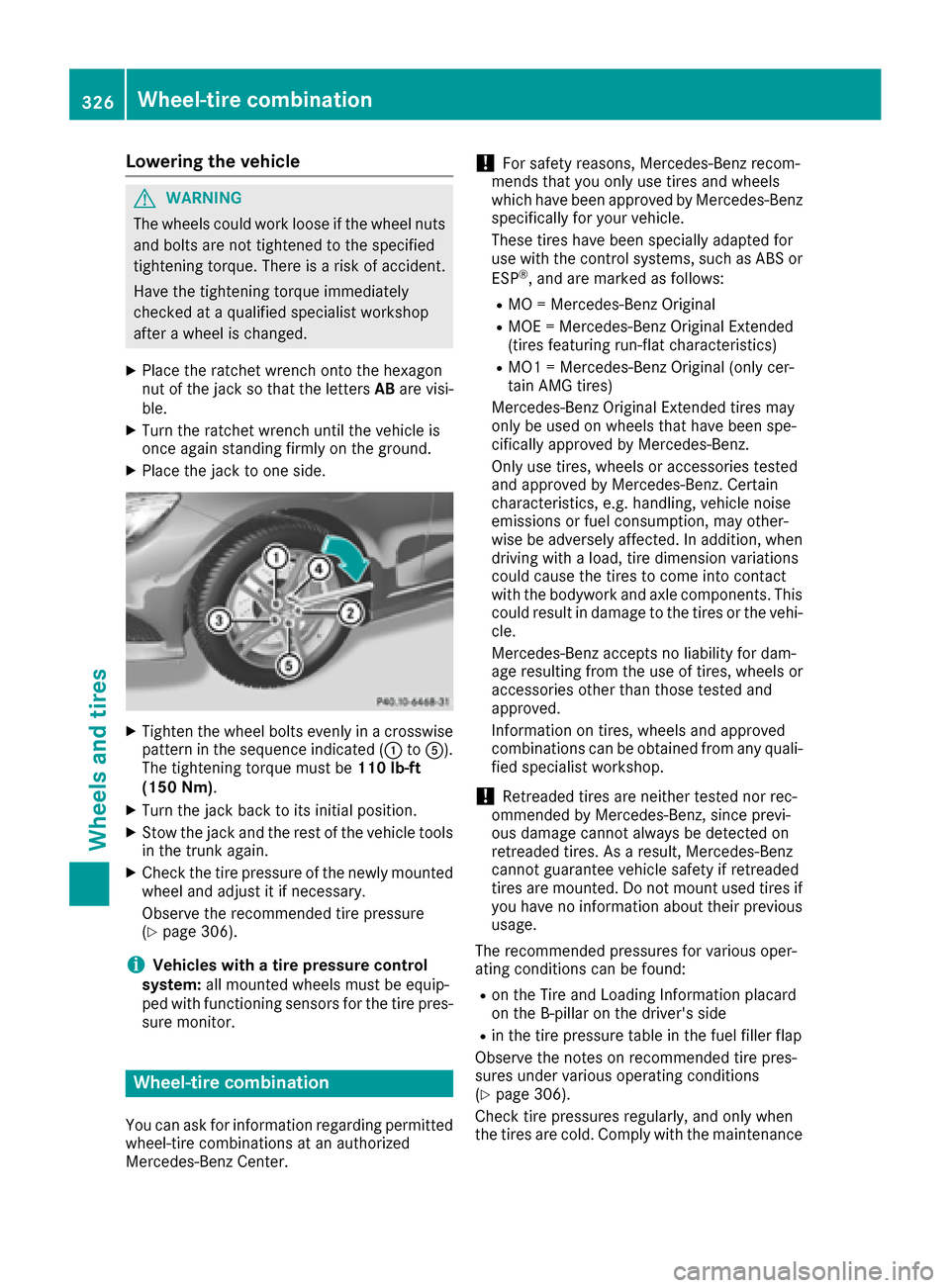

Page 328 of 338
Lowering the vehicle
GWARNING
The wheels could work loose if the wheel nuts and bolts are not tightened to the specified
tightening torque. There is a risk of accident.
Have the tightening torque immediately
checked at a qualified specialist workshop
after a wheel is changed.
XPlace the ratchet wrench onto the hexagon
nut of the jack so that the letters ABare visi-
ble.
XTurn the ratchet wrench until the vehicle is
once again standing firmly on the ground.
XPlace the jack to one side.
XTighten the wheel bolts evenly in a crosswise pattern in the sequence indicated (0043 to0083).
The tightening torque must be 110 lb-ft
(150 Nm) .
XTurn the jack back to its initial position.
XStow the jack and the rest of the vehicle tools
in the trunk again.
XCheck the tire pressure of the newly mounted
wheel and adjust it if necessary.
Observe the recommended tire pressure
(
Ypage 306).
iVehicles with a tire pressure control
system: all mounted wheels must be equip-
ped with functioning sensors for the tire pres-
sure monitor.
Wheel-tire combination
You can ask for information regarding permitted wheel-tire combinations at an authorized
Mercedes-Benz Center.
!For safety reasons, Mercedes-Benz recom-
mends that you only use tires and wheels
which have been approved by Mercedes-Benz
specifically for your vehicle.
These tires have been specially adapted for
use with the control systems, such as ABS or
ESP
®, and are marked as follows:
RMO = Mercedes-Benz Original
RMOE = Mercedes-Benz Original Extended
(tires featuring run-flat characteristics)
RMO1 = Mercedes-Benz Original (only cer-
tain AMG tires)
Mercedes-Benz Original Extended tires may
only be used on wheels that have been spe-
cifically approved by Mercedes-Benz.
Only use tires, wheels or accessories tested
and approved by Mercedes-Benz. Certain
characteristics, e.g. handling, vehicle noise
emissions or fuel consumption, may other-
wise be adversely affected. In addition, when
driving with a load, tire dimension variations
could cause the tires to come into contact
with the bodywork and axle components. This
could result in damage to the tires or the vehi- cle.
Mercedes-Benz accepts no liability for dam-
age resulting from the use of tires, wheels or
accessories other than those tested and
approved.
Information on tires, wheels and approved
combinations can be obtained from any quali-
fied specialist workshop.
!Retreaded tires are neither tested nor rec-
ommen
ded by Mercedes-Benz, since previ-
ous damage cannot always be detected on
retreaded tires. As a result, Mercedes-Benz
cannot guarantee vehicle safety if retreaded
tires are mounted. Do not mount used tires if
you have no information about their previous
usage.
The recommended pressures for various oper-
ating conditions can be found:
Ron the Tire and Loading Information placard
on the B-pillar on the driver's side
Rin the tire pressure table in the fuel filler flap
Observe the notes on recommended tire pres-
sures under various operating conditions
(
Ypage 306).
Check tire pressures regularly, and only when
the tires are cold. Comply with the maintenance
326Wheel-tire combination
Wheels and tires
