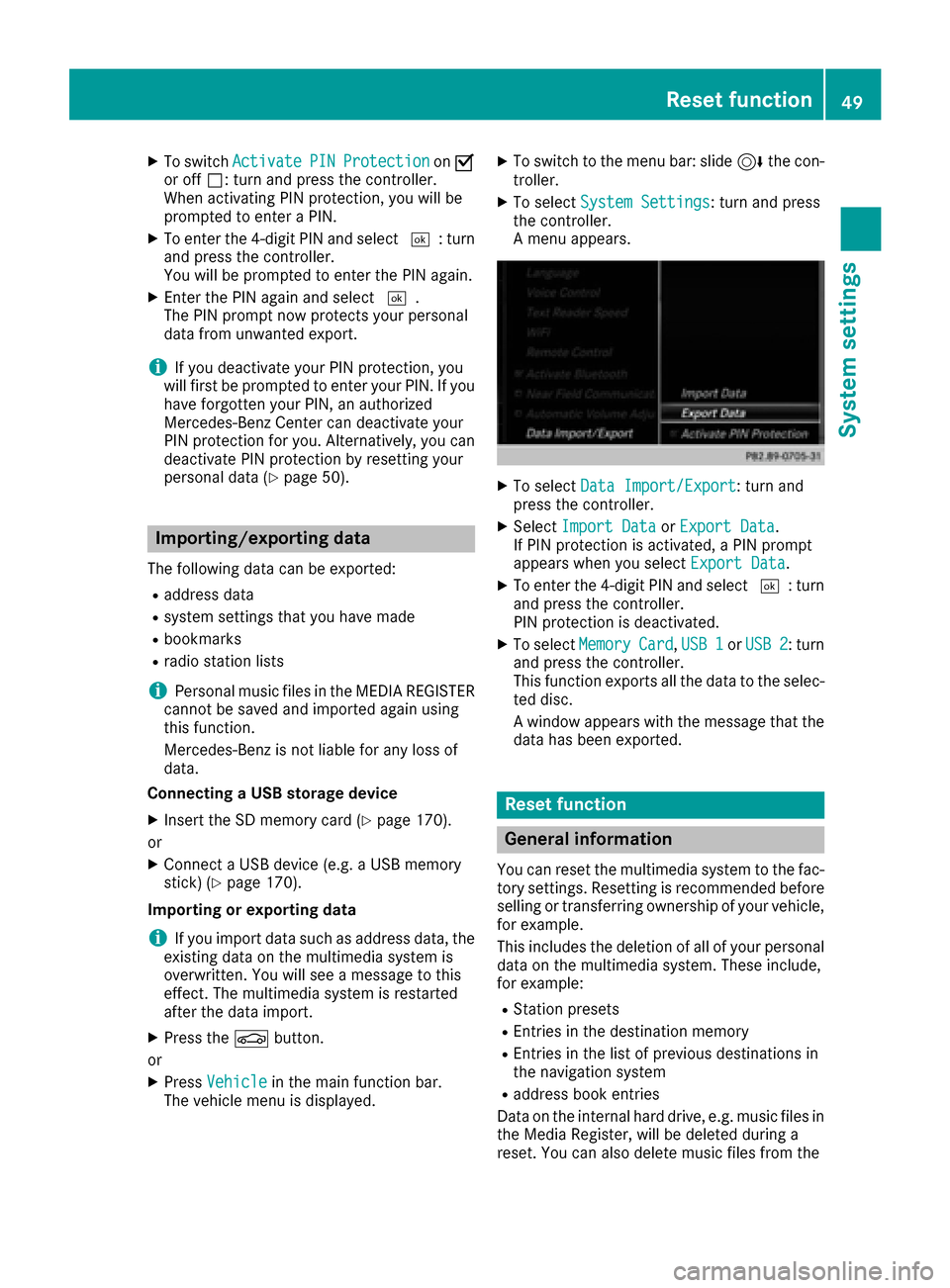

Page 51 of 230
XTo switchActivatePINProtectiononO
or off ª: turn and press the controller.
When activating PIN protection, you will be
prompted to enter a PIN.
XTo enter the 4-digit PIN and select ¬: turn
and press the controller.
You will be prompted to enter the PIN again.
XEnter the PIN again and select ¬.
The PIN prompt now protects your personal
data from unwanted export.
iIf you deactivate your PIN protection, you
will first be prompted to enter your PIN. If you
have forgotten your PIN, an authorized
Mercedes-Benz Center can deactivate your
PIN protection for you. Alternatively, you can
deactivate PIN protection by resetting your
personal data (
Ypage 50).
Importing/exporting data
The following data can be exported:
Raddress data
Rsystem settings that you have made
Rbookmarks
Rradio station lists
iPersonal music files in the MEDIA REGISTER
cannot be saved and imported again using
this function.
Mercedes-Benz is not liable for any loss of
data.
Connecting a USB storage device
XInsert the SD memory card (Ypage 170).
or
XConnect a USB device (e.g. a USB memory
stick) (Ypage 170).
Importing or exporting data
iIf you import data such as address data, the
existing data on the multimedia system is
overwritten. You will see a message to this
effect. The multimedia system is restarted
after the data import.
XPress the Øbutton.
or
XPress Vehiclein the main function bar.
The vehicle menu is displayed.
XTo switch to the menu bar: slide 6the con-
troller.
XTo select System Settings: turn and press
the controller.
A menu appears.
XTo select Data Import/Export: turn and
press the controller.
XSelect Import DataorExport Data.
If PIN protection is activated, a PIN prompt
appears when you select Export Data
.
XTo enter the 4-digit PIN and select ¬: turn
and press the controller.
PIN protection is deactivated.
XTo select MemoryCard,USB 1or USB 2: turn
and press the controller.
This function exports all the data to the selec-
ted disc.
A window appears with the message that the
data has been exported.
Reset function
General information
You can reset the multimedia system to the fac-
tory settings. Resetting is recommended before selling or transferring ownership of your vehicle,
for example.
This includes the deletion of all of your personal
data on the multimedia system. These include,
for example:
RStation presets
REntries in the destination memory
REntries in the list of previous destinations in
the navigation system
Raddress book entries
Data on the internal hard drive, e.g. music files in
the Media Register, will be deleted during a
reset. You can also delete music files from the
Reset function49
System settings
Z

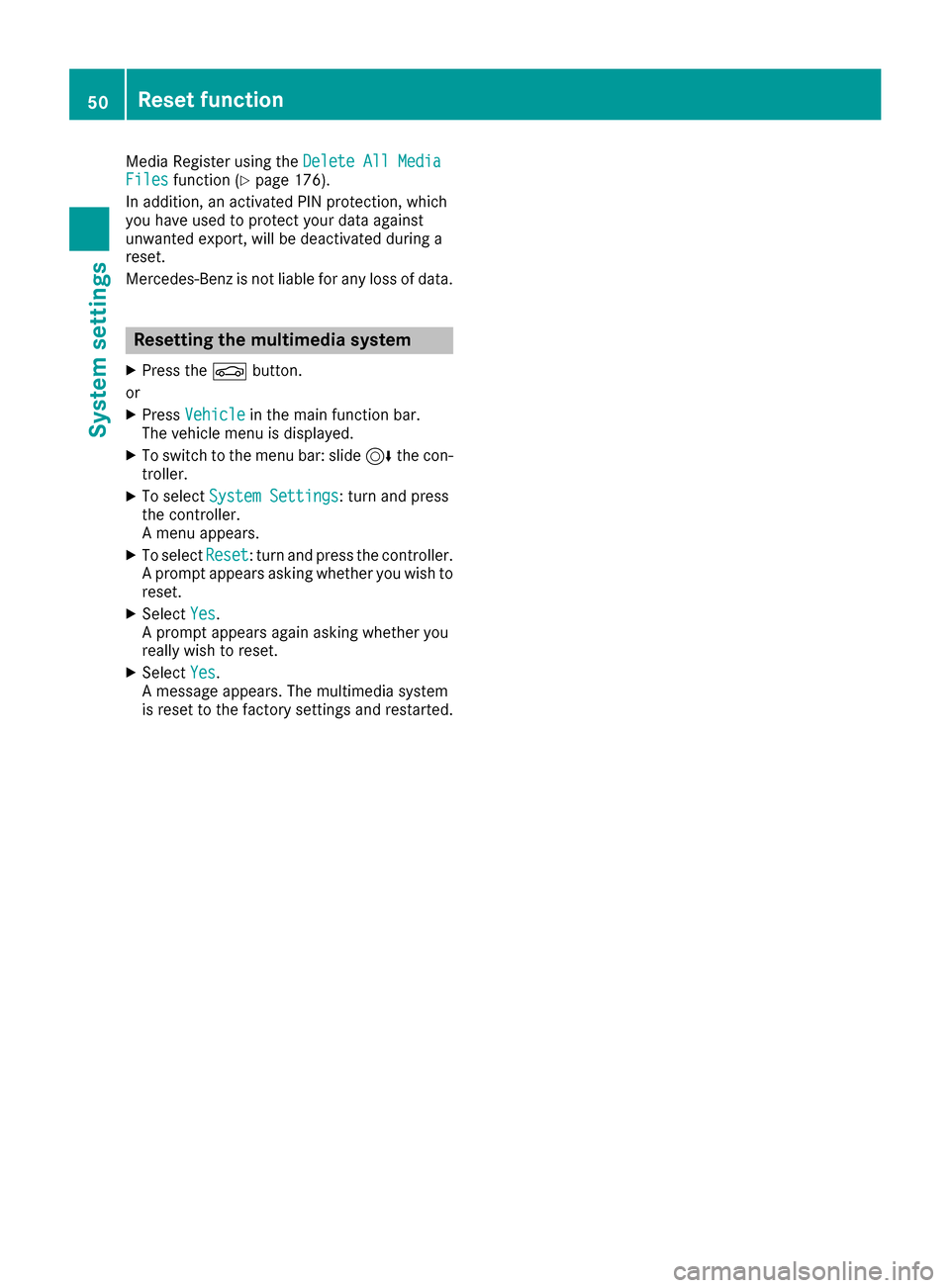

Page 52 of 230
Media Register using theDelete All MediaFilesfunction (Ypage 176).
In addition, an activated PIN protection, which
you have used to protect your data against
unwanted export, will be deactivated during a
reset.
Mercedes-Benz is not liable for any loss of data.
Resetting the multimedia system
XPress the Øbutton.
or
XPress Vehiclein the main function bar.
The vehicle menu is displayed.
XTo switch to the menu bar: slide 6the con-
troller.
XTo select System Settings: turn and press
the controller.
A menu appears.
XTo select Reset: turn and press the controller.
A prompt appears asking whether you wish to
reset.
XSelect Yes.
A prompt appears again asking whether you
really wish to reset.
XSelect Yes.
A message appears. The multimedia system
is reset to the factory settings and restarted.
50Reset function
System settings

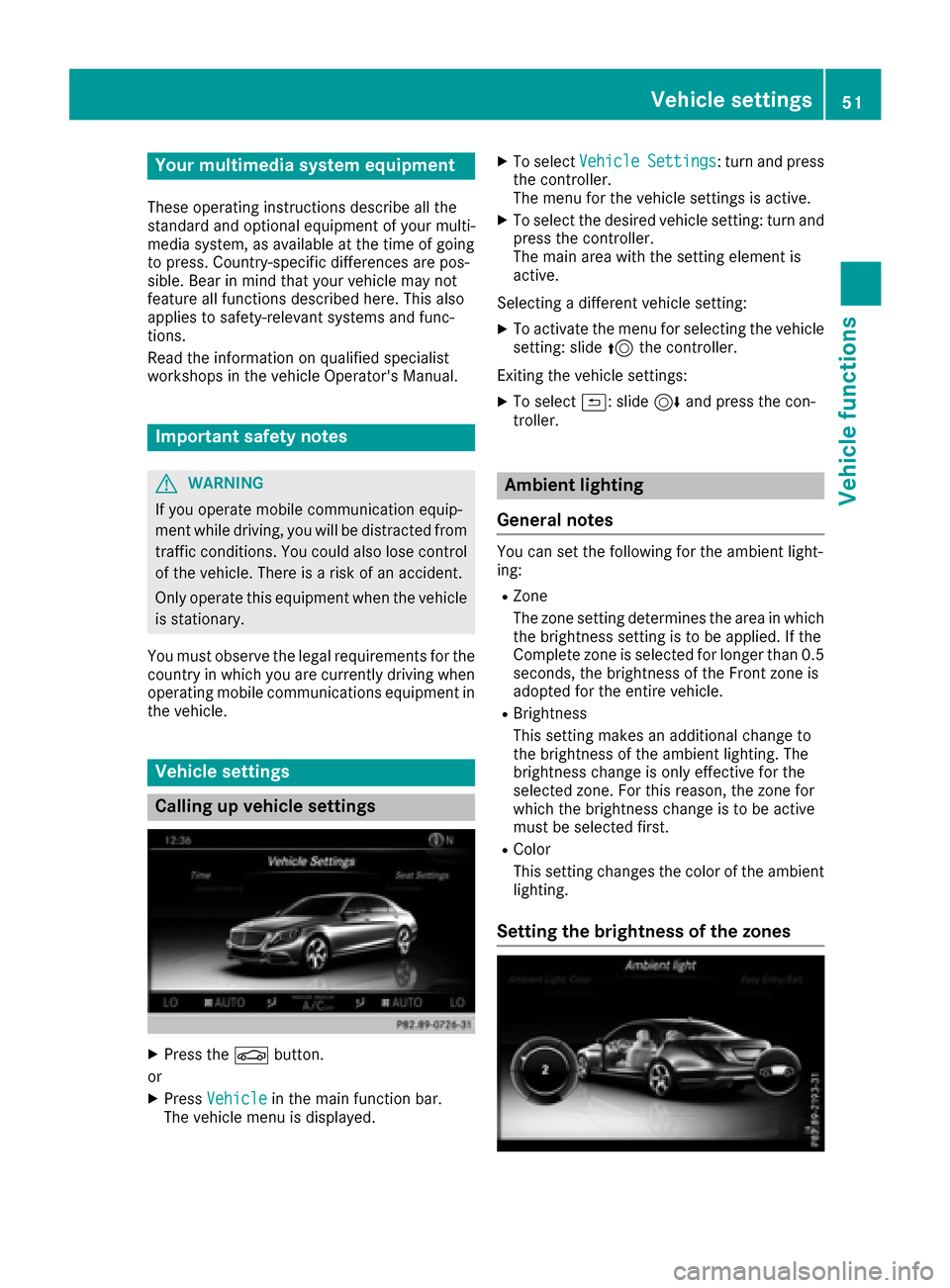

Page 53 of 230
Your multimediasystem equipment
These operating instructions describe all the
standard and optional equipment of your multi-
media system, as available at the time of going
to press. Country-specifi cdifferences are pos-
sible. Bear in mind that your vehicle may not
feature all functions described here. This also
applies to safety-relevant systems andfunc-
tions.
Read the information on qualified specialist
workshop s in the vehicle Operator's Manual.
Important safety notes
GWARNING
If you operate mobile communication equip-
ment while driving, you will be distracted from traffic conditions. You could also lose control
of the vehicle. There is a risk of an accident.
Only operate this equipment when the vehicle
is stationary.
You must observe the legal requirements for the
country in which you are currently driving when
operating mobile communications equipment in
th e vehicle.
Vehicle settings
Calling up vehicle settings
XPress the Øbutton.
or
XPress Vehicl ein the main function bar.
The vehicle menu is displayed.
XTo select VehicleSettings:turn an dpress
th econtroller.
The menu forth e vehicle settings is active.
XTo select the desired vehicle setting: turn and
press th econtroller.
The main area with the setting element is
active.
Selecting a different vehicle setting:
XTo activate the menu forselecting th e vehicle
setting : slide5thecontroller.
Exiting the vehicle settings:
XTo select &: slide 6andpress th econ-
troller.
Ambient lighting
General notes
You can set the following forth e ambient light-
ing:
RZone
The zone setting determines the area in which
th e brightness setting is to be applied. If the
Complete zone is selected forlonger than 0. 5
seconds, th ebrightness of th eFron tzone is
adopted forth e entire vehicle.
RBrightness
This setting makes an additional change to
thebrightness of th e ambient lighting. The
brightness change is only effective for the
selected zone.Fo rthis reason ,th ezone fo r
which thebrightness change is to be active
must be selected first.
RColor
This setting changes th ecolor of th e ambient
lighting.
Setting the brightness of the zones
Vehicle settings51
Vehicle functions
Z

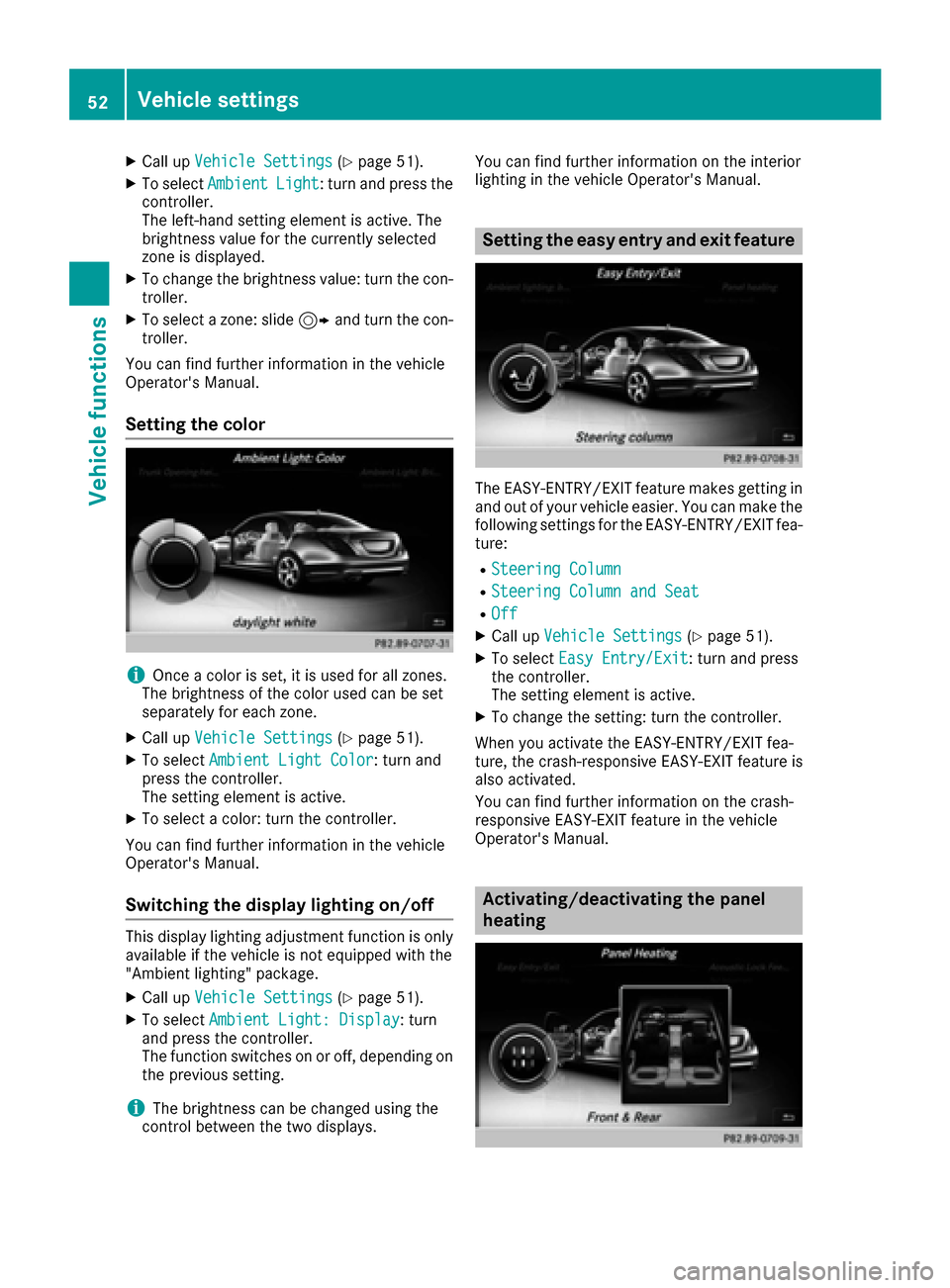

Page 54 of 230
XCall upVehicle Settings(Ypage 51).
XTo select AmbientLight: turn and press the
controller.
The left-hand setting element is active. The
brightness value for the currently selected
zone is displayed.
XTo change the brightness value: turn the con-
troller.
XTo select a zone: slide 9and turn the con-
troller.
You can find further information in the vehicle
Operator's Manual.
Setting the color
iOnce a color is set, it is used for all zones.
The brightness of the color used can be set
separately for each zone.
XCall upVehicle Settings(Ypage 51).
XTo select Ambient Light Color: turn and
press the controller.
The setting element is active.
XTo select a color: turn the controller.
You can find further information in the vehicle
Operator's Manual.
Switching the display lighting on/off
This display lighting adjustment function is only
available if the vehicle isnotequipped with the
"Ambient lighting" package.
XCall up Vehicle Settings(Ypage 51).
XTo select Ambient Light: Display: turn
and press the controller.
The function switches on or off, depending on
the previous setting.
iThe brightness can be changed using the
control between the two displays. You can find further information on the interior
lighting in the vehicle Operator's Manual.
Setting the easy entry and exit feature
The EASY-ENTRY/EX
ITfeature makes getting in
and out of your vehicle easier. You can make the
following settings for the EASY-ENTRY/EXIT fea-
ture:
RSteering Column
RSteering Column and Seat
ROff
XCall up Vehicle Settings(Ypage 51).
XTo select Easy Entry/Exit: turn and press
the controller.
The setting element is active.
XTo change the setting: turn the controller.
When you activate the EASY-ENTRY/EX ITfea-
ture, the crash-responsive EASY-EXIT feature is
also activated.
You can find further information on the crash-
responsive EASY-EX ITfeature in the vehicle
Operator's Manual.
Activating/deactivating the panel
heating
52Vehicle settings
Vehicle functions
Page 55 of 230
The panel heating function warms the surfaces
with which the vehicle occupants frequently
come into contact. Activation of the panel heat-
ing via the multimedia system as described
below only works if seat heating is activated (see
the vehicle Operator's Manual).
XCall upVehicle Settings(Ypage 51).
XTo select PanelHeating: turn and press the
controller.
XTo change the setting: turn the controller.
Activating/deactivating the acoustic
locking verification signal
You can also set an audible signal to confirm
that the vehicle has been locked.
XCall up Vehicle Settings(Ypage 51).
XTo select Acoustic Lock Feedback: turn
and press the controller.
The function switches on or off, depending on
the previous setting.
You can find further information on the locking
feature in the vehicle Operator's Manual.
Switching the seat belt adjustment
on/off
The seat-belt adjustment function adjusts the
driver's and front-passenger seat belt to the
upper body of the occupants.
XCall up Vehicle Settings(Ypage 51).
XTo select Belt Adjustment: turn and press
the controller.
The function switches on or off, depending on
the previous setting.
You can find further information in the vehicle
Operator's Manual.
Switching the automatic mirror fold-
ing function on/off
When the Automatic Mirror Foldingfunc-
tion is activated, the outside mirrors fold in auto-
matically as soon as you lock the vehicle from
the outside. The outside mirrors fold out auto-
matically again as soon as you unlock the vehi-
cle.
XCall up Vehicle Settings(Ypage 51).
XTo select Automatic Mirror Folding: turn
and press the controller.
The function switches on or off, depending on
the previous setting.
You can find further information in the vehicle
Operator's Manual.
Switching locator lighting on/off
If you switch on the Locator Lightingfunc-
tion, the exterior lighting is switched on for a
short time when it is dark. The light switch must
be set to Ã.
The exterior lighting remains on for 40 seconds
after the vehicle is unlocked. When you start the
engine, the locator lighting is switched off and
the automatic driving lights are activated.
Vehicle settings53
Vehicle functions
Z
Page 56 of 230
You can find further information on the auto-
matic headlamp mode in the vehicle Operator's
Manual.
Switching locator lighting on/off
XCall upVehicle Settings(Ypage 51).
XTo select LocatorLighting: turn and press
the controller.
The function switches on or off, depending on
the previous setting.
You can find further information in the vehicle
Operator's Manual.
Activating/deactivating the auto-
matic door locking mechanism
When the automatic locking feature is switched
on, the vehicle is locked automatically when the
ignition is switched on and the vehicle is travel-
ing faster than walking pace.
XCall up Vehicle Settings(Ypage 51).
XTo select Automatic Locking: turn and
press the controller.
The function switches on or off, depending on
the previous setting.
You can find further information in the vehicle
Operator's Manual.
Setting the switch-off delay time
Interior lighting switch-off delay time
The interior lighting is activated for the duration
of the switch-off delay time when the SmartKey
is removed from the ignition lock.
XCall up Vehicle Settings(Ypage 51).
XTo select Interior Lighting DelayedSwitch-off: turn and press the controller.
The setting element is active.
XTo change the switch-off delay time: turn the
controller.
You can find further information in the vehicle
Operator's Manual.
Exterior lighting switch-off delay time
If you switch on the Exterior LightingDelayed Switch-offfunction, the exterior
lighting is switched on for a short time after the
engine is switched off. The light switch must be
set to Ã.
The duration of the exterior lighting delayed
switch-off time can be adjusted individually. The
exterior lighting remains on for the maximum
duration of 60 seconds after the engine is
switched off. If you close all the doors and the
tailgate, the exterior lighting switches off after
the set time.
54Vehicle settings
Vehicle functions
Page 57 of 230
XCall upVehicle Settings(Ypage 51).
XTo select Exterior Lighting DelayedSwitch-off: turn and press the controller.
The setting element is active.
XTo change the switch-off delay time: turn the
controller.
Arming/disarming the tow-away
alarm
An audible and visual alarm is triggered if your
vehicle's angle of inclination is altered while the
tow-away alarm is armed. This can occur if the
vehicle is jacked up on one side, for example.
XCall up Vehicle Settings(Ypage 51).
XTo select Tow-away Alarm: turn and press
the controller.
The function switches on or off, depending on
the previous setting.
Activating/deactivating the interior
motion sensor
When the interior motion sensor is activated, a
visual and audible alarm is triggered if move-
ment is detected in the vehicle interior. This can
occur if someone reaches into the vehicle inte-
rior without authorization, for example.
XCall up Vehicle Settings(Ypage 51).
XTo select Interior Motion Sensor: turn
and press the controller.
The function switches on or off, depending on
the previous setting.
Activating/deactivating the trunk lid
opening height restriction
Activating the Trunk Opening-heightRestrictionfunction allows you to avoid
bumping the trunk lid on a low garage ceiling, for
example.
XCall up Vehicle Settings(Ypage 51).
XTo select Trunk Opening-heightRestriction: turn and press the controller.
The function switches on or off, depending on
the previous setting.
Voice amplification
Overview
The voice amplification function supports com-
munication between the driver and front
passenger with passengers in the rear compart-
ment. The signals picked up by the microphone
in the rear view mirror are amplified and played
back over the speakers in the rear compart-
ment, depending upon vehicle noise levels.
An automatic adjustment matching occurs
based on speaker volume and ambient noise.
The optimum distance of the speaker from the
rear view mirror is approximately 50 cm. When
the system is active, the feeling of space and the
naturalness of speech playback should be main-
tained as far as is possible; speech intelligibility should be improved when there is an increase in
background noise.
Vehicle settings55
Vehicle functions
Z
Page 58 of 230
If the volume of a background media source
exceeds a threshold, the speech amplification is
stopped. The threshold is designed for relaxed
conversation with background music. If the
threshold value is not exceeded, the voice
amplification is continued with a slight time
delay.
Voice amplification is paused during active tele-
phone calls or when using the Voice Control
System. A message will appear in the display.
You can assign these functions to the favorites
button (
Ypage 46).
Requirements
RYour vehicle is equipped with the Burmester®
surround sound system or the Burmester®
high-end 3D surround sound system.
RThe ignition is switched on.
RDoors, side windows and the panorama roof
with power tilt/sliding panel are closed.
iIf these conditions are not met, a corre-
sponding message will appear in the display.
Closing the side windows (see the vehicle Oper-
ator's Manual).
Closing the panorama roof with power tilt/slid-
ing panel (see the vehicle Operator's Manual).
Activating/deactivating voice amplifi-
cation
XCall up Vehicle Settings(Ypage 51).
XTo select Voice Amplification: turn and
press the controller.
The function switches on or off, depending on
the previous setting.
Seats
Overview
Using the Tbutton next to the controller or
the seat settings menu item in the vehicle menu,
you can call up the following adjustment func-
tions:
RBackrest side bolsters
RLumbar
RShoulder area
RMassage
RDynamics
RSeat heating balance
iYou also can save and recall the current set-
tings of a seat function using the memory
button and the corresponding memory posi-
tion switch. You can find further information
on the memory function in the vehicle Oper-
ator's Manual.
Selecting the adjustment function
and seat
XPress the Tbutton.
The seat settings menu is shown.
or
XTo select Vehiclefrom the main function bar:
turn and press the controller.
XTo select Seat Settingsin the menu: turn
and press the controller.
The menu for selecting seat functions is acti-
vated.
XTo select the required seat function: turn and
press the controller.
XTo switch between DriverandFrontPassenger: slide 1 the controller.
56Seats
Vehicle functions
Page 59 of 230

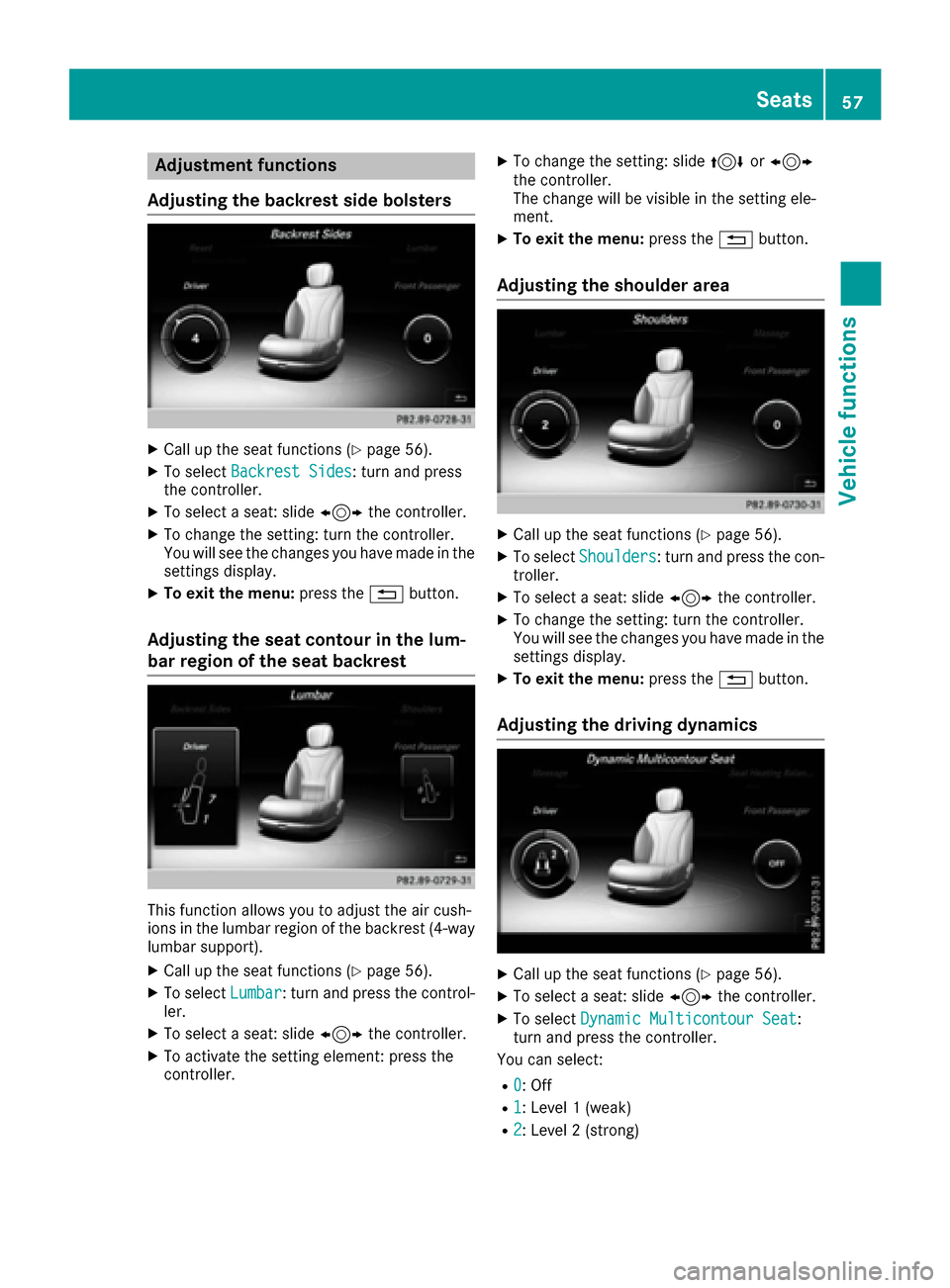

Adjustment functions
Adjusting the backrest side bolsters
XCall up the seat function s(Ypage 56).
XTo selectBackrest Sides: turnand press
th econtroller.
XTo select a seat: slide 1thecontroller.
XTo change thesetting : turnthecontroller.
You will see the changes you have made in the setting s display.
XTo exit th emenu: press th e% button.
Adjusting the seat contour in the lum-
bar region of the seat backrest
This function allows you to adjust the air cush-
ions in the lumbar region of the backrest (4-way
lumbar support).
XCall up the seat function s(Ypage 56).
XTo selectLumbar: turnand press th econtrol -
ler.
XTo select a seat: slide 1thecontroller.
XTo activate the setting element: press the
controller.
XTo change thesetting : slide4or1
th econtroller.
The change will be visible in the setting ele-
ment.
XTo exit th emenu: press th e% button.
Adjusting the shoulder area
XCall up the seat function s(Ypage 56).
XTo selectShoulders: turnand press th econ-
troller.
XTo select a seat: slide 1thecontroller.
XTo change thesetting : turnthecontroller.
You will see the changes you have made in the
setting s display.
XTo exit th emenu: press th e% button.
Adjusting the driving dynamics
XCall up the seat function s(Ypage 56).
XTo select a seat: slide1thecontroller.
XTo select DynamicMulticontour Sea t:
turn and press th econtroller.
You can select:
R0: Of f
R1: Level 1 (weak)
R2: Level 2 (strong)
Seats57
Vehicle functions
Z
Page 60 of 230

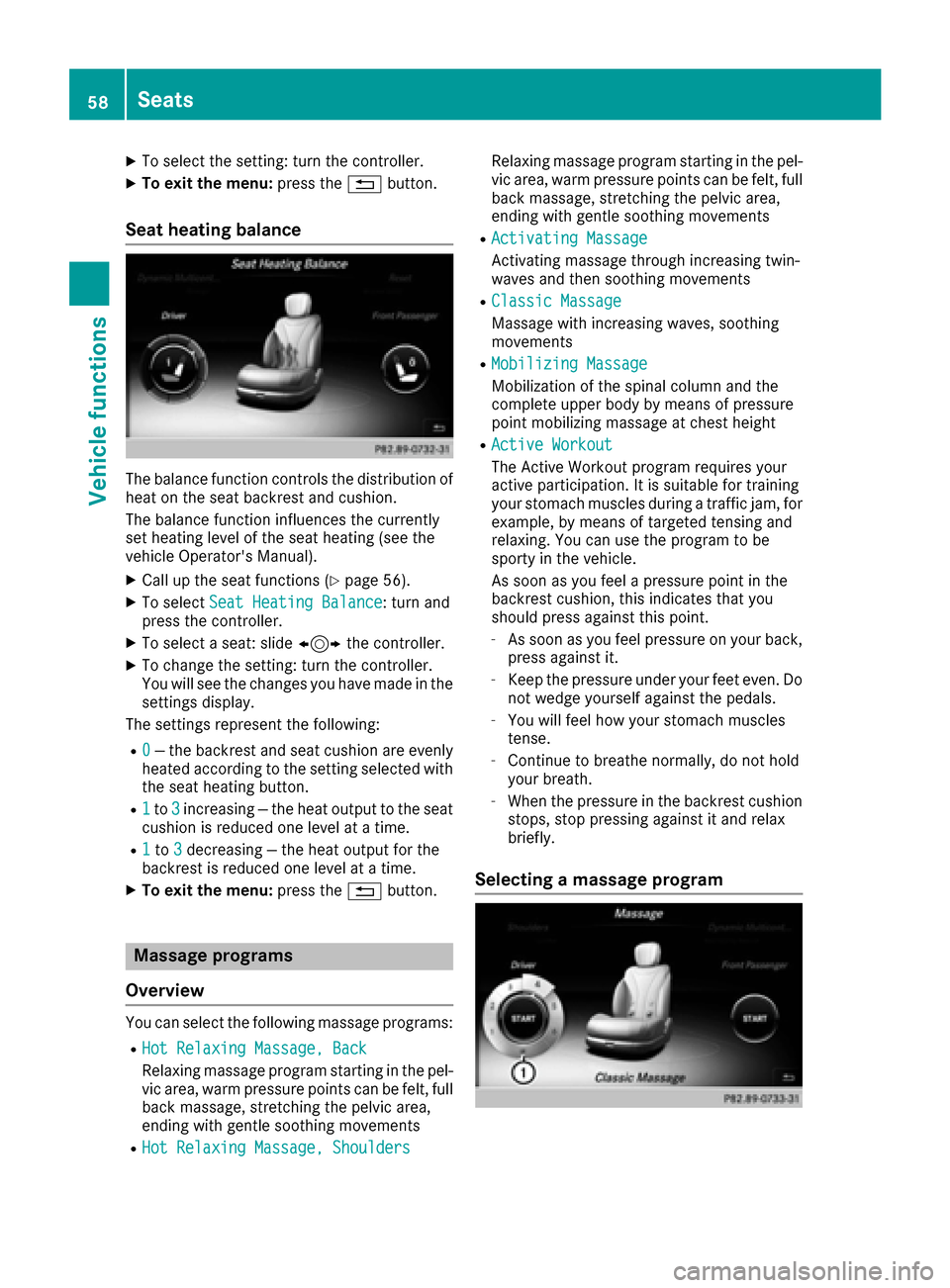

XTo select the setting: turn the controller.
XTo exit the menu:press the%button.
Seat heating balance
The balance function controls the distribution of
heat on the seat backrest and cushion.
The balance function influences the currently
set heating level of the seat heating (see the
vehicle Operator's Manual).
XCall up the seat functions (Ypage 56).
XTo select Seat Heating Balance: turn and
press the controller.
XTo select a seat: slide 1the controller.
XTo change the setting: turn the controller.
You will see the changes you have made in the
settings display.
The settings represent the following:
R0— the backrest and seat cushion are evenly
heated according to the setting selected with
the seat heating button.
R1to 3increasing — the heat output to the seat
cushion is reduced one level at a time.
R1to 3decreasing — the heat output for the
backrest is reduced one level at a time.
XTo exit the menu: press the%button.
Massage programs
Overview
You can select the following massage programs:
RHot Relaxing Massage, Back
Relaxing massage program starting in the pel-
vic area, warm pressure points can be felt, full
back massage, stretching the pelvic area,
ending with gentle soothing movements
RHot Relaxing Massage, Shoulders
Relaxing massage program starting in the pel-
vic area, warm pressure points can be felt, full
back massage, stretching the pelvic area,
ending with gentle soothing movements
RActivating Massage
Activating massage through increasing twin-
waves and then soothing movements
RClassic Massage
Massage with increasing waves, soothing
movements
RMobilizing Massage
Mobilization of the spinal column and the
complete upper body by means of pressure
point mobilizing massage at chest height
RActive Workout
The Active Workout program requires your
active participation. It is suitable for training
your stomach muscles during a traffic jam, for
example, by means of targeted tensing and
relaxing. You can use the program to be
sporty in the vehicle.
As soon as you feel a pressure point in the
backrest cushion, this indicates that you
should press against this point.
-As soon as you feel pressure on your back,
press against it.
-Keep the pressure under your feet even. Do
not wedge yourself against the pedals.
-You will feel how your stomach muscles
tense.
-Continue to breathe normally, do not hold
your breath.
-When the pressure in the backrest cushion
stops, stop pressing against it and relax
briefly.
Selecting a massage program
58Seats
Vehicle functions
