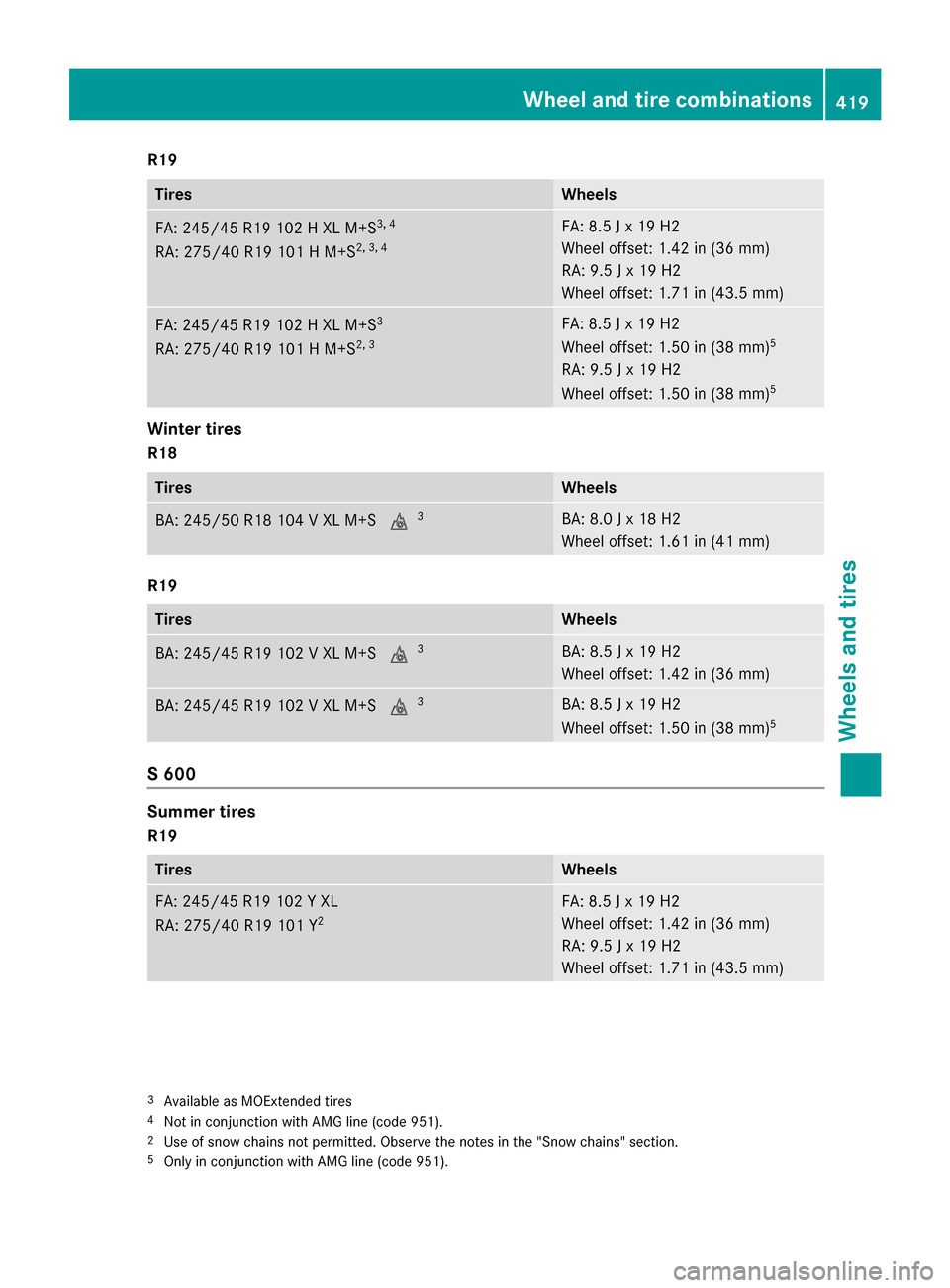

MERCEDES-BENZ S-Class SEDAN 2016 W222 Owner's Manual

R19
TiresWheels
FA: 245/45 R19 102 H XL M+S3, 4
RA: 275/40 R19 101 H M+S2, 3, 4
FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/45 R19 102 H XL M+S3
RA: 275/40 R19 101 H M+S2, 3
FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)5
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)5
Winter tires
R18
TiresWheels
BA: 245/50 R18 104 V XL M+Si3BA: 8.0 J x 18 H2
Wheel offset: 1.61 in (41 mm)
R19
TiresWheels
BA: 245/45 R19 102 V XL M+Si3BA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
BA: 245/45 R19 102 V XL M+Si3BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)5
S 600
Summer tires
R19
TiresWheels
FA: 245/45 R19 102 Y XL
RA: 275/40 R19 101 Y2FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
3Available as MOExtended tires4Not in conjunction with AMG line (code 951).2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.5Only in conjunction with AMG line (code 951).
Wheel and tire combinations419
Wheels and tires
Z

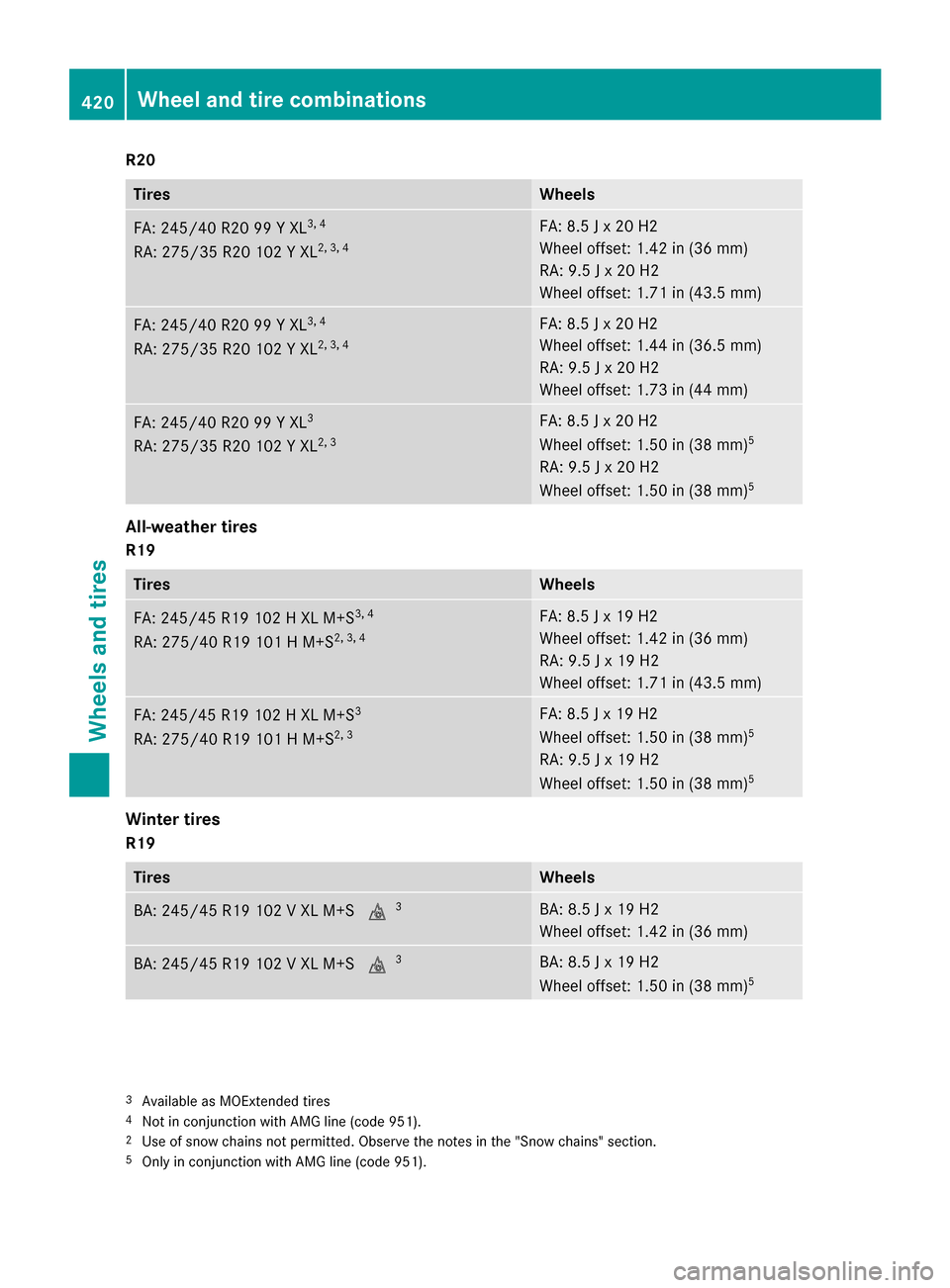

R20
TiresWheels
FA: 245/40 R20 99 Y XL3, 4
RA: 275/35 R20 102 Y XL2, 3, 4
FA: 8.5 J x 20 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/40 R20 99 Y XL3, 4
RA: 275/35 R20 102 Y XL2, 3, 4
FA: 8.5 J x 20 H2
Wheel offset: 1.44 in (36.5 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.73 in (44 mm)
FA: 245/40 R20 99 Y XL3
RA: 275/35 R20 102 Y XL2, 3
FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)5
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)5
All-weather tires
R19
TiresWheels
FA: 245/45 R19 102 H XL M+S3, 4
RA: 275/40 R19 101 H M+S2, 3, 4
FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/45 R19 102 H XL M+S3
RA: 275/40 R19 101 H M+S2, 3
FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)5
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)5
Winter tires
R19
TiresWheels
BA: 245/45 R19 102 V XL M+Si3BA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
BA: 245/45 R19 102 V XL M+Si3BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)5
3Available as MOExtended tires4Not in conjunction with AMG line (code 951).2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.5Only in conjunction with AMG line (code 951).
420Wheel and tire combinations
Wheels and tires

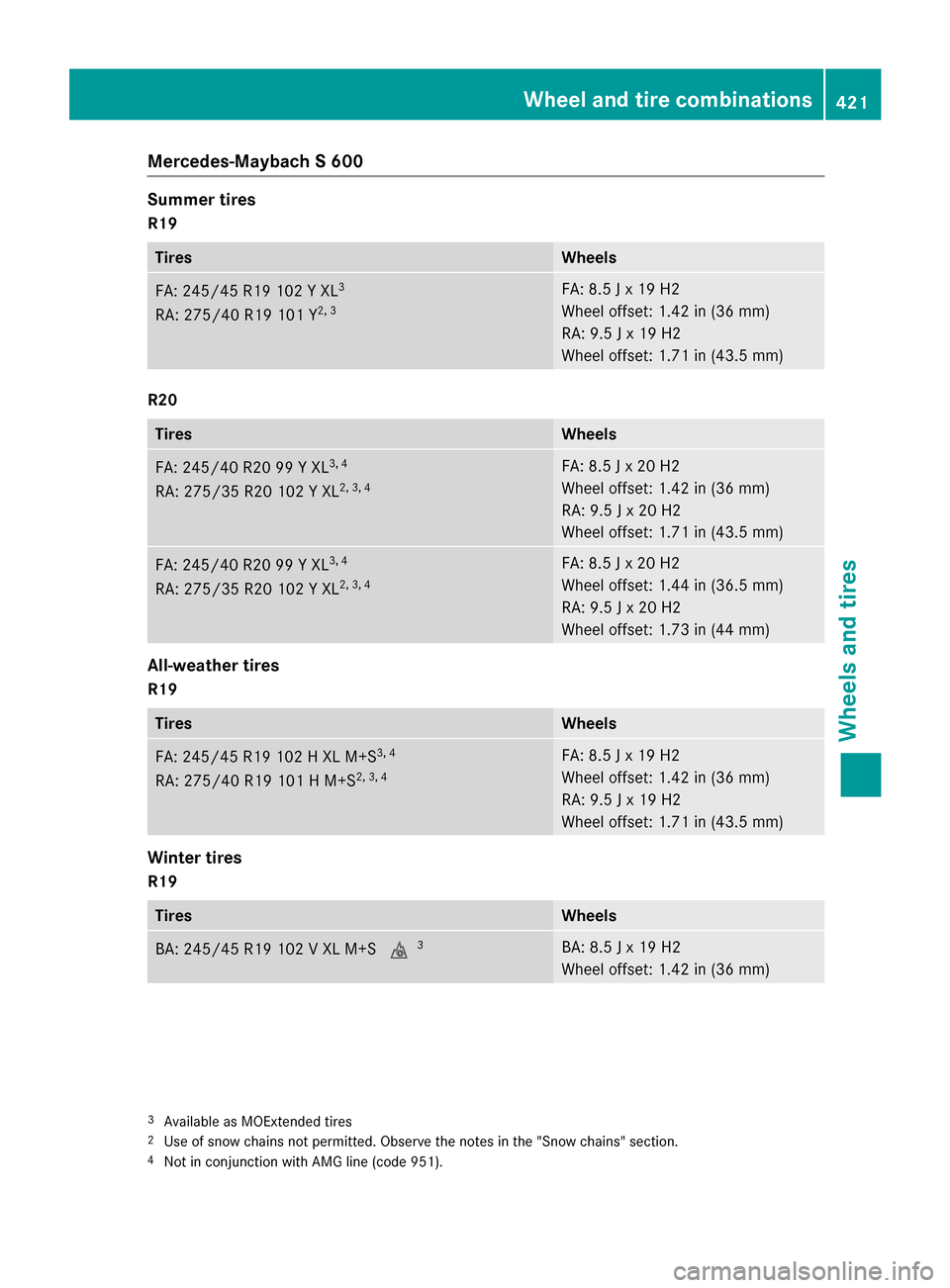

Mercedes-Maybach S 600
Summer tires
R19
TiresWheels
FA: 245/45 R19 102 Y XL3
RA: 275/40 R19 101 Y2, 3
FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
R20
TiresWheels
FA: 245/40 R20 99 Y XL3, 4
RA: 275/35 R20 102 Y XL2, 3, 4
FA: 8.5 J x 20 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.71 in (43.5 mm)
FA: 245/40 R20 99 Y XL3, 4
RA: 275/35 R20 102 Y XL2, 3, 4
FA: 8.5 J x 20 H2
Wheel offset: 1.44 in (36.5 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.73 in (44 mm)
All-weather tires
R19
TiresWheels
FA: 245/45 R19 102 H XL M+S3, 4
RA: 275/40 R19 101 H M+S2, 3, 4
FA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.71 in (43.5 mm)
Winter tires
R19
TiresWheels
BA: 245/45 R19 102 V XL M+Si3BA: 8.5 J x 19 H2
Wheel offset: 1.42 in (36 mm)
3Available as MOExtended tires2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.4Not in conjunction with AMG line (code 951).
Wheel and tire combinations421
Wheels and tires
Z

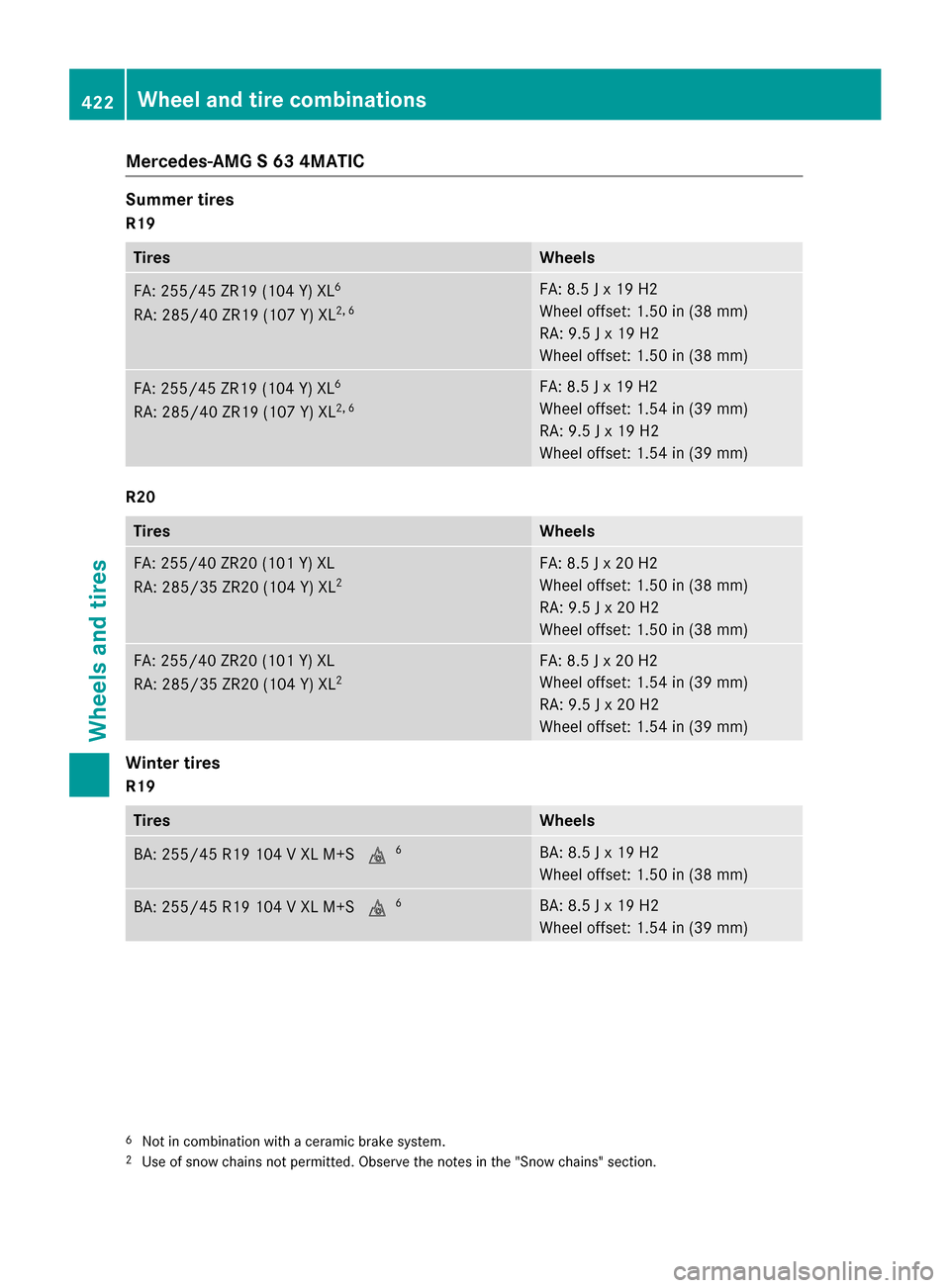

Mercedes‑AMG S 63 4MATIC
Summer tires
R19
TiresWheels
FA: 255/45 ZR19 (104 Y) XL6
RA: 285/40 ZR19 (107 Y) XL2, 6
FA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/45 ZR19 (104 Y) XL6
RA: 285/40 ZR19 (107 Y) XL2, 6
FA: 8.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
R20
TiresWheels
FA: 255/40 ZR20 (101 Y) XL
RA: 285/35 ZR20 (104 Y) XL2FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 ZR20 (101 Y) XL
RA: 285/35 ZR20 (104 Y) XL2FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
Winter tires
R19
TiresWheels
BA: 255/45 R19 104 V XL M+Si6BA: 8.5 J x 19 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/45 R19 104 V XL M+Si6BA: 8.5 J x 19 H2
Wheel offset: 1.54 in (39 mm)
6Not in combination with a ceramic brake system.2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
422Wheel and tire combinations
Wheels and tires

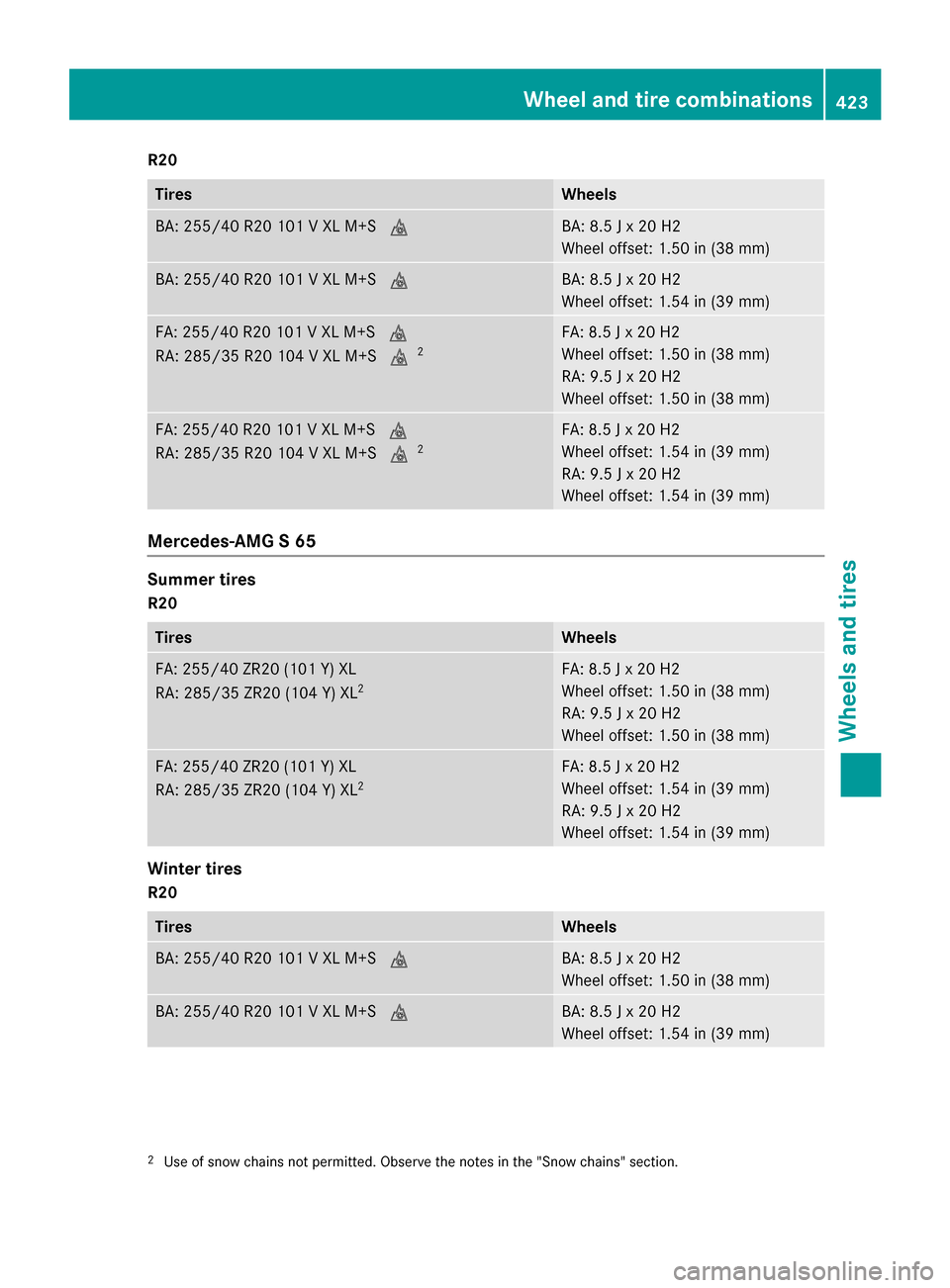

R20
TiresWheels
BA: 255/40 R20 101 V XL M+SiBA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/40 R20 101 V XL M+SiBA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
FA: 255/40 R20 101 V XL M+Si
RA: 285/35 R20 104 V XL M+S i2FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 R20 101 V XL M+Si
RA: 285/35 R20 104 V XL M+S i2FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
Mercedes‑AMG S 65
Summer tires
R20
TiresWheels
FA: 255/40 ZR20 (101 Y) XL
RA: 285/35 ZR20 (104 Y) XL2FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 ZR20 (101 Y) XL
RA: 285/35 ZR20 (104 Y) XL2FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
Winter tires
R20
TiresWheels
BA: 255/40 R20 101 V XL M+SiBA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
BA: 255/40 R20 101 V XL M+SiBA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
Wheel and tire combinations423
Wheels and tires
Z

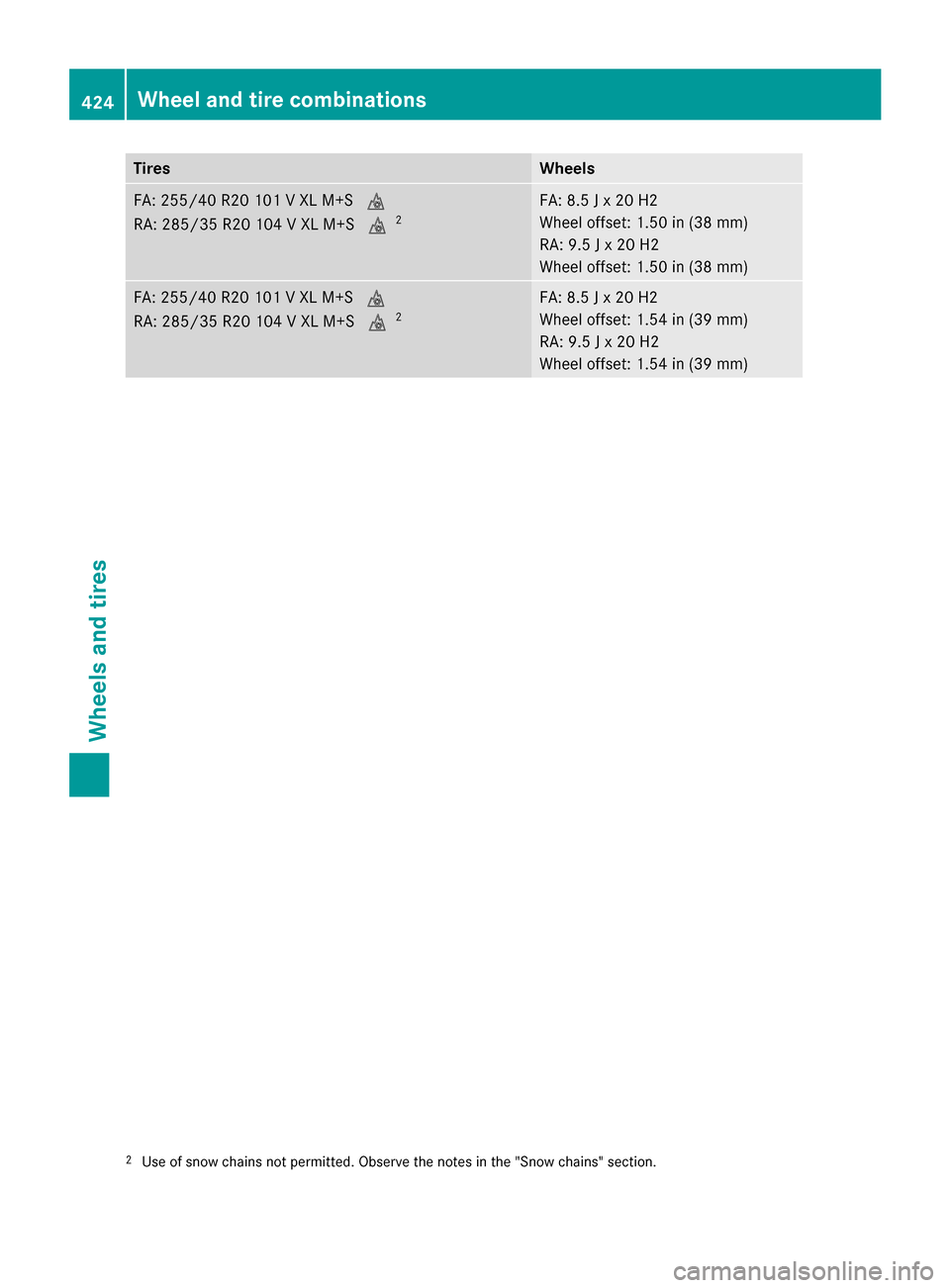

TiresWheels
FA: 255/40 R20 101 V XL M+Si
RA: 285/35 R20 104 V XL M+S i2FA: 8.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.50 in (38 mm)
FA: 255/40 R20 101 V XL M+Si
RA: 285/35 R20 104 V XL M+S i2FA: 8.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
RA: 9.5 J x 20 H2
Wheel offset: 1.54 in (39 mm)
2Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
424Wheel and tire combinations
Wheels and tires

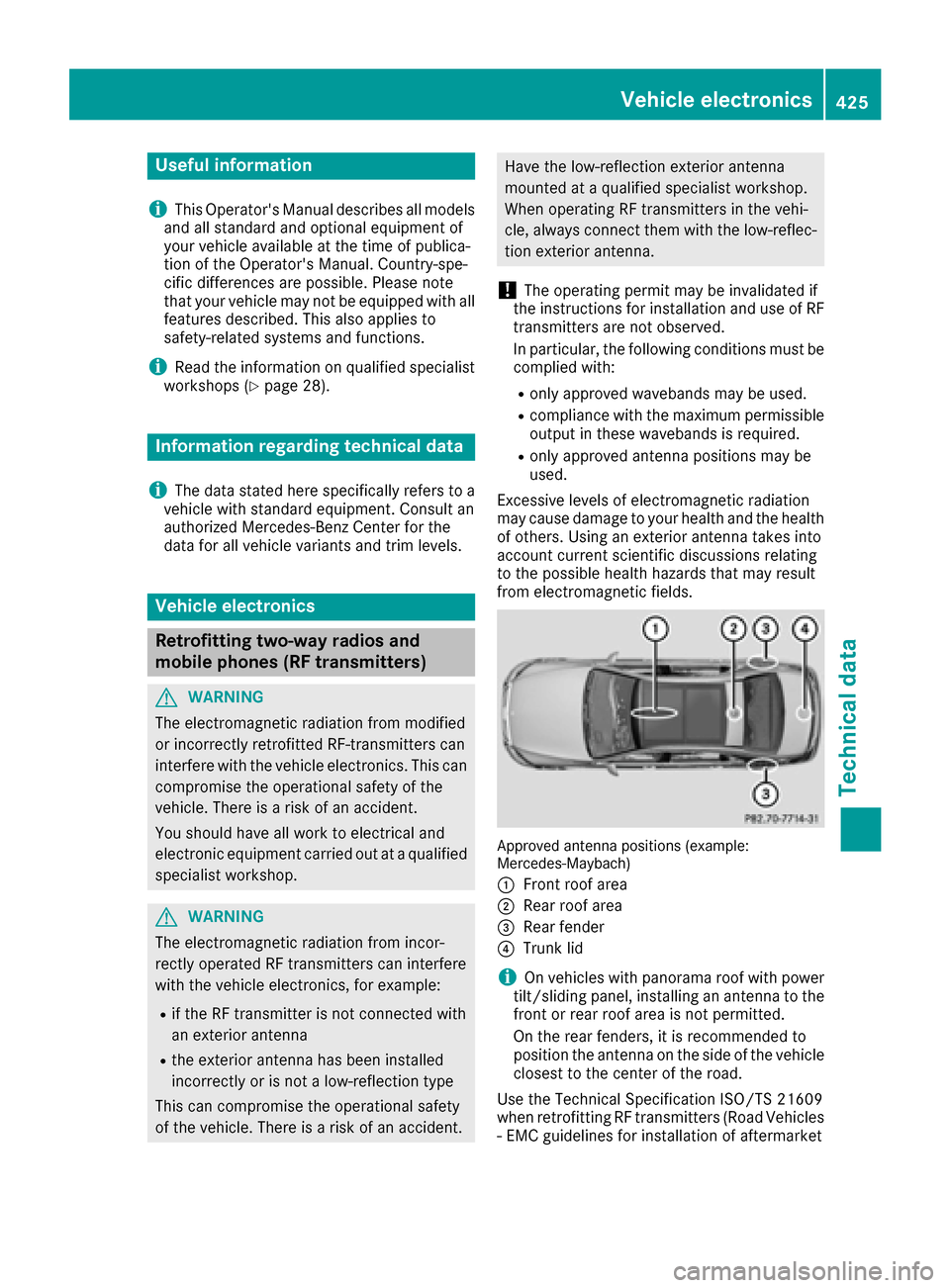

Useful information
i
This Operator's Manual describes all models
and all standard and optional equipment of
your vehicle available at the time of publica-
tion of the Operator's Manual. Country-spe-
cific differences are possible. Please note
that your vehicle may not be equipped with all
features described. This also applies to
safety-related systems and functions.
iRead the information on qualified specialist
workshops (Ypage 28).
Information regarding technical data
i
The data stated here specifically refers to a
vehicle with standard equipment. Consult an
authorized Mercedes-Benz Center for the
data for all vehicle variants and trim levels.
Vehicle electronics
Retrofitting two-way radios and
mobile phones (RF transmitters)
GWARNING
The electromagnetic radiation from modified
or incorrectly retrofitted RF-transmitters can
interfere with the vehicle electronics. This can compromise the operational safety of the
vehicle. There is a risk of an accident.
You should have all work to electrical and
electronic equipment carried out at a qualified
specialist workshop.
GWARNING
The electromagnetic radiation from incor-
rectly operated RF transmitters can interfere
with the vehicle electronics, for example:
Rif the RF transmitter is not connected with
an exterior antenna
Rthe exterior antenna has been installed
incorrectly or is not a low-reflection type
This can compromise the operational safety
of the vehicle. There is a risk of an accident.
Have the low-reflection exterior antenna
mounted at a qualified specialist workshop.
When operating RF transmitters in the vehi-
cle, always connect them with the low-reflec- tion exterior antenna.
!The operating permit may be invalidated if
the instructions for installation and use of RF
transmitters are not observed.
In particular, the following conditions must be complied with:
Ronly approved wavebands may be used.
Rcompliance with the maximum permissibleoutput in these wavebands is required.
Ronly approved antenna positions may be
used.
Excessive levels of electromagnetic radiation
may cause damage to your health and the health
of others. Using an exterior antenna takes into
account current scientific discussions relating
to the possible health hazards that may result
from electromagnetic fields.
Approved antenna positions (example:
Mercedes‑ Maybach)
:
Front roof area
;Rear roof area
=Rear fender
?Trunk lid
iOn vehicles with panorama roof with power
tilt/sliding panel, installing an antenna to the
front or rear roof area is not permitted.
On the rear fenders, it is recommended to
position the antenna on the side of the vehicle
closest to the center of the road.
Use the Technical Specification ISO/TS 21609
when retrofitting RF transmitters (Road Vehicles
- EMC guidelines for installation of aftermarket
Vehicle electronics425
Technical data
Z

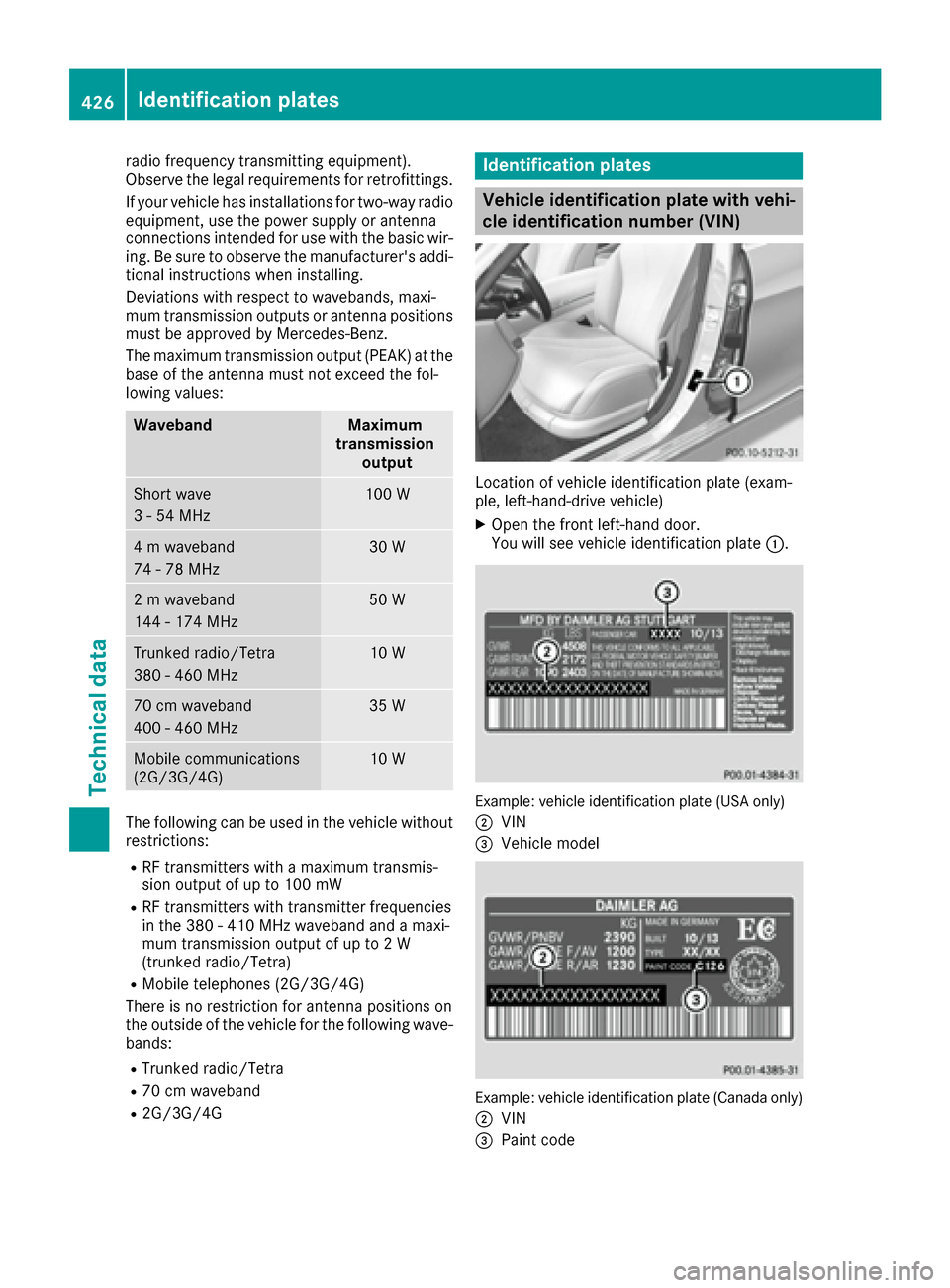

radio frequency transmitting equipment).
Observe the legal requirements for retrofittings.
If your vehicle has installations for two-way radio
equipment, use the power supply or antenna
connections intended for use with the basic wir-
ing. Be sure to observe the manufacturer's addi-tional instructions when installing.
Deviations with respect to wavebands, maxi-
mum transmission outputs or antenna positions
must be approved by Mercedes-Benz.
The maximum transmission output (PEAK) at the
base of the antenna must not exceed the fol-
lowing values:
WavebandMaximum
transmission output
Short wave
3 - 54 MHz100 W
4 m waveband
74 - 78 MHz30 W
2 m waveband
144 - 174 MHz50 W
Trunked radio/Tetra
380 - 460 MHz10 W
70 cm waveband
400 - 460 MHz35 W
Mobile communications
(2G/3G/4G)10 W
The following can be used in the vehicle without
restrictions:
RRF transmitters with a maximum transmis-
sion output of up to 100 mW
RRF transmitters with transmitter frequencies
in the 380 - 410 MHz waveband and a maxi-
mum transmission output of up to 2 W
(trunked radio/Tetra)
RMobile telephones (2G/3G/4G)
There is no restriction for antenna positions on
the outside of the vehicle for the following wave-
bands:
RTrunked radio/Tetra
R70 cm waveband
R2G/3G/4G
Identification plates
Vehicle identification plate with vehi-
cle identification number (VIN)
Location of vehicle identification plate (exam-
ple, left-hand-drive vehicle)
XOpen the front left-hand door.
You will see vehicle identification plate :.
Example: vehicle identification plate (USA only)
;
VIN
=Vehicle model
Example: vehicle identification plate (Canada only)
;
VIN
=Paint code
426Identification plates
Technical data

iThe data shown on the vehicle identification
plate is used only as an example. This data is
different for every vehicle and can deviate
from the data shown here. You can find the
data applicable to your vehicle on the vehicle
identification plate.
Vehicle identification number (VIN)
XOpen the front right-hand door.
XFold cover :down and remove it.
You will see the VIN.
The VIN can also be found in the following loca-
tions:
Ron the lower edge of the windshield
(Ypage 427)
Ron the vehicle identification plate
(Ypage 426)
Engine number
:Engine number (stamped into the crank-
case)
;VIN (on the lower edge of the windshield)
=Emission control information plate, includ-
ing the certification of both federal and Cali-
fornian emissions standards
Service products and filling capaci-
ties
Important safety notes
GWARNING
Service products may be poisonous and haz-
ardous to health. There is a risk of injury.
Comply with instructions on the use, storage
and disposal of service products on the labels
of the respective original containers. Always
store service products sealed in their original
containers. Always keep service products out
of the reach of children.
HEnvironmental note
Dispose of service products in an environ-
mentally responsible manner.
Service products include the following:
RFuels
RLubricants (e.g. engine oil, transmission oil)
RCoolant
RBrake fluid
RWindshield washer fluid
RClimate control system refrigerant
Components and service products must be
matched. Only use products recommended by
Mercedes-Benz. Damage which is caused by the
use of products which have not been recom-
mended is not covered by the Mercedes-Benz
warranty or goodwill gestures. They are listed in
this Mercedes-Benz Operator's Manual in the
appropriate section.
Information on tested and approved products
can be obtained at an authorized Mercedes-
Benz Center or on the Internet at
http://bevo.mercedes-benz.com.
You can recognize service products approved by
Mercedes-Benz by the following inscription on
the containers:
RMB-Freigabe (e.g. MB-Freigabe 229.51)
RMB-Approval (e.g. MB-Approval 229.51)
Other designations or recommendations indi-
cate a level of quality or a specification in
accordance with an MB Sheet Number (e.g. MB 229.5). They have not necessarily been
approved by Mercedes-Benz.
Service products and filling capacities427
Technical data
Z

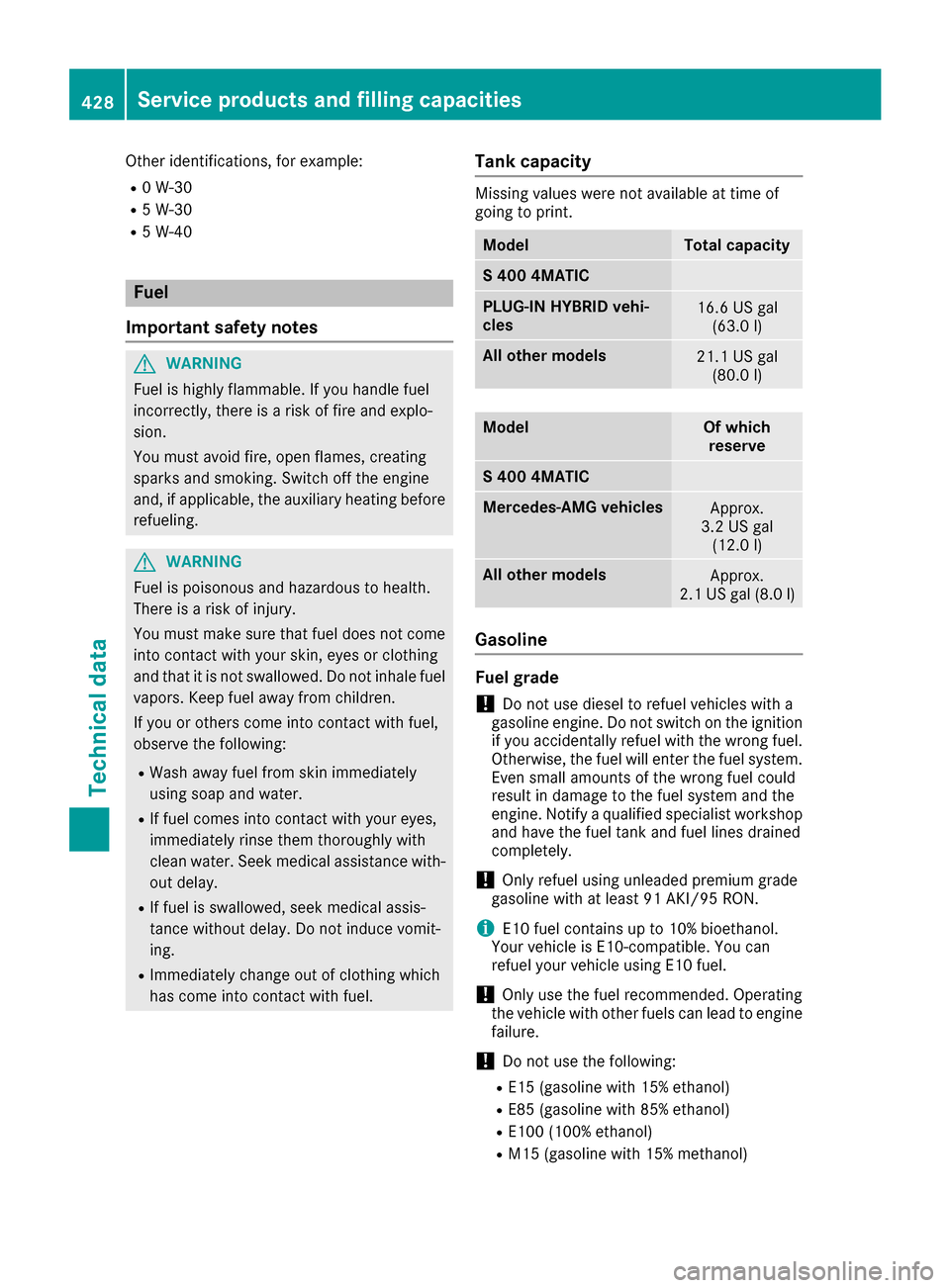

Other identifications, for example:
R0 W-30
R5 W-30
R5 W-40
Fuel
Important safety notes
GWARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there is a risk of fire and explo-
sion.
You must avoid fire, open flames, creating
sparks and smoking. Switch off the engine
and, if applicable, the auxiliary heating before refueling.
GWARNING
Fuel is poisonous and hazardous to health.
There is a risk of injury.
You must make sure that fuel does not come into contact with your skin, eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children.
If you or others come into contact with fuel,
observe the following:
RWash away fuel from skin immediately
using soap and water.
RIf fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance with-
out delay.
RIf fuel is swallowed, seek medical assis-
tance without delay. Do not induce vomit-
ing.
RImmediately change out of clothing which
has come into contact with fuel.
Tank capacity
Missing values were not available at time of
going to print.
ModelTotal capacity
S 400 4MATIC
PLUG-IN HYBRID vehi-
cles16.6 US gal (63.0 l)
Allot her models21.1 US gal
(80.0 l)
ModelOf which
reserve
S 400 4MATIC
Mercedes‑AMG vehiclesApprox.
3.2 US gal (12.0 l)
Allot her modelsApprox.
2.1 US gal (8.0 l)
Gasoline
Fuel grade
!Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the ignition
if you accidentally refuel with the wrong fuel.
Otherwise, the fuel will enter the fuel system.
Even small amounts of the wrong fuel could
result in damage to the fuel system and the
engine. Notify a qualified specialist workshop
and have the fuel tank and fuel lines drained
completely.
!Only refuel using unleaded premium grade
gasoline with at least 91 AKI/95 RON.
iE10 fuel contains up to 10% bioethanol.
Your vehicle is E10-compatible. You can
refuel your vehicle using E10 fuel.
!Only use the fuel recommended. Operating
the vehicle with other fuels can lead to engine
failure.
!Do not use the following:
RE15 (gasoline with 15% ethanol)
RE85 (gasoline with 85% ethanol)
RE100 (100% ethanol)
RM15 (gasoline with 15% methanol)
428Service products and filling capacities
Technical data
