MERCEDES-BENZ SL-Class 2013 R131 Owner's Manual

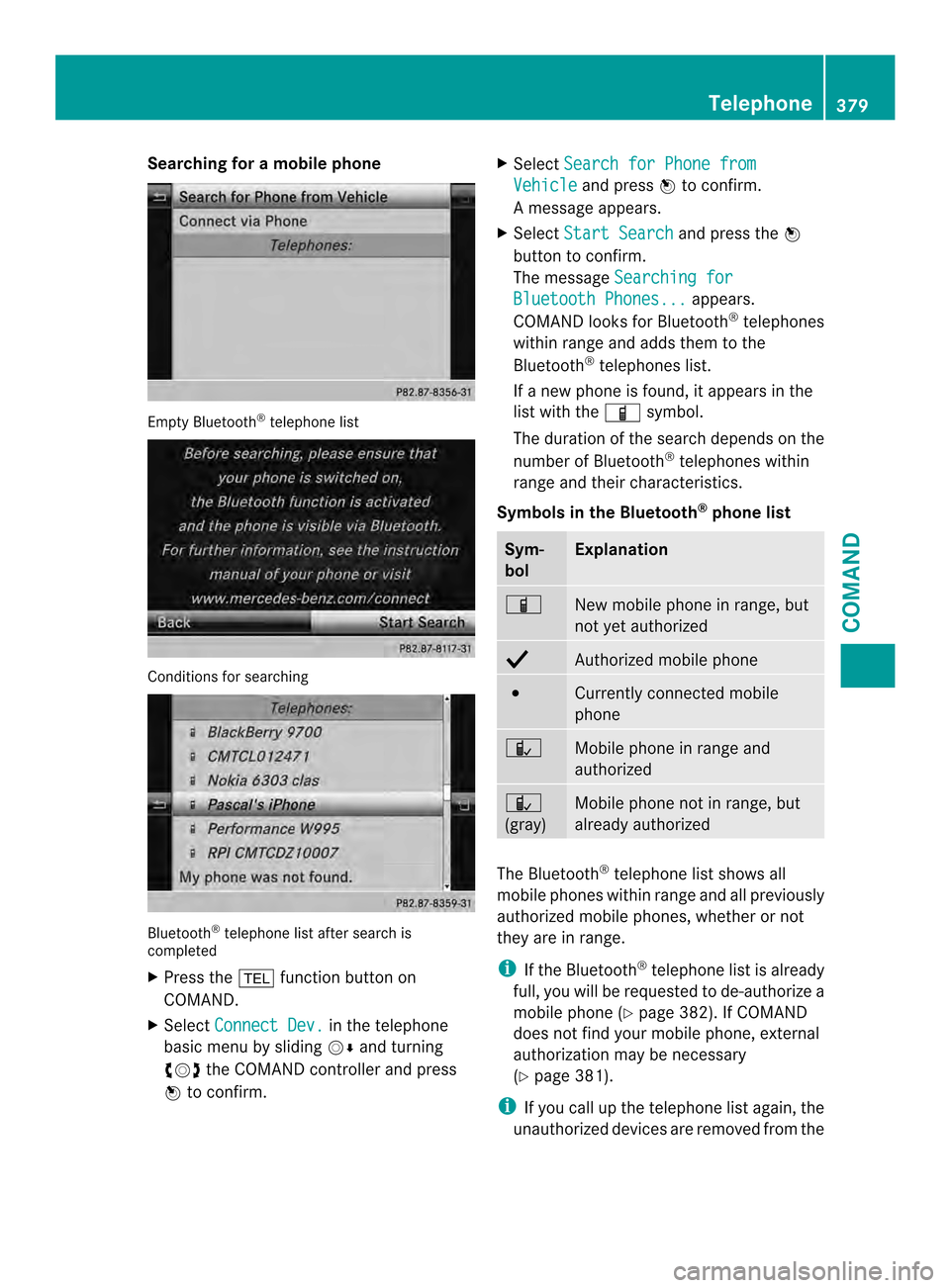

Searching for
amobile phone Empty Bluetooth
®
telephone list Conditions for searching
Bluetooth
®
telephone list after search is
completed
X Press the 0012function button on
COMAND.
X Select Connect Dev. in the telephone
basic menu by sliding 0012000Aand turning
003E0012003F the COMAND controller and press
0039 to confirm. X
Select Search for Phone from Vehicle and press
0039to confirm.
Am essage appears.
X Select Start Search and press the
0039
button to confirm.
The message Searching for Bluetooth Phones... appears.
COMAND looks for Bluetooth ®
telephones
within range and adds them to the
Bluetooth ®
telephones list.
If a new phone is found, it appears in the
list with the 000Dsymbol.
The duration of the search depends on the
number of Bluetooth ®
telephones within
range and their characteristics.
Symbols in the Bluetooth ®
phone list Sym-
bol Explanation
000D
New mobile phone in range, but
not yet authorized
0010
Authorized mobile phone
002A
Currently connected mobile
phone
0015
Mobile phone in range and
authorized
0015
(gray)
Mobile phone not in range, but
already authorized
The Bluetooth
®
telephone list shows all
mobile phones within range and all previously
authorized mobile phones, whether or not
they are in range.
i If the Bluetooth ®
telephone list is already
full, you will be requested to de-authorize a
mobile phone ( Ypage 382). If COMAND
does not find your mobile phone, external
authorization may be necessary
(Y page 381).
i If you call up the telephone list again, the
unauthorized devices are removed from the Telephone
379COMAND Z

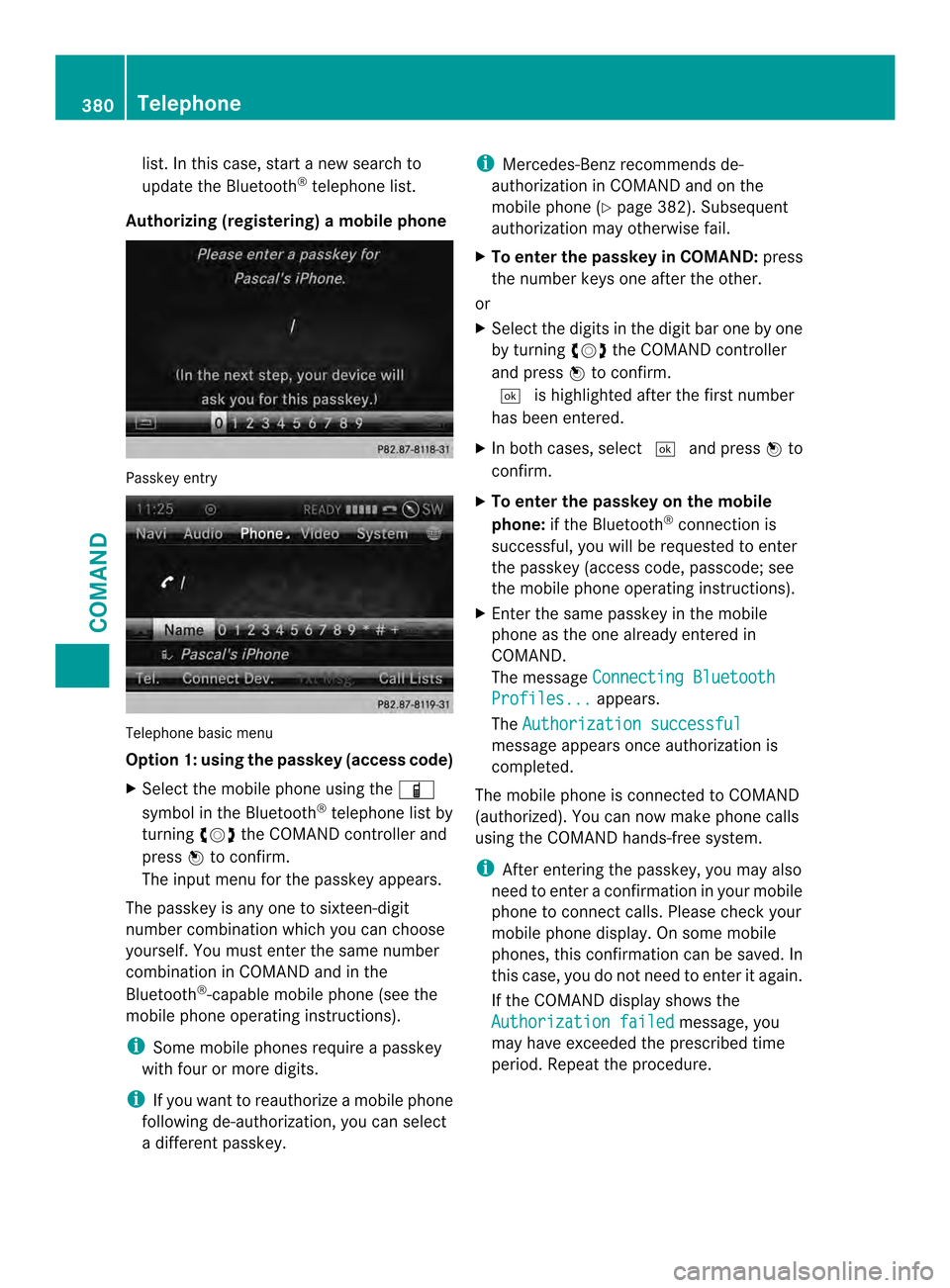

list. In this case, start a new search to
update the Bluetooth
®
telephone list.
Authorizing (registering) amobile phone Passkey entry
Telephone basic menu
Option 1: using the passkey (access code)
X
Select the mobile phone usin gthe 000D
symbol in the Bluetooth ®
telephone list by
turning 003E0012003Fthe COMAND controller and
press 0039to confirm.
The input menu for the passkey appears.
The passkey is any one to sixteen-digit
number combination which you can choose
yourself. You must enter the same number
combination in COMAND and in the
Bluetooth ®
-capable mobile phone (see the
mobile phone operating instructions).
i Some mobile phones require a passkey
with four or more digits.
i If you want to reauthorize a mobile phone
following de-authorization, you can select
a different passkey. i
Mercedes-Ben zrecommends de-
authorization in COMAND and on the
mobile phone ( Ypage 382). Subsequent
authorization may otherwise fail.
X To enter the passkey in COMAND: press
the number keys one after the other.
or
X Select the digits in the digit bar one by one
by turning 003E0012003Fthe COMAND controller
and press 0039to confirm.
0004 is highlighted after the first number
has been entered.
X In both cases, select 0004and press 0039to
confirm.
X To enter the passkey on the mobile
phone: if the Bluetooth ®
connection is
successful, you will be requested to enter
the passkey (access code, passcode; see
the mobile phone operating instructions).
X Enter the same passkey in the mobile
phone as the one already entered in
COMAND.
The message Connecting Bluetooth Profiles... appears.
The Authorization successful message appears once authorization is
completed.
The mobile phone is connected to COMAND
(authorized). You can now make phone calls
using the COMAND hands-free system.
i After entering the passkey, you may also
need to enter a confirmation in your mobile
phone to connectc alls. Please check your
mobile phone display. On som emobile
phones, this confirmation can be saved. In
this case, you do not need to enter it again.
If the COMAND display shows the
Authorization failed message, you
may have exceeded the prescribed time
period. Repeat the procedure. 380
TelephoneCOMAND

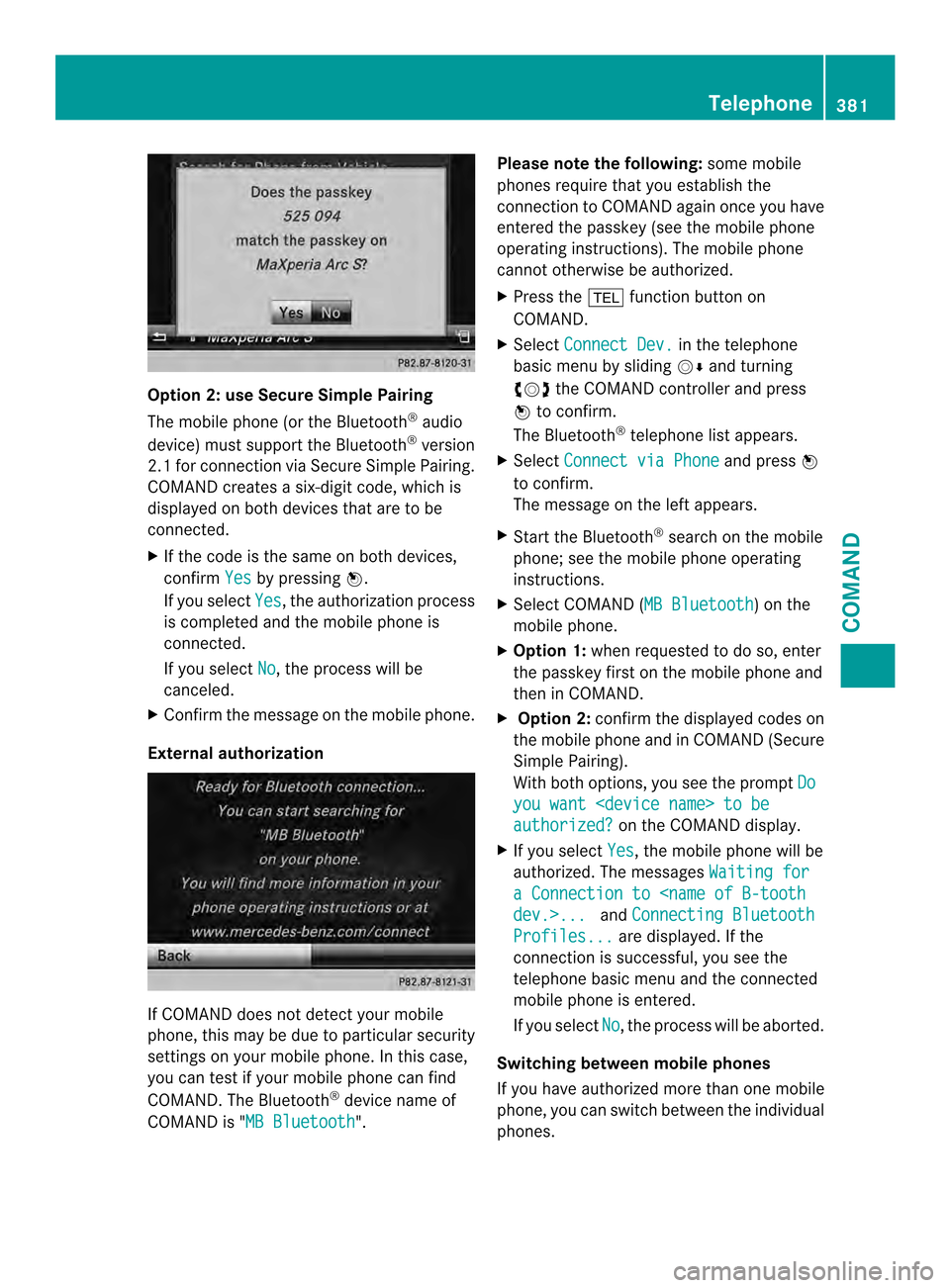

Option 2: use Secure Simple Pairing
The mobile phone (or the Bluetooth
®
audio
device) must support the Bluetooth ®
version
2.1 for connection via Secure Simple Pairing.
COMAND creates a six-digit code, which is
displayed on both devices that are to be
connected.
X If the code is the same on both devices,
confirm Yes by pressing
0039.
If you select Yes , the authorization process
is completed and the mobile phone is
connected.
If you select No , the process will be
canceled.
X Confirm the message on the mobile phone.
External authorization If COMAND does not detect your mobile
phone, this may be due to particular security
settings on your mobile phone. In this case,
you can test if your mobile phone can find
COMAND .The Bluetooth ®
device name of
COMAND is "MB Bluetooth ".Please note the following:
some mobile
phones require that you establish the
connection to COMAND again once you have
entered the passkey (see the mobile phone
operating instructions). The mobile phone
cannot otherwise be authorized.
X Press the 0012function button on
COMAND.
X Select Connect Dev. in the telephone
basic menu by sliding 0012000Aand turning
003E0012003F the COMAND controller and press
0039 to confirm.
The Bluetooth ®
telephone list appears.
X Select Connect via Phone and press
0039
to confirm.
The message on the left appears.
X Start the Bluetooth ®
search on the mobile
phone; see the mobile phone operating
instructions.
X Select COMAND (MB Bluetooth ) on the
mobile phone.
X Option 1: when requested to do so, enter
the passkey first on the mobile phone and
then in COMAND.
X Option 2: confirm the displayed codes on
the mobile phone and in COMAND (Secure
Simple Pairing).
With both options, you see the prompt Do you want to be
authorized? on the COMAND display.
X If you select Yes , the mobile phone will be
authorized. The messages Waiting for a Connection to dev.>... and
Connecting Bluetooth Profiles... are displayed. If the
connection is successful, you see the
telephone basic menu and the connected
mobile phone is entered.
If you select No , the process will be aborted.
Switching between mobile phones
If you have authorized more than one mobile
phone, you can switch between the individual
phones. Telephone
381COMAND Z

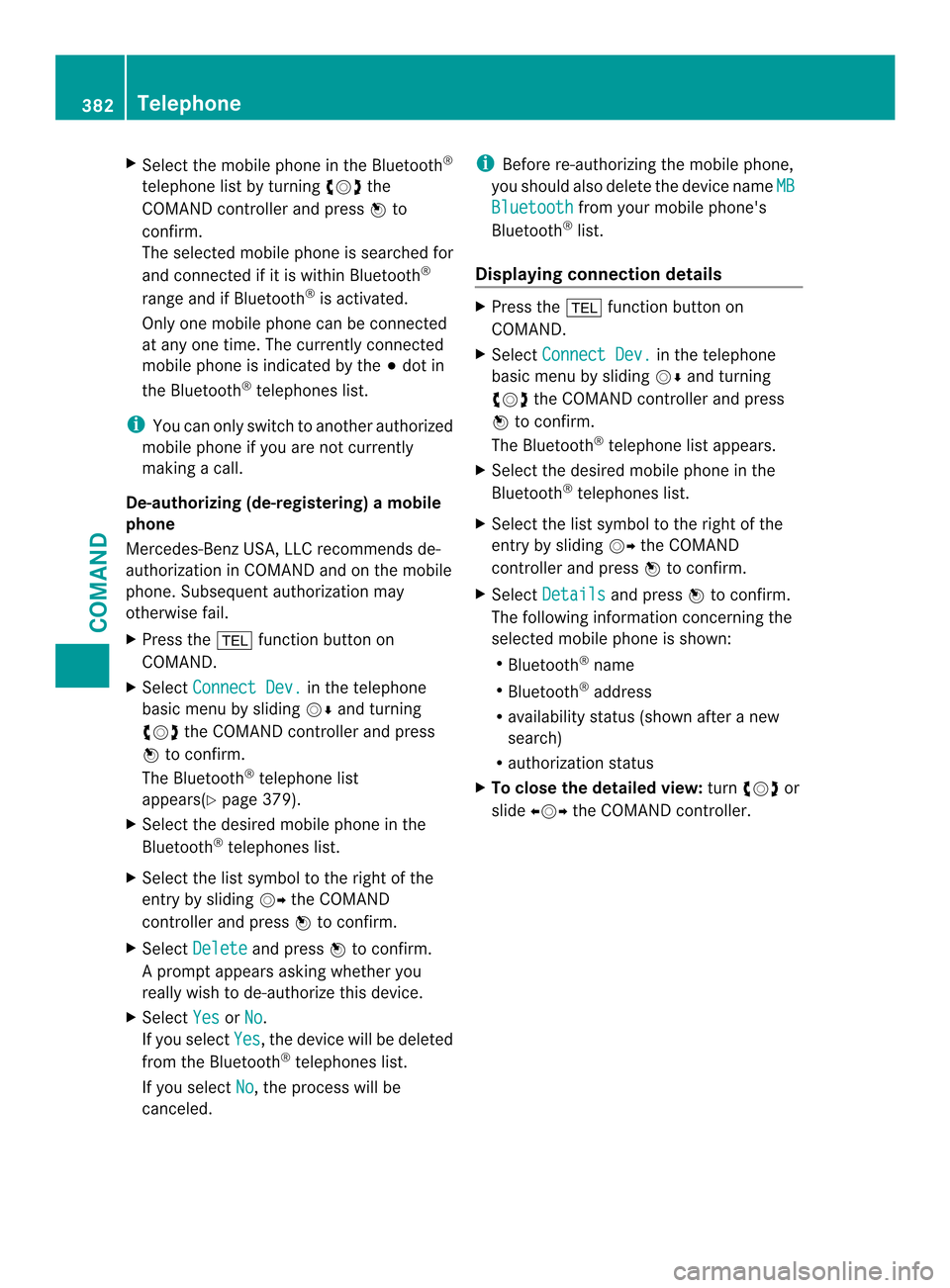

X
Select the mobile phone in the Bluetooth ®
telephone list by turning 003E0012003Fthe
COMAND controlle rand press 0039to
confirm.
The selected mobile phone is searched for
and connected if it is withi nBluetooth ®
range and if Bluetooth ®
is activated.
Only one mobile phone can be connected
at any one time. The currently connected
mobile phone is indicated by the 0021dot in
the Bluetooth ®
telephones list.
i You can only switch to another authorized
mobile phone if you are not currently
making a call.
De-authorizing (de-registering) amobile
phone
Mercedes-Benz USA, LLC recommends de-
authorizatio ninCOMAND and on the mobile
phone. Subsequent authorization may
otherwise fail.
X Press the 0012function button on
COMAND.
X Select Connect Dev. in the telephone
basic menu by sliding 0012000Aand turning
003E0012003F the COMAND controller and press
0039 to confirm.
The Bluetooth ®
telephone list
appears(Y page 379).
X Select the desired mobile phone in the
Bluetooth ®
telephones list.
X Select the list symbol to the right of the
entry by sliding 00120037the COMAND
controller and press 0039to confirm.
X Select Delete and press
0039to confirm.
Ap rompt appears asking whethe ryou
really wish to de-authorize this device.
X Select Yes or
No .
If you select Yes , the device will be deleted
from the Bluetooth ®
telephones list.
If you select No , the process will be
canceled. i
Before re-authorizing the mobile phone,
you should also delete the device name MB Bluetooth from your mobile phone's
Bluetooth ®
list.
Displaying connection details X
Press the 0012function button on
COMAND.
X Select Connect Dev. in the telephone
basic menu by sliding 0012000Aand turning
003E0012003F the COMAND controller and press
0039 to confirm.
The Bluetooth ®
telephone list appears.
X Select the desired mobile phone in the
Bluetooth ®
telephones list.
X Select the list symbol to the right of the
entry by sliding 00120037the COMAND
controller and press 0039to confirm.
X Select Details and press
0039to confirm.
The following information concerning the
selected mobile phone is shown:
R Bluetooth ®
name
R Bluetooth ®
address
R availability status (shown after a new
search)
R authorization status
X To close the detailed view: turn003E0012003F or
slide 003600120037 the COMAND controller. 382
TelephoneCOMAND

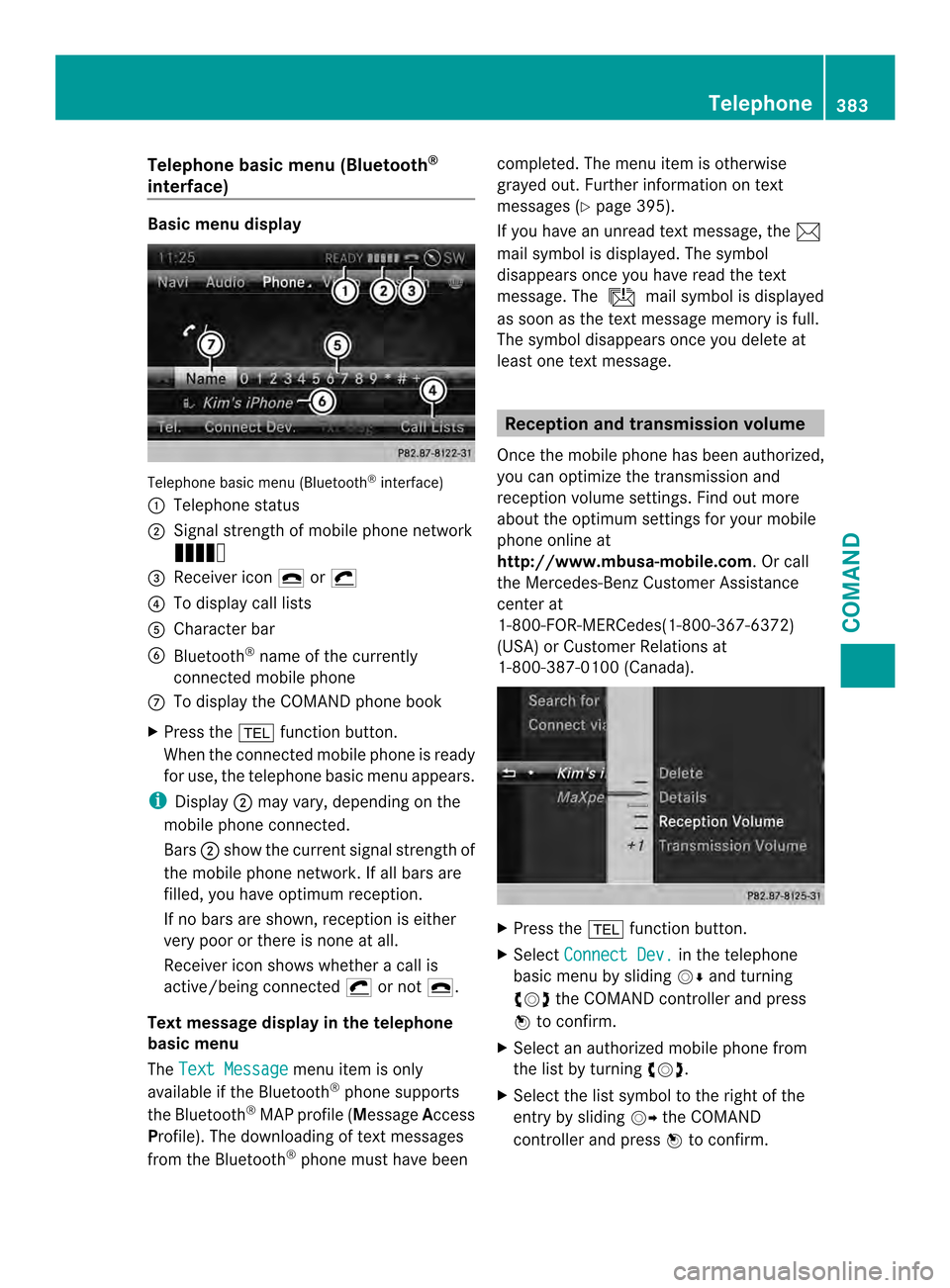

Telephone basic men
u(Bluetooth ®
interface) Basic menu display
Telephone basi
cmenu (Bluetooth ®
interface)
0002 Telephone status
0003 Signal strength of mobile phone network
Ä
0027 Receiver icon 0028or002B
0026 To display call lists
0024 Character bar
0025 Bluetooth ®
name of the currently
connected mobile phone
0016 To display the COMAND phone book
X Press the 0012function button.
When the connected mobile phone is ready
for use, the telephone basic menu appears.
i Display 0003may vary, depending on the
mobile phone connected.
Bars 0003show the curren tsignal strength of
the mobile phone network .Ifall bars are
filled, you have optimum reception.
If no bars are shown, receptio nis either
very poor or there is none at all.
Receiver icon shows whether acall is
active/being connected 002Bor not 0028.
Tex tmessage display in the telephone
basic menu
The Text Message menu item is only
available if the Bluetooth ®
phone supports
the Bluetooth ®
MAP profile ( MessageAccess
Profile). The downloading of tex tmessages
from the Bluetooth ®
phone must have been completed. The menu item is otherwise
grayed out. Further information on text
messages (Y page 395).
If you have an unread textm essage, the0015
mail symbol is displayed. The symbol
disappears once you have read the text
message. The úmail symbol is displayed
as soon as the textm essage memory is full.
The symbol disappears once you delete at
least one textm essage. Reception and transmission volume
Once the mobile phone has been authorized,
you can optimize the transmission and
reception volume settings. Find out more
about the optimum settings for your mobile
phone online at
http://www.mbusa-mobile.com. Or call
the Mercedes-BenzC ustomerAssistance
center at
1-800-FOR-MERCedes(1-800-367-6372)
(USA) or Customer Relations at
1-800-387-0100 (Canada). X
Press the 0012function button.
X Select Connect Dev. in the telephone
basic menu by sliding 0012000Aand turning
003E0012003F the COMAND controller and press
0039 to confirm.
X Select an authorized mobile phone from
the list by turning 003E0012003F.
X Select the list symbol to the right of the
entry by sliding 00120037the COMAND
controller and press 0039to confirm. Telephone
383COMAND Z

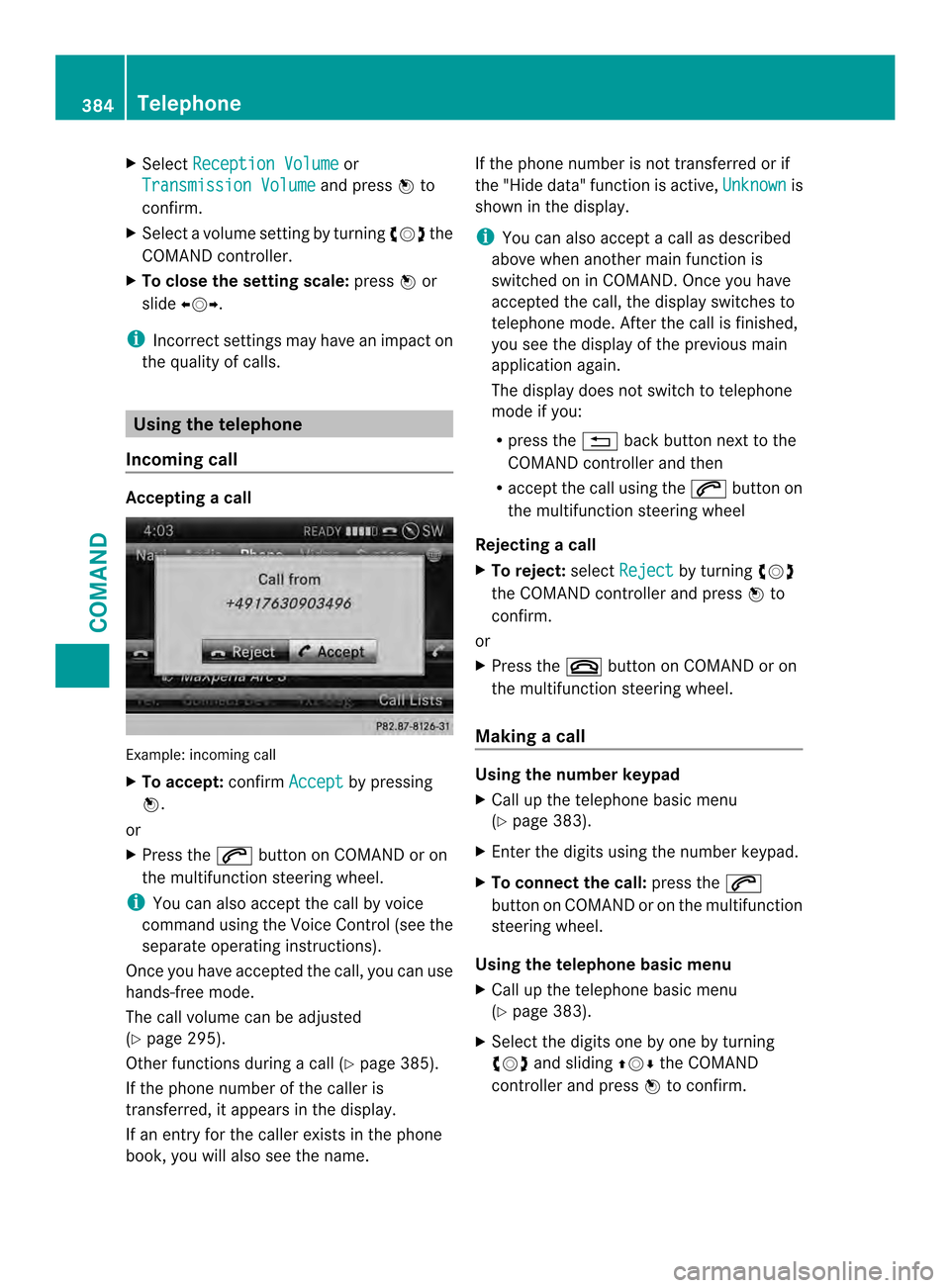

X
Select Reception Volume or
Transmission Volume and press
0039to
confirm.
X Select a volume setting by turning 003E0012003Fthe
COMAND controller.
X To close the setting scale: press0039or
slide 003600120037.
i Incorrect settings may have an impact on
the quality of calls. Using the telephone
Incoming call Accepting
acall Example: incoming call
X
To accept: confirmAccept by pressing
0039.
or
X Press the 0017button on COMAND or on
the multifunctio nsteering wheel.
i You can also accep tthe call by voice
command using the Voice Control (see the
separate operating instructions).
Once you have accepted the call, you can use
hands-free mode.
The call volume can be adjusted
(Y page 295).
Other functions during a call (Y page 385).
If the phone number of the caller is
transferred, it appears in the display.
If an entry for the caller exists in the phone
book, you will also see the name. If the phone number is not transferred or if
the "Hide data" function is active,
Unknown is
shown in the display.
i You can also accept a call as described
above when another main function is
switched on in COMAND. Once you have
accepted the call, the display switches to
telephone mode. After the call is finished,
you see the display of the previous main
application again.
The display does not switch to telephone
mode if you:
R press the 001Fback button next to the
COMAND controller and then
R accept the call using the 0017button on
the multifunction steering wheel
Rejecting acall
X To reject: selectReject by turning
003E0012003F
the COMAND controller and press 0039to
confirm.
or
X Press the 003Cbutton on COMAND or on
the multifunctio nsteering wheel.
Making a call Using the number keypad
X
Call up the telephone basi cmenu
(Y page 383).
X Enter the digits using the number keypad.
X To connect the call: press the0017
button on COMAND or on the multifunction
steering wheel.
Using the telephone basic menu
X Call up the telephone basic menu
(Y page 383).
X Select the digits one by one by turning
003E0012003F and sliding 00380012000Athe COMAND
controller and press 0039to confirm. 384
TelephoneCOMAND

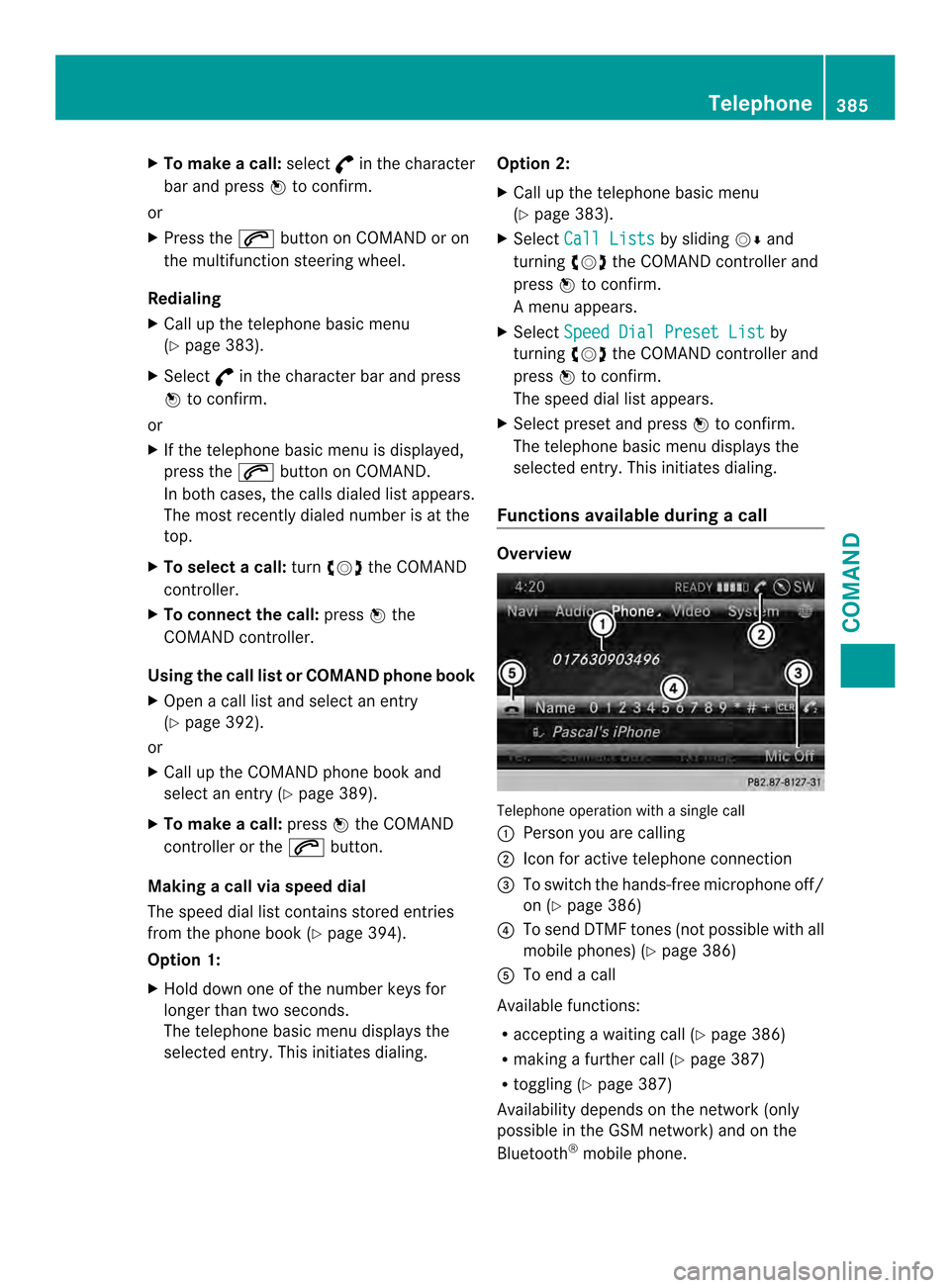

X
To make a call: select°in the character
ba ra nd press 0039to confirm.
or
X Press the 0017button on COMAND or on
the multifunctio nsteering wheel.
Redialing
X Call up the telephone basi cmenu
(Y page 383).
X Select °in the character bar and press
0039 to confirm.
or
X If the telephone basic menu is displayed,
press the 0017button on COMAND.
In both cases, the calls dialed list appears.
The most recently dialed number is at the
top.
X To select acall: turn 003E0012003F the COMAND
controller.
X To connect the call: press0039the
COMAND controller.
Using the call lis torCOMAND phone book
X Open a call list and select an entry
(Y page 392).
or
X Call up the COMAND phone book and
select an entry (Y page 389).
X To make a call: press0039the COMAND
controller or the 0017button.
Making a call via speed dial
The speed dial list contains stored entries
from the phone book (Y page 394).
Option 1:
X Hold down one of the number keys for
longer than two seconds.
The telephone basic menu displays the
selected entry. This initiates dialing. Option 2:
X
Call up the telephone basic menu
(Y page 383).
X Select Call Lists by sliding
0012000Aand
turning 003E0012003Fthe COMAND controller and
press 0039to confirm.
Am enu appears.
X Select Speed Dial Preset List by
turning 003E0012003Fthe COMAND controller and
press 0039to confirm.
The speed dial list appears.
X Select preset and press 0039to confirm.
The telephone basic menu displays the
selected entry. This initiates dialing.
Functions available during acall Overview
Telephone operatio
nwith a single call
0002 Perso nyou are calling
0003 Icon for active telephone connection
0027 To switch the hands-free microphone off/
on (Y page 386)
0026 To send DTMF tones (not possible with all
mobile phones) (Y page 386)
0024 To end a call
Available functions:
R accepting a waiting call (Y page 386)
R making a further call (Y page 387)
R toggling (Y page 387)
Availability depends on the network (only
possible in the GSM network) and on the
Bluetooth ®
mobile phone. Telephone
385COMAND Z

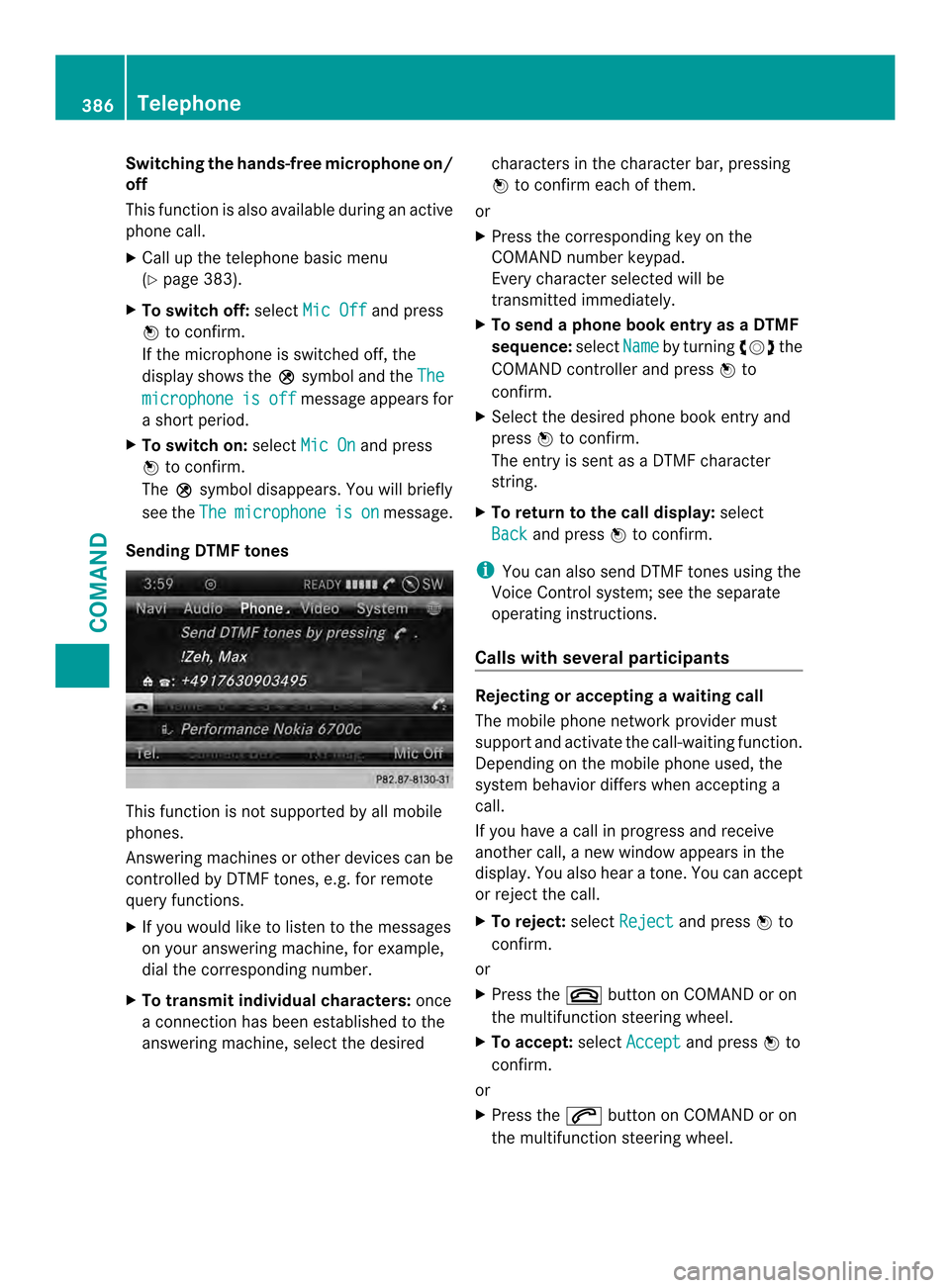

Switching the hands-free microphone on/
off
This function is also available during an active
phone call.
X
Call up the telephone basic menu
(Y page 383).
X To switch off: selectMic Off and press
0039 to confirm.
If the microphone is switched off, the
display shows the 000Csymbol and the The microphone is off message appears for
a short period.
X To switch on: selectMic On and press
0039 to confirm.
The 000Csymbol disappears. You will briefly
see the The microphone is on message.
Sending DTMF tones This function is not supported by all mobile
phones.
Answering machines or other devices can be
controlled by DTMF tones, e.g. for remote
query functions.
X If you would like to listen to the messages
on your answering machine, for example,
dial the corresponding number.
X To transmit individual characters: once
a connection has been established to the
answering machine, select the desired characters in the character bar, pressing
0039
to confirm each of them.
or
X Press the corresponding key on the
COMAND number keypad.
Every character selected will be
transmitted immediately.
X To send a phone book entry as a DTMF
sequence: selectName by turning
003E0012003Fthe
COMAND controller and press 0039to
confirm.
X Select the desired phone book entry and
press 0039to confirm.
The entry is sent as a DTMF character
string.
X To return to the call display: select
Back and press
0039to confirm.
i You can also send DTMF tones using the
Voice Control system; see the separate
operating instructions.
Calls with several participants Rejecting or accepting
awaiting call
The mobile phone network provider must
support and activate the call-waiting function.
Depending on the mobile phone used, the
system behavior differs whe naccepting a
call.
If you have a call in progress and receive
another call, a new window appears in the
display .You also hear a tone. You can accept
or reject the call.
X To reject: selectReject and press
0039to
confirm.
or
X Press the 003Cbutton on COMAND or on
the multifunction steering wheel.
X To accept: selectAccept and press
0039to
confirm.
or
X Press the 0017button on COMAND or on
the multifunction steering wheel. 386
TelephoneCOMAND

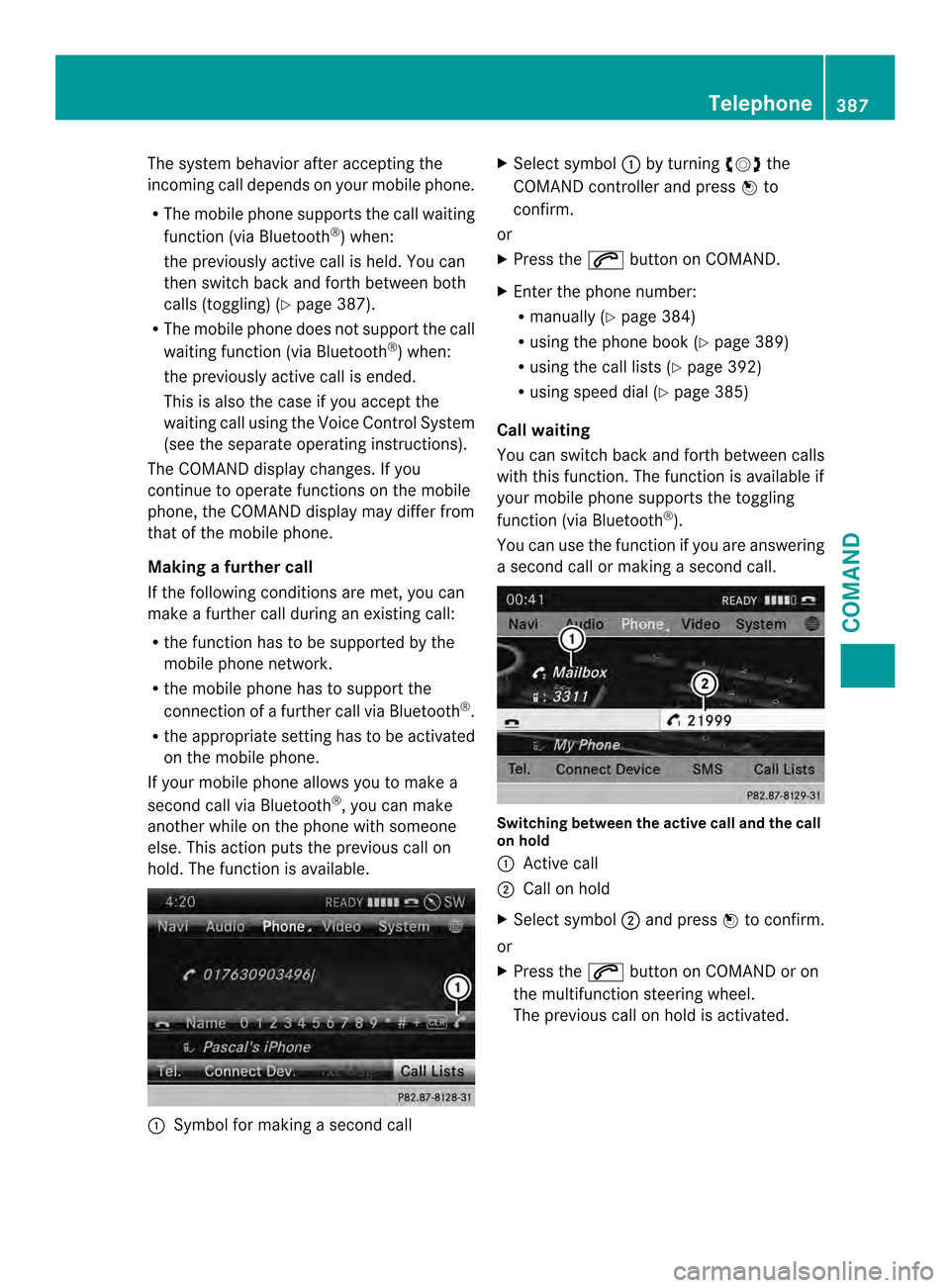

The system behavior after accepting the
incoming call depends on your mobile phone.
R
The mobile phone supports the call waiting
function (via Bluetooth ®
) when:
the previously active call is held. You can
then switch back and forth between both
calls (toggling) (Y page 387).
R The mobile phone does not support the call
waiting function (via Bluetooth ®
) when:
the previously active call is ended.
This is also the case if you accept the
waiting call using the Voice Control System
(see the separate operating instructions).
The COMAND display changes. If you
continue to operate functions on the mobile
phone, the COMAND display may differ from
that of the mobile phone.
Making a further call
If the following conditions are met, you can
make a further call during an existing call:
R the function has to be supported by the
mobile phone network.
R the mobile phone has to support the
connection of a further call via Bluetooth ®
.
R the appropriate setting has to be activated
on the mobile phone.
If your mobile phone allows you to make a
second call via Bluetooth ®
, you can make
another while on the phone with someone
else. This action puts the previous call on
hold. The function is available. 0002
Symbol for making a second call X
Select symbol 0002by turning 003E0012003Fthe
COMAND controller and press 0039to
confirm.
or
X Press the 0017button on COMAND.
X Enter the phone number:
R
manually (Y page 384)
R using the phone book (Y page 389)
R using the call lists ( Ypage 392)
R using speed dial (Y page 385)
Call waiting
You can switch back and forth between calls
with this function. The function is available if
your mobile phone supports the toggling
function (via Bluetooth ®
).
You can use the function if you are answering
a second call or making a second call. Switching between the active call and the call
on hold
0002
Active call
0003 Call on hold
X Select symbol 0003and press 0039to confirm.
or
X Press the 0017button on COMAND or on
the multifunction steering wheel.
The previous call on hold is activated. Telephone
387COMAND Z

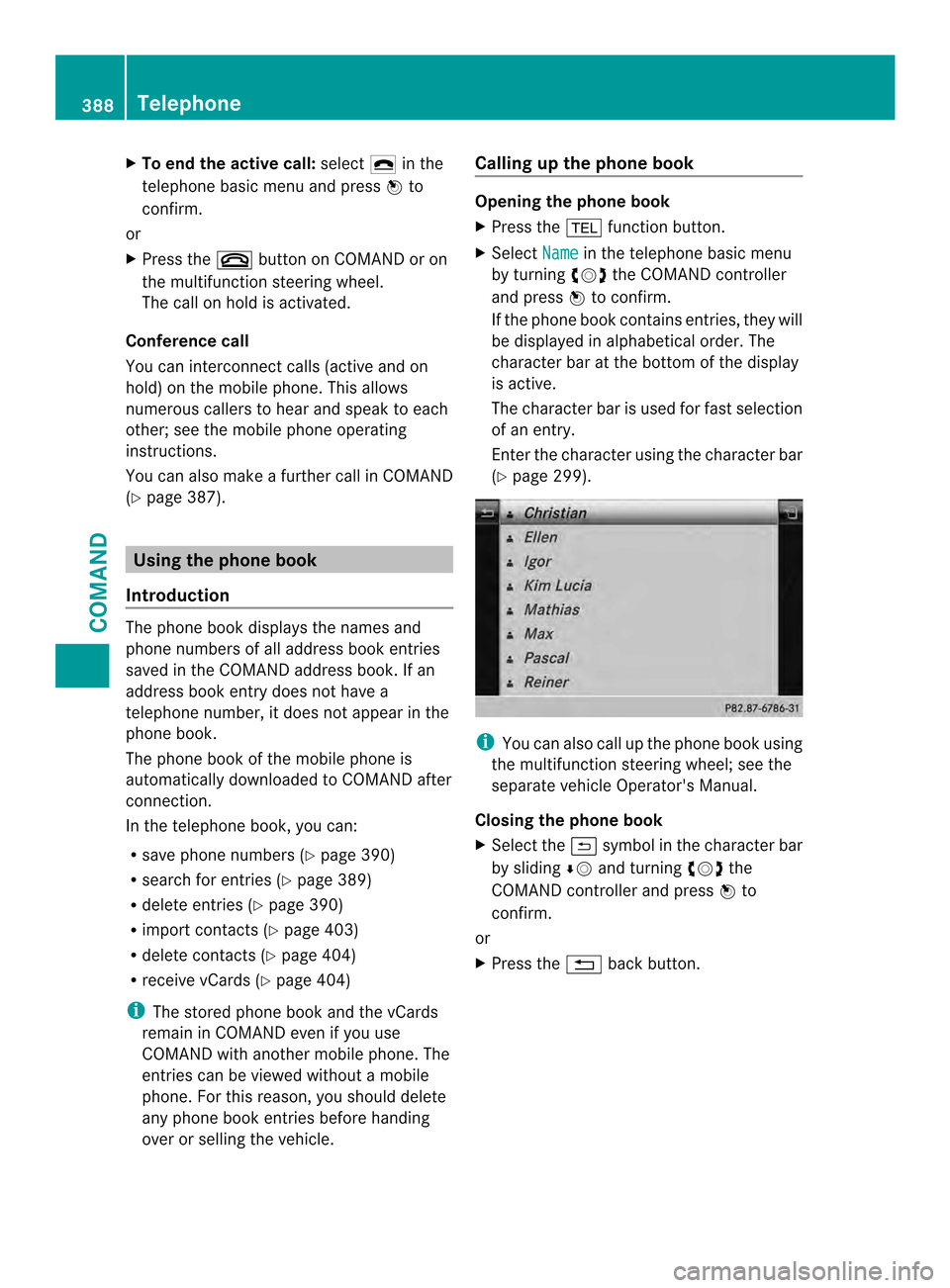

X
To end the active call: select0028in the
telephone basi cmenu and press 0039to
confirm.
or
X Press the 003Cbutton on COMAND or on
the multifunction steering wheel.
The call on hold is activated.
Conference call
You can interconnect calls (active and on
hold) on the mobile phone. This allows
numerous callers to hear and speak to each
other; see the mobile phone operating
instructions.
You can also make a further call in COMAND
(Y page 387). Using the phone book
Introduction The phone book displays the names and
phone numbers of all address book entries
saved in the COMAND address book. If an
address book entry does not have a
telephone number, it does not appear in the
phone book.
The phone book of the mobile phone is
automatically downloaded to COMAND after
connection.
In the telephone book, you can:
R
save phone numbers (Y page 390)
R search for entries (Y page 389)
R delete entries (Y page 390)
R import contact s(Ypage 403)
R delete contacts (Y page 404)
R receive vCards ( Ypage 404)
i The stored phone book and the vCards
remain in COMAND even if you use
COMAND with another mobile phone. The
entries can be viewed without a mobile
phone. For this reason, you should delete
any phone book entries before handing
over or selling the vehicle. Calling up the phone book Opening the phone book
X
Press the 0012function button.
X Select Name in the telephone basic menu
by turning 003E0012003Fthe COMAND controller
and press 0039to confirm.
If the phone book contains entries, they will
be displayed in alphabetical order. The
character bar at the bottom of the display
is active.
The character bar is used for fast selection
of an entry.
Enter the character using the character bar
(Y page 299). i
You can also call up the phone book using
the multifunction steering wheel; see the
separate vehicle Operator's Manual.
Closing the phone book
X Select the 0027symbol in the character bar
by sliding 000A0012and turning 003E0012003Fthe
COMAND controller and press 0039to
confirm.
or
X Press the 001Fback button. 388
TelephoneCOMAND
