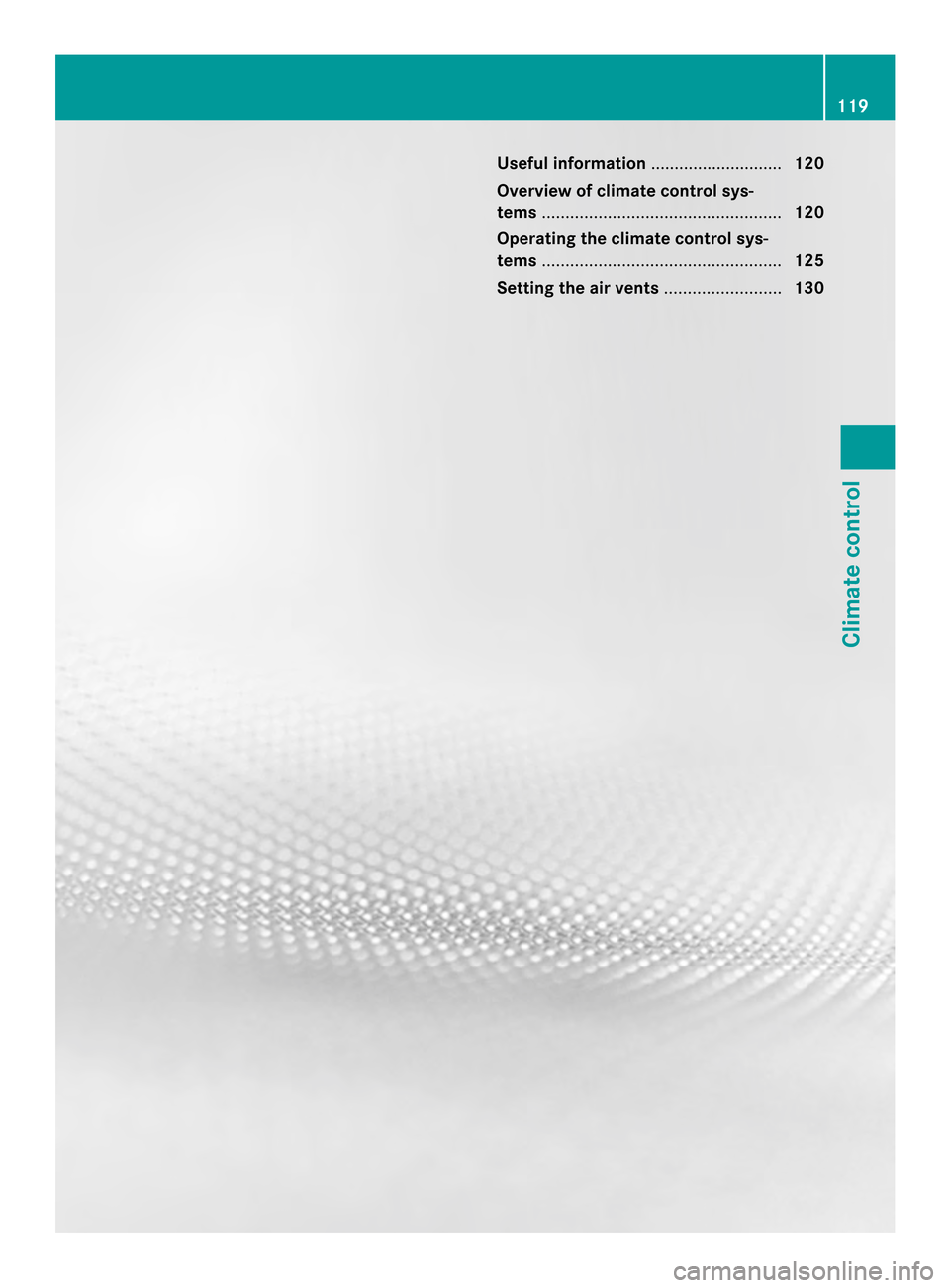

Useful information
............................120
Overview of climate control sys-
tems ................................................... 120
Operating the climate control sys-
tems ................................................... 125
Setting the air vents .........................130 119Climate control
Page 122 of 358

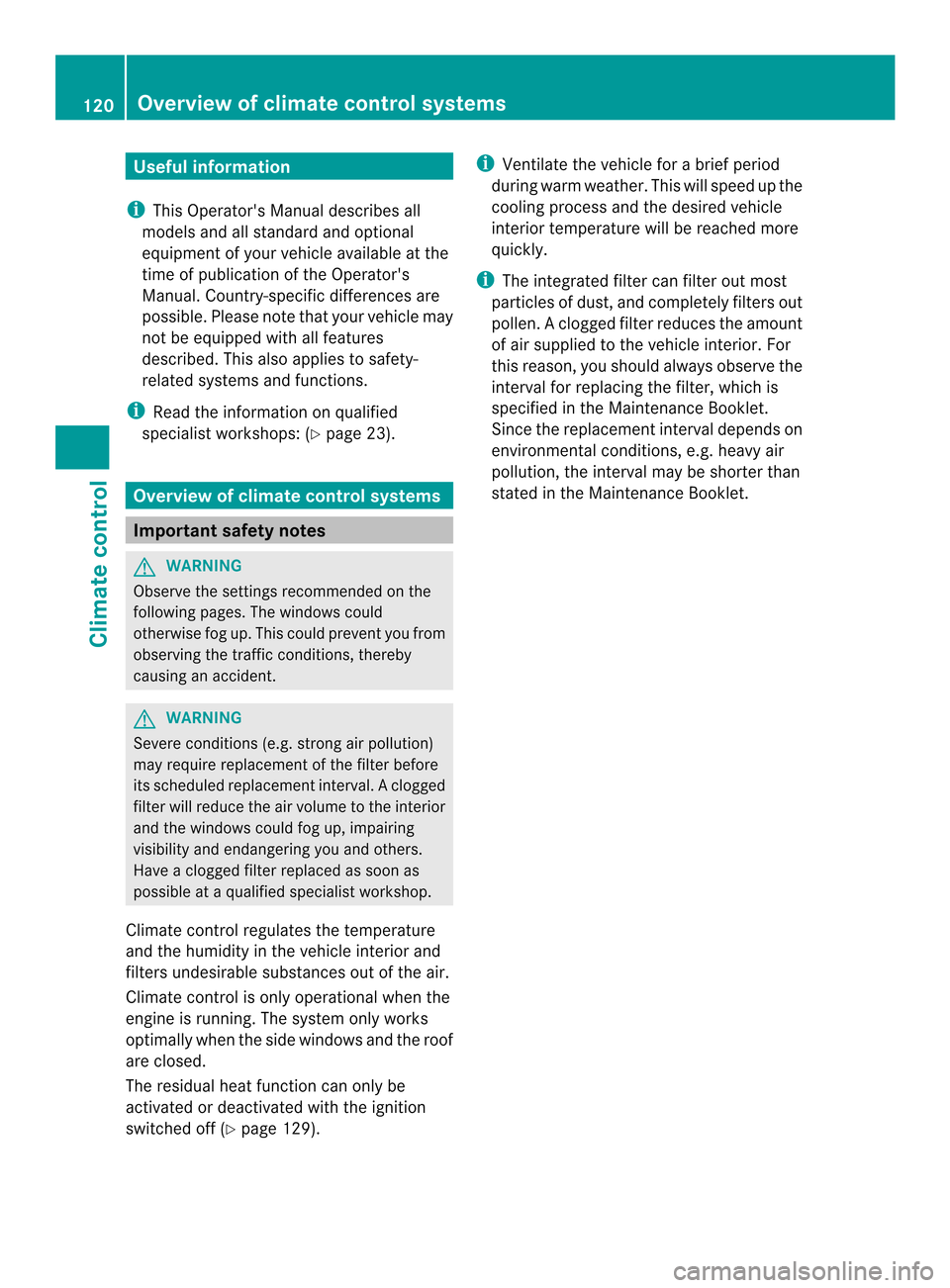

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: (Y page 23).Overview of climate control systems
Important safety notes
G
WARNING
Observe the settings recommended on the
following pages. The windows could
otherwise fog up. This could preven tyou from
observing the traffic conditions, thereby
causing an accident. G
WARNING
Severe conditions (e.g. strong air pollution)
may require replacement of the filter before
its scheduled replacement interval. Aclogged
filter will reduce the air volume to the interior
and the windows could fog up, impairing
visibility and endangering you and others.
Have a clogged filter replaced as soon as
possible at a qualified specialist workshop.
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control is only operational when the
engine is running. The system only works
optimally when the side windows and the roof
are closed.
The residual heat function can only be
activated or deactivated with the ignition
switched off (Y page 129). i
Ventilate the vehicle for a brief period
during warm weather .This will speed up the
cooling process and the desired vehicle
interior temperature will be reached more
quickly.
i The integrated filter can filter out most
particles of dust, and completely filters out
pollen. Aclogged filter reduces the amount
of air supplied to the vehicle interior .For
this reason, you should always observe the
interval for replacing the filter, which is
specified in the Maintenance Booklet.
Since the replacement interval depends on
environmental conditions, e.g. heavy air
pollution, the interval may be shorter than
stated in the Maintenance Booklet. 120
Overview of climate control systemsClimate control
Page 123 of 358

Air-conditioning system control panel
Canada only
0003
Sets the temperature (Y page 126)
0004 Activates/deactivates the residual heat function (Y page 129)
0024 Sets the air distribution (Y page 127)
0023 Defrosts the windshield (Y page 128)
0021 Activates/deactivates coolin gwith air dehumidification ( Ypage 125)
0022 Activates/deactivates air-recirculation mode (Y page 129)
0015 Sets the airflow (Y page 127)
0016 Switches the rear window defroster on/off (Y page 128)USA only
0003
Sets the temperature (Y page 126)
0004 Switches maximum cooling MAX COOL on/off (Y page 128) Overview of climate control systems
121Climate control Z
Page 124 of 358

0024
Sets the ai rdistribution (Y page 127)
0023 Defrosts the windshield (Y page 128)
0021 Activates/deactivates coolin gwith air dehumidification ( Ypage 125)
0022 Activates/deactivates air-recirculation mode (Y page 129)
0015 Sets the airflow (Y page 127)
0016 Switches the rear window defroster on/off (Y page 128)Notes on using the air-conditioning
system

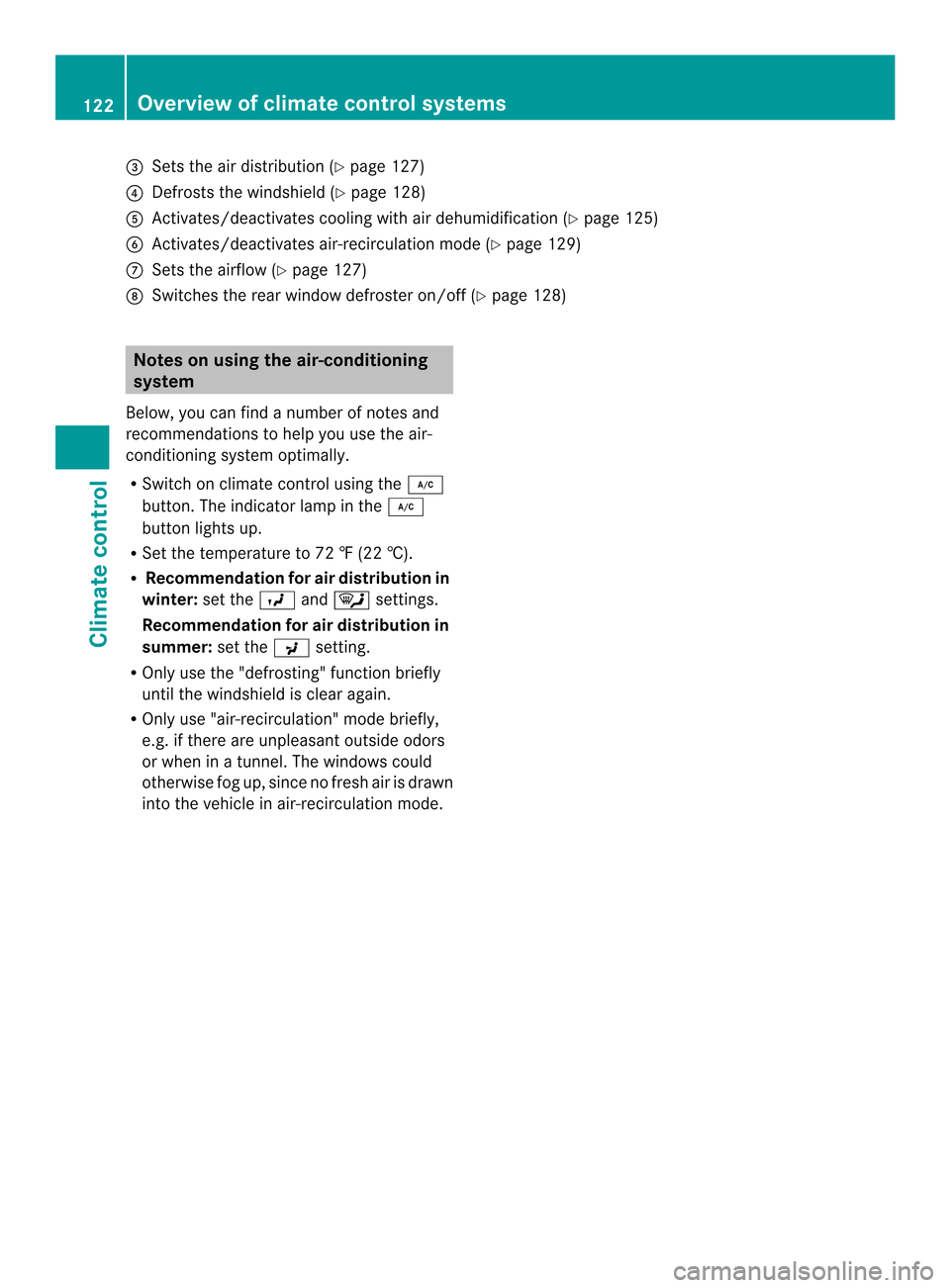

Below, you can find a number of notes and
recommendations to help you use the air-
conditioning system optimally.
R Switch on climate control using the 0006
button. The indicator lamp in the 0006
button lights up.
R Set the temperature to 72 ‡ (22 †).
R Recommendation for air distribution in
winter: set the001Cand0007 settings.
Recommendation for air distribution in
summer: set the001Dsetting.
R Only use the "defrosting" function briefly
until the windshield is clear again.
R Only use "air-recirculation" mode briefly,
e.g. if there are unpleasan toutside odors
or when in a tunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode. 122
Overview of climate control systemsClimate cont
rol
Page 125 of 358

Control panel for 2-zone automatic climate control
Canada only
0003
Sets the temperature, left (Y page 126)
0004 Defrosts the windshield (Y page 128)
0024 Switches the ZONE function on/off
0023 Activates/deactivates coolin gwith air dehumidification ( Ypage 125)
Activates/deactivates the residual heat function (Y page 129)
0021 Switches the rear window defroster on/off (Y page 128)
0022 Sets the temperature, right (Y page 126)
0015 Activates/deactivates air-recirculation mode (Y page 129)
0016 Sets the air distribution (Y page 127)
0017 Increases the airflow (Y page 127)
0018 Reduces the airflow ( Ypage 127)
0019 Switches climate control on/off (Y page 125)
001B Sets climate control to automatic (Y page 126) Overview of climate control systems
123Climate control Z
Page 126 of 358

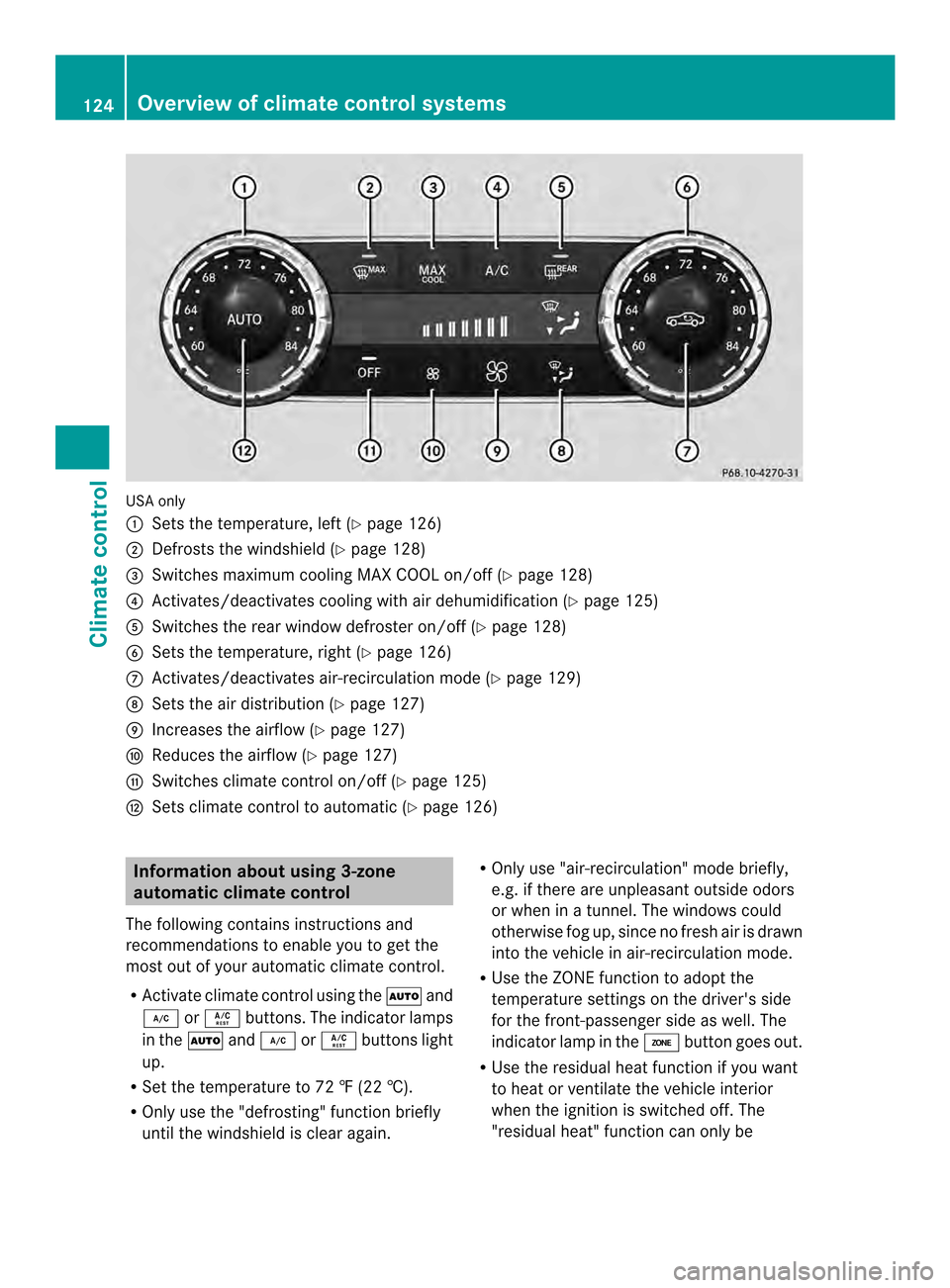

USA only
0003
Sets the temperature, left (Y page 126)
0004 Defrosts the windshield (Y page 128)
0024 Switches maximum cooling MAX COOL on/off (Y page 128)
0023 Activates/deactivates cooling with air dehumidification (Y page 125)
0021 Switches the rear window defroster on/off (Y page 128)
0022 Sets the temperature, right (Y page 126)
0015 Activates/deactivates air-recirculation mode (Y page 129)
0016 Sets the air distribution (Y page 127)
0017 Increases the airflow (Y page 127)
0018 Reduces the airflow (Y page 127)
0019 Switches climate control on/off (Y page 125)
001B Sets climate control to automatic (Y page 126)Information about using 3-zone
automatic climate control
The following contains instructions and
recommendations to enable you to get the
most out of your automatic climate control.
R Activate climate control using the 0005and
0006 or0004 buttons. The indicator lamps
in the 0005and0006 or0004 buttons light
up.
R Set the temperature to 72 ‡ (22 †).
R Only use the "defrosting" function briefly
until the windshield is clear again. R
Only use "air-recirculation" mode briefly,
e.g. if there are unpleasant outside odors
or when in a tunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side as well.T he
indicator lamp in the 0003button goes out.
R Use the residual heat function if you want
to heat or ventilate the vehicle interior
when the ignition is switched off. The
"residual heat" function can only be 124
Overview of climate control systemsClimate control
Page 127 of 358

activated or deactivated with the ignition
switched off. Operating the climate control
systems

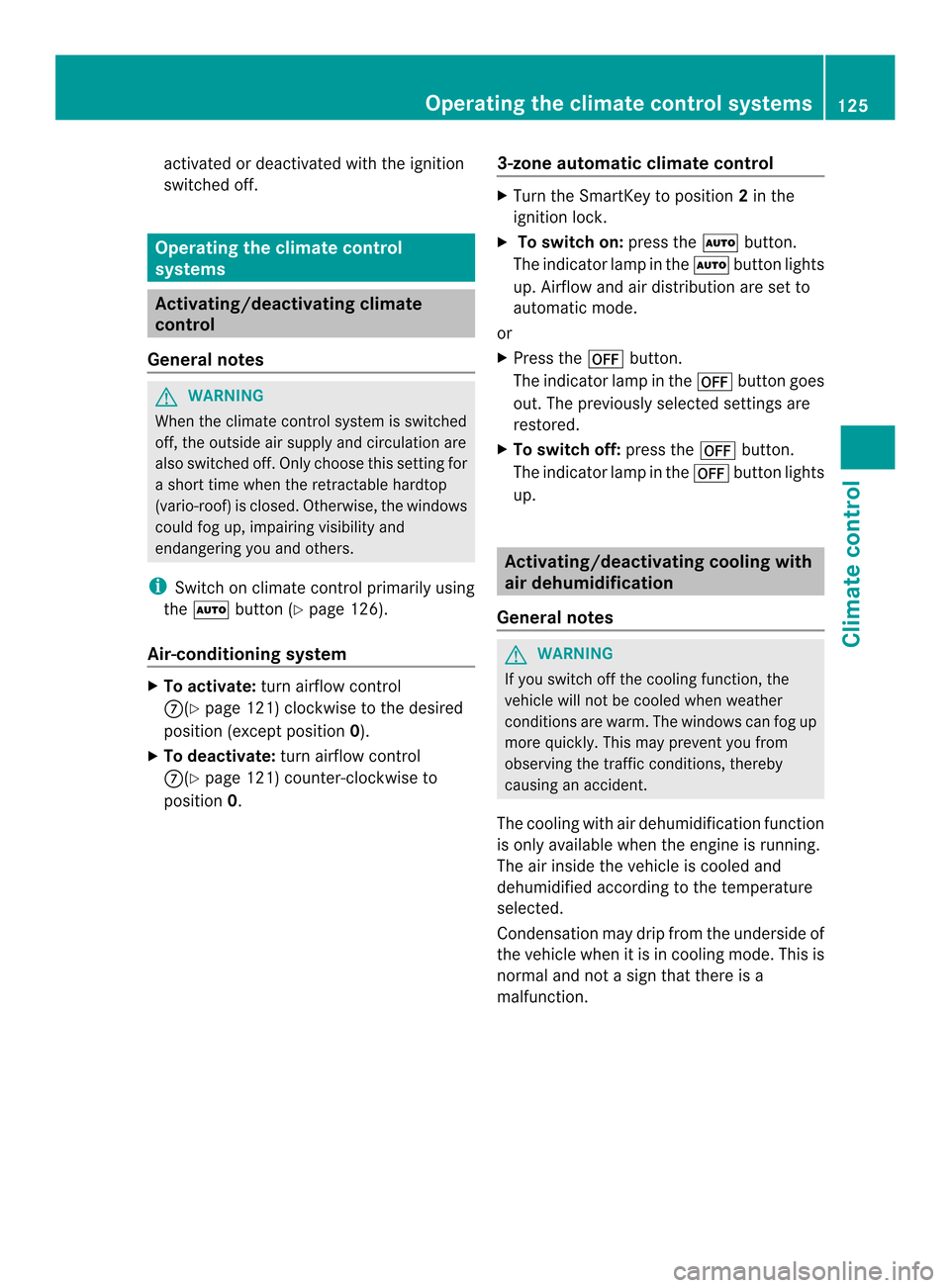

Activating/deactivating climate
control
General notes G
WARNING
When the climate control system is switched
off, the outside air supply and circulation are
also switched off .Only choose this setting for
a short time when the retractable hardtop
(vario-roof) is closed .Otherwise, the windows
could fog up, impairing visibility and
endangering you and others.
i Switch on climate control primarily using
the 0005 button ( Ypage 126).
Air-conditioning system X
To activate: turn airflow control
0015(Y page 121) clockwise to the desired
positio n(except position 0).
X To deactivate: turn airflow control
0015(Y page 121) counter-clockwise to
position 0. 3-zone automatic climate control X
Turn the SmartKey to position 2in the
ignition lock.
X To switch on: press the0005button.
The indicator lamp in the 0005button lights
up. Airflow and air distribution are set to
automatic mode.
or
X Press the 000Cbutton.
The indicator lamp in the 000Cbutton goes
out. The previously selected settings are
restored.
X To switch off: press the000Cbutton.
The indicator lamp in the 000Cbutton lights
up. Activating/deactivating cooling with
air dehumidification
General notes G
WARNING
If you switch off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog up
more quickly. This may preven tyou from
observing the traffic conditions, thereby
causing an accident.
The cooling with air dehumidification function
is only available when the engine is running.
The air inside the vehicle is cooled and
dehumidified according to the temperature
selected.
Condensation may drip from the underside of
the vehicle when it is in cooling mode. This is
normal and not a sign that there is a
malfunction. Operating the climate control systems
125Climate control Z
Page 128 of 358

Activating/deactivating
X
To switch on: press the0006or0004
button.
The indicator lamp in the 0006or0004
butto nlights up.
X To deactivate: press the0006or0004
button.
The indicator lamp in the 0006or0004
button goes out. The cooling with air
dehumidification function has a delayed
switch-off feature.

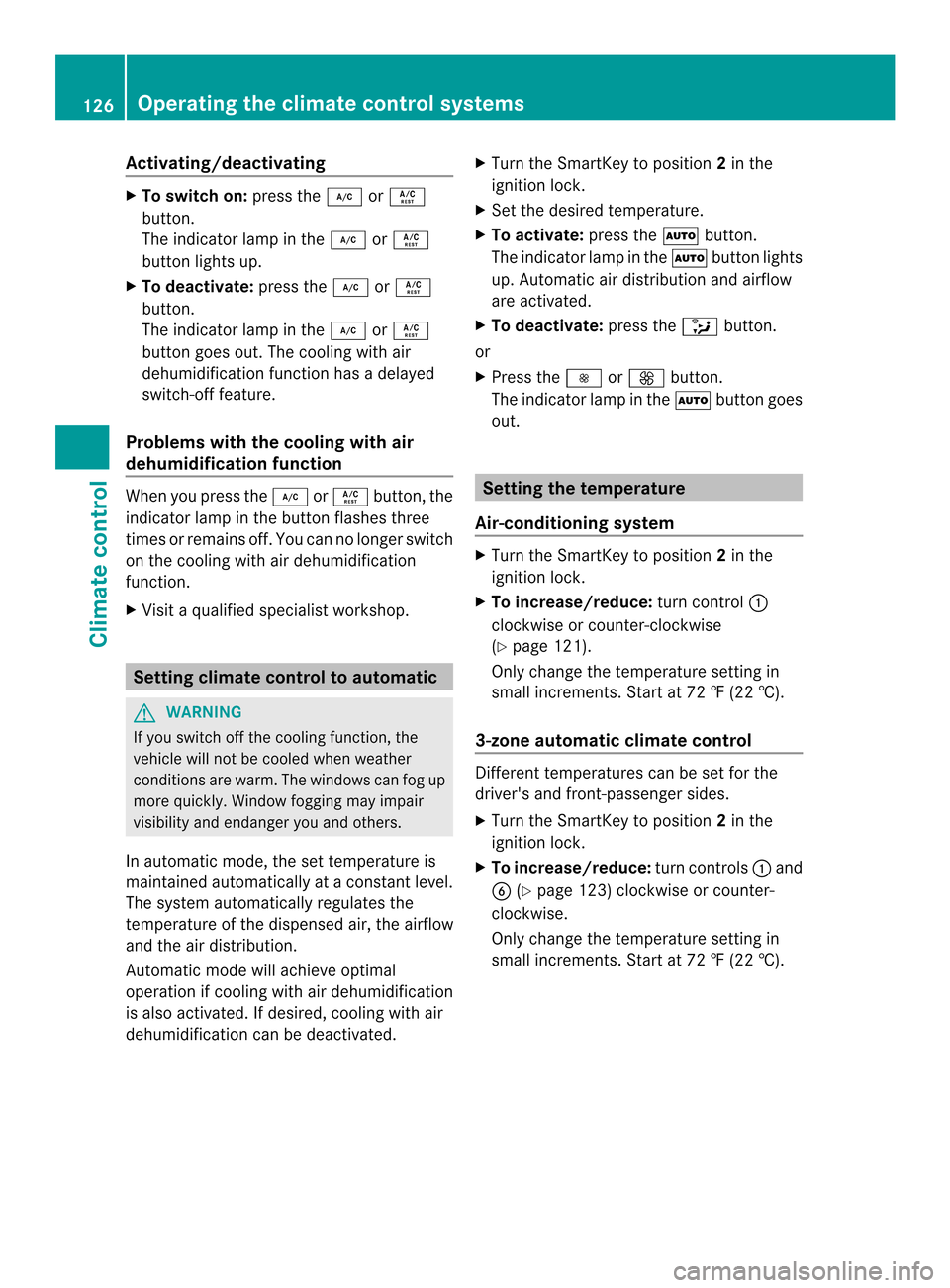

Problems with the cooling with air
dehumidification function When you press the
0006or0004 button, the
indicator lamp in the button flashes three
times or remains off .You can no longer switch
on the cooling with air dehumidification
function.
X Visit a qualified specialist workshop. Setting climate control to automatic
G
WARNING
If you switch off the cooling function, the
vehicle will not be cooled when weather
conditions are warm. The windows can fog up
more quickly. Window fogging may impair
visibility and endanger you and others.
In automatic mode, the set temperature is
maintained automatically at a constant level.
The system automatically regulates the
temperature of the dispensed air, the airflow
and the air distribution.
Automatic mode will achieve optimal
operation if cooling with air dehumidification
is also activated. If desired, cooling with air
dehumidification can be deactivated. X
Turn the SmartKey to position 2in the
ignition lock.
X Set the desired temperature.
X To activate: press the0005button.
The indicator lamp in the 0005button lights
up. Automatic air distribution and airflow
are activated.
X To deactivate: press the0019button.
or
X Press the 001Aor001B button.
The indicator lamp in the 0005button goes
out. Setting the temperature
Air-conditioning system X
Turn the SmartKey to position 2in the
ignition lock.
X To increase/reduce: turn control0003
clockwise or counter-clockwise
(Y page 121).
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †).
3-zone automatic climate control Different temperatures can be set for the
driver's and front-passenger sides.
X Turn the SmartKey to position 2in the
ignition lock.
X To increase/reduce: turn controls0003and
0022 (Ypage 123) clockwise or counter-
clockwise.
Only change the temperature setting in
small increments. Start at 72 ‡ (22 †). 126
Operating the climate control systemsClimate control
Page 129 of 358

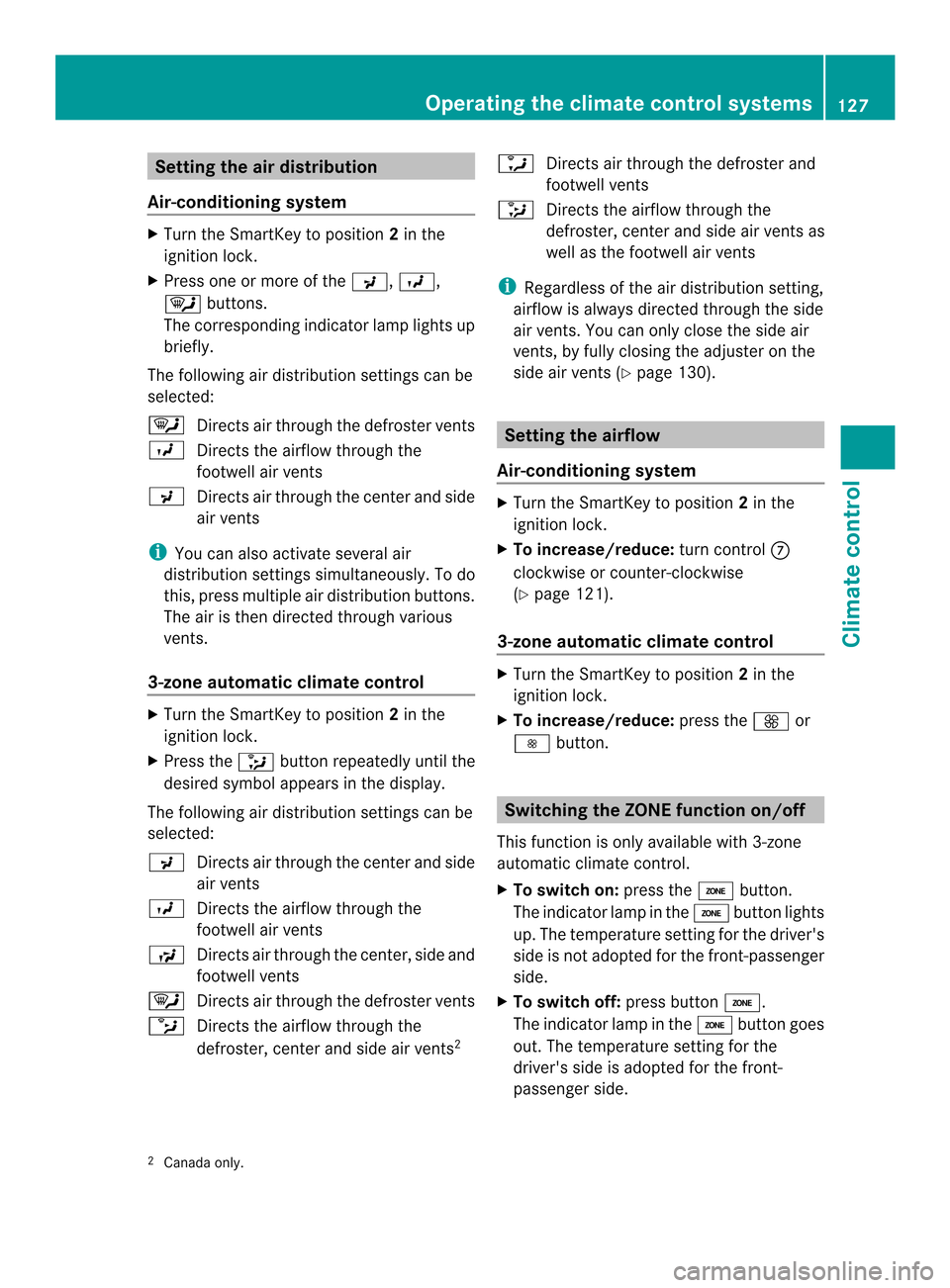

Setting the air distribution
Air-conditioning system X
Turn the SmartKey to position 2in the
ignition lock.
X Press one or more of the 001D,001C,
0007 buttons.
The corresponding indicator lamp lights up
briefly.
The following air distribution settings can be
selected:
0007 Directs air through the defroster vents
001C Directs the airflow through the
footwell air vents
001D Directs air through the center and side
air vents
i You can also activate several air
distribution settings simultaneously .To do
this, press multiple air distribution buttons.
The air is then directed through various
vents.
3-zone automatic climate control X
Turn the SmartKey to position 2in the
ignition lock.
X Press the 0019button repeatedly until the
desired symbol appears in the display.
The following air distribution settings can be
selected:
001D Directs air through the center and side
air vents
001C Directs the airflow through the
footwell air vents
001E Directs air through the center, side and
footwell vents
0007 Directs air through the defroster vents
0018 Directs the airflow through the
defroster, center and side air vents 20017
Directs air through the defroster and
footwell vents
0019 Directs the airflow through the
defroster, center and side air vents as
well as the footwell air vents
i Regardless of the air distribution setting,
airflow is always directed through the side
air vents. You can only close the side air
vents, by fully closing the adjuster on the
side air vents (Y page 130). Setting the airflow
Air-conditioning system X
Turn the SmartKey to position 2in the
ignition lock.
X To increase/reduce: turn control0015
clockwise or counter-clockwise
(Y page 121).
3-zone automatic climate control X
Turn the SmartKey to position 2in the
ignition lock.
X To increase/reduce: press the001Bor
001A button. Switching the ZONE function on/off
This function is only available with 3-zone
automatic climate control.
X To switch on: press the0003button.
The indicator lamp in the 0003button lights
up. The temperature setting for the driver's
side is not adopted for the front-passenger
side.
X To switch off: press button0003.
The indicator lamp in the 0003button goes
out. The temperature setting for the
driver's side is adopted for the front-
passenger side.
2 Canada only. Operating the climate control systems
127Climate control Z
Page 130 of 358

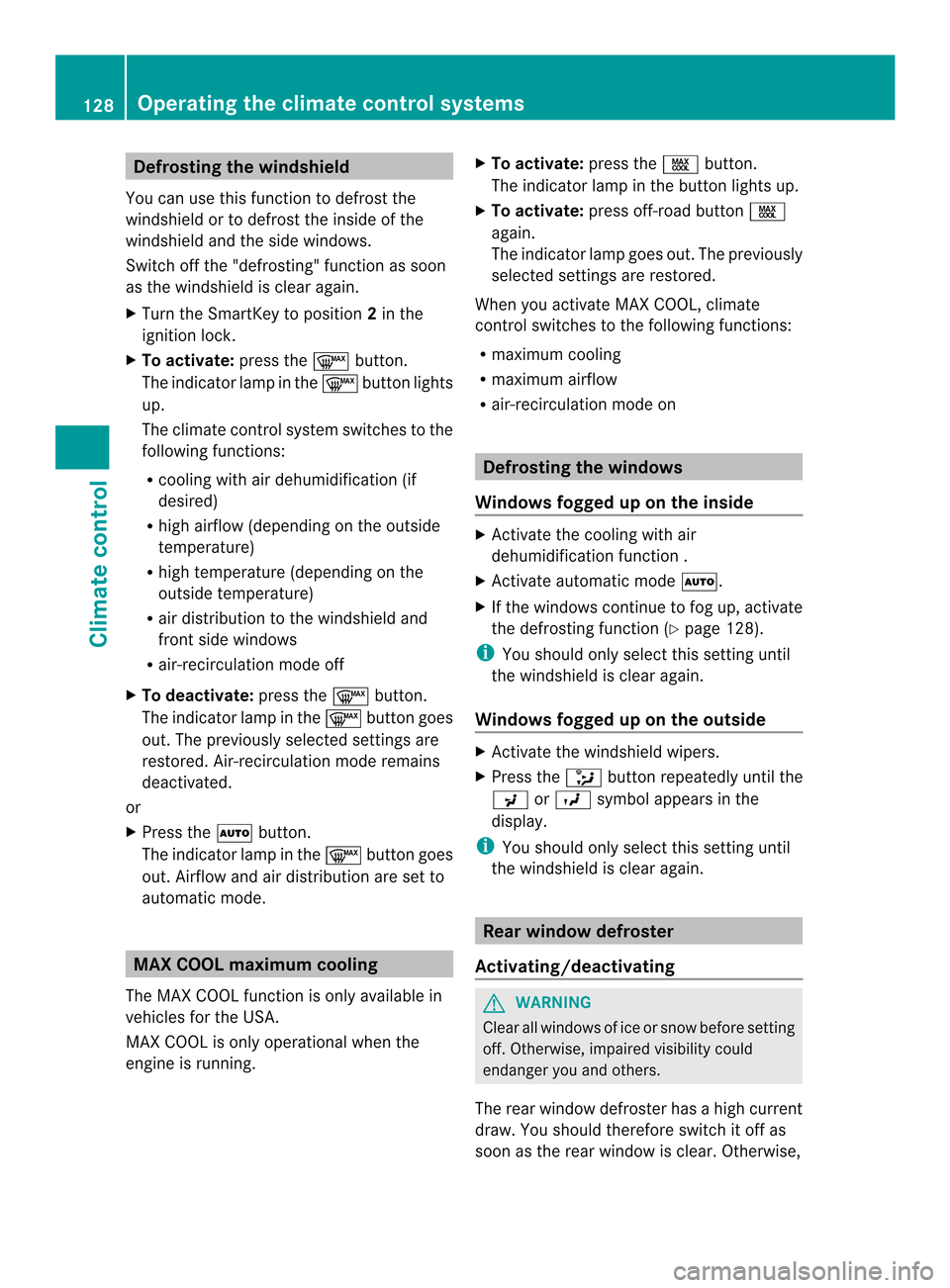

Defrosting the windshield
You can use this function to defrost the
windshield or to defrost th einside of the
windshield and the side windows.
Switch off the "defrosting" functio nas soon
as the windshield is clear again.
X Turn the SmartKey to position 2in the
ignition lock.
X To activate: press the000Bbutton.
The indicator lamp in the 000Bbutton lights
up.
The climate control system switches to the
following functions:
R cooling with air dehumidification (if
desired)
R high airflow (depending on the outside
temperature)
R high temperature (depending on the
outside temperature)
R air distribution to the windshield and
front side windows
R air-recirculation mode off
X To deactivate: press the000Bbutton.
The indicator lamp in the 000Bbutton goes
out. The previously selected settings are
restored. Air-recirculation mode remains
deactivated.
or
X Press the 0005button.
The indicator lamp in the 000Bbutton goes
out. Airflow and air distribution are set to
automatic mode. MAX COOL maximumc
ooling
The MAX COOL function is only available in
vehicles for the USA.
MAX COOL is only operational when the
engine is running. X
To activate: press the0001button.
The indicator lamp in the button lights up.
X To activate: press off-road button 0001
again.
The indicator lamp goes out .The previously
selected settings are restored.
When you activate MAX COOL, climate
control switches to the following functions:
R maximum cooling
R maximum airflow
R air-recirculation mode on Defrosting the windows
Windows fogged up on the inside X
Activate the cooling with air
dehumidification function .
X Activate automatic mode 0005.
X If the windows continue to fog up, activate
the defrosting function (Y page 128).
i You should only select this setting until
the windshield is clear again.
Windows fogged up on the outside X
Activate the windshield wipers.
X Press the 0019button repeatedly until the
001D or001C symbol appears in the
display.
i You should only select this setting until
the windshield is clear again. Rear window defroster
Activating/deactivating G
WARNING
Clear all windows of ice or snow before setting
off. Otherwise, impaired visibility could
endanger you and others.
The rear window defroster has a high current
draw. You should therefore switch it off as
soon as the rear window is clear. Otherwise, 128
Operating the climate control systemsClimate control
