Page 341 of 356

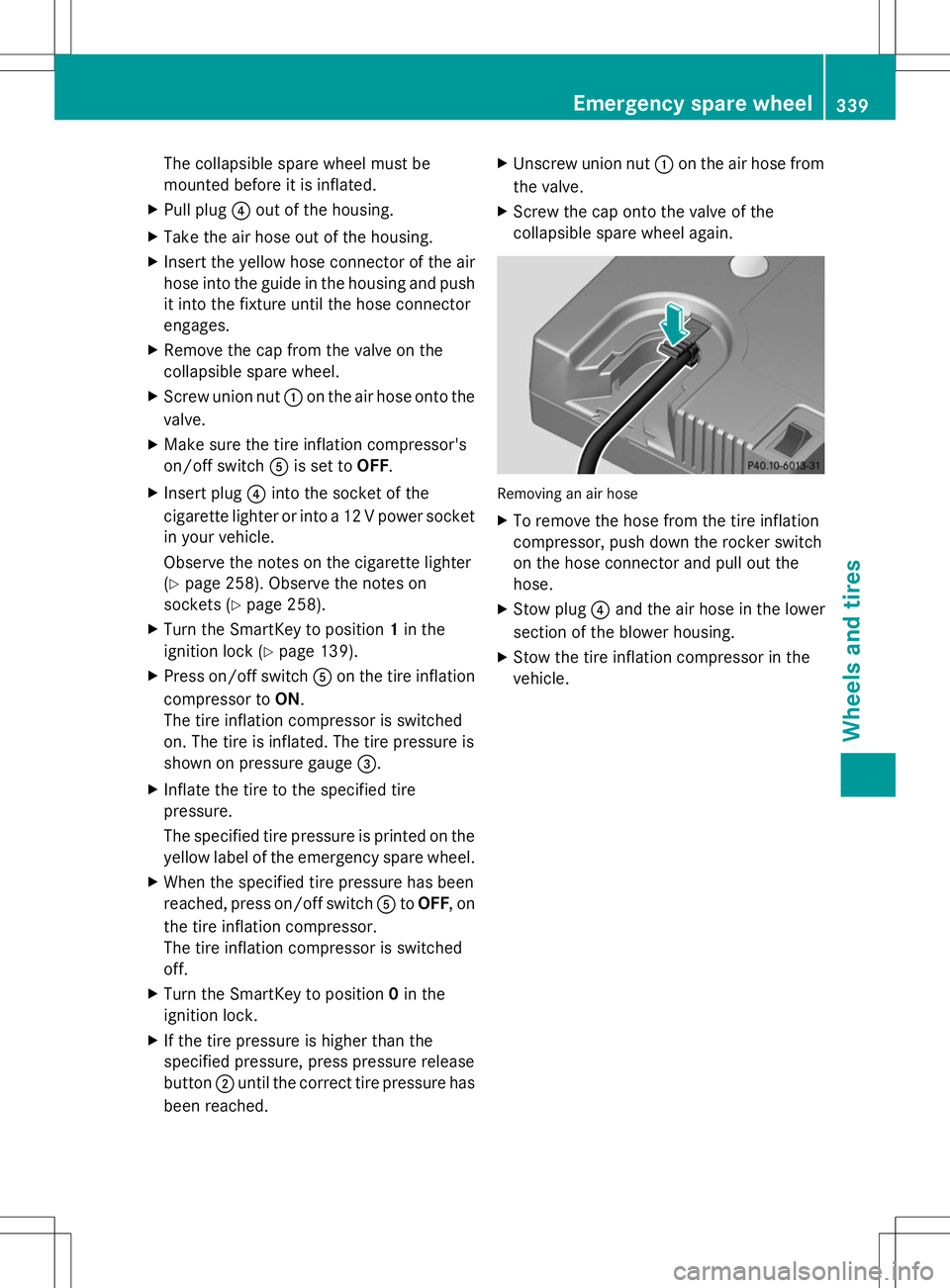

MERCEDES-BENZ SLK-CLASS ROADSTER 2014  Owners Manual The collapsible spare wheel must be
mounted before it is inflated.
X Pull plug ?out of the housing.
X Take the air hose out of the housing.
X Insert the yellow hose connector of the air
hose into the

Page 342 of 356

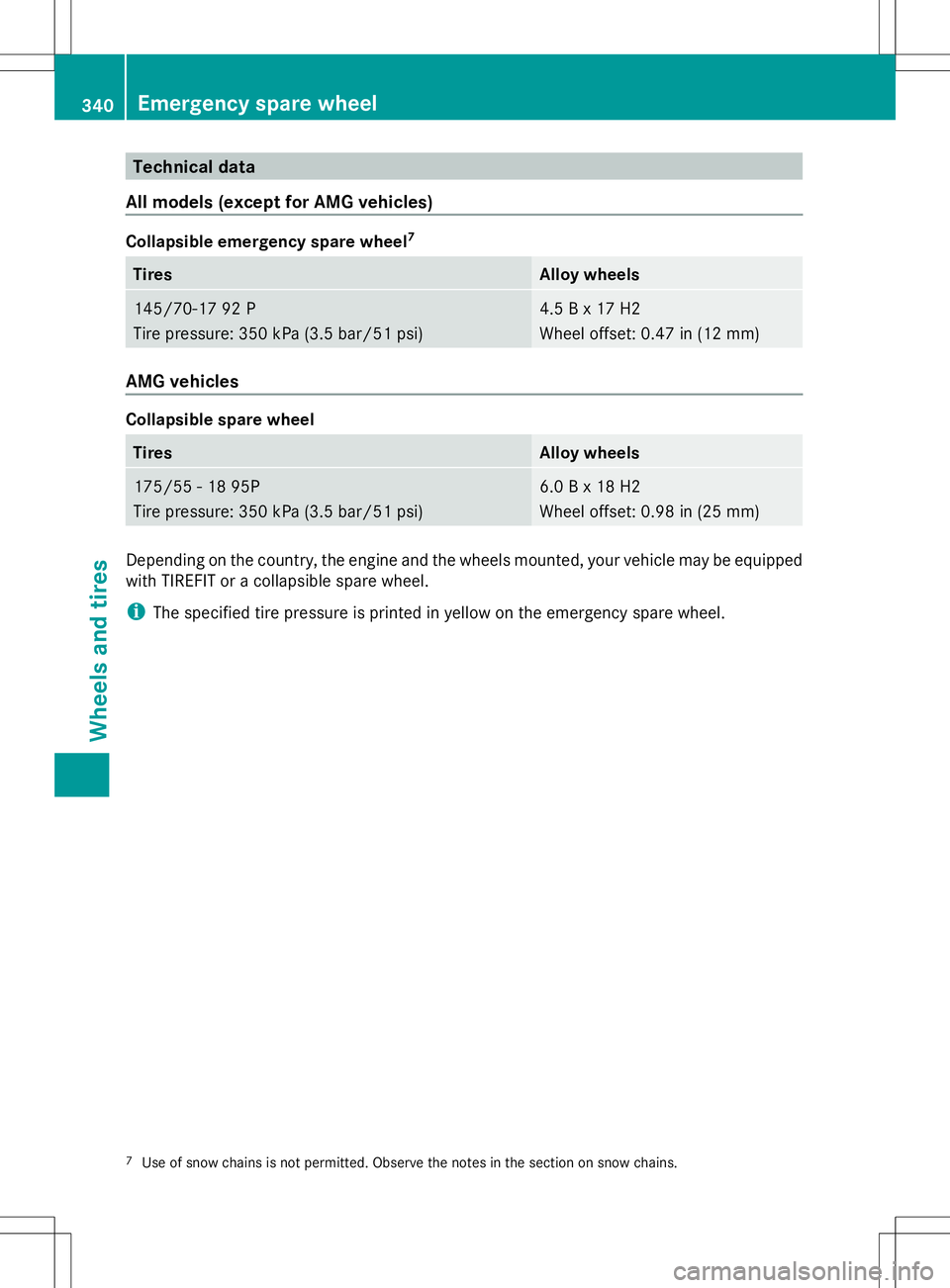

MERCEDES-BENZ SLK-CLASS ROADSTER 2014  Owners Manual Technical data
All models (except for AMG vehicles) Collapsible emergency spare wheel
7Tires Alloy wheels
145/70-17 92 P
Tire pressure: 350 kPa (3.5 bar/51 psi) 4.5 B x 17 H2
Wheel offset: 0.47 in (12

Page 343 of 356

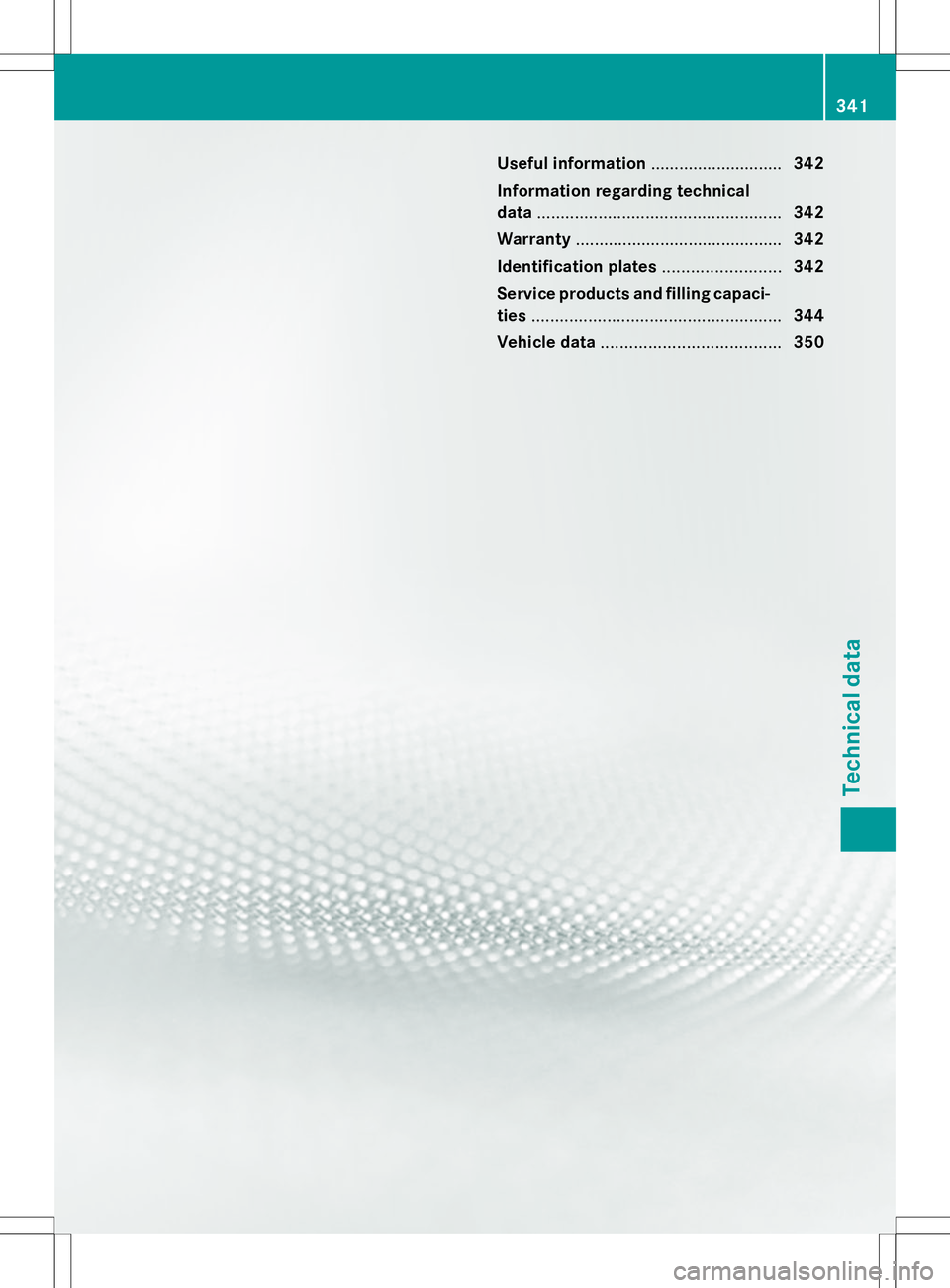

MERCEDES-BENZ SLK-CLASS ROADSTER 2014  Owners Manual Useful information
............................342
Information regarding technical
data .................................................... 342
Warranty ............................................ 3

Page 344 of 356

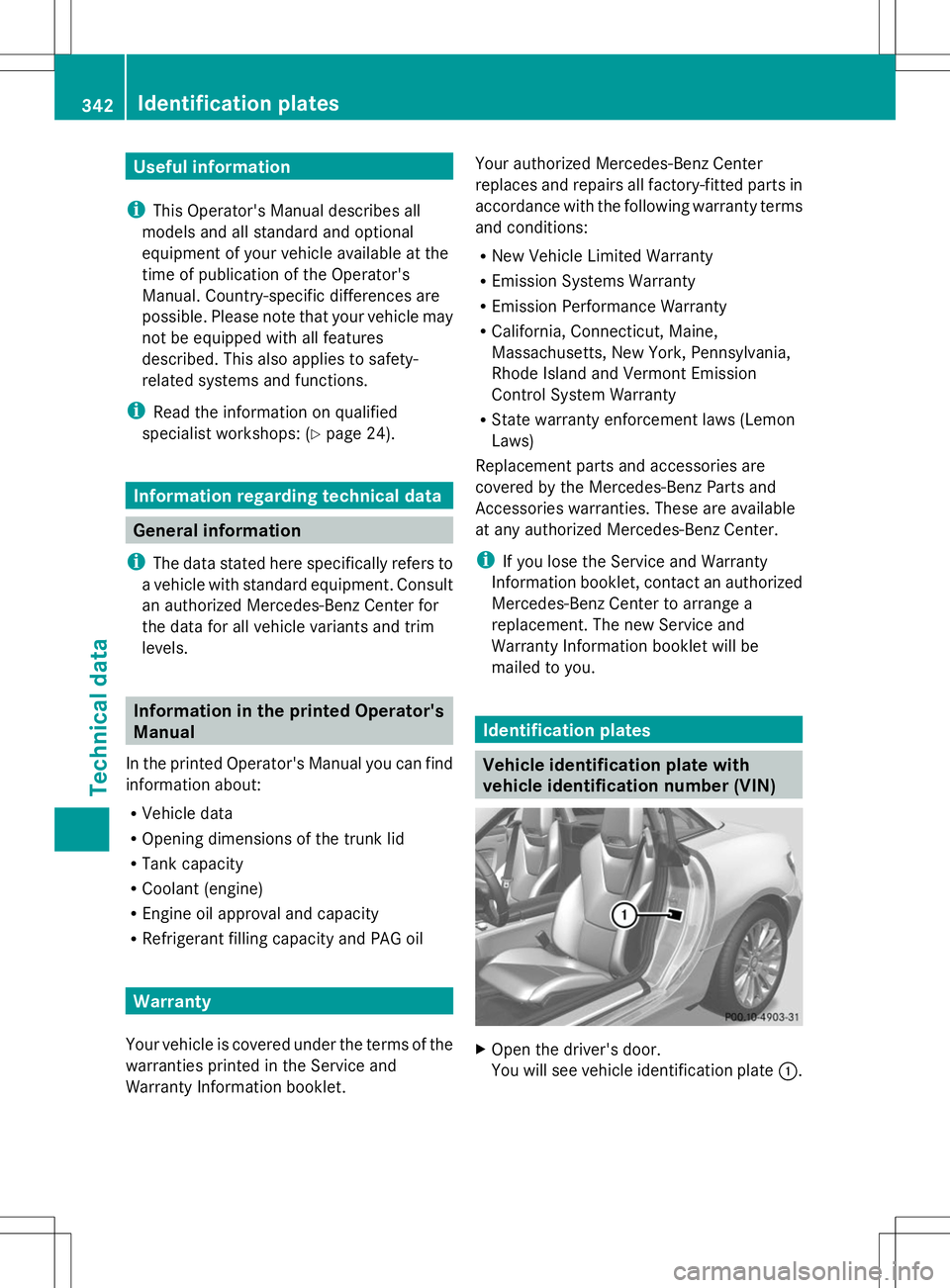

MERCEDES-BENZ SLK-CLASS ROADSTER 2014  Owners Manual Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-

Page 345 of 356

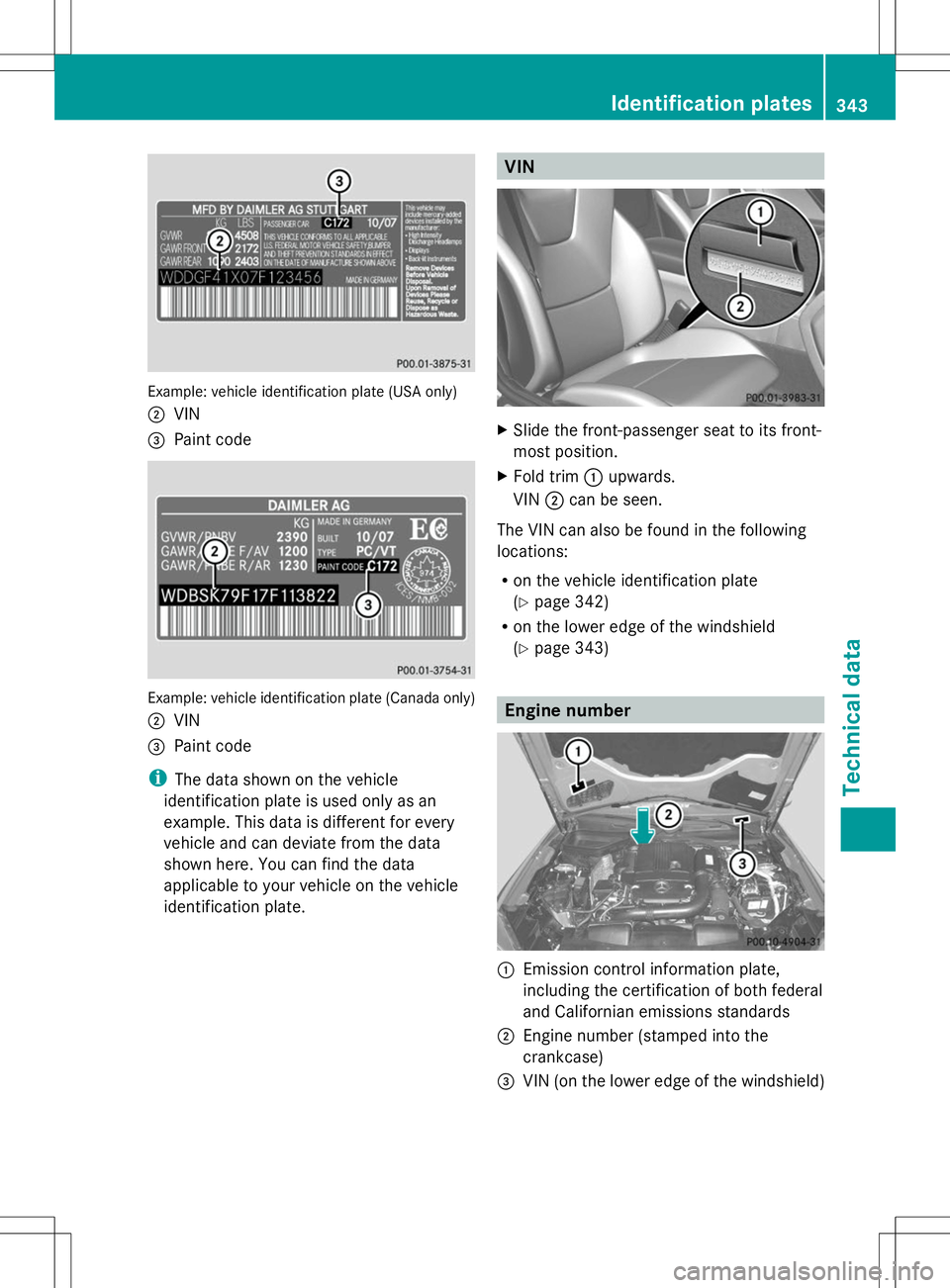

MERCEDES-BENZ SLK-CLASS ROADSTER 2014  Owners Manual Example: vehicle identification plate (USA only)
; VIN
= Paint code Example: vehicle identification plate (Canada only)
; VIN
= Paint code
i The data shown on the vehicle
identification plate is used

Page 346 of 356

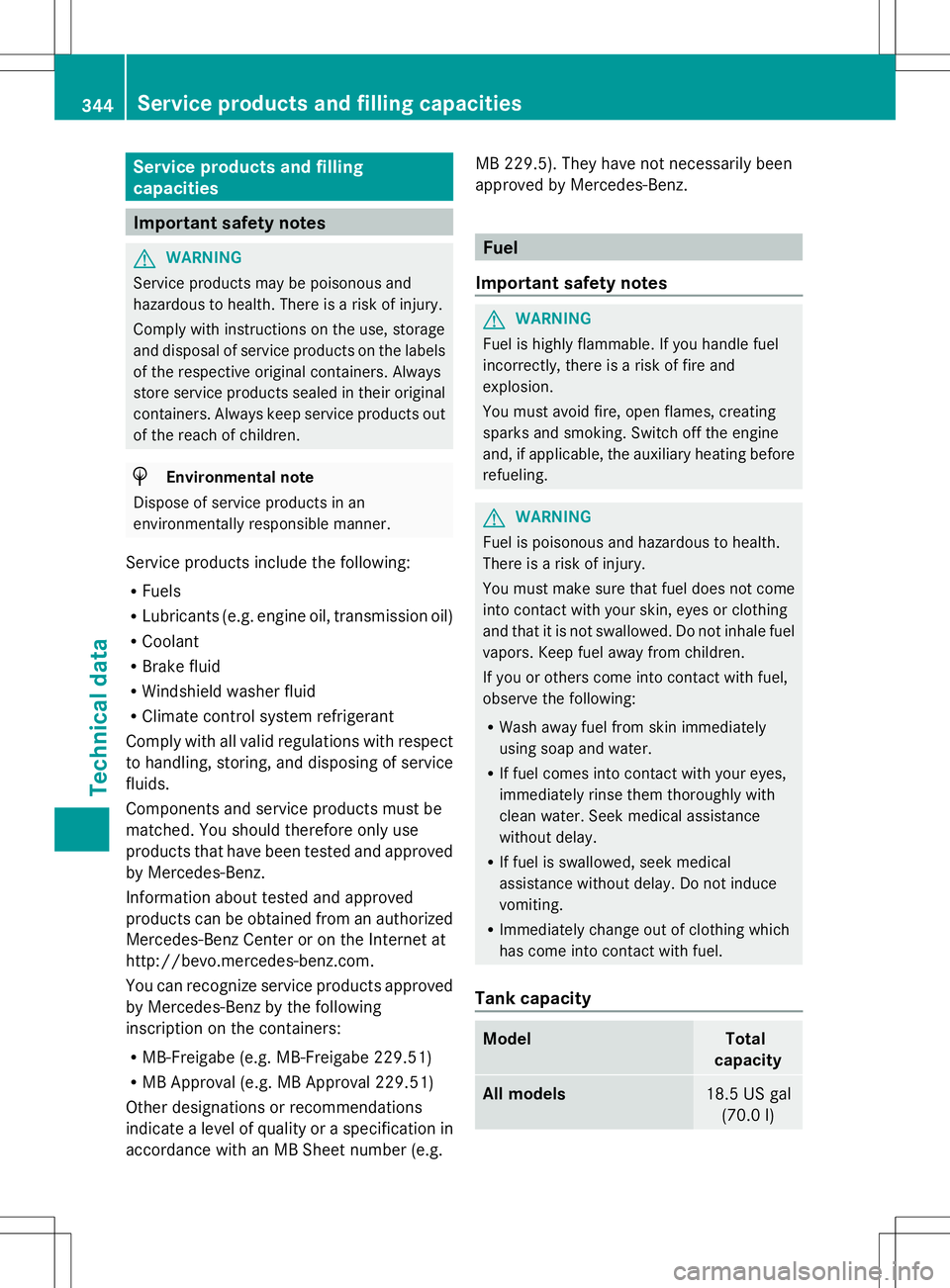

MERCEDES-BENZ SLK-CLASS ROADSTER 2014  Owners Manual Service products and filling
capacities
Important safety notes
G
WARNING
Service products may be poisonous and
hazardous to health. There is a risk of injury.
Comply with instructions on the use, stor

Page 347 of 356

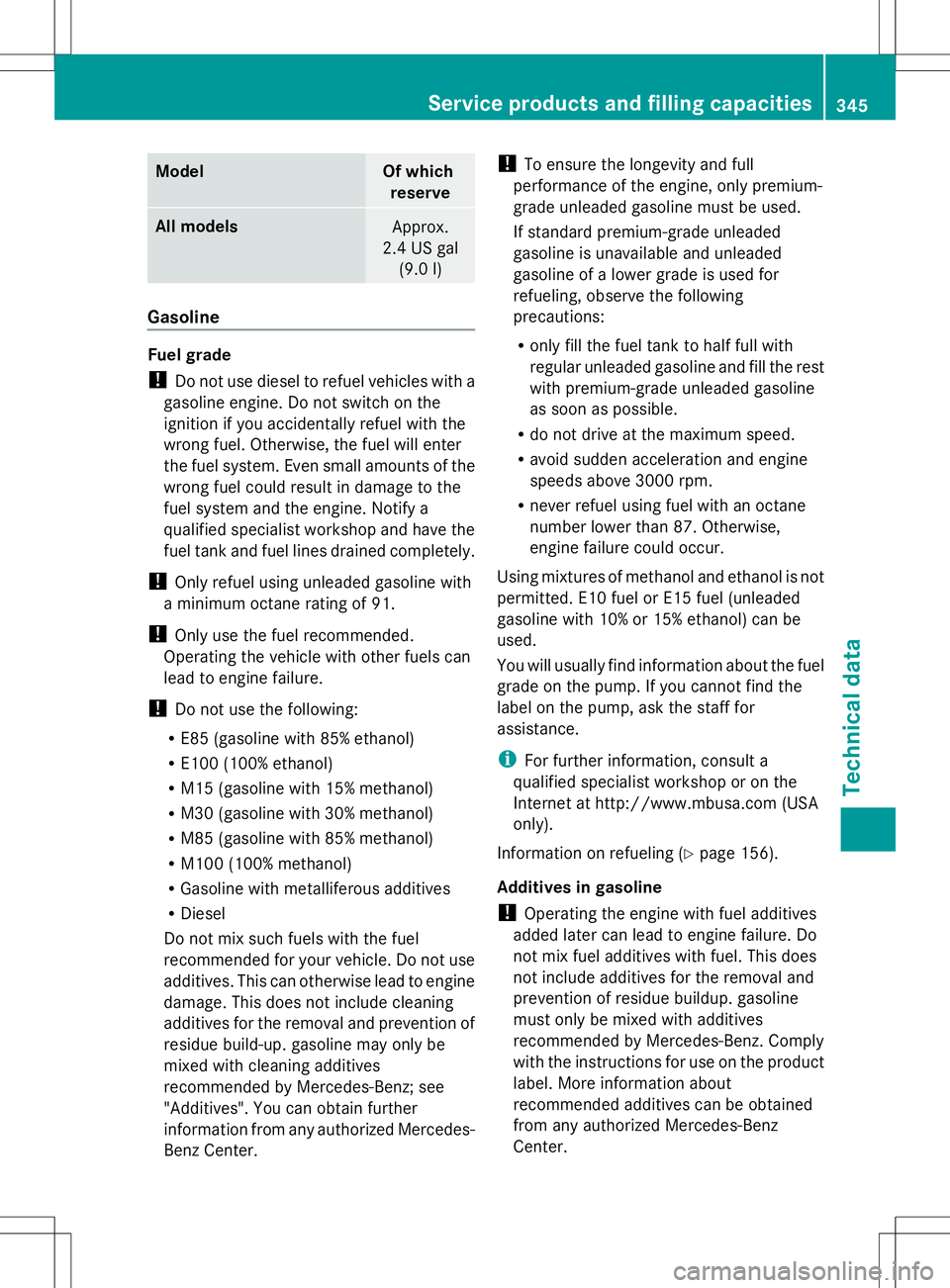

MERCEDES-BENZ SLK-CLASS ROADSTER 2014  Owners Manual Model Of which
reserve All models
Approx.
2.4 US gal (9.0 l) Gasoline
Fuel grade
!
Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the
ignition if you accidentally refuel

Page 348 of 356

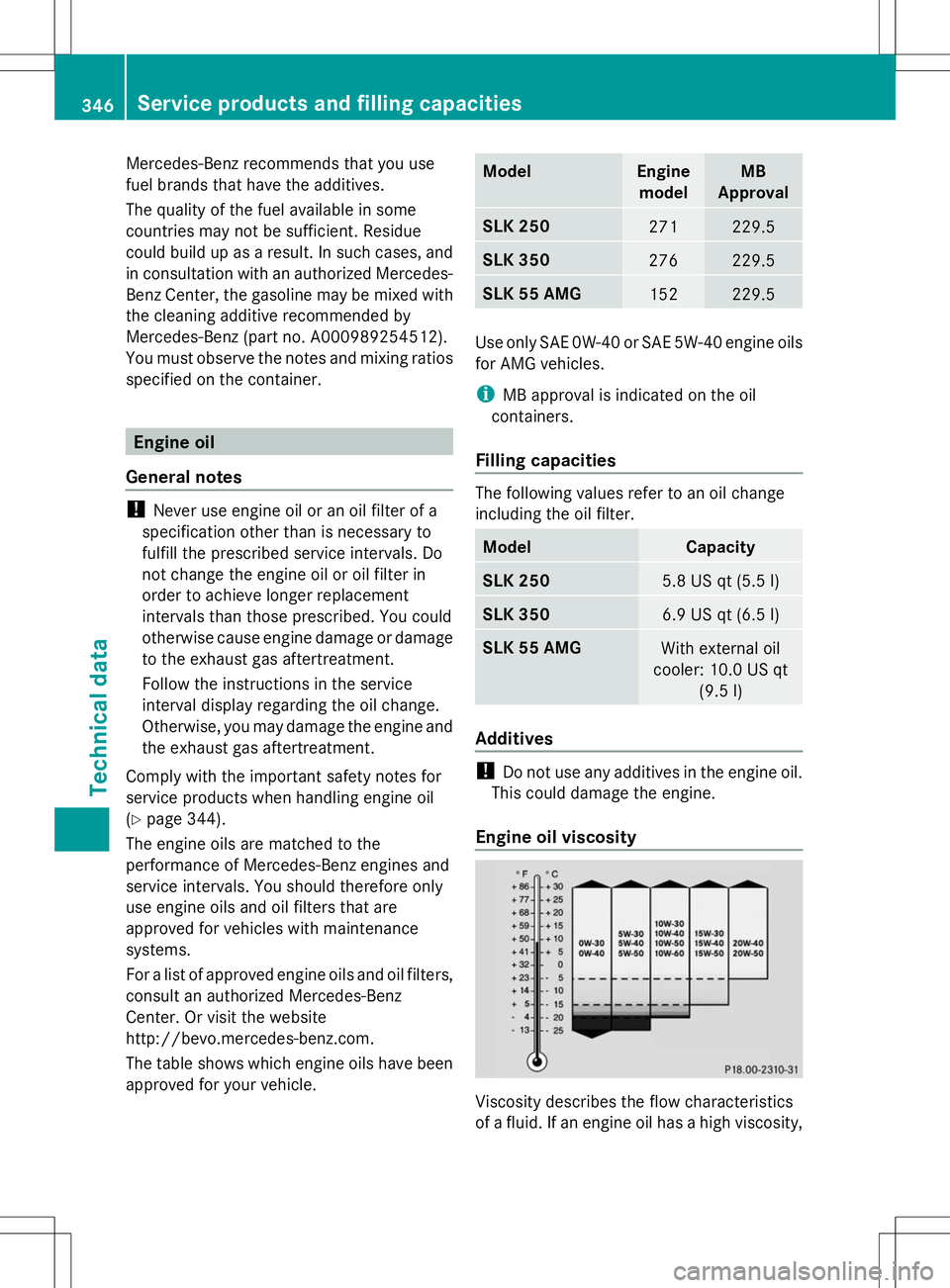

MERCEDES-BENZ SLK-CLASS ROADSTER 2014  Owners Manual Mercedes-Benz recommends that you use
fuel brands that have the additives.
The quality of the fuel available in some
countries may not be sufficient. Residue
could build up as a result. In such cases,

Page 349 of 356

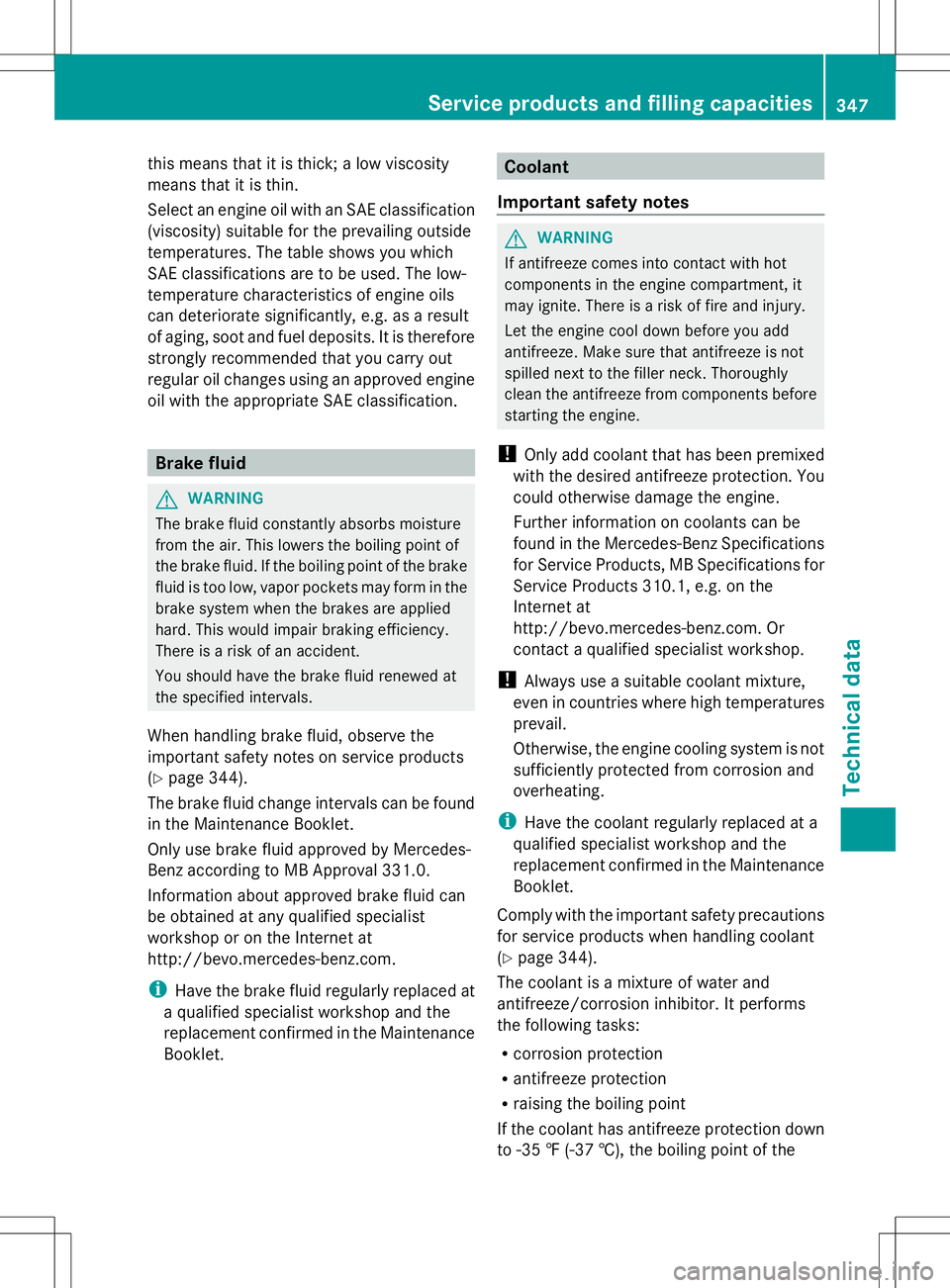

MERCEDES-BENZ SLK-CLASS ROADSTER 2014  Owners Manual this means that it is thick; a low viscosity
means that it is thin.
Select an engine oil with an SAE classification
(viscosity) suitable for the prevailing outside
temperatures. The table shows you wh

Page 350 of 356

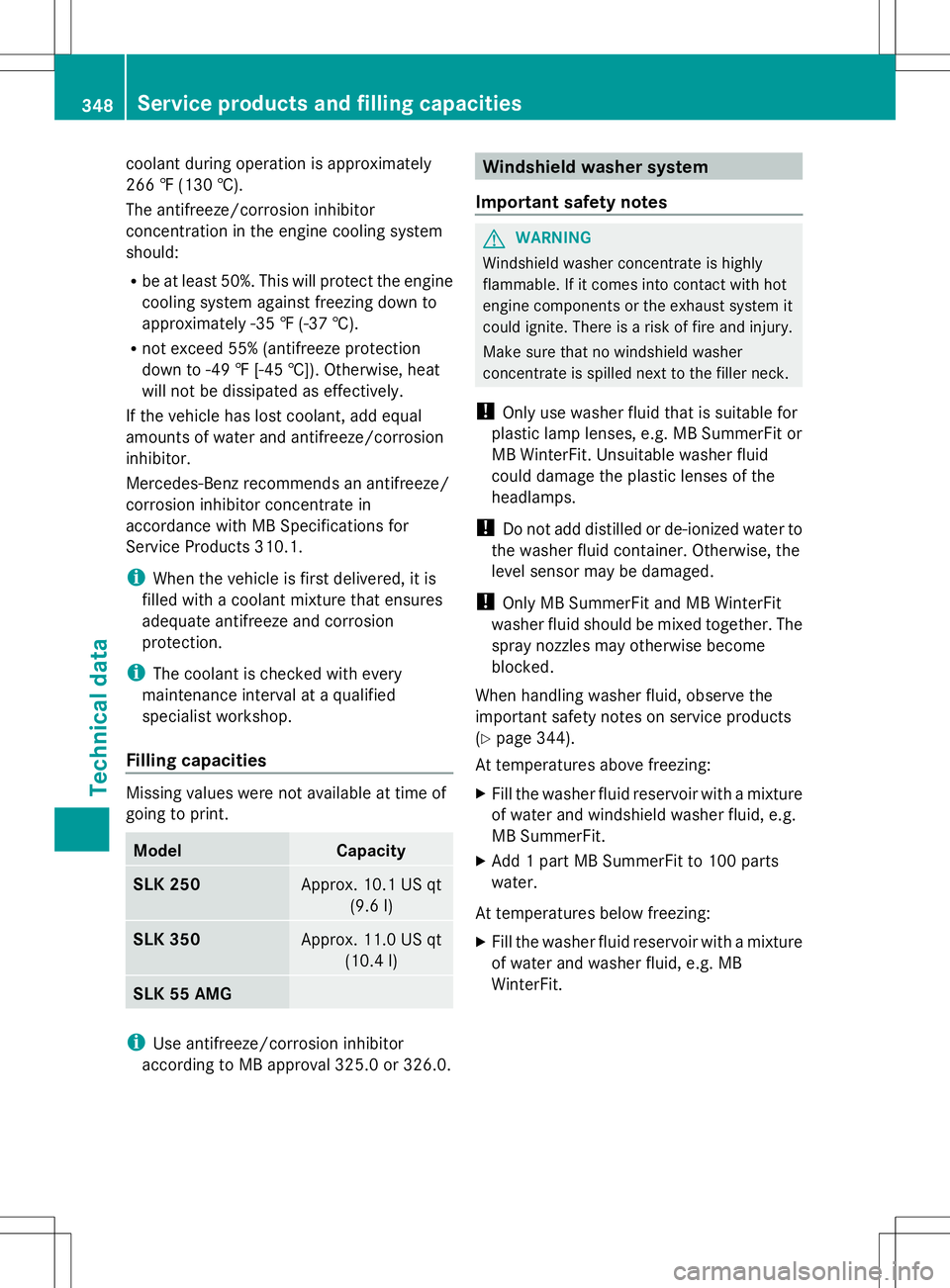

MERCEDES-BENZ SLK-CLASS ROADSTER 2014  Owners Manual coolant during operation is approximately
266 ‡ (130 †).
The antifreeze/corrosion inhibitor
concentration in the engine cooling system
should:
R be at least 50%. This will protect the engine
cooli
