MERCEDES-BENZ SLK-CLASS ROADSTER 2014 Owners Manual

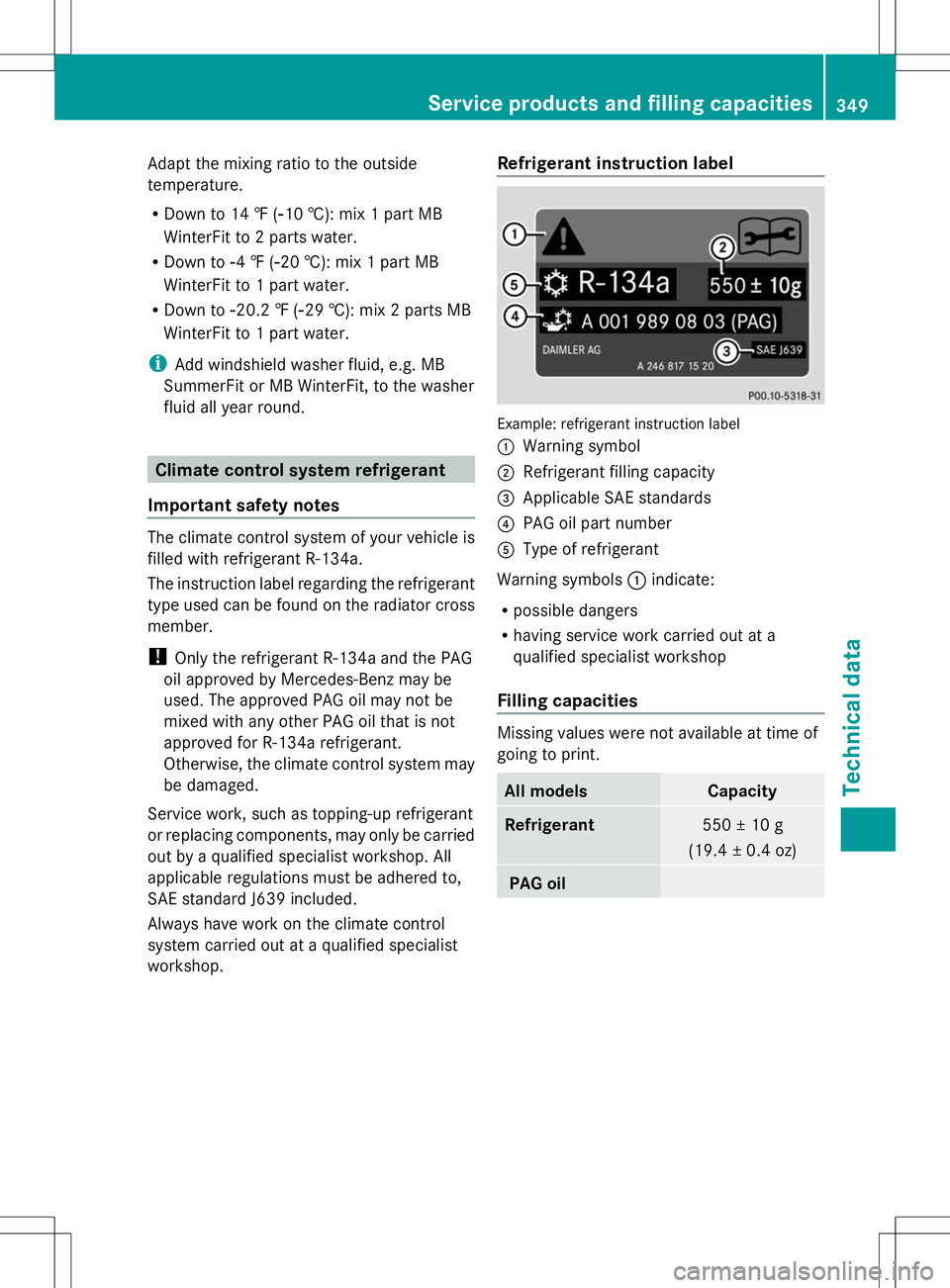

Adapt the mixing ratio to the outside
temperature.
R Down to 14 ‡ ( Ò10 †): mix 1 part MB
WinterFit to 2 parts water.
R Down to Ò4 ‡ (Ò20 †): mix 1 part MB
WinterFit to 1 part water.
R Down to Ò20.2 ‡ (Ò 29 †): mix 2 parts MB
WinterFit to 1 part water.
i Add windshield washer fluid, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round. Climate control system refrigerant
Important safety notes The climate control system of your vehicle is
filled with refrigerant R-134a.
The instruction label regarding the refrigerant
type used can be found on the radiator cross
member.
! Only the refrigerant R-134a and the PAG
oil approved by Mercedes-Benz may be
used. The approved PAG oil may not be
mixed with any other PAG oil that is not
approved for R-134a refrigerant.
Otherwise, the climate control system may
be damaged.
Service work, such as topping-up refrigerant
or replacing components, may only be carried
out by a qualified specialist workshop. All
applicable regulations must be adhered to,
SAE standard J639 included.
Always have work on the climate control
system carried out at a qualified specialist
workshop. Refrigerant instruction label Example: refrigerant instruction label
:
Warning symbol
; Refrigerant filling capacity
= Applicable SAE standards
? PAG oil part number
A Type of refrigerant
Warning symbols :indicate:
R possible dangers
R having service work carried out at a
qualified specialist workshop
Filling capacities Missing values were not available at time of
going to print.
All models Capacity
Refrigerant
550 ± 10 g
(19.4 ± 0.4 oz) PAG oilService products and filling capacities
349Technical data Z

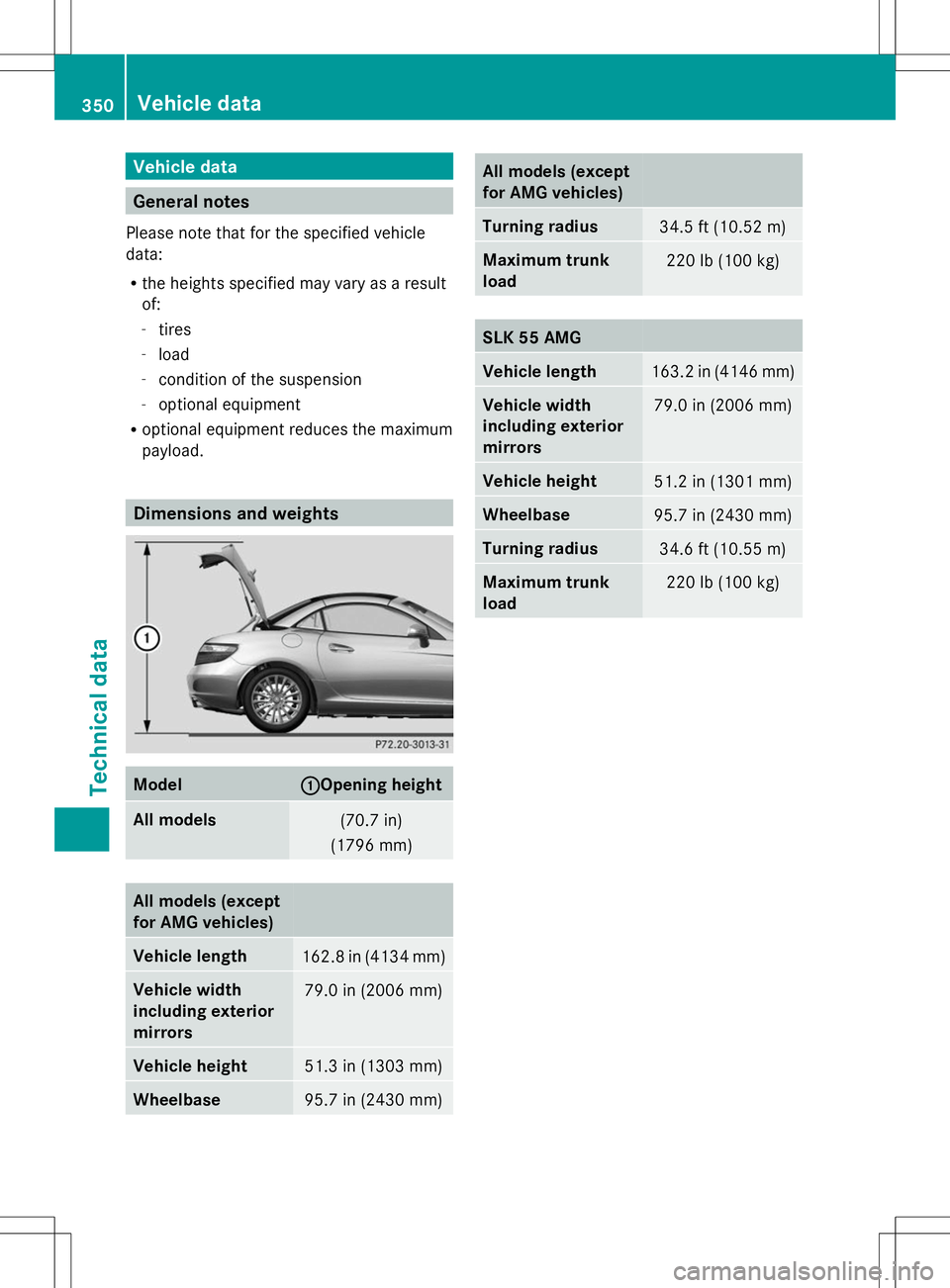

Vehicle data
General notes
Please note that for the specified vehicle
data:
R the heights specified may vary as a result
of:
- tires
- load
- condition of the suspension
- optional equipment
R optional equipment reduces the maximum
payload. Dimensions and weights
Model : :Opening height
All models
(70.7 in)
(1796 mm) All models (except
for AMG vehicles) Vehicle length
162.8 in (4134 mm)
Vehicle width
including exterior
mirrors
79.0 in (2006 mm)
Vehicle height
51.3 in (1303 mm)
Wheelbase
95.7 in (2430 mm) All models (except
for AMG vehicles)
Turning radius
34.5 ft (10.52
m) Maxi
mum trunk
load 220 lb (100 kg)
SLK 55 AMG
Vehicle length
163.2 in (4146 mm)
Vehicle width
including exterior
mirrors
79.0 in (2006 mm)
Vehicle height
51.2 in (1301 mm)
Wheelbase
95.7 in (2430 mm)
Turning radius
34.6 ft (10.55
m) Maxi
mum trunk
load 220 lb (100 kg)350
Vehicle dataTechnical data
