MERCEDES-BENZ SLK ROADSTER 2008 Owners Manual

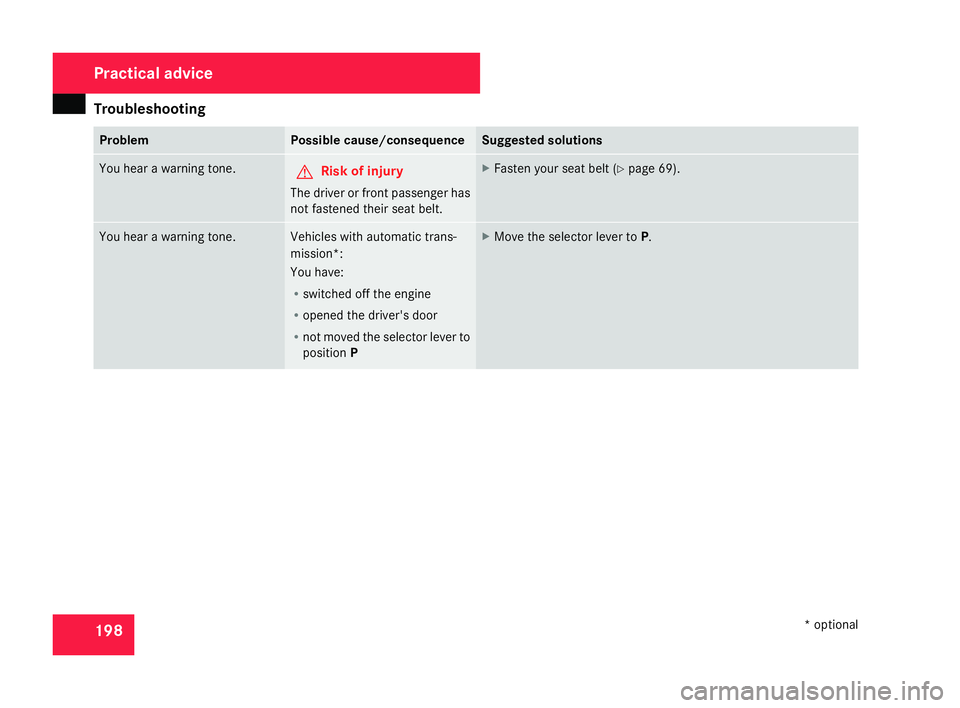

Troubleshooting
19
8 Problem Possible cause/consequence Suggested solutions
You hear a warning tone.
G
Risk of injury
The driver or front passenger ha s
not fastened their seat belt. X
Fasten your seat belt (Y page 69). You hear a warning tone. Vehicles with automatic trans-
mission*:
You have:
R
switched off the engine
R opened the driver's door
R not moved the selector lever to
position P X
Move the selector lever to P. Practical advice
* optional
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 198

Troubleshooting
19

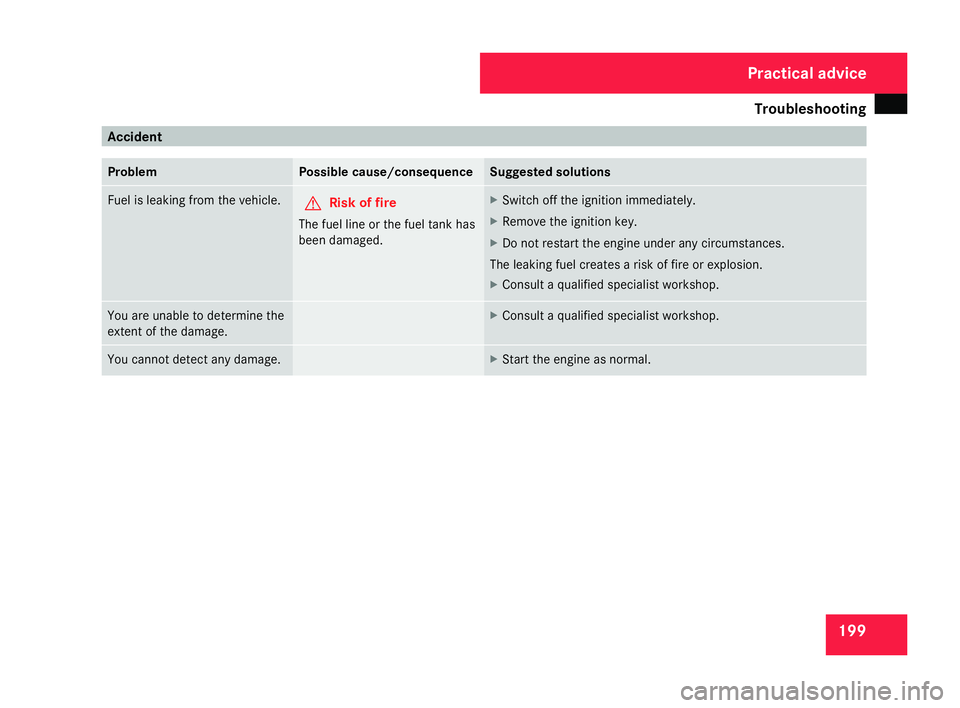

9 Accident
Problem Possible cause/consequence Suggested solutions
Fuel is leaking from the vehicle.
G
Risk of fire
The fuel line or the fuel tank ha s
been damaged. X
Switch off the ignition immediately.
X Remove the ignition key.
X Do not restart the engine under any circumstances .
The leaking fuel creates a risk of fire or explosion.
X Consult a qualified specialist workshop. You are unable to determine th
e
extent of the damage. X
Consult a qualified specialist workshop. You cannot detect any damage. X
Start the engine as normal. Practical advice
171_AKB; 3; 4, en-G
B
vpfaff7, 2007-11-13T10:50:25+01:00 - Seite 199

Troubleshooting
20

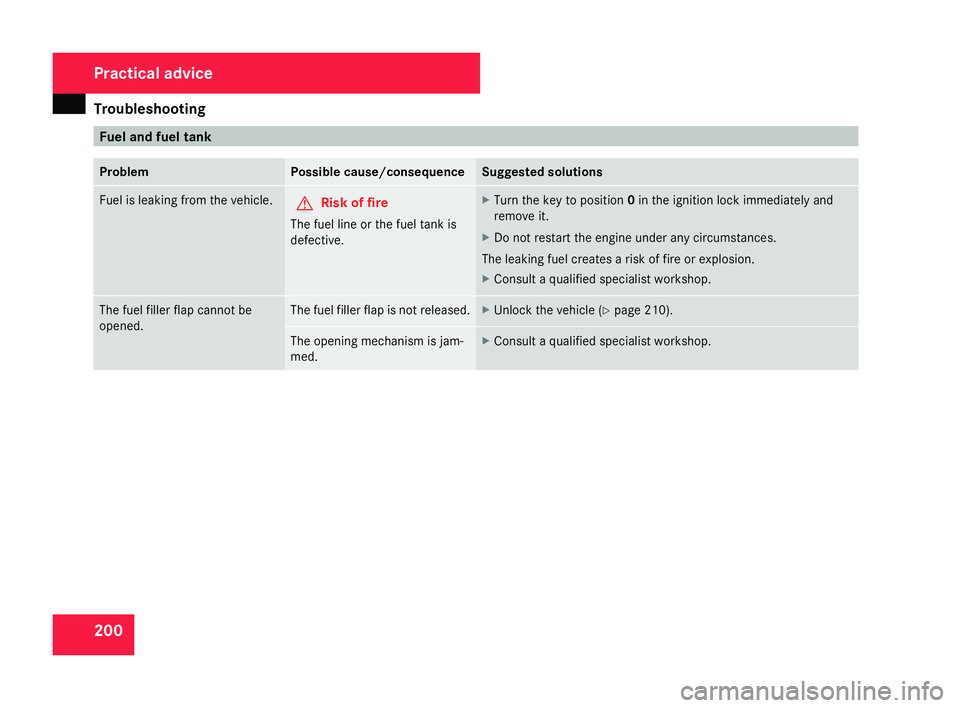

0 Fuel and fuel tank
Problem Possible cause/consequence Suggested solutions
Fuel is leaking from the vehicle.
G
Risk of fire
The fuel line or the fuel tank is
defective. X
Turn the key to position 0in the ignition lock immediately and
remove it.
X Do not restart the engine under any circumstances .
The leaking fuel creates a risk of fire or explosion.
X Consult a qualified specialist workshop. The fuel filler flap cannot be
opened. The fuel filler flap is not released. X
Unlock the vehicle (Y page 210). The opening mechanism is jam-
med. X
Consult a qualified specialist workshop. Practical advice
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 20
0

Troubleshooting
20

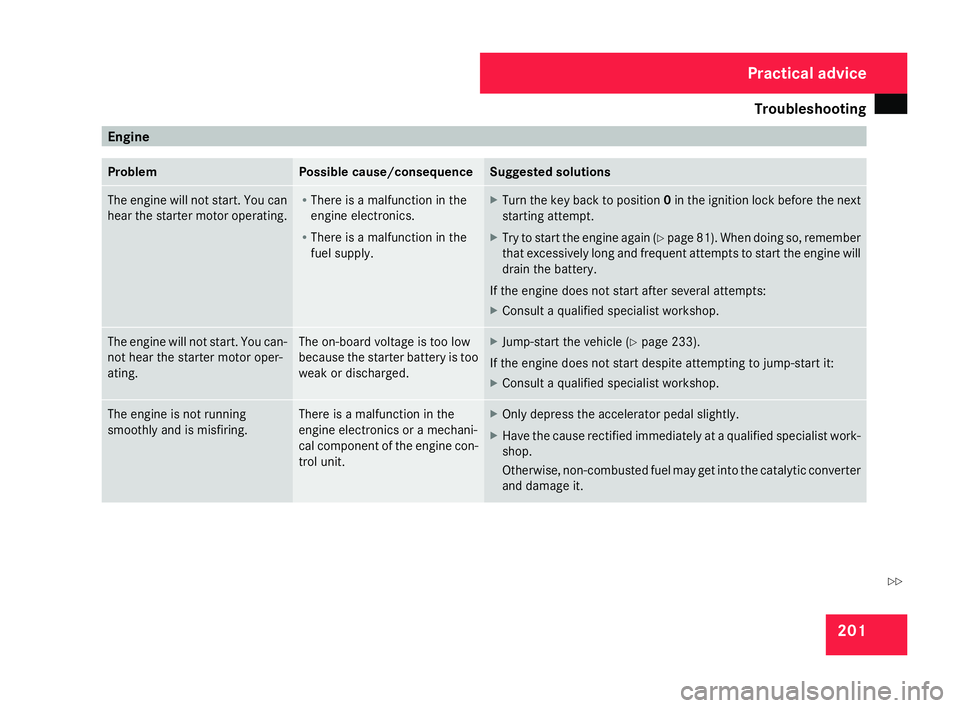

1 Engine
Problem Possible cause/consequence Suggested solutions
The engine will not start. You can
hear the starter motor operating. R
There is a malfunction in the
engine electronics.
R There is a malfunction in the
fuel supply. X
Turn the key back to position 0in the ignition lock before the nex t
starting attempt.
X Try to start the engine again (Y page 81). When doing so, remembe r
that excessively long and frequent attempts to start the engine will
drain the battery .
If the engine does not start after several attempts:
X Consult a qualified specialist workshop. The engine will not start. You can
-
not hear the starter motor oper-
ating. The on-board voltage is too lo
w
because the starter battery is too
weak or discharged. X
Jump-start the vehicle (Y page 233).
If the engine does not start despite attempting to jump-start it:
X Consult a qualified specialist workshop. The engine is not runnin
g
smoothly and is misfiring. There is a malfunction in the
engine electronics or a mechani-
cal component of the engine con-
trol unit. X
Only depress the accelerator pedal slightly.
X Have the cause rectified immediately at a qualified specialist work-
shop .
Otherwise, non-combusted fuel may get into the catalytic converter
and damage it. Practical advice
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 201 Z

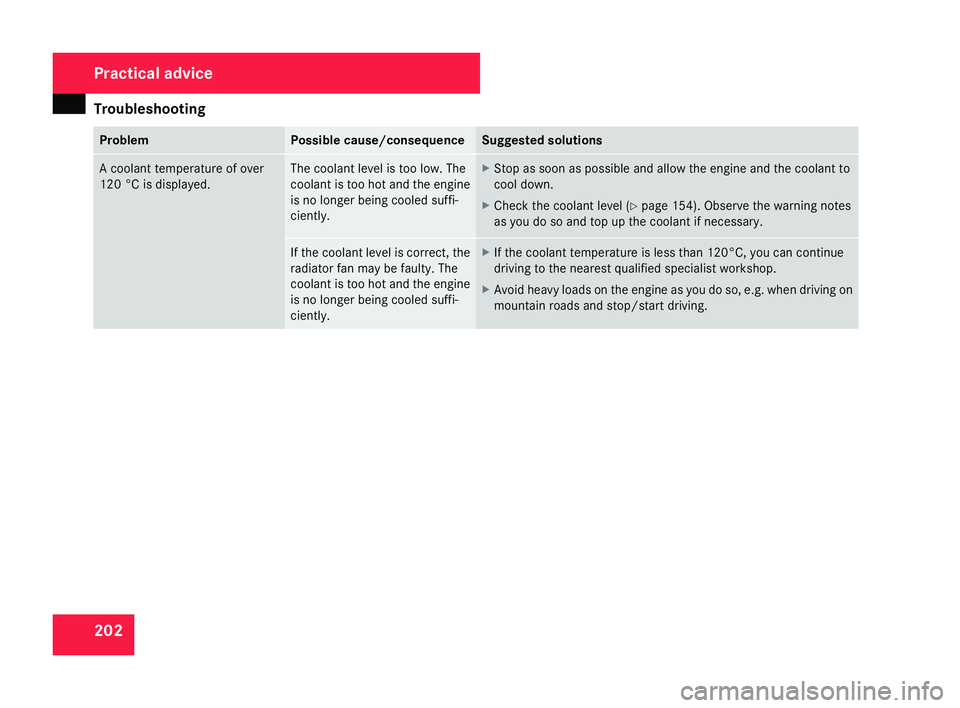

Troubleshooting
20
2 Problem Possible cause/consequence Suggested solutions
A coolant temperature of over
120 °C is displayed. The coolant level is too low. The
coolant is too hot and the engine
is no longer being cooled suffi-
ciently. X
Stop as soon as possible and allow the engine and the coolant to
cool down.
X Check the coolant level (Y page 154). Observe the warning notes
as you do so and top up the coolant if necessary. If the coolant level is correct, the
radiator fan may be faulty. The
coolant is too hot and the engin
e
is no longer being cooled suffi-
ciently. X
If the coolant temperature is less than 120°C, you can continue
driving to the nearest qualified specialist workshop.
X Avoid heavy loads on the engine as you do so, e.g. when driving on
mountain roads and stop/start driving .Practical advice
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 202

Troubleshooting
20

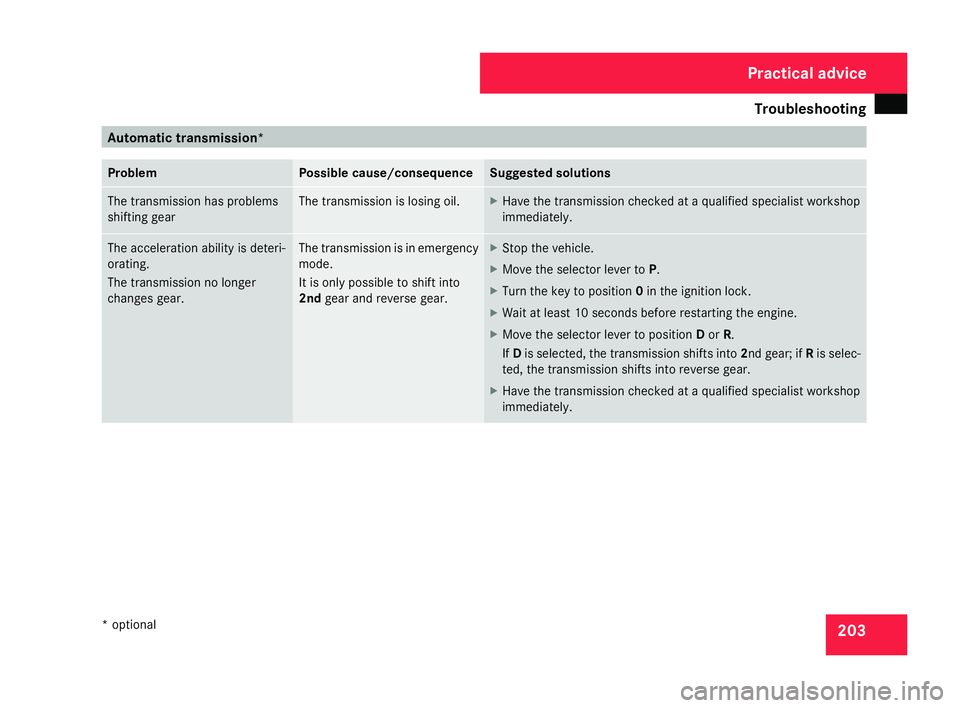

3 Automatic transmission
*Problem Possible cause/consequence Suggested solutions
The transmission has problems
shifting gear The transmission is losing oil. X
Have the transmission checked at a qualified specialist workshop
immediately . The acceleration ability is deteri-
orating.
The transmission no longer
changes gear. The transmission is in emergenc
y
mode.
It is only possible to shift into
2nd gear and reverse gear. X
Stop the vehicle.
X Move the selector lever to P.
X Turn the key to position 0in the ignition lock .
X Wait at least 10 seconds before restarting the engine.
X Move the selector lever to position Dor R.
If D is selected, the transmission shifts into 2nd gear; if Ris selec -
ted, the transmission shifts into reverse gear .
X Have the transmission checked at a qualified specialist workshop
immediately . Practical advice
* optional
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 203

Troubleshooting
20

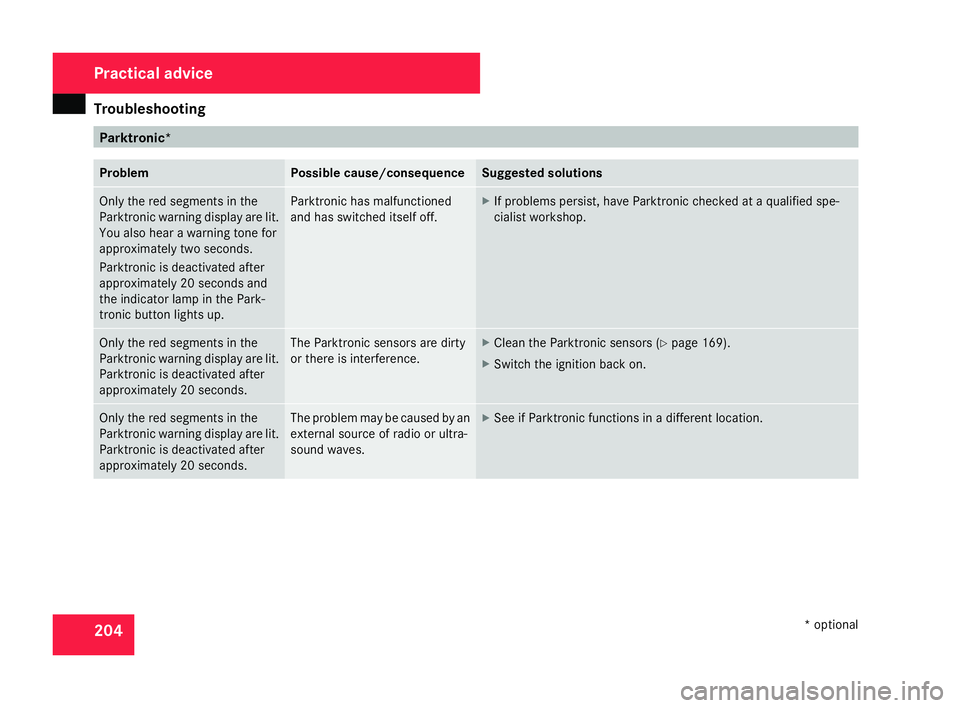

4 Parktronic*
Problem Possible cause/consequence Suggested solutions
Only the red segments in the
Parktronic warning display are lit.
You also hear a warning tone for
approximately two seconds.
Parktronic is deactivated after
approximately 20 seconds and
the indicator lamp in the Park-
tronic button lights up. Parktronic has malfunctioned
and has switched itself off. X
If problems persist, have Parktronic checked at a qualified spe-
cialist workshop. Only the red segments in the
Parktronic warning display are lit.
Parktronic is deactivated after
approximately 20 seconds. The Parktronic sensors are dirty
or there is interference. X
Clean the Parktronic sensors (Y page 169).
X Switch the ignition back on. Only the red segments in the
Parktronic warning display are lit.
Parktronic is deactivated afte
r
approximately 20 seconds. The problem may be caused by an
external source of radio or ultra-
sound waves
. X
See if Parktronic functions in a different location. Practical advice
* optional
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 204

Troubleshooting
20

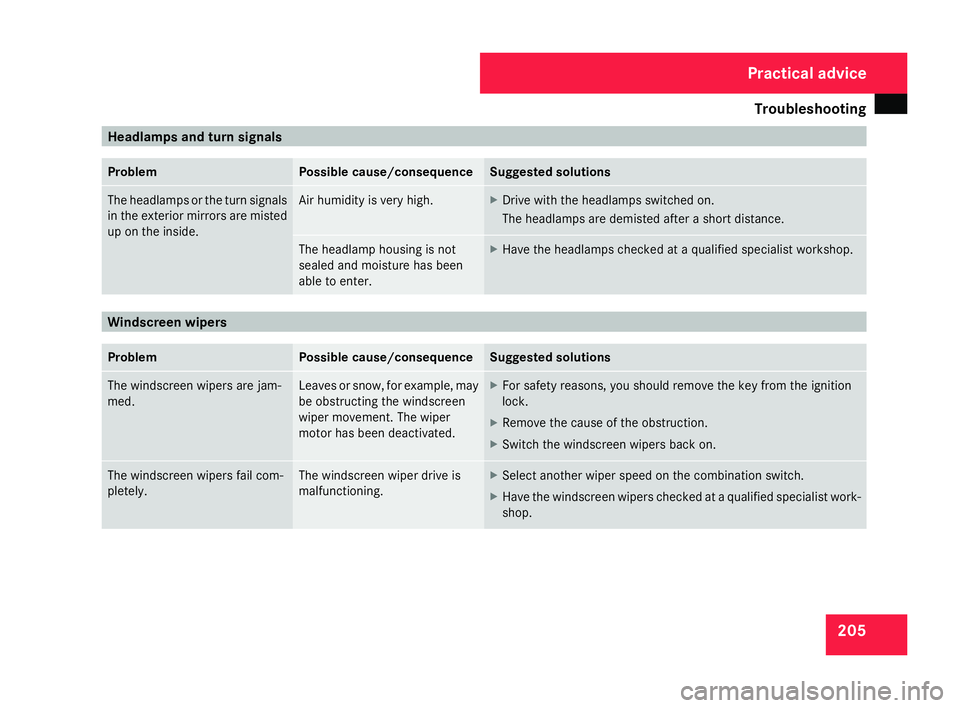

5 Headlamps and turn signals
Problem Possible cause/consequence Suggested solutions
The headlamps or the turn signals
in the exterior mirrors are misted
up on the inside. Air humidity is very high
. X
Drive with the headlamps switched on.
The headlamps are demisted after a short distance. The headlamp housing is not
sealed and moisture has been
able to enter. X
Have the headlamps checked at a qualified specialist workshop .Windscreen wipers
Problem Possible cause/consequence Suggested solutions
The windscreen wipers are jam-
med. Leaves or snow, for example, may
be obstructing the windscreen
wiper movement. The wiper
motor has been deactivated. X
For safety reasons, you should remove the key from the ignition
lock.
X Remove the cause of the obstruction .
X Switch the windscreen wipers back on. The windscreen wipers fail com-
pletely. The windscreen wiper drive is
malfunctioning. X
Select another wiper speed on the combination switch.
X Have the windscreen wipers checked at a qualified specialist work-
shop . Practical advice
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 205

Troubleshooting
20

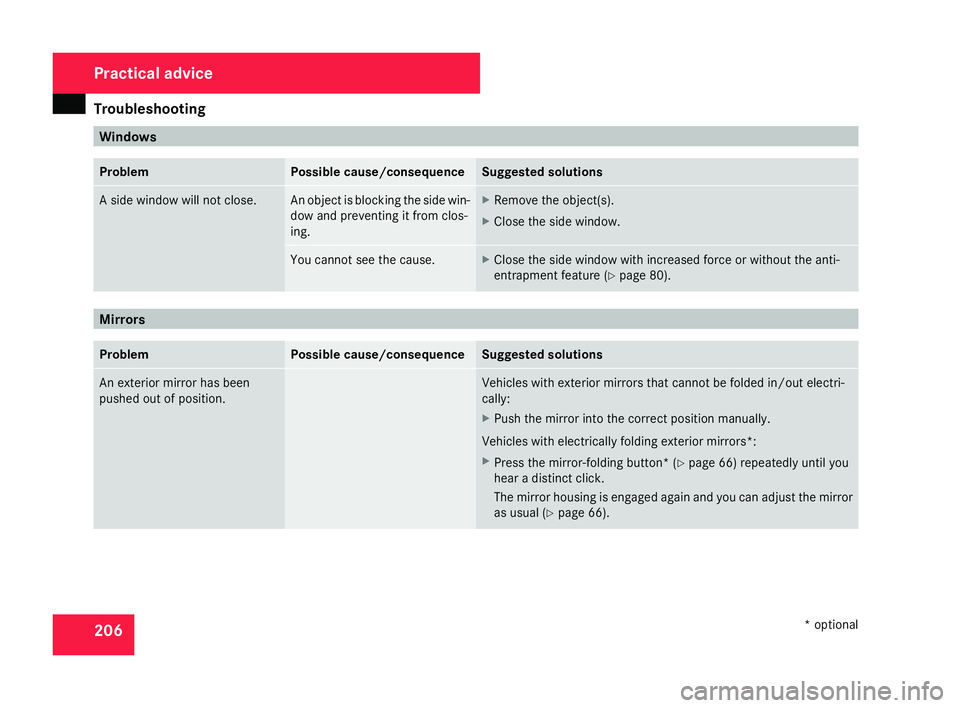

6 Windows
Problem Possible cause/consequence Suggested solutions
A side window will not close
. An object is blocking the side win-
dow and preventing it from clos-
ing
. X
Remove the object(s).
X Close the side window. You cannot see the cause. X
Close the side window with increased force or without the anti-
entrapment feature (Y page 80). Mirrors
Problem Possible cause/consequence Suggested solutions
An exterior mirror has been
pushed out of position
. Vehicles with exterior mirrors that cannot be folded in/out electri-
cally:
X
Push the mirror into the correct position manually.
Vehicles with electrically folding exterior mirrors* :
X Press the mirror-folding button* (Y page 66) repeatedly until you
hear a distinct click .
The mirror housing is engaged again and you can adjust the mirror
as usual (Y page 66). Practical advice
* optional
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 206

Troubleshooting
20

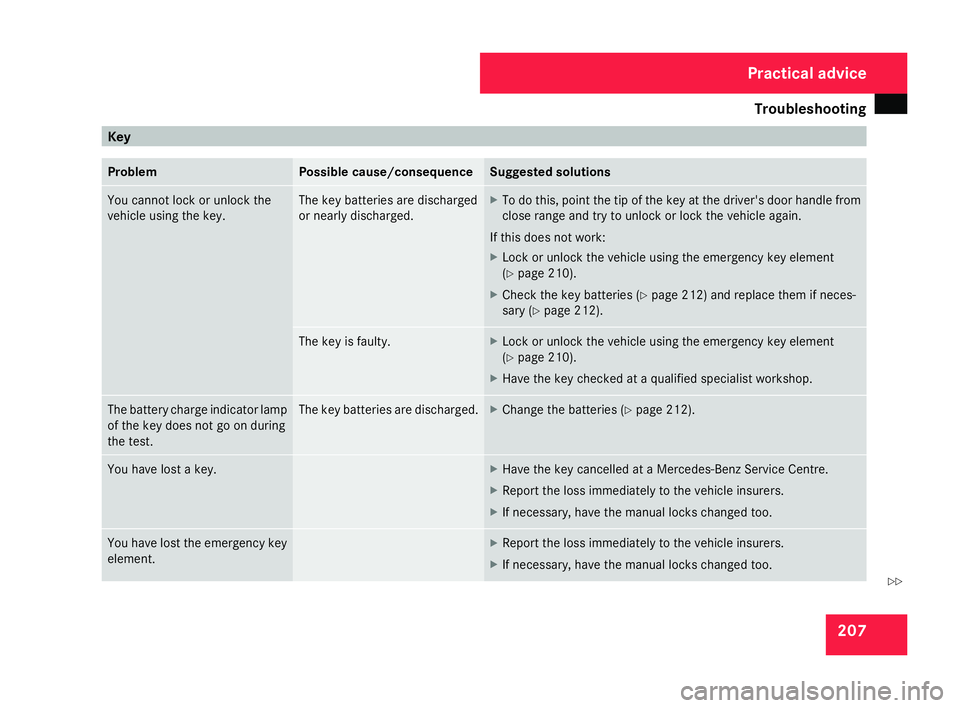

7 Key
Problem Possible cause/consequence Suggested solutions
You cannot lock or unlock th
e
vehicle using the key. The key batteries are discharged
or nearly discharged. X
To do this, point the tip of the key at the driver's door handle from
close range and try to unlock or lock the vehicle again.
If this does not work:
X Lock or unlock the vehicle using the emergency key element
(Y page 210).
X Check the key batteries (Y page 212) and replace them if neces-
sary (Y page 212). The key is faulty. X
Lock or unlock the vehicle using the emergency key element
(Y page 210).
X Have the key checked at a qualified specialist workshop .The battery charge indicator lamp
of the key does not go on during
the test. The key batteries are discharged. X
Change the batteries (Y page 212). You have lost a key. X
Have the key cancelled at a Mercedes-Benz Service Centre.
X Report the loss immediately to the vehicle insurers .
X If necessary, have the manual locks changed too. You have lost the emergency key
element. X
Report the loss immediately to the vehicle insurers .
X If necessary, have the manual locks changed too. Practical advice
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 207 Z
