MERCEDES-BENZ SLK ROADSTER 2008 Owners Manual

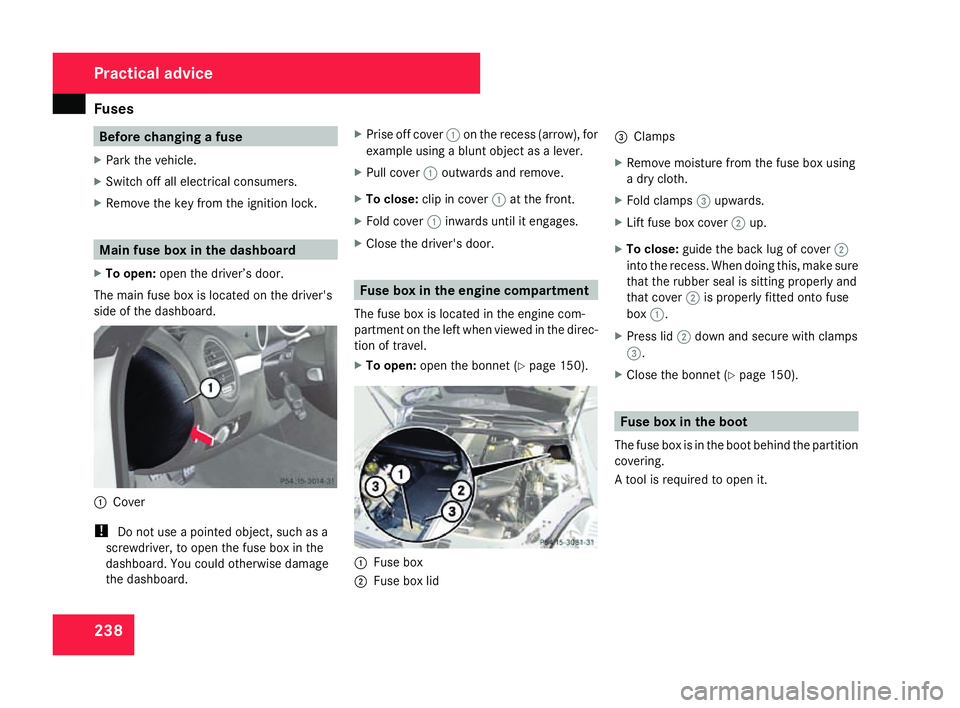

Fuse
s 238 Before changing a fuse
X Park the vehicle.
X Switch off all electrical consumers .
X Remove the key from the ignition lock. Main fuse box in the dashboar
d
X To open: open the driver’s door.
The main fuse box is located on the driver's
side of the dashboard. 1
Cover
! Do not use a pointed object, such as a
screwdriver, to open the fuse box in the
dashboard. You could otherwise damage
the dashboard. X
Prise off cover 1on the recess (arrow), for
example using a blunt object as a lever.
X Pull cover 1outwards and remove.
X To close: clip in cover 1at the front .
X Fold cover 1inwards until it engages.
X Close the driver's door. Fuse box in the engine compartment
The fuse box is located in the engine com -
partment on the left when viewed in the direc-
tion of travel.
X To open :open the bonnet (Y page 150). 1
Fuse bo x
2 Fuse box li d 3
Clamps
X Remove moisture from the fuse box usin g
a dry cloth.
X Fold clamps 3upwards.
X Lift fuse box cover 2up.
X To close: guide the back lug of cover 2
into the recess. When doing this, make sure
that the rubber seal is sitting properly and
that cover 2is properly fitted onto fuse
box 1.
X Press lid 2down and secure with clamps
3 .
X Close the bonnet (Y page 150). Fuse box in the boot
The fuse box is in the boot behind the partition
covering.
A tool is required to open it. Practical advice
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 238

239

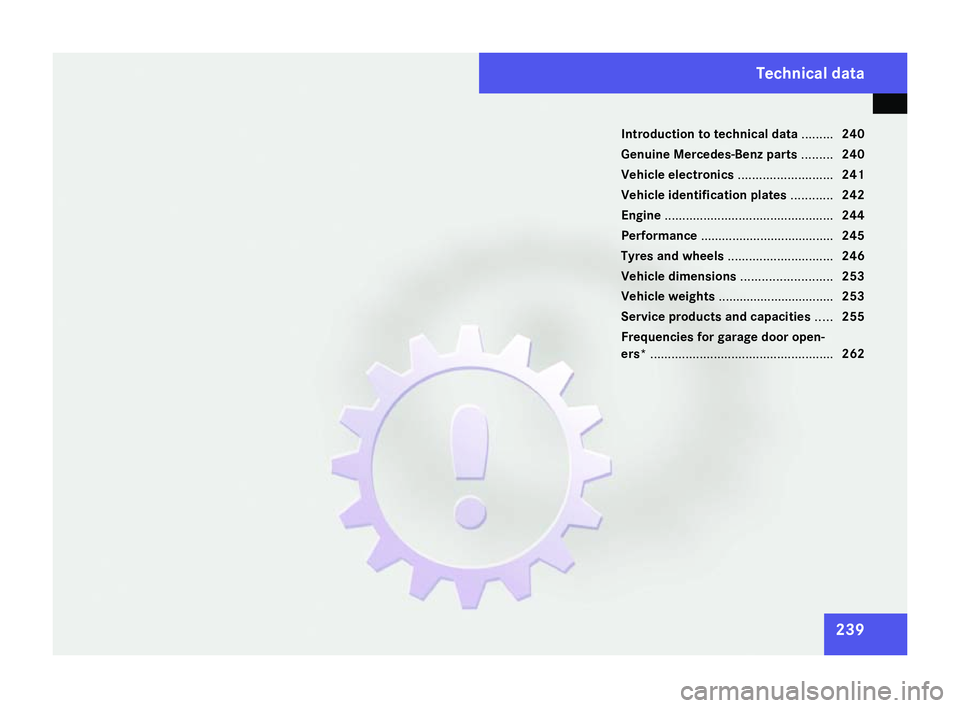

Introduction to technical data
.........240
Genuine Mercedes-Benz parts .........240
Vehicle electronics ...........................241
Vehicle identification plates ............242
Engine ................................................ 244
Performance ...................................... 245
Tyres and wheels .............................. 246
Vehicle dimensions ..........................253
Vehicle weights ................................ .253
Service products and capacities .....255
Frequencies for garage door open-
ers* .................................................... 262 Technical dat
a
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 239

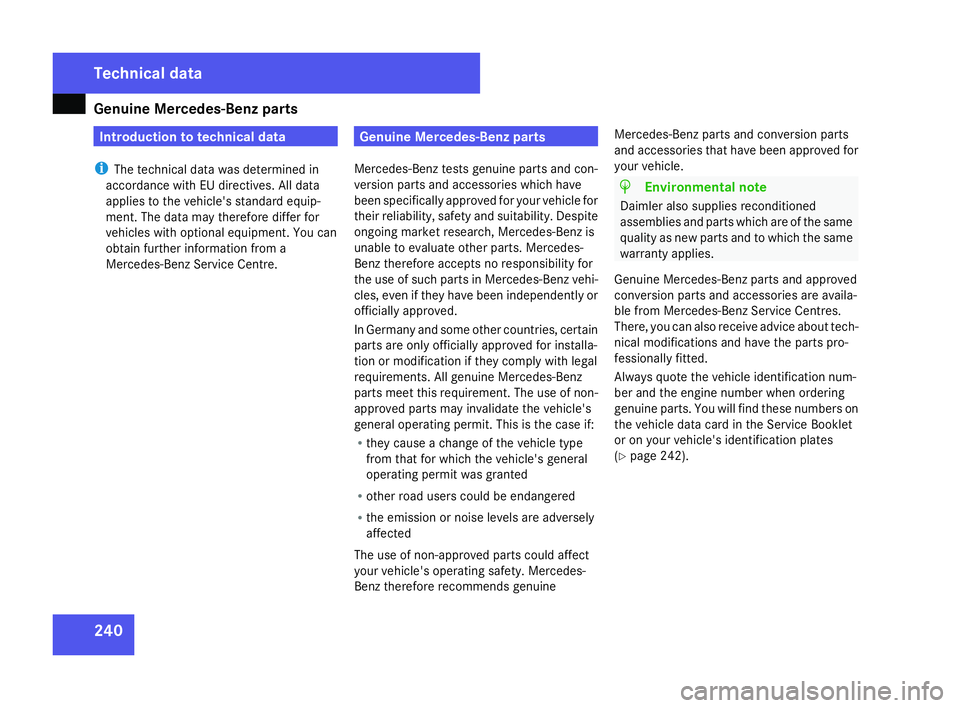

Genuine Mercedes-Benz parts
240 Introduction to technical dat
a
i The technical data was determined in
accordance with EU directives. All data
applies to the vehicle's standard equip-
ment. The data may therefore differ for
vehicles with optional equipment. You can
obtain further information from a
Mercedes-Benz Service Centre. Genuine Mercedes-Benz parts
Mercedes-Benz tests genuine parts and con-
version parts and accessories which have
been specifically approved for your vehicle for
their reliability, safety and suitability. Despite
ongoing market research, Mercedes-Benz is
unable to evaluate other parts. Mercedes-
Benz therefore accepts no responsibility for
the use of such parts in Mercedes-Benz vehi-
cles, even if they have been independently or
officially approved.
In Germany and some other countries, certain
parts are only officially approved for installa-
tion or modification if they comply with legal
requirements. All genuine Mercedes-Ben z
parts meet this requirement. The use of non -
approved parts may invalidate the vehicle's
general operating permit. This is the case if:
R they cause a change of the vehicle typ e
from that for which the vehicle's genera l
operating permit was granted
R other road users could be endangered
R the emission or noise levels are adversely
affected
The use of non-approved parts could affec t
your vehicle's operating safety. Mercedes -
Benz therefore recommends genuine Mercedes-Benz parts and conversion parts
and accessories that have been approved for
your vehicle
. H
Environmental not
e
Daimler also supplies reconditione d
assemblies and parts which are of the same
quality as new parts and to which the same
warranty applies .
Genuine Mercedes-Benz parts and approved
conversion parts and accessories are availa-
ble from Mercedes-Benz Service Centres.
There, you can also receive advice about tech -
nical modifications and have the parts pro -
fessionally fitted.
Always quote the vehicle identification num-
ber and the engine number when ordering
genuine parts. You will find these numbers on
the vehicle data card in the Service Booklet
or on your vehicle's identification plates
( Y page 242). Technical data
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 240

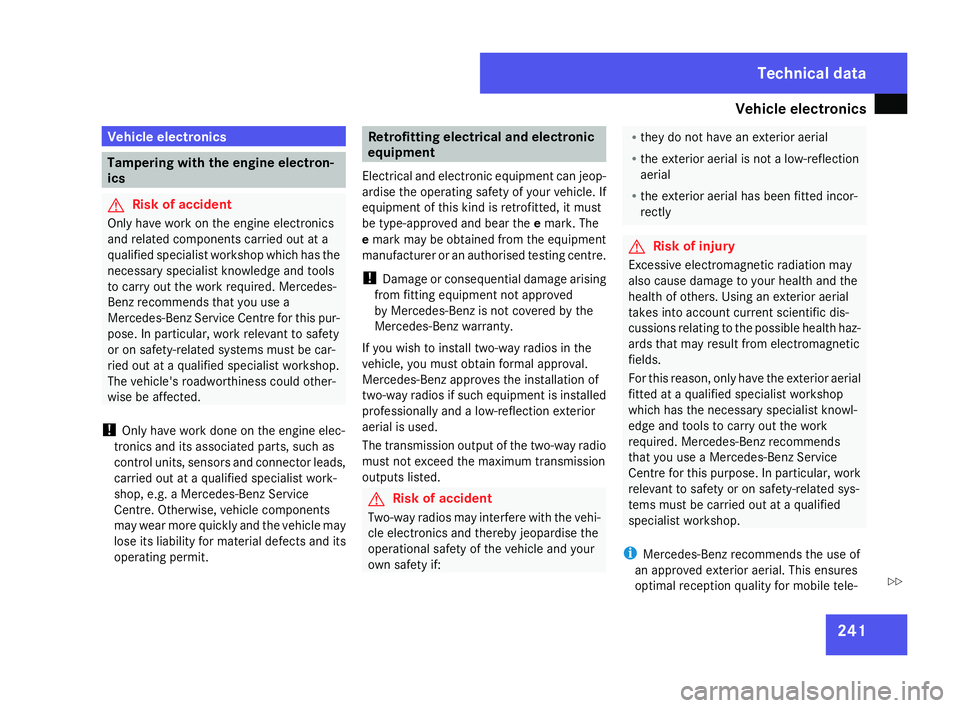

Vehicle electronic
s 241Vehicle electronics
Tampering with the engine electron-
ics
G
Risk of accident
Only have work on the engine electronics
and related components carried out at a
qualified specialist workshop which has the
necessary specialist knowledge and tools
to carry out the work required. Mercedes-
Benz recommends that you use a
Mercedes-Benz Service Centre for this pur-
pose. In particular, work relevant to safety
or on safety-related systems must be car-
ried out at a qualified specialist workshop.
The vehicle's roadworthiness could other-
wise be affected.
! Only have work done on the engine elec-
tronics and its associated parts, such as
control units, sensors and connector leads,
carried out at a qualified specialist work-
shop, e.g. a Mercedes-Benz Service
Centre. Otherwise, vehicle components
may wear more quickly and the vehicle may
lose its liability for material defects and its
operating permit. Retrofitting electrical and electronic
equipment
Electrical and electronic equipment can jeop-
ardise the operating safety of your vehicle. If
equipment of this kind is retrofitted, it must
be type-approved and bear the emark. The
e mark may be obtained from the equipment
manufacturer or an authorised testing centre.
! Damage or consequential damage arising
from fitting equipment not approved
by Mercedes-Benz is not covered by the
Mercedes-Benz warranty.
If you wish to install two-way radios in the
vehicle, you must obtain formal approval .
Mercedes-Benz approves the installation of
two-way radios if such equipment is installed
professionally and a low-reflection exterior
aerial is used.
The transmission output of the two-way radio
must not exceed the maximum transmission
outputs listed. G
Risk of accident
Two-way radios may interfere with the vehi-
cle electronics and thereby jeopardise the
operational safety of the vehicle and your
own safety if: R
they do not have an exterior aerial
R the exterior aerial is not a low-reflection
aerial
R the exterior aerial has been fitted incor-
rectly G
Risk of injury
Excessive electromagnetic radiation may
also cause damage to your health and the
health of others. Using an exterior aeria l
takes into account current scientific dis-
cussions relating to the possible health haz-
ards that may result from electromagnetic
fields .
For this reason, only have the exterior aeria l
fitted at a qualified specialist worksho p
which has the necessary specialist knowl-
edge and tools to carry out the work
required. Mercedes-Benz recommend s
that you use a Mercedes-Benz Service
Centre for this purpose. In particular, work
relevant to safety or on safety-related sys-
tems must be carried out at a qualifie d
specialist workshop.
i Mercedes-Benz recommends the use of
an approved exterior aerial. This ensures
optimal reception quality for mobile tele- Technical data
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 241 Z

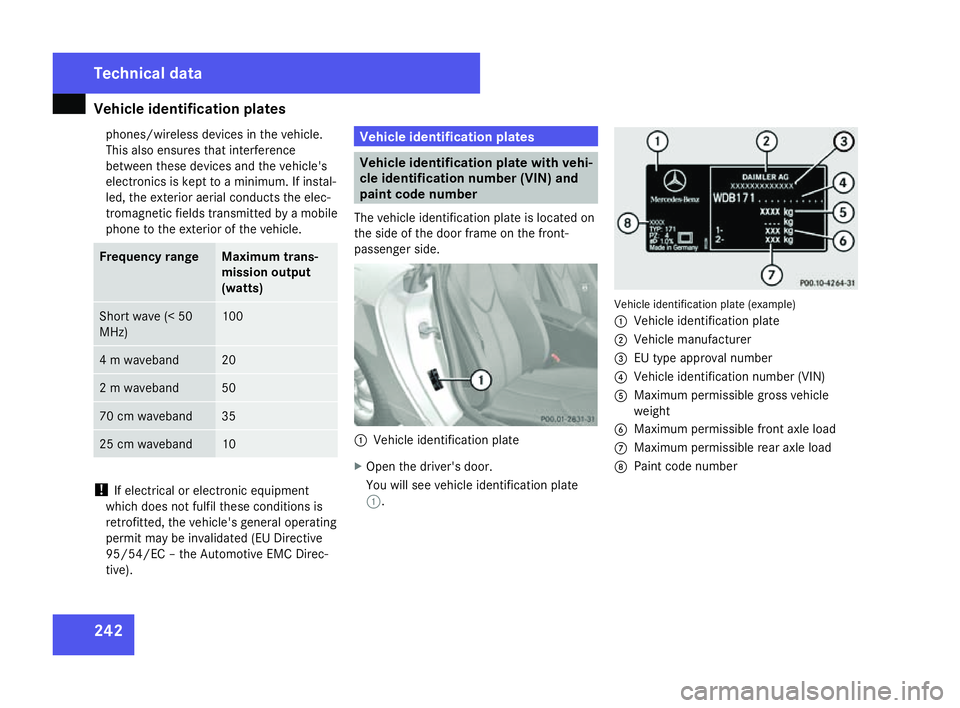

Vehicle identification plate
s242phones/wireless devices in the vehicle.
This also ensures that interferenc
e
between these devices and the vehicle's
electronics is kept to a minimum. If instal-
led, the exterior aerial conducts the elec-
tromagnetic fields transmitted by a mobile
phone to the exterior of the vehicle. Frequency range Maximum trans-
mission output
(watts)
Short wave (< 50
MHz
) 100
4 m waveband 20
2 m waveband 50
70 cm waveband 35
25 cm waveband 10
!
If electrical or electronic equipment
which does not fulfil these conditions is
retrofitted, the vehicle's general operating
permit may be invalidated (EU Directive
95/54/EC – the Automotive EMC Direc-
tive) . Vehicle identification plate
s Vehicle identification plate with vehi-
cle identification number (VIN) and
paint code number
The vehicle identification plate is located on
the side of the door frame on the front-
passenger side . 1
Vehicle identification plate
X Open the driver's door.
You will see vehicle identification plate
1 . Vehicle identification plate (example)
1
Vehicle identification plate
2 Vehicle manufacturer
3 EU type approval numbe r
4 Vehicle identification number (VIN)
5 Maximum permissible gross vehicle
weight
6 Maximum permissible front axle load
7 Maximum permissible rear axle load
8 Paint code number Technical data
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 242

Vehicle identification plate

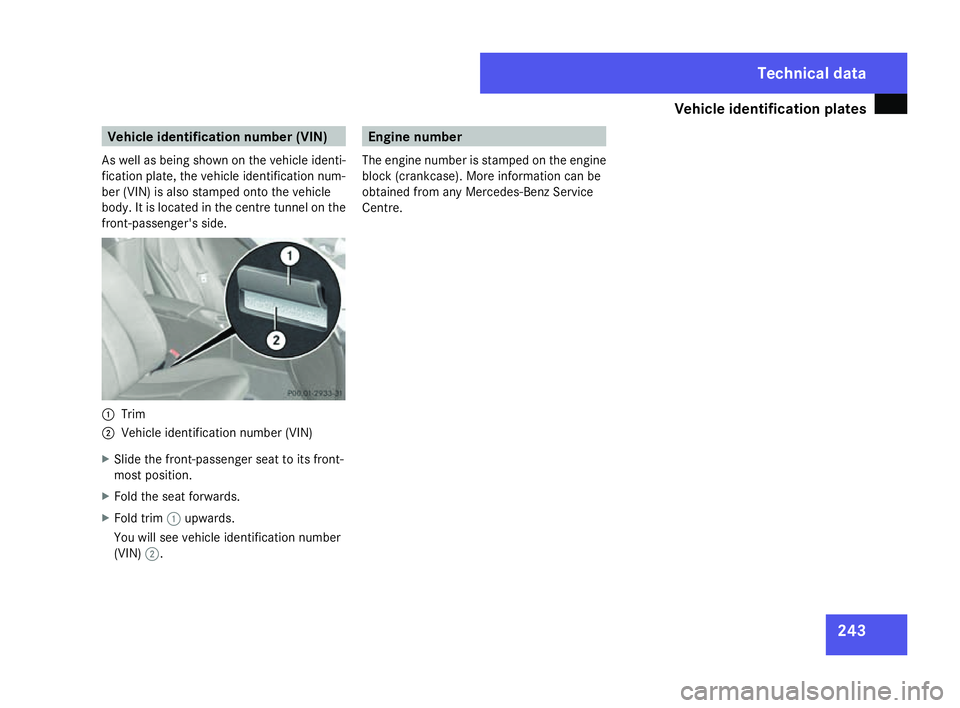

s 243Vehicle identification number (VIN)
As well as being shown on the vehicle identi-
fication plate, the vehicle identification num-
ber (VIN) is also stamped onto the vehicle
body. It is located in the centre tunnel on the
front-passenger's side. 1
Trim
2 Vehicle identification number (VIN)
X Slide the front-passenger seat to its front-
most position.
X Fold the seat forwards .
X Fold trim 1upwards.
You will see vehicle identification number
(VIN) 2. Engine number
The engine number is stamped on the engin e
block (crankcase). More information can be
obtained from any Mercedes-Benz Service
Centre. Technical data
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 243

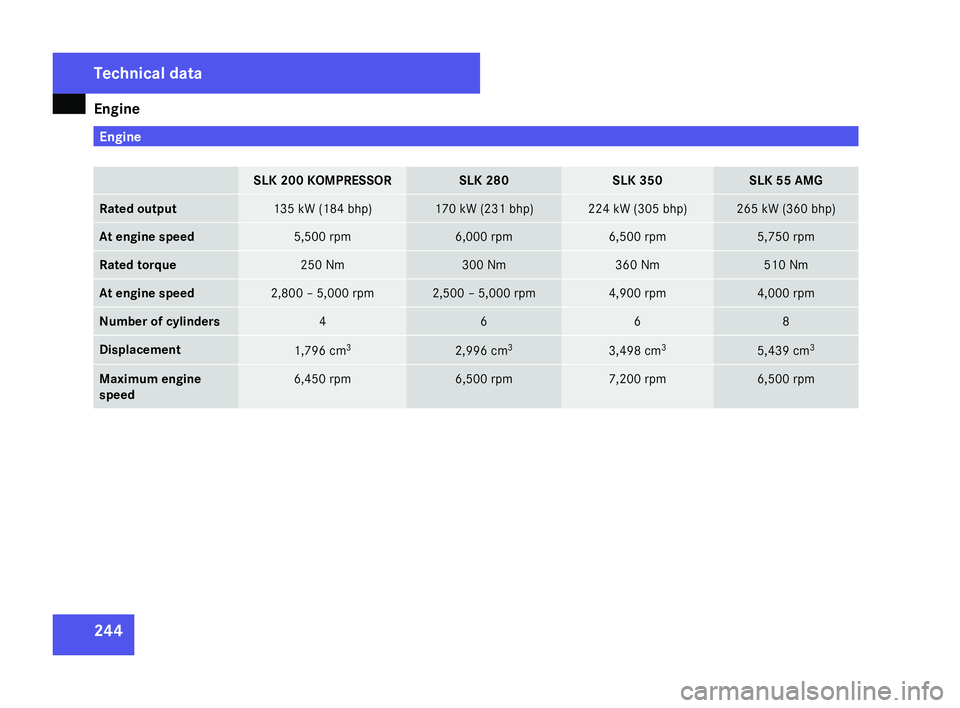

Engine
244 Engine
SLK 200 KOMPRESSOR SLK 280 SLK 350 SLK 55 AMG
Rated outpu
t 135 kW (184 bhp) 170 kW (231 bhp) 224 kW (305 bhp) 265 kW (360 bhp)
At engine spee
d 5,500 rpm 6,000 rpm 6,500 rpm 5,750 rpm
Rated torque 250 Nm 300 Nm 360 Nm 510 Nm
At engine spee
d 2,800 – 5,000 rpm 2,500 – 5,000 rpm 4,900 rpm 4,000 rpm
Number of cylinders 4 6 6 8
Displacement
1,796 cm
3 2,996 cm
3 3,498 cm
3 5,439 cm
3 Maximum engine
spee
d 6,450 rpm 6,500 rpm 7,200 rpm 6,500 rpmTechnical data
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 244

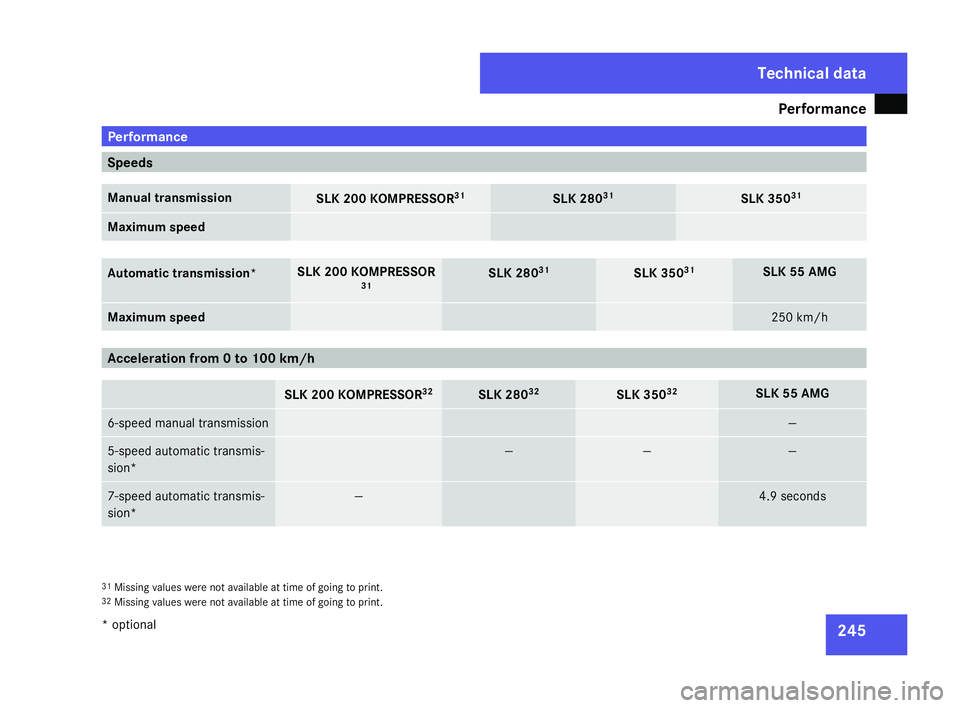

Performance
245Performance
Speeds
Manual transmission
SLK 200 KOMPRESSOR
31 SLK 280
31 SLK 350
31 Maximum speed
Automatic transmission* SLK 200 KOMPRESSOR
31 SLK 280
31 SLK 350
31 SLK 55 AMG
Maximum speed 250 km/h
Acceleration from 0 to 100 km/h
SLK 200 KOMPRESSOR
32 SLK 280
32 SLK 350
32 SLK 55 AMG
6-speed manual transmission —
5-speed automatic transmis
-
sion* — — —
7-speed automatic transmis
-
sion* — 4.9 seconds
31
Missing values were not available at time of going to print.
32 Missing values were not available at time of going to print. Technical data
* optional
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 245

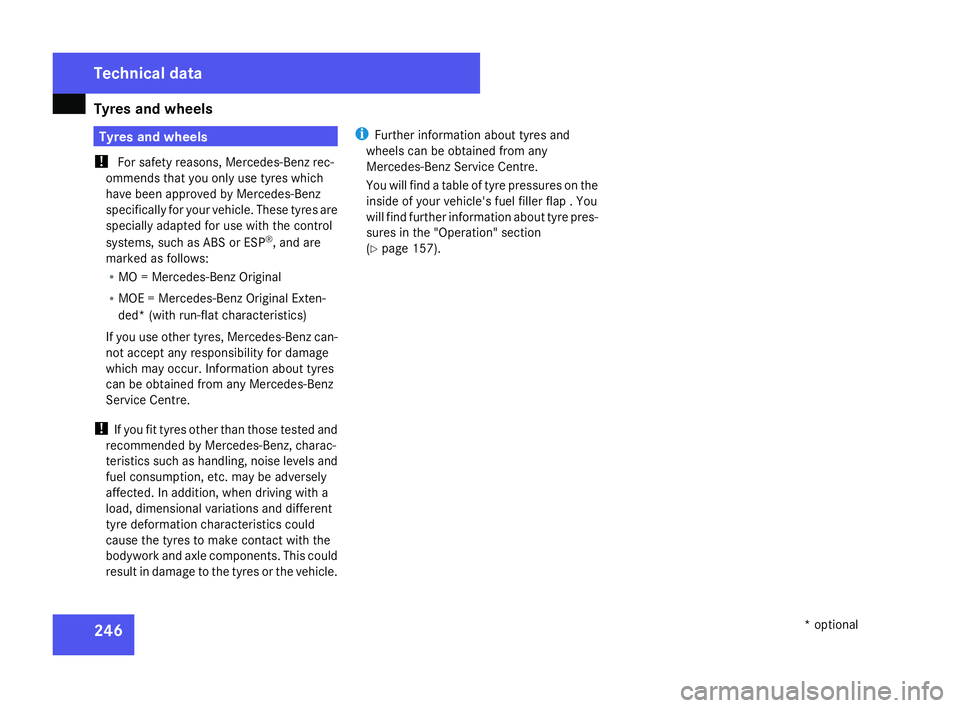

Tyres and wheels
24
6 Tyres and wheels
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres which
have been approved by Mercedes-Benz
specifically for your vehicle. These tyres ar e
specially adapted for use with the control
systems, such as ABS or ESP ®
, and are
marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Exten-
ded* (with run-flat characteristics)
If you use other tyres, Mercedes-Benz can-
not accept any responsibility for damage
which may occur. Information about tyres
can be obtained from any Mercedes-Ben z
Service Centre.
! If you fit tyres other than those tested and
recommended by Mercedes-Benz, charac-
teristics such as handling, noise levels and
fuel consumption, etc. may be adversel y
affected. In addition, when driving with a
load, dimensional variations and differen t
tyre deformation characteristics could
cause the tyres to make contact with the
bodywork and axle components. This could
result in damage to the tyres or the vehicle. i
Further information about tyres and
wheels can be obtained from any
Mercedes-Benz Service Centre.
You will find a table of tyre pressures on the
inside of your vehicle's fuel filler flap . You
will find further information about tyre pres-
sures in the "Operation" section
( Y page 157). Technical data
* optional
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 246

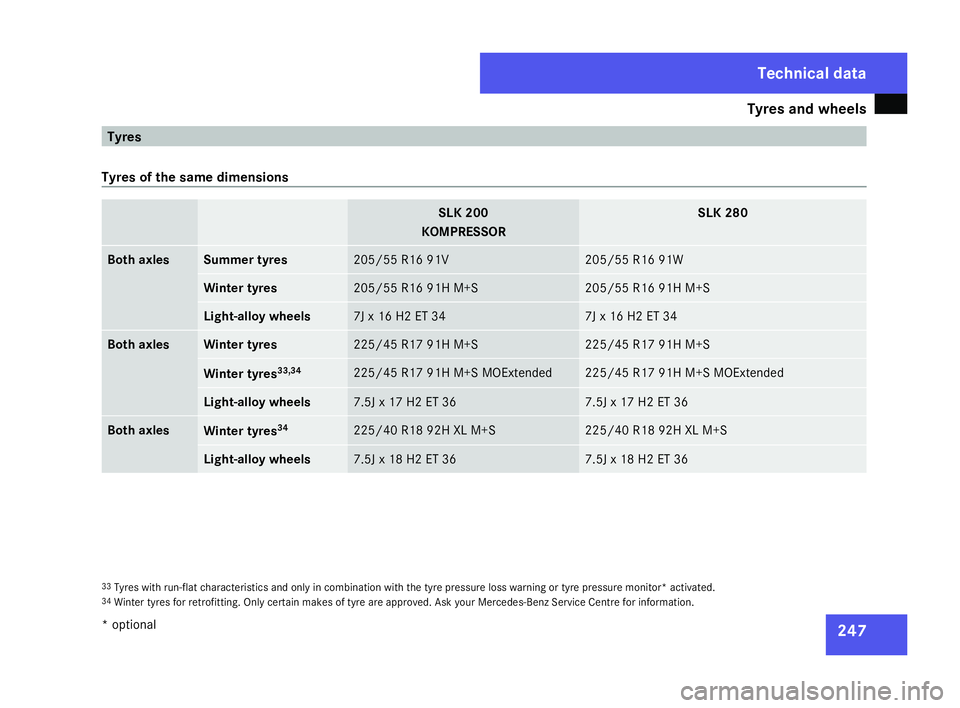

Tyres and wheels
24
7 Tyre
s
Tyres of the same dimensions SLK 20
0
KOMPRESSOR SLK 280
Both axles Summer tyres 205/55 R16 91
V 205/55 R16 91W
Winter tyres 205/55 R16 91H M+S 205/55 R16 91H M+S
Light-alloy wheels 7J x 16 H2 ET 34 7J x 16 H2 ET 34
Both axle
s Winter tyres 225/45 R17 91H M+S 225/45 R17 91H M+S
Winter tyres
33,34 225/45 R17 91H M+S MOExtended 225/45 R17 91H M+S MOExtended
Light-alloy wheels 7.5J x 17 H2 ET 36 7.5J x 17 H2 ET 36
Both axle
s Winter tyres
34 225/40 R18 92H XL M+S 225/40 R18 92H XL M+S
Light-alloy wheels 7.5J x 18 H2 ET 36 7.5J x 18 H2 ET 36
33
Tyres with run-flat characteristics and only in combination with the tyre pressure loss warning or tyre pressure monitor* activated.
34 Winter tyres for retrofitting. Only certain makes of tyre are approved. Ask your Mercedes-Benz Service Centre for information. Technical data
* optiona l
171_AKB; 3; 4, en-GB
vpfaff7,
2007-11-13T10:50:25+01:00 - Seite 247
