MERCEDES-BENZ SLK ROADSTER 2014 Owners Manual

X

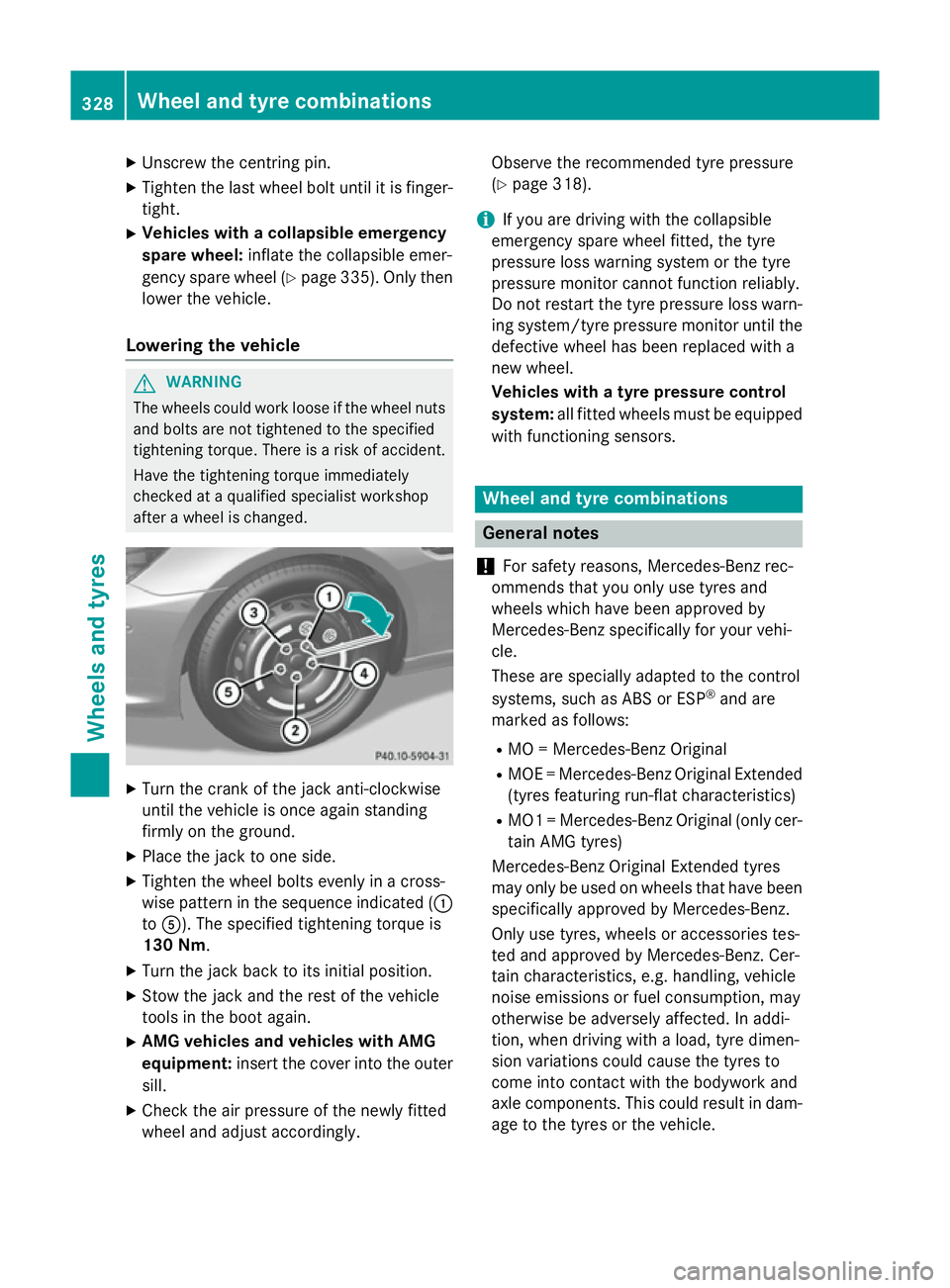

Unscrew the centring pin.
X Tighten the last wheel bolt until it is finger-
tight.
X Vehicles with a collapsible emergency
spare wheel: inflate the collapsible emer-
gency spare wheel (Y page 335). Only then
lower the vehicle.
Lowering the vehicle G
WARNING
The wheels could work loose if the wheel nuts and bolts are not tightened to the specified
tightening torque. There is a risk of accident.
Have the tightening torque immediately
checked at a qualified specialist workshop
after a wheel is changed. X
Turn the crank of the jack anti-clockwise
until the vehicle is once again standing
firmly on the ground.
X Place the jack to one side.
X Tighten the wheel bolts evenly in a cross-
wise pattern in the sequence indicated ( :
to A). The specified tightening torque is
130 Nm.
X Turn the jack back to its initial position.
X Stow the jack and the rest of the vehicle
tools in the boot again.
X AMG vehicles and vehicles with AMG
equipment: insert the cover into the outer
sill.
X Check the air pressure of the newly fitted
wheel and adjust accordingly. Observe the recommended tyre pressure
(Y
page 318).
i If you are driving with the collapsible
emergency spare wheel fitted, the tyre
pressure loss warning system or the tyre
pressure monitor cannot function reliably.
Do not restart the tyre pressure loss warn- ing system/tyre pressure monitor until the
defective wheel has been replaced with a
new wheel.
Vehicles with a tyre pressure control
system: all fitted wheels must be equipped
with functioning sensors. Wheel and tyre combinations
General notes
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres and
wheels which have been approved by
Mercedes-Benz specifically for your vehi-
cle.
These are specially adapted to the control
systems, such as ABS or ESP ®
and are
marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Extended
(tyres featuring run-flat characteristics)
R MO1 = Mercedes-Benz Original (only cer-
tain AMG tyres)
Mercedes-Benz Original Extended tyres
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tyres, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with a load, tyre dimen-
sion variations could cause the tyres to
come into contact with the bodywork and
axle components. This could result in dam- age to the tyres or the vehicle. 328
Wheel and tyre combinationsWheels and tyres

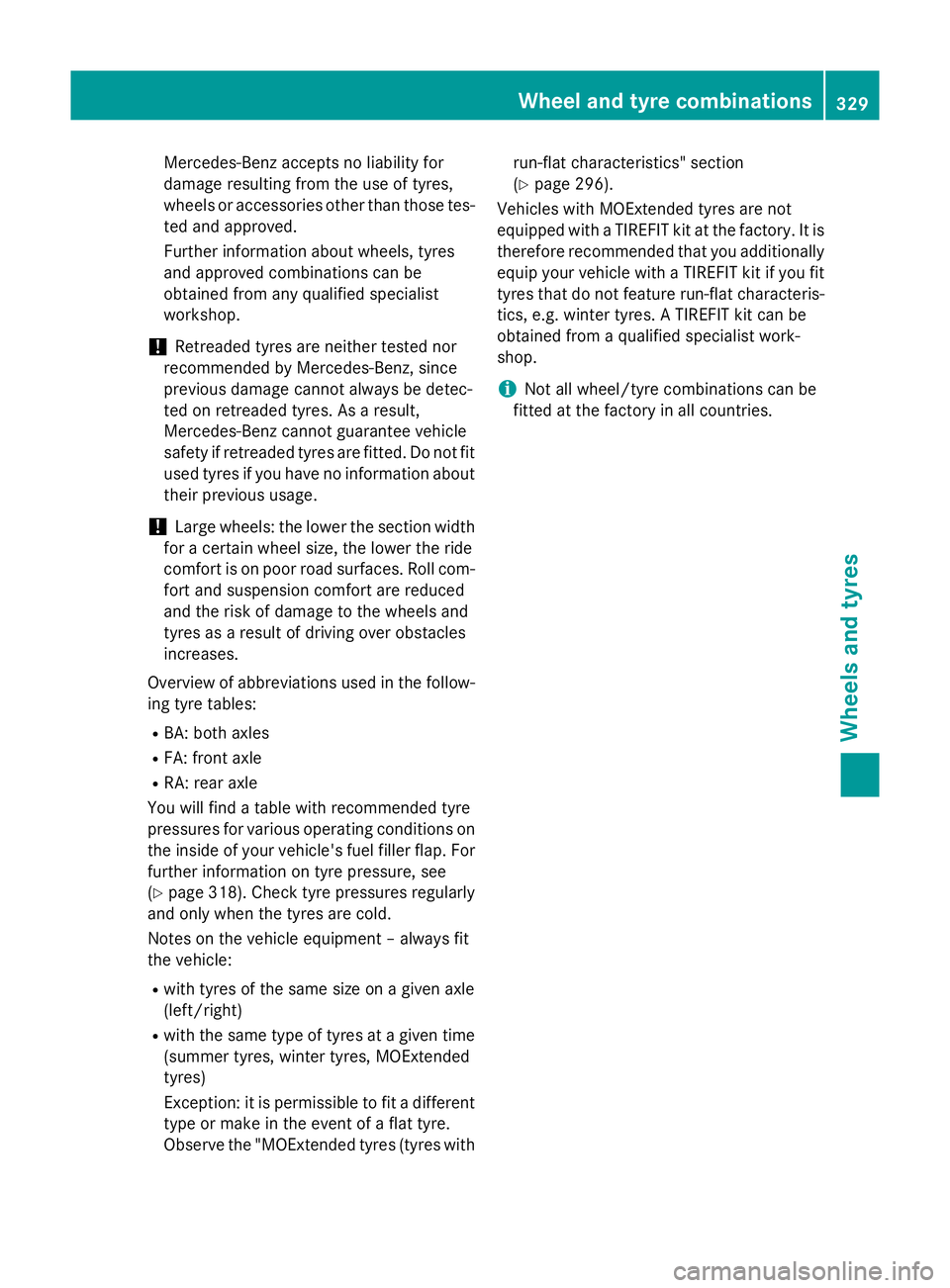

Mercedes-Benz accepts no liability for
damage resulting from the use of tyres,
wheels or accessories other than those tes- ted and approved.
Further information about wheels, tyres
and approved combinations can be
obtained from any qualified specialist
workshop.
! Retreaded tyres are neither tested nor
recommended by Mercedes-Benz, since
previous damage cannot always be detec-
ted on retreaded tyres. As a result,
Mercedes-Benz cannot guarantee vehicle
safety if retreaded tyres are fitted. Do not fit
used tyres if you have no information about their previous usage.
! Large wheels: the lower the section width
for a certain wheel size, the lower the ride
comfort is on poor road surfaces. Roll com-
fort and suspension comfort are reduced
and the risk of damage to the wheels and
tyres as a result of driving over obstacles
increases.
Overview of abbreviations used in the follow-
ing tyre tables:
R BA: both axles
R FA: front axle
R RA: rear axle
You will find a table with recommended tyre
pressures for various operating conditions on
the inside of your vehicle's fuel filler flap. For
further information on tyre pressure, see
(Y page 318). Check tyre pressures regularly
and only when the tyres are cold.
Notes on the vehicle equipment – always fit
the vehicle:
R with tyres of the same size on a given axle
(left/right)
R with the same type of tyres at a given time
(summer tyres, winter tyres, MOExtended
tyres)
Exception: it is permissible to fit a different
type or make in the event of a flat tyre.
Observe the "MOExtended tyres (tyres with run-flat characteristics" section
(Y
page 296).
Vehicles with MOExtended tyres are not
equipped with a TIREFIT kit at the factory. It is
therefore recommended that you additionally equip your vehicle with a TIREFIT kit if you fit tyres that do not feature run-flat characteris-
tics, e.g. winter tyres. A TIREFIT kit can be
obtained from a qualified specialist work-
shop.
i Not all wheel/tyre combinations can be
fitted at the factory in all countries. Wheel and tyre combinations
329Wheels and tyres Z

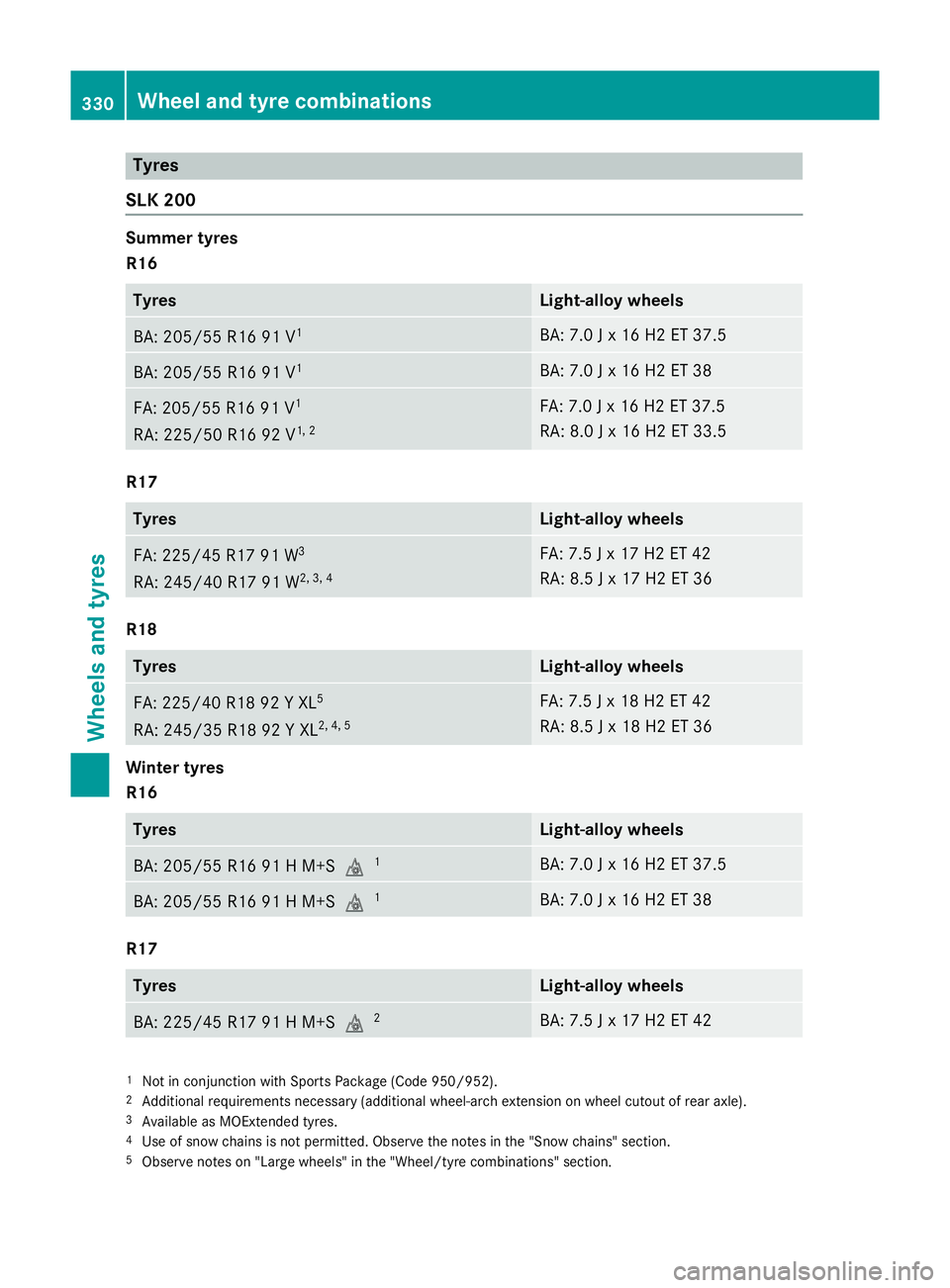

Tyres
SLK 200 Summer tyres
R16
Tyres Light-alloy wheels
BA: 205/5
5 R16 91 V 1 BA: 7.0 J x 16 H2 ET 37.5
BA: 205/55 R16 91 V
1 BA: 7.0 J x 16 H2 ET 38
FA: 205/55 R16 91 V
1
RA: 225/50 R16 92 V 1, 2 FA: 7.0 J x 16 H2 ET 37.5
RA: 8.0 J x 16 H2 ET 33.5
R17
Tyres Light-alloy wheels
FA: 225/45 R17 91 W
3
RA: 245/40 R17 91 W 2, 3, 4 FA: 7.5 J x 17 H2 ET 42
RA: 8.5 J x 17 H2 ET 36
R18
Tyres Light-alloy wheels
FA: 225/40 R18 92 Y XL
5
RA: 245/35 R18 92 Y XL 2, 4, 5 FA: 7.5 J x 18 H2 ET 42
RA: 8.5 J x 18 H2 ET 36
Winter tyres
R16
Tyres Light-alloy wheels
BA: 205/55 R16 91 H M+S
i1 BA: 7.0 J x 16 H2 ET 37.5
BA: 205/55 R16 91 H M+S
i1 BA: 7.0 J x 16 H2 ET 38
R17
Tyres Light-alloy wheels
BA: 225/45 R17 91 H M+S
i2 BA: 7.5 J x 17 H2 ET 42
1
Not in conjunction with Sports Package (Code 950/952).
2 Additional requirements necessary (additional wheel-arch extension on wheel cutout of rear axle).
3 Available as MOExtended tyres.
4 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
5 Observe notes on "Large wheels" in the "Wheel/tyre combinations" section. 330
Wheel and tyre combinationsWheels and tyres

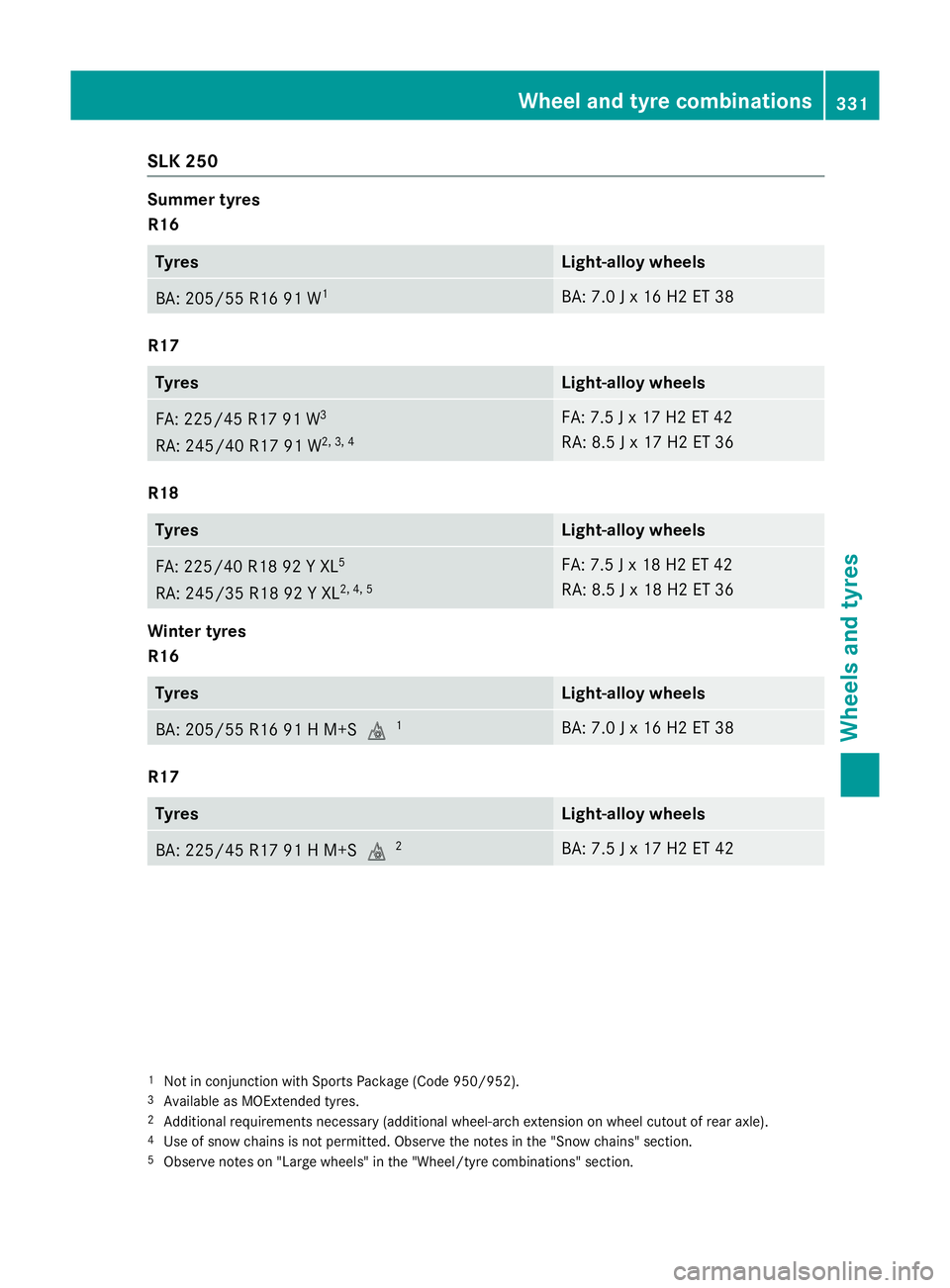

SLK 250
Summer tyres
R16
Tyres Light-alloy wheels
BA: 205/55 R16 91 W
1 BA: 7.0 J x 16 H2 ET 38
R17
Tyres Light-alloy wheels
FA: 225/45 R17 91 W
3
RA: 245/40 R17 91 W 2, 3, 4 FA: 7.5 J x 17 H2 ET 42
RA: 8.5 J x 17 H2 ET 36
R18
Tyres Light-alloy wheels
FA: 225/40 R18 92 Y XL
5
RA: 245/35 R18 92 Y XL 2, 4, 5 FA: 7.5 J x 18 H2 ET 42
RA: 8.5 J x 18 H2 ET 36
Winter tyres
R16
Tyres Light-alloy wheels
BA: 205/55 R16 91 H M+Si
1 BA: 7.0 J x 16 H2 ET 38
R17
Tyres Light-alloy wheels
BA: 225/45 R17 91 H M+Si
2 BA: 7.5 J x 17 H2 ET 42
1
Not in conjunction with Sports Package (Code 950/952).
3 Available as MOExtended tyres.
2 Additional requirements necessary (additional wheel-arch extension on wheel cutout of rear axle).
4 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
5 Observe notes on "Large wheels" in the "Wheel/tyre combinations" section. Wheel and tyre combinations
331Wheels and tyres Z

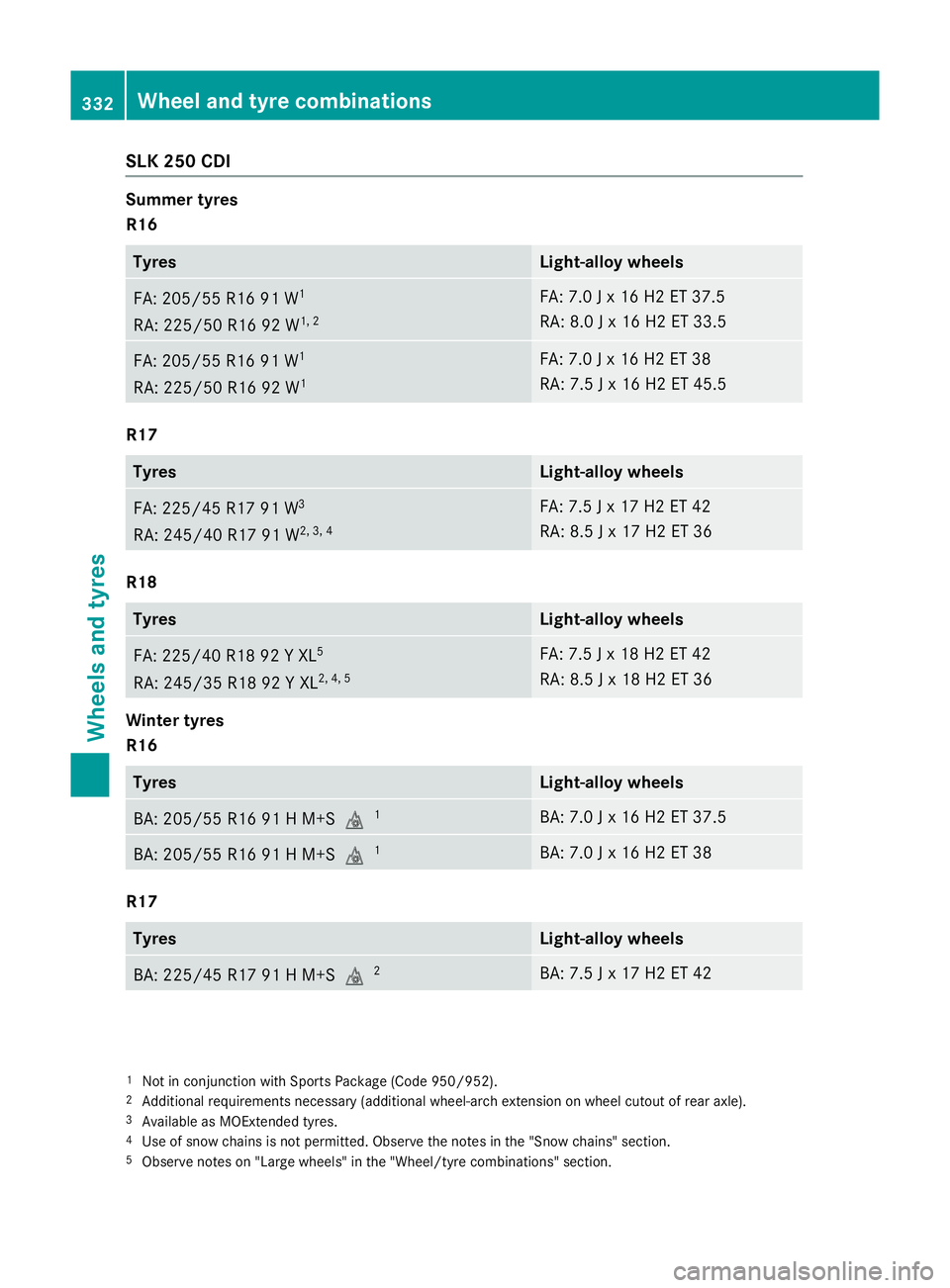

SLK 250 CDI
Summer tyres
R16
Tyres Light-alloy wheels
FA: 205/55 R16 91 W
1
RA: 225/50 R16 92 W 1, 2 FA: 7.0 J x 16 H2 ET 37.5
RA: 8.0 J x 16 H2 ET 33.5
FA: 205/55 R16 91 W
1
RA: 225/50 R16 92 W 1 FA: 7.0 J x 16 H2 ET 38
RA: 7.5 J x 16 H2 ET 45.5
R17
Tyres Light-alloy wheels
FA: 225/45 R17 91 W
3
RA: 245/40 R17 91 W 2, 3, 4 FA: 7.5 J x 17 H2 ET 42
RA: 8.5 J x 17 H2 ET 36
R18
Tyres Light-alloy wheels
FA: 225/40 R18 92 Y XL
5
RA: 245/35 R18 92 Y XL 2, 4, 5 FA: 7.5 J x 18 H2 ET 42
RA: 8.5 J x 18 H2 ET 36
Winter tyres
R16
Tyres Light-alloy wheels
BA: 205/55 R16 91 H M+Si
1 BA: 7.0 J x 16 H2 ET 37.5
BA: 205/55 R16 91 H M+Si
1 BA: 7.0 J x 16 H2 ET 38
R17
Tyres Light-alloy wheels
BA: 225/45 R17 91 H M+Si
2 BA: 7.5 J x 17 H2 ET 42
1
Not in conjunction with Sports Package (Code 950/952).
2 Additional requirements necessary (additional wheel-arch extension on wheel cutout of rear axle).
3 Available as MOExtended tyres.
4 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
5 Observe notes on "Large wheels" in the "Wheel/tyre combinations" section. 332
Wheel and tyre combinationsWheels and tyres

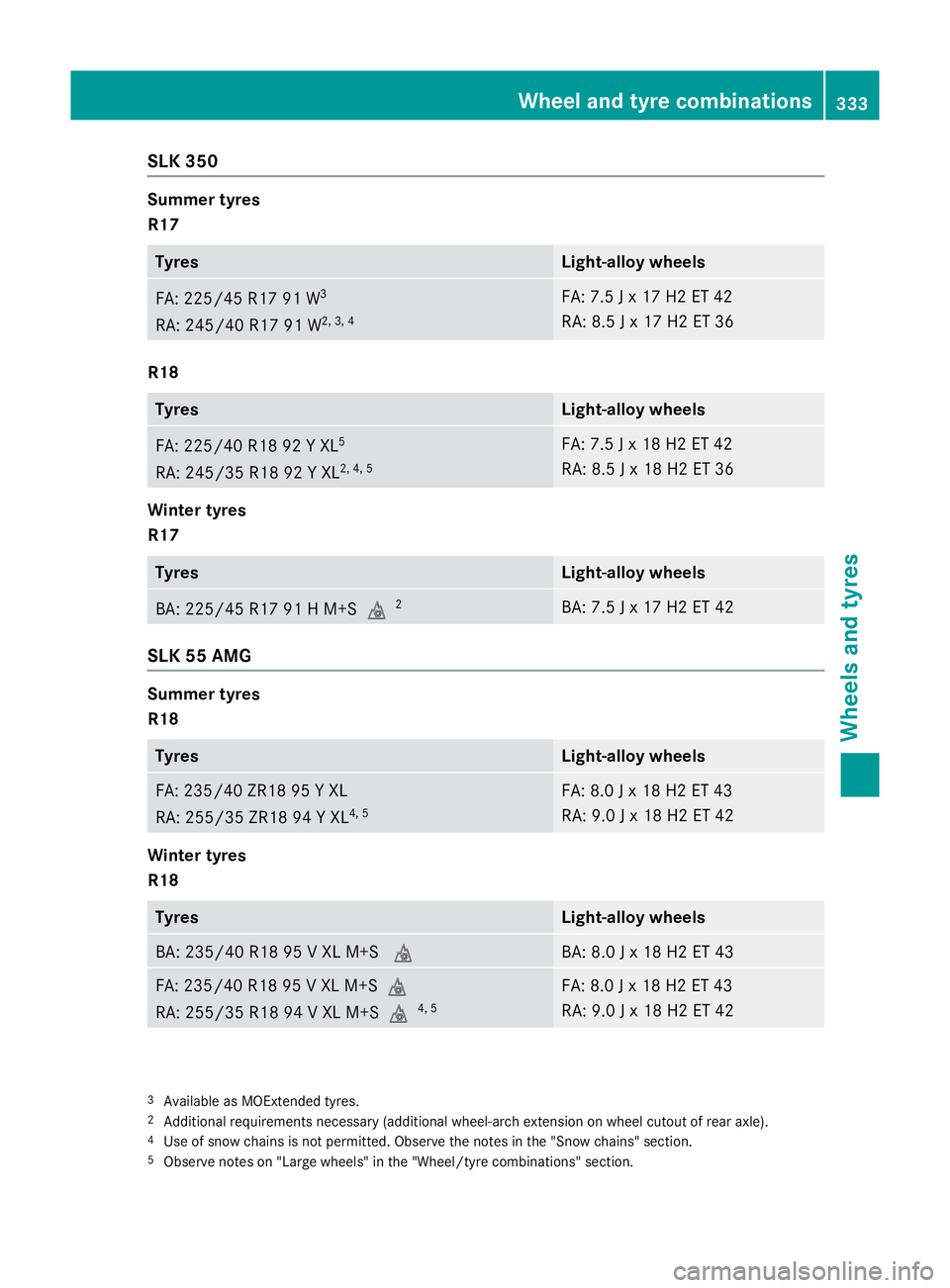

SLK 350
Summer tyres
R17
Tyres Light-alloy wheels
FA: 225/45 R17 91 W
3
RA: 245/40 R17 91 W 2, 3, 4 FA: 7.5 J x 17 H2 ET 42
RA: 8.5 J x 17 H2 ET 36
R18
Tyres Light-alloy wheels
FA: 225/40 R18 92 Y XL
5
RA: 245/35 R18 92 Y XL 2, 4, 5 FA: 7.5 J x 18 H2 ET 42
RA: 8.5 J x 18 H2 ET 36
Winter tyres
R17
Tyres Light-alloy wheels
BA: 225/45 R17 91 H M+Si
2 BA: 7.5 J x 17 H2 ET 42
SLK 55 AMG
Summer tyres
R18
Tyres Light-alloy wheels
FA: 235/40 ZR18 95 Y XL
RA: 255/35 ZR18 94 Y XL 4, 5 FA: 8.0 J x 18 H2 ET 43
RA: 9.0 J x 18 H2 ET 42
Winter tyres
R18
Tyres Light-alloy wheels
BA: 235/40 R18 95 V XL M+S
i BA: 8.0 J x 18 H2 ET 43
FA: 235/40 R18 95 V XL M+Si
RA: 255/35 R18 94 V XL M+Si 4, 5 FA: 8.0 J x 18 H2 ET 43
RA: 9.0 J x 18 H2 ET 42
3
Available as MOExtended tyres.
2 Additional requirements necessary (additional wheel-arch extension on wheel cutout of rear axle).
4 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
5 Observe notes on "Large wheels" in the "Wheel/tyre combinations" section. Wheel and tyre combinations
333Wheels and tyres Z

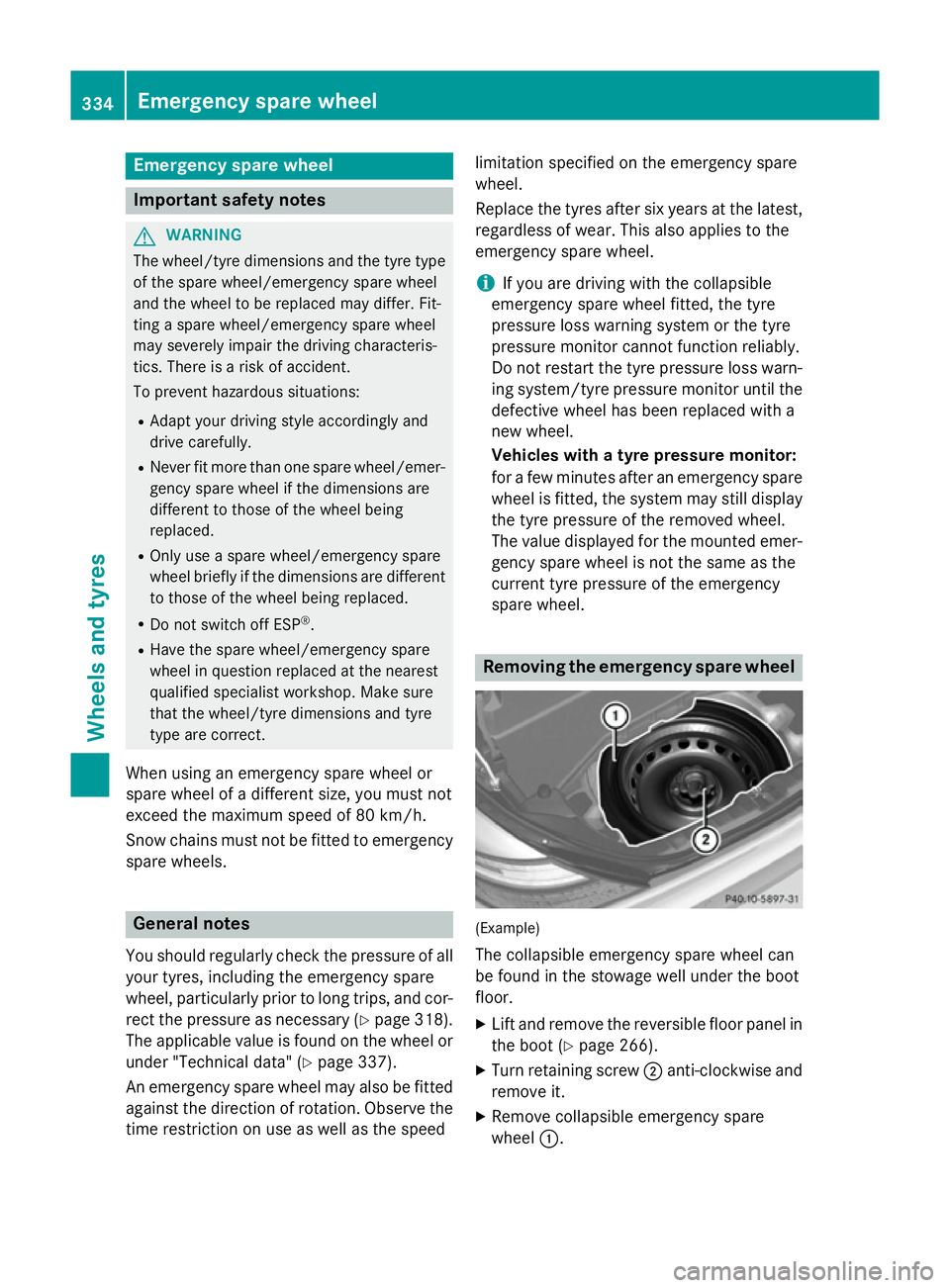

Emergency spare wheel
Important safety notes
G
WARNING
The wheel/tyre dimensions and the tyre type of the spare wheel/emergency spare wheel
and the wheel to be replaced may differ. Fit-
ting a spare wheel/emergency spare wheel
may severely impair the driving characteris-
tics. There is a risk of accident.
To prevent hazardous situations:
R Adapt your driving style accordingly and
drive carefully.
R Never fit more than one spare wheel/emer-
gency spare wheel if the dimensions are
different to those of the wheel being
replaced.
R Only use a spare wheel/emergency spare
wheel briefly if the dimensions are different to those of the wheel being replaced.
R Do not switch off ESP ®
.
R Have the spare wheel/emergency spare
wheel in question replaced at the nearest
qualified specialist workshop. Make sure
that the wheel/tyre dimensions and tyre
type are correct.
When using an emergency spare wheel or
spare wheel of a different size, you must not
exceed the maximum speed of 80 km/h.
Snow chains must not be fitted to emergency
spare wheels. General notes
You should regularly check the pressure of all your tyres, including the emergency spare
wheel, particularly prior to long trips, and cor-
rect the pressure as necessary (Y page 318).
The applicable value is found on the wheel or
under "Technical data" (Y page 337).
An emergency spare wheel may also be fitted
against the direction of rotation. Observe the time restriction on use as well as the speed limitation specified on the emergency spare
wheel.
Replace the tyres after six years at the latest,
regardless of wear. This also applies to the
emergency spare wheel.
i If you are driving with the collapsible
emergency spare wheel fitted, the tyre
pressure loss warning system or the tyre
pressure monitor cannot function reliably.
Do not restart the tyre pressure loss warn-
ing system/tyre pressure monitor until the
defective wheel has been replaced with a
new wheel.
Vehicles with a tyre pressure monitor:
for a few minutes after an emergency spare wheel is fitted, the system may still display
the tyre pressure of the removed wheel.
The value displayed for the mounted emer-
gency spare wheel is not the same as the
current tyre pressure of the emergency
spare wheel. Removing the emergency spare wheel
(Example)
The collapsible emergency spare wheel can
be found in the stowage well under the boot
floor. X Lift and remove the reversible floor panel in
the boot (Y page 266).
X Turn retaining screw ;anti-clockwise and
remove it.
X Remove collapsible emergency spare
wheel :. 334
Emergency spare wheelWheels and tyres

AMG vehicles
AMG vehicles: the collapsible emergency
spare wheel is packed in a bag and attached
to a bracket in the boot.
X Loosen tensioning straps :on both sides.
X Unhook retaining spring hooks ;and =
of tensioning straps :from the bracket.
X Remove the emergency spare wheel bag
with the collapsible emergency spare
wheel.
X Open the emergency spare wheel bag and
remove the collapsible emergency spare
wheel.
Observe the instructions and safety notes in
the "Fitting a wheel" section (Y page 324).Stowing the emergency spare wheel
! Only place the collapsible emergency
spare wheel in the vehicle when it is dry.
Otherwise, moisture may get into the vehi-
cle.
Take the following steps to stow a used col-
lapsible emergency spare wheel. Otherwise,
the collapsible emergency spare wheel will
not fit in the boot in the intended manner.
Mercedes-Benz recommends that you have
this work carried out at a qualified specialist
workshop.
X Unscrew the valve cap from the valve.
X If possible, unscrew the valve insert from
the valve and release the air.
i Fully deflating the tyre may take a few
minutes. X
Screw the valve insert back into the valve.
X Screw the valve cap back on.
X Put the protective film provided for the
emergency spare wheel over the collapsi-
ble emergency spare wheel.
X Stow the collapsible emergency spare
wheel in the emergency spare wheel well
under the boot.
X Use the retaining screw to pierce through
the protective film and fasten the collapsi-
ble emergency spare wheel in place.
X AMG vehicles: pull the bag over the col-
lapsible emergency spare wheel and close
it.
X Place the bag with the collapsible emer-
gency spare wheel in the boot.
X Hook in the retaining strap carabiners and
lash the collapsible emergency spare wheel
to the bracket. Inflating the collapsible emergency
spare wheel
! Inflate the collapsible emergency spare
wheel using the tyre inflation compressor
before lowering the vehicle. The wheel rim
could otherwise be damaged.
! Do not operate the tyre inflation com-
pressor for longer than ten minutes at a
time without a break. It may otherwise
overheat.
The tyre inflation compressor can be oper-
ated again once it has cooled down. Emergency spare wheel
335Wheels and tyres Z

X
Mount the collapsible emergency spare
wheel as described (Y page 324).
The collapsible emergency spare wheel
must be mounted before it is inflated.
X Pull plug ?out of the housing.
X Take the air hose out of the housing.
X Insert the yellow hose connector of the air
hose into the guide in the housing and push it into the fixture until the hose connector
engages.
X Remove the cap from the valve on the col-
lapsible emergency spare wheel.
X Screw union nut :on the air hose onto the
valve.
X Make sure on/off switch Aof the tyre
inflation compressor is set to OFF.
X Insert plug ?into the socket of the ciga-
rette lighter or into a 12 V of power socket
in your vehicle.
Observe the notes on the cigarette lighter
(Y page 268). Observe the notes on sock-
ets (Y page 269).
X Turn the key to position 1in the ignition
lock (Y page 141).
X Press on/off switch Aon the tyre inflation
compressor to ON.
The tyre inflation compressor is switched
on. The tyre is inflated. The tyre pressure is shown on pressure gauge =.
X Pump the tyre to the specified tyre pres-
sure.
The specified tyre pressure is printed on
the yellow label of the emergency spare
wheel.
X When the specified tyre pressure has been
reached, press on/off switch AtoOFF, on
the tyre inflation compressor.
The tyre inflation compressor is switched
off.
X Turn the key to position 0in the ignition
lock.
X If the tyre pressure is higher than the speci-
fied pressure, press pressure release but- ton
;until the correct tyre pressure has
been reached.
X Unscrew union nut :on the air hose from
the valve.
X Screw the valve cap onto the collapsible
emergency spare wheel valve again. Removing an air hose
X
To remove the hose from the tyre inflation
compressor, push down the rocker switch
on the hose connector and pull out the
hose.
X Stow plug ?and the air hose in the lower
section of the compressor housing.
X Stow the tyre inflation compressor in the
vehicle. 336
Emergency spare wheelWheels and tyres

Technical data
All models (except AMG vehicles) Collapsible emergency spare wheel
6Tyres Light-alloy wheels
145/70-17 92P
Tyre pressure: 350 kPa (3.5 ba
r/51 psi) 4.5 B x 17 H2 ET 12
AMG vehicles
Collapsible emergency spare wheel
6Tyres Light-alloy wheels
175/55-18 95P
Tyre pressure: 350 kPa (3.5 bar/51 psi) 6.0 B x 18 H2 ET 25
Depending on the country, the engine and the wheels fitted, your vehicle may be equipped with
TIREFIT or a collapsible emergency spare wheel.
i The specified tyre pressure is printed in yellow on the emergency spare wheel.
6 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section. Emergency spare wheel
337Wheels and tyres Z
