MERCEDES-BENZ SLS 2011 C197 Owner's Manual

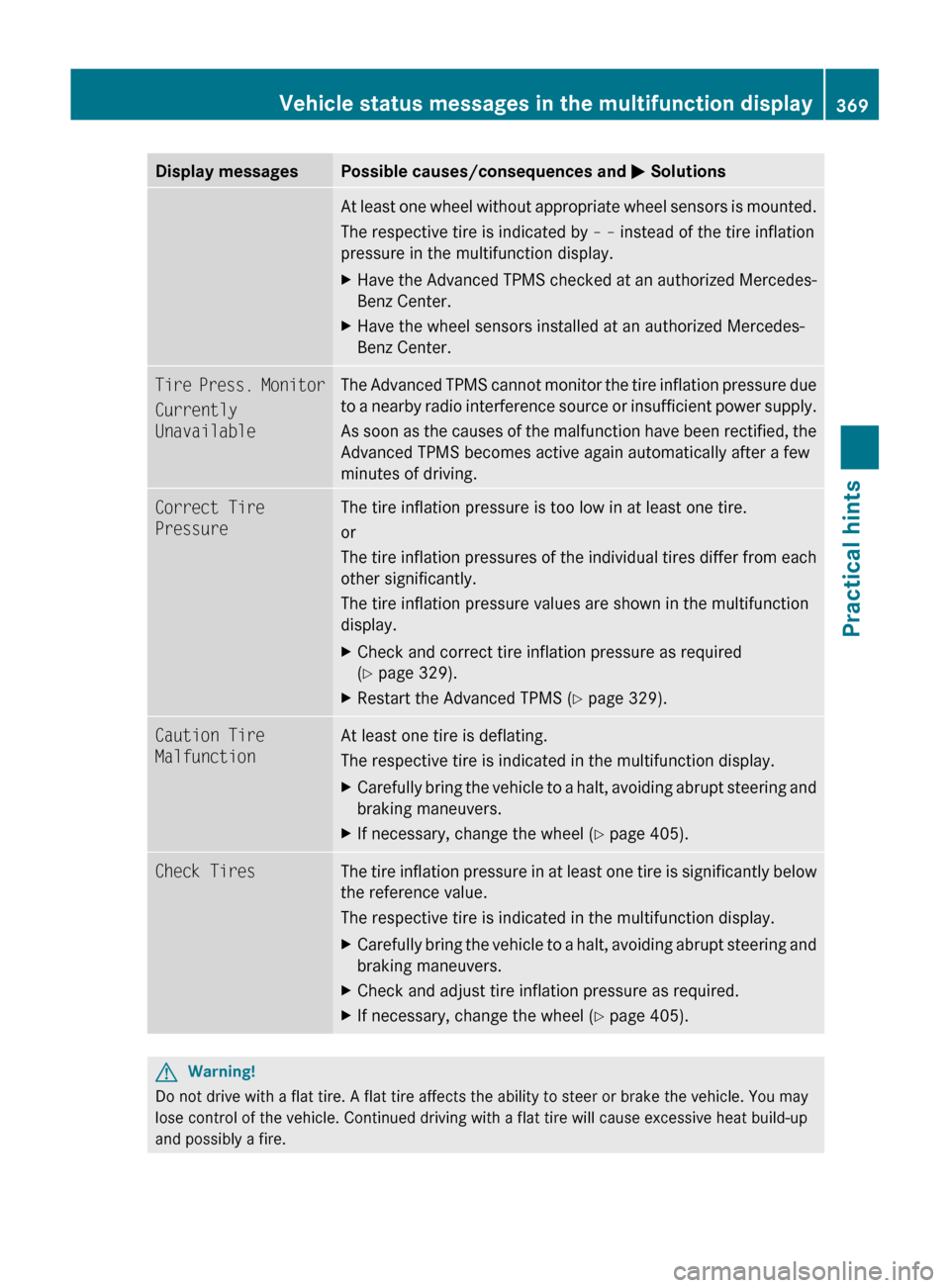

Display messagesPossible causes/consequences and M SolutionsAt least one wheel without appropriate wheel sensors is mounted.
The respective tire is indicated by – – instead of the tire inflation
pressure in the multifunction display.XHave the Advanced TPMS checked at an authorized Mercedes-
Benz Center.XHave the wheel sensors installed at an authorized Mercedes-
Benz Center.Tire Press. Monitor
Currently
UnavailableThe Advanced TPMS cannot monitor the tire inflation pressure due
to a nearby radio interference source or insufficient power supply.
As soon as the causes of the malfunction have been rectified, the
Advanced TPMS becomes active again automatically after a few
minutes of driving.Correct Tire
PressureThe tire inflation pressure is too low in at least one tire.
or
The tire inflation pressures of the individual tires differ from each
other significantly.
The tire inflation pressure values are shown in the multifunction
display.XCheck and correct tire inflation pressure as required
( Y page 329).XRestart the Advanced TPMS ( Y page 329).Caution Tire
MalfunctionAt least one tire is deflating.
The respective tire is indicated in the multifunction display.XCarefully bring the vehicle to a halt, avoiding abrupt steering and
braking maneuvers.XIf necessary, change the wheel ( Y page 405).Check TiresThe tire inflation pressure in at least one tire is significantly below
the reference value.
The respective tire is indicated in the multifunction display.XCarefully bring the vehicle to a halt, avoiding abrupt steering and
braking maneuvers.XCheck and adjust tire inflation pressure as required.XIf necessary, change the wheel ( Y page 405).GWarning!
Do not drive with a flat tire. A flat tire affects the ability to steer or brake the vehicle. You may
lose control of the vehicle. Continued driving with a flat tire will cause excessive heat build-up
and possibly a fire.
Vehicle status messages in the multifunction display369Practical hintsBA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 369Z

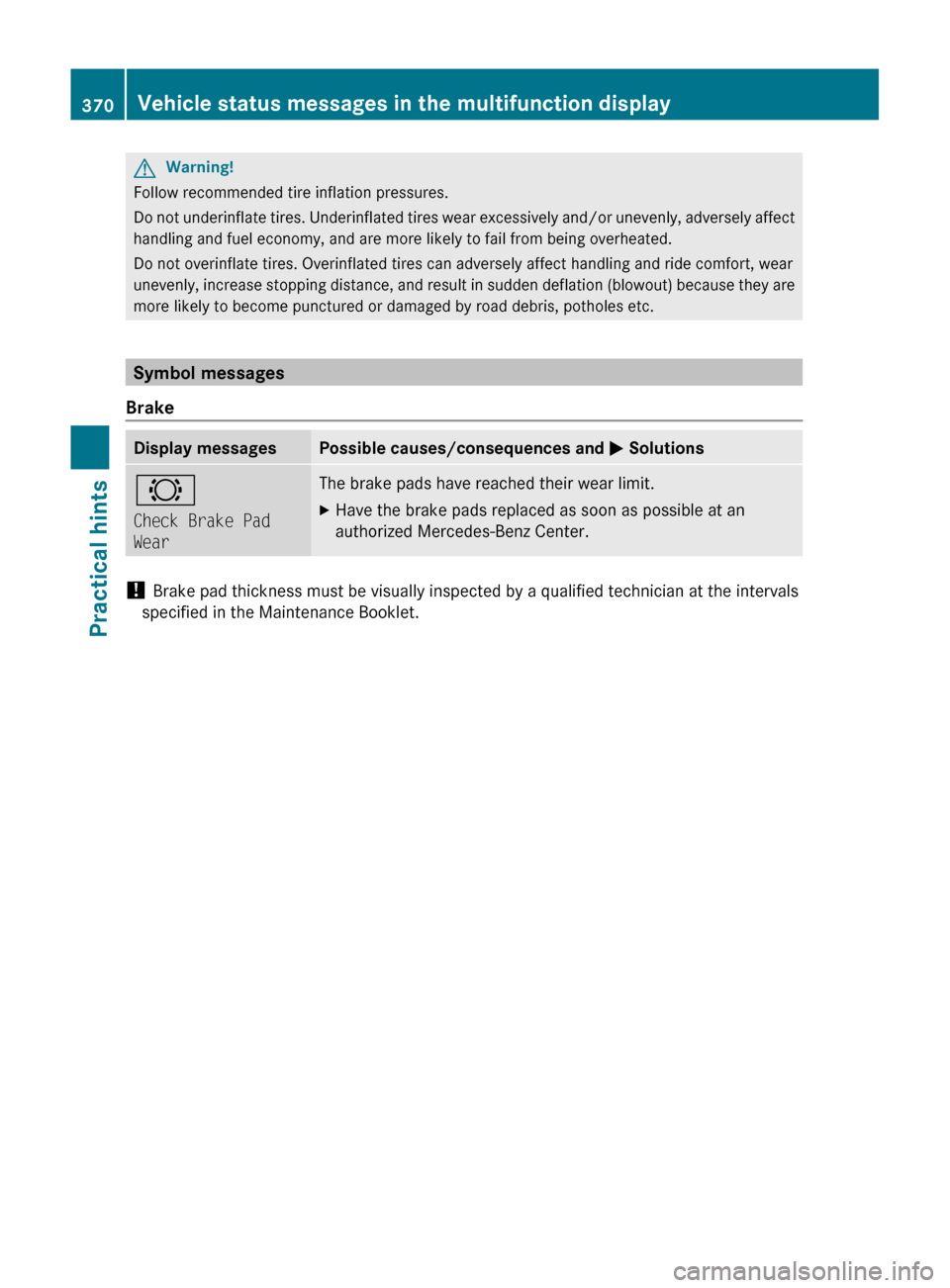

GWarning!
Follow recommended tire inflation pressures.
Do not underinflate tires. Underinflated tires wear excessively and/or unevenly, adversely affect
handling and fuel economy, and are more likely to fail from being overheated.
Do not overinflate tires. Overinflated tires can adversely affect handling and ride comfort, wear
unevenly, increase stopping distance, and result in sudden deflation (blowout) because they are
more likely to become punctured or damaged by road debris, potholes etc.
Symbol messages
Brake
Display messagesPossible causes/consequences and M Solutions#
Check Brake Pad
WearThe brake pads have reached their wear limit. XHave the brake pads replaced as soon as possible at an
authorized Mercedes-Benz Center.
! Brake pad thickness must be visually inspected by a qualified technician at the intervals
specified in the Maintenance Booklet.
370Vehicle status messages in the multifunction displayPractical hints
BA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 370

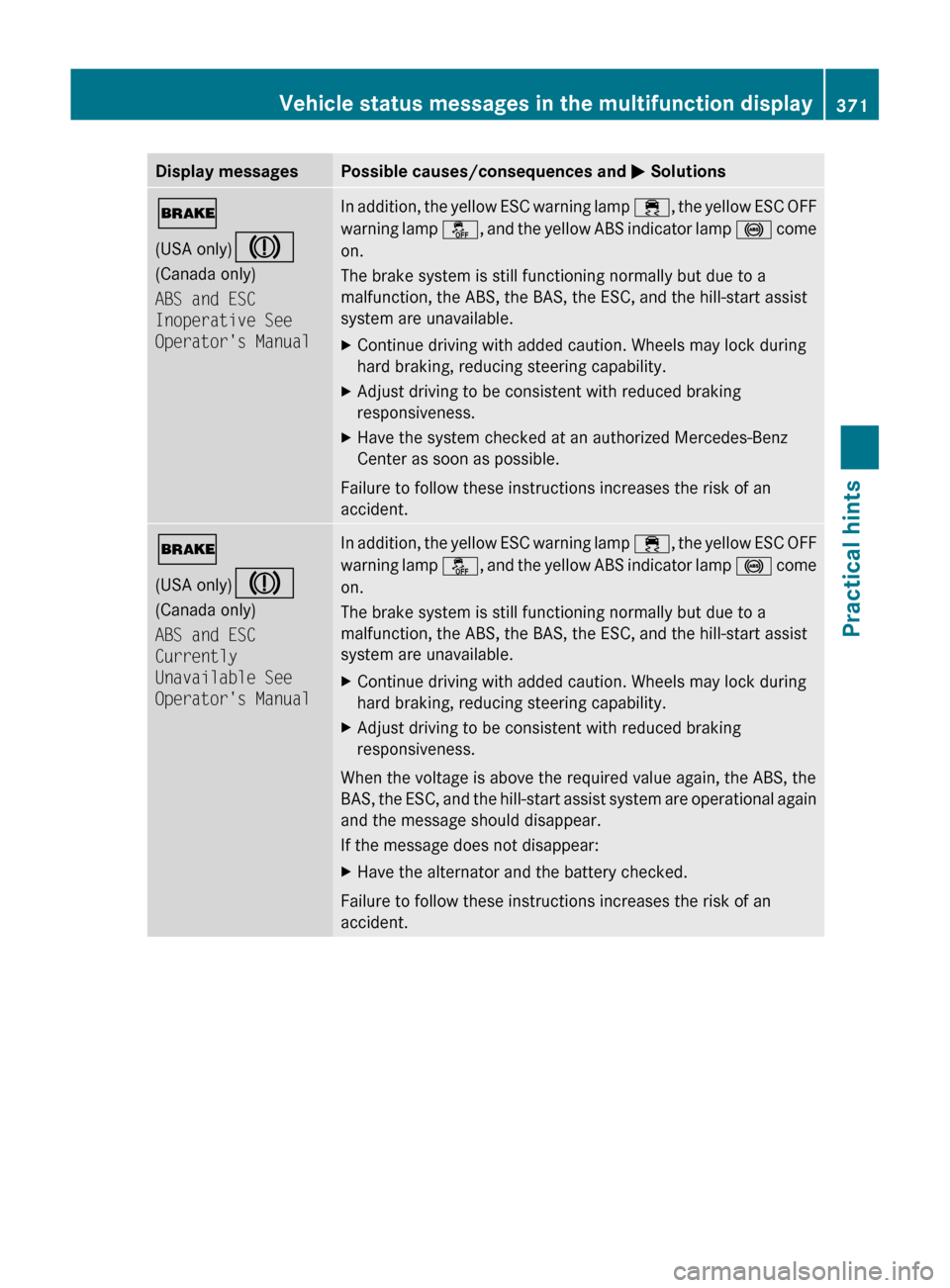

Display messagesPossible causes/consequences and M Solutions$
(USA only) J
(Canada only)
ABS and ESC
Inoperative See
Operator's ManualIn addition, the yellow ESC warning lamp ÷, the yellow ESC OFF
warning lamp å, and the yellow ABS indicator lamp ! come
on.
The brake system is still functioning normally but due to a
malfunction, the ABS, the BAS, the ESC, and the hill-start assist
system are unavailable.XContinue driving with added caution. Wheels may lock during
hard braking, reducing steering capability. XAdjust driving to be consistent with reduced braking
responsiveness.XHave the system checked at an authorized Mercedes-Benz
Center as soon as possible.
Failure to follow these instructions increases the risk of an
accident.
$
(USA only) J
(Canada only)
ABS and ESC
Currently
Unavailable See
Operator's ManualIn addition, the yellow ESC warning lamp ÷, the yellow ESC OFF
warning lamp å, and the yellow ABS indicator lamp ! come
on.
The brake system is still functioning normally but due to a
malfunction, the ABS, the BAS, the ESC, and the hill-start assist
system are unavailable.XContinue driving with added caution. Wheels may lock during
hard braking, reducing steering capability.XAdjust driving to be consistent with reduced braking
responsiveness.
When the voltage is above the required value again, the ABS, the
BAS, the ESC, and the hill-start assist system are operational again
and the message should disappear.
If the message does not disappear:
XHave the alternator and the battery checked.
Failure to follow these instructions increases the risk of an
accident.
Vehicle status messages in the multifunction display371Practical hintsBA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 371Z

Display messagesPossible causes/consequences and M Solutions$
(USA only) J
(Canada only)
EBD, ABS, and ESC
Inoperative See
Operator's ManualIn addition, the yellow ESC warning lamp ÷, the yellow ESC OFF
warning lamp å, and the yellow ABS indicator lamp ! come
on and an acoustic warning sounds.
The brake system is still functioning normally but due to a
malfunction, the ABS, the BAS, the EBP, and the ESC are
unavailable. XContinue driving with added caution. Wheels may lock during
hard braking, reducing steering capability.XAdjust driving to be consistent with reduced braking
responsiveness.XHave the system checked at an authorized Mercedes-Benz
Center as soon as possible.
Failure to follow these instructions increases the risk of an
accident.
F
(USA only) !
(Canada only)
Release Parking
BrakeIn addition, the red indicator lamp for the electronic parking brake
flashes and an acoustic warning sounds.
You are driving with the electronic parking brake engaged, or you
are carrying out an emergency brake maneuver with the electronic
parking brake ( Y page 261).XRelease electronic parking brake.
or
XDrive off carefully.
or
XRelease the handle for electronic parking brake.372Vehicle status messages in the multifunction displayPractical hints
BA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 372

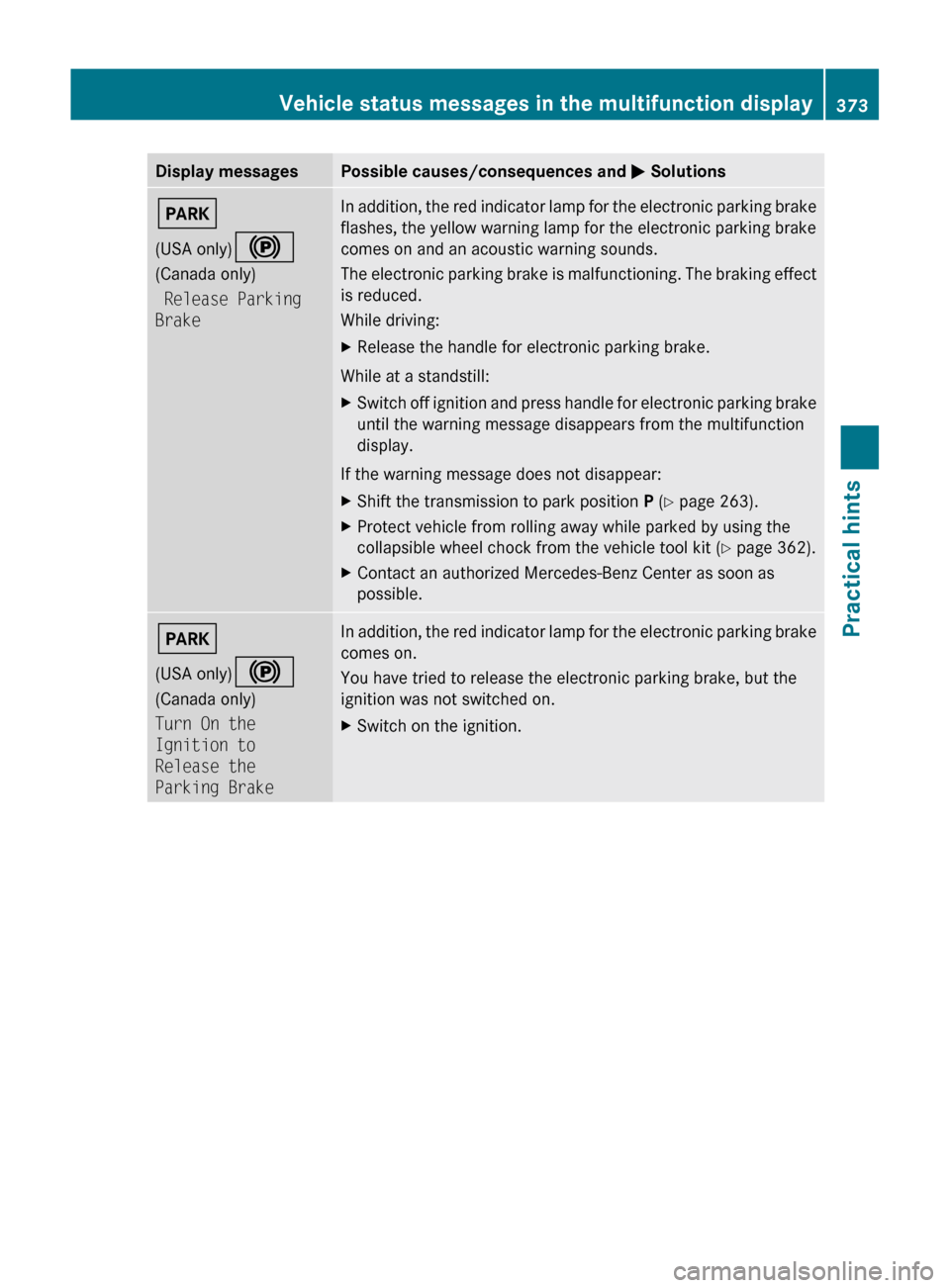

Display messagesPossible causes/consequences and M SolutionsF
(USA only) !
(Canada only)
Release Parking
BrakeIn addition, the red indicator lamp for the electronic parking brake
flashes, the yellow warning lamp for the electronic parking brake
comes on and an acoustic warning sounds.
The electronic parking brake is malfunctioning. The braking effect
is reduced.
While driving:XRelease the handle for electronic parking brake.
While at a standstill:
XSwitch off ignition and press handle for electronic parking brake
until the warning message disappears from the multifunction
display.
If the warning message does not disappear:
XShift the transmission to park position P (Y page 263).XProtect vehicle from rolling away while parked by using the
collapsible wheel chock from the vehicle tool kit ( Y page 362).XContact an authorized Mercedes-Benz Center as soon as
possible.F
(USA only) !
(Canada only)
Turn On the
Ignition to
Release the
Parking BrakeIn addition, the red indicator lamp for the electronic parking brake
comes on.
You have tried to release the electronic parking brake, but the
ignition was not switched on.XSwitch on the ignition.Vehicle status messages in the multifunction display373Practical hintsBA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 373Z

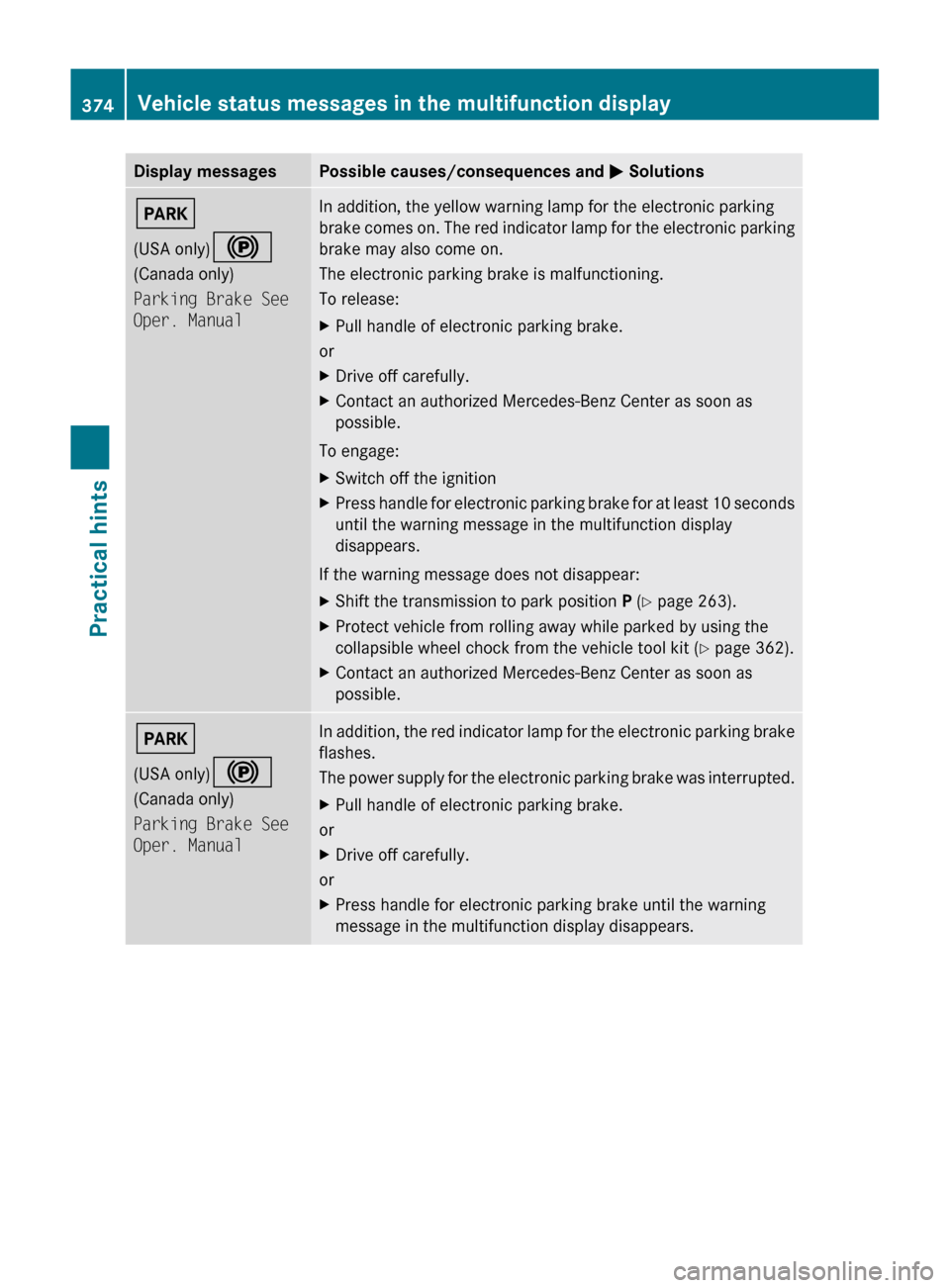

Display messagesPossible causes/consequences and M SolutionsF
(USA only) !
(Canada only)
Parking Brake See
Oper. ManualIn addition, the yellow warning lamp for the electronic parking
brake comes on. The red indicator lamp for the electronic parking
brake may also come on.
The electronic parking brake is malfunctioning.
To release:XPull handle of electronic parking brake.
or
XDrive off carefully.XContact an authorized Mercedes-Benz Center as soon as
possible.
To engage:
XSwitch off the ignitionXPress handle for electronic parking brake for at least 10 seconds
until the warning message in the multifunction display
disappears.
If the warning message does not disappear:
XShift the transmission to park position P (Y page 263).XProtect vehicle from rolling away while parked by using the
collapsible wheel chock from the vehicle tool kit ( Y page 362).XContact an authorized Mercedes-Benz Center as soon as
possible.F
(USA only) !
(Canada only)
Parking Brake See
Oper. ManualIn addition, the red indicator lamp for the electronic parking brake
flashes.
The power supply for the electronic parking brake was interrupted.XPull handle of electronic parking brake.
or
XDrive off carefully.
or
XPress handle for electronic parking brake until the warning
message in the multifunction display disappears.374Vehicle status messages in the multifunction displayPractical hints
BA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 374

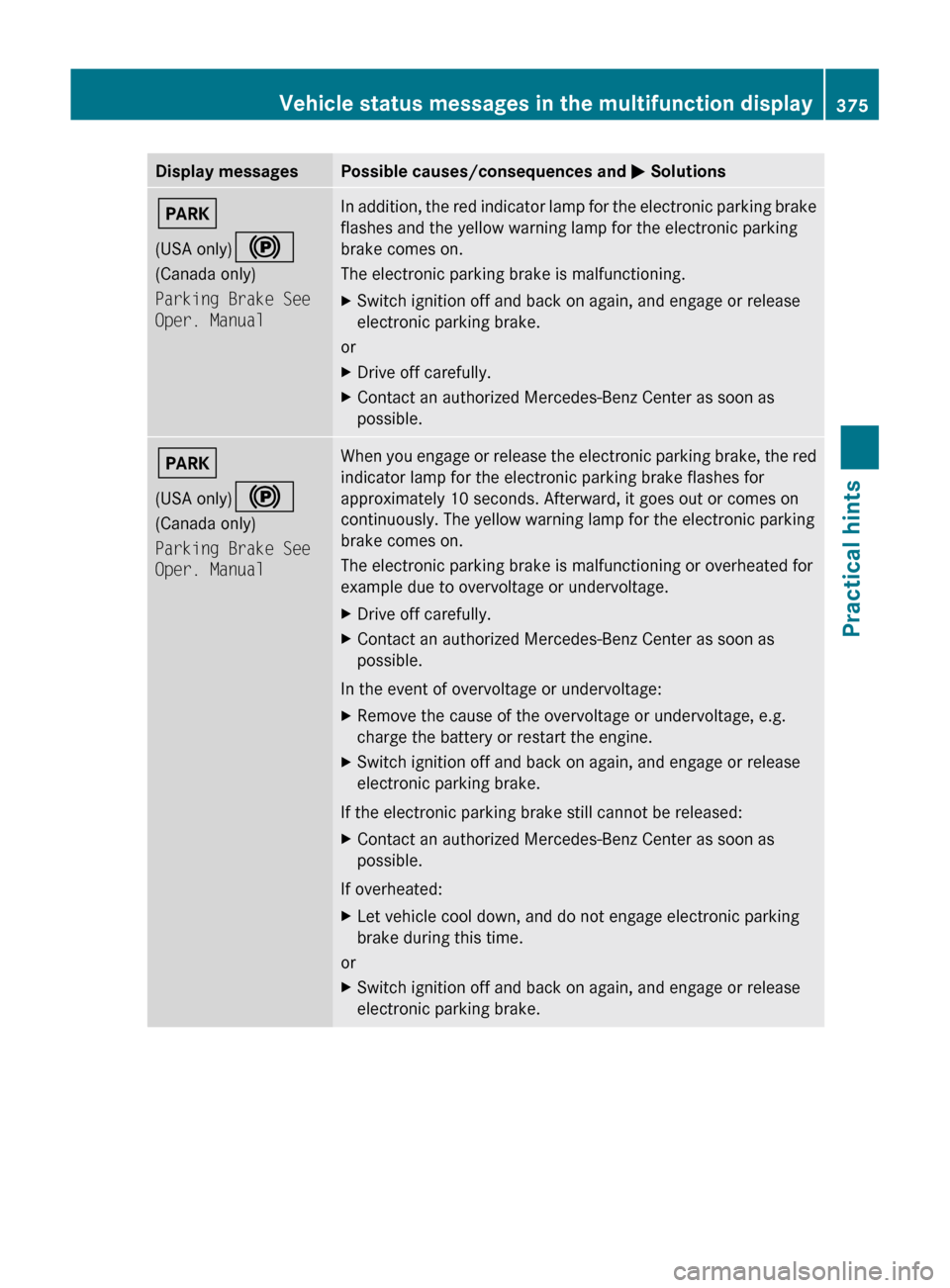

Display messagesPossible causes/consequences and M SolutionsF
(USA only) !
(Canada only)
Parking Brake See
Oper. ManualIn addition, the red indicator lamp for the electronic parking brake
flashes and the yellow warning lamp for the electronic parking
brake comes on.
The electronic parking brake is malfunctioning.XSwitch ignition off and back on again, and engage or release
electronic parking brake.
or
XDrive off carefully.XContact an authorized Mercedes-Benz Center as soon as
possible.F
(USA only) !
(Canada only)
Parking Brake See
Oper. ManualWhen you engage or release the electronic parking brake, the red
indicator lamp for the electronic parking brake flashes for
approximately 10 seconds. Afterward, it goes out or comes on
continuously. The yellow warning lamp for the electronic parking
brake comes on.
The electronic parking brake is malfunctioning or overheated for
example due to overvoltage or undervoltage.XDrive off carefully.XContact an authorized Mercedes-Benz Center as soon as
possible.
In the event of overvoltage or undervoltage:
XRemove the cause of the overvoltage or undervoltage, e.g.
charge the battery or restart the engine.XSwitch ignition off and back on again, and engage or release
electronic parking brake.
If the electronic parking brake still cannot be released:
XContact an authorized Mercedes-Benz Center as soon as
possible.
If overheated:
XLet vehicle cool down, and do not engage electronic parking
brake during this time.
or
XSwitch ignition off and back on again, and engage or release
electronic parking brake.Vehicle status messages in the multifunction display375Practical hintsBA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 375Z

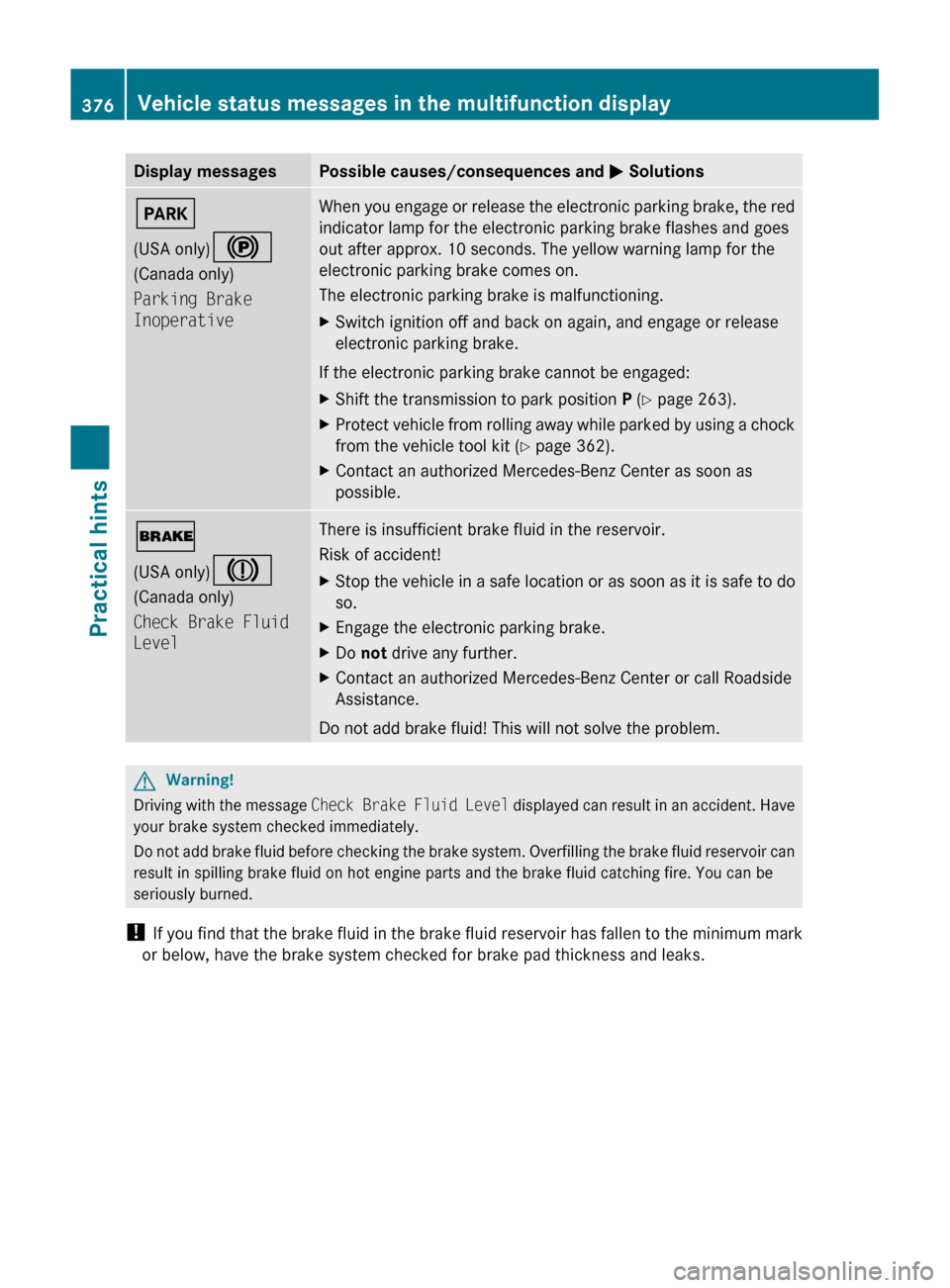

Display messagesPossible causes/consequences and M SolutionsF
(USA only) !
(Canada only)
Parking Brake
InoperativeWhen you engage or release the electronic parking brake, the red
indicator lamp for the electronic parking brake flashes and goes
out after approx. 10 seconds. The yellow warning lamp for the
electronic parking brake comes on.
The electronic parking brake is malfunctioning.XSwitch ignition off and back on again, and engage or release
electronic parking brake.
If the electronic parking brake cannot be engaged:
XShift the transmission to park position P (Y page 263).XProtect vehicle from rolling away while parked by using a chock
from the vehicle tool kit ( Y page 362).XContact an authorized Mercedes-Benz Center as soon as
possible.$
(USA only) J
(Canada only)
Check Brake Fluid
LevelThere is insufficient brake fluid in the reservoir.
Risk of accident!XStop the vehicle in a safe location or as soon as it is safe to do
so.XEngage the electronic parking brake.XDo not drive any further.XContact an authorized Mercedes-Benz Center or call Roadside
Assistance.
Do not add brake fluid! This will not solve the problem.
GWarning!
Driving with the message Check Brake Fluid Level displayed can result in an accident. Have
your brake system checked immediately.
Do not add brake fluid before checking the brake system. Overfilling the brake fluid reservoir can
result in spilling brake fluid on hot engine parts and the brake fluid catching fire. You can be
seriously burned.
! If you find that the brake fluid in the brake fluid reservoir has fallen to the minimum mark
or below, have the brake system checked for brake pad thickness and leaks.
376Vehicle status messages in the multifunction displayPractical hints
BA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 376

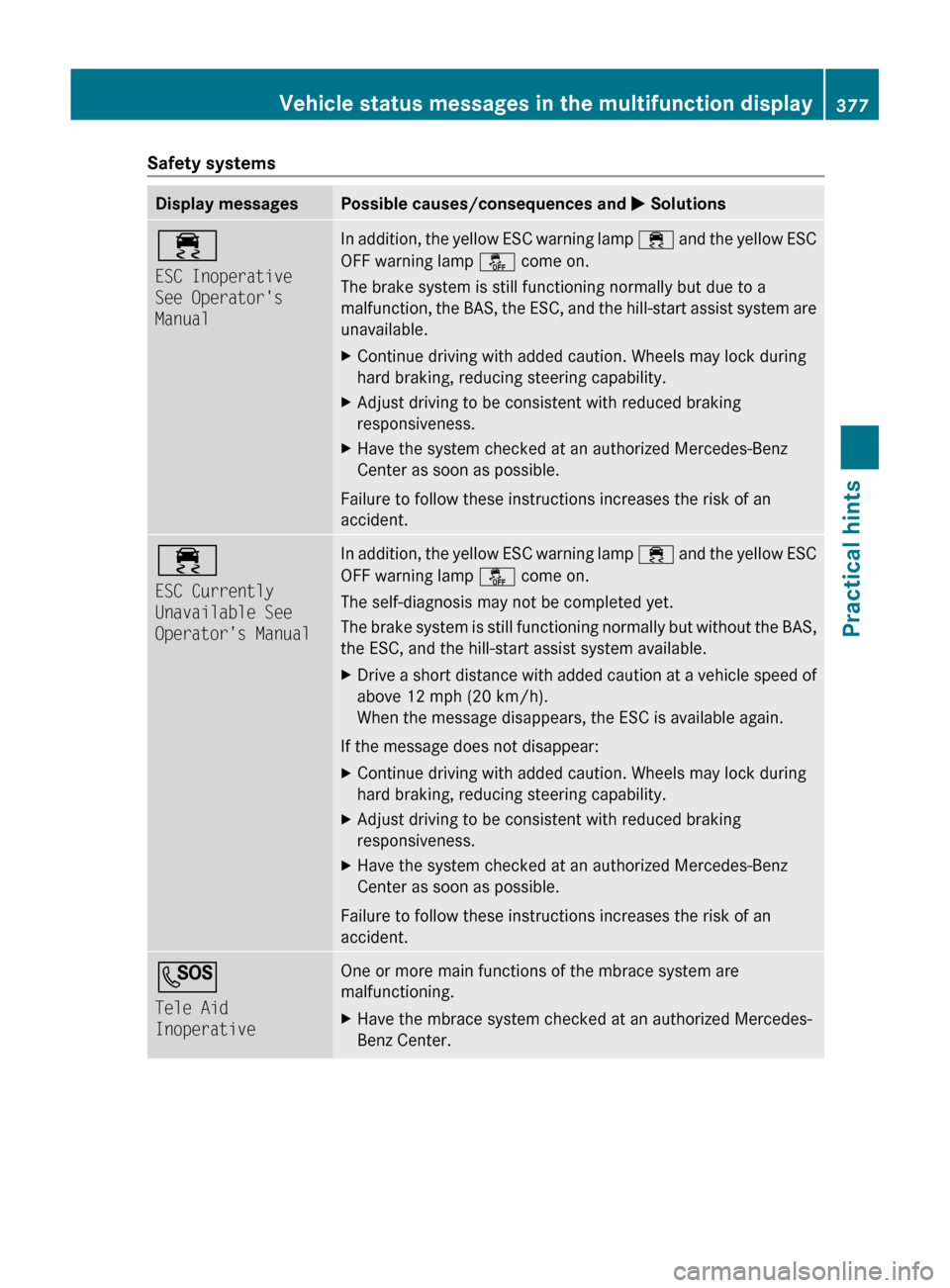

Safety systemsDisplay messagesPossible causes/consequences and M Solutions÷
ESC Inoperative
See Operator's
ManualIn addition, the yellow ESC warning lamp ÷ and the yellow ESC
OFF warning lamp å come on.
The brake system is still functioning normally but due to a
malfunction, the BAS, the ESC, and the hill-start assist system are
unavailable. XContinue driving with added caution. Wheels may lock during
hard braking, reducing steering capability.XAdjust driving to be consistent with reduced braking
responsiveness.XHave the system checked at an authorized Mercedes-Benz
Center as soon as possible.
Failure to follow these instructions increases the risk of an
accident.
÷
ESC Currently
Unavailable See
Operator's ManualIn addition, the yellow ESC warning lamp ÷ and the yellow ESC
OFF warning lamp å come on.
The self-diagnosis may not be completed yet.
The brake system is still functioning normally but without the BAS,
the ESC, and the hill-start assist system available.XDrive a short distance with added caution at a vehicle speed of
above 12 mph (20 km/h).
When the message disappears, the ESC is available again.
If the message does not disappear:
XContinue driving with added caution. Wheels may lock during
hard braking, reducing steering capability.XAdjust driving to be consistent with reduced braking
responsiveness.XHave the system checked at an authorized Mercedes-Benz
Center as soon as possible.
Failure to follow these instructions increases the risk of an
accident.
G
Tele Aid
InoperativeOne or more main functions of the mbrace system are
malfunctioning.XHave the mbrace system checked at an authorized Mercedes-
Benz Center.Vehicle status messages in the multifunction display377Practical hintsBA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 377Z

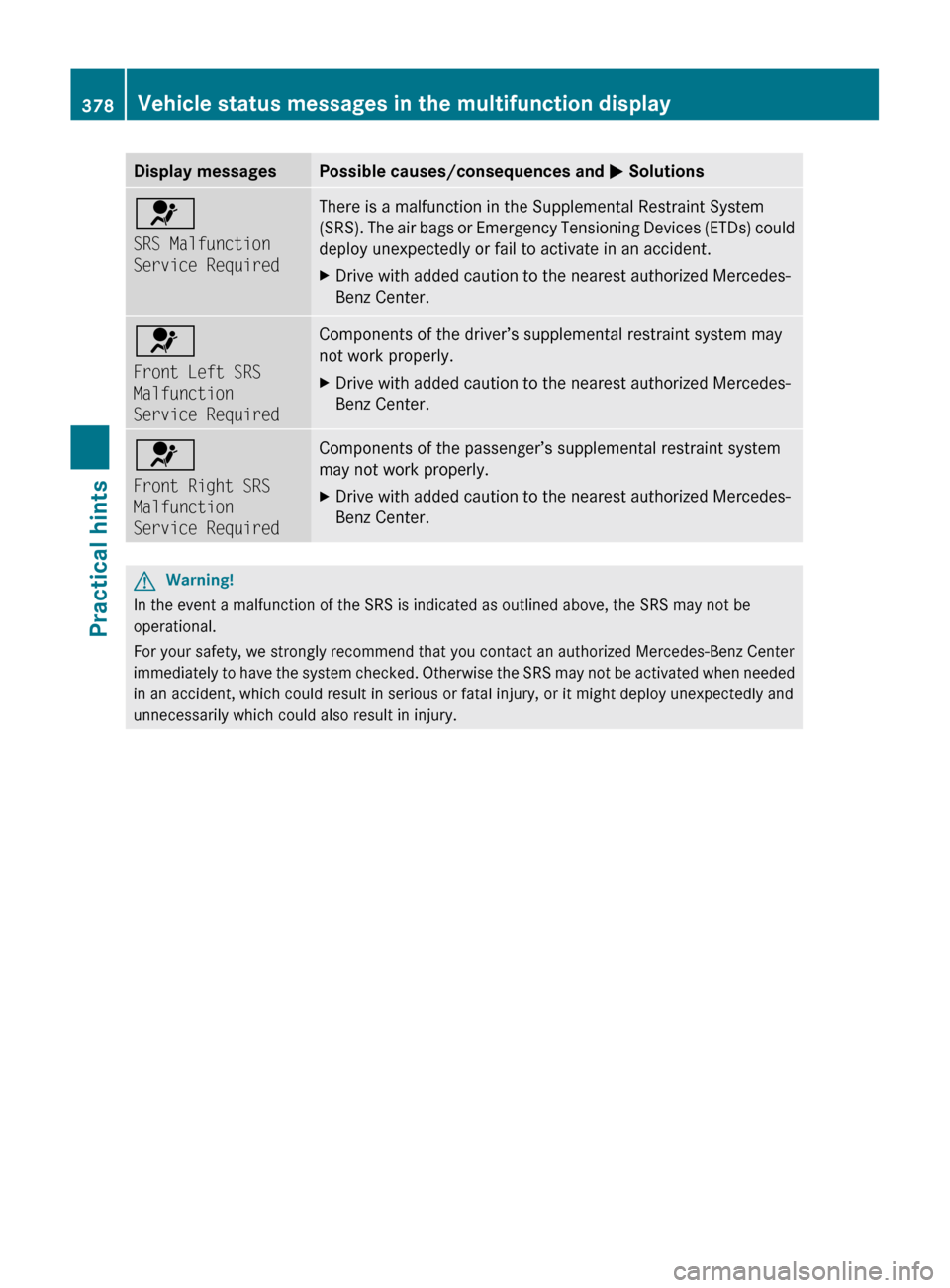

Display messagesPossible causes/consequences and M Solutions6
SRS Malfunction
Service RequiredThere is a malfunction in the Supplemental Restraint System
(SRS). The air bags or Emergency Tensioning Devices (ETDs) could
deploy unexpectedly or fail to activate in an accident. XDrive with added caution to the nearest authorized Mercedes-
Benz Center.6
Front Left SRS
Malfunction
Service RequiredComponents of the driver’s supplemental restraint system may
not work properly.XDrive with added caution to the nearest authorized Mercedes-
Benz Center.6
Front Right SRS
Malfunction
Service RequiredComponents of the passenger’s supplemental restraint system
may not work properly.XDrive with added caution to the nearest authorized Mercedes-
Benz Center.GWarning!
In the event a malfunction of the SRS is indicated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend that you contact an authorized Mercedes-Benz Center
immediately to have the system checked. Otherwise the SRS may not be activated when needed
in an accident, which could result in serious or fatal injury, or it might deploy unexpectedly and
unnecessarily which could also result in injury.
378Vehicle status messages in the multifunction displayPractical hints
BA 197 USA, CA Edition A 2011; 1; 27, en-UShereepeVersion: 3.0.3.52010-03-24T15:31:10+01:00 - Seite 378
