MERCEDES-BENZ SLS COUPE 2010 Owners Manual

i

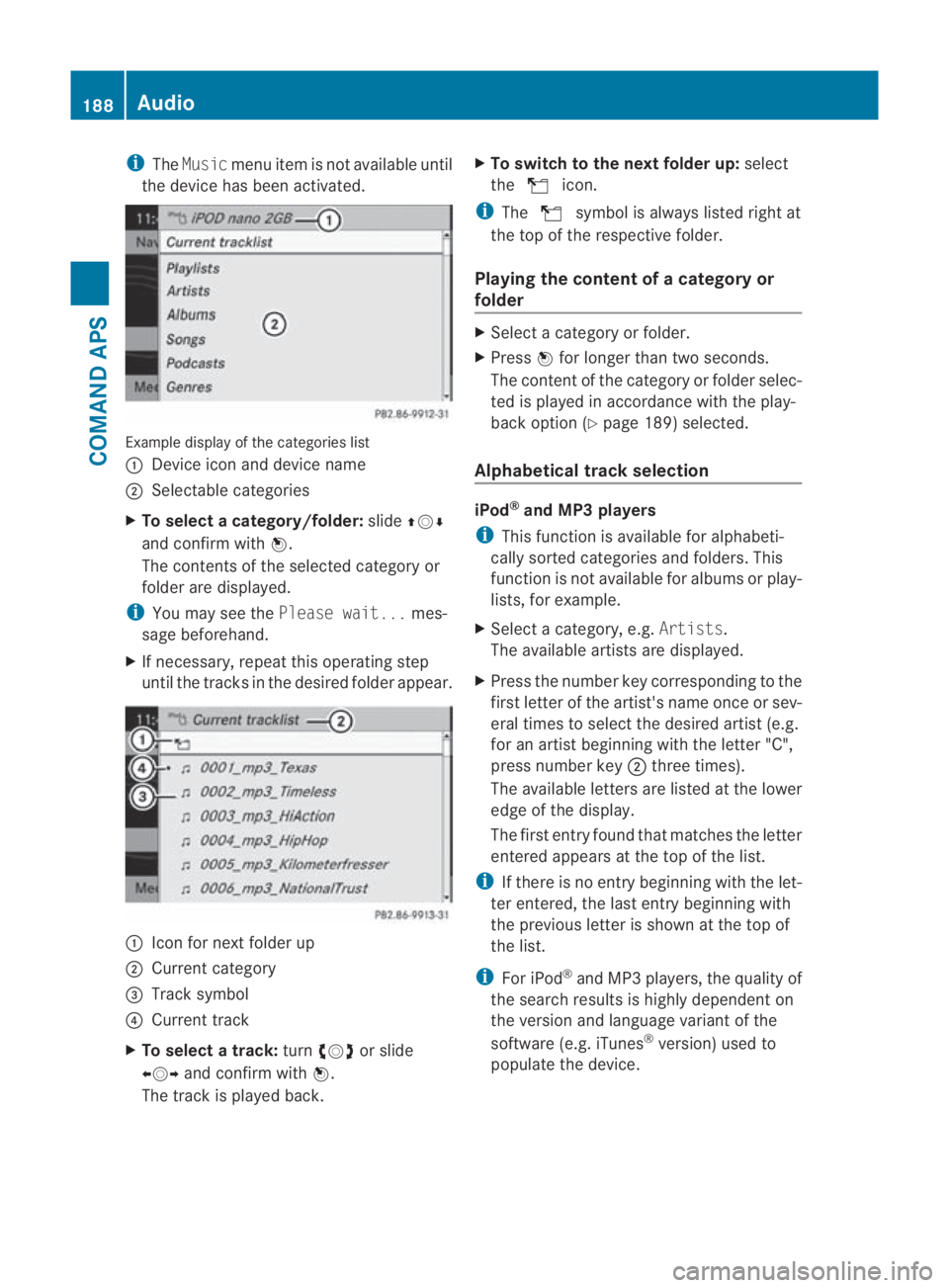

The Music menu item is not available until
the device has been activated. Example display of the categories list
0001
Device icon and device name
0002 Selectable categories
X To select acategory/folder: slide001F0013000D
and confirm with 0017.
The contents of the selected category or
folder are displayed.
i You may see the Please wait... mes-
sage beforehand.
X If necessary, repeat this operating step
until the tracks in the desired folder appear. 0001
Icon for next folder up
0002 Current category
0015 Track symbol
0014 Current track
X To select a track: turn002800130029 or slide
002B0013002C and confirm with 0017.
The track is played back. X
To switch to the next folder up: select
the 000F icon.
i The 000F symbol is always listed righ tat
the top of the respectiv efolder.
Playing the content of a category or
folder X
Select a category or folder.
X Press 0017for longer than two seconds.
The content of the category or folder selec-
ted is played in accordanc ewith the play-
back option (Y page 189) selected.
Alphabetical track selection iPod
®
and MP3 players
i This function is available for alphabeti-
cally sorted categories and folders. This
function is not available for albums or play-
lists, for example.
X Selec tacategory, e.g. Artists.
The available artists are displayed.
X Press the number key corresponding to the
firs tletter of the artist's name once or sev-
eral times to select the desired artist (e.g.
for an artist beginning with the letter "C",
press number key 0002three times).
The available letters are listed at the lower
edge of the display.
The first entry found that matches the letter
entered appears at the top of the list.
i If there is no entry beginning with the let-
ter entered, the last entry beginning with
the previous letter is shown at the top of
the list.
i For iPod ®
and MP3 players, the quality of
the search results is highly dependen ton
the version and language variant of the
software (e.g. iTunes ®
version) used to
populate the device. 188
AudioCOMAND
APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeuV ersion: 3.0.3.6
2010-05-07T14:19:43+02:00 - Seite 188

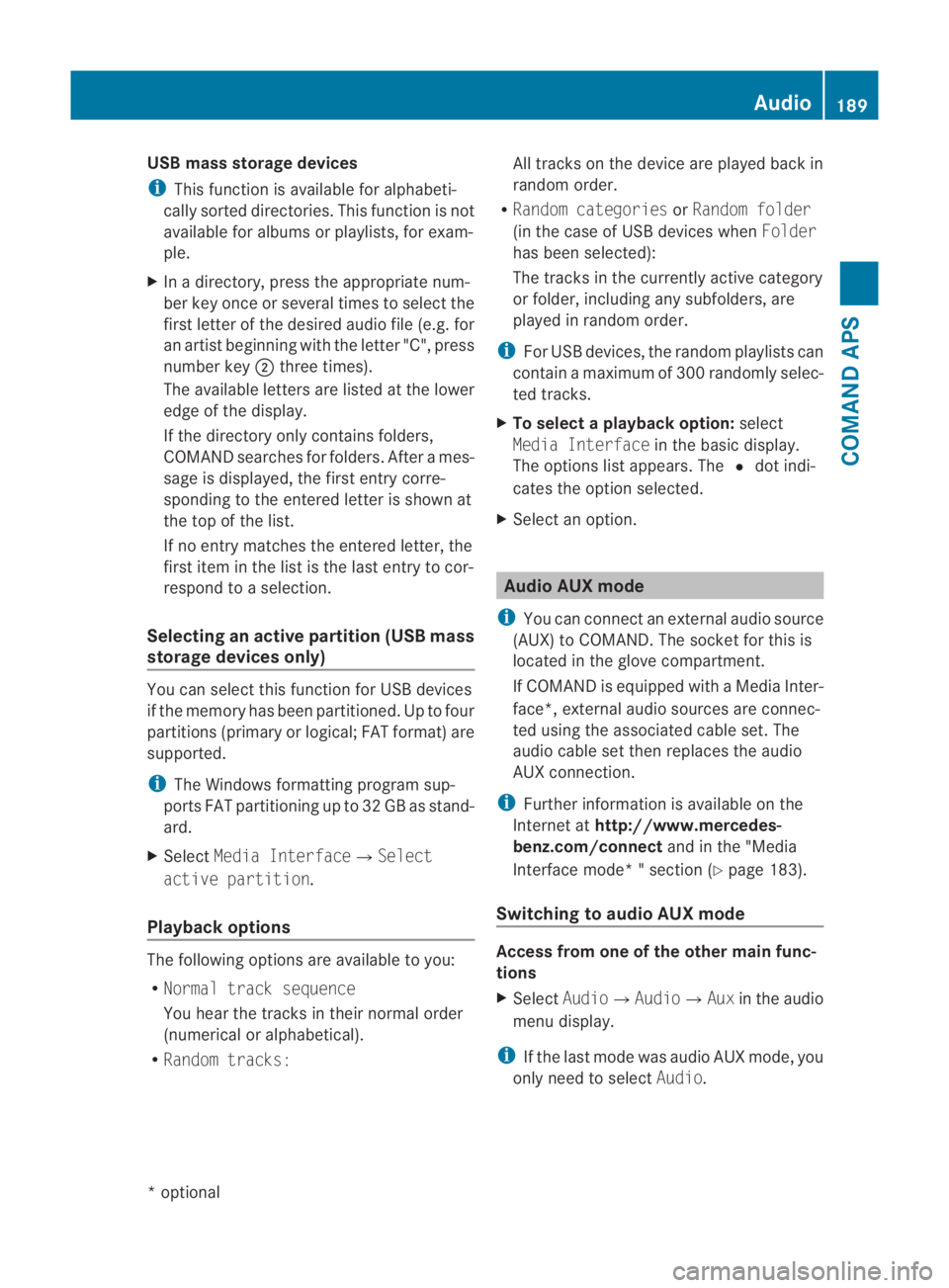

USB mass storage devices
i
This function is available for alphabeti-
cally sorted directories. This function is not
available for albums or playlists, for exam-
ple.
X In a directory, press the appropriate num-
ber key once or several times to select the
first letter of the desired audio file (e.g. for
an artist beginning with the letter "C", press
number key 0002three times).
The available letters are listed at the lower
edge of the display.
If the directory only contains folders,
COMAND searches for folders. After a mes-
sage is displayed, the first entry corre-
sponding to the entered letter is shown at
the top of the list.
If no entry matches the entered letter, the
first item in the list is the last entry to cor-
respond to a selection.
Selecting an active partition (USB mass
storage devices only) You can select this function for USB devices
if the memory has been partitioned. Up to four
partitions (primary or logical; FAT format) are
supported.
i The Windows formatting program sup-
ports FAT partitioning up to 32 GB as stand-
ard.
X Select Media Interface0004Select
active partition.
Playback options The following options are available to you:
R
Normal track sequence
You hear the tracks in their normal order
(numerical or alphabetical).
R Random tracks: All tracks on the device are played back in
random order.
R Random categories orRandom folder
(in the case of USB devices when Folder
has been selected):
The tracks in the currently active category
or folder, including any subfolders, are
played in random order.
i For USB devices, the random playlists can
contain a maximum of 300 randomly selec-
ted tracks.
X To select a playback option: select
Media Interface in the basic display.
The options list appears. The 0023dot indi-
cates the option selected.
X Selec tano ption. Audio AUX mode
i You can connec tanexternal audio source
(AUX) to COMAND. The socket for this is
located in the glove compartment.
If COMAND is equipped with a Media Inter-
face*, external audio sources are connec-
ted using the associated cable set. The
audio cable set then replaces the audio
AUX connection.
i Further informatio nis available on the
Internet at http://www.mercedes-
benz.com/connect and in the "Media
Interface mode* " section (Y page 183).
Switching to audio AUX mode Access from one of the other main func-
tions
X
Select Audio0004Audio0004Aux in the audio
menu display.
i If the last mode was audio AUX mode, you
only need to select Audio. Audio
189COMAND APS
*optional
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 189 Z

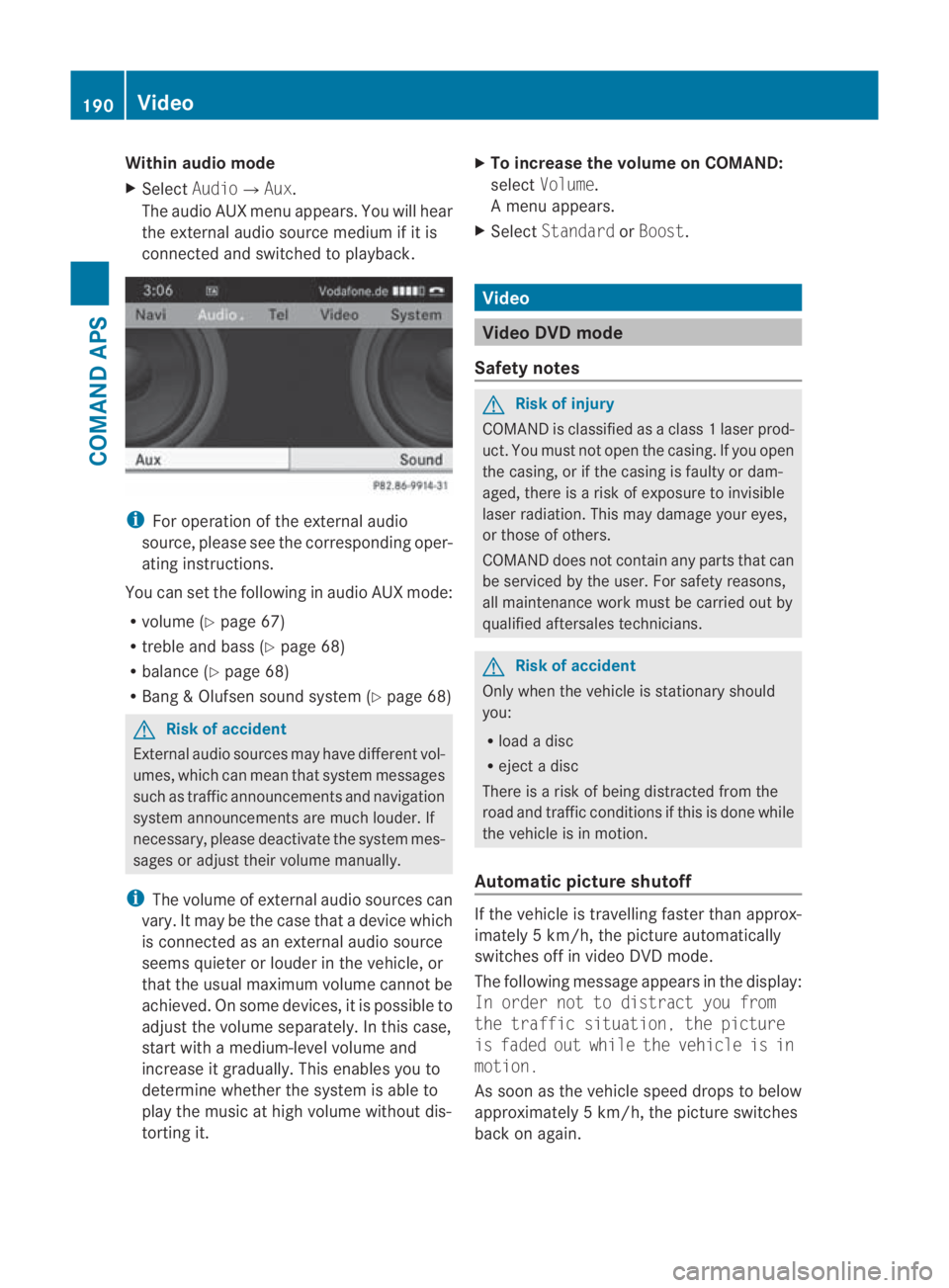

Within audio mode
X
Select Audio0004Aux.
The audio AUX menu appears .You will hear
the external audio source medium if it is
connected and switched to playback. i
For operation of the external audio
source, please see the corresponding oper-
ating instructions.
You can set the following in audio AUX mode:
R volume (Y page 67)
R treble and bass ( Ypage 68)
R balance (Y page 68)
R Bang &Olufsen sound system (Y page 68)G
Risk of accident
External audio sources may have differen tvol-
umes, which can mean that system messages
such as traffic announcements and navigation
system announcements are much louder. If
necessary, please deactivate the system mes-
sages or adjust their volume manually.
i The volume of external audio sources can
vary. It may be the case that a device which
is connected as an external audio source
seems quieter or louder in the vehicle, or
that the usual maximum volume cannot be
achieved. On some devices, it is possible to
adjust the volume separately. In this case,
start with a medium-level volume and
increase it gradually. This enables you to
determine whether the system is able to
play the music at high volume without dis-
torting it. X
To increase the volume on COMAND:
select Volume.
Am enu appears.
X Select Standard orBoost. Video
Video DVD mode
Safety notes G
Risk of injury
COMAND is classified as a class 1laser prod-
uct .You must not open the casing. If you open
the casing, or if the casing is faulty or dam-
aged, there is a risk of exposure to invisible
laser radiation. This may damage your eyes,
or those of others.
COMAND does not contain any parts that can
be serviced by the user. For safety reasons,
all maintenance work must be carried out by
qualified aftersales technicians. G
Risk of accident
Only when the vehicle is stationary should
you:
R load a disc
R eject a disc
There is a risk of being distracted from the
road and traffic conditions if this is done while
the vehicle is in motion.
Automatic picture shutoff If the vehicle is travelling faster than approx-
imately
5km/h, the picture automatically
switches off in video DVD mode.
The following message appears in the display:
In order not to distract you from
the traffic situation, the picture
is faded out while the vehicle is in
motion.
As soon as the vehicle spee ddrops to below
approximately 5km/h, the picture switches
back on again. 190
VideoCOMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6
2010-05-07T14:19:43+02:00 - Seite 190

Notes on discs
i
There may be playback problems when
playing copied discs .There are a large vari-
ety of discs, DVD authoring software, writ-
ing software and writers available. This vari-
ety means that there is no guarantee that
the system will be able to play discs that
you have copied yourself.
! Do not affix stickers or labels to the discs,
as they could peel off and damage
COMAND. Stickers can cause the disc to
bend, which can result in read errors and
disc recognition problems.
! COMAND is designed to accommodate
discs which comply with the EN 60908
standard. You can therefore only use discs
with a maximum thickness of 1.3 mm.
If you insert thicker discs, e.g. those that
contain data on both sides (DVD on one
side and audio data on the other), they can-
not be ejected and can damage COMAND.
Use round discs with a diameter of 12 cm.
Do not use discs with a diameter of 8 cm,
even with an adapter.
Notes on handling discs R
Only hold discs by the edge.
R Handle discs carefully to prevent playback
problems.
R Avoid getting scratches, fingerprints and
dust on discs.
R Clean discs from time to time with a com-
mercially available cleaning cloth. When
cleaning CDs, you should wipe in straight
lines from the centre outwards rather than
in a circular motion.
R Only use a pen specifically made for label-
ling discs.
R Place discs back in their cases after use.
R Protect discs from heat and direct sunlight. DVD playback conditions It is possible to buy video DVDs which do not
conform to current standards.
Such DVDs may have picture, sound or other
playback problems. COMAND can play back
video DVDs produced according to the fol-
lowing standards:
R
region code 2orregion code 0(no region
code)
i If you insert a video DVD with a different
regio ncode, you will see a message to this
effect.
R PAL or NTSC TV standard
You will generally find the relevant details
either on the DVD itself or on the DVD case.
i COMAND is set to region code 2 at the
factory. This setting can be changed at a
Mercedes-Benz Service Centre. This will
allow you to play video DVDs with a differ-
ent region code, provided that they are pro-
duced in accordance with the PAL or NTSC
TV standard. The region code can be
changed a maximum of five times.
Background video mode If another main function is active, such as
navigation, you can use the
0001or0002
button to carry out the following functions in
video DVD mode:
R select a scene/chapter
R fast forward or rewind
Aw indow shows information about the selec-
ted function.
Function restrictions Depending on the DVD, it is possible that cer-
tain functions or actions will be temporarily
blocked or may not function at all. As soon as
you try to activate these functions or actions,
you will see the
0008symbol in the display. Video
191COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite191 Z

Inserting
aDVD X
Proceed as described in the "Inserting CDs
and DVDs" section ( Ypage 168).
Ejecting DVDs X
Proceed as described in the "Ejecting CDs
and DVDs" section ( Ypage 170). 192
VideoCOMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbae
uV ersion: 3.0.3.6
2010-05-07T14:19:43+02:00 - Seite 192

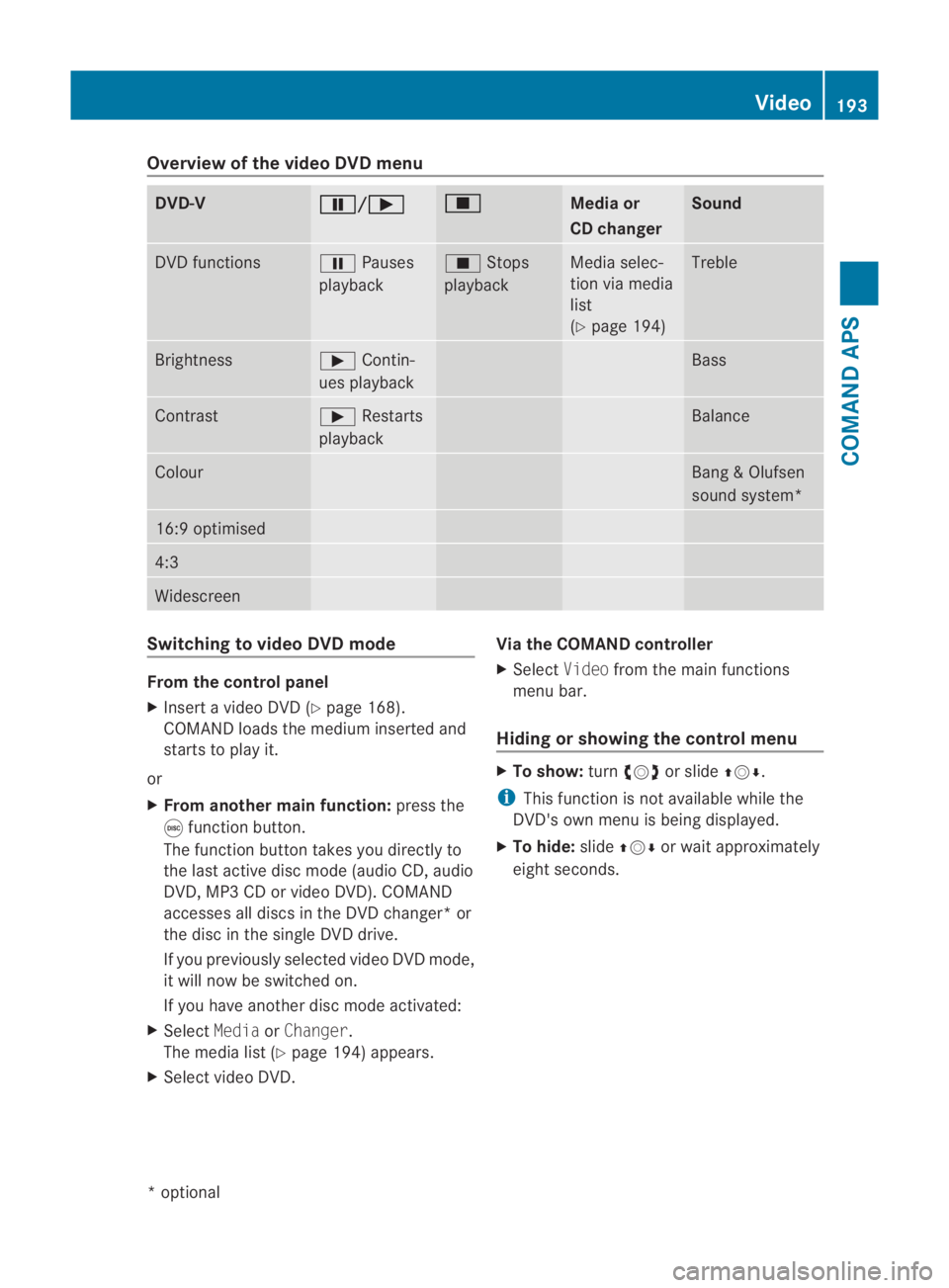

Overview of the video DVD menu
DVD-V 0007 /000D 0010
Media or
CD changer Sound
DVD functions 0007
Pauses
playback 0010
Stops
playback Media selec-
tion via media
list
(Y
page 194) Treble
Brightness 000D
Contin-
ues playback Bass
Contrast 000D
Restarts
playback Balance
Colour Bang
&Olufsen
sound system* 16:9 optimised
4:3
Widescreen
Switching to video DVD mode
From the control panel
X
Insert a video DVD (Y page 168).
COMAND loads the medium inserted and
starts to play it.
or
X From another main function: press the
000E function button.
The function button takes you directly to
the last active disc mode (audio CD, audio
DVD, MP3 CD or video DVD). COMAND
accesses all discs in the DV Dchanger* or
the disc in the single DVD drive.
If you previously selected video DVD mode,
it will now be switched on.
If you have another disc mode activated:
X Select MediaorChanger.
The media list (Y page 194) appears.
X Select video DVD. Via the COMAND controller
X
Select Videofrom the main functions
menu bar.
Hiding or showing the control menu X
To show: turn002800130029 or slide 001F0013000D.
i This function is not available while the
DVD's own menu is being displayed.
X To hide: slide001F0013000D or wait approximately
eight seconds. Video
193COMAND APS
*optional
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 193 Z

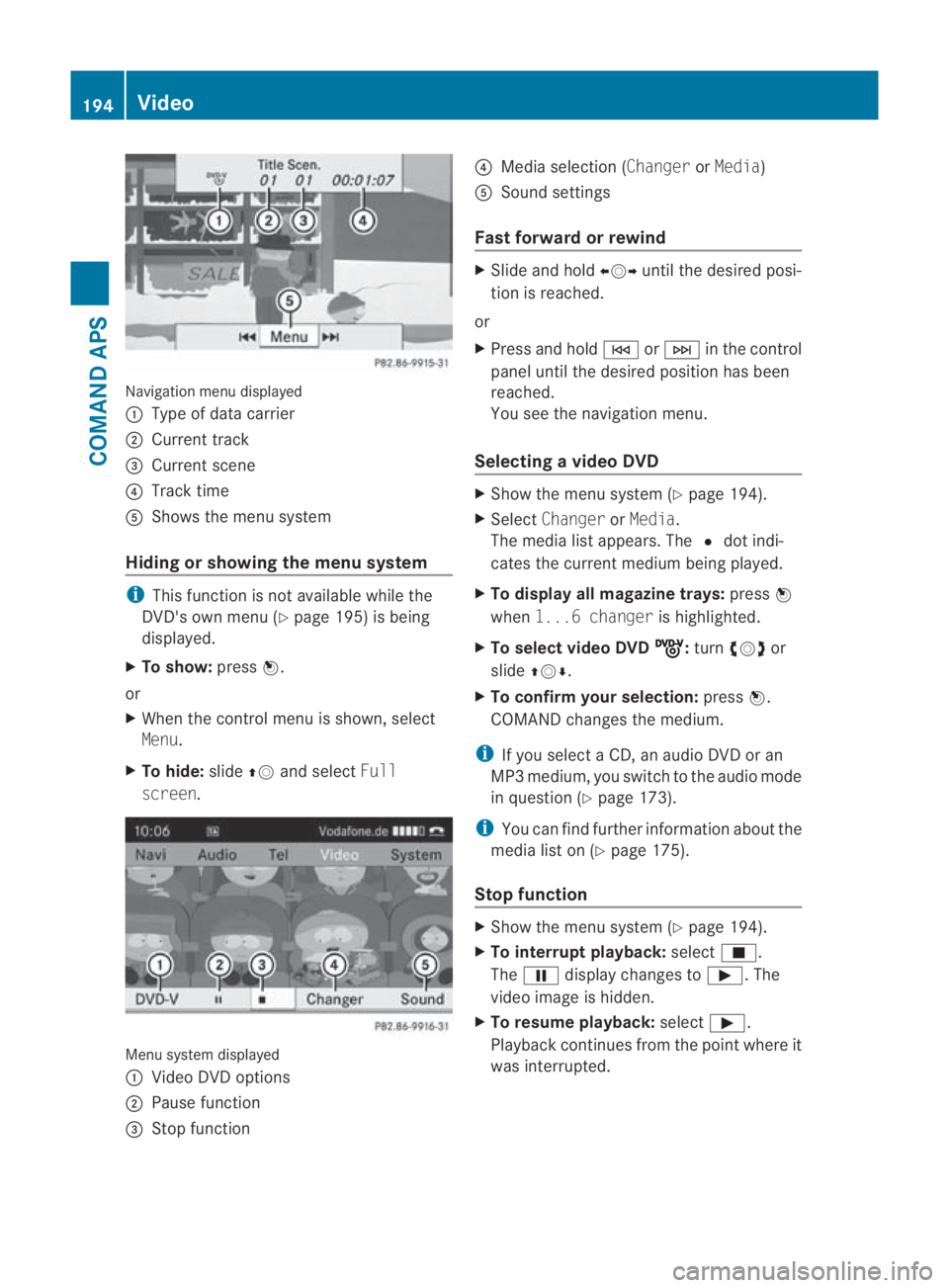

Navigation menu displayed
0001
Type of data carrier
0002 Current track
0015 Current scene
0014 Track time
0012 Shows the menu system
Hiding or showing the menu system i
This function is not available while the
DVD's own menu (Y page 195) is being
displayed.
X To show: press0017.
or
X When the control menu is shown, select
Menu.
X To hide: slide001F0013and select Full
screen. Menu system displayed
0001
Video DVD options
0002 Pause function
0015 Stop function 0014
Media selection (Changer orMedia)
0012 Sound settings
Fast forward or rewind X
Slide and hold 002B0013002Cuntil the desired posi-
tion is reached.
or
X Press and hold 0001or0002 in the control
panel until the desired position has been
reached.
You see the navigatio nmenu.
Selecting avideo DVD X
Show the menu syste m(Ypage 194).
X Select Changer orMedia.
The media list appears. The 0023dot indi-
cates the curren tmedium being played.
X To display all magazine trays: press0017
when 1...6 changer is highlighted.
X To select video DVD ý :
turn 002800130029 or
slide 001F0013000D.
X To confirm your selection: press0017.
COMAND changes the medium.
i If you select a CD, an audio DVD or an
MP3 medium, you switch to the audio mode
in question (Y page 173).
i You can find further information about the
media list on (Y page 175).
Stop function X
Show the menu system (Y page 194).
X To interrupt playback: select0010.
The 0007 display changes to 000D.The
video image is hidden.
X To resume playback: select000D.
Playback continues from the point where it
was interrupted. 194
VideoCOMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu
Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 194

X
To stop playback: select0010againwhile
playback is interrupted.
or
X Select 0010twice in quick succession dur-
ing playback.
Selection is at 000D.
X To restart playback: select000D.
Playback restarts from the beginning.

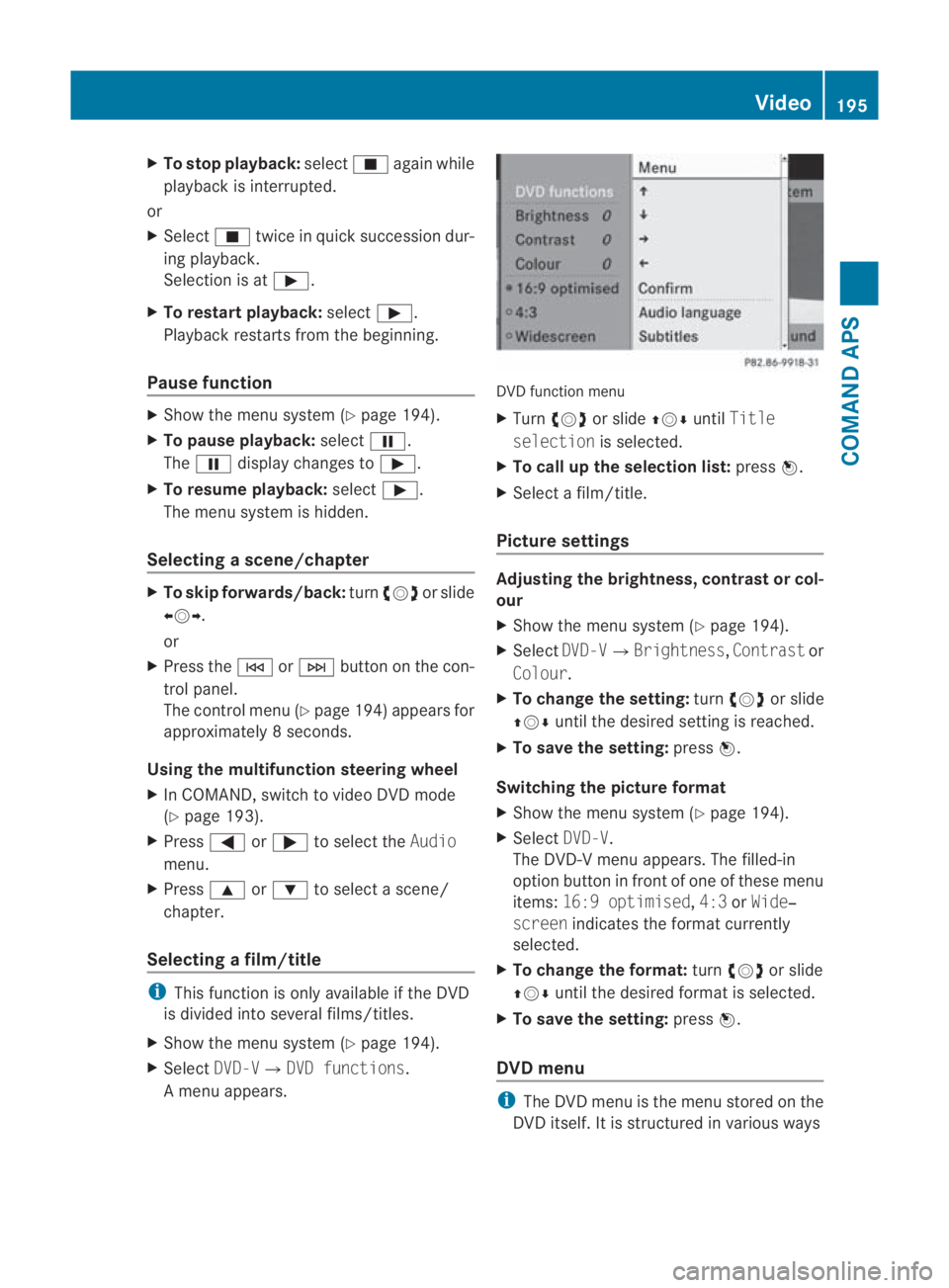

Pause function X
Show the menu system (Y page 194).
X To pause playback: select0007.
The 0007 display changes to 000D.
X To resume playback: select000D.
The menu system is hidden.
Selecting ascene/chapter X
To skip forwards/back: turn002800130029 or slide
002B0013002C .
or
X Press the 0001or0002 buttonont he con-
trol panel.
The control menu (Y page 194) appears for
approximately 8seconds.
Using the multifunction steering wheel
X In COMAND, switch to video DVD mode
(Y page 193).
X Press 0008or000E to select the Audio
menu.
X Press 000For000C to select a scene/
chapter.
Selecting afilm/title i
This function is only available if the DVD
is divided into several films/titles.
X Show the menu syste m(Ypage 194).
X Select DVD-V0004 DVD functions.
Am enu appears. DVD function menu
X
Turn 002800130029 or slide 001F0013000DuntilTitle
selection is selected.
X To call up the selection list: press0017.
X Select a film/title.
Picture settings Adjusting the brightness, contrast or col-
our
X
Show the menu system (Y page 194).
X Select DVD-V0004Brightness, Contrastor
Colour.
X To change the setting: turn002800130029 or slide
001F0013000D until the desired setting is reached.
X To save the setting: press0017.
Switching the picture format
X Show the menu system (Y page 194).
X Select DVD-V.
The DVD-V menu appears. The filled-in
option button in fron tofone of these menu
items: 16:9 optimised ,4:3 orWide‐
screen indicates the format currently
selected.
X To change the format: turn002800130029 or slide
001F0013000D until the desired format is selected.
X To save the setting: press0017.
DVD menu i
The DVD menu is the menu stored on the
DVD itself. It is structured in various ways Video
195COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeuV ersion: 3.0.3.6
2010-05-07T14:19:43+02:00 - Seite 195 Z

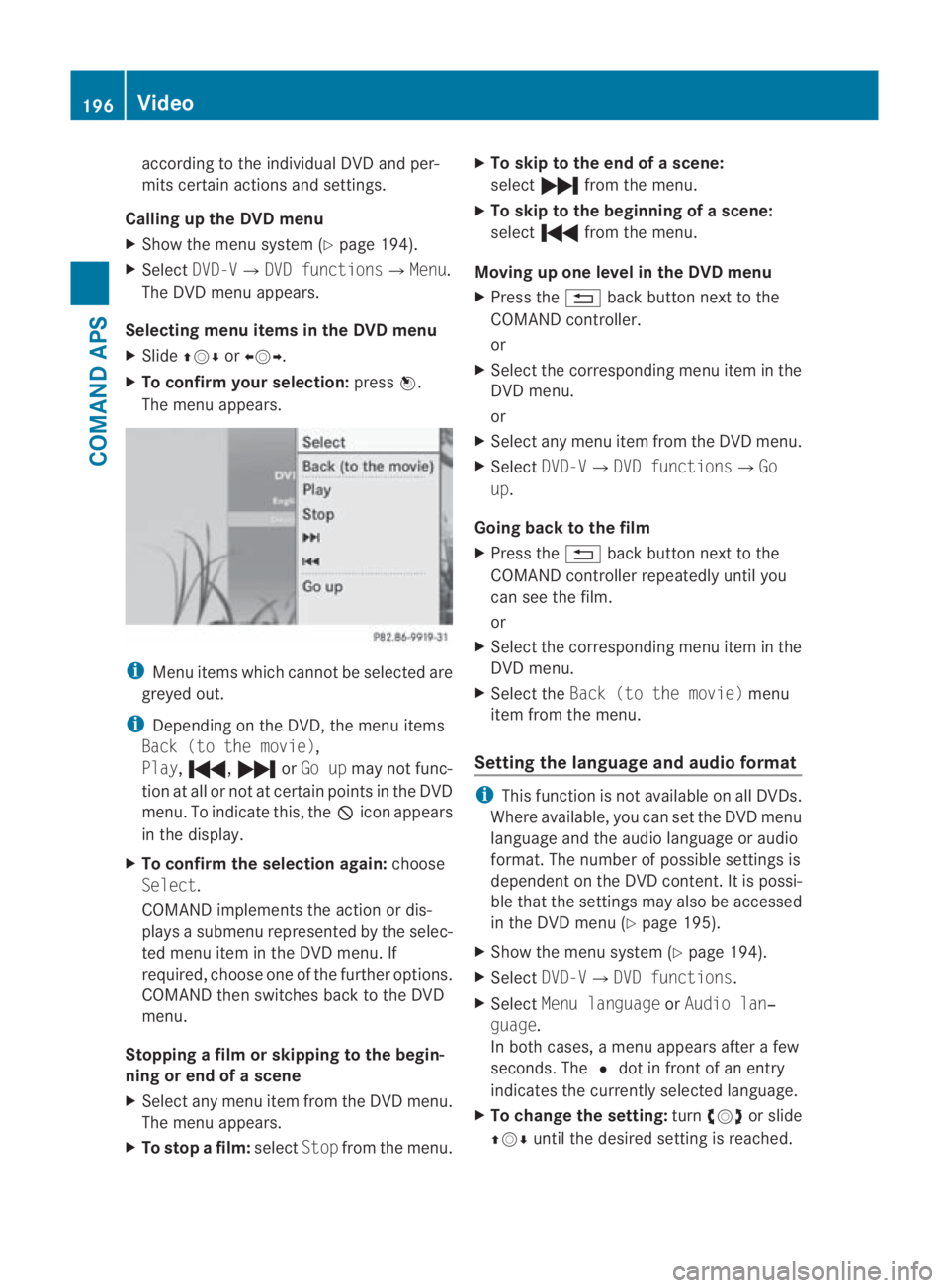

according to the individual DV
Dand per-
mits certain actions and settings.
Calling up the DVD menu
X Show the menu system (Y page 194).
X Select DVD-V0004 DVD functions 0004Menu.
The DVD menu appears.
Selecting men uitems in the DVD menu
X Slide 001F0013000D or002B0013002C .
X To confirm your selection: press0017.
The menu appears. i
Menu items which canno tbe selected are
greyed out.
i Depending on the DVD, the menu items
Back (to the movie),
Play, 0021, 0022orGo up may not func-
tion at all or not at certain points in the DVD
menu. To indicate this, the 0008icon appears
in the display.
X To confirm the selection again: choose
Select.
COMAND implements the action or dis-
plays a submenu represented by the selec-
ted menu item in the DVD menu. If
required, choose one of the further options.
COMAND then switches back to the DVD
menu.
Stopping afilm or skipping to the begin-
ning or end of ascene
X Select any men uitem from the DVD menu.
The menu appears.
X To stop a film: selectStopfrom the menu. X
To skip to the end of a scene:
select 0022from the menu.
X To ski pto the beginning of ascene:
select 0021from the menu.
Moving up one level in the DVD menu
X Press the 0001back button next to the
COMAND controller.
or
X Select the corresponding menu ite minthe
DVD menu.
or
X Select any menu item from the DVD menu.
X Select DVD-V0004DVD functions0004Go
up.
Going back to the film
X Press the 0001back button next to the
COMAND controller repeatedly until you
can see the film.
or
X Select the corresponding menu item in the
DVD menu.
X Select the Back (to the movie) menu
item from the menu.
Setting the language and audio format i
This function is not available on all DVDs.
Where available, you can set the DVD menu
language and the audio language or audio
format. The number of possible settings is
dependent on the DVD content. It is possi-
ble that the settings may also be accessed
in the DVD menu (Y page 195).
X Show the menu system (Y page 194).
X Select DVD-V0004DVD functions.
X Select Menu language orAudio lan‐
guage.
In both cases, a menu appears after a few
seconds. The 0023dot in front of an entry
indicates the currently selected language.
X To change the setting: turn002800130029 or slide
001F0013000D until the desired setting is reached. 196
VideoCOMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu Version: 3.0.3.6 2010-05-07T14:19:43+02:00 - Seite 196

X
To save the setting: press0017.
X To exit a menu: slide002B0013002C.

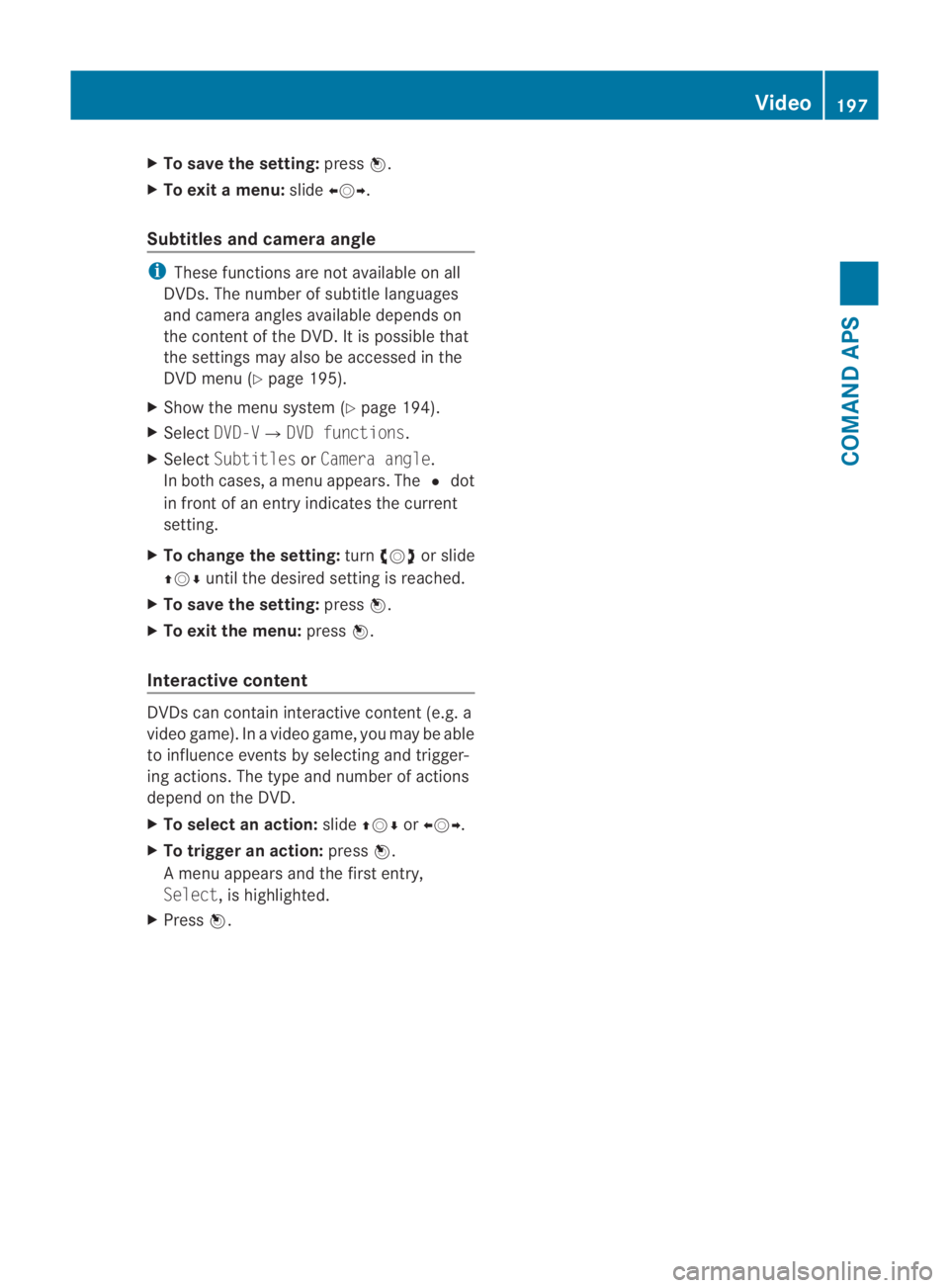

Subtitles and camera angle i
These functions are not available on all
DVDs. The numbe rofsubtitle languages
and camera angles available depends on
the content of the DVD. It is possible that
the settings may also be accessed in the
DVD menu (Y page 195).
X Show the menu system (Y page 194).
X Select DVD-V0004 DVD functions .
X Select Subtitles orCamera angle.
In both cases, a menu appears. The 0023dot
in front of an entry indicates the current
setting.
X To change the setting: turn002800130029 or slide
001F0013000D until the desired setting is reached.
X To save the setting: press0017.
X To exit the menu: press0017.
Interactive content DVDs can contain interactive content (e.g. a
video game). In a vide ogame, you may be able
to influence events by selecting and trigger-
ing actions. The type and number of actions
depend on the DVD.
X To select an action: slide001F0013000D or002B0013002C .
X To trigger an action: press0017.
A menu appears and the first entry,
Select , is highlighted.
X Press 0017. Video
197COMAND APS
BA 197 ECE RE 2010/6a; 1; 2, en-GB
sabbaeu Version: 3.0.3.6
2010-05-07T14:19:43+02:00 - Seite 197 Z
