MERCEDES-BENZ SPRINTER 2005 Service Repair Manual

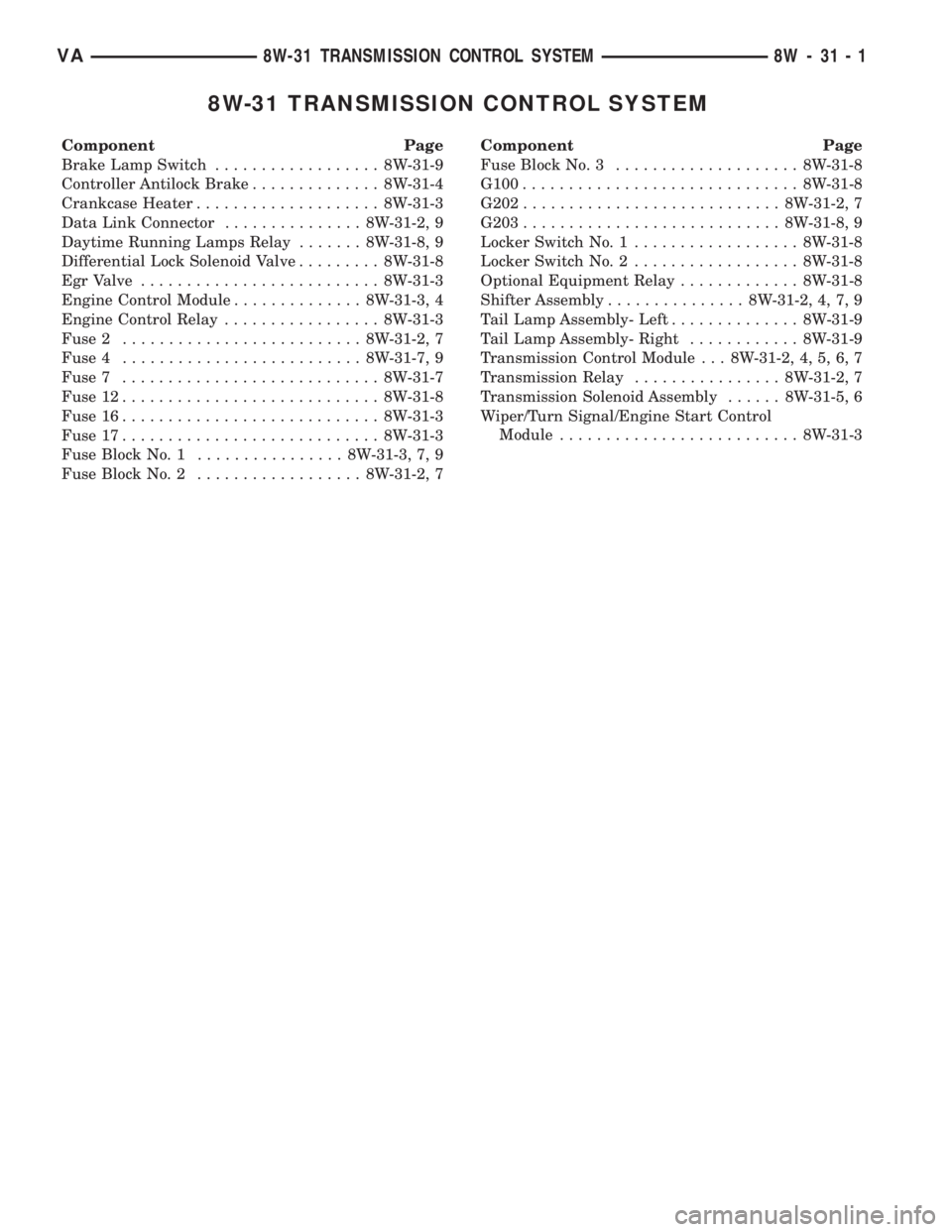

8W-31 TRANSMISSION CONTROL SYSTEM
Component Page
Brake Lamp Switch.................. 8W-31-9
Controller Antilock Brake.............. 8W-31-4
Crankcase Heater.................... 8W-31-3
Data Link Connector............... 8W-31-2, 9
Daytime Running Lamps Relay....... 8W-31-8, 9
Differential Lock Solenoid Valve......... 8W-31-8
Egr Valve.......................... 8W-31-3
Engine Control Module.............. 8W-31-3, 4
Engine Control Relay................. 8W-31-3
Fuse 2.......................... 8W-31-2, 7
Fuse 4.......................... 8W-31-7, 9
Fuse 7............................ 8W-31-7
Fuse 12............................ 8W-31-8
Fuse 16............................ 8W-31-3
Fuse 17............................ 8W-31-3
Fuse Block No. 1................ 8W-31-3, 7, 9
Fuse Block No. 2.................. 8W-31-2, 7Component Page
Fuse Block No. 3.................... 8W-31-8
G100.............................. 8W-31-8
G202............................ 8W-31-2, 7
G203............................ 8W-31-8, 9
Locker Switch No. 1.................. 8W-31-8
Locker Switch No. 2.................. 8W-31-8
Optional Equipment Relay............. 8W-31-8
Shifter Assembly............... 8W-31-2, 4, 7, 9
Tail Lamp Assembly- Left.............. 8W-31-9
Tail Lamp Assembly- Right............ 8W-31-9
Transmission Control Module . . . 8W-31-2, 4, 5, 6, 7
Transmission Relay................ 8W-31-2, 7
Transmission Solenoid Assembly...... 8W-31-5, 6
Wiper/Turn Signal/Engine Start Control
Module.......................... 8W-31-3
VA8W-31 TRANSMISSION CONTROL SYSTEM 8W - 31 - 1
