MERCEDES-BENZ SPRINTER 2006 Service Manual

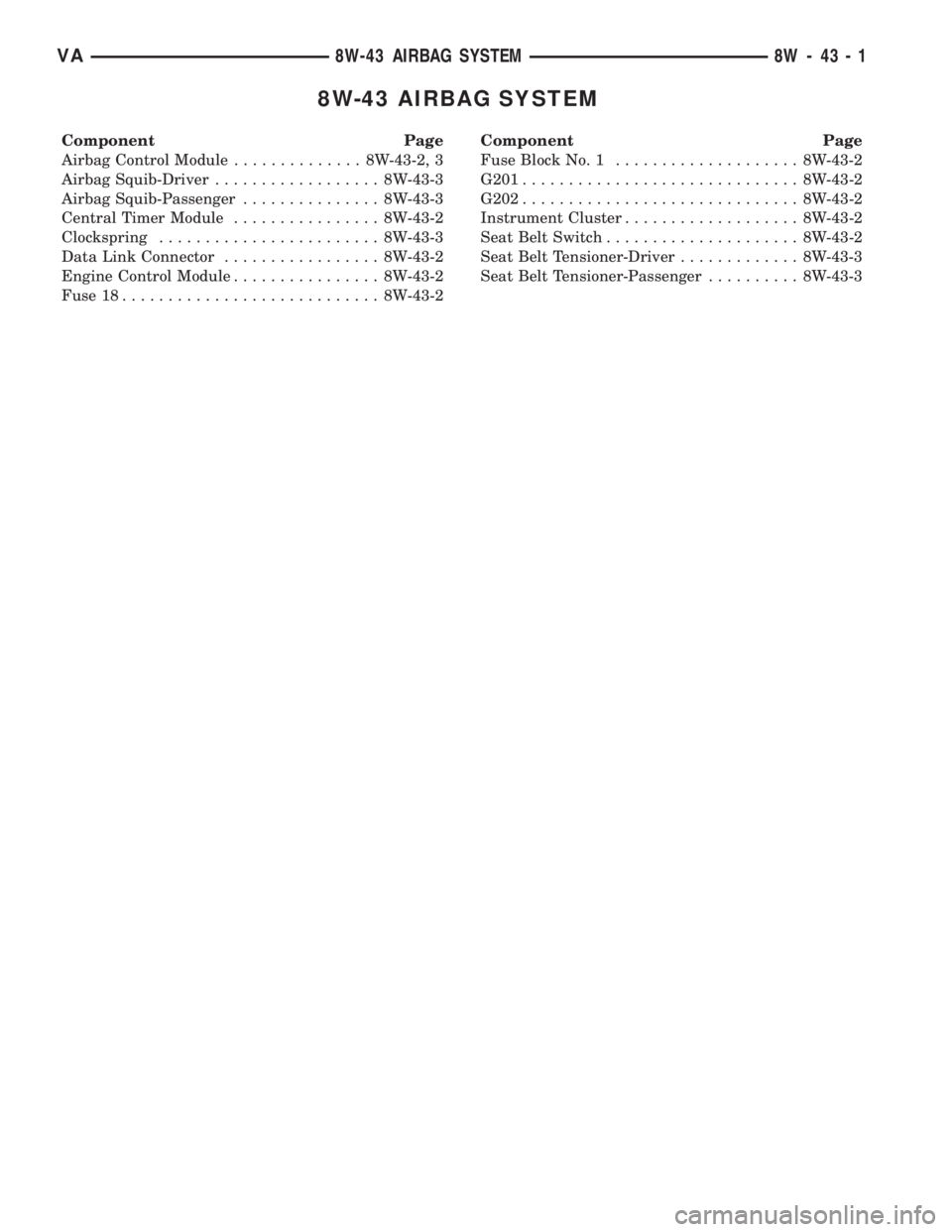

8W-43 AIRBAG SYSTEM
Component Page
Airbag Control Module.............. 8W-43-2, 3
Airbag Squib-Driver.................. 8W-43-3
Airbag Squib-Passenger............... 8W-43-3
Central Timer Module................ 8W-43-2
Clockspring........................ 8W-43-3
Data Link Connector................. 8W-43-2
Engine Control Module................ 8W-43-2
Fuse 18............................ 8W-43-2Component Page
Fuse Block No. 1.................... 8W-43-2
G201.............................. 8W-43-2
G202.............................. 8W-43-2
Instrument Cluster................... 8W-43-2
Seat Belt Switch..................... 8W-43-2
Seat Belt Tensioner-Driver............. 8W-43-3
Seat Belt Tensioner-Passenger.......... 8W-43-3
VA8W-43 AIRBAG SYSTEM 8W - 43 - 1

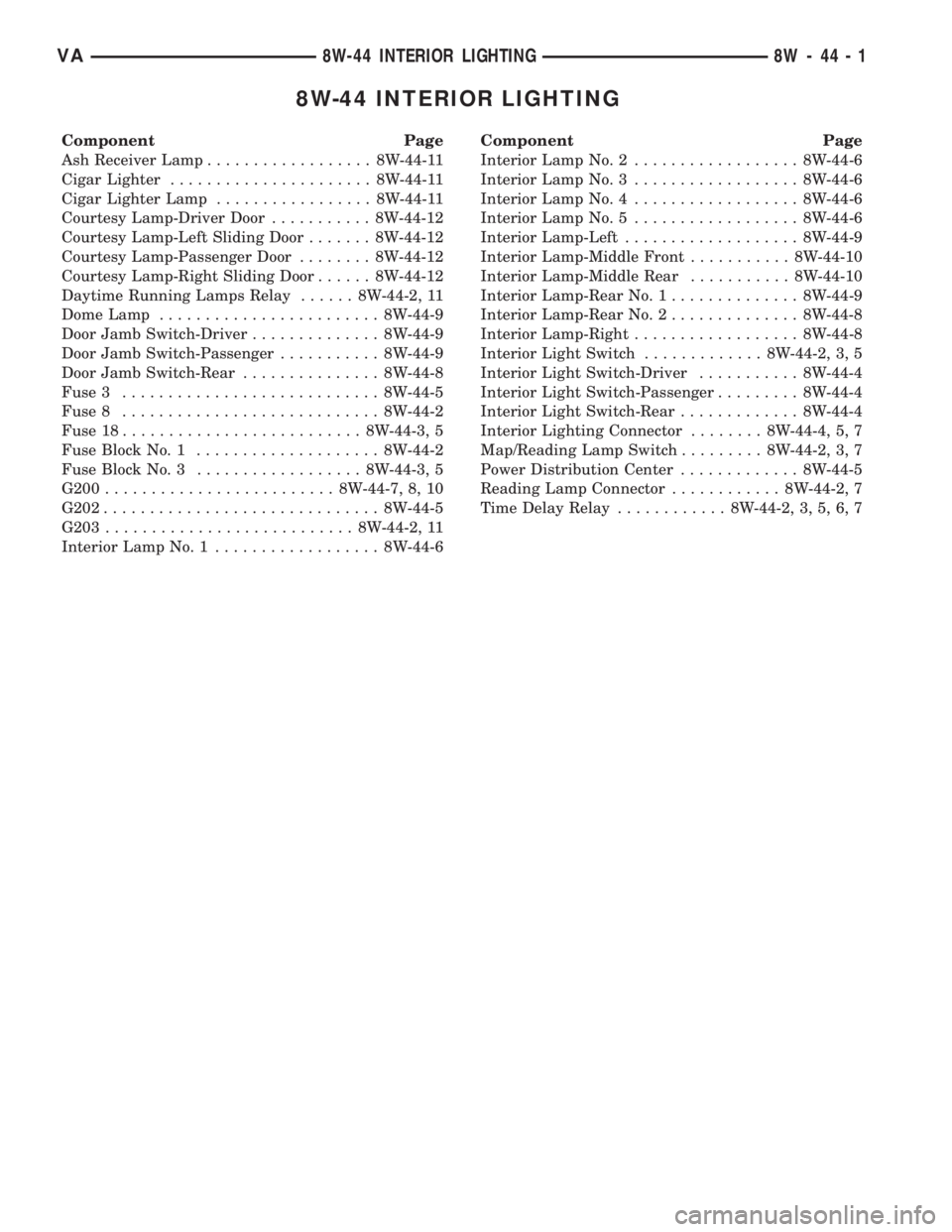

8W-44 INTERIOR LIGHTING
Component Page
Ash Receiver Lamp.................. 8W-44-11
Cigar Lighter...................... 8W-44-11
Cigar Lighter Lamp................. 8W-44-11
Courtesy Lamp-Driver Door........... 8W-44-12
Courtesy Lamp-Left Sliding Door....... 8W-44-12
Courtesy Lamp-Passenger Door........ 8W-44-12
Courtesy Lamp-Right Sliding Door...... 8W-44-12
Daytime Running Lamps Relay...... 8W-44-2, 11
Dome Lamp........................ 8W-44-9
Door Jamb Switch-Driver.............. 8W-44-9
Door Jamb Switch-Passenger........... 8W-44-9
Door Jamb Switch-Rear............... 8W-44-8
Fuse 3............................ 8W-44-5
Fuse 8............................ 8W-44-2
Fuse 18.......................... 8W-44-3, 5
Fuse Block No. 1.................... 8W-44-2
Fuse Block No. 3.................. 8W-44-3, 5
G200......................... 8W-44-7, 8, 10
G202.............................. 8W-44-5
G203........................... 8W-44-2, 11
Interior Lamp No. 1.................. 8W-44-6Component Page
Interior Lamp No. 2.................. 8W-44-6
Interior Lamp No. 3.................. 8W-44-6
Interior Lamp No. 4.................. 8W-44-6
Interior Lamp No. 5.................. 8W-44-6
Interior Lamp-Left................... 8W-44-9
Interior Lamp-Middle Front........... 8W-44-10
Interior Lamp-Middle Rear........... 8W-44-10
Interior Lamp-Rear No. 1.............. 8W-44-9
Interior Lamp-Rear No. 2.............. 8W-44-8
Interior Lamp-Right.................. 8W-44-8
Interior Light Switch............. 8W-44-2, 3, 5
Interior Light Switch-Driver........... 8W-44-4
Interior Light Switch-Passenger......... 8W-44-4
Interior Light Switch-Rear............. 8W-44-4
Interior Lighting Connector........ 8W-44-4, 5, 7
Map/Reading Lamp Switch......... 8W-44-2, 3, 7
Power Distribution Center............. 8W-44-5
Reading Lamp Connector............ 8W-44-2, 7
Time Delay Relay............ 8W-44-2, 3, 5, 6, 7
VA8W-44 INTERIOR LIGHTING 8W - 44 - 1
