MERCEDES-BENZ SPRINTER 2006 Service Manual

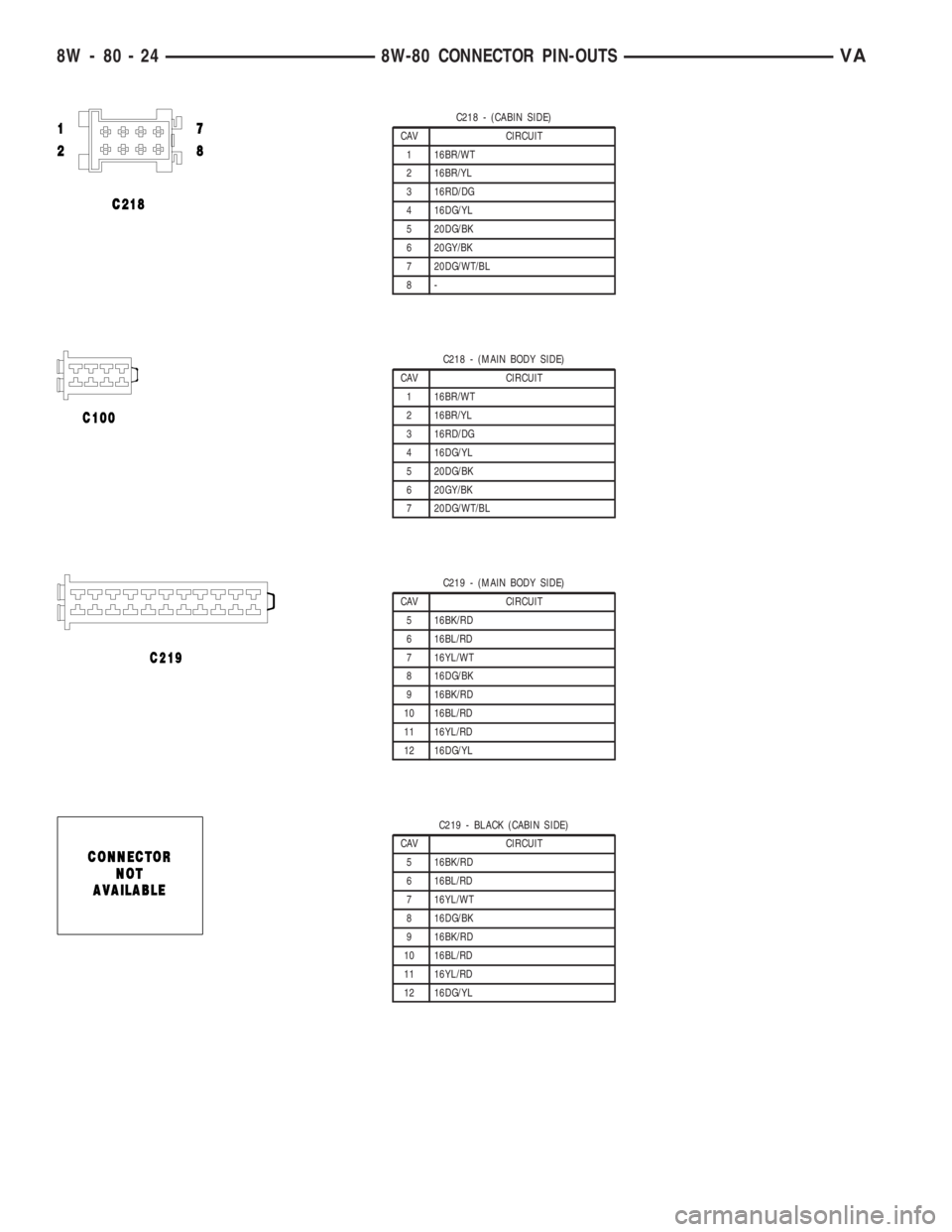

C218 - (CABIN SIDE)
CAV CIRCUIT
1 16BR/WT
2 16BR/YL
3 16RD/DG
4 16DG/YL
5 20DG/BK
6 20GY/BK
7 20DG/WT/BL
8-
C218 - (MAIN BODY SIDE)
CAV CIRCUIT
1 16BR/WT
2 16BR/YL
3 16RD/DG
4 16DG/YL
5 20DG/BK
6 20GY/BK
7 20DG/WT/BL
C219 - (MAIN BODY SIDE)
CAV CIRCUIT
5 16BK/RD
6 16BL/RD
7 16YL/WT
8 16DG/BK
9 16BK/RD
10 16BL/RD
11 16YL/RD
12 16DG/YL
C219 - BLACK (CABIN SIDE)
CAV CIRCUIT
5 16BK/RD
6 16BL/RD
7 16YL/WT
8 16DG/BK
9 16BK/RD
10 16BL/RD
11 16YL/RD
12 16DG/YL
8W - 80 - 24 8W-80 CONNECTOR PIN-OUTSVA

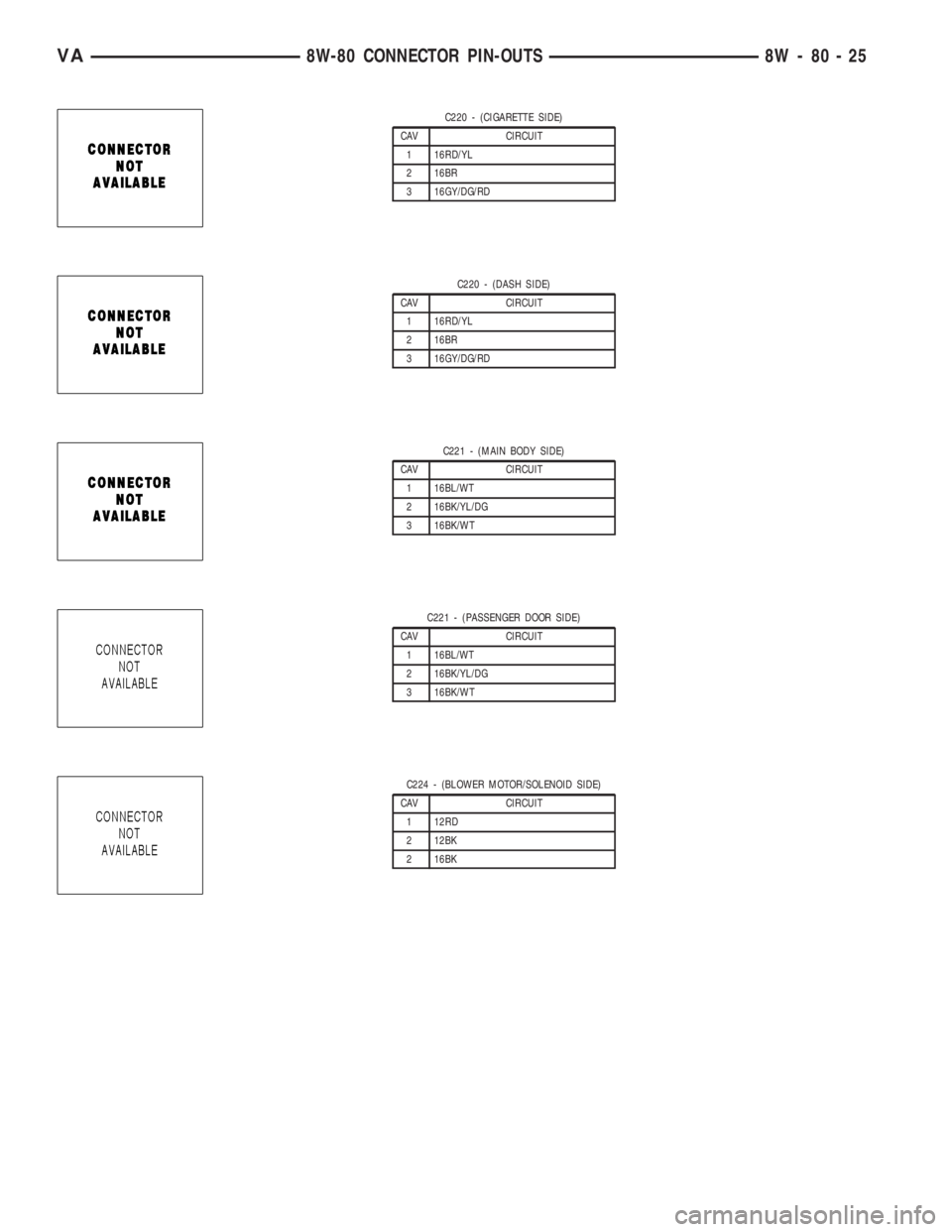

C220 - (CIGARETTE SIDE)
CAV CIRCUIT
1 16RD/YL
2 16BR
3 16GY/DG/RD
C220 - (DASH SIDE)
CAV CIRCUIT
1 16RD/YL
2 16BR
3 16GY/DG/RD
C221 - (MAIN BODY SIDE)
CAV CIRCUIT
1 16BL/WT
2 16BK/YL/DG
3 16BK/WT
C221 - (PASSENGER DOOR SIDE)
CAV CIRCUIT
1 16BL/WT
2 16BK/YL/DG
3 16BK/WT
C224 - (BLOWER MOTOR/SOLENOID SIDE)
CAV CIRCUIT
1 12RD
2 12BK
2 16BK
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 25

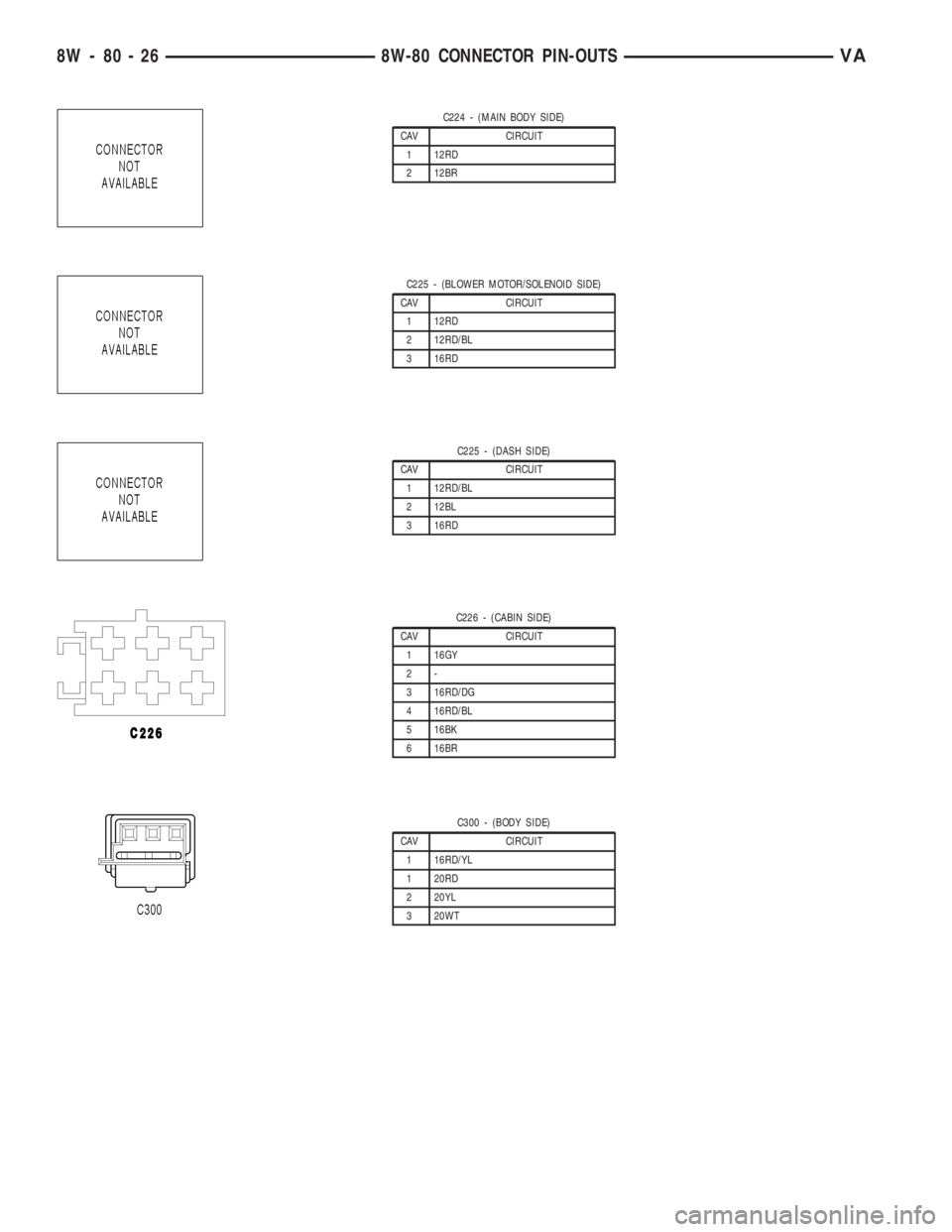

C224 - (MAIN BODY SIDE)
CAV CIRCUIT
1 12RD
2 12BR
C225 - (BLOWER MOTOR/SOLENOID SIDE)
CAV CIRCUIT
1 12RD
2 12RD/BL
3 16RD
C225 - (DASH SIDE)
CAV CIRCUIT
1 12RD/BL
2 12BL
3 16RD
C226 - (CABIN SIDE)
CAV CIRCUIT
1 16GY
2-
3 16RD/DG
4 16RD/BL
5 16BK
6 16BR
C300 - (BODY SIDE)
CAV CIRCUIT
1 16RD/YL
1 20RD
2 20YL
3 20WT
8W - 80 - 26 8W-80 CONNECTOR PIN-OUTSVA

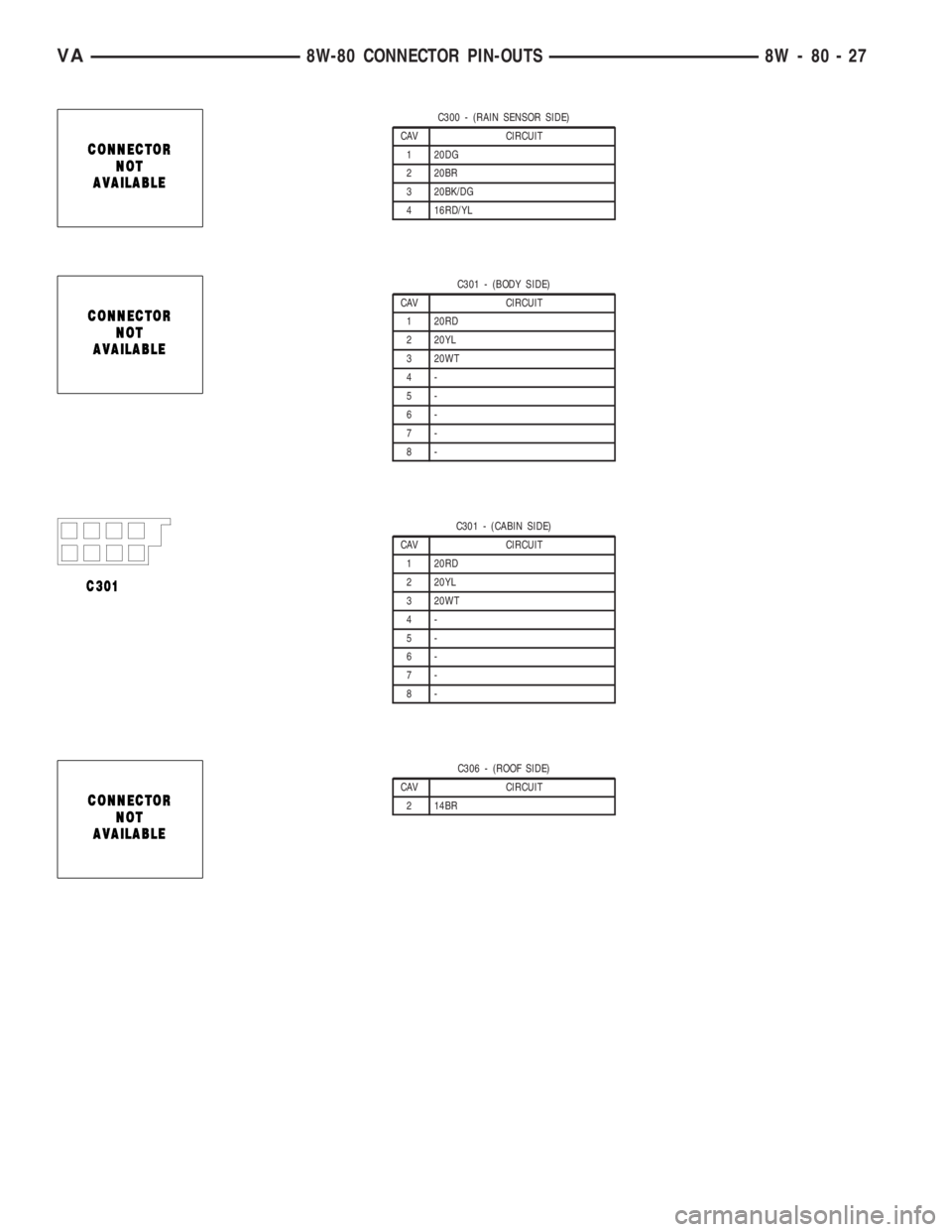

C300 - (RAIN SENSOR SIDE)
CAV CIRCUIT
1 20DG
2 20BR
3 20BK/DG
4 16RD/YL
C301 - (BODY SIDE)
CAV CIRCUIT
1 20RD
2 20YL
3 20WT
4-
5-
6-
7-
8-
C301 - (CABIN SIDE)
CAV CIRCUIT
1 20RD
2 20YL
3 20WT
4-
5-
6-
7-
8-
C306 - (ROOF SIDE)
CAV CIRCUIT
2 14BR
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 27

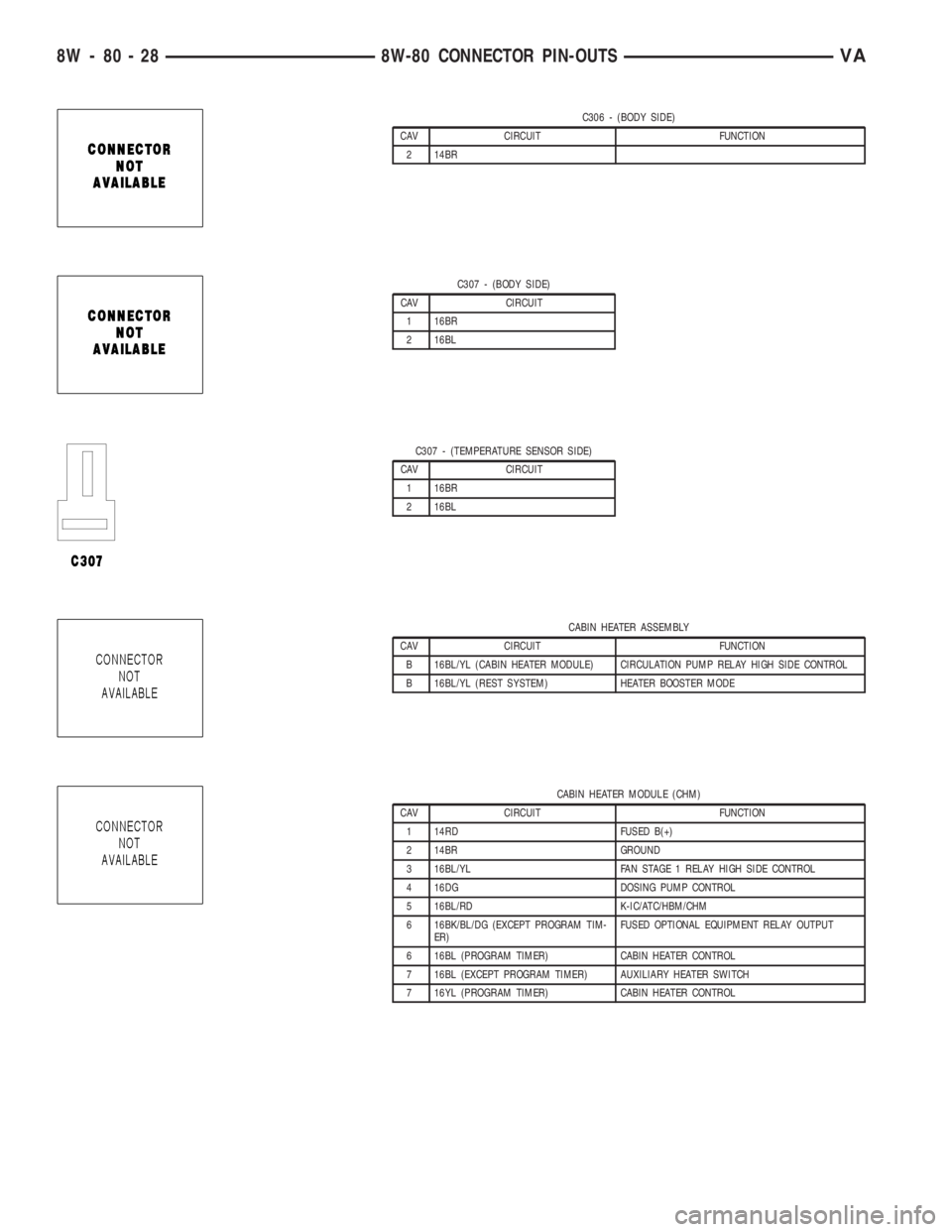

C306 - (BODY SIDE)
CAV CIRCUIT FUNCTION
2 14BR
C307 - (BODY SIDE)
CAV CIRCUIT
1 16BR
2 16BL
C307 - (TEMPERATURE SENSOR SIDE)
CAV CIRCUIT
1 16BR
2 16BL
CABIN HEATER ASSEMBLY
CAV CIRCUIT FUNCTION
B 16BL/YL (CABIN HEATER MODULE) CIRCULATION PUMP RELAY HIGH SIDE CONTROL
B 16BL/YL (REST SYSTEM) HEATER BOOSTER MODE
CABIN HEATER MODULE (CHM)
CAV CIRCUIT FUNCTION
1 14RD FUSED B(+)
2 14BR GROUND
3 16BL/YL FAN STAGE 1 RELAY HIGH SIDE CONTROL
4 16DG DOSING PUMP CONTROL
5 16BL/RD K-IC/ATC/HBM/CHM
6 16BK/BL/DG (EXCEPT PROGRAM TIM-
ER)FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
6 16BL (PROGRAM TIMER) CABIN HEATER CONTROL
7 16BL (EXCEPT PROGRAM TIMER) AUXILIARY HEATER SWITCH
7 16YL (PROGRAM TIMER) CABIN HEATER CONTROL
8W - 80 - 28 8W-80 CONNECTOR PIN-OUTSVA

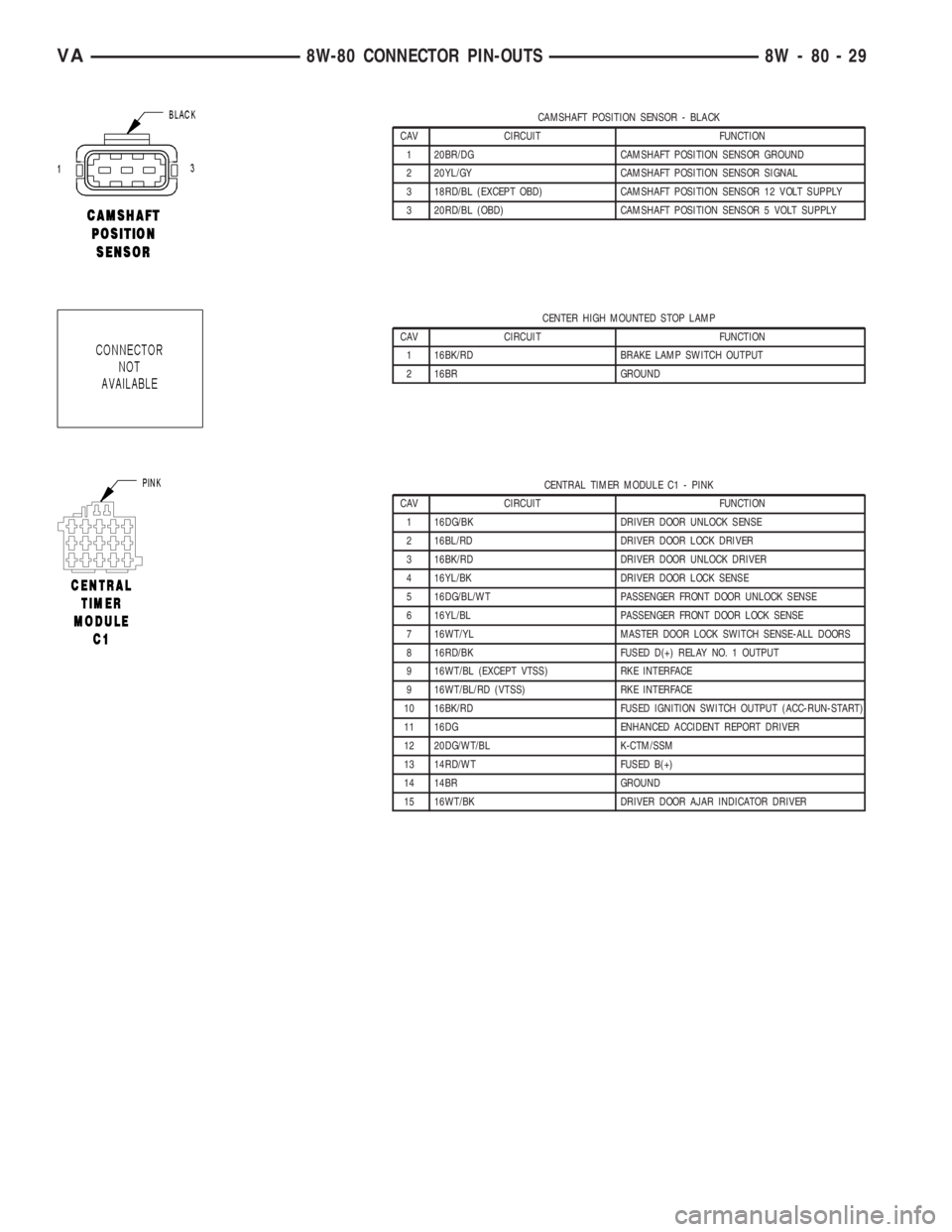

CAMSHAFT POSITION SENSOR - BLACK
CAV CIRCUIT FUNCTION
1 20BR/DG CAMSHAFT POSITION SENSOR GROUND
2 20YL/GY CAMSHAFT POSITION SENSOR SIGNAL
3 18RD/BL (EXCEPT OBD) CAMSHAFT POSITION SENSOR 12 VOLT SUPPLY
3 20RD/BL (OBD) CAMSHAFT POSITION SENSOR 5 VOLT SUPPLY
CENTER HIGH MOUNTED STOP LAMP
CAV CIRCUIT FUNCTION
1 16BK/RD BRAKE LAMP SWITCH OUTPUT
2 16BR GROUND
CENTRAL TIMER MODULE C1 - PINK
CAV CIRCUIT FUNCTION
1 16DG/BK DRIVER DOOR UNLOCK SENSE
2 16BL/RD DRIVER DOOR LOCK DRIVER
3 16BK/RD DRIVER DOOR UNLOCK DRIVER
4 16YL/BK DRIVER DOOR LOCK SENSE
5 16DG/BL/WT PASSENGER FRONT DOOR UNLOCK SENSE
6 16YL/BL PASSENGER FRONT DOOR LOCK SENSE
7 16WT/YL MASTER DOOR LOCK SWITCH SENSE-ALL DOORS
8 16RD/BK FUSED D(+) RELAY NO. 1 OUTPUT
9 16WT/BL (EXCEPT VTSS) RKE INTERFACE
9 16WT/BL/RD (VTSS) RKE INTERFACE
10 16BK/RD FUSED IGNITION SWITCH OUTPUT (ACC-RUN-START)
11 16DG ENHANCED ACCIDENT REPORT DRIVER
12 20DG/WT/BL K-CTM/SSM
13 14RD/WT FUSED B(+)
14 14BR GROUND
15 16WT/BK DRIVER DOOR AJAR INDICATOR DRIVER
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 29

CENTRAL TIMER MODULE C2 - LT. GREEN
CAV CIRCUIT FUNCTION
1- -
2- -
3 16WT/DG PASSENGER DOOR AJAR INDICATOR DRIVER
4- -
5- -
6 16WT/RD MASTER DOOR LOCK SWITCH SENSE-PASSENGER
DOORS
7 16DG/BK LEFT SLIDING DOOR UNLOCK SENSE
8- -
9- -
10 16DG/RD REAR DOOR UNLOCK SENSE
11 16YL/WT LEFT SLIDING DOOR LOCK SENSE
12 16YL/BK REAR DOOR LOCK SENSE
13 16YL/RD RIGHT SLIDING DOOR LOCK SENSE
14 16DG/YL RIGHT SLIDING DOOR UNLOCK SENSE
15 - -
16 - -
17 16BK/RD PASSENGER DOORS UNLOCK DRIVER (+)
18 16BL/RD PASSENGER DOORS LOCK DRIVER (+)
CIGAR LIGHTER
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16RD/YL FUSED B(+)
CIGAR LIGHTER LAMP
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16GY/DG/RD LAMP DRIVER
8W - 80 - 30 8W-80 CONNECTOR PIN-OUTSVA

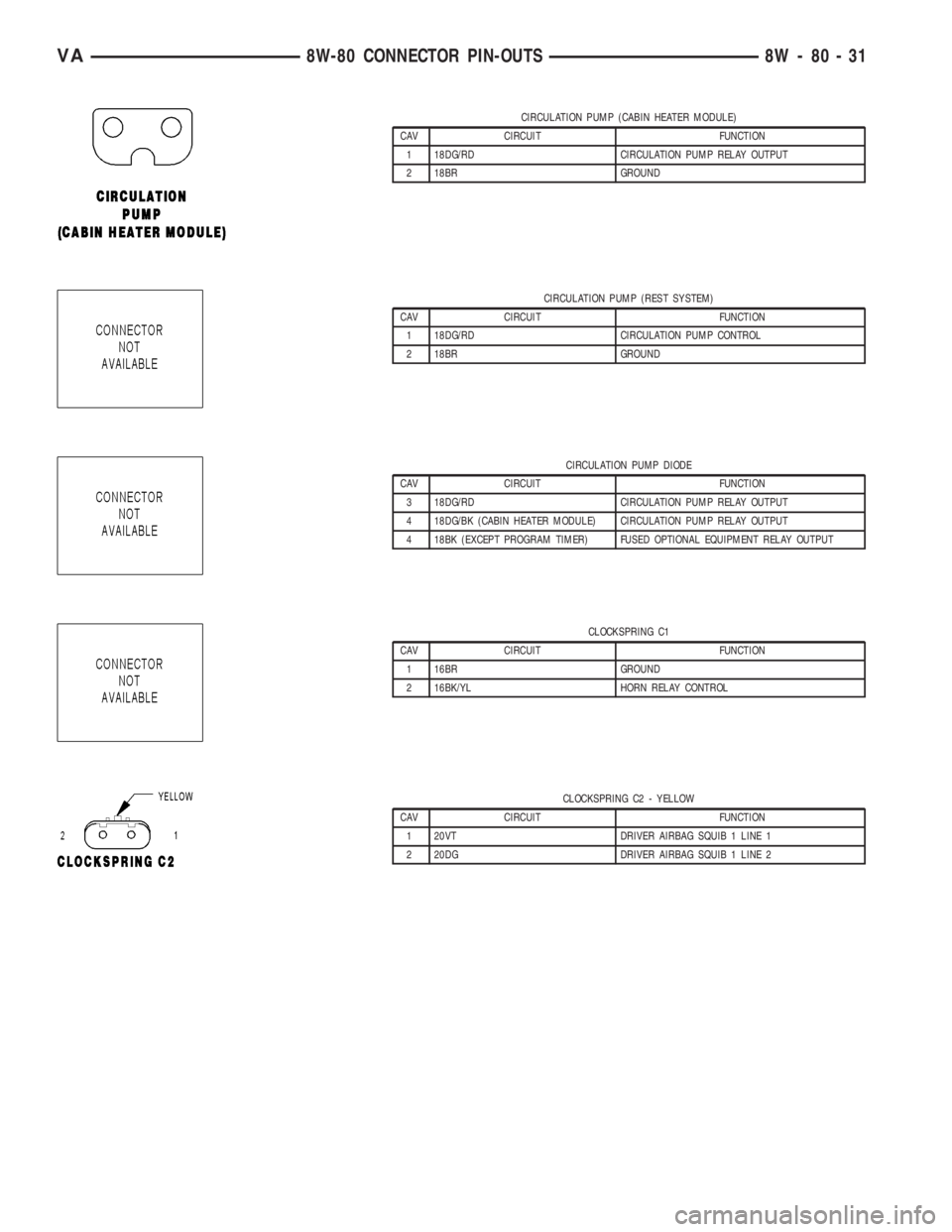

CIRCULATION PUMP (CABIN HEATER MODULE)
CAV CIRCUIT FUNCTION
1 18DG/RD CIRCULATION PUMP RELAY OUTPUT
2 18BR GROUND
CIRCULATION PUMP (REST SYSTEM)
CAV CIRCUIT FUNCTION
1 18DG/RD CIRCULATION PUMP CONTROL
2 18BR GROUND
CIRCULATION PUMP DIODE
CAV CIRCUIT FUNCTION
3 18DG/RD CIRCULATION PUMP RELAY OUTPUT
4 18DG/BK (CABIN HEATER MODULE) CIRCULATION PUMP RELAY OUTPUT
4 18BK (EXCEPT PROGRAM TIMER) FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
CLOCKSPRING C1
CAV CIRCUIT FUNCTION
1 16BR GROUND
2 16BK/YL HORN RELAY CONTROL
CLOCKSPRING C2 - YELLOW
CAV CIRCUIT FUNCTION
1 20VT DRIVER AIRBAG SQUIB 1 LINE 1
2 20DG DRIVER AIRBAG SQUIB 1 LINE 2
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 31

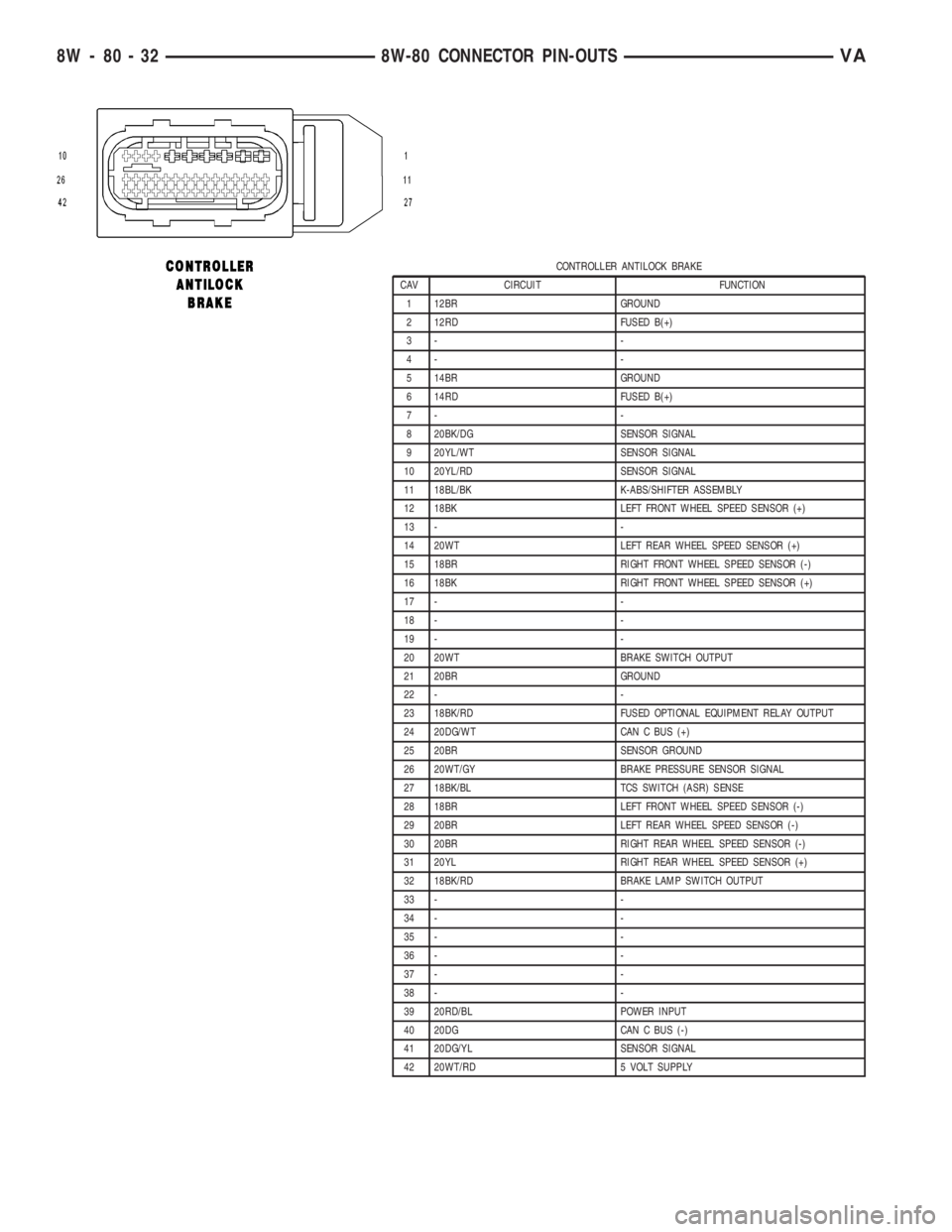

CONTROLLER ANTILOCK BRAKE
CAV CIRCUIT FUNCTION
1 12BR GROUND
2 12RD FUSED B(+)
3- -
4- -
5 14BR GROUND
6 14RD FUSED B(+)
7- -
8 20BK/DG SENSOR SIGNAL
9 20YL/WT SENSOR SIGNAL
10 20YL/RD SENSOR SIGNAL
11 18BL/BK K-ABS/SHIFTER ASSEMBLY
12 18BK LEFT FRONT WHEEL SPEED SENSOR (+)
13 - -
14 20WT LEFT REAR WHEEL SPEED SENSOR (+)
15 18BR RIGHT FRONT WHEEL SPEED SENSOR (-)
16 18BK RIGHT FRONT WHEEL SPEED SENSOR (+)
17 - -
18 - -
19 - -
20 20WT BRAKE SWITCH OUTPUT
21 20BR GROUND
22 - -
23 18BK/RD FUSED OPTIONAL EQUIPMENT RELAY OUTPUT
24 20DG/WT CAN C BUS (+)
25 20BR SENSOR GROUND
26 20WT/GY BRAKE PRESSURE SENSOR SIGNAL
27 18BK/BL TCS SWITCH (ASR) SENSE
28 18BR LEFT FRONT WHEEL SPEED SENSOR (-)
29 20BR LEFT REAR WHEEL SPEED SENSOR (-)
30 20BR RIGHT REAR WHEEL SPEED SENSOR (-)
31 20YL RIGHT REAR WHEEL SPEED SENSOR (+)
32 18BK/RD BRAKE LAMP SWITCH OUTPUT
33 - -
34 - -
35 - -
36 - -
37 - -
38 - -
39 20RD/BL POWER INPUT
40 20DG CAN C BUS (-)
41 20DG/YL SENSOR SIGNAL
42 20WT/RD 5 VOLT SUPPLY
8W - 80 - 32 8W-80 CONNECTOR PIN-OUTSVA

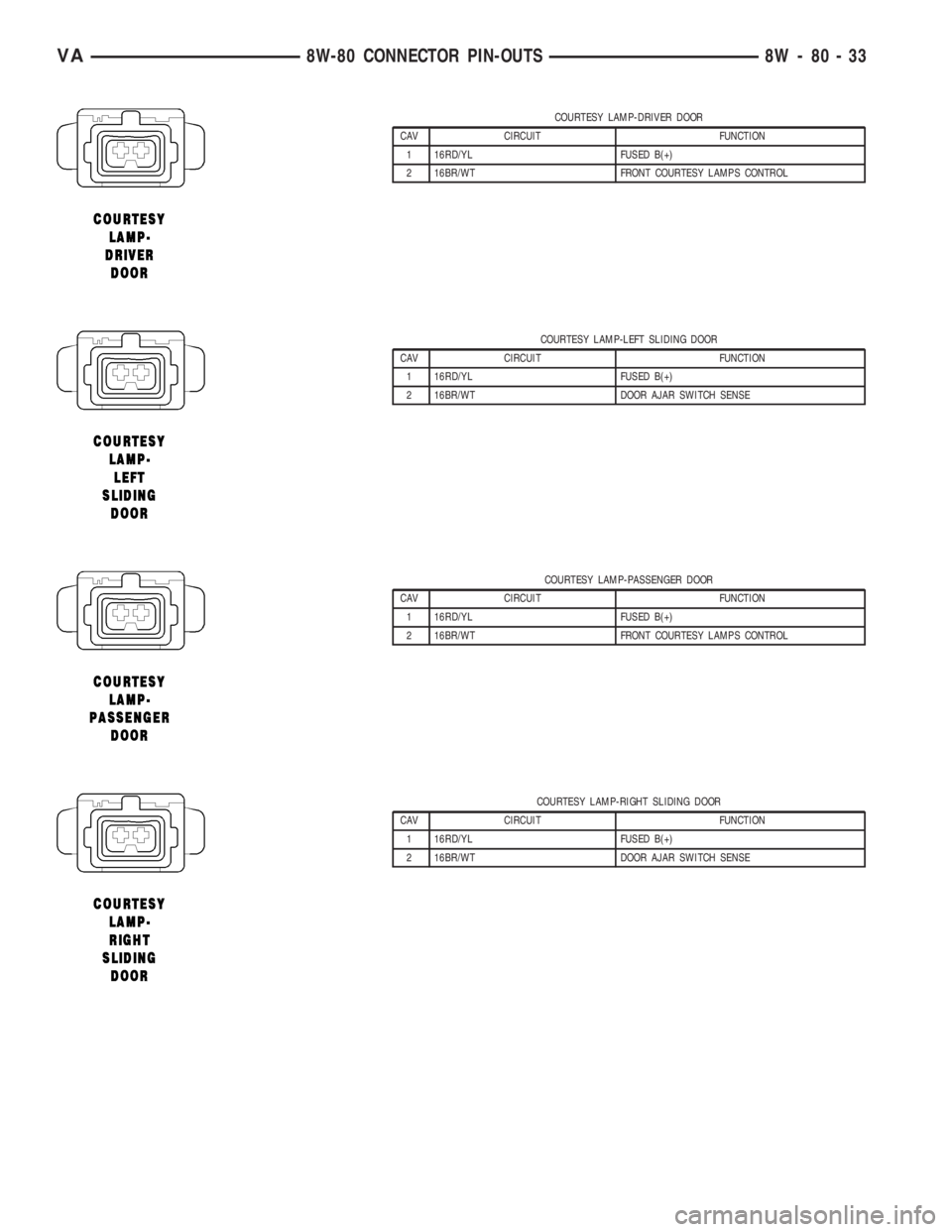

COURTESY LAMP-DRIVER DOOR
CAV CIRCUIT FUNCTION
1 16RD/YL FUSED B(+)
2 16BR/WT FRONT COURTESY LAMPS CONTROL
COURTESY LAMP-LEFT SLIDING DOOR
CAV CIRCUIT FUNCTION
1 16RD/YL FUSED B(+)
2 16BR/WT DOOR AJAR SWITCH SENSE
COURTESY LAMP-PASSENGER DOOR
CAV CIRCUIT FUNCTION
1 16RD/YL FUSED B(+)
2 16BR/WT FRONT COURTESY LAMPS CONTROL
COURTESY LAMP-RIGHT SLIDING DOOR
CAV CIRCUIT FUNCTION
1 16RD/YL FUSED B(+)
2 16BR/WT DOOR AJAR SWITCH SENSE
VA8W-80 CONNECTOR PIN-OUTS 8W - 80 - 33
