MERCEDES-BENZ SPRINTER 2006 Service Manual

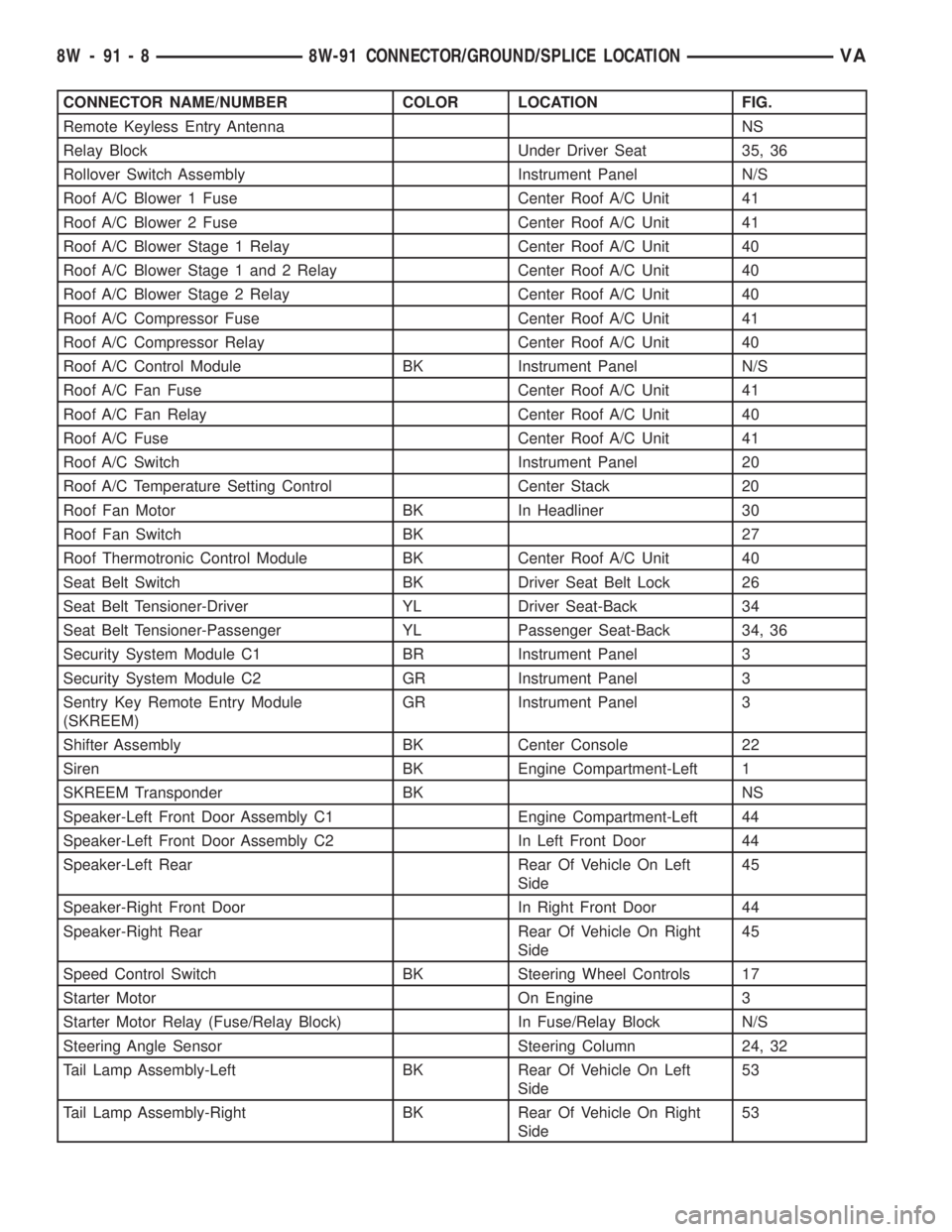

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
Remote Keyless Entry Antenna NS
Relay Block Under Driver Seat 35, 36
Rollover Switch Assembly Instrument Panel N/S
Roof A/C Blower 1 Fuse Center Roof A/C Unit 41
Roof A/C Blower 2 Fuse Center Roof A/C Unit 41
Roof A/C Blower Stage 1 Relay Center Roof A/C Unit 40
Roof A/C Blower Stage 1 and 2 Relay Center Roof A/C Unit 40
Roof A/C Blower Stage 2 Relay Center Roof A/C Unit 40
Roof A/C Compressor Fuse Center Roof A/C Unit 41
Roof A/C Compressor Relay Center Roof A/C Unit 40
Roof A/C Control Module BK Instrument Panel N/S
Roof A/C Fan Fuse Center Roof A/C Unit 41
Roof A/C Fan Relay Center Roof A/C Unit 40
Roof A/C Fuse Center Roof A/C Unit 41
Roof A/C Switch Instrument Panel 20
Roof A/C Temperature Setting Control Center Stack 20
Roof Fan Motor BK In Headliner 30
Roof Fan Switch BK 27
Roof Thermotronic Control Module BK Center Roof A/C Unit 40
Seat Belt Switch BK Driver Seat Belt Lock 26
Seat Belt Tensioner-Driver YL Driver Seat-Back 34
Seat Belt Tensioner-Passenger YL Passenger Seat-Back 34, 36
Security System Module C1 BR Instrument Panel 3
Security System Module C2 GR Instrument Panel 3
Sentry Key Remote Entry Module
(SKREEM)GR Instrument Panel 3
Shifter Assembly BK Center Console 22
Siren BK Engine Compartment-Left 1
SKREEM Transponder BK NS
Speaker-Left Front Door Assembly C1 Engine Compartment-Left 44
Speaker-Left Front Door Assembly C2 In Left Front Door 44
Speaker-Left Rear Rear Of Vehicle On Left
Side45
Speaker-Right Front Door In Right Front Door 44
Speaker-Right Rear Rear Of Vehicle On Right
Side45
Speed Control Switch BK Steering Wheel Controls 17
Starter Motor On Engine 3
Starter Motor Relay (Fuse/Relay Block) In Fuse/Relay Block N/S
Steering Angle Sensor Steering Column 24, 32
Tail Lamp Assembly-Left BK Rear Of Vehicle On Left
Side53
Tail Lamp Assembly-Right BK Rear Of Vehicle On Right
Side53
8W - 91 - 8 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA

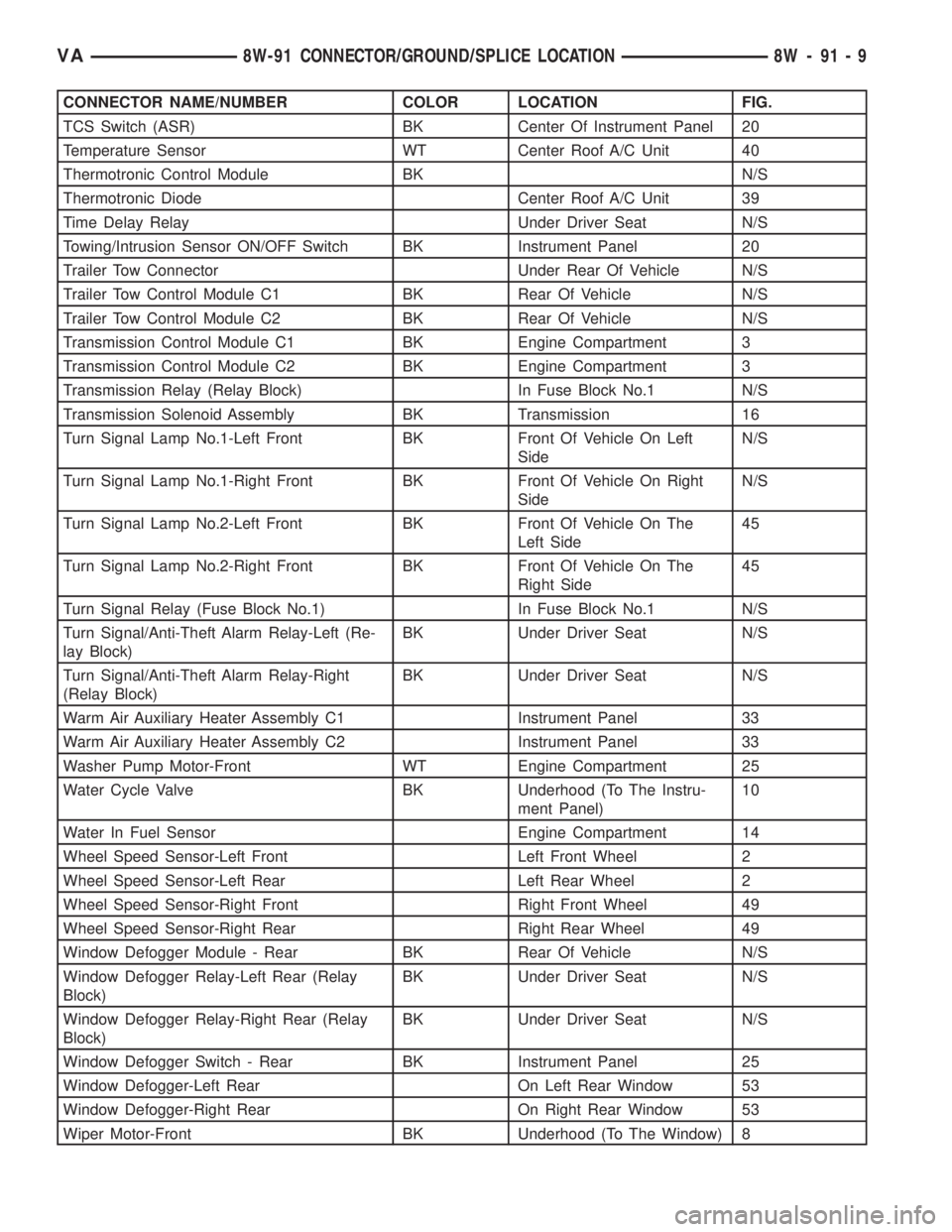

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
TCS Switch (ASR) BK Center Of Instrument Panel 20
Temperature Sensor WT Center Roof A/C Unit 40
Thermotronic Control Module BK N/S
Thermotronic Diode Center Roof A/C Unit 39
Time Delay Relay Under Driver Seat N/S
Towing/Intrusion Sensor ON/OFF Switch BK Instrument Panel 20
Trailer Tow Connector Under Rear Of Vehicle N/S
Trailer Tow Control Module C1 BK Rear Of Vehicle N/S
Trailer Tow Control Module C2 BK Rear Of Vehicle N/S
Transmission Control Module C1 BK Engine Compartment 3
Transmission Control Module C2 BK Engine Compartment 3
Transmission Relay (Relay Block) In Fuse Block No.1 N/S
Transmission Solenoid Assembly BK Transmission 16
Turn Signal Lamp No.1-Left Front BK Front Of Vehicle On Left
SideN/S
Turn Signal Lamp No.1-Right Front BK Front Of Vehicle On Right
SideN/S
Turn Signal Lamp No.2-Left Front BK Front Of Vehicle On The
Left Side45
Turn Signal Lamp No.2-Right Front BK Front Of Vehicle On The
Right Side45
Turn Signal Relay (Fuse Block No.1) In Fuse Block No.1 N/S
Turn Signal/Anti-Theft Alarm Relay-Left (Re-
lay Block)BK Under Driver Seat N/S
Turn Signal/Anti-Theft Alarm Relay-Right
(Relay Block)BK Under Driver Seat N/S
Warm Air Auxiliary Heater Assembly C1 Instrument Panel 33
Warm Air Auxiliary Heater Assembly C2 Instrument Panel 33
Washer Pump Motor-Front WT Engine Compartment 25
Water Cycle Valve BK Underhood (To The Instru-
ment Panel)10
Water In Fuel Sensor Engine Compartment 14
Wheel Speed Sensor-Left Front Left Front Wheel 2
Wheel Speed Sensor-Left Rear Left Rear Wheel 2
Wheel Speed Sensor-Right Front Right Front Wheel 49
Wheel Speed Sensor-Right Rear Right Rear Wheel 49
Window Defogger Module - Rear BK Rear Of Vehicle N/S
Window Defogger Relay-Left Rear (Relay
Block)BK Under Driver Seat N/S
Window Defogger Relay-Right Rear (Relay
Block)BK Under Driver Seat N/S
Window Defogger Switch - Rear BK Instrument Panel 25
Window Defogger-Left Rear On Left Rear Window 53
Window Defogger-Right Rear On Right Rear Window 53
Wiper Motor-Front BK Underhood (To The Window) 8
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 9

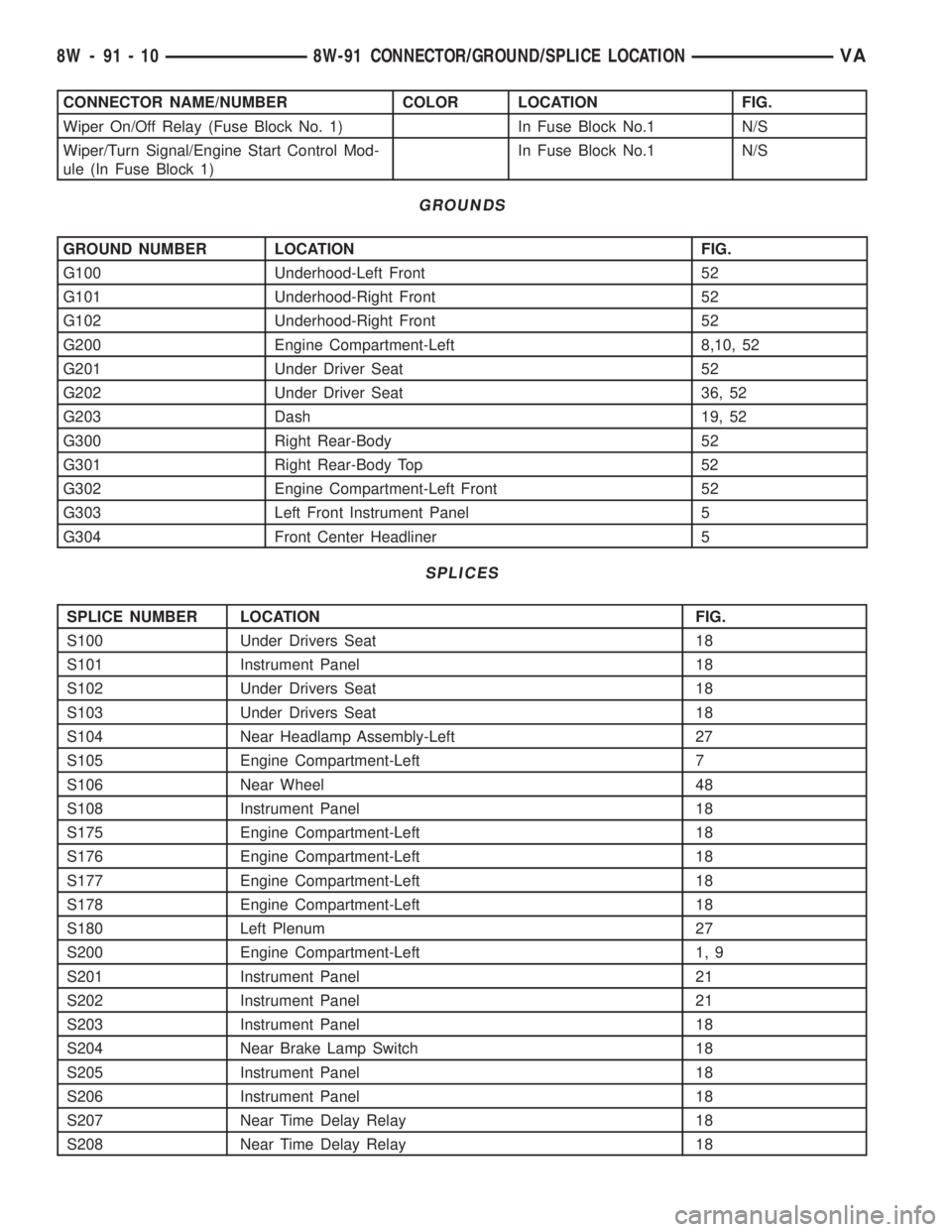

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
Wiper On/Off Relay (Fuse Block No. 1) In Fuse Block No.1 N/S
Wiper/Turn Signal/Engine Start Control Mod-
ule (In Fuse Block 1)In Fuse Block No.1 N/S
GROUNDS
GROUND NUMBER LOCATION FIG.
G100 Underhood-Left Front 52
G101 Underhood-Right Front 52
G102 Underhood-Right Front 52
G200 Engine Compartment-Left 8,10, 52
G201 Under Driver Seat 52
G202 Under Driver Seat 36, 52
G203 Dash 19, 52
G300 Right Rear-Body 52
G301 Right Rear-Body Top 52
G302 Engine Compartment-Left Front 52
G303 Left Front Instrument Panel 5
G304 Front Center Headliner 5
SPLICES
SPLICE NUMBER LOCATION FIG.
S100 Under Drivers Seat 18
S101 Instrument Panel 18
S102 Under Drivers Seat 18
S103 Under Drivers Seat 18
S104 Near Headlamp Assembly-Left 27
S105 Engine Compartment-Left 7
S106 Near Wheel 48
S108 Instrument Panel 18
S175 Engine Compartment-Left 18
S176 Engine Compartment-Left 18
S177 Engine Compartment-Left 18
S178 Engine Compartment-Left 18
S180 Left Plenum 27
S200 Engine Compartment-Left 1, 9
S201 Instrument Panel 21
S202 Instrument Panel 21
S203 Instrument Panel 18
S204 Near Brake Lamp Switch 18
S205 Instrument Panel 18
S206 Instrument Panel 18
S207 Near Time Delay Relay 18
S208 Near Time Delay Relay 18
8W - 91 - 10 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA

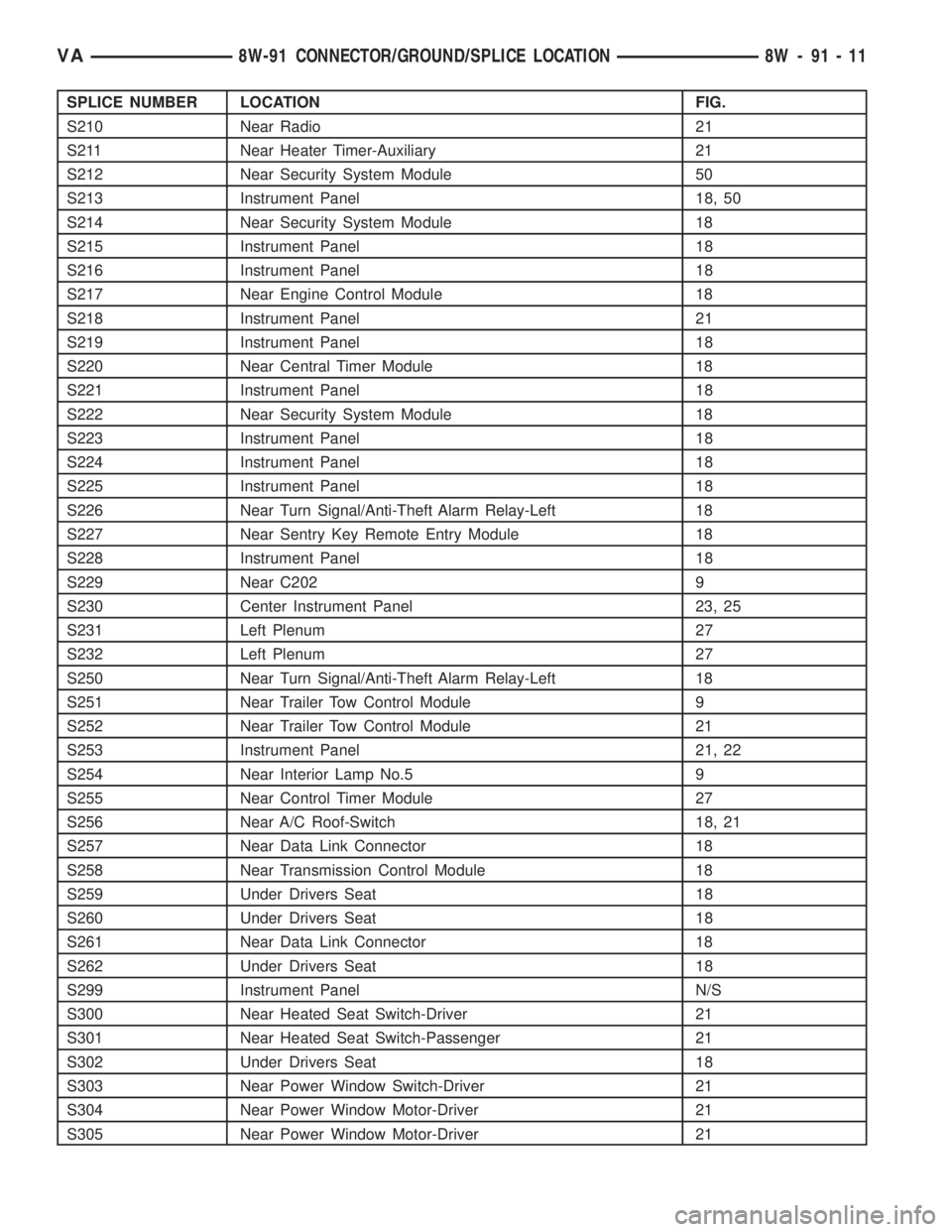

SPLICE NUMBER LOCATION FIG.
S210 Near Radio 21
S211 Near Heater Timer-Auxiliary 21
S212 Near Security System Module 50
S213 Instrument Panel 18, 50
S214 Near Security System Module 18
S215 Instrument Panel 18
S216 Instrument Panel 18
S217 Near Engine Control Module 18
S218 Instrument Panel 21
S219 Instrument Panel 18
S220 Near Central Timer Module 18
S221 Instrument Panel 18
S222 Near Security System Module 18
S223 Instrument Panel 18
S224 Instrument Panel 18
S225 Instrument Panel 18
S226 Near Turn Signal/Anti-Theft Alarm Relay-Left 18
S227 Near Sentry Key Remote Entry Module 18
S228 Instrument Panel 18
S229 Near C202 9
S230 Center Instrument Panel 23, 25
S231 Left Plenum 27
S232 Left Plenum 27
S250 Near Turn Signal/Anti-Theft Alarm Relay-Left 18
S251 Near Trailer Tow Control Module 9
S252 Near Trailer Tow Control Module 21
S253 Instrument Panel 21, 22
S254 Near Interior Lamp No.5 9
S255 Near Control Timer Module 27
S256 Near A/C Roof-Switch 18, 21
S257 Near Data Link Connector 18
S258 Near Transmission Control Module 18
S259 Under Drivers Seat 18
S260 Under Drivers Seat 18
S261 Near Data Link Connector 18
S262 Under Drivers Seat 18
S299 Instrument Panel N/S
S300 Near Heated Seat Switch-Driver 21
S301 Near Heated Seat Switch-Passenger 21
S302 Under Drivers Seat 18
S303 Near Power Window Switch-Driver 21
S304 Near Power Window Motor-Driver 21
S305 Near Power Window Motor-Driver 21
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 11

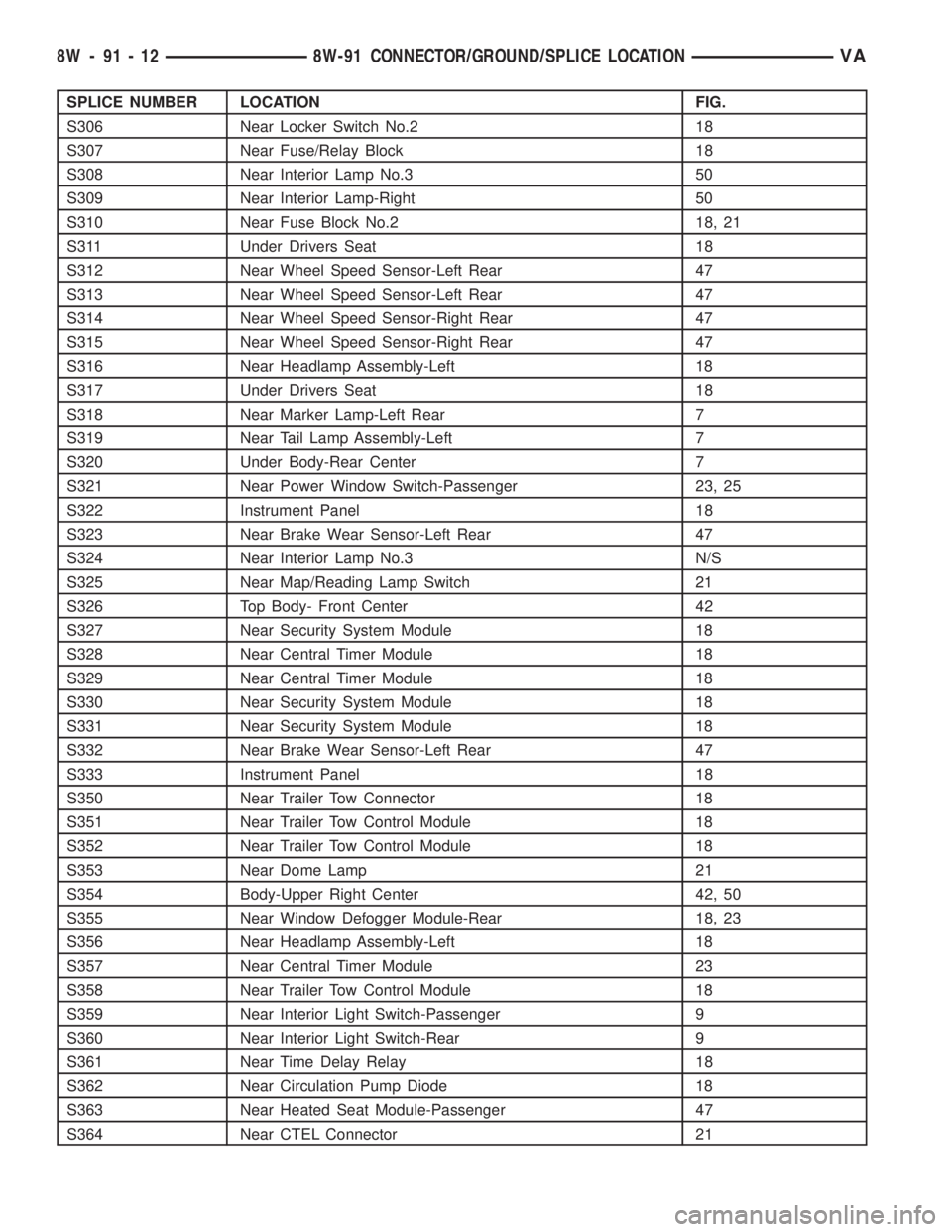

SPLICE NUMBER LOCATION FIG.
S306 Near Locker Switch No.2 18
S307 Near Fuse/Relay Block 18
S308 Near Interior Lamp No.3 50
S309 Near Interior Lamp-Right 50
S310 Near Fuse Block No.2 18, 21
S311 Under Drivers Seat 18
S312 Near Wheel Speed Sensor-Left Rear 47
S313 Near Wheel Speed Sensor-Left Rear 47
S314 Near Wheel Speed Sensor-Right Rear 47
S315 Near Wheel Speed Sensor-Right Rear 47
S316 Near Headlamp Assembly-Left 18
S317 Under Drivers Seat 18
S318 Near Marker Lamp-Left Rear 7
S319 Near Tail Lamp Assembly-Left 7
S320 Under Body-Rear Center 7
S321 Near Power Window Switch-Passenger 23, 25
S322 Instrument Panel 18
S323 Near Brake Wear Sensor-Left Rear 47
S324 Near Interior Lamp No.3 N/S
S325 Near Map/Reading Lamp Switch 21
S326 Top Body- Front Center 42
S327 Near Security System Module 18
S328 Near Central Timer Module 18
S329 Near Central Timer Module 18
S330 Near Security System Module 18
S331 Near Security System Module 18
S332 Near Brake Wear Sensor-Left Rear 47
S333 Instrument Panel 18
S350 Near Trailer Tow Connector 18
S351 Near Trailer Tow Control Module 18
S352 Near Trailer Tow Control Module 18
S353 Near Dome Lamp 21
S354 Body-Upper Right Center 42, 50
S355 Near Window Defogger Module-Rear 18, 23
S356 Near Headlamp Assembly-Left 18
S357 Near Central Timer Module 23
S358 Near Trailer Tow Control Module 18
S359 Near Interior Light Switch-Passenger 9
S360 Near Interior Light Switch-Rear 9
S361 Near Time Delay Relay 18
S362 Near Circulation Pump Diode 18
S363 Near Heated Seat Module-Passenger 47
S364 Near CTEL Connector 21
8W - 91 - 12 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA

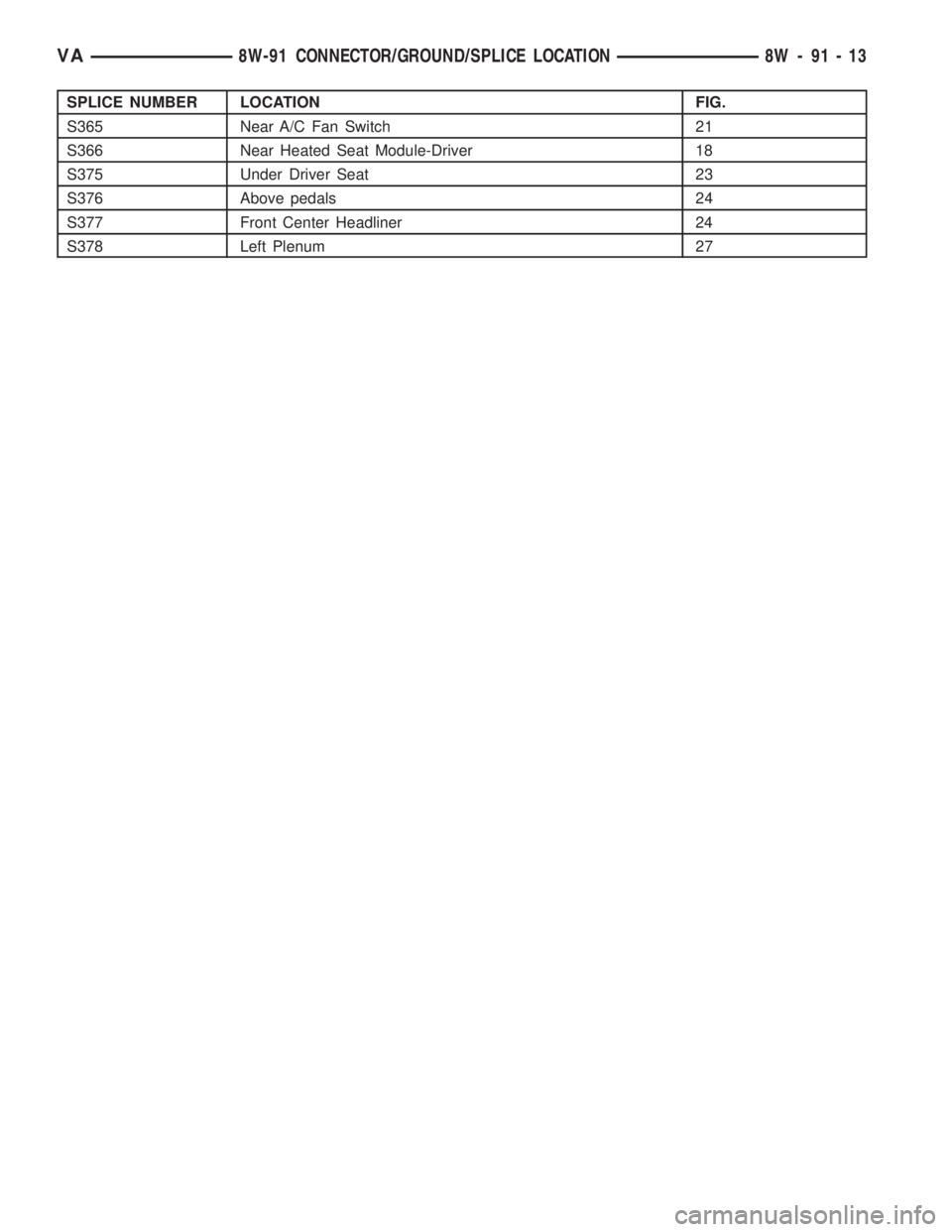

SPLICE NUMBER LOCATION FIG.
S365 Near A/C Fan Switch 21
S366 Near Heated Seat Module-Driver 18
S375 Under Driver Seat 23
S376 Above pedals 24
S377 Front Center Headliner 24
S378 Left Plenum 27
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 13

Fig. 1 ENGINE COMPARTMENT - LEFT FRONT
8W - 91 - 14 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA

Fig. 2 ENGINE COMPARTMENT AND WHEEL SPEED SENSORS
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 15

Fig. 3 FRONT COMPONENTS 1
8W - 91 - 16 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONVA

Fig. 4 FRONT COMPONENTS 2
VA8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 17
