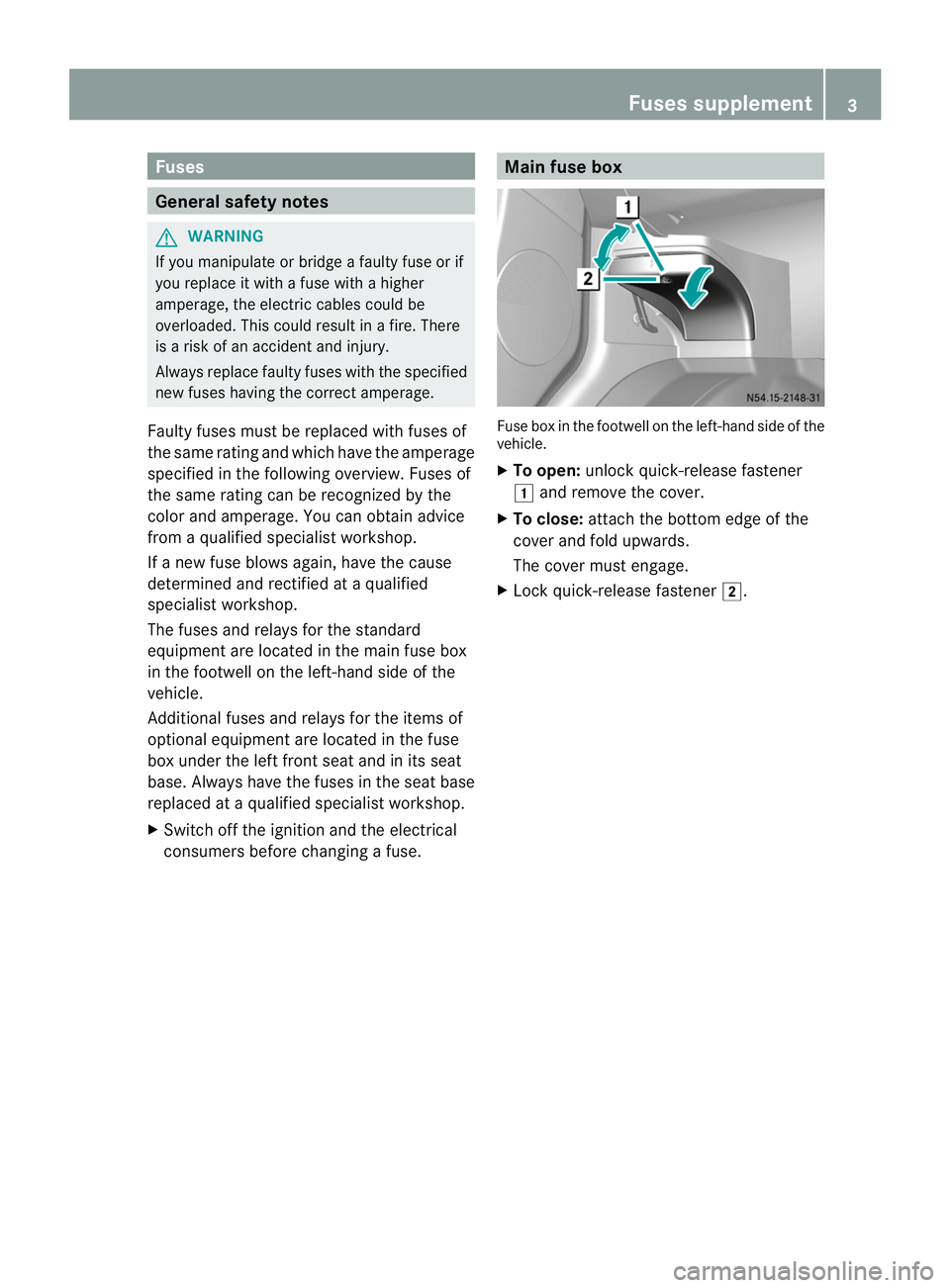

Fuses
General safety notes
G
WARNING
If you manipulate or bridge a faulty fuse or if
you replace it with a fus ewith a higher
amperage, the electric cables could be
overloaded. This could result in a fire. There
is a risk of an accident and injury.
Always replace faulty fuses with the specified
new fuses having the correc tamperage.
Faulty fuses must be replaced with fuses of
the same rating and which have the amperage
specified in the following overview. Fuses of
the same rating can be recognized by the
color and amperage. You can obtai nadvice
from a qualified specialist workshop.
If a new fuse blows again, have the cause
determined and rectified at a qualified
specialist workshop.
The fuses and relays for the standard
equipment are located in the main fuse box
in the footwell on the left-hand side of the
vehicle.
Additional fuses and relays for the items of
optional equipment are located in the fuse
box under the left front seat and in its seat
base. Always have the fuses in the seat base
replaced at a qualified specialist workshop.
X Switch off the ignition and the electrical
consumers before changing afuse. Main fuse box
Fuse box in the footwell on the left-hand side of the
vehicle.
X
To open: unlock quick-release fastener
0002 and remove the cover.
X To close: attach the bottom edge of the
cover and fold upwards.
The cover must engage.
X Loc kquick-release fastener 0003. Fuses supplement
3 Z
Page 6 of 18

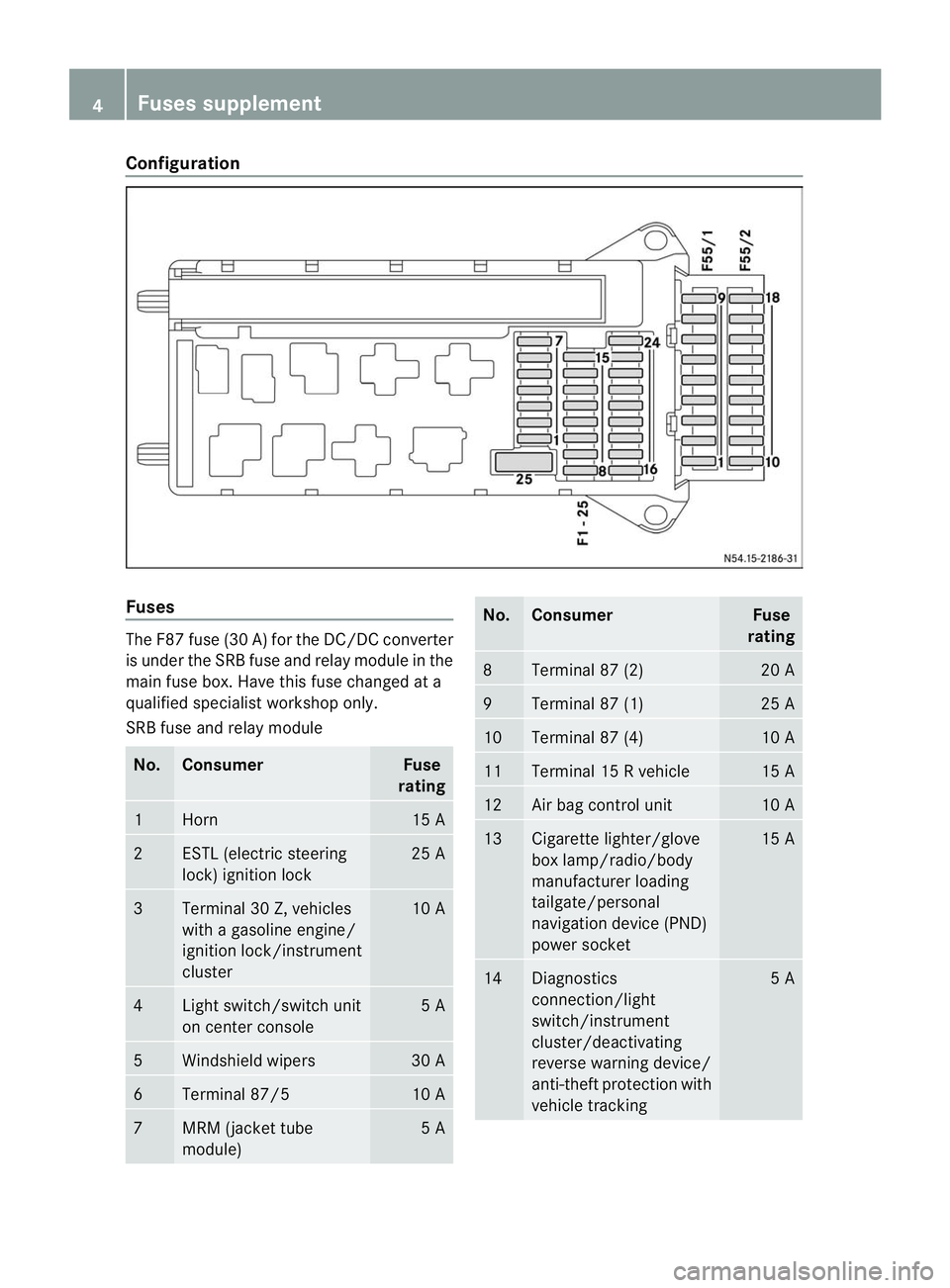

Configuration
Fuses
The F87 fuse (30 A) for th
eDC/D Cconverter
is under the SRB fuse and relay module in the
main fuse box. Have this fuse changed at a
qualified specialist workshop only.
SRB fuse and relay module No. Consumer Fuse
rating 1 Horn 15 A
2 ESTL (electric steering
lock) ignition lock 25 A
3 Terminal 30 Z, vehicles
with a gasoline engine/
ignition lock/instrument
cluster 10 A
4 Light switch/switch unit
on center console 5 A
5 Windshield wipers 30 A
6 Terminal 87/5 10 A
7 MRM (jacket tube
module) 5 A No. Consumer Fuse
rating 8 Terminal 87 (2) 20 A
9 Terminal 87 (1) 25 A
10 Terminal 87 (4) 10 A
11 Terminal 15 R vehicle 15 A
12 Air bag control unit 10 A
13 Cigarette lighter/glove
box lamp/radio/body
manufacturer loading
tailgate/personal
navigation device (PND)
power socket 15 A
14 Diagnostics
connection/light
switch/instrument
cluster/deactivating
reverse warning device/
anti-theft protection with
vehicle tracking 5 A4
Fuses supplement
Page 7 of 18

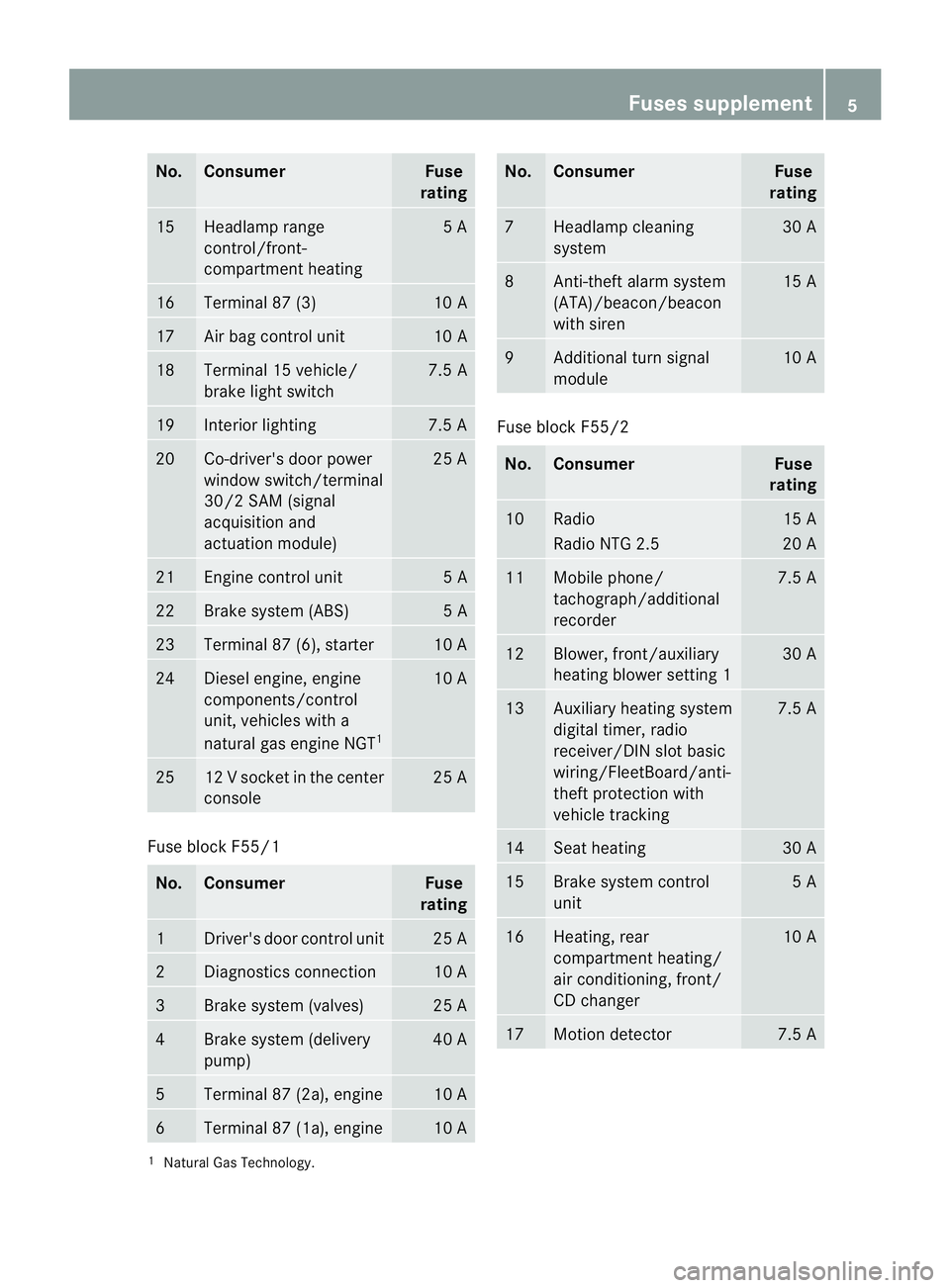

No. Consumer Fuse
rating 15 Headlamp range
control/front-
compartment heating 5 A
16 Terminal 87 (3) 10 A
17 Air bag control unit 10 A
18 Terminal 15 vehicle/
brake light switch 7.5 A
19 Interio
rlighting 7.5 A
20 Co-driver's door power
window switch/terminal
30/2 SAM (signal
acquisition and
actuation module) 25 A
21 Engine control unit 5 A
22 Brake system (ABS) 5 A
23 Terminal 87 (6), starter 10 A
24 Diesel engine, engine
components/control
unit, vehicles with a
natural gas engine NGT
1 10 A
25 12 V socket in the center
console 25 A
Fuse block F55/1
No. Consumer Fuse
rating 1 Driver's door control unit 25 A
2 Diagnostics connection 10 A
3 Brake system (valves) 25 A
4 Brake system (delivery
pump) 40 A
5 Terminal 87 (2a), engine 10 A
6 Terminal 87 (1a), engine 10 A No. Consumer Fuse
rating 7 Headlamp cleaning
system 30 A
8 Anti-theft alarm system
(ATA)/beacon/beacon
with siren 15 A
9 Additional tur
nsignal
module 10 A
Fuse block F55/2
No. Consumer Fuse
rating 10 Radio
Radio NTG 2.5 15 A
20 A
11 Mobile phone/
tachograph/additional
recorder 7.5 A
12 Blower, front/auxiliary
heating blower setting 1 30 A
13 Auxiliary heating system
digital timer, radio
receiver/DIN slot basic
wiring/FleetBoard/anti-
theft protection with
vehicle tracking 7.5 A
14 Seat heating 30 A
15 Brake system control
unit 5 A
16 Heating, rear
compartment heating/
air conditioning, front/
CD changer 10 A
17 Motion detector 7.5 A
1
Natural Gas Technology. Fuses supplement
5 Z
Page 8 of 18

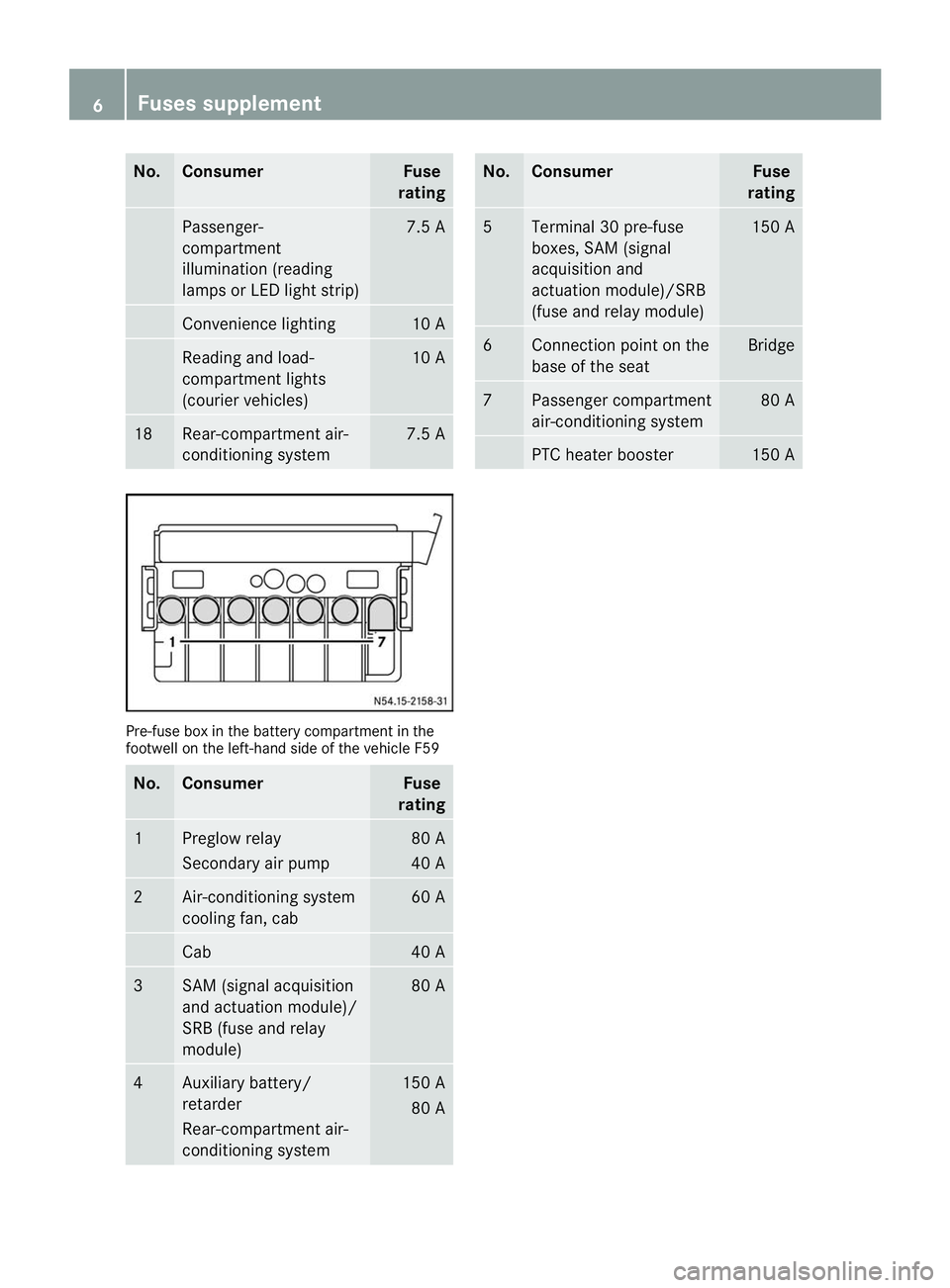

No. Consumer Fuse
rating Passenger-
compartment
illumination (reading
lamps or LED light strip) 7.5 A
Convenience lighting 10 A
Reading and load-
compartment lights
(courie
rvehicles) 10 A
18 Rear-compartment air-
conditioning system 7.5 A
Pre-fuse box in the battery compartment in the
footwell on the left-hand side of the vehicle F59
No. Consumer Fuse
rating 1 Preglow relay
Secondary air pump 80 A
40 A
2 Air-conditioning system
cooling fan, cab 60 A
Cab 40 A
3 SAM (signal acquisition
and actuation module)/
SRB (fuse and relay
module) 80 A
4 Auxiliary battery/
retarder
Rear-compartment air-
conditioning system 150 A
80 A No. Consumer Fuse
rating 5 Terminal 30 pre-fuse
boxes, SAM (signal
acquisition and
actuation module)/SRB
(fuse and relay module) 150 A
6 Connection point on the
base of the seat Bridge
7 Passenger compartment
air-conditioning system 80 A
PTC heater booster 150 A6
Fuses supplement
Page 9 of 18
Relays in the main fuse box
No. Relays Description
R1 K40/9 Horn relay
R2 K40/9 Windshield wiper setting 1/2 relay
R3 K40/9 Starter relay, terminal 15
R4 K40/9 Windshield wipers on/off relay
R5 K40/9 Starter relay, terminal 50
R6 K40/9 Relay, terminal 15 R (normally ope
ncontact) R7 K40/9 Engine control unit relay, terminal 87
R8 K40/9 Relay, terminal 15 (reinforced relay)
Fuse box under the left front seat
Fuse box on the outside of the seat base X
To open: move the front seat to the highest
position.
X Press both latching springs 0001down and
remove the cover.
X To close: attach the bottom edge of the
cover and fold upwards.
The cover must engage. Fuses supplement
7 Z
Page 10 of 18

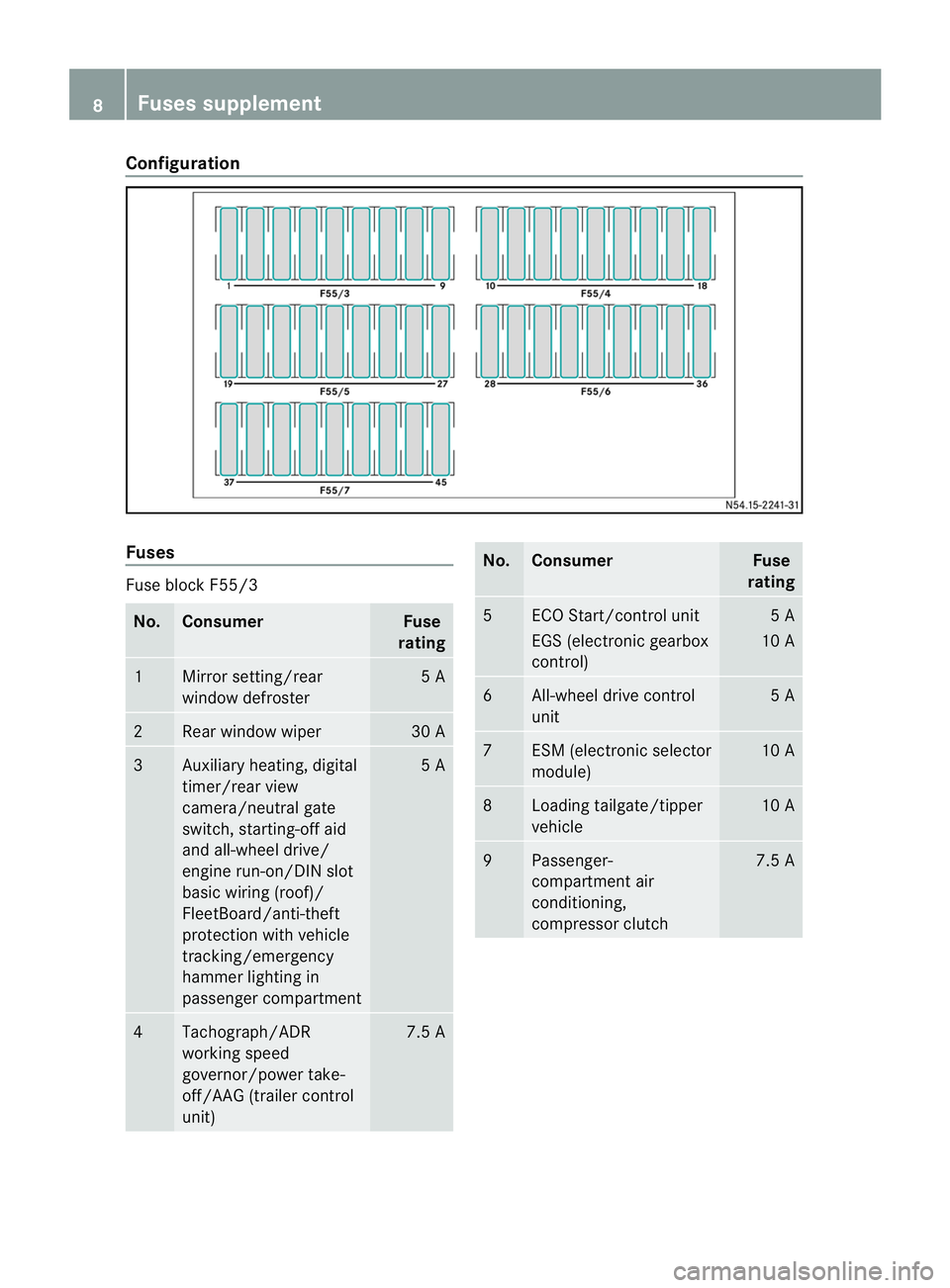

Configuration
Fuses
Fuse block F55/3
No. Consumer Fuse
rating 1 Mirror setting/rear
window defroster 5 A
2 Rear window wiper 30 A
3 Auxiliary heating, digital
timer/rear view
camera/neutral gate
switch, starting-off aid
and all-wheel drive/
engine run-on/DIN slot
basic wiring (roof)/
FleetBoard/anti-theft
protection with vehicle
tracking/emergency
hammer lighting in
passenger compartment 5 A
4 Tachograph/ADR
working speed
governor/power take-
off/AAG (trailer control
unit) 7.5 A No. Consumer Fuse
rating 5 ECO Start/control unit
EGS (electronic gearbox
control) 5 A
10 A 6 All-wheel drive control
unit 5 A
7 ESM (electronic selector
module) 10 A
8 Loading tailgate/tipper
vehicle 10 A
9 Passenger-
compartment air
conditioning,
compresso
rclutch 7.5 A8
