Obser
vethef ollowing points toensur ethat the
ve hicle is properly secured agains trolling away
unin tentionally: #
Alwaysa pply thep arking brake. #
Vehicles with automatic transmission:
engag etransmission position 005D.#
On uphill or downhill inclines: turnthe
front wheels towa rdst he curb. #
On uphill or downhill inclines: securethe
re ar axle wit hachockorano bject without
shar pedges.
% Yo
uc an operat ethe side windo wsforf ive
minutes af tery ou ha veswitched of fthe vehi‐
cle. Manual parking brake
Applying/releasing
theh andbrak elever &
WARNING Risk of skidding or an acci‐
dent bybraking wit hthe parking brake
If yo uh ave tobrak eyour vehicle wit hthe
parking brake, theb raking dis tance is consid‐
erab lylonger and thew heels ma yloc k. There
is an increased risk of skidding and/or acci‐
dent. #
Only brak ethe vehicle wit hthe parking
brak eift he service brak ehasfailed. #
Inthis case, do no tappl ythe parking
brak ewitht oo muc hforce. #
Ifth ew heels loc k,immediately release
th ep arking brak easmuchasr equired
fo rt he wheels totur na gain. &
WARNING Risk offire and an acciden tif
th ep arking brak eisnotreleased
If th ep arking brak eisnotfull yreleased when
driving, thef ollowing situations can occur:
R The parking brak ecan overheat and cause
af ire
R The parking brak ecan lose its holding
function #
Comple tely release thep arking brake
befor edriving off. The brak
elights do no tlight up when youb rake
th ev ehicle wit hthe parking brake.
Generally ,you ma yonlya ppl ythe parking brake
when thev ehicle is stationar y. #
Toappl ythe parking brake: pullhandbrake
le ver 1up as farast he las tpossible de tent.
Whe nthe engine is running ,the 0049
and 0024 (USA) or 0024(Canada) indicator
lamps in theI nstrument Displa ylight up. If
th ev ehicle is in motion, awarning tone
sounds.
% In
vehicles wit hafolding handbrak eleve r,
yo uc an then press handbrak elever 1 down
as farasitw illg o. #
Torelease thep arking brake: onvehicles
wit haf olding handbrak eleve r,firs tp ullh an d‐
brak elever 1 up as farasitw illg o. #
Pullh andbrak elever 1 slightly and press
re lease knob 2. #
Guide handbrak elever 1 down toas farasit
willg o.
The 0049 and0024 (USA) or 0024(Canada)
indica torlamps in theI nstrument Displa ygo
out.
Fo lding theh andbrak elever up or down (only
in vehicles with afolding handbrak elever)
Re quirements:
R The handbrak eleve risa pplied. #
Tofold down theh andbrak elever: push the
handbrak elever down as farasitw illg o. #
Toraise theh andbrak eleve r:pull theh and‐
brak elever up as farasitw illg o. Driving and parking
13 3

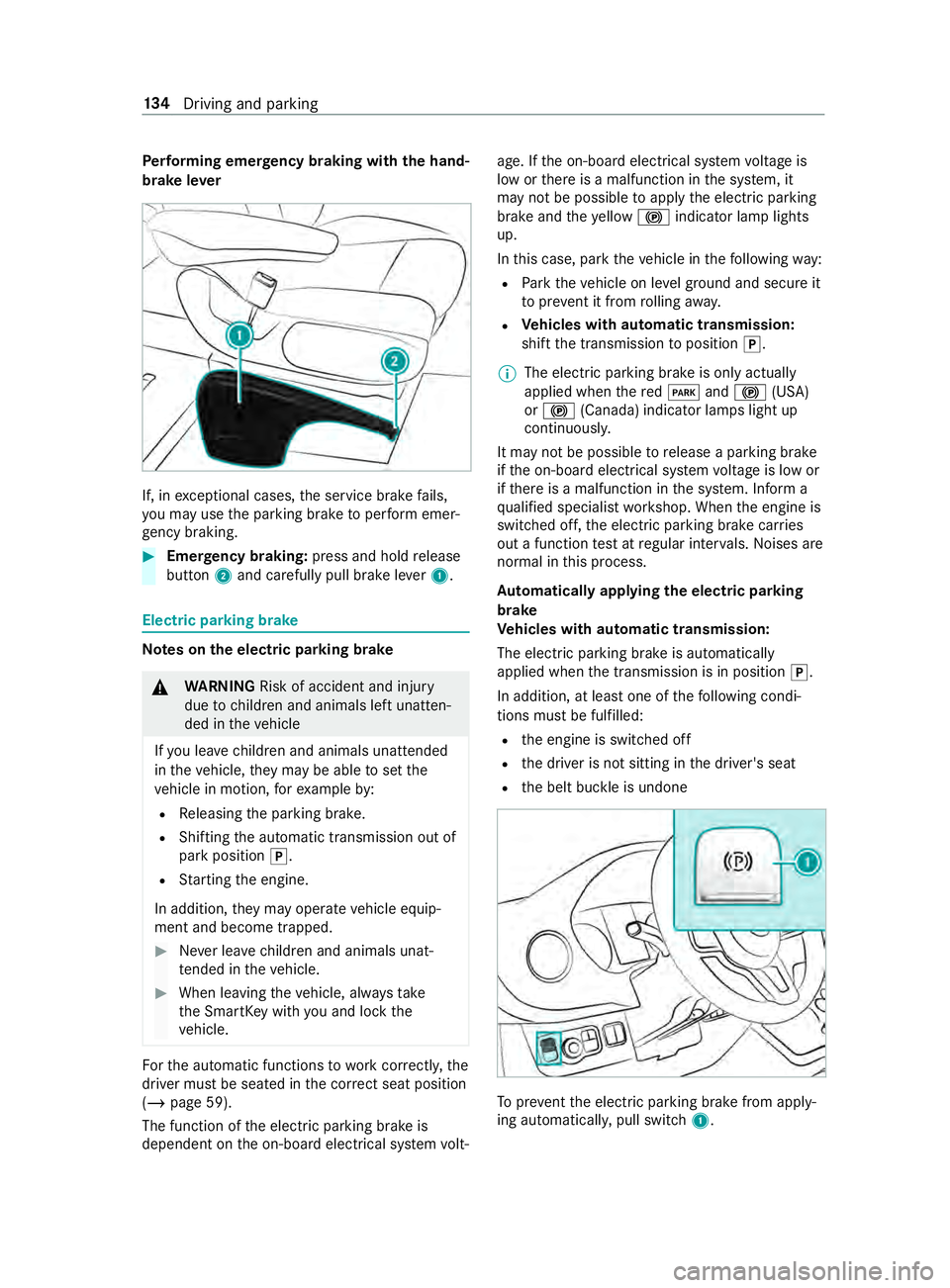

Pe
rforming emer gency braking with theh and‐
brak elever If, in
exceptional cases, thes ervice brak efails,
yo um ayuse thep arking brak etoperform emer‐
ge ncy braking. #
Eme rgency braking: press and hold release
button 2and carefull ypull brak elever 1. Electric parking brake
Note
sont he electric parking brake &
WARNING Risk of accident and inju ry
due tochildren and animals lef tunat ten‐
de dint hevehicle
If yo ul eave children and animals unat tended
in thev ehicle, they ma ybea bletos etthe
ve hicle in motion, fore xamp leby:
R Releasing thep arking brake.
R Shifting thea utomatic transmission out of
par kposition 005D.
R Startin gthe engine.
In addition, they ma yoperat evehicle equip‐
ment and become trapped. #
Neverlea ve children and animals unat‐
te nde dint hevehicle. #
When leaving thev ehicle, alw ayst ake
th eS martK eywit hyou and loc kthe
ve hicle. Fo
rthe automatic functions towo rkcor rectl y,the
driver mus tbeseated in thec orrect sea tposition
(/ page 59).
The function of thee lectric parking brak eis
dependent on theo n-boar delectrical sy stem volt‐ age. If
theo n-boar delectrical sy stem voltag eis
lo wort hereisam alfunction in thes ystem, it
ma ynotbe possible toappl ythe electric parking
brak eand they ellow 0024 indicator lam plights
up.
In this case, par kthe vehicle in thef ollowing way:
R Park thev ehicle on le velg roun da nd secur eit
to prev ent it from rolling away.
R Ve
hicles with automatic transmission:
shif tthe transmission toposition 005D.
% The electric parking brak
eisonlya ctually
applied when ther ed 0049 and0024 (USA)
or 0024 (Canada) indicator lamps light up
continuousl y.
It ma ynotbe possible torelease aparkin gbrake
if th eo n-boar delectrical sy stem voltag eisl owor
if th er eisam alfunction in thes ystem. Infor ma
qu alified specialis tworks hop. When thee ngine is
switched off, thee lectric parking brak ecarries
out afunction test at regular inter vals. Noise sare
normal in this process.
Au tomaticall yapplying the electric parking
brake
Ve hicles with automatic transmission:
The electric parking brak eisautomatically
applied when thet ransmission is in position 005D.
In addition, at leas tone of thef ollowing condi‐
tions mus tbefulfilled:
R thee ngine is switched off
R thed rive risn otsitting in thed rive r's seat
R theb elt buckle is undone To
prev ent thee lectric parking brak efroma pply‐
ing automaticall y,pull switch 1. 134
Driving and pa rking

The electric parking brak
eisalso automatically
applied if ActiveD ista nce Assi stDISTRONI Chas
brought thev ehicle toas tandstill.
In addition ,atleastone of thef ollowing condi‐
tions mus tbefulfilled:
R thee ngine is switched off
R thed rive risn otsitting in thed rive r's seat
R theb elt buckle is undone
R ther eisas ystemm alfunction
R thep owe rsupply is insuf ficient
R thev ehicle is stationar yfor along time
The red0049 and0024 (USA) or 0024(Canada)
indicator lam pinthe instrument displa ylights up.
The electric parking brak eisonlya ctuall yapplied
when ther ed 0049 and0024 (USA) or 0024
(Canada) indicator lamps light up continuousl y.
Re leasing thee lectric pa rking brak eautomat‐
ically
Ve hicles with automatic transmission:
The electric parking brak eofyourvehicle is
re leased when all of thef ollowing condition sare
fulfilled:
R The driver is sitting in thed rive r's seat.
R The driver is belted.
R The engine is running.
R The transmissio nisinposition005Bor005E and
yo ud epress thea ccelera tor
or
Yo us wit ch from transmission position 005Dto
position 005Bor005E.Y ou mus talso depress the
accelerator if tra veling on steep uphill gradi‐
ents.
R Ifth et ransmission is in position 005E,therear-
end door smustbec losed.
App lying/releasing thee lectric pa rking brake
manually &
WARNING Risk of accident and inju ry
due tochildren and animals lef tunat ten‐
de dint hevehicle
If yo ul eave children and animals unat tended
in thev ehicle, they ma ybea bletos etthe
ve hicle in motion, fore xamp leby:
R Releasing thep arking brake.
R Shifting thea utomatic transmission out of
par kposition 005D. R
Startin gthe engine.
In addition, they ma yoperat evehicle equip‐
ment and become trapped. #
Neverlea ve children and animals unat‐
te nde dint hevehicle. #
When leaving thev ehicle, alw ayst ake
th eS martK eywit hyou and loc kthe
ve hicle. #
Toappl y:press switch 1.
When thee lectric parking brak eisapplied,
th er ed 0049 and0024 (USA) or 0024(Can‐
ada) indicator lamps light up in thei nstru‐
ment displa y.The electric parking brak eis
onl yactuall yapplied when ther ed 0049
and 0024 (USA) or 0024(Canada) indicator
lamps light up continuousl y.
It is also possible toappl ythe electric parking
brak ewhen thei gnition is switched off. #
Torelease: pull switch 1.
The red0049 and0024 (USA) or 0024(Can‐
ada) indicator lamps in thei nstrument display
go out.
Yo um ayonlyrelease thee lectric parking
brak eift he ignition is switched on wit hthe
st art/ stop button. Driving and parking
13 5

Depending on
thev ehicle's equipment, ther adar
sensor sareintegrated behind theb umpers
and/or behind ther adiator grill. Keep these parts
free of dirt, ice and slush (/ page183). The sen‐
sor sm ustn otbe co vered, fore xamp leby bicycle
ra ck s, overhanging loads or sticke rs.A fter ac olli‐
sion, ha vethef unction of ther adar sensors
ch eckedataq ualified specialis tworks hop as
damag e(both visible or non-visible) ma yhave
occur redtot he bumper or radiator trim. Fu
nction of driving sy stems and driving
saf etys ystems In
this section, youw illfind information abou tthe
fo llowing driving sy stems and driving saf etys ys‐
te ms:
R ABS ( Anti-lock braking system)
(/ page137)
R ASC (Acceleration SkidControl)
(/ page137)
R BAS(Bra ke Assist System) (/ page137)
R ESP ®
(Electronic Stability Program)
(/ page138)
R EBD ( Electronic Brakeforce Distribution)
(/ page139)
R ActiveB rake Assi st (/ pag e139)
R Cruise control (/ page141 )
R ActiveD ista nce Assi stDISTRONIC
(/ page 142)
R Hill star ta ssist
R HOL Dfunction (/ page145)
R Parking Assis tPARKTRONIC
R Rear vie wcamera
R 360° Camera
R ATTENTION ASSIS T(/ pag e146)
R Blind Spo tAssist ( / pag e147)
R ActiveL aneK eeping Assis t(/pag e150) Fu
nctions of ABS (Anti-loc kBraking Sy stem) Obser
vethei mp ortant sa fety guideline sfor the
driving saf etys ystem.
ABS cont rols theb rake pressur eincritical situa‐
tions:
R thew heels ar epreve nted from lo cking when
braking, e.g. during maximum full-s topb rak‐
ing or when ther eisi nsufficient tir etraction. R
thes teerability of thev ehicle in term sof
ph ysical possibilities is ensured when brak‐
ing.
R ABSisa ctivefroms peeds of appr ox.3m ph
(5 km/h). On aslipper yroad sur face, ABS
inter venes evenify ou onl ybrake gently.
Sy stem limitations
If th er eisam alfunction and they ellow 0025 ABS
wa rning lam plight supc ontinuousl yinthe instru‐
ment displa yafter startin gthe engine, ABS may
be impaired or inoperative.
If ABS inter venes, youw illfeel ap ulsing in the
brak epedal. The pulsating brak epedal ma ybean
indication of hazardous road condition sand func‐
tions as areminder totake extrac arew hile driv‐
ing.
If ABS in terv enes: keep theb rake pedal firm ly
depressed until theb raking situation has passed.
To car ryout maximum full-s topb raking:
dep ress theb rake pedal wit hfull forc e. Fu
nction of BAS(Brak eAssis tSystem) &
WARNING Risk of an accident caused by
am alfunctio ninBAS (Brak eAssistSys‐
te m)
If BA Sism alfunctioning ,the braking dis tance
in an emergency braking situation is
increased. #
Depress theb rake pedal wit hfull force
in emer gency braking situations. ABS
pr eve nts thew heels from locking. BA
Ss uppo rtsy ou wit hadditional braking forc ein
an emer gency braking situation.
If yo ud epress theb rake pedal quickl y,BA Sis
acti vated:
R BASa utom atically boosts theb raking forc eof
th eb rakes
R BASc an sho rten theb raking dis tance
R ABS pr eventst he wheels from locking
When your elease theb rake pedal, theb rakes
function as usual again. BASisd eactivated. Fu
nctions of ASR (Acceleration Skid Control) ASR can neither
reduce ther isk of an accident
nor override thel aw sofp hysics if thed rive rd oes
no tp ay attention when pulling away or accelerat‐
ing. ASR is onl yanaid. Alw aysa dap tyour driving Driving and parking
137

st
yletos uitthep reva iling road and weather con‐
ditions.
If yo ua ctivat eord eactivat ethe all-wheel driv ein
av ehicle wit hthis option, ASR will be deactivated
fo rt he duration of thea ctivation/deactivation
process.
Ve hicles without steering wheel but tons: if
ASR is malfunctioning, the00E5 indicator lamp
lights up while thee ngine is running and the
engine output ma ybereduced (/ page23).
ASR impr ovestraction, i.e. thet ransfer of po wer
from thet ires tother oad sur face, foras ustained
period and, thereb y,also impr ovesthe driving
st abilit yoft hevehicle. If thed riving wheels start
to spin, ASR brakes individuald rive wheels and
limits thee ngine torque. ASRthus significantly
assists youw hen pullin gawaya nd accelerating,
especiall yonw etor slippe ryroads.
If traction on ther oad sur face is no tsufficient,
eve nASR will no tallow youtop ullaway without
dif ficulty .The typ eoftires and totalwe ight of the
ve hicle as well as theg radient of ther oad also
pla yac rucial role.
If AS Rinter venes, the00E5 warning lam pinthe
instrument display flashes. Fu
nctions of ESP ®
(Electronic Stability Pro‐
gr am) &
WARNING Risk of skidding if ESP ®
is
malfunctioning
If ESP ®
is malfunctioning ,ESP ®
canno tcarry
out vehicle stabilization. In addition ,other
driving saf etys ystems ar eswitched off. #
Driv eonc arefull y. #
Have ESP ®
ch eckedataq ualified spe‐
cialis tworks hop. &
WARNING Risk of skidding if ESP ®
is
deactivated
If yo ud eactivat eESP®
,E SP ®
canno tcarry out
ve hicle stabilization. #
ESP ®
shoul donlybed eactivated in the
fo llowing situations. Do no
topera tethev ehicle on aroller dynamo me‐
te r( e.g. forap erform anc etest). If youh ave to
operat ethe vehicle on aroller dynamo meter,con‐
sult aqualified specialis tworks hop beforehand. If
yo ua ctivat eord eactivat ethe all-wheel driv ein
av ehicle wit hthis option, ESP ®
will be deactiva‐
te df or thed uration of thea ctivation/deactiva‐
tion process.
If ESP ®
is malfunctioning or deactivated, the
00E5 warning lam plight supw hilethee ngine is
ru nning and thee ngine output ma ybereduced
(/ page23).
% Onl
yuse wheels wit hthe recommended tire
sizes. Only then will ESP ®
function properly. Ac
tivating/deactivatin gESP®
(Electronic Sta‐
bility Prog ram) On-boa
rdcompu ter:
4 Settings 5
DriveAssist 5
ESP (ESP) #
Select Ein(On) or Aus00BB (Off). Fu
nctions of ESP ®
Crosswind Assist Crosswind Assis
tdoes no tworkifE SP®
is deacti‐
va tedord isabled due toam alfunction.
Crosswind Assis tdoes no treact under thef ollow‐
ing conditions:
R The vehicle is subjected tosevere jolts and
vib rations, e.g .asar esult of une vens urfaces
or po tholes.
R The vehicle loses traction, e.g. on sno worice
or when hydroplaning.
R The driver is per form ing sudden and lar ge
st eering mo vements.
Crosswind Assis tisoperational again as soon as
th ed riving conditions retur nton ormal.
Crosswind Assi stdetects stro ng crosswind gu sts
th at can impair abilit yofyourvehicle todrive
st ra ight ahead. Crosswin dAssis tinter venes
depending on thed irection and stre ngt hoft he
crosswind.
As tabilizing brak eapplicatio nhelps youtok eep
th ev ehicle on trac k.
Information is shown in thei nstrument clus terin
th ee vent of aclearly discernible inter vention by
Crosswind Assist.
Crosswind Assis tisactiveabove avehicle speed
of 50 mph(80 km/h )whent he vehicle is driving
st ra ight ahead or cornering gently. 13 8
Driving and pa rking

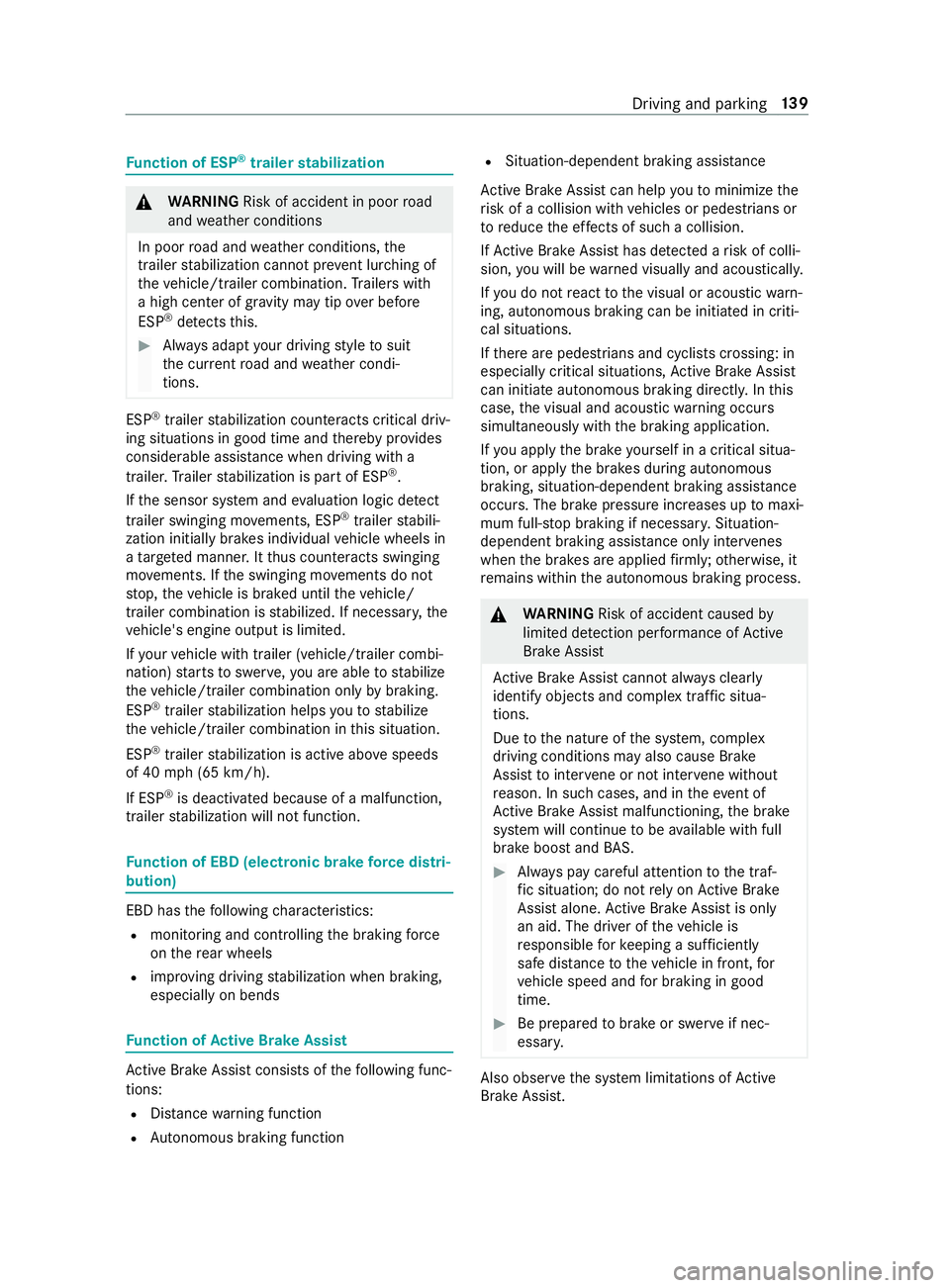

Fu
nction of ESP ®
trailer stabilization &
WARNING Risk of accident in poo rroad
and weather conditions
In poor road and weather conditions, the
traile rstabilizatio ncanno tpreve nt lu rching of
th ev ehicle/trailer combination .Trailer sw ith
ah igh cen terofg ravity ma ytipover before
ESP ®
de tects this. #
Alwaysa dap tyour driving styletos uit
th ec urrent road and weather condi‐
tions. ESP
®
trailer stabilizatio ncoun tera cts critica ldriv‐
ing situations in goo dtime and thereb yprovides
conside rable assis tance when driving wi th a
traile r. Trailer stabilizatio nispartofE SP®
.
If th es ensor sy stem and evaluatio nlogic de tect
trailer swinging mo vements, ESP ®
trailer stabili‐
zation initiall ybrake sindividual vehicle wheels in
at arge tedm anner .Itthus cou nteracts swinging
mo vements. If thes winging mo vements do not
st op, thev ehicle is braked until thev ehicle/
trailer combination is stabilized. If necessar y,the
ve hicle's engine output is limited.
If yo ur vehicle wit htrailer (vehicle/trailer combi‐
nation) starts toswer ve,y ou ar eable tostabilize
th ev ehicle/trailer combination onl ybybraking.
ESP ®
trailer stabilizatio nhelps youtos tabilize
th ev ehicle/trailer combination in this situation.
ESP ®
trailer stabilizatio nisactiveabove speeds
of 40 mph(65 km/h).
If ESP ®
is de activated because of amalfunction,
trailer stabilizatio nwill no tfunction. Fu
nction of EBD (electronic brak eforce distri‐
bution) EB
Dh asthef ollowing characteristics:
R monitoring and controllin gthe braking force
on ther ear wheels
R impr oving driving stabilizatio nwhen braking,
especiall yonb ends Fu
nction of Activ eB rake Assi st Ac
tiveB rake Assi stconsi stsoft hefollowing func‐
tions:
R Distance warning function
R Autonomous braking function R
Situation-dependent braking assis tance
Ac tiveB rake Assi stcan hel pyou tominimize the
ri sk of acollision wit hvehicles or pedestrians or
to reduce thee ffects of suc hacollision.
If Ac tiveB rake Assi sthas de tected arisk of colli‐
sion, youw ill be warned visuall yand acousticall y.
If yo udon otreact tothev isual or acoustic warn‐
ing, autonomous brakin gcan be initiated in criti‐
cal situations.
If th er ea repedestrians and cyclists crossing: in
especiall ycritical situations, ActiveB rake Assi st
can initiat eauton omous braking di rectl y.In this
case, thev isual and acoustic warning occurs
simultaneousl ywitht he braking application.
If yo ua ppl ythe brak eyourself in acritical situa‐
tion, or appl ythe brakes during autonomous
braking, situation-dependent braking assis tance
occu rs.T he brak epressur eincreases up tomaxi‐
mum full-s topb raking if necessar y.Situation-
dependent braking assis tance only inter venes
when theb rake sa reapplied firm ly;o therwise, it
re mains within thea utonomous braking process. &
WARNING Risk of accident caused by
limited de tection per form anc eofA ctive
Brak eAssist
Ac tiveB rake Assi stcanno talway sc lea rly
identify object sand comple xtraffic situa‐
tions.
Du etot he natur eofthe sy stem, complex
driving conditions ma yalso cause Brake
Assis ttointervene or no tinter vene wi thout
re ason .Ins uchc ases, and in thee vent of
Ac tiveB rake Assi stmalfunctioning, theb rake
sy stem will continue tobe available wit hfull
brak eboos tand BAS. #
Alwaysp aycareful attention tothet raf‐
fi cs ituation; do no trelyo nA ctiv eBrake
Assi stalone. ActiveB rake Assi stis only
an aid. The driver of thev ehicle is
re sponsible fork eeping asufficiently
saf ed ista nce tothev ehicle in front, for
ve hicle speed and forb raking in good
time. #
Be prepare dtobrake or swer veif nec‐
essar y. Also obser
vethes ysteml imitations of Active
Brak eAssist. Driving and pa
rking 13 9

Sy
stem limitations
The sy stem ma ybeimpaired or ma ynotfunction
in thef ollowing situations:
R The sensor sareaffected bysno w,rain, fogor
heavy spr ay.
R The sensor saredirty ,fogged up, damaged or
co vered.
R The sensor sareaffected byinter fere nce from
ot her radar sources, e.g. strongradar reflec‐
tions in parking garage s.
R Ifal oss of tir epressur eorad efectivetireh as
been de tected and displa yed.
R Full sy stem per form anc eisn otavailable fora
fe ws econd safter swit ching on thei gnition or
af te rd riving off.
The sy stem ma ynotreact cor rectl yint hefollow‐
ing situations:
R In comple xtraffic situations, objectsm aynot
al wa ys be clear lyde tected.
R Pedestrians or vehicles mo vequickl yintot he
de tection rang eoft he sensors.
R Pedestrians ar eobscured by other objects.
R In bends wit hanarrow radius. Setting
Activ eB rake Assi st Re
quirements:
R The ignition is switched on
On-boar dcomputer:
4 Settings 5
DriveAssist
5 Aktive rBrems-Assistent (ActiveBrake Assist)
The following settings ar eavailable:
R Early
R Medium
R Late #
Select asetting.
% Af
tert he ignition has been switched of fand
th en bac konagain, Medium is setbyd efault. Cruise control
Fu
nction of cruise control
Cruise cont rola ccelerates and brakes thev ehicle
automaticall yinorder tomaintain apreviously
st ored speed.
If yo ua ccelerat etoovertake, fore xamp le,the
st ored speed is no tdele ted. If your emo veyour fo
ot from thea ccelerator pedal af tero vertaking,
cruise control will resume speed regulation back
to thes tore ds peed.
Cruise contro lisoperated using thec orrespond‐
ing steering wheel buttons. Youc an stor ea ny
ro ad speed abo ve15 mp h(20 km/h).
If yo uf ail toadap tyour driving style, cruise con‐
trol can neither reduce ther isk of an accident nor
ove rride thel aws of ph ysics. It canno ttak ei nto
account road, weather or traf ficc onditions.
Cruise control is only an aid. Youa re re sponsible
fo rt he dis tance tothev ehicle in front, forv ehicle
speed, braking in good time and fors taying in
yo ur lane.
Displa ysinthem ultifunction display
The status of cruise control and thes tore ds peed
ar es hown in them ultifunction displa y. Displ
ayintheI nstrument Displa y(color display)
1 Cruise cont roliss elected
2 Setspeed gr ay:s peed is stored, cruise con‐
trol is deactivated
3 Setspeed green: speed is stored, cruise con‐
trol is activated
Sy stem limitations
Cruise control ma ybeunable tomaintain the
st ored speed on uphill gradients. The stored
speed is resumed when theg radient evens out.
On long and steep downhill gradients, yous hould
ch ang edowntoa lowe rgear in good time. Take
particular no teofthis when driving aladen vehi‐
cle. By doing so, youw ill mak euse of the
engine' sbraking ef fect. Thi srelie vest he load on
th eb rake system and pr events theb rake sf rom
ove rheating and wearing tooq uickl y.
Do no tuse cruise control in thef ollowing situa‐
tions:
R In traf fics ituations whe refrequent speed
ch anges ar erequired, e.g. in heavy traf ficor
on winding roads. Drivin
gand parking 141

The
field of vision and other functions of ther ear
vie wc amer amaybe restricted du etoadditional
accesso ries on ther ear of thev ehicle (e.g.
license plat ebrack et or bicycle rack ).
% The inside
rearvie wmirro rd ispla ycontrast
ma ybei mpaire dd uetoincident sunligh tor
ot her light sources. In this case, pa yparticu‐
lar attention.
% Ha
ve thei nside rearvie wmirro rr epaired or
re placed if its use is considerabl yrestricted,
fo re xamp lethro ugh pixel er rors.
% Objects
that ar enotat ground le vela ppear
fur ther aw ay than they actuall yare.
Examples of suc hobjects:
R theb umper of avehicle par kedb ehind
R thed rawbar of atrailer
R theb all nec kofat railer coupling
R thet ail-en dofat ruck
R slanted posts
Displaying and hiding ther ear-vi ewmirror
displ ay
Displaying #
Engage reve rseg ear.
The rear vie wcamer aimag eappear sinthe
lef ta reaoft he inside rearvie wmirro r.
% Be
awareoft he sy stem limitations of ther ear
vie wc amer awithr ear-vie wmirro rd ispla y.
Hiding #
Engag eanother gear.
or #
Swit chofft he engine.
The displa ywill be hidden af teras horttime. AT
TENTION ASSI ST Fu
nction of ATTENTION ASSI ST
AT TENTION ASSIS Tcan assis tyou on long,
mono tonou sjou rney s, e.g. on free ways and
ex pressw ays. If ATTENTION ASSIS Tdetects ind i‐
cator soffatigue or increase dlap sesinc oncen‐
tration on thep artoft he driver ,itsuggests taking
ab reak.
AT TENTION ASSIS Tisonlyana id. It cannot
alw aysd etect dr owsiness or increased lapses in
concentration in good time. The sy stem is no ta
substitut efor aw ell-res teda nd attentiv edrive r.
On long journe ys,tak er egular and timel ybreaks
th at allo wyoutorest properly. Yo
uc an choose between tw osettings:
R Standard: normal sy stem sensitivity
R Sensitive: higher system sensitivity .The
driver is warned earlier and thea ttention le vel
de tected bythes ystem (Attention Le vel) is
adap teda ccordingly.
If fatigue or increased lapse sinconcentration are
de tected, theATTENTION ASSIST: Take aBreak!
wa rning appear sinthe Instrument Displa y.Yo u
can acknowledge them essag eand take ab reak if
necessar y.Ifyo udon ottake ab reak and ATTEN‐
TION ASSIS Tcontinues todetect increased lap‐
ses in concentration, youw ill be warned again
af te ram inimu mof15m inutes. Instrument Displa
y(color display)
Yo uc an ha vethef ollowing status information for
AT TENTION ASSIS Tdispla yedint he Assis tance
menu of theo n-boar dcomputer:
R The journe ylengt hsince thel astb reak
R The attention le veld etermined byATTENTION
ASSIS T:
- The fuller thec ircle is, theh igher the
de tected attentio nleve lis
- The circle in thec enter of thed isplay
em pties from theo utside in wardsas
attentiveness decreases Instrument Displa
y(blac kand whit edisplay) 14 6
Driving and pa rking

Yo
uc an ha vethef ollowing status information for
AT TENTION ASSIS Tdispla yedint he Assis tance
menu of theo n-boar dcomputer:
R The journe ylengt hsince thel astb reak
R The attention le veld etermined byATTENTION
ASSIS T:
- The fuller theb ar is, theh igher thed etec‐
te da ttention le velis
- The bar em pties as attentivenes sdecrea‐
ses
If AT TENTION ASSIS Tcann otcalculat ethe atten‐
tion le vela nd canno tissue awarning ,the Atten-
tion Level messageappears.
If AT TENTION ASSIS Tisdeactivated, the00D7
symbol appear sinthe assis tance graphi cinthe
instrument display whenthee ngine is running.
AT TENTION ASSIS Tisactivated automatically
when thee ngine is re-sta rted. The las tselected
sensitivity le velremain sstore d.
Sy stem limitations
AT TENTION ASSIS Tisactiveint he37 mph
(60 km/h) to124m ph (200 km/h )spee drange.
Th ef unctionality of ATTENTION ASSIS Tisrestric‐
te d, and warnings ma ybedelayedorn otoccur at
all, in thef ollowing situations:
R The journe ylasts less than appr oximately
30 minutes
R The road condition is poor (une venr oad sur‐
fa ce or po tholes)
R The vehicle is subjected toas tron gc rosswind
R Youh ave asporty drivin gstyle (hig hcorner‐
ing speeds or high ratesofa cceleration)
R The time is se tincor rectly
R Youc hang elane sand vary your spee dfre‐
qu ently in activ edriving situations
The ATTENTION ASSIS Tdrow sines sora lertness
assessment is dele teda nd restar tedw hen con‐
tinuin gthe journe yinthefollowing situations:
R Ifyo us wit ch offt he engine
R Ifyo uu nfas teny our seat belt and open the
driver's door (e.g. chang edrive rs or take a
break) Setting
ATTENTION ASSI ST
On-boar dcomputer:
4 Settings 5
DriveAssist
5 Attention Assist (Attention Assist)
Setting options
The following settings ar eavailable:
R Standard
R Sensitive
R Off #
Select asetting. Blin
dSpotA ssist Fu
nction of Blind Spo tAssis twith exitwa rn‐
ing
Blind Spo tAssis tuses tw olateral, rear-facing
ra dar sensor stomonitor thea read irectl ynextto
and on thes ide behind thev ehicle.
% US
Ao nly:
This device has been appr ovedbyt he FCC as
a" Vehicular Radar Sy stem". The radar sensor
is intended foru se in an automotiv eradar
sy stem onl y.Re mo val,ta mp ering, or altering
of thed evice will void an ywarranties, and is
no tp ermit tedbyt he FCC. Do no ttamper
with, alter or use in an ynon-appr ovedw ay.
An yu nauthorize dmodificatio ntothis device
could void theu ser ’sauthority tooperat ethe
equipment. &
WARNING Risk of accident despit eBlind
Spo tAssist
Blind Spo tAssis treacts neither tostationary
object snortovehicles approaching and over‐
ta king youatag reatly di fferent speed.
As aresult, Blind Spo tAssis tcanno twarn
driver sinthese situations. #
Alwaysp aycareful attention tothet raf‐
fi cs ituation and maintai nasafed is‐
ta nce at thes ide of thev ehicle. Blind Spo
tAssis tiso nlyana id. It ma yfail to
de tect some vehicles and is no substitut efor
attentiv edriving. Alw ayse nsur ethat ther eiss uf‐
fi cient dis tance tothes ide foro ther road users
and obs tacles.
If av ehicle is de tected ab oves peeds of appr ox‐
imatel y7.5mp h(12 km/h) and this vehicle sub‐
sequentl yenter sthe monitoring rang ed irec tly
next toyour vehicle, thew arning lam pinthe out‐
side mir rorlights up red. Driving and parking
147

R

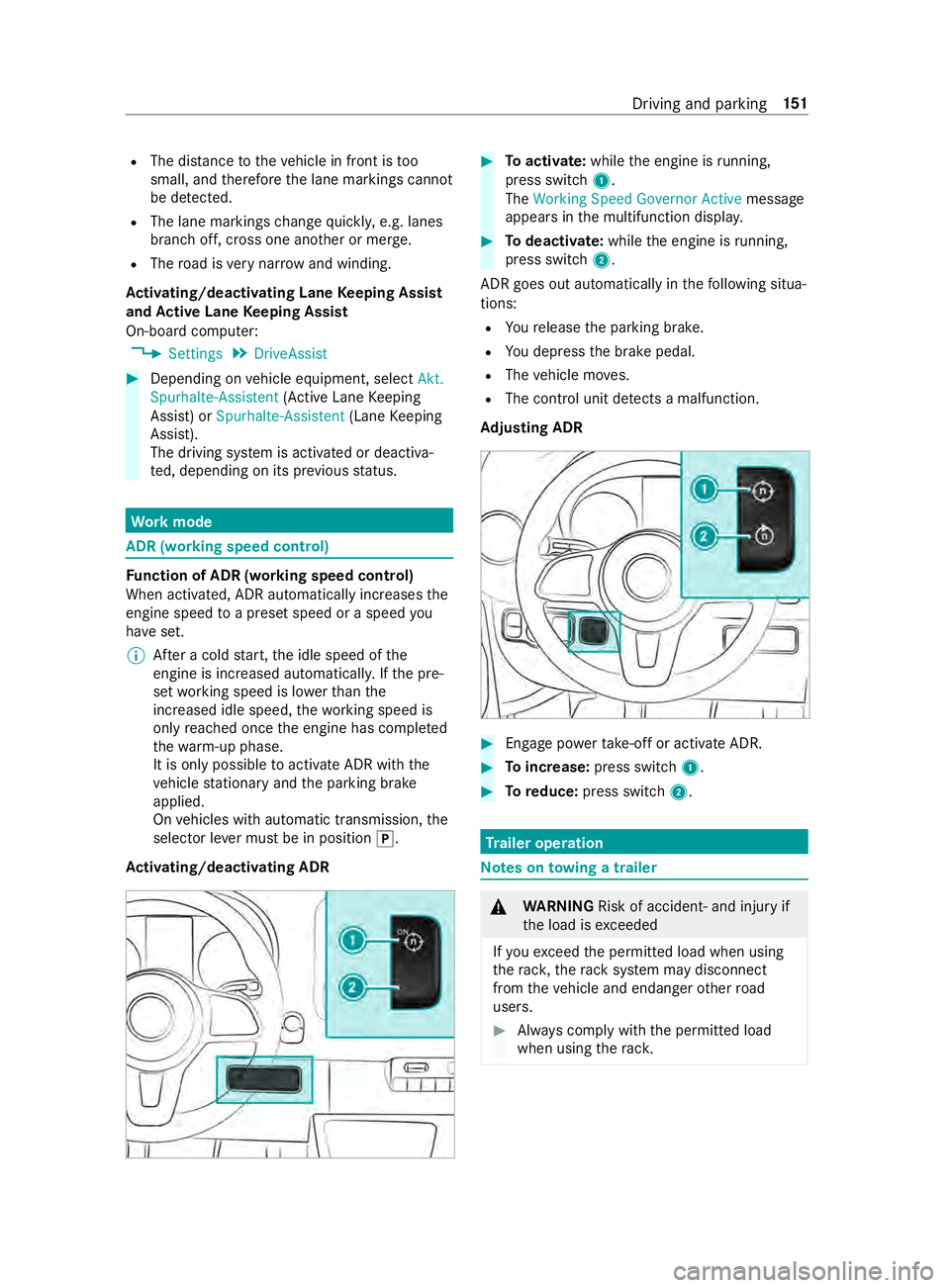

The dis tance tothev ehicle in front is too
small, and therefor ethe lane markings cannot
be de tected.
R The lane markings chang equickl y,e.g. lanes
branc hoff,c ross one ano ther or mer ge.
R The road is very nar row and winding.
Ac tivating/deactivatin gLaneK eeping Assist
and Activ eL aneK eeping Assist
On-boar dcomputer:
4 Settings 5
DriveAssist #
Dependin gonvehicle equipment, select Akt.
Spurhalte-Assistent (ActiveLane Keeping
Assist) or Spurhalte-Assistent (LaneKeeping
Assist).
The driving sy stem is activated or deactiva‐
te d, depending on its pr evious status. Wo
rkmode AD
R(wo rkings peed control) Fu
nction of ADR (working speed control)
When activated, ADRa utomaticallyincreases the
engine speed toap rese ts peed or aspeed you
ha ve set.
% Af
terac oldstart, thei dle speed of the
engine is increased automaticall y.Ifth ep re‐
se tw orking speed is lo werthan the
inc reased idle speed ,the working speed is
onl yreached once thee ngine has comple ted
th ew arm-up phase.
It is only possible toactivat eADR withthe
ve hicle stationar yand thep arking brake
applied.
On vehicles wit hautomatic transmission, the
selector le verm ustbeinp osition005D.
Ac tivating/deactivatin gADR #
Toactivate: whilethee ngine is running,
press switch 1.
The Working Speed Governo rActive messa ge
appear sinthe multifunction displa y. #
Todeactivate: whilethee ngine is running,
press switch 2.
ADR goe soutautomatical lyin thef ollowing situa‐
tions:
R Your elease thep arking brake.
R Youd epress theb rake pedal.
R The vehicle mo ves.
R The control unit de tects am alfunction.
Ad justin gADR #
Engag epowe rtake-o ffor acti vate ADR. #
Toincrease: press switch 1. #
Toreduce: press switch 2. Tr
aile roperation Note
sont owing atrailer &
WARNING Risk of accident‑ and injur yif
th el oad is exceeded
If yo ue xceed thep ermitted load when using
th er ack, ther acks ystemm aydisconnect
from thev ehicle and endanger other road
users. #
Alwaysc ompl ywitht he permitted load
when using ther ack. Driving and pa
rking 151
